USER MANUAL STV-IR-3255-3 Irradio

Mechanical assembly with black metal frame and mounting bracket (no text or symbols visible)

Art. 149302133

Wall bracket with three joints for 32"-55" TV

Technical line drawing of a structural frame assembly with mounting flanges (no text or symbols)

Black-and-white photo of a plastic bag with metal screws and a black plastic clip labeled 'SERVICE' (no readable text or symbols on the items)

Riga Componente Q.tà Riga Componente		Q.tà
4	Vite M6x60mm	4		10	Vite M4x12mm	4
5	Tassello da muro M6x60mm	4 11			Vite M4x30mm	4
6	Fermacavo	2		12	Vite M5x12mm	4
7	Copridado	8		13	Vite M5x30mm	4
8	Livella	1		14	Vite M6x12mm	4
9	Rondella M6x16	4		15	Vite M6x30mm	4

Technical line drawing of a mechanical assembly with two vertical supports and labeled components (no text or symbols)

Pure mechanical diagram showing linkage components with no text or symbols

Technical line drawing of a mechanical assembly with circular components and a central hub (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a room layout with a central table and wall-mounted equipment (no text or symbols)

Top-down schematic of a rectangular device with four circular components and central display (no text or symbols)

Technical line drawing of a mechanical device mounted on a wall-mounted frame (no text or symbols visible)

Technical line drawing of a mechanical device with rollers and a conveyor belt (no text or symbols)

Technical line drawing of a mechanical bracket with mounting feet and circular holes (no text or symbols)

Technical line drawing of a mechanical assembly with circular components and mounting brackets (no text or symbols)

Technical line drawings of industrial machinery components, showing front and side views with no visible text or symbols.

32" (81cm) to 55" (140cm) TV wall mount – full motion

ASSEMBLY GUIDE

Please, read the instructions carefully and keep them for future reference. Do not use this appliance for purposes other than those described.

Safety information and specifications

CAUTION: Do not use this product for any purpose not explicitly specified.

Using for other cases may cause properly damage or personal injury. On the other side if you cannot understand of instruction or doubts about safety of this, contact to your customer service or call a qualified contractor. Melchioni is not responsible for any damage or injury due to incorrect installation or use. The weight of your TV should not be more than 40 kg. The wall must be capable of supporting weight of your TV and wall mount together. Keep these times away from young children.

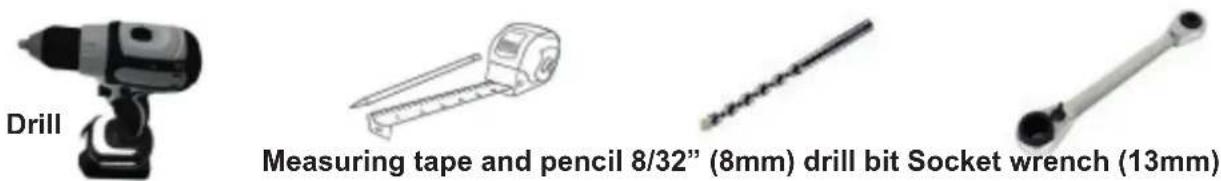

You will need the following tools to assemble your TV wall mount:

Drill Measuring tape and pencil 8/32" (8mm) drill bit Socket wrench (13mm)

Screwdriver Level Hammer

Package contents

Make sure that you have all the hardware necessary to assemble your TV wall mount:

1- Vertical assembled Brackets (Qty. 2)

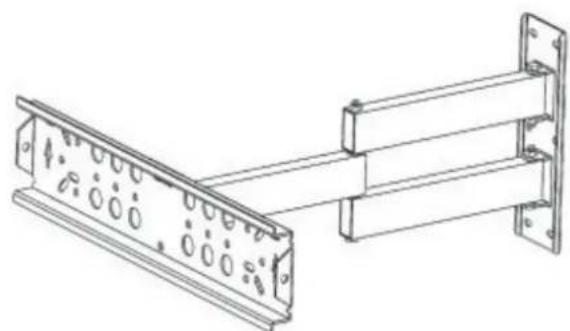

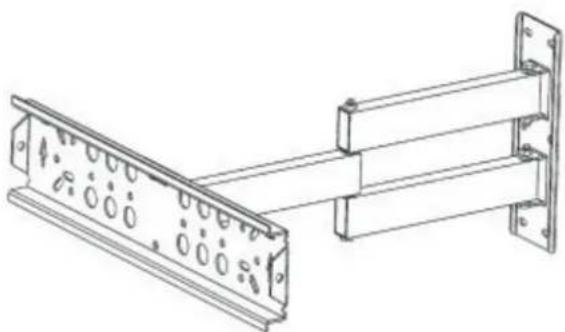

2- Base assembled arm (Qty. 1)

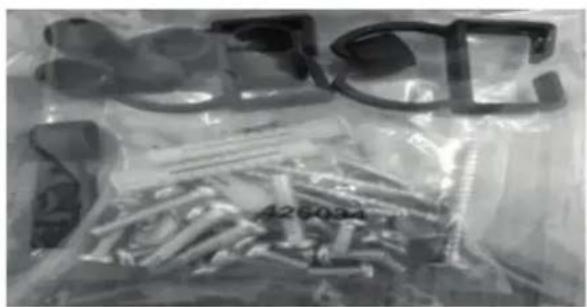

3- Hardware including Nuts, Bolts and accessories in plastic package (Qty. 1)

Technical line drawing of a structural frame assembly with mounting holes and beams (no text or symbols)

Black-and-white photo of a plastic bag with various metal fasteners and screws, no visible text or symbols.

Row Hardware Q.ty Row Hardware Q.ty
4	M6* 60mm Screw	4		10	M4* 12mm Screw	4
5	M6* 60mm Concrete anchor	4 11			M4* 30mm Screw	4
6	Cable keeper	2		12	M5* 12mm Screw	4
7	Nut cap	8		13	M5* 30mm Screw	4
8	Level	1		14	M6* 12mm Screw	4
9	M6* 16 Washer	4		15	M6* 30mm Screw	4

Installation instructions

Step1 – Determine the appropriate screws for your TV

1. Carefully place your TV screen face-down on a soft place, clean that surface to protect the screen from any damages and scratches.
2. If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV for instruction.
3. Temporarily lay the brackets on the back of your TV.
4. Align screws, brackets and TV with the mounting screw holes.
5. Remove the vertical brackets.

Step 2- Select screws, washers, and spacers

1. Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with number of hardware included. (If there are screws that came with the TV, there are almost always in the holes on the back of the TV). If you don't know the correct length of the mounting screws your TV requires, test various sizes by hand threading the screws.
2. Select one of the following types of screws:

M4* 12 mm Screw (10)
M4* 30 mm Screw (11)
M5* 12 mm Screw (12)
M5* 30 mm Screw (13)
M6* 12 mm Screw (14)
M6* 30 mm Screw (15)

Use washers for all screws.

- For an irregular or obstructed TV back, you can use some spacers.

Caution: use the correct length of screws for installation. If you doubt about installation by yourself, stop immediately and contact to customer service. Using hardware that is too long may

damage your TV and on the other hand using too short may cause your Tv fall from the mount and do damage or injuries.

1. Remove the screws for fitting other steps.

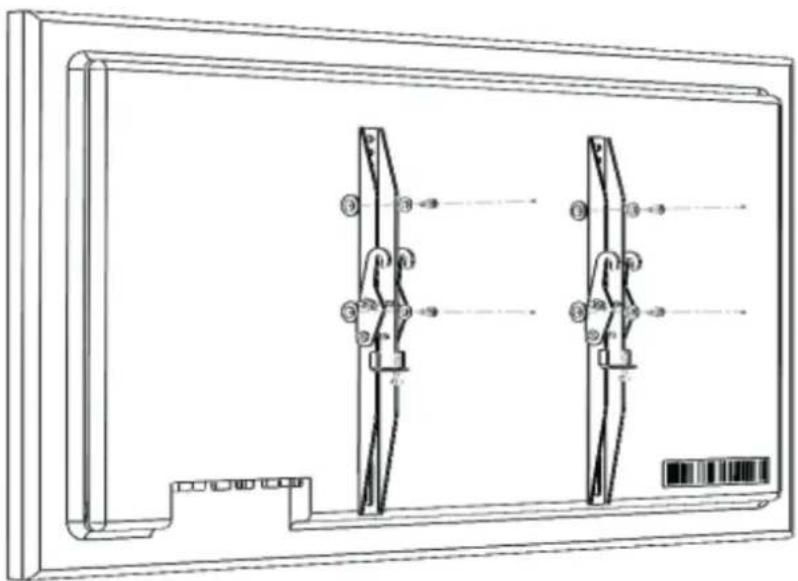

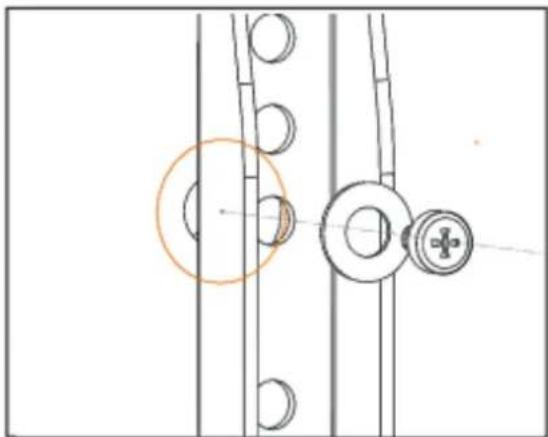

Step 3- attaching the vertical brackets to TV

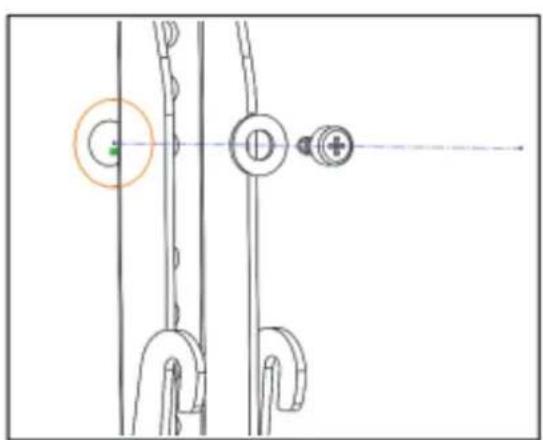

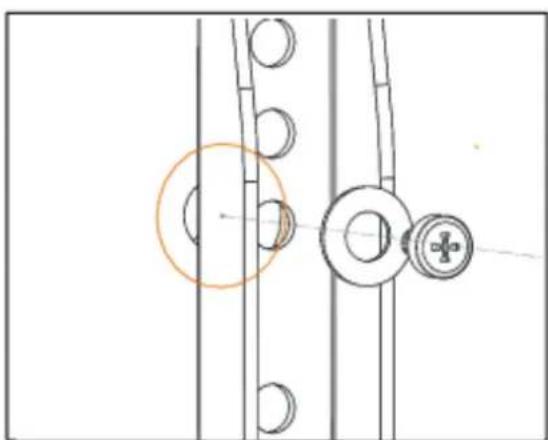

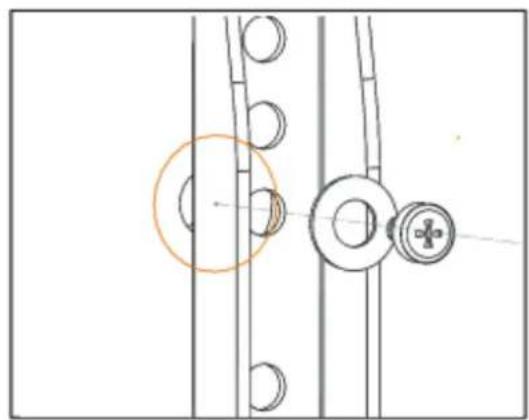

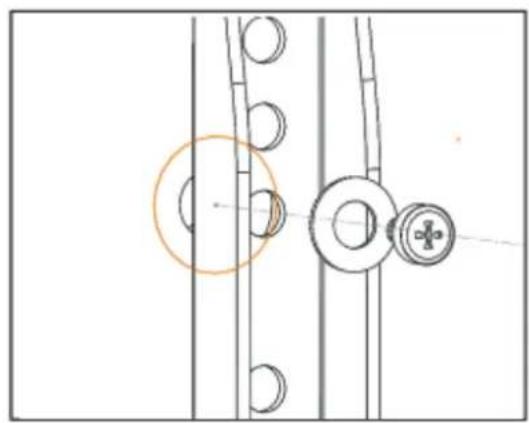

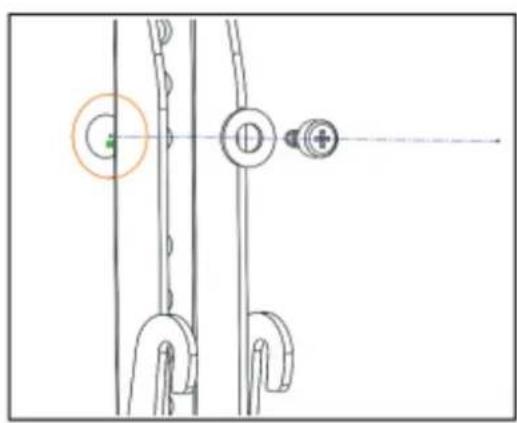

1. Align TVs holes on the bracket holes with screws on the back of TV. The brackets must be level.
2. Place washers M6 16 mm (6) concentric and align on the holes of brackets and then insert the screws (10-11-12-13-14-15) through the washers.
3. Tighten the screws until fasting brackets to TV. Notice that do not over tighten.

Technical line drawing of a mechanical assembly with two vertical supports and mounting brackets (no text or symbols)

Pure mechanical diagram showing a linkage mechanism with no text or symbols

Technical diagram showing mechanical components with no visible text or symbols

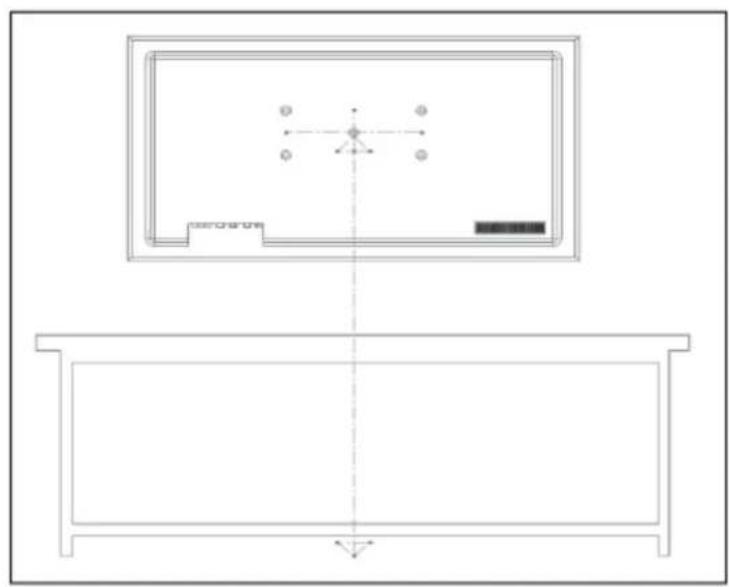

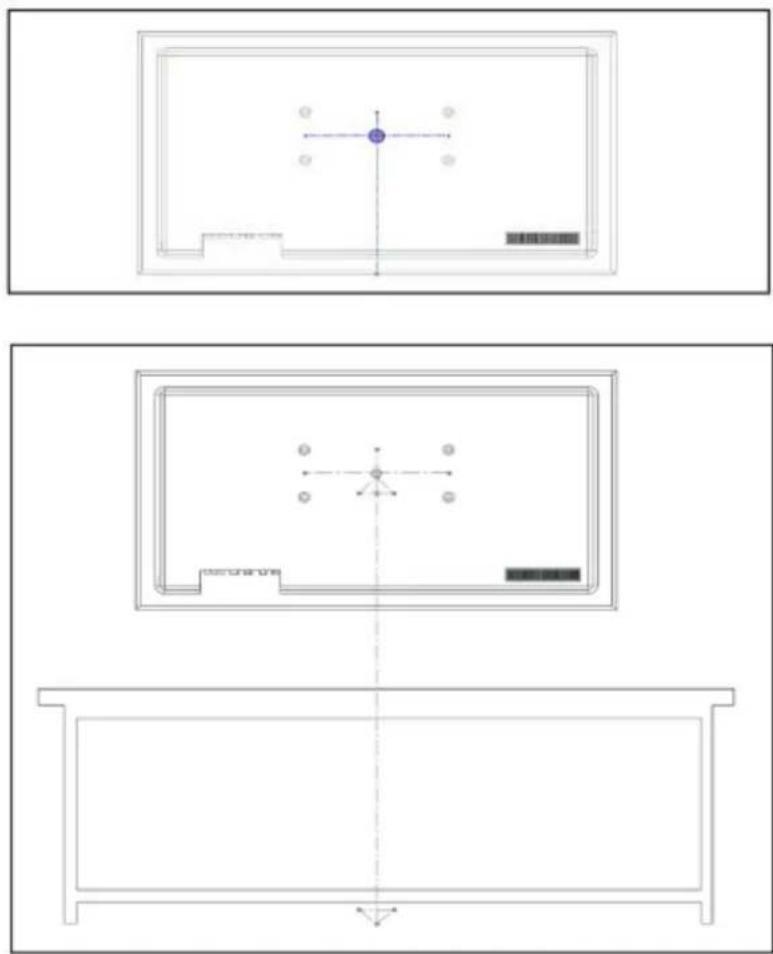

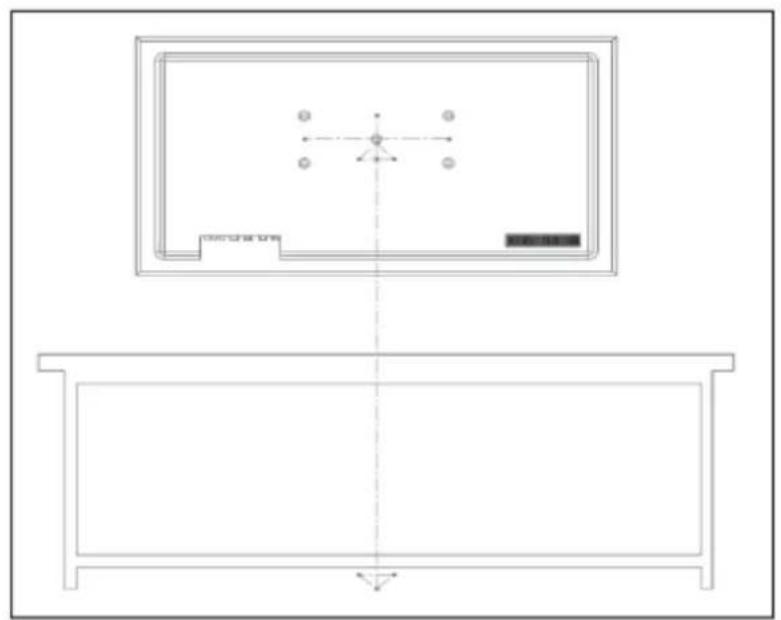

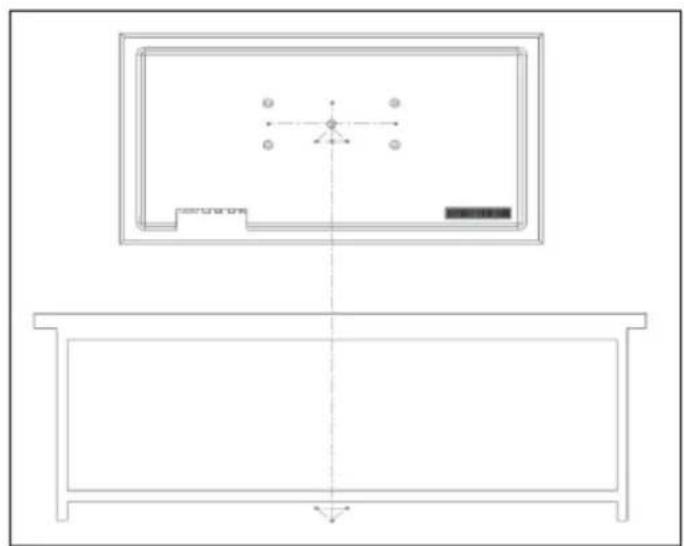

Step 4 – Determine wall-mount location

Place TV at the center of the wall plate at the arm, before drill holes.

1. Measure the distance from the bottom of TV to the middle of four mounting screw holes. This is measurement.
2. Choose the exact place on the wall that related to your design. In this part, measure the bottom of TVs place that you want from the floor. But notice that Tv should place above any furniture such as (TV stand, decoration box, blue ray box and speaker box).
   • Top of the Tv should be level.
3. At the end of this step use pencil to mark TV spot on the wall.

Three technical line drawings of a device layout with no visible text, numbers, or symbols.

Step 5- Installing arm on a solid concrete or concrete clock wall

Caution: To prevent property damage or personal injury, never drill into the mortar between the blocks. Plate directly onto the concrete surface.

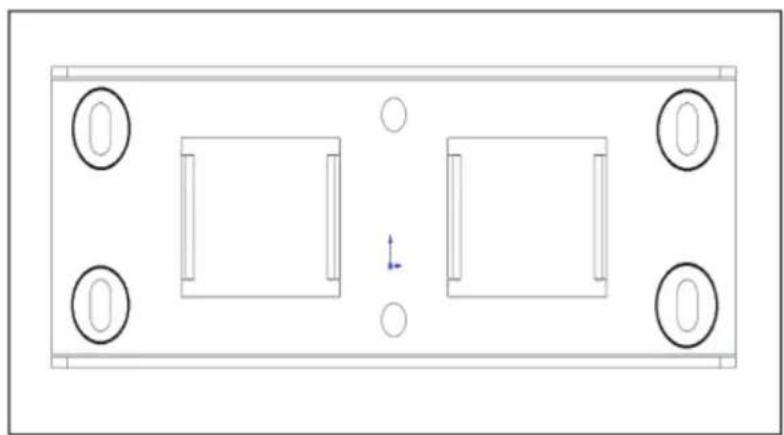

1. Align the center of the wall plate at the arm with the height determined in the previous step and make sure that it is level as you know. Mark the 4 screw hole locations.
2. Drill pilot holes to the depth of 60mm and 6mm diameter.
3. Insert concrete wall anchors into the pilot holes and use a hammer to make sure that the anchors are flush with the concrete surface.
4. Align the wall plate with the anchors and then insert the intended washers and the screws through the holes in the wall plate assembly. Tighten the screws until fasting the wall plate and anchors.
5. Do not over tighten for avoiding potential injuries or property damage.
6. Notice that the wall plate should stand level vertically and horizontally. The degree between the arm and the wall must be 90 degrees.

Top-down schematic of a rectangular room with four circular fixtures and central furniture (no text or symbols)

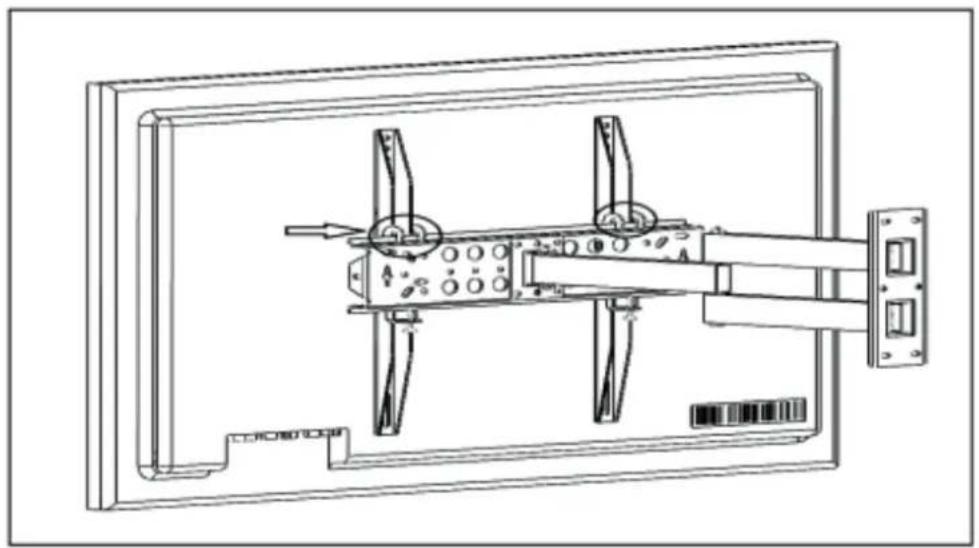

Step 6 – Attach the TV to the arm

1. To make it easier to attach the TV to the wall plate, pick the Tv up from the corners in a way you can see back of your TV.
2. If your TV is huge, heavy or inaccessibility to say brackets and arm, you will need assistance into this step.

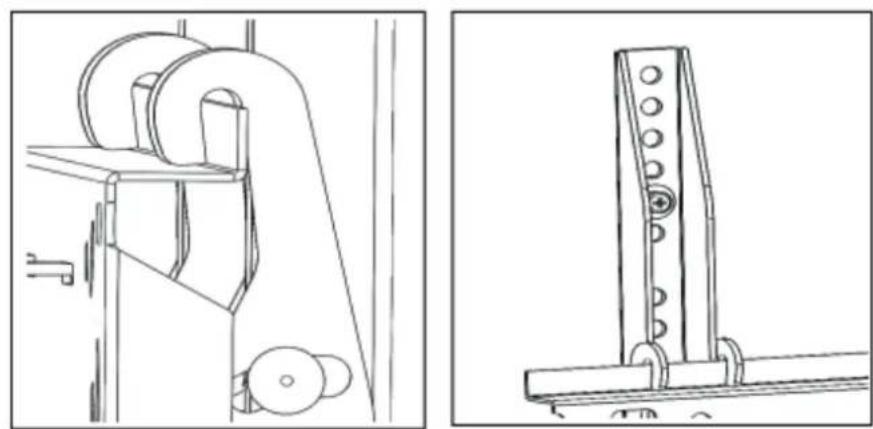

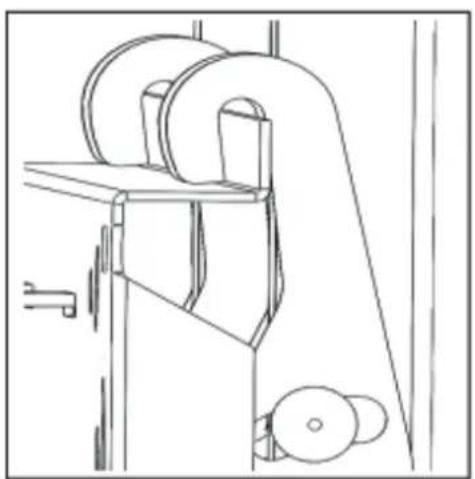

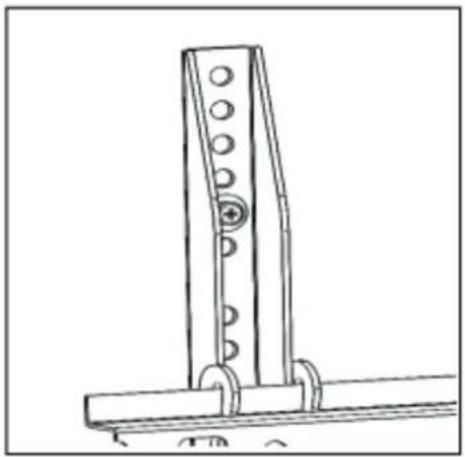

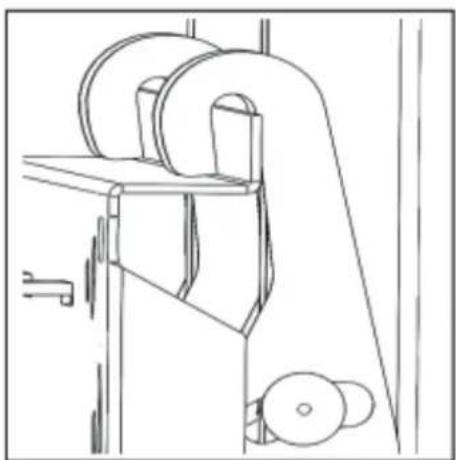

3. At first, insert hooks that assembled on the brackets to top of the main body bent that assembled to the arm.

Technical line drawing of a mechanical assembly mounted on a wall-mounted frame (no text or symbols)

Technical line drawing of a mechanical device with rollers and a lever (no text or symbols)

Technical line drawing of a mechanical bracket or support structure with circular holes and mounting feet (no text or symbols)

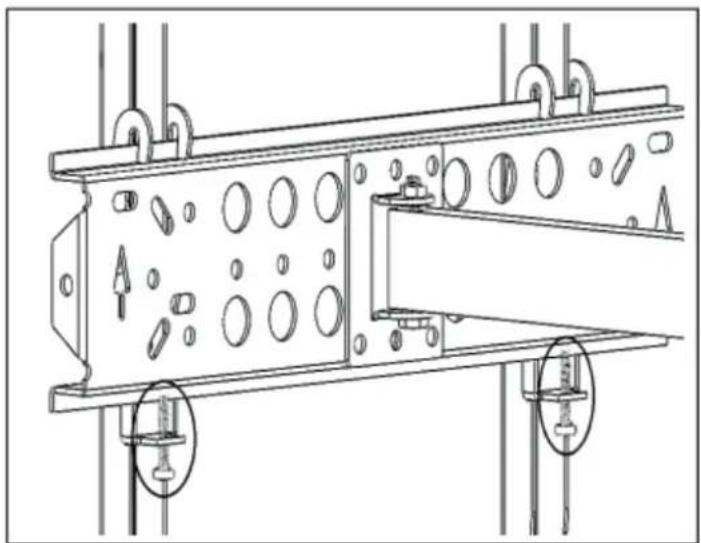

1. Then, tight the screw that assembled on the brackets to the bottom bent part on the body.

Technical line drawing of a mechanical assembly with circular components and mounting brackets (no text or symbols)

1. Make sure that your TV stand resistantly on the body.

Step 7 – Making adjustment and managing cables

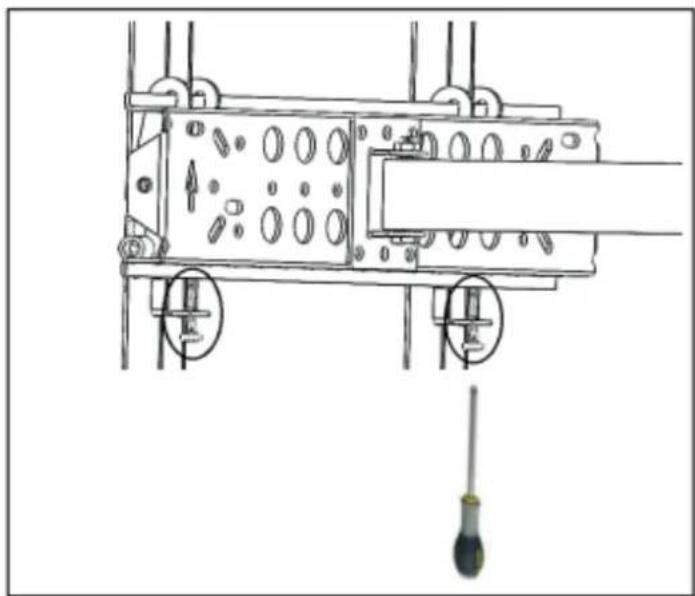

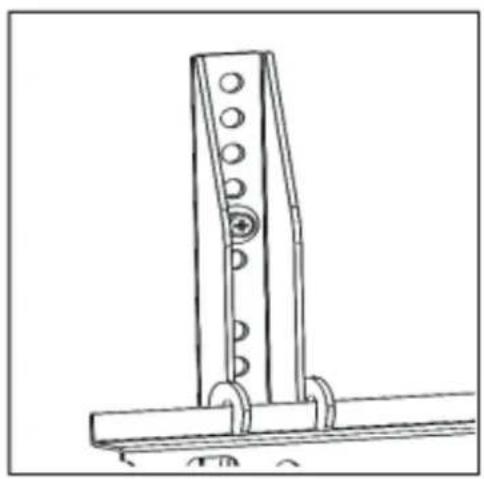

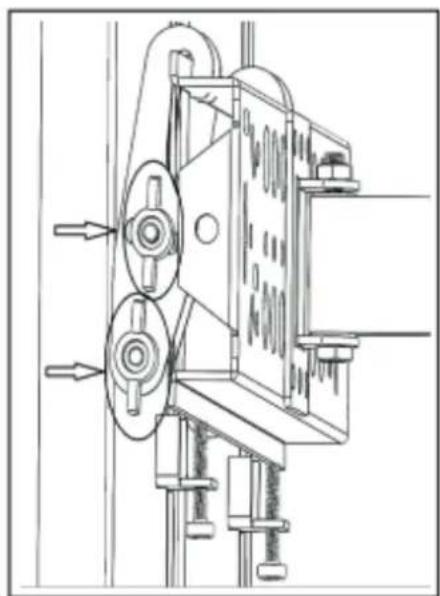

1. You can change the Tv position vertically by three screws that assembled on the brackets. Cause of clamps on the nuts you can change that position just by hand easily.

Technical line drawing of a mechanical device with screwdriver inserted (no text or symbols)

Technical line drawing of a mechanical device with gears and mounting brackets (no text or symbols)

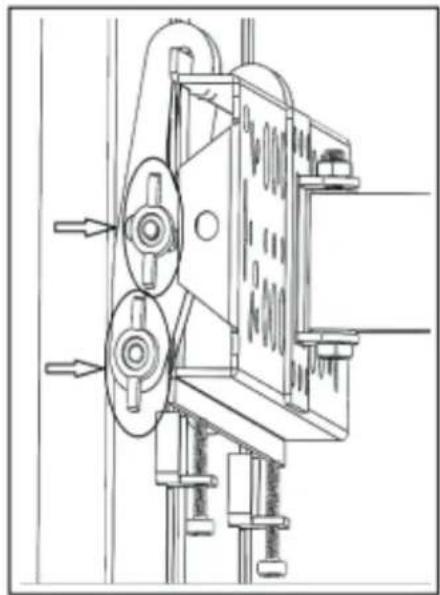

1. When you sure that your TV is standing in place that you want, tighten the screws and nuts to prevent unwanted movement.
2. Put nut caps on every nut for making the best perspective for your decoration.
3. Manage all cables by two cable keepers which are in your packet. Put cable keepers to two profiles and then pass cables from inside of cable keeper to prevent any slack, routing
4. cables along the arms and providing a clean look to your installation.

Removing the TV from the wall mount

To remove your TV from the wall plate assembly, disconnect all cables and then reserve the procedures in step 7.

Care and maintenance

As a good practice of care and maintenance, carry out periodic checks on the tightening of the anchors and check the integrity of the product.

Warranty

Melchioni Spa, based in Milan (Italy), via Colletta 37, recognizes a conventional guarantee on the product for a period of two years from the date of the first purchase by the consumer. This guarantee does not affect the validity of the legislation in force concerning consumer goods (Legislative Decree 6 September 2005 n. 206 art. 128 and following), of which the consumer remains the owner. This guarantee applies to the entire territory of the European Union.

The components or parts that are found to be defective for ascertained manufacturing causes will be repaired or replaced free of charge through the dealer, during the above warranty period. Melchioni Spa reserves the right to make a complete replacement of the device, if repairability is impossible or excessively expensive, with another device of similar characteristics (Legislative Decree 6 September 2005 no. 206 art. 130) during the warranty period. In this case, the validity of the warranty remains that of the original purchase: the service provided under warranty does not extend the warranty period.

In any case, this appliance will not be considered defective in terms of materials or manufacture should it be adapted, changed or adjusted, in order to comply with national or local safety and / or technical standards, in force in a country other than that for which it is was originally designed and manufactured. This appliance has been designed and built for domestic use only: any other use will invalidate the benefits of the guarantee.

The warranty does not cover:

• parts subject to wear or tear, nor those parts that require periodic replacement and / or maintenance
  • professional use of the product
• malfunctions or any defects due to incorrect installation, configuration, software / BIOS / firmware update not performed by authorized Melchioni Spa
  • repairs or interventions carried out by persons not authorized by Melchioni Spa
  • manipulation of assembly components or, where applicable, of the software
• defects caused by fall or transport, lightning, voltage fluctuations, liquid infiltration, opening of the appliance, bad weather, fire, public disturbances, inadequate ventilation or incorrect power supply
  • any accessories, for example: boxes, bags, batteries, etc. used with this product
  • home interventions for convenience checks or presumed defects

The recognition of the guarantee by Melchioni Spa is subject to the presentation of a tax document that proves the actual date of purchase. The same must not show any tampering or deletions, in the presence of which Melchioni Spa reserves the right to refuse the provision of treatment under warranty.

The warranty will not be recognized if the serial number or model of the appliance is non-existent, abraded or modified.

This warranty does not include any right to compensation for direct or indirect damage, of any nature, to people or things, caused by any inefficiency of the appliance. Any extensions, promises or services in this regard, insured by the retailer, will be borne by the latter.

Two identical line drawings of a device with a handle and base, no text or symbols present.

2- Brazo montado base (cant. 1)

Technical line drawing of a structural support frame with mounting brackets and circular cutouts (no text or symbols)

Black-and-white photo of a plastic bag containing various metal fasteners and screws (no visible text or symbols)

Fila Herramientas/material Cant Fila Herramientas/material Cant				10	Tornillo M4* 12 mm	4
4	Tornillo M6* 60 mm	4
5	Anclaje de hormigón M6* 60 mm	4 11			Tornillo M4* 30 mm	4
6	Guardacables	2		12	Tornillo M5* 12mm	4
7	Tuerca tapón	8		13	Tornillo M5* 30mm	4
8	Nivel	1		14	Tornillo M6* 12 mm	4
9	Arandela M6* 16	4		15	Tornillo M6* 30 mm	4

Technical line drawing of a dual-panel device with labeled components (no text or symbols)

Technical line drawing of a mechanical linkage system with no visible text or symbols

Technical diagram showing mechanical components with no visible text or symbols

Pure architectural floor plan lines without any text, numbers, or symbols

Technical line drawing of a rectangular frame with internal components and a vertical axis, no text or symbols present.

Top-down schematic of a rectangular room with four circular fixtures and central horizontal bar (no text or symbols)

Paso 6 – Conecte el televisor al brazo
