USER MANUAL Kube Irradio
MP3 Player with expandable memory


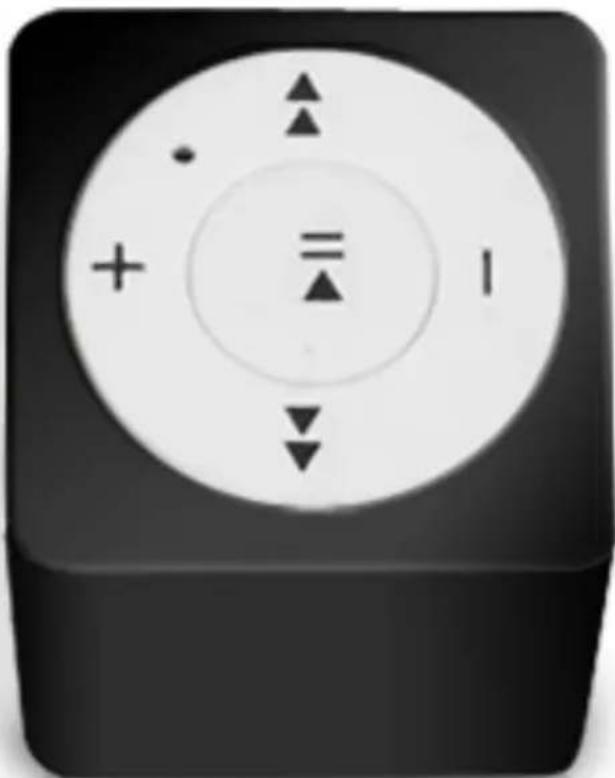

Close-up of a black remote control with white dial and directional arrows (no text or symbols)Dichiarazione
First of all, thank you for using our KUBE MP3 digital player.
Before using please read this manual instruction carefully to operate unit properly. There may be alteration in the content of this manual. There will be no separate notice in the case of any changes in the performance and functions of this product.
If some sets and procedure are not identical, please take the real unit as standard.

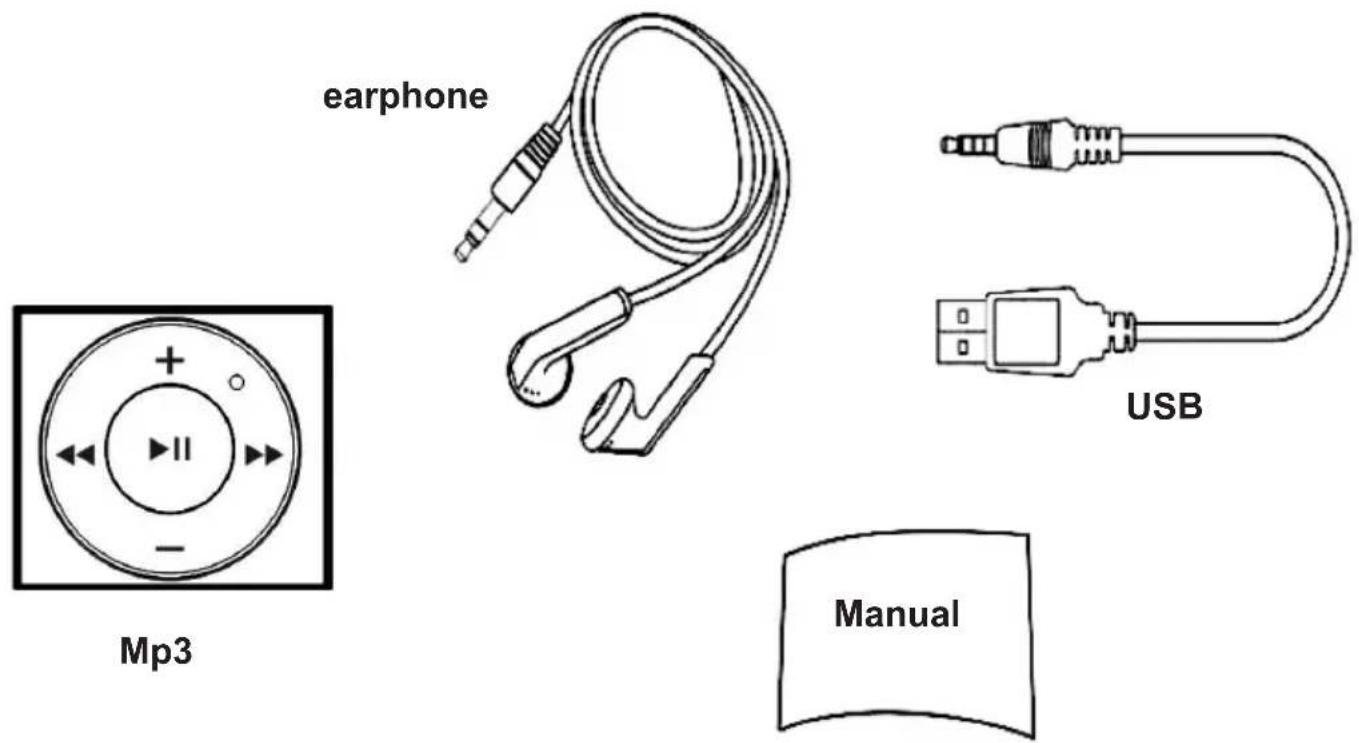

Packages Material
Major Function
- It supports the music format of MP3
- Buit-in TF card slot
- MP3 player is able to read cards.
In order to upload music on micro sd cards please make sure to connect unit to PC with supplied USB cable.
- Buit-in rechargeable battery

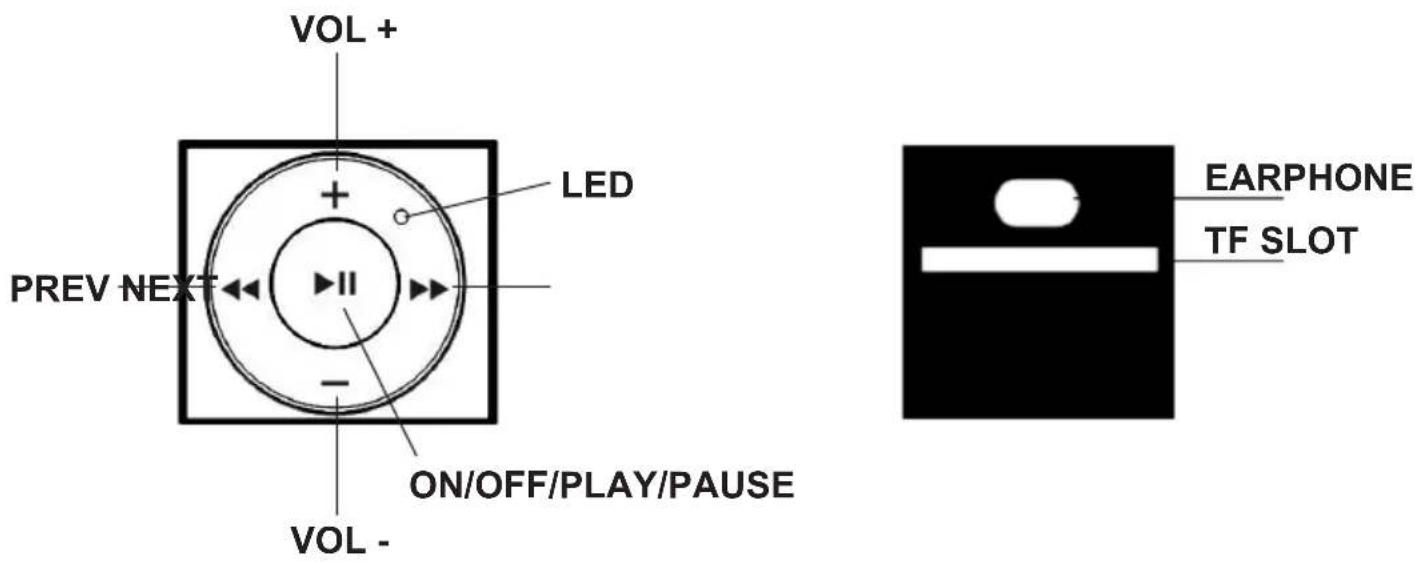

Buttons
1 OFF/ON: Power on/off
5 VOL-: volume down
2 NEXT: Next item
6 TF Slot: TF card insertion position
3 PRE: Last item
7 EARPHONE: Earphone slot
4 VOL+: volume up
AUDIO PLAY:
- Put the earphone into the earphone slot.
- Put the TF card into the TF slot.
- Long press ON/OFF key to power on.
- Play/Pause music:
Short press "PLAY/PAUSE" key to play/ pause music
- Select music:
PRE: Short press PRE key to select previous track
NEXT: Short press NEXT key to select next track
- Control volume:
Short press VOL- to turn down the volume.
Short press VOL+ to turn up the volume.
SPECIFICATIONS
| Product Specification | ||
| Item Specification | ||
| Music | Format | MP3/WMA |
| Bit rate | 8~320kbps | |
| Environmental temperature | -20~+60 °Cs | |
| Relative Humidity | 20%~ 93% (40°C) | |
| Volume | 21×21×21mm | |
| Weight | 10g | |
| Power 80mAh, renewable lithium batteryBattery | ||
How to remove / replace safely the cell / battery:
- Do not expose the cell / battery to moisture or heat;
- Avoid contact of the cell / battery with water or liquid;
- Do not put the cell / battery in fire or expose to extreme temperatures and magnetic fields;
- Do not reverse the polarity of the cell / battery or short circuit;
- Always replace in sets the cell / battery and with the same type;
Important Information
IMPORTANT INFORMATION FOR USERS, UNDER "batteries and accumulators" DIRECTIVE 2006/66/EC
For future disposal of the battery/ies, we inform You as following:
- Do not dispose of the waste of the battery/ies as solid urban waste; give it in the appropriate collection centers.
- The above directive, that we ask You to check for further details, foresees sanction in case of unauthorized disposal of the battery/ies waste!
