USER MANUAL Iridea D2DPN03IRCH Tognana

This symbol indicates that you need to read this manual carefully before use. Pay particular attention to safety guidance. Keep this manual as an integral part of the product.

DANGER: the word indicates a potential imminent

danger with a high level of risk that, if not avoided, has a high probability of causing serious injury or death.

WARNING: the word indicates a potential hazard with

an average level of risk that, if not avoided, has a high probability of causing serious injury or death.

ATTENTION: the word indicates a potential hazard with a low level of risk that, if not avoided, could lead to minor or moderate injuries.

Class II: this symbol indicates that the appliance is electrically insulated, therefore, it does not need a plug with grounding.

ATTENTION – HOT SURFACE!: The symbol indicates that the surface temperature of the area of application can reach become dangerously high and for this reason direct contact with the skin and heat sensitive fabrics/materials should be avoided.

This symbol on the product or packaging indicates that the appliance at the end of its useful life must be collected separately from other waste for proper treatment and recycling.17

This symbol indicates that the appliance complies with the safety requirements laid down in EU regulations/directives.

1. This appliance is intended exclusively for cooking and

heating food through the use of special pots and pans.

2. This appliance is intended for domestic use and similar

applications, such as: *kitchen areas of shop staff, offices and other working environments; *agrotourism *customers of hotels, guesthouses and other residential environments; *rooms like bed and breakfast.

3. This product is not a toy.

4. Do not leave parts of the packaging (plastic bags, polystyrene

foam, etc.) within reach of children or dependant persons, as these objects are potential sources of danger (e.g.: risk of suffocation).

5. Use the product for the sole purpose for which it was

designed. The manufacturer is not liable for damage or injury caused by improper use.

6. Unauthorised repairs or modifications will invalidate the

7. Do not use outdoors.

8. Never leave the turned on appliance unattended.

9. Do not place on or near a gas or electric stove, or an oven.

10. Before use, place the appliance on a solid, flat, horizontal and

non-flammable surface.

11. Avoid placing on the appliance credit cards, memory devices,

or any other object that may become demagnetised.18

12. Never put the appliance in the dishwasher.

13. Do not clean the induction hob with water immediately after

cooking, as the glass may break due to thermal shock.

14. Do not soak the appliance in water or rinse it under the tap,

as it contains electronic components and heating elements.

15. Use only original or manufacturer-recommended spare parts

and accessories. DANGER PRODUCT

1. Before connecting the appliance to the power supply, check

that the voltage indicated on the appliance corresponds to the voltage available in your home. Connect the appliance to a power outlet equipped with efficient grounding. The manufacturer cannot be held responsible for any accidents caused by the lack of grounding of the system.

2. The appliance may be used by children of at least 8 years of

age and by persons with reduced physical, sensory or mental abilities, or without experience or knowledge, provided that they are supervised or have received instructions on the safe use of the appliance and the understanding of the hazards inherent thereto. Children should not play with the appliance. Cleaning and maintenance intended to be carried out by the user shall not be carried out by children without supervision.

3. Supervise the children so that they do not play with the

containing surface (e.g. hobs or stoves, refrigerators and freezers), this may cause the appliance to overheat and cause a fire.

5. Do not cover the appliance with towels, kitchen towels or

other fabrics during operation; do not cover the openings on the appliance and always ensure proper air circulation.19

6. Do not move the appliance while it is in operation or when

there are hot pots, pans or objects on it.

7. Do not place metal objects such as knives, forks, spoons,

lids, cans and aluminum foil on the glass surface of the induction plate.

8. Never cook food directly on the induction plate.

9. Do not place sheets of paper/silver foil between the pot/pan

and the appliance. They could burn.

10. Be careful not to damage the surface of the appliance. If the

surface is cracked, turn the appliance off immediately and contact customer support.

11. Maintain a minimum distance of 1 m between the appliance

and the products that are sensitive to electromagnetic fields (e.g. screens, clocks, magnetic storage media, electronic devices, etc.).

12. Medical devices such as pacemakers, heaters and other

appliances, may need to be kept at a greater distance from the appliance. If in doubt, consult the manufacturer of the medical device!

13. Do not place the product against the wall or other objects: the

back of the product, the middle side and the upper side of the product must have a free space of at least 10 cm.

14. Do not use as a shelf for objects.

15. Do not heat jars or other sealed containers.

16. Disconnect the appliance from the socket when moving and

17. Let the appliance cool before cleaning.

18. Do not cook with an empty pot, it could cause malfunctions

19. Always clean the appliance to prevent dirt from entering the

fan, this could compromise its normal operation.

20. Incorrect use of the product can cause damage or injury.

21. In order to avoid electric shocks, do not immerse the body of

the product in water or other liquids.

22. This product does not contain repairable parts. Don't try to fix20

it yourself. Have maintenance performed by a qualified service centre using only identical spare parts. This will ensure that the safety of the product is maintained.

23. Do not use the appliance at high temperatures, in very humid

or wet environments or in the vicinity of flammable material (curtains, tablecloths, carpets etc.).

24. Do not use if the appliance has fallen or has been damaged

in any way. Do not attempt repair yourself. Contact your dealer for repair/replacement, if under warranty, or customer support.

25. If the product emits black smoke, disconnect the power

supply immediately. DANGER OF SCALDING!

1. Do not touch the hot parts of the appliance

to prevent burns (A in Fig.1). Do not touch the top plate immediately after removing the pot or the frying pan, since the top plate could be very hot.

2. Extreme care should be taken when the pot on the appliance

contains hot oil or other hot liquids.

1. The power cord must be connected to an electric socket

with AC (standard household current). Do not use other electrical outlets.

2. In case of incompatibility between the socket and the plug

of the appliance, have the socket replaced by a suitable type by qualified personnel. The use of adapters, multiple sockets, and/or extensions is not recommended. Should their use be necessary, use only simple or multiple adapters and extensions complying with the current safety standards, taking care not to exceed the power limit marked on the adapter and/or extension.21

3. Do not use the power cord if damaged.

4. Use only the power cord supplied with the product

5. In order to avoid electric shock, do not dip the power supply

cable in water or other liquids.

6. The power cord must be used in a place that is dry and

clean. Use in wet or dirty environments may lead to risks of fire, electric shock or electrocution.

7. Do not touch the cable or power plug with wet hands.

8. Do not let the cable dangle or fall down from a countertop.

9. Be careful not to pull or trip over the supply cable. Keep the

cable away from sources of heat, hot objects or open flames.

10. Disconnect the cable from the power grid before cleaning

and when it is not used. To disconnect, turn off the appliance, then remove the plug from the wall outlet. Don't pull the cable but grab the plug.

11. Always connect the plug to the appliance first, then connect

the cable to the wall socket. Make sure the cable is fully extended.

12. The cable should not be twisted or wrapped around the

13. Do not use the appliance if the power cord is damaged. Do

not attempt repair yourself. Contact your dealer for repair/replacement, if under warranty, or customer support.

• Net weight: 2090 g ENERGY CONSUMPTION Product information for energy consumption and maximum time to reach the applicable low power mode. Standby mode

Maximum time required for the appliance to automatically reach the applicable low power mode or condition. <20 minutes22

CONFORMITY OF THE PRODUCT

The manufacturer Tognana Porcellane S.p.A. declares that the product induction plate Mod. Iridea complies with Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility. The manufacturer Tognana Porcellane S.p.A. declares that the product induction plate Mod. Iridea complies with Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment intended for use within certain voltage limits. The manufacturer Tognana Porcellane S.p.A. declares that the product induction plate Mod. Iridea complies with Directive 2009/125/EC of the European Parliament and of the Council of 21 October 2009 establishing a framework for the setting of ecodesign requirements for energy-related products The manufacturer Tognana Porcellane S.p.A. declares that the product induction plate Mod. Iridea complies with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 and subsequent Commission Delegated Directive 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

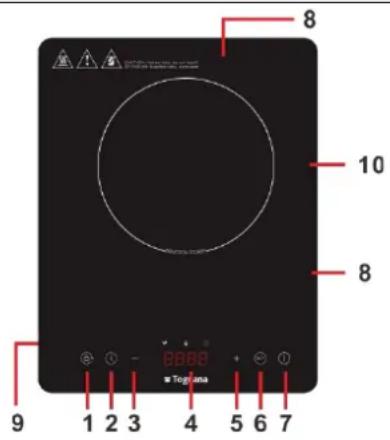

3. Temperature/power/time adjustment button (+)

5. Temperature/power/time adjustment button (-)

10. Tempered glass plate

1. Remove the different components from the packaging, check that they are complete and

intact, carefully remove any protections and labels. The package contains:

• No. 1 Induction plate

2. Place the plate on a smooth flat surface that is heat resistant.

3. Connect the appliance to the power outlet. Check that the power cord is not in contact with hot

parts. SUITABLE CONTAINERS

• Pots/saucepans/flat bottom pans with a diameter between 8 and 26 cm, bearing the induction cooking symbol ( ).

• Can be used with pans, pots, saucepans with bases from steel, cast iron, enamelled iron, magnetic stainless steel.23 UNSUITABLE CONTAINERS

• All pots/saucepans/pans with a diameter under 8 cm or over 26 cm, and all pots not bearing the induction cooking symbol ( ).

• Pots that are produced from any type of metal that is not magnetic, such as aluminium, copper and stainless steel, as well as non-metal (porcelain, glass, ceramic or plastic), are not suitable. Furthermore, it is not recommended to use metal converting discs for the use of standard pots as these discs reset the economic advantage of induction and place the product under excessive strain.

1. Connect the appliance to a power outlet.

2. The appliance emits an audible signal and the display will turn on displaying “OFF”.

3. Place the food to be cooked in the cooking vessel, and place it on the induction top.

4. The container must be centred on the hob.

5. Turn on the appliance by pressing the “ ” button lightly and “on” will be displayed.

6. Start induction by pressing the “ ” button, the power at 1300 appears on the display by

default. Press buttons 3 or 5 to choose the desired power (200 to 2000 W).

7. Press the “ ” button again to switch to the temperature indication, set to the value of

210 °C by default. Press buttons 3 or 5 to choose the desired temperature (60 to 240 °C).

8. Press the timer " " button: the display displays 0:00 blinking. Press buttons 3 or 5 to set

the desired time (max 3 hours). The display will alternately show the set function and the remaining time.

9. At the end of the set time the appliance will turn off and the display will display “OFF”.

10. If you want to turn off the appliance manually, press the “ ” button.

IMPORTANT NOTE : In order to prolong the service life of the appliance, it is recommended not to disconnect it from the power outlet while the fan is in operation. ATTENTION – HOT SURFACE!: do not touch the hot parts of the appliance. KEY LOCK To lock the keyboard, press the lock “ ” button during use. On display the word “Loc” appears to indicate the key lock. To unlock press and hold the lock “ ” button again.24 SECURITY SYSTEMS The appliance is switched off automatically if there is no cooking vessel present, or if a cooking vessel was removed, or if it is not suitable for induction cooking. In this case the display shows “E0” and emits a beep for 30 seconds, then the product goes into standby and the display shows “OFF”. Every time you turn off the product using the " button, the fan will continue to work for about 60 seconds, in order to cool the appliance. To turn off the appliance always use the " " button, do not turn it off by simply removing the cooking vessel.

CLEANING AND MAINTENANCE

Before proceeding with the cleaning, always disconnect the plate from the power outlet and let it cool completely.

a. For smaller stains or for daily cleaning, use a moist soft cloth. b. To remove stubborn dirt, use a mild neutral detergent and a damp cloth. Avoid using metal scourers or sharp tools. c. Clean the glass top and the cooking vessel before use, otherwise the dirt may become charred and become very difficult to clean. d. You can clean the dirt from the inlets with a vacuum cleaner or cotton pad. If there is dirt with oil, add some mild detergent and clean with a toothbrush. DANGER! DO NOT PUT IN THE DISHWASHER OR SOAK IN LIQUIDS. IMPORTANT NOTE :

• Do not use chemical detergents, steel wool or abrasive cleaners for cleaning.

• Do not clean the induction hob with water immediately after cooking, as the glass may break due to thermal shock.

Allow the appliance to cool completely before storing it or wrapping the supply cable around it. Check that there are no food residues on the plate. Make sure all parts are clean and dry before storing them. Never store the appliance when it is still wet. It is recommended to store the appliance in a dry place, clean and away from moisture and dust.25 TROUBLESHOOTING Problem Possible cause Solution After connecting the power supply and pressing the “ ” button, the appliance will not turn on. Is electricity available? Use after restoring electricity Is the plug firmly connected? Carefully check the underlying causes. If the problem cannot be solved, contact the retailer or customer support Is the fuse broken? The induction hob emits a “beep” sound Incompatible cooking vessels are used or no container has been placed Replace with containers compatible with the induction hob The cooking vessel is not correctly positioned in the centre of the heating zone Reposition the container in the middle of the heating zone Is the base of the cooking vessel larger than 26 cm or smaller than 7 cm? Use containers with a base with a diameter between 7 and 26 cm Does not work when in use Is the pot empty or is the temperature too high? Check if the appliance is being used improperly. The air intake or fan is clogged or has accumulated dirt. Remove the material that obstructs the air intake or fan. Operate the appliance again after cooling. The plate is in operation for more than 4 hours without any interruption Restore cooking modes or use the timer function Error code E0 No receptacle or unsuitable receptacle. Place the pot/pan or replace it with a more suitable one. Error code E1 The power supply voltage is too low (below 85W). Check the power supply and turn on the device only after the normal values have been restored. Error code E2 The power supply voltage is too high (below 275W). Check the power supply and turn on the device only after the normal values have been restored. Error code E3 The plate surface temperature sensor is not connected properly or is short- circuited. Contact your dealer or customer service. Error code E4 The radiator temperature sensor (IGBT) is not connected properly or is short-circuited. Contact your dealer or customer service. Error code E5 The plate surface temperature is too high (above 280 degrees). Wait a few minutes until the appliance cools down. Make sure the pot or pan is dry. Error code E6 The radiator temperature sensor is overheated (above 105 degrees). Check whether the air outlets are blocked or whether the fan is blocked. Error code E7 The surface temperature sensor is not working properly. Contact your retailer or customer support. The problem is not solved.

Contact your retailer or customer support.

PRODUCT26 Pursuant to art. 26 of Legislative Decree No. 49 of 14 March 2014 “Implementation of Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)”, the presence of the wheeled bin symbol indicates that this product is not to be considered urban waste: Non-separate disposal can be a potential harm to the environment and health. This product may be returned to the distributor upon purchase of a new appliance. Improper disposal of the product constitutes fraudulent conduct and is subject to sanctions by the Public Safety Authority. For more information, please contact the local environmental authority. PACKAGING For information on how to properly dispose of the packaging that protects this product and its parts and/or accessories, follow the instructions in the packaging.

"TOGNANA" SMALL APPLIANCES WARRANTY

The Company Tognana Porcellane S.p.A. thanks its Customers for their choice and guarantees that its appliances are the result of the latest technologies and research. This warranty applies only to small appliances marked with the "Tognana" brand and is valid as a conventional warranty pursuant to Article 135-quinquies of the Italian Consumer Code (Legislative Decree 206 of 6 September 2005). This warranty does not in any way affect the rights expressly provided for in favour of the consumer by the regulations on the sale of consumer movable goods, whether Italian or of the consumer's country of residence: the consumer can therefore always assert his rights against the retailer from which he purchased the appliance, under the conditions and within the terms provided for by these regulations. Under this warranty, the appliance is covered by the conventional warranty for a period of two years from the date of purchase by the first user. It is up to the consumer - through a delivery document issued by the retailer (or by Tognana Porcellane S.p.A. itself, in the case of a purchase made by the consumer directly in the online shop of the latter) or by another evidentiary document (for example, tax receipt, cash receipt or similar, purchase order, etc.), which shows the name of the retailer and the date on which the sale was made - to demonstrate that this warranty is still valid at the time of filing the complaint of defect of the appliance. In the event of a defect in the appliance, pursuant to this warranty, the consumer may highlight this defect by contacting the appliance dealer or by contacting Tognana Porcellane S.p.A. directly at the e-mail [e-mail], or at the telephone number [phone]. Tognana Porcellane S.p.A. guarantees the free repair or replacement of the appliance and/or its components that have defects due to ascertained causes of manufacture and/or malfunctions, directly or through affiliated service centres (check any contacts on the Tognana Porcellane S.p.A. website: www.tognana.com). Tognana Porcellane S.p.A. reserves the right to completely replace the appliance, if repairability is impossible or too expensive, with another identical or similar appliance (or one that has functional and aesthetic characteristics similar to those of the purchased appliance), without the consumer being able, in this second hypothesis, to contest the choice made by Tognana Porcellane S.p.A. The consumer, in the presentation of the complaint, in addition to specifying the defect found, also providing photographic documentation, if indispensable for the purpose of ascertaining the defect of the appliance, must communicate their personal data - name and surname, residence address, email and telephone number - for each subsequent contact. For the successful replacement or repair of the appliance, the consumer will in any case be required to follow the instructions provided in this regard by the employees of Tognana Porcellane S.p.A. or the service centre in charge. All costs of repair and delivery of the replacement appliance or defect-free components will be entirely borne by Tognana Porcellane S.p.A., which will also bear the costs of returning the defective appliance or component, if expressly requested by the consumer. It should be noted that, following the replacement or repair of the appliance, the effective date of this warranty remains that of the first purchase: therefore, the service performed under the warranty does not extend the period of its validity. For the purposes of the effectiveness of this warranty, it is specified that: the appliance has been designed and built for exclusively domestic use, consequently terminating this warranty for any other different use. In addition, the appliance can never be considered defective if it has to be adapted or modified to comply with national or local safety and/or technical standards, in force in the consumer's country, if outside the European Union. In any case, this warranty does not cover: - parts subject to wear and tear, nor those that require periodic replacement and/or maintenance; - negligence or carelessness in the use of the appliance (e.g. failure to comply with the operating instructions of the appliance);27 - professional use of the appliance; - defects due to incorrect installation, configuration, updating of software/BIOS/firmware not performed by authorized personnel Tognana Porcellane S.p.A; - repairs or interventions carried out by personnel not authorised by Tognana Porcellane S.p.A.; - manipulations of components of the appliance or, where applicable, of the software; - other circumstances that, in any case, cannot be traced back to manufacturing defects in the appliance. Tognana Porcellane S.p.A. declines all responsibility for any damage that may, directly or indirectly, result to people, property and pets as a result of failure to comply with all the requirements indicated in the specific instruction booklet and concerning especially the warnings regarding installation, use and maintenance of the device. Further claims, in particular if they relate to claims, are excluded, unless the liability arises from express provision of law. At the end of the period of validity of this warranty, or for goods that are not covered by it, Tognana Porcellane S.p.A. remains available to the customer for any questions or information. Further information is available on the website: www.tognana.com.28 Cher client, merci d’avoir choisi notre plaque d’induction adaptée à la cuisson et au chauffage de nombreux aliments grâce à l’utilisation de casseroles et de casseroles spéciales. La plaque d’induction « induit » un champ magnétique à la base du pot de cuisson, créant des courants dans le récipient lui-même qui chauffent les aliments en eux. De cette façon, presque toute la puissance absorbée est transférée dans le pot, minimisant la dispersion de la chaleur. Tognana Porcellane S.p.A. décline toute responsabilité pour tout dommage pouvant survenir directement ou indirectement aux personnes, aux biens et aux animaux domestiques en raison du non-respect de toutes les prescriptions indiquées dans le « Manuel d’utilisation » approprié en matière d'installation, d'utilisation et d'entretien de l'appareil. SYMBOLES PRÉSENTS DANS LE MANUEL/PRODUIT ET LEUR SIGNIFICATION
