Product Type	Warming Shelf (heated shelf)
Brand	Vollrath
Model	FC4HS60120SSF (FC-4HS-60120-SSF)
Length	60 in (152.4 cm)
Material	Stainless steel
Mounting Type	Flush mount
Power Supply	120 V, 60 Hz
Number of Heating Zones	2
Control Type	Digital panel with adjustment buttons
Temperature Range	Up to 200 °F (93.3 °C)
Primary Function	Keeping pre-plated food warm
Usage	Professional
Safety	Grounded plug, do not use extension cord, do not spray liquid
Cleaning	Damp cloth with soapy water, do not use steel wool
Warranty	Vollrath limited warranty
Spare Parts	Available at Vollrath.com
Technical Service	Contact Vollrath at 800.628.0832 or [e-mail]

Frequently Asked Questions - FC4HS60120SSF Vollrath

How to install the Vollrath FC4HS60120SSF warming shelf?

Installation must be performed by qualified personnel. The unit must be flush mounted on a flat surface and connected to a grounded outlet matching the rated voltage (120 V). Do not use an extension cord.

What is the maximum temperature of the shelf?

The temperature can reach 200 °F (93.3 °C). Do not place any objects that could be damaged by this heat.

How to clean the warming shelf?

Unplug the unit and allow it to cool. Clean with a damp cloth or sponge soaked in soapy water, then rinse with clean water and wipe with a soft cloth. Do not use steel wool or caustic products.

Can I use an extension cord with this appliance?

No, using an extension cord is prohibited. Plug the appliance directly into a dedicated grounded outlet.

Does the appliance heat food or just keep it warm?

This appliance is intended to keep pre-cooked or plated food warm for short periods. It does not heat raw food.

What to do if the control panel does not light up?

Check that the appliance is plugged into a working electrical outlet. Ensure that the USB cable connecting the panel to the power box is properly connected. If the problem persists, contact Vollrath technical support.

What is the required voltage for the FC4HS60120SSF?

The rated voltage is 120 V (60 Hz). Check the rating plate under the shelf to confirm.

Can I place food directly on the warming shelf?

No, food must be plated before being placed on the shelf. Do not place food directly on the heating surface.

How to adjust the temperature on the shelf?

Use the temperature adjustment buttons on the control panel. The adjustment applies to both zones. The selected temperature is displayed and the heating indicator lights up.

Where to find spare parts for this appliance?

Spare parts are available on the Vollrath.com website. For any repairs, contact Vollrath technical service.

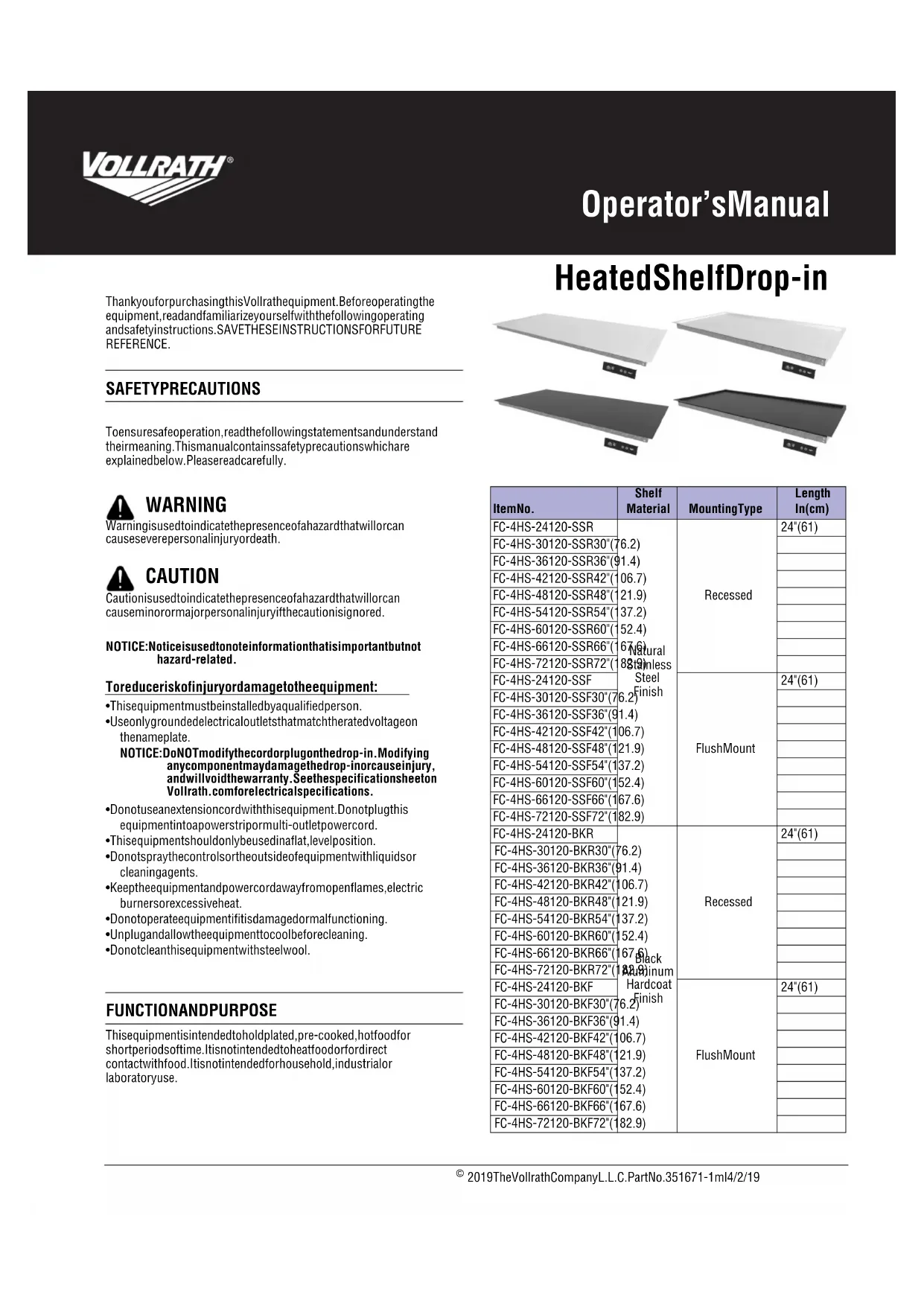

USER MANUAL FC4HS60120SSF Vollrath

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorca causeseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcauseminorormajorpersonalinjuryifthecautionisignored.

NOTICE:Noticeisusedtonoteinformationthatisimportantbutnot hazard-related.

Toreduceriskofinjuryordamageotheequipment:

• Thisequipmentmustbeinstalledbyaqualifiedperson.
• Useonlygroundedelectricaloutletsthatmatchtheratedvoltageon thenameplate.

NOTICE: Do NOT modify the recordor plugonthedrop-in. Modifying any component may damage the drop-inor cause injury, and will voidthewararranty. Seethespecificationsheeton Vollrath.comforelectricalspecifications.

• Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
• This equipment should only be used in a flat, level position.
• Donotspraythecontrolsortheoutsideofequipmentwithliquidsor cleaningagents.
• Keep the equipment and powercord away from open flames, electric burners, excessive heat.
• Donotoperateequipmentitiftisdamagedormalfunctioning.
• Unplugandallowthequipmenttocoolebeforecleaning.
• Donotcleanthisequipmentwithsteelwool.

FUNCTIONANDPURPOSE

This equipment is intended to hold plated, pre-cooked, hot food for short period soft time. It is not intended to heat food or direct contact with food. It is not intended for household, industrial or laboratory use.

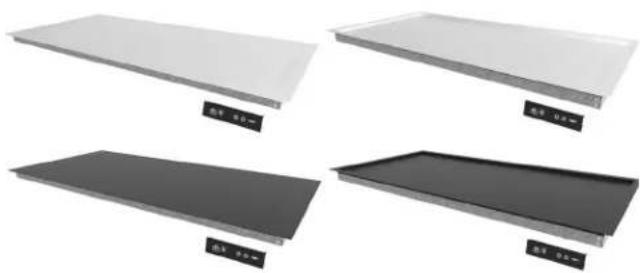

HeatedShelfDrop-in

ItemNo.	Shelf Material	MountingType	Length In(cm)
FC-4HS-24120-SSR	76.2)	Recessed	24"(61)
FC-4HS-30120-SSR30"(91.4)
FC-4HS-36120-SSR36"(91.4)
FC-4HS-42120-SSR42"(106.7)
FC-4HS-48120-SSR48"(121.9)
FC-4HS-54120-SSR54"(137.2)
FC-4HS-60120-SSR60"(152.4)
FC-4HS-66120-SSR66"(167.6)
FC-4HS-72120-SSR72"(182.9)
FC-4HS-24120-SSF SteelFinish		FlushMount	24"(61)
FC-4HS-30120-SSF30"(76.2)
FC-4HS-36120-SSF36"(91.4)
FC-4HS-42120-SSF42"(106.7)
FC-4HS-48120-SSF48"(121.9)
FC-4HS-54120-SSF54"(137.2)
FC-4HS-60120-SSF60"(152.4)
FC-4HS-66120-SSF66"(167.6)
FC-4HS-72120-SSF72"(182.9)
FC-4HS-24120-BKR	76.2)	Recessed	24"(61)
FC-4HS-30120-BKR30"(91.4)
FC-4HS-36120-BKR36"(91.4)
FC-4HS-42120-BKR42"(106.7)
FC-4HS-48120-BKR48"(121.9)
FC-4HS-54120-BKR54"(137.2)
FC-4HS-60120-BKR60"(152.4)
FC-4HS-66120-BKR66"(167.6)
FC-4HS-72120-BKR72"(182.9)
FC-4HS-24120-BKF HardcoatFinish	76.2)	FlushMount	24"(61)
FC-4HS-30120-BKF30"(91.4)
FC-4HS-36120-BKF36"(91.4)
FC-4HS-42120-BKF42"(106.7)
FC-4HS-48120-BKF48"(121.9)
FC-4HS-54120-BKF54"(137.2)
FC-4HS-60120-BKF60"(152.4)
FC-4HS-66120-BKF66"(167.6)
FC-4HS-72120-BKF72"(182.9)

RECORDYOURSERIALNUMBER

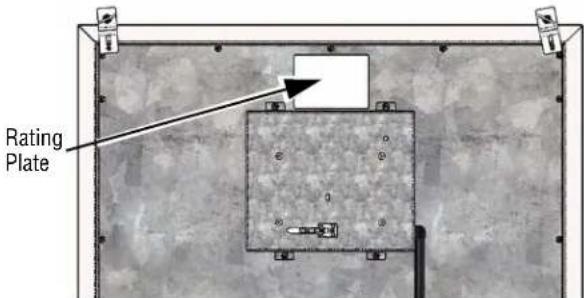

TheserialnumberforyourHeatedShelfDrop-incanbefoundontheregatingplatelocatedontheundersideoftheheatedshelf.Toaidinfuturecommunicationaboutyourproduct,pleaserecordtheserialnumberinthespacebelow.

SerialNumber

FEATURESANDCONTROLS

A Heatzone2
B Heatzone1
C Controlpanel
D Heatzone2powerbutton
E Heatzone1powerbutton
F Currenttheatsetting
6 Heatingindicatorlight. This is not power-indicatorlight.
H Heatcontrolbuttons.Settings1to9.

Low:1-3

Medium:4-6

High:7-9

OPERATION

CAUTION

Burr

Hazard

Don't touch hot food, liquidor heating surfaces while equipment is heating or operating.

NOTICE: Food must be plated. Donot place food directly onto the heated shelf.

NOTICE:Theheatedshelfcanreachtemperaturesupto200°F (93.3°C). Donotplacematerialsontheselfthatcan become damagedaththattemperature.

NOTICE: Donotslideplates, pans, cookware, etc. across the hardcoatfinish. This could create damagetothefinishthat isnotcoveredunderwarranty.

Tip:Toextendthedurationatwhichfoodisheldatoptimalholding temperatures,useaVollrathheatsstripinconjunctionwiththeated shelf.

1.Presstheheatzone(s)powerbuttonstoturnnontheated-shelf. Thebutton(s)willilluminate.Theheatzonesetting(s)willdefaultto thesettingsfromtheprevioususe.
2.Presstheheatcontrolbutton(s)toselectaheatsetting. Note:Theheatsettingwillapplytobothzones.
3.Thecontrolpanelwilldisplaytheselectedheatsettingandthe heatingindicatorlightwillilluminate

4.Theightwillcycleonandoffashesthelfperiodicallyheatstopaintaintheheatsetting.

1. Platepre-cookedfood,heatedtoperservingtemperature. Place theplatedfoodontothepre-heatedshelf.

NOTICE: Monitor food temperature closely for food safety. The United States Public Health Servicerecommendssthat food beheldat minimum of 140^(60^) to help prevent bacteriaagrowth.

6.Monitorfoodandadjusttheheatsettingsasneeded.
7.Whenfinishedusingthesheelf,removethefoodandturnoffthe shelf.

CLEANING

WARNING

ElectricalShockHazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoran electricalshock.

CAUTION

BurnHazard

Hotsurfacedandfoodcanburnskin.Allowthehotsurfacedto coolbeforehandling.

Tomaintaintheappearanceandincreaseservice life,clean your equipmentdaily.

NOTICE: Donotusecausticcleaningchemicals,steelwoolor commerciallimeremovalproductstocleantheequipment. Thoroughlyrinseequipmentwithwateraftercleaning.

1.Presstheheatzonebutton(s)toturnofftheequipment.
2.Unplugtheequipment.
3. Use gloves, mittsorpotholderstoprotechandswhenremoving containersof hotfood.
4. Allow the equipment to cool completely before cleaning.
5.Useadampclothspongedippedinsoapywatertocleanthe equipment.
6.Useadamcplothorspongedippedcleanwatertorinsethe equipment.
7.Useasoftclothtothoroughlydrytheequipment.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Shelftemperaturesistoohigh,too loworisheatingunevenly.	Problemwithaninternalcomponent.	ContactVollrathTechnicalServices.Problemwiththeheatingelem
	Problemwiththethermistor.
Shelfdoesnotheat,butcontrolpanel isilluminated.	Electricalfailure	ContactVollrathTechnicalServices.
	Heatingelementfailure
Shelfsuddenlyturnoff.	Problemwithaninternalcomponent.ContactVol	IrrathTechnicalServices.
	PowercordisconnectedPluginhepowercord
	USBcontrolcableisdisconnected	ChecktheUSBcableconnectionstothecontrolpanelandthe powerboxmountedtothebottomoftheself.
Controlpaneldoesnotilluminate.	Controlpanelisnotcommunicating with shelfbecauseUSBcableisdisconnectededor damaged	ChecktheUSBcableconnectionstothecontrolpanelandthe powerboxmountedtothebottomoftheself.
	Issuewiththeelectricalpowertothedrop-in	Verifytheequipmentispluggedintoanelectricaloutletwith thecorrectvoltage,andonitsownseparatecircuit
	Problemwithinternalcomponents	ContactVollrathTechnicalServices.
	Damagetocontrolpanel
Controlpanelisbeeping.Aproblemwithasensororheatingelement.ContactVollrathTechnicalServices.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchaseersforsuchuses.

The Volrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC. PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

Étagèrechauffanteencastrable

FONCTIONSETCOMMANDES

A Zonechauffee2
B Zonechauffee1
C Panneaudecommande
Boutond'alimentationdelazonechauffee2
E Boutond'alimentationdelazonechauffee1
F Températuredeconsigneeactuelle
6 Voyantdechauffage.Cen'estpasunvoyantdemarche/arret.
H Boutonsderéglagedelatempérature.Réglages 1 à 9.

Bas:1-3

Moyen:4-6

Haut:7-9

MODED'EMPLOI

ATTENTION

Risquedebulure
