LBN 468 - Wine cellar LE CHAI - Free user manual and instructions

Product type	Wine cellar
Brand	Le Chai
Model	LBN 468
Capacity	46 bottles max (Bordeaux 0.75L format)
Dimensions (W×D×H)	595 × 572 × 883 mm
Weight	59 kg
Power supply	220-240 V ~ 50 Hz
Climate class	N/ST (16°C to 38°C)
Defrosting	Automatic frost-free (No-Frost)
Installation type	Built-in
Dual temperature zone	Upper zone: 5°C to 10°C; Lower zone: 10°C to 18°C
Refrigerant	R600a (isobutane)
Interior lighting	LED (automatic shut-off after 10 min)
Anti-vibration system	Silent blocks and polyurethane foam
Humidification system	Humidification tray (depending on model)
UV filter	Glass door treatment
Number of shelves	5 (removable)
Reversible door	Yes (right or left)
Manufacturer warranty	5 years
Spare parts availability	7 years after purchase

Frequently Asked Questions - LBN 468 LE CHAI

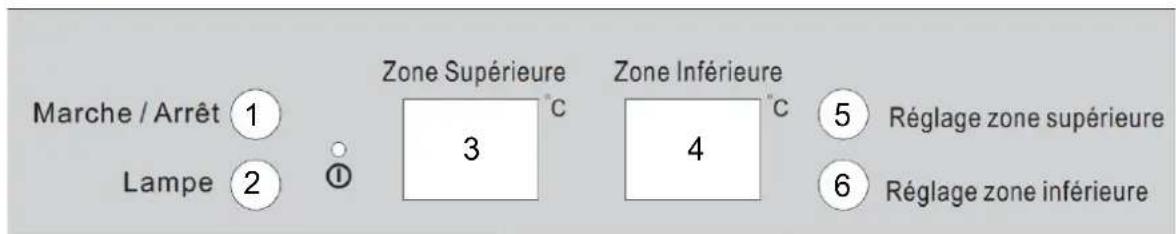

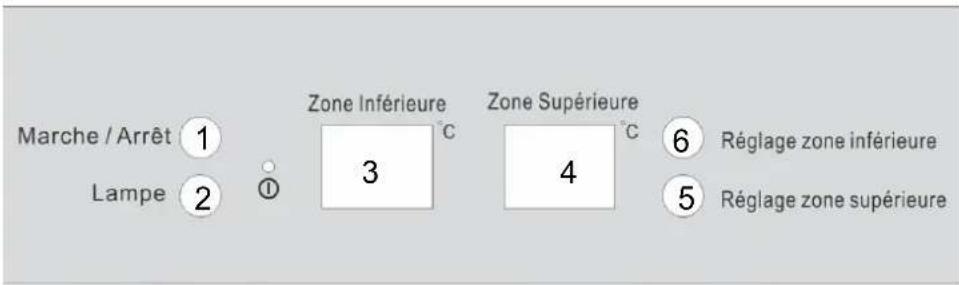

How to adjust the temperature of my LBN 468 wine cellar?

Use the adjustment buttons (5 and 6) located inside, to the right of the display. Each press increases or decreases the temperature by one degree. The display flashes for 5 seconds then shows the current temperature. For the upper zone: 5-10°C; lower zone: 10-18°C.

How to turn the interior light on or off?

Briefly press button 2 to turn the LED on/off. By default, the light automatically turns off after 10 minutes. To keep it on continuously, hold button 2 for 5 seconds until you see LP on the display. To return to automatic mode, repeat the same operation until you see LF.

How to clean the interior of the wine cellar?

Unplug the appliance. Remove the shelves and wash them with warm water and a mild detergent (dish soap). Clean the interior walls with the same solution, rinse with bleach water, and dry thoroughly. Never use abrasive products or scouring sponges. Also clean the door gasket.

What to do if the wine cellar does not cool enough?

Check the set temperature and the ambient temperature (must be between 16°C and 38°C). Make sure the door is properly closed and the seal is airtight. Avoid opening the door too often. Leave at least 3 cm of space at the rear for ventilation.

How to reverse the door opening direction?

Unplug the appliance. Open the door to 90°, remove the lower hinge screws and the door. Move the upper and lower hinges from the right side to the left side, using the screws and plugs provided. Follow the detailed steps in the manual (pages 17-18). Ensure the door is properly aligned and the gasket adheres correctly.

What type of wine to store in each zone?

The upper zone (5-10°C) is ideal for champagnes, sweet wines, and dry whites. The lower zone (10-18°C) suits light reds, fine white wines, and reds. Adjust according to serving recommendations (e.g., Bordeaux reds 16-17°C, Burgundy reds 15-16°C).

What to do in case of a power outage?

After a power outage, wait 5 minutes before turning the wine cellar back on. Otherwise, the compressor will not start. The internal temperature may rise; avoid opening the door unnecessarily to preserve the cold.

How to maintain the humidification system?

Fill the humidification tray to 3/4 capacity with water. Place it on the shelf under the fan at the back. Check the water level regularly, especially for long-term storage. This maintains proper humidity to prevent corks from drying out.

Can I store food items in this wine cellar?

No, this wine cellar is exclusively designed for storing and aging wine. Do not place perishable foods inside. The temperature is not suitable for fresh food.

What to do if the LED does not turn on?

First check that the appliance is powered on. If the LED remains off, the issue may be with the control panel, circuit boards, or power supply. Contact customer service. Do not attempt to replace the LED yourself as it is not user-replaceable.

USER MANUAL LBN 468 LE CHAI

Modèle	Site web	QR-code
LB178	https //eprel.ec.europa/qr/404007
LBN178	https //eprel.ec.europa/qr/404008
LB468	https //eprel.ec.europa/qr/404009
LBN468	https //eprel.ec.europa/qr/404010

PRESENTATION DE L'APPAREIL

Technical diagram of a multi-level rack or storage unit with numbered components and circular patterns, likely for engineering or manufacturing documentation.

1 - Porte en verre

2 - Lumière

3 - Clayettes

LB178 / LBN178 LB468 / LBN468

Technical line drawings of a refrigerator interior showing front, side, and side views with no visible text or symbols

CHARGEMENT

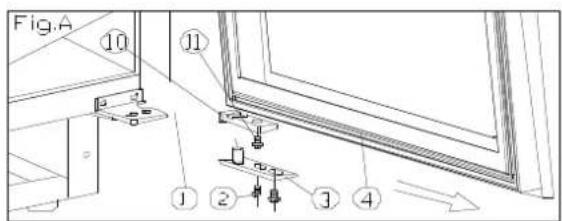

Fig.A ⑩ ⑪ ① ② ③ ④

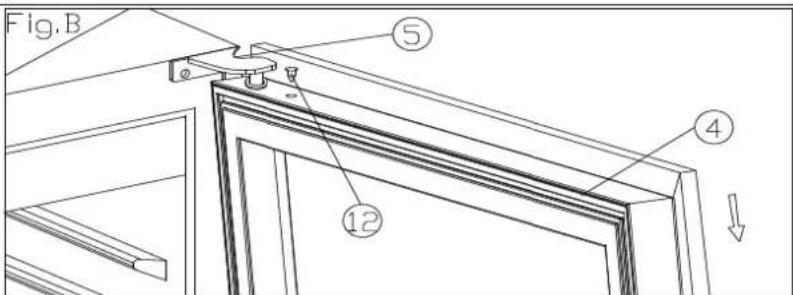

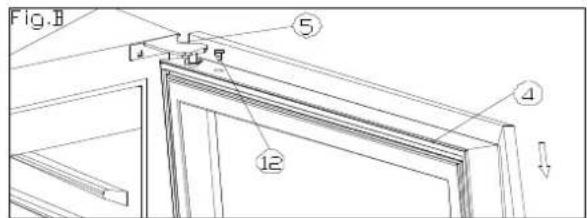

Fig.B ⑤ ④ ⑫

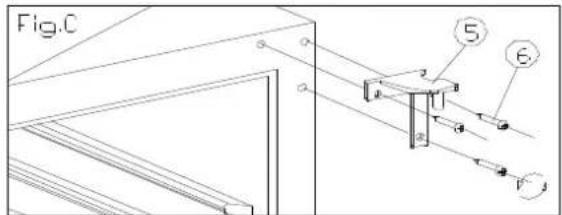

Fig.C ⑤ ⑥

Modelo	website	QR-code
LB178	https //eprel.ec.europa/qr/404007
LBN178	https //eprel.ec.europa/qr/404008
LB468	https //eprel.ec.europa/qr/404009
LBN468	https //eprel.ec.europa/qr/404010

Technical diagram of a multi-level rack-mounted device with numbered components and internal circular patterns

LB178 / LBN178 LB468 / LBN468

Technical line drawings of a refrigerator interior showing front, side, and side views with no visible text or symbols

CARGA

Fig.A ⑩ ⑪ ① ② ③ ④

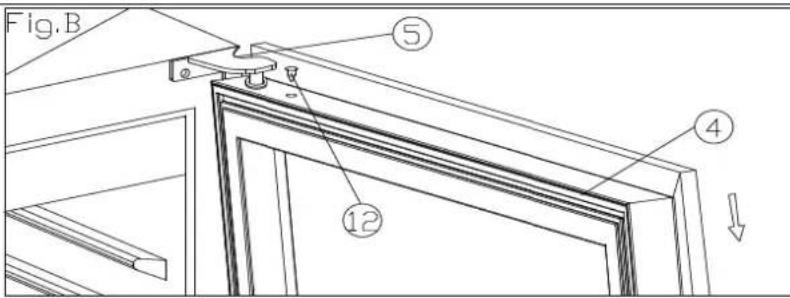

Fig.B ⑤ ④ ⑫

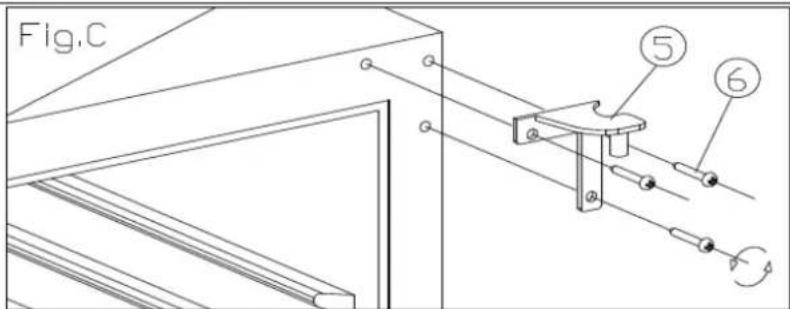

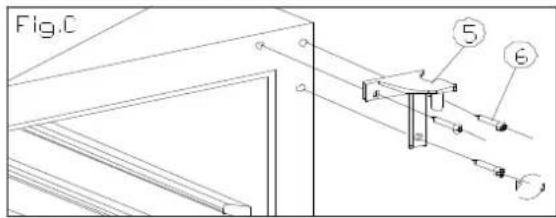

Fig.C ⑤ ⑥

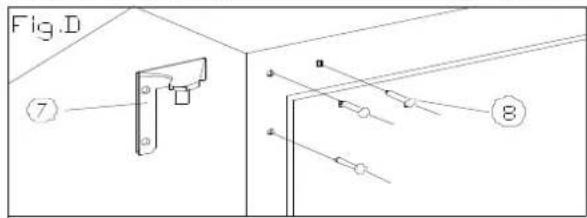

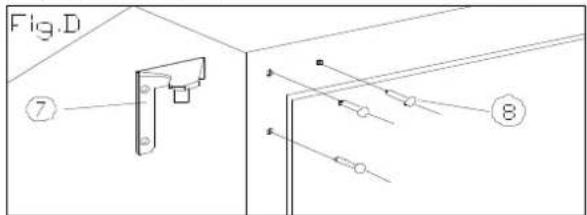

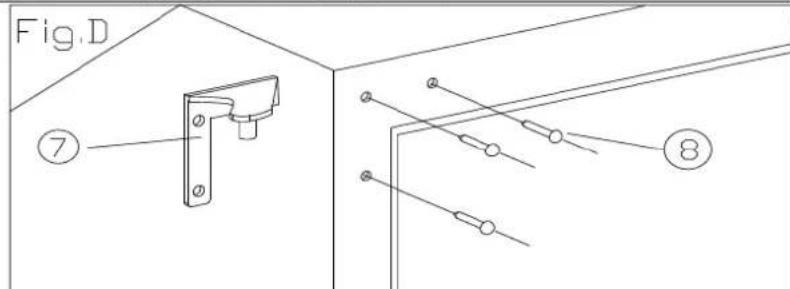

Fig.D ⑦ ⑧

Modell	website	QR-code
LB178	https //eprel.ec.europa/qr/404007
LBN178	https //eprel.ec.europa/qr/404008
LB468	https //eprel.ec.europa/qr/404009
LBN468	https //eprel.ec.europa/qr/404010

Technical diagram of a multi-level industrial storage unit with numbered components and circular patterns

LB178 / LBN178 LB468 / LBN468

Technical line drawings of a refrigerator interior showing front, side, and side views with no visible text or symbols

BEFÜLLEN

Fig.A ⑩ ⑪ ① ② ③ ④

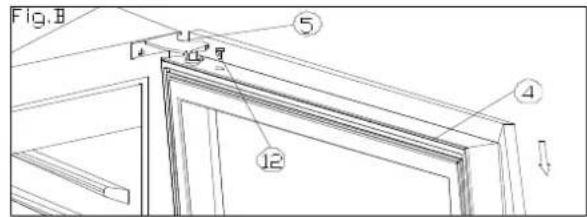

Fig.B ⑤ ④ ⑫

LB178 / LBN178 - 17 bottles

LB468 / LBN468 - 46 bottles

TABLE OF CONTENTS

Introducing the wine cabinet Page 57

Important warnings and tips Page 58

Setting up the cabinet

Page 62

Specific information

Page 63

Usage Page 66

Care of your cabinet Page 67

Troubleshooting Page 68

Changing door opening side Page 69

TECHNICAL AND ENERGY CHARACTERISTICS

Brand: LE CHAI	Model LB178 / LBN178(17 bottles max)	Model LB468 / LBN468(46 bottles max)
Foodstuffs	220-240V~ 50Hz
Size (L*W*H) (cm)	29,5 x 57,2 x 88,3 59,5 x 57,2 x 88,3
Weight	32 kg 59 kg
Defrosting	No-Frost
Climate class N/ST: This device is designed for use at ambient temperatures between 16°C and 38°C
Installation type	Built under

The cabinet is exclusively designed for storing wine.

The product information fiche according to regulation 2019/2016 / EU is available via

Model	Website	QR-code
LB178	https //eprel.ec.europa/qr/404007
LBN178	https //eprel.ec.europa/qr/404008
LB468	https //eprel.ec.europa/qr/404009
LBN468	https //eprel.ec.europa/qr/404010

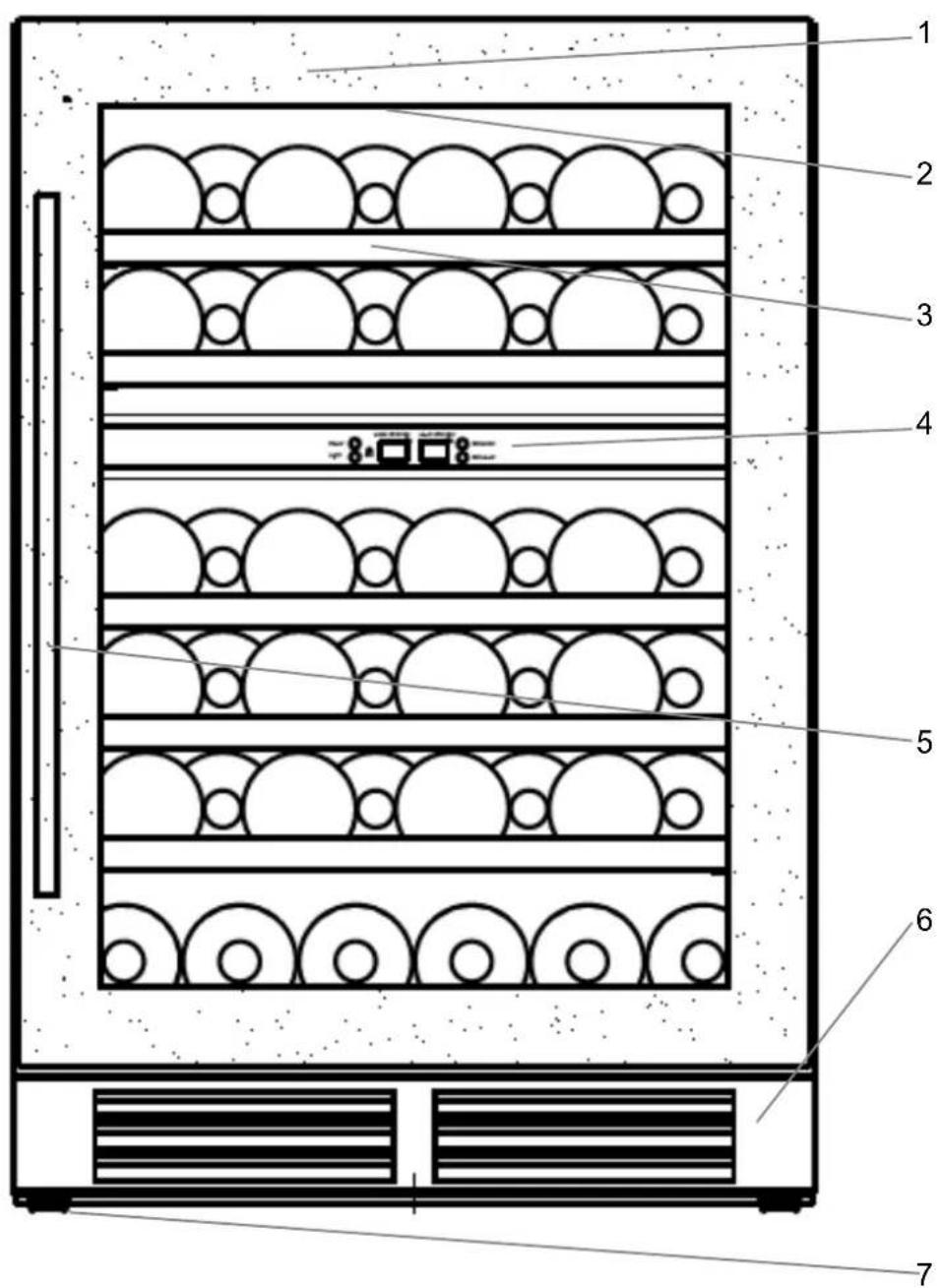

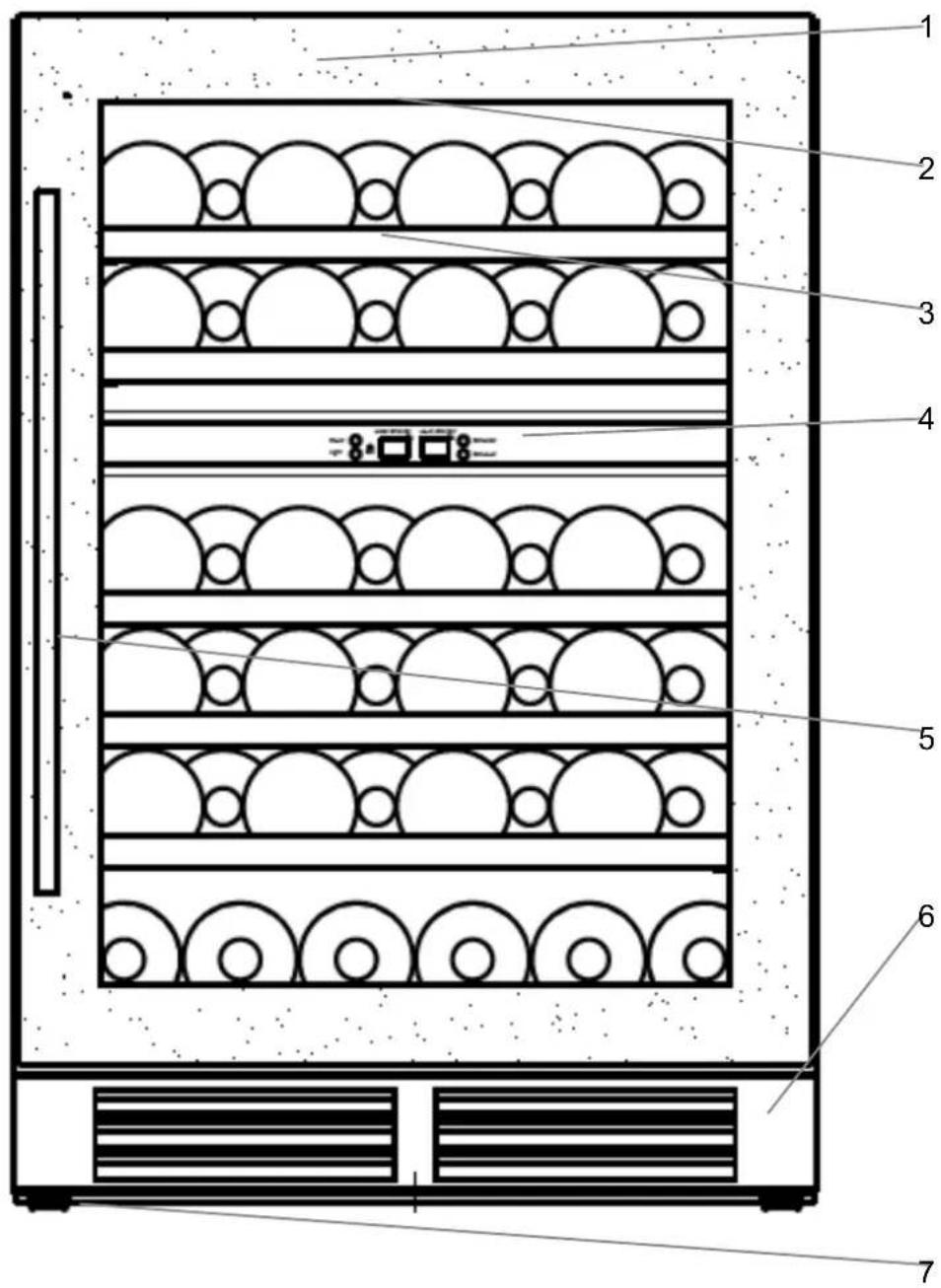

INTRODUCING THE WINE CABINET

Technical diagram of a multi-level rack or storage unit with numbered components and circular patterns, likely for engineering or manufacturing documentation.

1 - Glass door
2 - Light (LED)
3 - Shelves
4 - Control Panel

5 - Handle
6 - Ventilation
7 - Adjustable feet

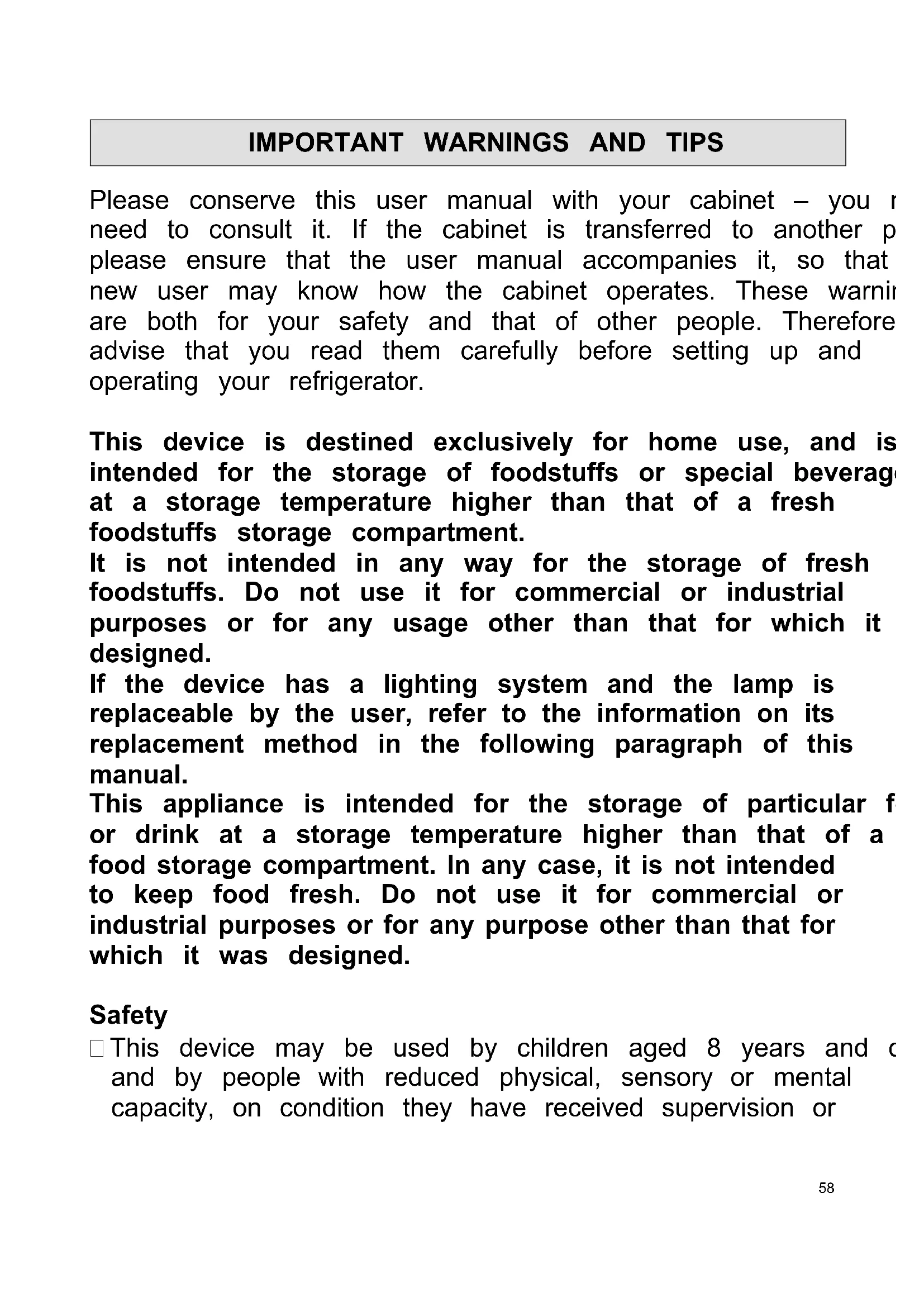

IMPORTANT WARNINGS AND TIPS

Please conserve this user manual with your cabinet – you need to consult it. If the cabinet is transferred to another please ensure that the user manual accompanies it, so that new user may know how the cabinet operates. These warni are both for your safety and that of other people. Therefore advise that you read them carefully before setting up and operating your refrigerator.

This device is destined exclusively for home use, and is intended for the storage of foodstuffs or special beverage at a storage temperature higher than that of a fresh foodstuffs storage compartment.

It is not intended in any way for the storage of fresh foodstuffs. Do not use it for commercial or industrial purposes or for any usage other than that for which it designed.

If the device has a lighting system and the lamp is replaceable by the user, refer to the information on its replacement method in the following paragraph of this manual.

This appliance is intended for the storage of particular for drink at a storage temperature higher than that of a food storage compartment. In any case, it is not intended to keep food fresh. Do not use it for commercial or industrial purposes or for any purpose other than that for which it was designed.

Safety

☐ This device may be used by children aged 8 years and 12 years and by people with reduced physical, sensory or mental capacity, on condition they have received supervision or

instruction concerning use of the device in all safety, and they understand the risks.

☐ Children should not be allowed to play with the device.
☐ Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
□ Always disconnect the device's electricity supply before cleaning it; before defrosting it, before changing the illuminating lamp; before moving the device or before clean the floor underneath it. Cleaning and care by the user should not be done by children unless under supervision.
□ WARNING: Do not damage the refrigeration circuit.
□ WARNING: Do not use electrical equipment inside the foodstuffs storage compartment, unless it is of a type recommended by the manufacturer.
□ WARNING: Do not use mechanical tools or other means speed up defrosting, unless they are recommended by the manufacturer.
□ WARNING: Keep the cabinet's ventilation openings clear in the enclosure or the built-in space around the cabinet.
□ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
□ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
☐ Do not connect the device to a power supply without over protection (protected by an electrical fuse).
□ Never use power-strips or extension cords to connect the device to the mains.
☐ This device is not destined for use with an outside timer remote control system or any device that switches it on automatically.
☐ Do not use the device to store explosive substances such aerosols that contain flammable propulsion gas.
□ After installing the cabinet, ensure that it is not resting or power cord.

☐ If the power cord is damaged, it must be replaced by the manufacturer, by customer care service, or by similarly qualified personnel in order to prevent electrical hazards.
☐ The device is heavy; be careful when moving it.
☐ If your cabinet was laid down in a horizontal position during transportation, wait 48 hours before operating it.
☐ In the event of accidental liquid spillage (broken bottles or other) on electrical components (motor or other), immediately unplug the device from the mains.
☐ Ensure that you put your cabinet in a place that can sup its weight when loaded (1 bottle containing 75 cl weighs approximately 1.3 kg).
☐ Your cabinet must be placed on a level surface. If you have placed it on a rug or on carpeting, insert a support benefit
□ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
□ Clean regularly surfaces that can come in contact with foo and accessible drainage systems.
☐ If the refrigerating appliance is left empty for long periods switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
☐ This refrigeration appliance is not suitable for freezing foodstuffs.

Servicing – repairs

☐ It is dangerous to modify or attempt to modify the characteristics of the device.

☐ If it breaks down, do not try to repair the device yourself. Repairs made by unqualified personnel can cause damage. Contact your dealer's Customer Care Service.

Refrigerant

Warning; Risk of fire / flammable materials.

The refrigerant gas contained in this device is isobutane (R 600a), it is low-polluting but is

flammable.

• When transporting and installing the device, take care not damage any part of the refrigerating circuit.
• Do not use a pointed or sharp edged tool to defrost the device.
• Do not use any electrical devices inside the cabinet. If the refrigerating circuit is damaged:

☐ Do not allow any open flame near the device.
□ Avoid sparks – do not switch on any electrical appliances lamps nearby.
☐ Immediately ventilate the room.

Disposal

This device carries the selective waste sorting symbol for electrical and electronic equipment disposal. This means that the product must be picked up by a selective collection system in compliance with European Directive 2012/19 EU so that it will either be recycled or dismantled in an environment-friendly way.

For more information please contact your local or regional government.

Electronic products that are not properly and selectively recycled are potentially dangerous for the environment and for human health because they contain dangerous substances. This device contains flammable foaming agents. When the refrigerator reaches the end of its life cycle, it must be disposed of in a suitable place, where refrigerators can be recycled. For this purpose please contact your town hall or municipality. Under no circumstances must the refrigerator be disposed of in public areas.

SETTING UP THE CABINET

If this device, which uses magnetic door closing, replaces a device equipped with a spring closing system, we advise you to destroy the spring closing system before disposing of the old device. T prevent children from locking themselves inside it and endangering their lives.

Location

Place your cabinet well away from heat sources (heater, cooker, direct sunlight). For proper operation the device, the ambient room temperature should be between +16°C and +38°C (class N/ST). Outside these limits, the device will not operate properly.

- Ensure that air can circulate freely behind the device: do not place it too close to a wall, in avoid noise from vibration. Ensure that air can circulate freely all around the device. Insufficient ventilation will lead to poor operation and increased energy consumption.

Leave at least 3 cm minimum between the rear of the wine cabinet and the wall.

- The device must be installed in such a way that the electric plug is accessible. After in the cabinet, make sure that it is not resting on the power cord.

- Level the device by using the 2 adjustable feet.

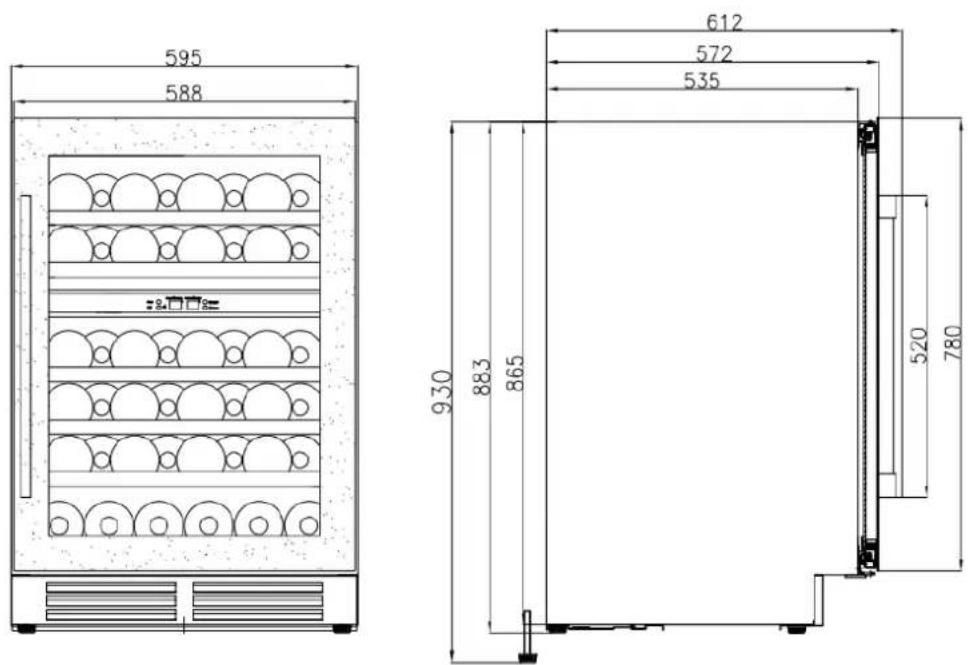

Built-in

Below the built-in dimensions to use before installing in the best condition this appliance

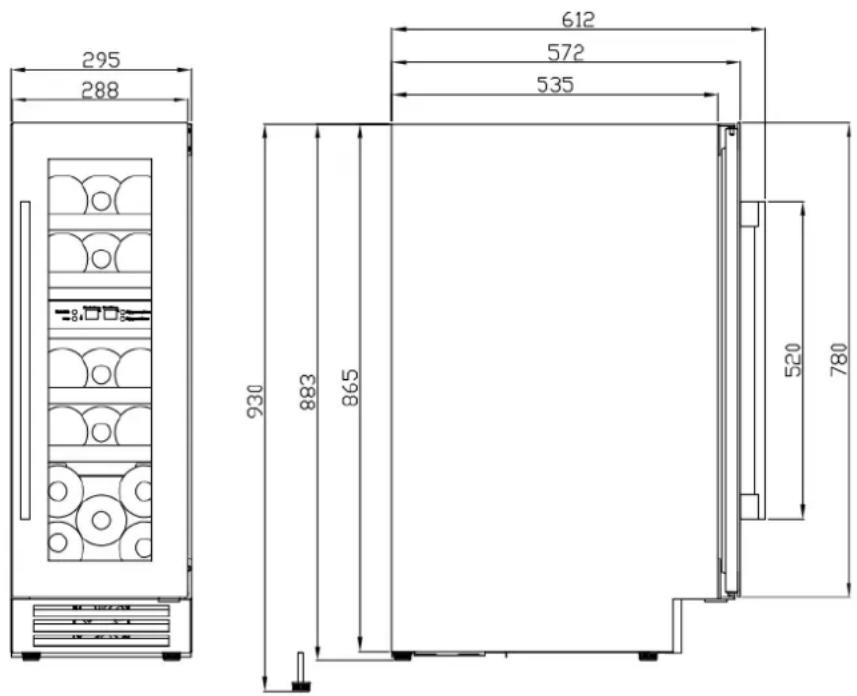

LB178 / LBN178

295 288 612 572 535 930 883 865 520 780

595 588 612 572 535 930 883 865 520 780

Connecting the power supply

Your cabinet is designed for operation with 230 V single-phase.

It must be connected to a wall socket equipped with earthing and protected by a 10 A fus compliance with the standard NF C15-100 and in compliance with your electricity supplier's prescriptions.

SPECIFIC INFORMATION

• We recommend that you install your wine cabinet in a temperate room.
• If the inside light remains on, please note that the inside temperature will be higher.
• Temperature inside the wine cabinet may vary depending on the type and the number of bottles contained.
• In order to keep your wines at a stable temperature, avoid leaving the door open for long periods.
• Do not install your wine cabinet close to a heat source; avoid direct sunlight.
• In order to guarantee your safety, and to prevent your wine being spoilt, do not place the cabinet in humid locations.
• Do not store perishable foodstuffs inside your wine cabinet.
• The wine cabinet is not designed for use in a garage, outside, or in the open air.
• The following (approximate) temperatures are recommended for wine drinking:

○ Great Bordeaux wines - Red 16 - 17°C
○ Great Burgundy wines - Red 15 - 16°C
○ Great vintages dry white wines 14 – 16°C
○ Red wines, fruity wines, young wines 11 - 12°C
○ Rosé wines from Provence, early-to-market wines 10 – 12°C
o Dry white wines and local red wines 10 - 12°C
○ Local white wines 8 - 10°C
○ Champagnes 7 - 8°C
○ Liqueur wines 6°C

- Temperature stability is of the greatest importance when storing wine.

- Exposure to light, vibrations, temperature variations or humidity can spoil the wine.

The cooling system

According to specialists, the ideal temperature for wine storage is around 12^ C, in the range of 14^ C. Do not confuse with the operating temperature, which varies depending on the specificity type of wine from 5 to 18^ C.

It is especially important to avoid sudden temperature changes. Designed by specialists, for wine in this device, unlike the single refrigerator, electronically ensures constant average temperature control.

The anti-vibration system:

The compressor is equipped with special shock (silent-blocks) and the inner tank is isolated from body by a thick layer of polyurethane foam. These features can prevent the transmission of vibrat the wines.

The humidification system:

This device is equipped with a tray (depending on model) which maintains the correct level of hu the humidity is too low, fill the tank level to 34 of its capacity. Check the water level time to tir water if necessary. Make sure the tank always contains water.

The tray is placed on the shelf under the fan at the bottom to provide a minimum humidity. Be careful to control the water level if you store your wines for a long time and you do not de unit to their implementation at operating temperature only (with rapid rotations of your bottles).

The UV system:

The light accelerates aging of your wines. In full doors cellars, the wines are naturally immune su course limited openings). This model glass door was subject of a particular treatment, which filters harmful ultraviolet rays; the wines are perfectly safe.

Defrost:

This product does not produce frost (No-Frost). There is no frost or ice; so, no operation is required to remove it.

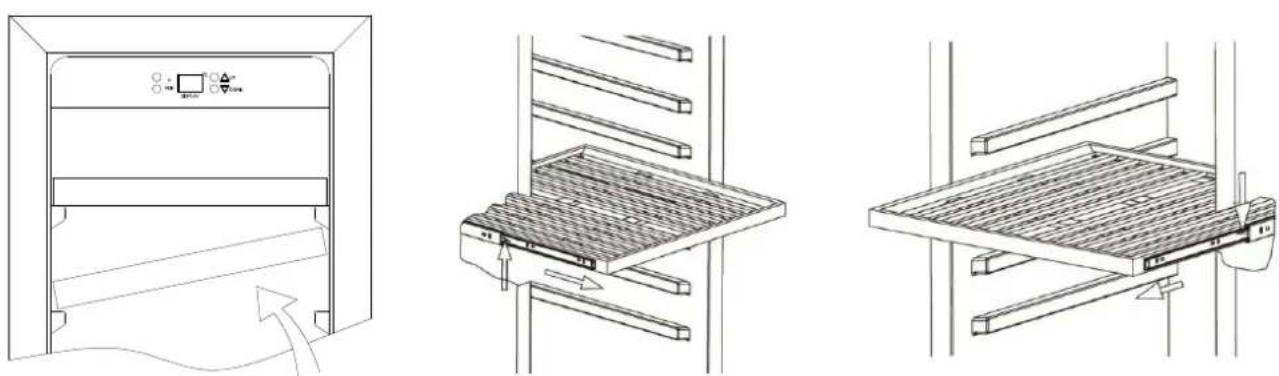

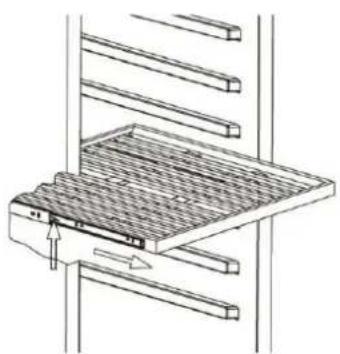

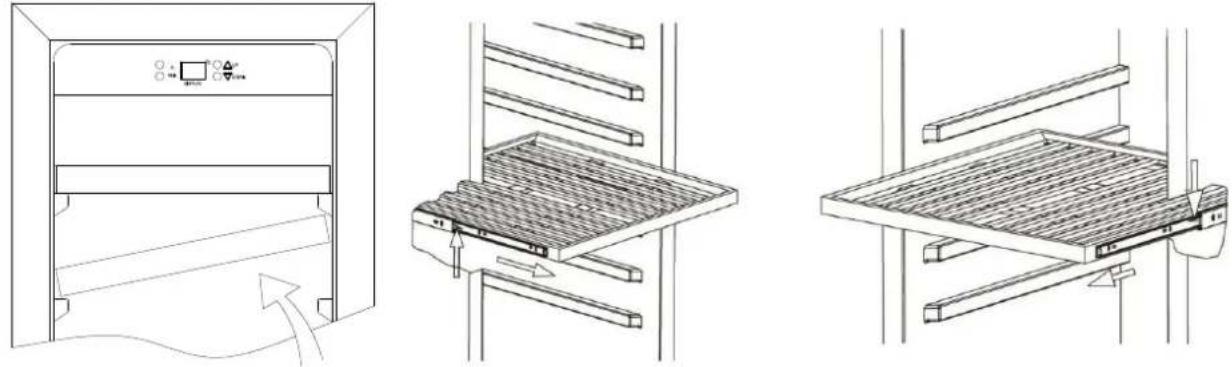

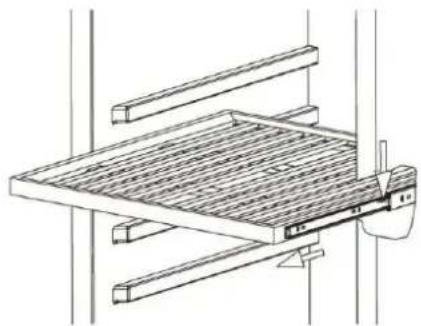

Shelves

To prevent damage to the door seal, make sure the door is open before pulling the shelves to remove the bottles.

For easier access to the contents of shelves you need to slide the shelf outward about 1/3 how are designed with a stop on each side to prevent the bottles from falling.

To remove or position the shelves, tilt the shelf as shown in the diagram and pull or push as r

LB178 / LBN178 LB468 / LBN468

For better conservation and avoid food waste

To avoid spoiling the wine, it is important that the temperature remains stable in the cavil avoid frequently opening the door and blocking the interior vents.

To avoid the appearance of mold, please avoid having too much humidity in the cavity.

LOADING

The maximum number of bottles that can be loaded into the cabinet are for information only; this information is not contractual; it provides a means for rapidly estimating the size of the device.

The information comes from tests carried out using standard bottles; in reality, in extreme condition would be possible to load a greater number of bottles without racks, but a "diverse wine cellar" i many different ways; the daily use of a wine cabinet means that it must carry fewer bottles. The you will probably load fewer bottles then the given maximum numbers.

How to load and care for your wine cabinet:

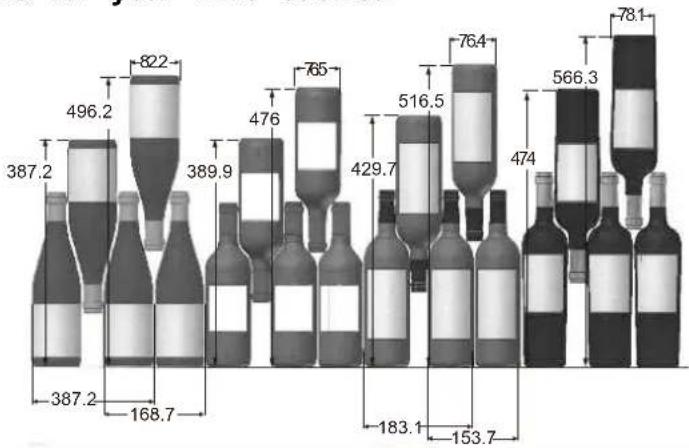

Here we see 4 types of 75 cl bottles, Burgundy and Bordeaux, of different sizes.

There are many other types, with various volumes and of all shapes.

Note the different ways they are stored depending on the height and diameter of the bottles as the interleaving method used.

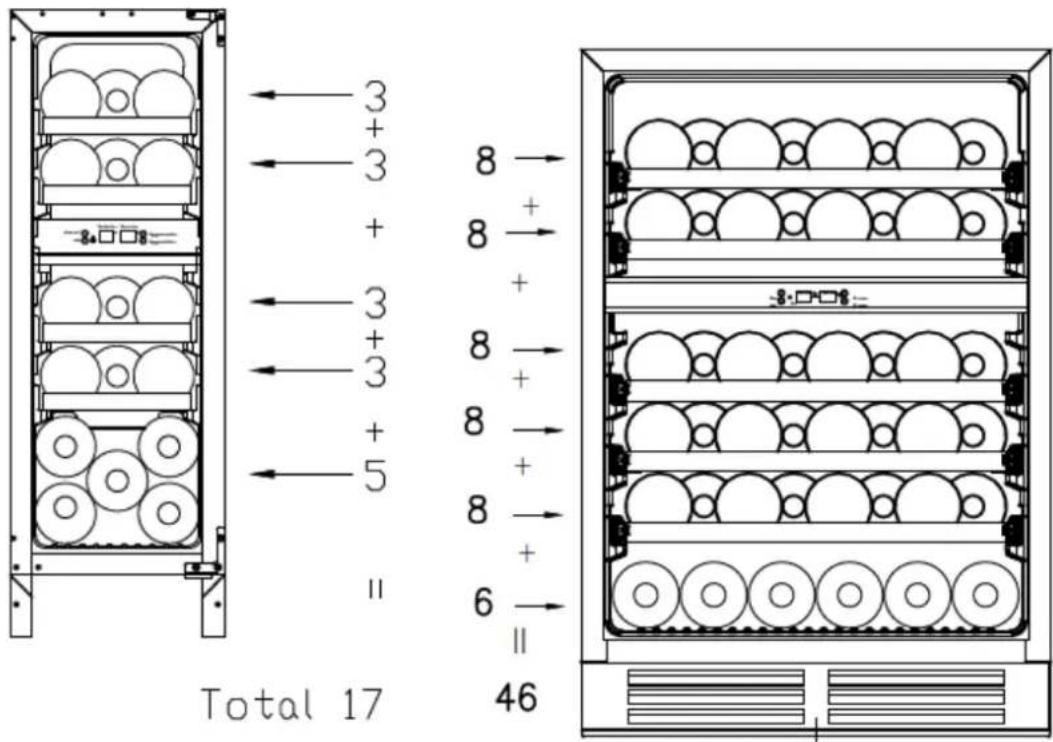

Loading for Max capacities

The maximum number of stored bottles is based on standard Bordeaux bottles containing 0.75

LB178/LBN178 (17 bottles max) LB468/LBN468 (46 bottles max)

3 + 3 + 8 → 8 + + + 8 → 8 + + 8 → 6 → 46 Total 17

USAGE

Starting up the device

Once the wine cabinet is properly installed, we advise that you clean the inside using warm water low concentration of dishwashing liquid. Do not use abrasives or scouring powder; they may scratch surface finish.

USAGE

CAUTION! Wine cabinets are intended only for storing and preserving wine.

IMPORTANT: Your wine cabinet is ideally suitable for holding Bordeaux type bottles of 0.75 L cap can contain larger bottles; however care must be taken that they do not prevent the door from c properly.

- When closing the door ensure that it does not touch any of the bottles.

- If you load several bottles at a time, it will take longer before the cabinet reaches the desired temperature.

- In order to avoid damaging the door seal, ensure that the door is fully open before moving the racks along the compartment rails.

Adjusting the temperature

LB468/LBN468:

3 -Digital display of the temperature in the uppe5 - Setting button for the upper zone zone 6 - Setting button for the lower zone

LB178/LBN178

3 - Digital display of the temperature in the lower 5 - Setting button for the upper zone zone 6 - Setting button for the lower zone

Starting the appliance

Press the start/stop button for about 3 seconds

Do the same to turn it off.

Temperature control

The internal temperature is regulated by the electronic thermostat controlled by the buttons inside the appliance.

Each time the “upper zone” or “lower zone” key is pressed, the selected zone is incremented by degree. To obtain a temperature lower than the one indicated,

You can adjust the temperature degree by degree. The temperature is set using the arrows 5 or right of the temperature indicator.

After the temperature is selected, the display will flash for 5 seconds and display the set-point temperature. If you want to know the actual temperature in the cellar, you must press the arrows at the same time for 3 seconds; after 5 seconds, the set-point temperature will be displayed again

Notes :

LB178/LBN178: The range of temperature of this wine cellar is between 5°C and 10°C in the low and between 10°C and 18°C in the upper zone.

LB468/LBN468: The range of temperature of this wine cellar is between 5°C and 10°C in the upper and between 10°C and 18°C in the lower zone.

Control of the light

To turn on or off the internal light, press the button.

The (LED) light is suitable for the conservation of wine.

In order to reduce energy consumption, the LED light goes off automatically after 10 minutes. How we recommend turning off the light under normal use or after each use. However, if you wish to light on, the procedure is as follows; press button 2 for at least 5 seconds; the display will then After a few seconds, the display comes back to the temperature indication and the light stays on continually. To return to the light turning off automatically after 10 minutes, press button 2 for at seconds; the display will then show "LF". After a few seconds, the display comes back to the temperature indication and the light goes off automatically.

Note

☐ If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine cooler will not start.

☐ To avoid too much condensation when the ambient temperature is higher than 28^ C, do not lov the temperature below 7^ C.

☐ When you use the Wine cooler for the first time or restart the Wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select the one indicated on the LED readout. This is normal and it is due to the length of the acti Once the Wine cooler is running for a few hours everything will be back to normal.

CARE OF YOUR CABINET

DEFROSTING

Defrosting of your wine cabinet is fully automatic. It requires no action on your part.

During operation, you may notice condensation drops forming on the rear inside wall of the cabin will be eliminated during automatic defrosting.

CLEANING

Before any cleaning, unplug the device from the mains.

Never use abrasives or a scraper sponge when cleaning the inside or the outside of your cabinet.

☐ Remove all accessories (racks, etc.). Wash them using lukewarm water to which has been add gentle unscented detergent (dishwashing liquid for example); rinse with bleach water and careful dry off.

□ Wash the inside walls in the same way; pay particular attention to the rack supports

Wash the door seal as well as under the seal.

☐ Plug the wine cabinet into the mains.

From time to time, dust off the condenser behind the device; accumulated dust may reduce the e of your wine cabinet.

In the event of a prolonged absence, empty and clean out the device; maintain the door slightly during the period of non-use.

REPLACING THE ILLUMINATING LAMP

The device uses light emitting diodes (LEDs). This type of diode cannot be changed by the user. cycle of the LEDs is long enough so that they do not need to be changed. If however, in spite taken by the manufacturer, the LEDs do fail, please contact your Customer Care Service for any

TROUBLESHOOTING

You can resolve many of the problems that may arise without having to call Customer Care Serv Please try the suggestions below.

PROBLEM	POSSIBLE CAUSE
No operation	☐ Check your installation's power supply☐ Check your circuit breaker☐ A fuse has blown
Not cold enough	☐ Check the setting temperature Ambient temperature requires readjustment of the temperatures☐ The door is open too often☐ The door is not closed properly☐ The door seal is not air-tight☐ There is not enough space around the device
No interior lightNo display on the LCD screen	☐ Contact your Customer Care Service
There appears to be a loud noise	☐ Check the device levelling☐ Verify that a piece of paper or part of packaging has not remained stuck in the device.
The door does not close properly	☐ Check the device levelling☐ The seal is in poor repair☐ The feet have "moved"
The light (LED) does not come on	☐ The control panel is not working☐ Printed circuit problem☐ Mains plug problem☐ Contact your Customer Care Service
LED display error	☐ Poor display☐ The temperature value is not shown☐ Contact your Customer Care Service
The fans are not working	☐ Control Panel to be replaced by your Customer Care Service

CHANGING DOOR OPENING SIDE

This appliance has reversible doors but is delivered with a right hinged door. The left hand hinge comes with the unit (in the box), should you wish to reverse the hinge on your unit.

For your safety, please unplug appliance before doing this operation.

Fig.A 10 11 1 2 3 4

Fig.8 ⑤ ④ ⑫ 12

Fig.C ⑤ ⑥

Fig.D ⑦ ⑧

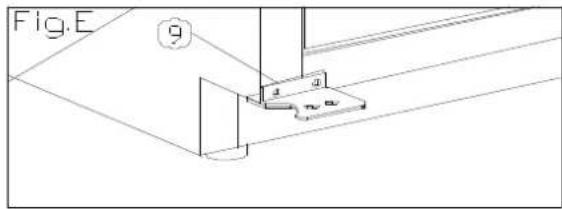

Fig.E 9 1 2 3 4 5 6 7 8 9

1. When open the door 90 degree, take out 2 screws (2) from lower door axis (3), remove the then pull out the door and door axis (Fig. A).
2. Put the door (4) safety and take out the plug (12) from top of door frame, unscrew 1 screw bottom and remove the Door limit device (10), then install the Door limit device (10) at top of frame, please use spare plug (12) to block the hole at top of door frame. (Fig. A/B)
3. Take out 3 hinge screws (6) from top hinge (right) (5) and remove it. (Fig. C)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at left cabinet with 3 screws. (Fig. D)
5. According above procedure, install spare lower hinge (left) (9). (Fig. E)
6. The door revolves 180 degrees, install the door with same way it was removed and fix it with aligned.
7. Block the hole at right top of cabinet with spare decorative nail (8).

GUARANTEE

Repairs and spare parts available

The manufacturer's warranty is applicable for this device for a period of 2 years.

In the event of a malfunction during this period, any request for support must be made to the a service of your dealer.

Outside the warranty period, any information regarding professional repair services or ordering origin spare parts may be obtained by contacting your dealer.

In accordance with the Ecodesign Regulation, spare parts will be available for at least 7 years from date of purchase of your device.

Imported by SIDEME SA / BP200 - 92306 Levallois-Perret cedex - France

Le Chai

GEBRUIKSHANDLEIDING

INBOUWBARE WIJNKAST

LB178 / LBN178 - 17 flessen

LB468 / LBN468 - 46 flessen

INHOUD

Model	Website	QR-code
LB178	https //eprel.ec.europa/qr/404007
LBN178	https //eprel.ec.europa/qr/404008
LB468	https //eprel.ec.europa/qr/404009
LBN468	https //eprel.ec.europa/qr/404010

Technical diagram of a multi-level rack or storage unit with numbered components and circular patterns, likely for engineering or manufacturing documentation.

Line drawing of a cabinet or rack with an arrow indicating upward motion (no text or symbols)

LB468 / LBN468

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

LADEN

Fig.A ⑩ ⑪ ① ② ③ ④

Fig.8 ⑤ ④ ① ⑫ ↓

Fig.C ⑤ ⑥

Fig.D ⑦ a b c ⑧

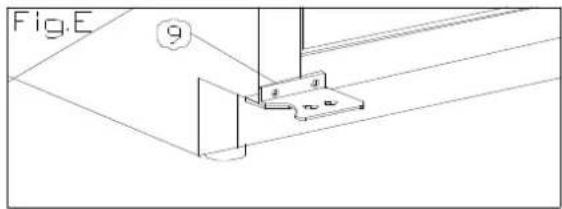

Fig.E 9
