TSA3536 - Food Processor Teesa - Free user manual and instructions

Product type	Hand mixer
Brand	Teesa
Model	TSA3536
Power	400 W
Power supply	220-240 V ~ 50/60 Hz
Weight	836.5 g
Dimensions (L x W x H)	88 x 135 x 193 mm
Cable length	148 cm
Number of speeds	5 settings + Turbo function
Turbo function	Yes, instant maximum speed
Included accessories	2 beaters and 2 dough hooks
Dishwasher compatibility	Yes (accessories)
Eject button	Yes
Cord storage	Yes, integrated
Design	Ergonomic
Noise level	Silent
Maximum usage time	5 minutes before cooling
Maintenance	Housing cleaned with a damp cloth; accessories washable in water or dishwasher
Intended use	Household

Frequently Asked Questions - TSA3536 Teesa

How to use the Teesa TSA3536 hand mixer?

Plug in the appliance, attach the desired accessories (beaters or hooks), immerse them in the ingredients, then select the desired speed from 1 to 5 or use the Turbo function for maximum speed. Always start at low speed.

Can I wash the accessories in the dishwasher?

Yes, the beaters and dough hooks are dishwasher safe. Wash them immediately after use to prevent residues from drying.

What is the maximum usage time?

To avoid overheating, do not use the appliance for more than 5 minutes continuously. Let it cool for a few minutes before using it again.

How to safely remove the accessories?

Make sure the appliance is turned off (speed at 0) and unplugged. Wait for the accessories to stop completely, then press the eject button while holding the accessories.

What types of preparations can I make?

With the beaters, you can whip egg whites, cream, eggs, mix sauces, etc. With the dough hooks, you can knead bread or cake dough.

The appliance makes an abnormal noise, what should I do?

Turn off the appliance immediately and unplug it. Check if the accessories are properly attached or if there is an obstacle. If the noise persists, contact an authorized service.

Can I use the appliance with hot ingredients?

It is not recommended to mix very hot ingredients. Use the appliance for room temperature or cold preparations.

How to clean the appliance housing?

Clean the housing with a soft damp cloth. Never immerse the appliance in water. Dry it thoroughly before storing.

Can the appliance be used by children?

Yes, from 8 years old and under supervision. Children must be informed of the risks. Cleaning and maintenance must not be performed by children without supervision.

What to do if the power cord is damaged?

Do not use the appliance. The cord can only be replaced by the manufacturer, an authorized service, or a qualified person. Do not attempt to repair it yourself.

USER MANUAL TSA3536 Teesa

Labeled diagram of a hairdryer with numbered parts for identification

CS	DE	ENFRGR
Uvolňovacítlačítkokoncovek	Taste Auswerfen	Eject button	Touche de relâchement des extrémités	Kouvπίεξαγωγής
Tlačítko Turbo	Taste Turbo	Turbo button	Touche Turbo	KouvπίTurbo
Přepínačrychlosti	Drehzahlregler	Speed control switch	Interrupteur de vitesse	Διακόπτης ελέγχου αχύτητας
Úložnýprostor pro kabel	Kabelumwicklung	Power cord storage	Emplacement pour le câble	Αποθήκευση καλωδίου εύματος
Otvory na násadky	Befestigungsschlitze	Attachment slots	Orifices pour les extrémités	Υποδοχές σύνδεσης
Šlehače	Rührbesen	Beaters	Fouets	Χτυπητήρια
Míchadla	Knethaken	Dough hooks	Mélangeurs	Άγκιστρα ζύμης

HUNLPLROSK
Szár kioldó gomb Ontgrendelingsknop uiteinden	Przycisk zwalniający końcówki Buton se evacuare Aretačné tlačidlo metličiek
Turbó gomb Turbo-knop Przydisk Turbo Buton turbo Tlačidlo Turbo
Sebesség szabályzó Snelheidsschakelaar Przełącznik prędkości	Comutator de control	al vitezei	Prepínač rýchlosti
Vezeték tároló Opbergvak voor snoer Schowek na przewód Loc pentru depozitarea	cablului de alimentare	Ukladací priestor na kábel
Szárak nyílásai	Openingen voor uiteinden	Otwory na końcówki	Fante pentru ataşamente accesorii	Otvory pre metlicky
Habverő	Gardes	Trzepaczki	Bătătoare	Šlahacie metlicky
Keverőszár	Roerwerken	Mieszadła	Cârlige pentru amestecarea aluatului	Hnetacie metlicky

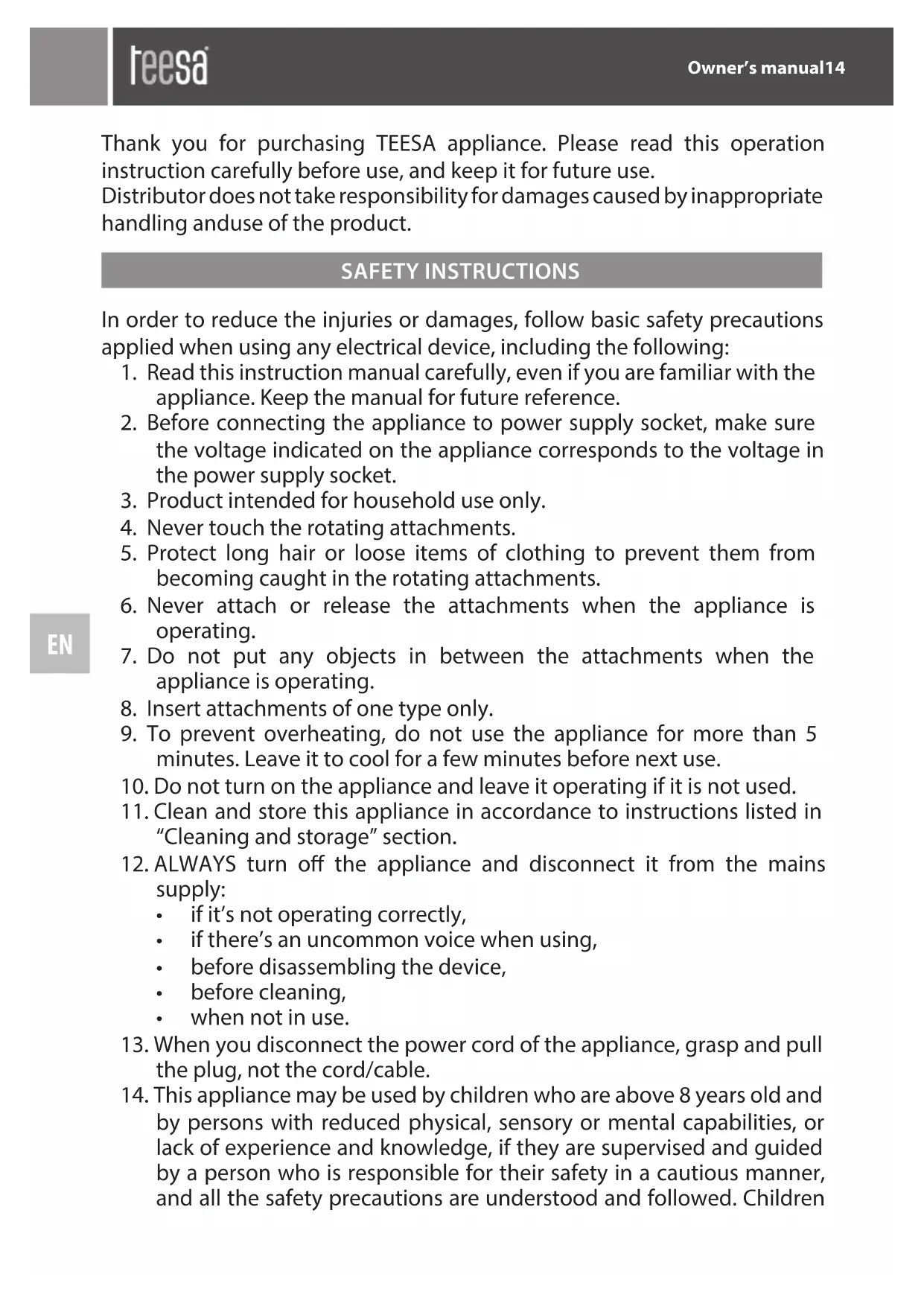

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use.

Distributor does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

In order to reduce the injuries or damages, follow basic safety precautions applied when using any electrical device, including the following:

1. Read this instruction manual carefully, even if you are familiar with the appliance. Keep the manual for future reference.
2. Before connecting the appliance to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.
3. Product intended for household use only.
4. Never touch the rotating attachments.
5. Protect long hair or loose items of clothing to prevent them from becoming caught in the rotating attachments.
6. Never attach or release the attachments when the appliance is operating.
7. Do not put any objects in between the attachments when the appliance is operating.
8. Insert attachments of one type only.
9. To prevent overheating, do not use the appliance for more than 5 minutes. Leave it to cool for a few minutes before next use.
10. Do not turn on the appliance and leave it operating if it is not used.
11. Clean and store this appliance in accordance to instructions listed in "Cleaning and storage" section.
12. ALWAYS turn off the appliance and disconnect it from the mains supply:

• if it's not operating correctly,
- if there's an uncommon voice when using,
• before disassembling the device,
- before cleaning,
- when not in use.

1. When you disconnect the power cord of the appliance, grasp and pull the plug, not the cord/cable.

2. This appliance may be used by children who are above 8 years old and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood and followed. Children

should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

1. Keep the appliance out of the reach of children.

2. Fixed power cable may only be replaced in an authorized service point.

3. Keep the appliance and its cord/cable away from heat, water, moisture, sharp edges and any other factor which may damage the appliance or its cord.

4. Make sure the power cord does not touch any hot or sharp elements.

5. Do not use the product for purposes different from displayed in this operating manual.

6. Do not place the appliance in water or any liquid; nor handle/use it with wet or moist hands.

7. Do not leave the appliance unattended when it's working.

8. Producer of this product is not responsible for damages caused by inappropriate handling and using of the appliance.

9. ALWAYS disconnect the product from the mains supply when it is not in use.

10. DO NOT use this appliance if the cord or the plug is damaged, or the appliance is broken.

11. Do not attempt to repair this appliance yourself. Only authorized and qualified personnel may repair this appliance. Never disassemble this appliance.

12. Do not use unauthorized accessories.

OPERATION

1. Before first use, clean the attachments according to the instructions included in the "Cleaning" section.
2. Make sure the appliance is turned off (speed control switch is set to the O position) and disconnected from power supply.
3. Insert the beaters or dough hooks in the attachment slots of the appliance until they lock in place (you will hear an audible click).
4. Connect the plug with power supply socket.
5. Dip the attachments into the food mixture before turning on the appliance.

6. Set the speed control switch to the desired position depending on the type of food:

7. 1-2 speed setting: suitable for mixing dry ingredients with liquids, folding egg whites or cream into mixtures, stirring sauces or mashing vegetables.

8. 3-4 speed setting: suitable for mixing puddings or batters, dough or more dense cake mixtures with dough hooks as well as creaming shortening and sugar.
9. 5 speed setting: suitable for whipping cream, evaporated or powdered milk, egg whites or whole eggs, mixing mincemeat with other ingredients or kneading heavy dough.
10. Turbo function: press the turbo button to instantly increase the speed level to the maximum speed.

11. It is recommended to start mixing at the lowest speed and increase it gradually.

12. If you want to take a break during mixing, turn off the appliance and put it (with the beaters or dough hooks still attached) on its heel.

13. After you finish operation, set the speed control switch to the 0 position and disconnect the appliance from power supply.

14. Wait until the attachments stop rotating completely and pull them out from the food mixture.

15. Hold the attachments with one hand and press the eject button with the other hand to release the attachments.

16. Note: Never release the attachments unless the speed control switch is set to the 0 position and the appliance is disconnected from the power supply.

17. Clean the attachments according to the instructions included in "Cleaning" section.

CLEANING AND STORAGE

• Before cleaning make sure the appliance is turned off, disconnected from power supply socket and that it has cooled down.
• Clean the housing of the appliance with soft and slightly damp cloth.
• Clean the attachments under warm running water or in a dishwasher straightaway after usage so that residues of food will not dry on. Then wipe them dry.
• Do not use any abrasives or chemical agents to clean this appliance.
• Before storing the appliance make sure it is clean, dry and disconnected from power supply.

SPECIFICATION

MAIN FEATURES

Turbo function

5 speed settings

Beaters and dough hooks included

Eject button

Dishwasher safe attachments

Quiet and lightweight

Ergonomic design

Power cord storage

TECHNICAL DATA

Power: 400 W

Power supply: 220 \~ 240 V; 50/60 Hz

Weight: 836,5 g

Dimensions: 88 x 135 x 193 mm

Cord length: 148 cm

EN

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.

Made in China for Lechpol Electronics Leszek Sp.k., ul. Garwolińska 1, 08-400 Miętne.
