Safety instructions 9

1. Parts and components 66
2. Before use 66
3. Installation 67
4. Operation 69
5. Cleaning and maintenance 75
6. Troubleshooting 76
7. Technical specifications 77
8. Disposal of old electrical and electronic appliances 78
9. Technical support and warranty 78
10. Copyright 79

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

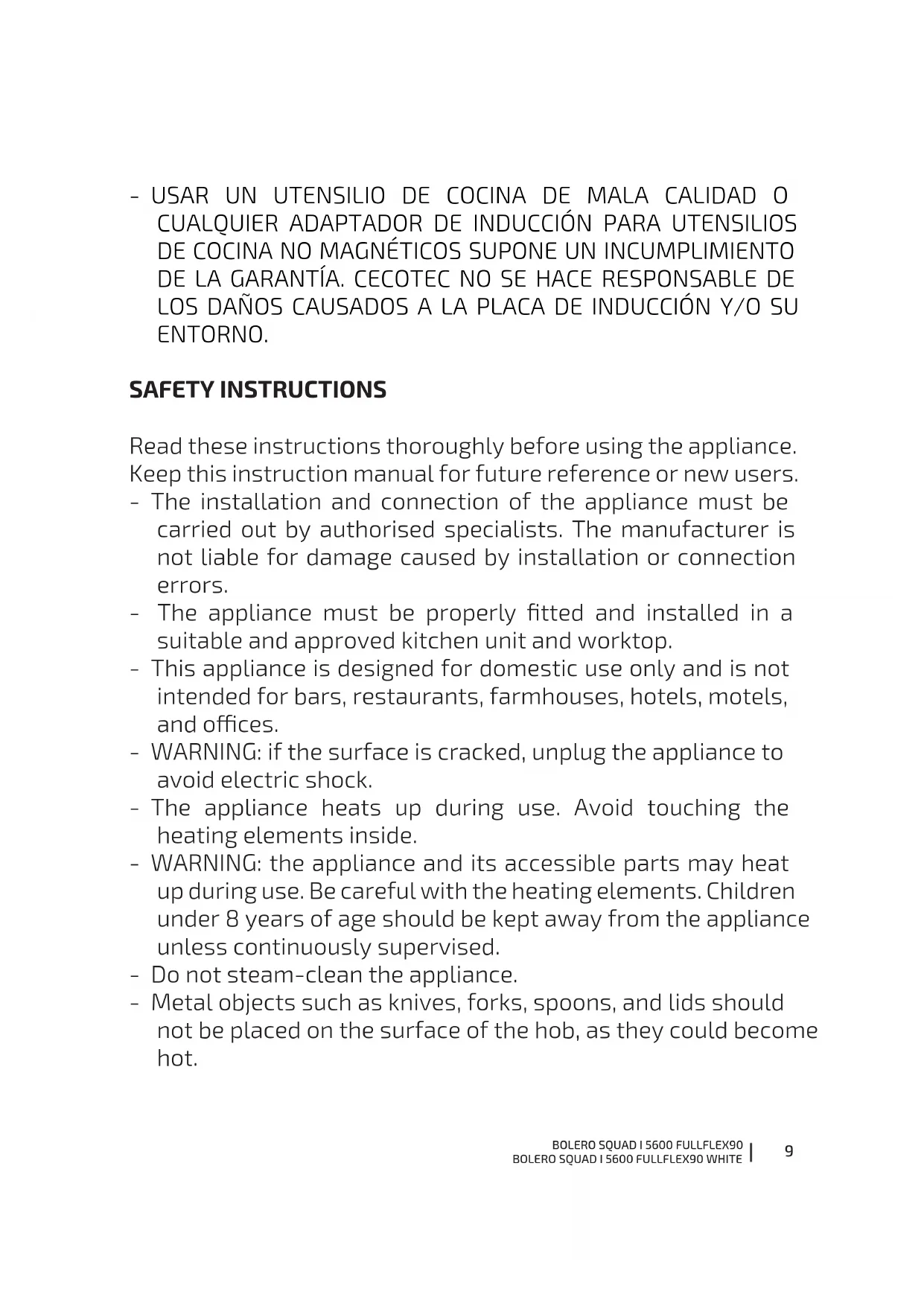

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• The installation and connection of the appliance must be carried out by authorised specialists. The manufacturer is not liable for damage caused by installation or connection errors.
• The appliance must be properly fitted and installed in a suitable and approved kitchen unit and worktop.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• WARNING: if the surface is cracked, unplug the appliance to avoid electric shock.
• The appliance heats up during use. Avoid touching the heating elements inside.
• WARNING: the appliance and its accessible parts may heat up during use. Be careful with the heating elements. Children under 8 years of age should be kept away from the appliance unless continuously supervised.
• Do not steam-clean the appliance.

• Metal objects such as knives, forks, spoons, and lids should not be placed on the surface of the hob, as they could become hot.

• Stop operation of the the hob by means of its control device and not by means of the container detector after use.

• The appliance is not intended to operate by means of an external timer or a separate remote-control system.
• WARNING: unattended cooking on a greasy or oily hob can be dangerous and may result in a fire. NEVER attempt to extinguish a fire with water. Switch off the appliance and cover the flames, e.g., with a fireproof lid or blanket.
• CAUTION: always supervise the cooking process. Continuously monitor the cooking during operation.
• WARNING: fire hazard. Do not place objects on the cooking surfaces.
• WARNING: only use hob protectors designed by the kitchen-appliance manufacturer or found to be suitable by the latter in the instructions for use, or corresponding built-in hob protectors. The use of unsuitable protectors can cause accidents.
• Do not install the appliance behind a decorative panel to avoid overheating.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Remove all labels and stickers from the ceramic glass.
• Do not modify the appliance in any way.
• The induction hob cannot be used as a support or work surface.

• The appliance must be earthed in accordance with local regulations.

• Do not place the appliance on top of a dishwasher or tumble dryer to avoid steam damage.

• Turn off the cooking areas after use.
• Monitor the cooking of very fatty or oily foods to avoid fire.
• Be careful not to burn yourself while or after using the appliance.
• Make sure that no cables of any fixed or mobile appliance touch the glass or hot cookware.
• Magnetic objects (credit cards, calculators, etc.) must not be placed near the appliance when plugged in.
• Never cover the appliance with a cloth or protective film to prevent overheating and fire.
• Cookware with worn or damaged bottoms can damage the ceramic glass.
• Sand or other abrasive materials may damage the ceramic glass.
• Prevent objects of any size from falling onto the ceramic-glass panel.
• Avoid hitting the edges of the hob with cookware.
• Make sure the appliance is sufficiently ventilated according to these instructions.
• Do not place or leave empty cookware on the induction hob.
• Sugar, synthetic materials, or aluminium foil must not come into contact with the cooking areas. These may cause breakage or other damage to the ceramic-glass panel due to cooling: switch on the appliance and remove them from the cooking area immediately (being careful not to burn yourself).
• Never place hot containers on the control panel.
• If there is a drawer under the built-in appliance, make sure there is enough space between the contents of the drawer

and the bottom of the appliance (at least 2 cm). This is essential to ensure proper ventilation.

• Never store flammable objects (e.g., aerosols) in the drawer under the induction hob. Drawers and their contents must be heat resistant.
• Precautions in the event of a fault: if you notice a fault, switch off and unplug the appliance.
• The appliance must be repaired by qualified professionals. Do not try to fix the appliance yourself.
• Always make sure that cookware is well centred on the cooking area. The bottom of the cookware should cover as much of the cooking area as possible.
• The magnetic field of the appliance may affect the operation of pacemakers. For further information, please contact the purchase store or refer to a doctor. These devices must comply with EU Council Directive 90/385/EEC of 20 June 1990 and with EN 45502-2-1, EN 45502-2-2.
• Do not use aluminium or synthetic containers to prevent them from melting due to the residual heat of the cooking areas.
• Never try to put out the fire with water, switch off the appliance and cover the flame, for example, with a lid or a fireproof blanket.
• USING POOR QUALITY COOKWARE OR ANY INDUCTION ADAPTER FOR NON-MAGNETIC COOKWARE IS A BREACH OF WARRANTY. CECOTEC IS NOT LIABLE FOR ANY DAMAGE CAUSED TO THE INDUCTION HOBAND/OR ITSSURROUNDINGS.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.

- Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

- Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

Box content

- Induction hob

- Instruction manual

3. INSTALLATION

3.1 Before installing the hob

1. Make sure that the worktop is square, stable and level, and that no structural elements violate the space requirements.
2. Make sure that the worktop material is heat resistant.
3. If you install the hob over an oven, the latter must have a built-in cooling fan.
4. Make sure that the installation complies with all safety requirements and applicable standards and regulations.
5. Make sure that the hob has a circuit broker that allows it to be completely disconnected from the mains, which has been installed and positioned in accordance with local electrical rules and regulations.
6. Make sure that the circuit braker is of an approved model and that it provides 3 mm contact separation on all poles (or on all active [phase] conductors if local wiring regulations allow this variation of requirements).
7. Make sure that the user can easily access the circuit braker after the hob has been installed.
8. Use heat-resistant and easy-to-clean finishes (such as ceramic tiles) on the walls surrounding the hob.

WARNINGS:

• The induction hob must be installed by qualified personnel or technicians. Never carry out the operation by yourself.
• Do not install the hob directly over a dishwasher, a refrigerator, a freezer, a washing machine, or a dryer, as moisture could damage the electric system of the hob.
• The induction hob must be installed in a manner that ensures the best heat radiation to obtain the best results.
• The wall and the area over the worktop surface must be heat resistant.
• To avoid any damage, the adhesive used for the installation of the hob must be heat resistant.
• Cecotec cannot be held responsible for accidents resulting from improper grounding.

ENGLISH

3.2 Preparation of worktop

1. Drill a hole in the worktop according to the measurements shown in figure 3.

Note: for its installation and use, you must keep a space of at least 5 cm around the gap.

Length(mm)	Width(mm)	Height(mm)	Depth(mm)	A (mm)	Amplitude(mm)	X (mm)
900 520 58 54	855 495					50minimum

1. Make sure that the thickness of the worktop is at least 30 mm.

Note: choose a heat-resistant worktop to avoid deformation due to the heat generated by the induction hob.

⚠️ Make sure the induction hob is well ventilated and the air inlet and outlet are not blocked. Make sure the induction hob works correctly.

3.4 Ventilation

Always make sure the hob is well ventilated and that the air inlet and outlet are not blocked.

Note: the safety distance between the hob and a cabinet over the hob must be at least 760 mm.

See figure 4 to ensure proper ventilation of the hob.

A (mm) B (mm) C	(mm) D E
760 50 minimum	30 min	Air inlet Air outlet	10 mm

3.4 When you have installed the induction hob, make sure that:

• The power cable is not accessible through cabinet doors or drawers.
• There is an adequate flow of fresh air from the exterior of the cabinet to the hob base.
• If the hob is installed above drawers or cabinets, you must install a thermal protection barrier under the hob base.
• The circuit braker shall be easily accessible to the user.

3.5 Connecting the hob to the mains socket

Before connecting the hob to the mains, check that:

1. The electrical installation to which the hob is connected is adequate for the power consumed by the hob.
2. The voltage corresponds to the nominal value specified in the characteristics described in this manual.

WARNINGS:

• Do not use adapters, reducers or similar devices to connect the induction hob to the mains socket, as they may become hot and cause a fire.
• The power cable of the induction hob must not touch any part that can become hot or be placed in any area that can exceed 75 °C.
• Consult a licensed and qualified electrician to install the hob.
• Any modifications to the electrical installation must only be carried out by an authorised electrician.
• The electrical connection of the induction hob must comply with current regulations and be protected by a single-pole or automatic circuit breaker.
• If the cable is damaged, please contact the official Cecotec Technical Support Service.
• The person in charge of the installation must ensure that a correct electrical connection has been made and that it complies with safety regulations.
• Do not bend or press the cable.
• The cable must be checked periodically by an authorised technician.
• Cecotec cannot be held responsible for accidents resulting from improper grounding.

4. OPERATION

4.1 Using the icons

• The icons react to touch, so there is no need to apply any pressure. Fig. 5.
• You will hear a beep every time the hob detects a finger.
• Make sure the icons are always clean and dry and that no objects (for example, a utensil or a cloth) are covering them. Even a thin film of water can make it difficult to operate the icons.

4.2 Cookware suitable for the induction hob

Ferromagnetic cookware

• Cookware suitable for cooking with an induction hob is made of ferromagnetic material. It can be made of enamelled steel, cast iron or stainless steel.
• To find out if a container is suitable for use with an induction hob, check if it is attracted by a magnet.

Special cookware

• There are other types of suitable containers for induction cooking whose base is not entirely ferromagnetic.
• Before use, check the diameter of the base and make sure that the induction hob detects them.

ENGLISH

Choosing the right cookware

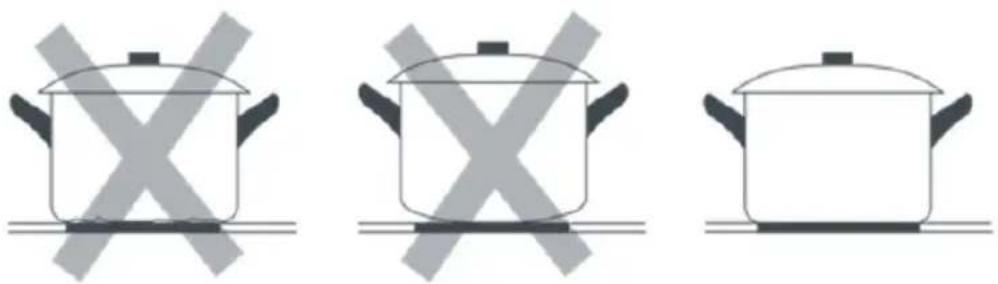

• Do not use cookware with serrated edges or with a curved base. Fig. 6.
• Make sure to use ☐at-bottomed cookware that matches the size of the cooking zone. Use cookware whose diameter is the same as the selected cooking zone. The use of a slightly wider cookware will increase the e ^1 ciency of the energy used. If a smaller container is used, e ^1 ciency may be affected.
• Always place the cookware in the centre of the cooking zone. The base of the cookware used can influence the heat distribution and thus the cooking result. Choosing a container with a higher quality base will save time and energy.

Protecting the glass surface

- If you want to move a container placed on the hob, lift it up. Do not slide it, as this may damage the glass. Fig. 7

Empty cookware or very thin base

- Never place an empty pan on the hot hob, as this may cause damage to the hob. Also, use containers with a very thin base.

4.3 Detection of cookware

• Do not use containers whose base is smaller than the specified diameter, as they will not be detected by the hob.
• If you have not placed a pan on the hob, if you have placed a pan with a base that is too small in diameter or if the pan used is not suitable for induction cooking, the hob will not work, and the display will show.
• The cooking zones will not work if the diameter of the base of the cookware is too large or too small. In any other case, the cooking zones will automatically adapt to their diameter. Nevertheless, the base of the cookware should match as closely as possible the diameter of the cooking zone in which it is to be placed. To get the most out of the induction hob, place the cookware in the centre of the cooking zone.

4.4 Switching on the hob

1. When switching on the appliance, a beep will sound and "0" and "--" will be displayed, meaning that the appliance has entered standby mode.
2. Place a suitable cookware on the cooking zone you wish to use. Make sure the base of the cookware and the cooking zone surface are clean and dry.
3. Press the icon of the cooking zone you wish to use. The number "0" will ☐ash.
4. Adjust the power level using the “-” and “+” icons.
5. You can adjust the power of the cooking zone at any time. To do so, select the desired cooking zone and, when the digits start √ashing, adjust the power with the corresponding icons.

If is shown, it means that:

• You have not placed the cookware on the correct cooking zone.
• The cookware is not suitable for the induction hob.
• The cookware is too small or is not correctly centred on the cooking zone.

If any of the above has happened:

• The hob will not heat up unless a suitable container is placed in the cooking area.
• The display will automatically switch off after 2 minutes if no cookware is placed on the hob.

After cooking

1. Press the icon of the cooking area you wish to switch off.
2. Adjust the power level using the "-" and "+" icons. Make sure that "0" is displayed and then "H".
3. Switch the induction hob off by pressing the power icon.
4. If "H" is displayed, it means that the surface temperature of the cooking zone is higher than 60 °C. This symbol will disappear when the surface has cooled down and reached a safe touch temperature. If you want to heat up more cookware, use the zone that is still hot to save energy.

4.5 Locking the icons

• You can lock the icons to avoid any unintentional use (e.g. children accidentally turning on the cooking areas).
• When the control panel is locked, all icons (except the power icon) will be disabled.

To lock the icons, press the Lock icon.

To unlock the icons

1. Make sure the induction hob is switched on.
2. Press and hold the Lock icon for 3 seconds.

When the hob is locked, all icons are disabled except the Power icon for possible emergency shutdown. If you use this option, you will have to unlock the icons the next time you switch on the hob.

4.6 Overheating protection

This hob is equipped with a sensor to control the internal temperature. The hob will automatically switch off if the sensor detects an excessive temperature.

ENGLISH

4.7 Automatic safety shut-off

This hob features a protection system that automatically switches it off if 120 minutes pass without any operation being performed. When the pan is removed, the hob will automatically stop heating.

4.8 Fan

At the base of the hob there is a fan to regulate the internal temperature. When the hob is switched on and the power or temperature is set, the fan starts up. Even if the hob is switched off, the fan will remain on until it has cooled down sufficiently.

Do not block the fan openings with kitchen towels, cloths or any other objects, as this will prevent proper ventilation and cause the circuits to overheat.

Note: remember that, even if you have switched off the hob, the fan will continue to run until it cools down. This is normal and does not indicate any malfunction.

4.9 Timer

- You can select whether you want the timer to function simply as a countdown or whether you prefer the selected cooking zone(s) to be switched off when the countdown reaches zero.

- The timer can be set for up to 99 minutes.

Set the timer as countdown

1. Press the timer icon. "30" shall be displayed.
2. Adjust the time by pressing the "-" and "+" icons.
3. Once the timer has been set, the countdown will start immediately, and the remaining time will be displayed.
4. You can cancel the timer by pressing the timer icon again. If you do so, “--” will be displayed.

Setting the timer to switch off a cooking zone

1. Press the icon of the cooking zone you wish to use.
2. Next, press the timer icon. "30" shall be displayed.
3. Adjust the time by pressing the "-" and "+" icons.
4. To cancel the timer, press the cooking zone in which it was programmed and then press the timer icon. When doing so, "--" will be displayed.
5. Once the timer has been set, the countdown will start immediately, and the remaining time will be displayed.

Note: a red dot will appear next to the selected cooking zone power to indicate that the timer is activated.

Setting the timer to switch off multiple cooking zones

1. If you use this function in more than one cooking zone, the timer display will show the shortest time.

ENGLISH

For example, if the timer for cooking zone 3 is set to 3 minutes and the timer for cooking zone 1 is set to 6 minutes, the corresponding display will show "3".

Note: the red dot next to the power of the corresponding cooking zone will flash.

1. When the countdown ends, the corresponding cooking zone will switch off automatically. Note: if you want to change the time, once the timer has been programmed, you must repeat all the steps.

4.10 Booster function

The Booster function is used to temporarily increase the power of the selected cooking zone for faster and more powerful heating. We recommend that you use the Booster function with caution and only for a short period of time, as excessive power may burn or overheat the food.

1. Press the icon of the cooking zone you wish to use.
2. Then, press the icon to select power level "b" (Booster).
3. To cancel this function, press the icon of the corresponding cooking area and select the desired power level.

Note: the Booster function increases the power considerably, which is why we recommend using it with caution so that food is not burnt.

4.11 Flexible Zone

• The flexible cooking zone is located on the left side of the induction hob.
• The flexible zone can be used as a single cooking zone or as two separate cooking zones, depending on your cooking needs.

• The flex zone consists of two independent inductors that can be controlled separately.

• Press the icon of the cooking zone you wish to use.

• Then, press the Flex zone icon. The power level of the upper and lower cooking zones will be the default ("5").
• You can adjust the power level using the "-" and "+" icons.
• If you wish to change the power level later, press one of the icons on the cooking zones that make up the flex zone. When the power level digits start flashing, you can change this setting.

4.12 Keep warm function

1. Press the icon of the cooking zone you wish to use.
2. Then, press the Keep Warm function icon.
3. Pressing it once will activate level 1. shall be displayed.
4. Pressing it a second time will activate level 2. shall be displayed.
5. Pressing it a third time will activate level 3. shall be displayed.

ENGLISH

1. This function is deactivated by means of the "-" and "+" icons.

4.13 Start/Pause function

1. When the hob is operating, press the start/pause icon to pause cooking.
2. The values on the displays will now flash.
3. To resume cooking, press the start/pause icon twice.
4. The values of the displays shall return to their normal state.

Warning

Be careful when frying, as oil and fat heat up very quickly, especially if you use the Booster function. At extremely high temperatures, oil and grease can burn, posing a serious fire hazard.

4.14 Simmering

• Slow cooking takes place below boiling point, at about 85 °C. It is suitable for preparing some soups and stews, as it enhances the flavours without overcooking the food. It should also be used for cooking egg-based sauces thickened with flour.
• Some recipes may require a higher setting than the minimum for the food to cook properly in the recommended time.

4.15 Tips on energy saving

• When food starts boiling, reduce the power.
• If you use a lid, the cooking time will be reduced, which will save energy.
• Reduce the amount of oil or fat used to shorten cooking times.
• Start cooking at a high-power level and reduce the level when the food has heated up.

5. CLEANING AND MAINTENANCE

Soiling type How to clean it Comments
Common soiling of the glass surface (fingerprints, marks, food stains or spills of unsweetened food)	1. Disconnect the hob by means of the enabled circuit breaker or differential.2. Use an induction hob cleaner while the surface is still warm (but make sure it does not burn).3. Wipe the hob and dry the glass with a clean cloth or kitchen paper.4. Plug the hob back into the power socket	1. When the hob is switched off, there will be no warning that the surface is hot, but that does not mean that it is not hot.2. Use special scouring pads for induction hobs.3. Do not use aggressive, corrosive or abrasive cleaners that may damage the hob. Always read the label to check the suitability of the cleaning product or scouring pad you are using.4. Never leave residue on the surface; the glass may become stained.
Spillage of sugary foods	Remove them immediately with a spatula or a suitable scraper for induction hobs but be careful with the hot surfaces.1. Disconnect the hob by means of the enabled circuit breaker or differential.2. Hold the spatula at a 30° angle and scrape off the dirt to an area that is completely cool.3. Wipe off dirt or spills with a cloth or some kitchen paper.	Remove melted sugary food stains or spills as soon as possible. If left to cool down on the glass, they may be difficult to remove or may even permanently damage the surface. Cutting hazard: when the safety cover is retracted, the blade of the scraper may be sharp as a razor. Use it with extreme care and always store it safely and out of the reach of children.

ENGLISH

Stains and spills on the control panel

1. Disconnect the hob by means of the enabled circuit breaker or differential.2. Wipe the icons with a clean, damp sponge or cloth.3. Dry the control panel completely.4. Plug the hob back into the power socket.

If the control panel is dirty, the icons may not work properly. Be sure to clean and dry the control panel area thoroughly before reconnecting the hob to the power supply.

6. TROUBLESHOOTING

Error codes

If a fault occurs, the induction hob will display the corresponding fault codes:

Error Possible cause Solution
E1/E2 Undervoltage (< 85 V) or overvoltage (> 285 V) protection.		If the voltage at the socket is lower or higher than specified, consult a qualified electrician.
E3 The sensor is short-circuited or there is an open circuit.		Contact the official Cecotec Technical Support Service.
E4 IGBT is short-circuited or there is an open circuit.		Contact the official Cecotec Technical Support Service.
E5 The temperature of the induction coil sensor exceeds 280 °C.		Switch off the induction hob and wait for it to cool down.
E6 IGBT sensor temperature is too high.		Check that the ventilation is correct and that the fans are not obstructed.
Er Internal failure of control circuits. Contact the official Cecotec Technical Support Service.
Et There is some liquid on the icons on the control panel.		Clean the control panel and dry it thoroughly.
U You have not fitted any cookware or the cookware you have fitted is not suitable for induction cooking.		Use another container.

7. TECHNICAL SPECIFICATIONS

References: EU01_100144 / EU01_104164

Models: Bolero Squad I 5600 FullFlex90 / Bolero Squad I 5600 FullFlex90 White

Rated power: 10200 W

Rated voltage: 220-240V\~.

Rated frequency: 50-60 Hz

A: 1600 W / 2000 W

B: 2600 W / 3000 W

C: 2000 W / 2400 W

D: 3000/3600 W

E: 2000 W / 2400 W

F: 2600 W / 3000 W

G: 1600 W / 2000 W

	Symbol Value Unit
Model reference	EU01_100144 Bolero Squad I 5600 FullFlex90 EU01_104164 Bolero Squad I 5600 FullFlex90 White
Type of cooking hob Domestic electric hobs
Number of cooking zones 3
Heating technology (induction hotplates and cooking zones, radiation hotplates, solid hotplates)	Induction cooking zones and cooking zones
	Symbol Value Unit
For circular lamps or cooking zones: diameter of the usable area of each electric cooking spot, rounded to the nearest 5 mm	∅ 28 cm cm

ENGLISH

For non-circular lamps or cooking zones: width and length of the usable surface of each lamp or electric cooking area, rounded to the nearest 5 mm	l	38	cm
	W	19
Energy consumption per lamp or cooking area, calculated per kg (*)	EC_electric cooking	180.7162.8189.8183.8	Wh/kg
Energy consumption of the hob, calculated per kg (*)	EC_electric hob	179.28 Wh/kg

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

4.4 Allumer la plaque

A:1600 W / 2000 W
B:2600 W / 3000 W
C:2000 W / 2400 W
D:3000/3600 W
E:2000 W / 2400 W
F:2600 W / 3000 W
G:1600 W / 2000 W

FRANÇAIS

6. PROBLEEMOPLOSSING

Foutcodes

Referenties: EU01_100144 / EU01_104164

Modellen: Bolero Squad I 5600 FullFlex90 / Bolero Squad I 5600 FullFlex90 White

C: 2000 W/2400 W
D: 3000 W/3600 W
E: 2000 W/2400 W
F: 2600 W/3000 W
G: 1600 W/2000 W

Reference: EU01_100144 / EU01_104164

Modely: Bolero Squad | 5600 FullFlex90 / Bolero Squad | 5600 FullFlex90 White

L W H D X B X A X

SEAL

Fig./Img./Abb./Afb./Rys./Obr. 3

A B E C D

Diagram showing three mechanical or electrical component states with checkmark indicators and cross symbols, likely illustrating a process or assembly.

Isometric line drawing of a laboratory or printing device with a 760mm height dimension label (no text or symbols on the diagram itself)

Fig./Img./Abb./Afb./Rys./Obr. 4

Diagram showing two hand positions: one on a checkmark and another on an X, indicating correct and incorrect movement.

Fig./Img./Abb./Afb./Rys./Obr.5

Three identical cooking pots with crossed-out X marks, shown in different orientations (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 6

Two cooking pots with crossed arrows indicating opposing pressure, one with crossed handle and the other with straight handle (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr.7

www.cecotec.es
