Product Type	High Chair
Brand	Baby Trend
Model	Fast Fold
Recommended Age	From 6 months
Maximum Child Weight	18.14 kg (40 lb)
Product Weight	Approximately 5.5 kg
Materials	Metal frame, plastic tray, fabric seat
Harness	Adjustable 5-point harness with shoulder and waist straps
Tray	Removable and adjustable to 3 positions, maximum load 1.36 kg
Footrest	Removable, snaps onto frame tubes
Folding	Folds with locking lever at the back, locks in folded position
Use	Indoors, on a flat surface
Cleaning frame and tray	Clean with mild soap and a damp cloth. Do not immerse
Cleaning cushion	Wash with mild soap and wipe with a damp cloth. Do not machine wash
Non-washable parts	Harness straps and storage basket
Safety	Always use the harness, never leave child unattended, keep away from cords
Warranty	1 year against manufacturing defects
Customer Service	1-800-328-7363 (Mon-Fri 8am-4:30pm PST)
Replacement parts	Contact customer service with return authorization
Assembly	Required by an adult, check all parts before assembly

Frequently Asked Questions - Fast Fold Baby Trend

From what age and weight can the Fast Fold high chair be used?

The high chair is designed for a child at least 6 months old and weighing a maximum of 18.14 kg (40 lb). The child must be able to sit upright unassisted.

How to clean the Fast Fold high chair?

Clean the frame and tray with a mild soap and a damp cloth. Never immerse the chair. The seat cushion can be washed with mild soap and wiped. Do not machine wash the harness or storage basket.

How to adjust the 5-point harness?

The harness has two attachment positions for the shoulder straps. Choose the position where the strap is at or above the child's shoulder. Remove the buckles, insert the straps into the corresponding slots, then reassemble the buckles. Attach the crotch strap between the child's legs and tighten comfortably.

How to fold and unfold the Fast Fold high chair?

To fold, locate the lever at the back, slide it to the left and push it inward, then push the chair forward. To unfold, hold the top of the backrest with one hand, push the rear leg with the other hand and pull upward until you hear a click.

Can the tray restrain the child in the chair?

No, the tray is not a restraint device. Always secure your child with the 5-point harness. The tray is only for meals and must not support more than 1.36 kg (3 lb).

How to remove the tray from the chair?

To remove the tray, squeeze the two release handles on the sides, then slide it forward. To install, align the grooves with the tracks and push until it locks. The tray can be adjusted to 3 positions.

How to remove and install the footrest?

To remove, simultaneously press the two rods under the footrest and pull. To install, align the footrest with the tubes and push firmly until the rods snap into the holes.

What to do if a part is missing or damaged?

Do not use the chair if fasteners are missing, parts are broken, or seams are torn. Contact Baby Trend customer service at 1-800-328-7363 for replacement parts or to request repair. A return authorization is required.

How to care for the seat cushion?

Wash the cushion with a mild soap and wipe with a damp cloth. Do not machine wash it. To remove the fabric, detach the straps, loosen the armrest screws, detach the side panels and D-rings, then remove the fabric from the backrest.

What safety precautions should be followed?

Always use the 5-point harness and never leave the child unattended. The chair can tip over if the child pushes against a table. Keep it away from cords (blinds, curtains) to prevent strangulation. Regularly check that the chair is securely locked in the open position.

USER MANUAL Fast Fold Baby Trend

DO NOT RETURN YOUR PRODUCT TO THE STORE. PLEASE CONTACT BABY TREND® FOR REPLACEMENT PARTS, SERVICE AND REPAIR.

The Baby Trend® warranty covers workmanship defects within 1 year of purchase. Any product which has been subjected to misuse, abuse, abnormal use, excessive wear and tear, improper assembly, negligence, environmental exposure, alteration or accident, or has had its serial number altered or removed invalidates all claims against the manufacturer. Any damage to property during installation is the sole responsibility of the end user. Customer Service Department can be contacted at 1 [phone] Monday through Friday between 8:00 a.m. and 4:30 p.m. (PST). Return Authorizations are required prior to returning product(s) to Baby Trend®. Please visit http://babytrend.com/pages/limited-warranty for complete warranty details.

GARANTIA

NO DEVUELVA SU PRODUCTO A LA TIENDA. POR FAVOR CONTACTE A BABY TREND® PARA PIEZAS DE REPUESTO, SERVICIO Y REPARACION.

Baby Trend, Inc. 13048 Valley Blvd. Fontana CA 92335

1-800-328-7363 (8:00am \~ 4:30pm PST) www.babytrend.com

Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE. Lea todas las instrucciones ANTES de armar y USAR el producto. CONSERVE LAS INSTRUCCIONES PARA USO FUTURO. Lisez toutes les instructions du manuel AVANT l'assemblage ou L'UTILISATION de ce produit. CONSERVEZ CES INSTRUCTIONS POUR RÉFÉRENCE ULTÉRIEURE.

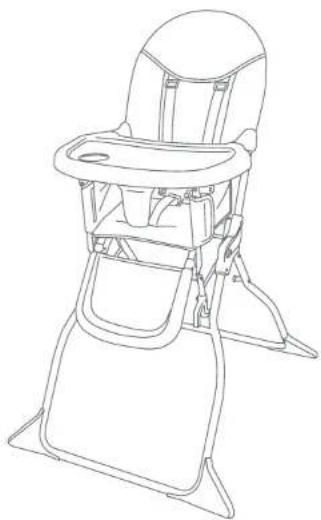

Line drawing of a baby boom chair with seat, tray, and seatbelt (no text or symbols)

HC99XXXA / IC99 Instruction Manual Manual de Instrucciones Manuel d'instruction

babytrend™

Quality·Comfort·Style

IC99 HC99XXXA 3L 071521

PARTS

WARNING

Check that you have all the parts for this model before assembly.

Technical line drawing of a mechanical crimping tool (no text or symbols)

Folded High Chair

Leg Support

Tray Feet (x4) Screws (x4)

Phillips screwdriver is required (not included)

Line drawing of a baby boom chair with adjustable legs and seat (no text or symbols)

Assembled View
Extended Chair with Footrest and Tray

Copyright © 2021. Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits réservés.

WARNING: Failure to follow these warnings and assembly instructions could result in serious injury or death.

⚠️ FALL HAZARD: Children have suffered severe head injuries including skull fractures when falling from high chairs. Falls can happen suddenly if child is not restrained properly.

• ALWAYS use restraints, and adjust to fit snugly.
- The child should be secured in the high chair at all times by the restraining system.
• The tray is not designed to hold child in the chair.
• The highchair should be used only by children capable of sitting upright unassisted and at least 6 months of age.

• NEVER leave child unattended.

- Stay near and watch child during use.

- NEVER allow child to push away from table.

⚠ STRANGULATION HAZARD:

Do not place High Chair in any location in any location where there are cords, such as a window blind cords, drapes, phone cords etc.

WARNING: The child must be secured in the high chair at all times by the 5-point restraining system. The tray is not designed to hold the child in the chair. The highchair should be used only by children capable of sitting upright unassisted and at least 6 months of age. See page 8 for instructions on proper use of restraint system.

IMPORTANT! Adult assembly is required.

• Be certain the high chair is fully erect and locked in the use position before allowing a child near the high chair.
• This high chair is designed for a child of at least 6 months of age up to a maximum weight of 40 pounds (18.14 kg).
  • NEVER allow your high chair to be used as a toy.

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits reservés

ASSEMBLY ASSEMBLY

- NEVER use this product if there are any loose or missing fasteners, loose joints, broken parts, or torn mesh/fabric. Check before assembly and periodically during use. Contact Baby Trend Customer Service at 1-800-328-7363 for replacement parts, repair or instructions. NEVER substitute parts.

IMPORTANT! To ensure safe operation of your product, please follow these instructions carefully. Please keep these instructions for future reference.

IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. NEVER use if any parts are missing or broken.

IMPORTANT! Always check that the high chair is locked in the open position before using.

CAUTION: Only hold the top of the back rest during assembly. Placing fingers on the frame during folding and unfolding can result in finger entrapment or injury.

ATTENTION: Carefully remove parts from box. Check that you have all the parts for this model before assembling the high chair.

TO ASSEMBLE FRAME

1) • Always keep the rear feet on the ground while extending the High Chair. Hold the top of backrest with one hand while pushing the feet with the other and pull up gently (Fig 1a).

Illustration of a mechanical tool with orange arrows indicating motion direction (no text or symbols)

Fig. 1a

NOTE: Continue to extend and the frame will lock into place when fully extended (Fig 1b). Hook the lower D rings: 2 harness straps of the seat both loop around the rear bar under the seat. The crotch strap for the harness loops around the front bar under the seat (Fig 1c). Strap the D rings for the backrest to the rear bars (Fig 1d). Strap the panels around the frame using the snap button fasteners (Fig 1e).

Diagram of a hand using a tool to lift a mechanical component, with orange arrows indicating motion direction (no text or symbols)

Fig. 1b

Fig. 1c

Fig. 1eFig. 1d

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits reservés.

ASSEMBLY ASSEMBLY

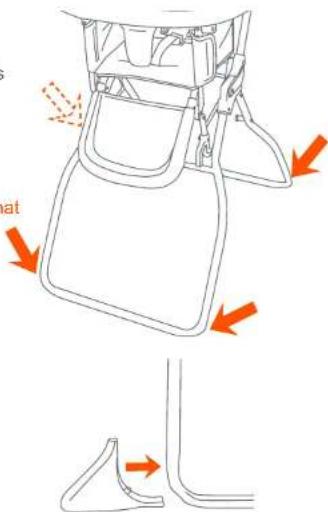

TO ATTACH FEET

2) • Align the feet to the bottom of each ends of the frame for a total of four (4) (Fig. 2a).

- Insert the screws and tightly fasten to secure the feet to the frame (Fig. 2b). NOTE: Pull on the feet to make sure that they are secured.

Fig. 2a

Pure technical line drawing of a bent pipe or elbow joint with a tool inserted (no text or symbols)

Fig. 2b

Copyright © 2021. Baby Trend Inc.. All Rights Reserved. Todos los derechos reservados. Tous droits réservés.

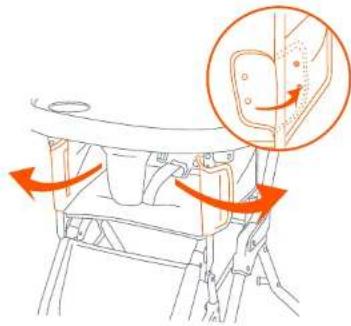

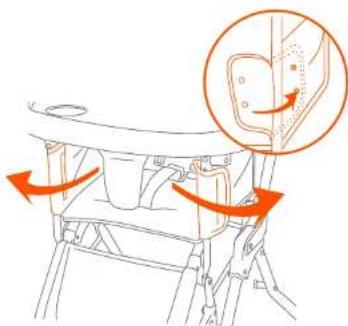

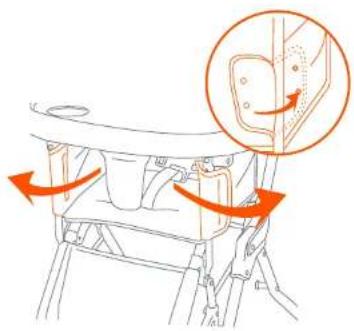

TO ATTACH TRAY

WARNING: Always check that the high chair is locked in the open position before using.

WARNING: The child's tray is not a restraint device: always secure your child with the seat belt. DO NOT lift by the tray. Do not place hot liquids or more than 3 pounds (1.36 kg) on the tray. Serious burns or unstable conditions could result.

3) • To attach the Tray, line up the grooves on the bottom of the Tray with the tracks of the armrest. Squeezing the 2 release handles, slide the Tray into the tracks (Fig. 3a). The Tray has a 3-position adjustment. To adjust the position, squeeze the 2 release handles located on the sides of the Tray and reposition the Tray (Fig. 3b).

NOTE: The tray must align with the indicator for all 3 positions as shown in the diagram (Fig. 3b). Release the Tray's handles and make sure the Tray is securely latched into a position.

- To remove the tray squeeze the 2 release handles and slide out from the tracks (Fig. 3a).

ATTENTION:

The Tray is not designed to hold the child in the chair. Stay near and watch child during use. NEVER leave

child unattended. Refer to the Harness Straps on page 8.

Diagram of a car seat with arrows indicating upward and downward motion (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Fig. 3a

Fig. 3b

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits reservés.

ASSEMBLY ASSEMBLY

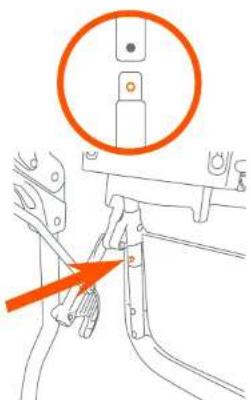

ATTACHING THE LEG SUPPORT

4) • Align the Leg Support to the tubing and press in firmly. Ensure that the pins lock into the holes underneath the Leg Support (Fig. 4a).

• To remove the Leg Support press the 2 pins simultaneously and pull the Leg Support from the tubing (Fig. 4b).

Technical line drawing of a mechanical component with an orange arrow indicating a specific part (no text or symbols present)

Fig. 4a

Technical diagram showing a mechanical assembly with a highlighted circular component and an orange arrow pointing to a specific part (no text or symbols present)

Fig. 4b

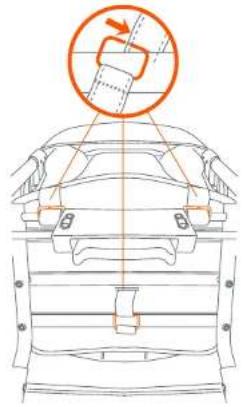

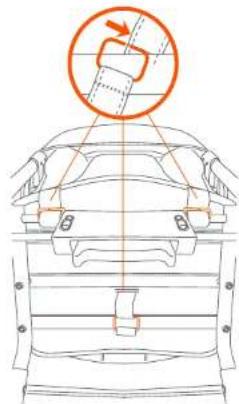

TO USE THE HARNESS

WARNING: The highchair should be used only by children capable of sitting upright unassisted and at least 6 months of age.

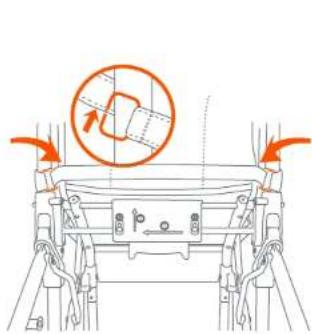

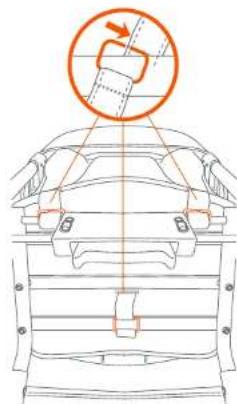

5) • The shoulder straps of the 5-point harness have 2 attachment positions. Select the position that places the shoulder strap level with, or below the top of the child's shoulder (Fig. 5a).
• To adjust harness height unhook the shoulder strap from the crotch buckle. Feed the shoulder strap through the harness spread slots. You can access these slots from the rear of the seat, underneath the fabric. Feed shoulder strap through appropriate slot and reattach shoulder strap to crotch buckle (Fig. 5a). Place the crotch strap between the child's legs. Insert the male end of each shoulder / waist belt into the buckle on the crotch strap (Fig. 5b). Tighten the harness to be snug around the child's waist and over the child's shoulders (Fig. 5c).

Fig. 5b Fig. 5c

Line drawing of a helmet seat with arrows indicating motion or movement (no text or symbols)

Fig. 5a

ASSEMBLY ASSEMBLY

TO RELEASE THE HARNESS

6) • RELEASE! Push the top and bottom release on the buckle, and the two harness buckles will pop free (Fig. 6).

Fig. 6

TO FOLD HIGH CHAIR

CAUTION: Only hold the top of the back rest during assembly. Placing fingers on the frame during folding and unfolding can result in finger entrapment or injury.

Technical line drawing of a mechanical assembly with no visible text or symbols

The High Chair may be folded with the Tray and the Leg Support attached position.

7) • Locate the latch on the rear of the High Chair. First slide the lever left, then squeeze it in. (Fig. 7a). Push the High Chair forward to fold the frame (Fig. 7b). NOTE: Ensure that the lever on the frame hooks into the knob when folded (Fig. 7c).

Fig. 7a

Line drawing of a mechanical device with an orange arrow indicating motion direction (no text or symbols)

Fig. 7b Fig. 7c

Diagram of a mechanical linkage system with an orange arrow indicating rotational motion (no text or symbols present)

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits réservés

ASSEMBLY

MAINTENANCE

TO UNFOLD THE HIGH CHAIR

8) • Always keep the rear feet on the ground while extending the High Chair. Hold the top of backrest with one hand while pushing the feet with the other and pull up gently (Fig 8a). NOTE: Continue to extend and the frame should lock into place when fully extended (Fig 8b).

Line drawing of a mechanical device with an orange upward arrow indicating motion (no text or symbols)

Fig. 8a

Line drawing of a mechanical device with an orange arrow indicating rotation or movement (no text or symbols)

Fig. 8b

CARE AND MAINTENANCE

WARNING: Harness Straps are NOT machine washable. Use mild soap and water to clean.

High Chair/Tray: Use mild soap and wash with damp cloth. Please use only a soft bristle brush, sponge or cloth to clean the surface or remove particles of food. DO NOT submerge High Chair and Tray in water. Surface clean only. Non-Washable Seat Pad: Use mild soap and wipe with damp cloth.

NOT MACHINE WASHABLE.

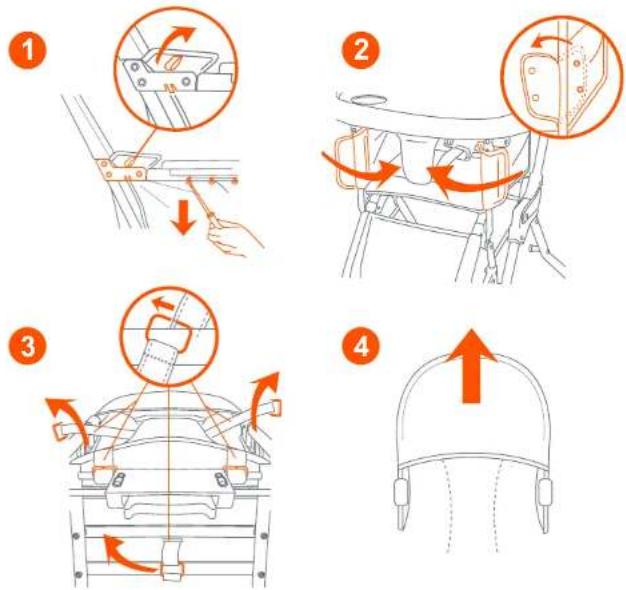

To remove the seat fabric for maintenance: 1) Remove the straps and undo the 3 screws from the 2 armrests. 2) Release the 2 side panels from the snap buttons. 3) Undo all the D rings. 4) Pull the fabric up to take it off of the back rest. Reverse to attach the fabric back on to the frame.

Copyright © 2021. Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits réservés

PIEZAS

ADVERTENCIA

Technical line drawing of a mechanical crimping tool (no text or symbols)

Line drawing of a baby boom chair with tripod base (no text or symbols)

Illustration of a hand holding a mechanical device with orange arrows indicating motion or force direction (no text or symbols)

Fig. 1a

Diagram of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Fig. 1b

Fig. 1c

Fig. 1eFig. 1d

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits réservés.

MONTAJE

MONTAJE

Line drawing of a mechanical device with orange arrows indicating motion or force directions (no text or symbols)

Fig. 2a

Pure technical line drawing of a bent pipe or elbow joint with a tool inserted (no text or symbols)

Fig. 2b

PARA SUJETAR Y UTILIZAR LA BANDEJA

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Fig. 2a

Fig. 2b

MONTAJE

MONTAJE

ATENCIÓN:

Technical line drawing of a mechanical component with an orange arrow indicating a specific part (no text or symbols present)

Fig. 3a

Mechanical assembly diagram showing a lever mechanism with a highlighted circular component (no text or symbols)

Fig. 3b

PARA USAR EL ARNÉS

ADVERTENCIA:

Diagram of a helmet with arrows indicating motion or force direction (no text or symbols)

Fig. 4a

Fig. 4c

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits réservés.

MONTAJE

MONTAJE

PARA SOLTAR EL ARNÉS

Fig. 6a

Mechanical assembly diagram showing a lever mechanism with an orange arrow indicating rotational motion (no text or symbols present)

Diagram of a mechanical linkage system with an orange arrow indicating rotation (no text or symbols present)

Fig. 6b Fig. 6c

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits réservés.

MONTAJE

MANTENIMIENTO

PARA DESPLEGAR LA SILLA ALTA

Line drawing of a mechanical clamp or bracket with an orange upward arrow indicating motion (no text or symbols)

Fig. 7a

Line drawing of a mechanical device with an orange arrow indicating rotation or movement (no text or symbols)

Fig. 7b

Technical line drawing of a wire crimping tool (no text or symbols)

Line drawing of a baby boom chair with adjustable legs and seat (no text or symbols)

Illustration of a hand gripping a mechanical tool with orange arrows indicating motion direction (no text or symbols)

Fig. 1a

Diagram of a mechanical device with orange arrows indicating motion or force direction (no text or symbols)

Fig. 1b

Fig. 1c

Line drawing of a mechanical device with directional arrows indicating motion or movement (no text or symbols)

Fig. 1eFig. 1d
Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits réservés.

ASSEMBLAGEASSEMBLAGE

POUR ATTACHER LES PIEDS

Line drawing of a vehicle's seat and dashboard components with orange arrows indicating movement or force (no text or symbols)

Fig. 2a

Simple line drawing of a tool interacting with a curved pipe or tube (no text or symbols)

Fig. 2b

ATTACHER ET UTILISER LA TABLETTE

Fig. 2a

Fig. 2b

Technical line drawing of a mechanical component with an orange arrow indicating direction (no text or symbols)

Fig. 3a

Diagram of a mechanical assembly with a red arrow pointing to a component, no visible text or symbols

Fig. 3b

POUR UTILISER LE HARNAIS

Diagram of a spacecraft's internal structure with directional arrows indicating motion (no text or labels)

Fig. 4a

Fig. 6a

Diagram of a mechanical device with a lever and handle, showing a rotation arrow (no text or symbols)

Fig. 6b Fig. 6c

Mechanical linkage diagram showing a lever mechanism with an orange arrow indicating motion direction (no text or symbols present)

ASSEMBLAGE

ENTRETIEN

POUR DÉPLIER LA CHAISE HAUTE

Line drawing of a mechanical device with an orange arrow indicating upward motion (no text or symbols)

Fig. 7a

Technical line drawing of a mechanical device with an orange arrow indicating rotation (no text or symbols)

Fig. 7b

Copyright © 2021. Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits réservés.

SOINS D'ENTRETIEN

The Customer Service Department can be contacted at 1 [phone] Monday through Friday between 8:00 a.m. and 4:30 p.m. (PST). Return Authorizations are required prior to returning product(s) to Baby Trend®.

BABY TREND® SERVICIO AL CLIENTE
