Product Type	3-in-1 High Chair
Brand	Baby Trend
Model	Sit Right 2.0
Maximum Weight Capacity	40 lbs (18.14 kg)
Recommended Age	At least 6 months, capable of sitting upright unassisted
Harness Type	5-point safety harness
Seat Recline Positions	Multiple (upright, semi-reclining, reclining)
Height Adjustment	Yes, with locking pins and release handles
Tray Positions	4 adjustable positions
Tray Insert	Dishwasher safe up to 160°F (71°C)
Folding	Yes, for compact storage
Seat Pad	Removable and washable (follow care label)
Frame Material	Metal and plastic
Assembly Required	Yes, by adult
Warranty	1 year limited against workmanship defects
Customer Service	1-800-328-7363 (Mon-Fri 8:00am-4:30pm PST)
Harness Care	Not washable
High Chair Cleaning	Surface clean with mild soap and damp cloth; do not submerge
Number of Main Parts	7 (upper frames, legs, height brackets, tray, tray insert, footrest, pins)
Safety Warning	Always use restraint; never leave child unattended; check for missing parts

Frequently Asked Questions - Sit Right 2.0 Baby Trend

What is the maximum weight limit for the Sit Right 2.0 high chair?

The maximum weight capacity is 40 pounds (18.14 kg).

How should I clean the tray and tray insert?

The tray insert is dishwasher safe up to 160°F (71°C). The tray itself should be cleaned with mild soap and a damp cloth. Do not use scouring pads. Do not submerge the tray in water.

Can I wash the harness straps?

No, the harness straps are not washable. They should be spot cleaned only.

How do I adjust the height of the high chair?

Squeeze the release handles on both sides of the height adjustment bracket simultaneously, then lift or lower the seat to the desired position. Ensure both sides lock into place. Do not adjust with the child in the seat.

How do I recline the seat?

Squeeze the recline lever located on the back of the seat and adjust to the preferred position (upright, semi-reclining, or reclining). Use caution to avoid pinching fingers.

How do I attach and remove the tray?

To attach, squeeze the release handle underneath the tray and press it into the positioning slots until it clicks. To remove, squeeze the release handle and slide the tray out. The tray can be stored on hooks on the back legs.

Is the tray insert dishwasher safe?

Yes, the tray insert is dishwasher safe up to 160°F (71°C). Do not use scouring pads.

What is the minimum age for using this high chair?

The high chair should only be used by children at least 6 months old who can sit upright unassisted.

How do I fold the high chair for storage?

First, place the seat in the upright position and remove the tray. Hang the tray on the back legs. Then, pull upward on the release levers on the sides of the frame and push the rear legs toward the front legs until folded.

How can I contact customer service for replacement parts?

Contact Baby Trend Customer Service at 1-800-328-7363, Monday through Friday, 8:00 a.m. to 4:30 p.m. PST. A Return Authorization is required before returning any product.

USER MANUAL Sit Right 2.0 Baby Trend

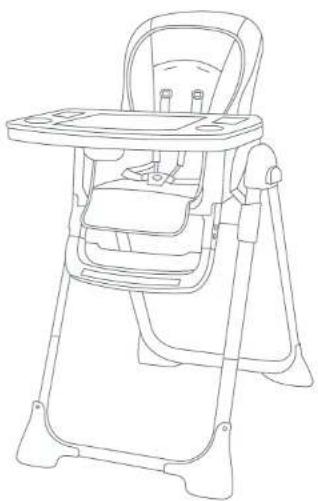

Sit Right 2.0 3-in-1 High Chair

babytrend®

Quality • Comfort • Style

Line drawing of a baby boom chair with seat, legs, and front panel (no text or symbols)

Instruction Manual Manual de Instrucciones

HC02XXXXA

Baby Trend, Inc. 13048 Valley Blvd. Fontana CA 92335

1-800-328-7363 (8:00 a.m. \~ 4:30 p.m. PST) www.babytrend.com

babytrend®

Quality·Comfort·Style

babytrend

WARRANTY

DO NOT RETURN YOUR PRODUCT TO THE STORE. PLEASE CONTACT BABY TREND® FOR REPLACEMENT PARTS, SERVICE AND REPAIR.

The Baby Trend® warranty covers workmanship defects within 1 year of purchase. Any product which has been subjected to misuse, abuse, abnormal use, excessive wear and tear, improper assembly, negligence, environmental exposure, alteration or accident, or has had its serial number altered or removed invalidates all claims against the manufacturer. Any damage to property during installation is the sole responsibility of the end user.

Customer Service Department can be contacted at 1 [phone] Monday through Friday between 8:00 a.m. and 4:30 p.m. (PST). Return Authorizations are required prior to returning product(s) to Baby Trend®. Please visit http://babytrend.com/pages/limited-warranty for complete warranty details.

GARANTIA

NO DEVUELVA SU PRODUCTO A LA TIENDA, POR FAVOR CONTACTE A BABY TREND® PARA PIEZAS DE REPUESTO, SERVICIO Y REPARACION.

Baby Trend, Inc. 13048 Valley Blvd. Fontana CA 92335

1-800-328-7363 • (8:00am - 4:30pm PST)

www.babytrend.com

PARTS

Check that you have all the parts for this model before assembly.

BABY TREND ^® CUSTOMER SERVICE

The Customer Service Department can be contacted at 1 [phone] Monday through Friday between 8:00 a.m. and 4:30 p.m. (PST). Return Authorizations are required prior to returning product(s) to Baby Trend ^® .

BABY TREND® SERVICIO AL CLIENTE

Line drawing of two simple stools with handles and a small box on top (no text or symbols)

Right and Left Upper Frame Assemblies

Pure technical line drawing of a mechanical component with no text or symbols

Front and Back Legs

Height Brackets

Tray

Tray Insert

Footrest

{2} Pins
(in manual PE bag)

WARNING

ASSEMBLY

WARNING: Failure to follow these warnings and the instructions could result in serious injury or death.

⚠️ FALL HAZARD: Children have suffered severe head injuries including skull fractures when falling from high chairs. Falls can happen suddenly if child is not restrained properly.

• Always use restraints, and adjust to fit snugly.
- Tray is not designed to hold child in chair.
- Stay near and watch child during use.
- Never allow child to push away from table.

⚠ STRANGULATION HAZARD:

Do not place High Chair in any location in where there are cords, such as a window blind cords, drapes, phone cords etc.

WARNING: The child should be secured in the high chair at all times by the 5-point restraining system, either in the reclining, semi-reclining or upright position. The tray is not designed to hold the child in the chair. It is recommended that the high chair be used in the upright position only by children capable of sitting upright unassisted. The high chair should be used only by children at least 6 months of age. See page 11 for instructions on proper use of restraint system.

• Other accessory items may change the balance of the high chair and cause hazardous unstable conditions.
• Be certain the high chair is fully erect and latched in the open position before allowing the child near the high chair.
  • This high chair is designed to be used by a child with a maximum weight of 40 pounds, (18.14 kg.)
• NEVER allow your high chair to be used as a toy.
• NEVER use this product if there are any loose or missing fasteners, loose joints, broken parts, or torn mesh/fabric. Check before assembly and periodically during use. Contact Baby Trend® Customer Service at 1-800-328-7363 for replacement parts, repair or instructions. NEVER substitute parts.

IMPORTANT! To ensure safe operation of your product, please follow these instructions carefully. Please keep these instructions for future reference.

IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. NEVER use if any parts are missing or broken.

IMPORTANT! Adult assembly is required.

IMPORTANT! Always check that the high chair is locked in the open position before using.

ASSEMBLYASSEMBLY

ATTENTION: Carefully remove parts from box. Check that you have all the parts for this model before assembling the high chair.

NOTE: Certain High Chair models are packaged with the High Chair Seat Fabric and Seat Insert already attached to the Seat Back.

TO ASSEMBLE SEAT

1) - Locate the Right and Left Upper Frame Assemblies and the Height Brackets (Fig. 1).

PAIR UP TO JOIN:

- Pair the Right and Left Upper Frame Assemblies with the Right and Left Height Brackets as shown in the illustration (Fig. 1).

2) • NOTE: The front tube is easily distinguished from the rear tube by the array of holes located on the backside of the front tube. Insert the left and right sides Height bracket into the front tube of the Upper Frame Assembly as shown in (Fig. 2a).

- Squeeze the Release Handles on both sides simultaneously and push the tube through the Height Adjusters until it locks in the highest position (Fig. 2b).

Technical line drawing of two mechanical support structures with mounting brackets (no text or symbols)

Fig. 1

3) Insert the Legs into the ends of the front tube of both the right and left Upper Frame Assemblies (Fig. 3).

NOTE: Legs are properly connected when the lock buttons are lined up with the holes on the ends of the Upper Frame Assemblies. Make sure the lock buttons are engaged before use.

4) Insert another Leg into the ends of the rear tube of both the right and left Upper Frame Assemblies (Fig. 4). NOTE: Legs are properly connected when the lock buttons are lined up with the holes on the ends of the Upper Frame Assemblies. Make sure the lock buttons are engaged before use.

Fig.3

Fig. 4

ASSEMBLY ASSEMBLY

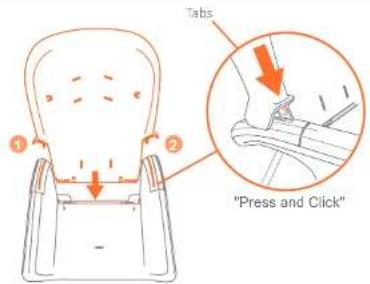

5) • Insert metal tabs (1) and (2) directly into the seat base slot until it secures into place. Ensure the backrest sits in the base correctly (Fig. 5a).

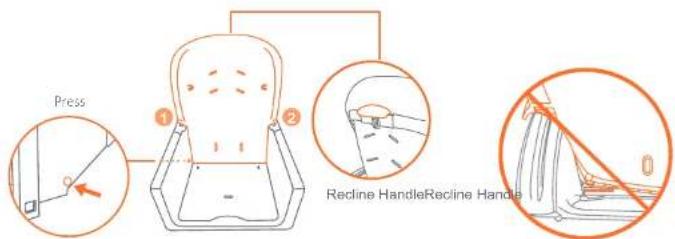

- Important Pin Set Up: The backrest must be in the most upright position before inserting the pins (Fig. 5b).
- Press Pins In: Ensure the seat parts latched together in the upright position. Insert the pin all the way into each side of the seat base and test the recline feature (Fig. 5c). CAUTION: DO NOT push pin into the base only. Must catch base and backrest (Fig. 5d).

Fig. 5a

Fig. 5b

Fig. 5c Fig. 5d

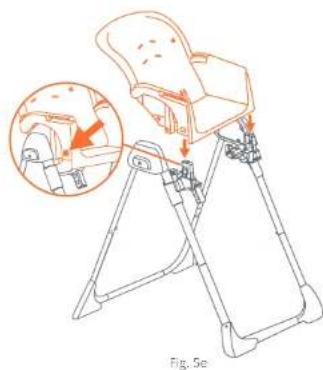

- Align the Seat Base into the Height Brackets. Ensure the brackets are locked into the Seat Base (Fig. 5e).

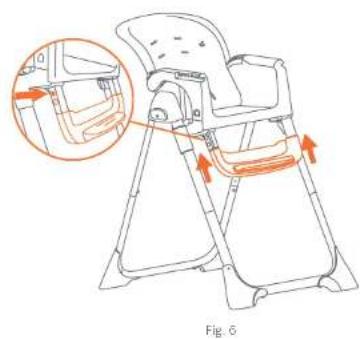

6) • Slide the Footrest into the Height Bracket (Fig. 6). Lock Footrest into place.

NOTE: Adjust the height of the footrest by squeezing both tabs simultaneously and lift up (Fig. 6).

REMOVAL: Remove the foot rest by squeezing both tabs simultaneously and pull out from the height bracket.

ASSEMBLYASSEMBLY

7) Loop the flap on the back of the pad over the top of the Seat Back. Connect the Seat Pad to the Seat Back with the two Elastic Loops. These fit over the Attachment Tabs located near the top harness slots (Fig. 7a).
- Attach the bottom of Seat Pad to the Seat Base with the two Elastic loops located at the rear of the bottom of the Seat Pad. These fit over the Attachment Tabs located on the Seat Base near where the Seat Back and Seat Base Join (Fig. 7b).
- Attach each anchor hook of the Seat Pad to the side of the seat armrest (Fig. 7c). Ensure that the slot of the anchor hook slides through the under side division (Fig. 7d).

Line drawing of a baby car seat with a magnified inset showing internal components (no text or symbols)

Fig. 7a

Line drawing of a seat assembly with an inset showing a magnified view of the seat (no text or symbols)

Fig. 7b

Line drawing of a cable connector with an orange arrow indicating cable movement (no text or symbols)

Fig. 7c

Line drawing of a mechanical component with an orange arrow indicating direction (no text or symbols)

Fig. 7d

Copyright © 2024, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados.

WARNING: Always check that the high chair is locked in the open position before using.
WARNING: The tray is not designed to hold the child in the chair. The child should be secured in the high chair at all times by the 5-point restraining system, either in the reclining, semi-reclining or upright position.

TO ATTACH TRAY

8) To attach the Tray, squeeze the release handle located underneath the tray and firmly press into the positioning slots (Fig. 8a).
- The Tray has a 4-position adjustment. To adjust the position, squeeze the Tray's release handle located underneath the tray and reposition the tray to the desired position (Fig. 8b). Release the Tray's handle. Check that the Tray is securely locked in its new position.

TO ATTACH TRAY INSERT

9) • The dishwasher safe food Tray Insert snaps onto the High Chair Tray and is held in place by tabs on the sides of the Tray. When installing the Tray Insert make sure that its snaps into place to prevent the child from removing the Tray Insert. To remove Insert, unsnap the tabs from the Tray.
- The Tray may be stored on the back legs of the High Chair. Align the holes in the rear of the tray with the small pegs on the back legs (Fig. 9). NOTE: To remove, lift the tray.

Fig. 8a

Tray Release located underneath tray Fig. 8b

Fig. 9

Copyright © 2024, Baby Times Inc., All Rights Reserved. Todos los derechos reservados

ASSEMBLY

OPERATION

TO USE SAFETY BELT

WARNING: The highchair should be used only by children capable of sitting upright unassisted and at least 6 months of age.

WARNING: Prevent serious injury or death from falls or sliding out. Always use the restraint system. The child should be secured in the high chair at all times by the 5-point restraining system, either in the reclining, semi-reclining or upright position.

10) • The shoulder straps of the 5-point harness have 2 attachment positions. Select the position that places the shoulder strap level with, or below, the top of the child's shoulders (Fig. 10a).

- Carefully place the child in the seat and position the safety harness around the child's waist and over the shoulders. Place the crotch strap between the child's legs. Insert the male end of each shoulder / waist belt into the buckle on the crotch strap. Tighten the harness to be snug around the child's waist and over the child's shoulders (Fig. 10b).

TO RELEASE SAFETY BELT

11) Push Button on Center Clasp, the two Harness Buckles will pop free (Fig. 11).

RECLINE SEAT

12) • Squeeze recline lever on back of the seat and adjust to the preferred recline or upright position (Fig. 12). Use caution not to trap arms, hands and fingers when adjusting recline positions.

Fig. 10a

Diagram of a mechanical or electrical component with five arms and directional arrows indicating motion (no text or symbols)

Adjust for a snug fit

Fig. 10b

Fig. 11

Diagram of a curved mechanical component with directional arrows indicating motion or force (no text or symbols)

Fig.12

WARNING: Do not adjust seat height with child in seat. Adjust seat height before placing your child in the high chair.

WARNING: Always check that the height adjustment bracket is level and both left and right sides locked before placing child in the high chair.

⚠ WARNING: Never rest the height adjustment bracket on the locking pins.

13) • Squeeze the Release Handles on both sides simultaneously of the Height Adjustment bracket (Fig. 13a) and adjust to the ideal position (Fig. 13b). DO NOT adjust with child in the seat.

ATTENTION: Make sure the Height Brackets lock on the lowest position. DO NOT rest Height Adjustment Brackets on the Locking Pins (Fig. 13c).

Fig. 13b

Fig. 13c

OPERATIONOPERATION

TO FOLD HIGH CHAIR

The High Chair may be folded with the seat in any of the height positions.

14) • Place seat in the desired height position. Place Seat Back in the most upright position (Fig. 14).
15) • Squeeze the tray release handle and slide the tray out (Fig. 15).
16) Hang the tray on the hooks located on the back of the rear leg (Fig. 16).
17) • Pull upward on the release levers (located on the sides of the frame) and push the rear legs in the direction of the front legs until folded (Fig. 17). Chair is now ready to put away. DO NOT allow your child to play around a folded high chair as it may fall.

TO UNFOLD HIGH CHAIR

Read the Warning and see (Fig. 17), then Reverse the steps above.

WARNING: Do not sit on the frame when the seat is not attached. Do not use frame as a foot stool. Potential pinch point when opening the frame.

Line drawing of a person adjusting a seatbelt, with no text or symbols present

Fig. 14

Tray Release located underneath tray Fig. 15

Fig. 15

Fig. 17

TO REATTACH SEAT PAD

NOTE: Certain High Chair models are packaged with the High Chair Seat Pad and Seat Insert already attached to the Seat Back.

18) • Thread non-buckle end of Harness Straps called Harness Attachment Tabs through the provided slots in the Seat Fabric, Seat Insert, Seat Back, and Seat Base (Fig. 18). When Harness Attachment Tabs are through the provided slots, rotate the Harness Attachment Tabs 90 degrees: Make sure that the straps are firmly in place.
19) • Loop the flap on the back of the pad over the top of the Seat Back. Connect the Seat Pad to the Seat Back with the two Elastic Loops. These fit over the Attachment Tabs located near the top harness slots (Fig. 19).
20) Attach the bottom of Seat Pad to the Seat Base with the two Elastic loops located at the rear of the bottom of the Seat Pad. These fit over the Attachment Tabs located on the Seat Base near where the Seat Back and Seat Base Join (Fig. 20a).

• Attach each anchor hook of the Seat Pad to the side of the seat armrest (Fig. 20b).
• Ensure that the slot of the anchor hook slides through the under side division (Fig. 20c).

TO REMOVE SEAT PAD

Reverse the previous steps.

Diagram of a helmet with motion arrows indicating movement, no text or symbols present

Fig. 18

Line drawing of a two-seater seat with a magnified inset showing the seat detail (no text or symbols)

Fig. 19

Line drawing of a car seat with an inset showing a hand holding a small object (no text or symbols present)

Fig. 20a

Copyright © 2024, Baby Texas Inc., All Rights Reserved. Todos los derechos reservadas.

OPERATION

MAINTENANCE

OPTIONAL SEAT INSERT

21) • Set Seat Insert onto Seat Pad. See step 18.

CARE AND MAINTENANCE

WARNING: Harness Straps are NOT washable.

Dishwasher Safe Tray Insert: The Tray Insert is dishwasher safe to 160 ^g F (71 ^g C). Do not use scouring pads on the Tray Insert as they will damage the surface and the Tray Insert will become more difficult to clean.

High Chair/Tray: Use mild soap and wash with damp cloth. Please use only a soft bristle brush, sponge or cloth to clean the surface or remove particles of food. DO NOT submerge High Chair and Tray in water. Surface clean only.

Line drawing of a computer mouse with an orange arrow pointing to the cable (no text or symbols present)

Fig. 20a

Line drawing of a car seatbelt mechanism with an orange arrow indicating clockwise motion (no text or symbols)

Fig. 20c

Diagram of a car interior showing seatbelt, seatbelt, and seatbelt with orange arrows indicating motion (no text or labels)

Fig. 21

Seat Pad and fabrics (please refer to the care label on individual soft good pieces for cleaning instructions).

To remove the seat pad:

Remove Harness Straps by pushing Harness Attachment Tabs through the Harness slots on the Seat Back, Seat Base and Seat Pad. Remove Elastic Loops from Attachment Tabs on Seat Base and Seat Back.

To attach the seat pad:

Carefully follow the instructions outlined in Step 19 on how to correctly re-thread the safety harness.

ADVERTENCIAPIB

Line drawing of two simple wooden stools with handles and covers (no text or symbols)

Pure line drawing of a symmetrical mechanical or architectural component with no text, numbers, or symbols

Technical line drawing of two mechanical support components with no visible text or symbols

Fig. 1

Line drawing of a seat assembly with an inset showing a magnified view of the seat (no text or symbols)

Line drawing of a car seat assembly with an inset showing a highlighted component (no text or symbols)

Diagram of a mechanical component with a red arrow indicating a force or direction, labeled 'Fig. 7c' (no text or symbols on the diagram itself)

Diagram showing a hand pressing down on a mechanical component, labeled Fig. 7d (no text or symbols on the diagram itself)

Fig. 8a

Fig. 9

Diagram of a mechanical assembly with four arms and directional arrows indicating motion (no text or symbols)

Diagram of a bird's head and neck with arrows indicating direction (no text or symbols)

Fig. 12

Illustration of a hand holding a cable or cable device with an arrow indicating rotation (no text or symbols present)

Diagram showing two figures in a seat with motion arrows indicating movement (no text or symbols)

Fig.18

Line drawing of a baby seat with a magnified inset showing the wheel and seat (no text or symbols)

Fig. 19

Line drawing of a car seat with a magnified inset showing the wheel and arm (no text or symbols)

Fig. 20a

Line drawing of a cable connector with an orange arrow indicating direction (no text or symbols)

Fig. 20b

Line drawing of a car seatbelt with an orange arrow indicating direction (no text or symbols)

Fig. 20c

Diagram of a mechanical assembly with orange arrows indicating motion or force direction (no text or symbols)

Fig. 21

Copyright © 2024, Baby Texas Inc., All Rights Reserved. Todos los derechos reservadas.

MANTENIMIENTO
