USER MANUAL MUV 7in1 Baby Trend

DO NOT RETURN YOUR PRODUCT TO THE STORE. PLEASE CONTACT BABY TREND® FOR REPLACEMENT PARTS, SERVICE AND REPAIR.

The Baby Trend® warranty covers workmanship defects within 1 year of purchase. Any product which has been subjected to misuse, abuse, abnormal use, excessive wear and tear, improper assembly, negligence, environmental exposure, alteration or accident, or has had its serial number altered or removed invalidates all claims against the manufacturer. Any damage to property during installation is the sole responsibility of the end user. Customer Service Department can be contacted at 1 [phone] Monday through Friday between 8:00 a.m. and 4:30 p.m. (PST). Return Authorizations are required prior to returning product(s) to Baby Trend®. Please visit http://babytrend.com/pages/limited-warranty for complete warranty details.

GARANTIA

NO DEVUELAV SU PRODUCTO A LA TIENDA. POR FAVOR CONTACTE A BABY TRENDEPARA PIEZAS DE REPUSTADO, SERVICIO Y REPARACIONA.

Baby Trend®, Inc.
13048 Valley Blvd.
Fontana CA 92335

1-800-328-7363 (8:00am-4:30pm PST) www.babytrend.com

HC57E

HC57XXXE

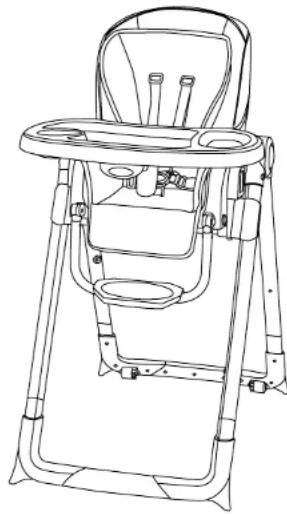

MUVTM 7-in-1 Feeding Center High Chair Instruction Manual Manual de Instrucciones Manuel d'instruction

Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.
Lea todas las instrucciones ANTES del montaje y USO del producto. CONSERVE LAS INSTRUCCIONES PARA SU USO FUTURO. Lisez toutes les instructions du manuel AVANT l'assemblage ou L'UTILISATION de ce produit. CONSERVEZ CES INSTRUCTIONS POUR RÉFERENCE ULTÉRIÉTURE.

HC57XXXXE_3L_081921

PARTS

MODES

Check that you have all the parts for this model before assembly.

Booster Seat

Body Insert

Height Adjuster Front Leg Rear Leg

Leg

Footrest

Tray

Youth Seat

Upper Frame Assemblies (X2)

Tray Insert

Copyright 2021 BabyTrend Inc. All Rights Reserved. Todes has deerehos reservacns. Toue dreis reesiv

MODES OF USE

Traditional High Chair

Infant Booster Seat

Infant Feeding

Youth Chair

Toddler Booster

Youth Booster

Sibling Mode

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todlos for deshios reservados. Tour daisreservado

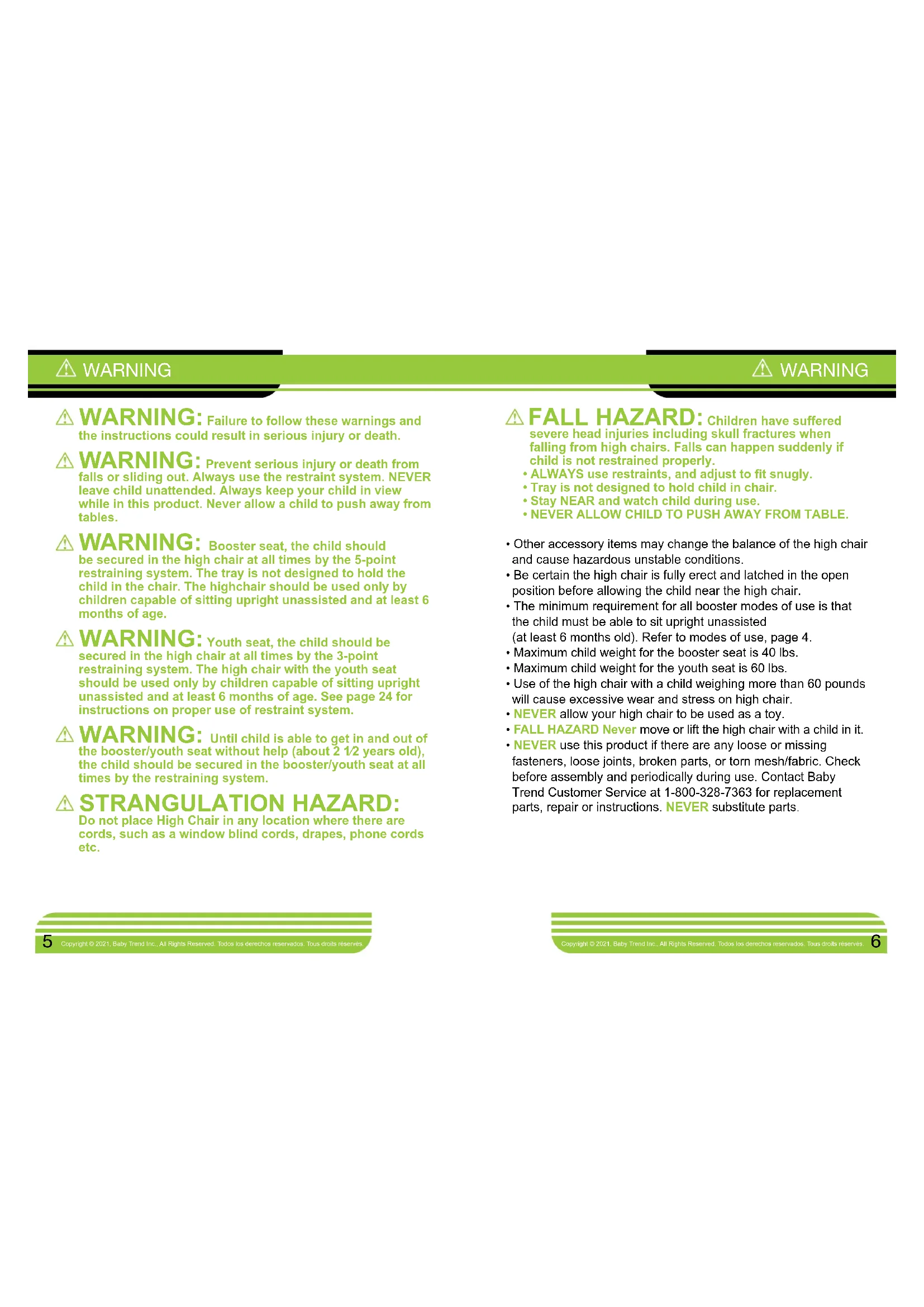

WARNING

WARNING

WARNING: Failure to follow these warnings and the instructions could result in serious injury or death.
WARNING: Prevent serious injury or death from falls or sliding out. Always use the restraint system. NEVER leave child unattended. Always keep your child in view while in this product. Never allow a child to push away from tables.
WARNING: Booster seat, the child should be secured in the high chair at all times by the 5-point restraining system. The tray is not designed to hold the child in the chair. The highchair should be used only by children capable of sitting upright unassisted and at least 6 months of age.
WARNING: Youth seat, the child should be secured in the high chair at all times by the 3-point restraining system. The high chair with the youth seat should be used only by children capable of sitting upright unassisted and at least 6 months of age. See page 24 for instructions on proper use of restraint system.
WARNING: Until child is able to get in and out of the booster/youth seat without help (about 2 1/2 years old), the child should be secured in the booster/youth seat at all times by the restraining system.
STRANGULATION HAZARD:

Do not place High Chair in any location where there are cords, such as a window blind cords, drapes, phone cords etc.

FALL HAZARD: Children have suffered severe head injuries including skull fractures when falling from high chairs. Falls can happen suddenly if child is not restrained properly.

• ALWAYS use restraints, and adjust to fit snugly.
• Tray is not designed to hold child in chair.

• Stay NEAR and watch child during use.
  NEVER ALLOW CHILD TO PUSH AWAY FROM TABLE.

• Other accessory items may change the balance of the high chair and cause hazardous unstable conditions.

• Be certain the high chair is fully erect and latched in the open position before allowing the child near the high chair.
• The minimum requirement for all booster modes of use is that the child must be able to sit upright unassisted (at least 6 months old). Refer to modes of use, page 4.
  Maximum child weight for the booster seat is 40
  Maximum child weight for the youth seat is 60 lbs.
• Use of the high chair with a child weighing more than 60 pounds will cause excessive wear and stress on high chair.
• NEVER allow your high chair to be used as a toy.
• FALL HAZARD Never move or lift the high chair with a child in it.
• NEVER use this product if there are any loose or missing fasteners, loose joints, broken parts, or torn mesh/fabric. Check before assembly and periodically during use. Contact Baby Trend Customer Service at 1-800-328-7363 for replacement parts, repair or instructions. NEVER substitute parts.

WARNING WARNING

BOOSTER/YOUTH SEAT TO CHAIR

WARNING: Children have suffered head injuries, including skull fractures, after falling with or from booster/youth seats. Check that booster/youth seat is securely attached to adult chair before each use.

• ALWAYS use restraints until child is able to get in and out of booster/youth seat without help (about 2 1/2 years old). Adjust to fit snugly.
  NEVER allow child to push away from table.
  NEVER lift and carry child in booster/youth seat.
  STAY NEAR and watch your child during use
• ALWAYS check security of fit to adult chair before each use and limitation of the product.
  NEVER use this product on a stool or bench that does not have a seat back.
  Maximum child weight for the toddler booster is 40 lbs. and 60 lbs. for the youth booster.

WARNING: Prevent serious injury or death. Do not use in motor vehicles.

WARNING: The tray is not designed to hold the child in the chair.
WARNING: The booster/youth seat should be used only by children capable of sitting upright unassisted and at least 6 months of age.
WARNING: Always secure the booster/youth seat on a chair using the bottom and back attachment straps. Never use this booster/youth seat on a stool or bench that does not have a seat back.
- NEVER lift this product with your child in it.

Adult Chair Size Diagram:

Always follow the safe measurements below when using the booster/youth seat on a chair.

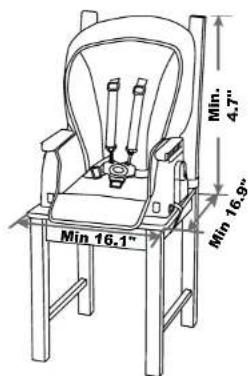

Minimum adult chair size for Booster Seat: width: 16.1 inch, depth: 16.9 inch, backrest height: 4.7 inch.

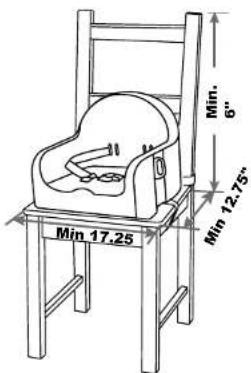

Minimum adult chair size for Youth Booster: width: 17.25 inch, depth: 12.75 inch, backrest height: 6 inch.

Toddler / Infant Booster Youth Booster

ASSEMBLY

ASSEMBLY

IMPORTANT! To ensure safe operation of your product, please follow these instructions carefully. Please keep these instructions for future reference.

IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. NEVER use if any parts are missing or broken.

IMPORTANT! Adult assembly is required.

IMPORTANT! Always check that the high chair is locked in the open position before using.

ATTENTION:

Carefully remove parts from box. Check that you have all the parts for this model before assembling the high chair.

TO ASSEMBLE FRAME

WARNING: Do not sit on the frame when the seat is not attached. Do not use frame as a foot stool.

1) Take either the left or right Upper Frame Assemblies, press and hold the button and extend the frame then release the button (Fig 1a).
- Insert the front tube of the right and left side Upper Frame Assemblies into the Height Adjuster (Fig. 1b). The front tube is easily distinguished from the rear tube by the array of holes located on the backside of the front tube.
2) -Squeeze the Release Handles on both sides simultaneously and push the tube through the Height Adjusters until it locks in the highest position (Fig. 2).

Fig. 1a
Fig. 1b

Release Handle

3) Insert the Front Legs into the upper frame assembly with the height adjustment slots (Fig. 3a). NOTE: Ensure the pins click into position.
- Insert the Rear Legs into the upper frame that does not have the height adjustment slots (Fig. 3b). NOTE: Legs are properly connected when the lock buttons are lined up with the holes on the ends of the Upper Frame Assemblies. Make sure the lock buttons are engaged before use.
Always lock brakes before use to prevent movement. To engage brakes, apply downward pressure to the brake tabs. Check that the High Chair will not move and that brakes are properly applied (Fig. 3c).

ASSEMBLY

ASSEMBLY

TO ASSEMBLE BOOSTER SEAT

4) - Slide Footrest posts into the front of the Seat until it clicks into place (Fig. 4a).

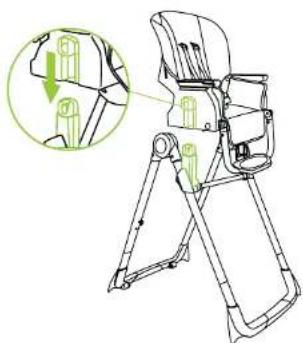

- Connect the Seat and lock into place (Fig. 4b). Pull up to make sure it's locked firmly in place before use (Fig. 4c).

Fig. 4a

Fig.4b Fig.4c

TO ATTACH SEAT PAD

NOTE: Certain High Chair models are packaged with the High Chair Seat Pad and Seat Insert already attached to the Seat Back. If your model has a Seat Pad and Seat Insert on the Seat Back please skip ahead to Step 7.

5) Thread non-buckle end of Harness Straps called Harness Attachment Tabs through the provided slots in the body insert, seat fabric, seat back (Fig. 5a), and seat base (Fig. 5b). When Harness Attachment Tabs are through the provided slots, rotate the Harness Attachment Tabs 90 degrees. Make sure that the straps are firmly in place.
6) Loop the flap on the back of the pad over the top of the Seat Back (Fig. 6a). Connect the Seat Pad to the Seat Back with the two Elastic Loops. These fit over the Attachment Tabs located near the top harness slots (Fig. 6b).

Fig. 5b

Fig. 6a

TO REMOVE SEAT PAD

Reverse steps above.

ASSEMBLY

ASSEMBLY

TO ATTACH TRAY

WARNING: Always check that the high chair is locked in the open position before using.
WARNING: The tray is not designed to hold the child in the chair. The child must be secured by the safety harness at all times while in the high chair.
7) To attach the Tray, line up the Grooves on the bottom of the Tray with the armrests of the high chair. Squeeze the front release handle and slide the Tray onto the armrests (Fig. 7a). The Tray has a 2-positions adjustment. To adjust the position, squeeze the front release handle located underneath the Tray and reposition the Tray to the desired position. Release the Tray's handle. Make sure the Tray is securely locked in its new position before use.

ATTENTION:

Never leave the tray in a position where the warning signs are visible (Fig. 7b).

Fig. 7a

2021 Baby Tend Int. All Rights Reserved. Toxion tods eeresreservia. Toue droils reservic

TO ATTACH INSERT TRAY

8) The dishwasher safe Tray Insert snaps onto the High Chair Tray and is held in place by tabs on the sides of the Tray. When installing the Tray Insert make sure that it snaps into place to prevent the child from removing the Tray Insert. To remove Insert unsnap tabs from the Tray (Fig. 8a).
The Tray may be stored on the back legs of the High Chair. Align the holes in the rear of the tray with the small pegs on the back legs or Extension Tubes (Fig. 8b).

Fig. 8a

Fig. 8b

highchair should be used only by children capable of sitting upright unassisted and at least 6 months of age.

WARNING: Prevent

serious injury or death from falls or sliding out. Always secure child in the restraint system, either in the reclining, semi-reclining or upright position.

The Tray is not designed to hold the child in the chair. Always keep child in view while in high chair. NEVER leave child unattended.

9) The shoulder straps of the 5-point harness have 2 attachment positions. Select the position that places the shoulder strap level with, or below, the top of the child's shoulder (Fig. 9a).

• Carefully place the child in the seat and position the safety harness around the child's waist and over the shoulders. Place the crotch strap between the child's legs. Insert the male end of each shoulder/waist belt into the buckle on the crotch strap. Tighten the harness to be snug around the child's waist and over the child's shoulders (Fig. 9b).

Fig. 9a

Adjust for a snug fit
Fig. 9b

2021 Baby Trend Inc. All Rights Reserved. Terms and rights reserved.

10) To release the harness, push Button on Center Clasp, the two Harness Buckles will pop free (Fig. 10).

RECLINE SEAT

11) Squeeze recline lever on back of the seat and adjust to the preferred recline or upright position (Fig.11). Use caution not to trap arms, hands and fingers when adjusting recline positions.

WARNING: Do not adjust seat height with child in seat. Adjust seat height before placing your child in the high chair.

WARNING: Always check that the height adjustment bracket is level and both left and right sides are locked before placing child in the high chair.

WARNING: Never rest the height adjustment bracket on the locking pins.

12) Squeeze the Release Handles on both sides simultaneously of the Height Adjustment (Fig. 12a) and adjust to the ideal position (Fig. 12b). DO NOT adjust with child in the seat.

Fig. 10
Fig. 11

Fig. 12a

Fig. 12b

Make sure the Height Brackets lock on the lowest position. DO NOT rest Height Adjustment Brackets on the Locking Pins (Fig. 12c).

ADJUSTING THE FOOTREST

13) Press the buttons on both sides of the Footrest to adjust the Footrest up or down (Fig. 13).

DISENGAGE BRAKES

14) To release the brakes, lift up on the brake tabs to maneuver the high chair (Fig. 14). NOTE: Always lock brakes before use to prevent movement.

Fig. 12c

Fig. 13

TO FOLD HIGH CHAIR

The High Chair may be folded with the seat in any of the height positions.

15) Place seat in the desired height position. Place Seat Back in the most upright position (Fig. 15).
16) Squeeze the Tray release handle and slide the tray out (Fig. 16).
17) Hang the Tray on the pegs located on the back of the rear leg or Extension Tube (Fig. 17).
18) Press and hold release buttons (located on the sides of the frame) and push the rear legs in the direction of the front legs until folded (Fig. 18). Chair is now ready to put away. This is not a toy. DO NOT allow your child to play around a folded high chair.

TO UNFOLD HIGH CHAIR

Reverse steps above

Fig. 15

Fig. 16

Fig. 17

Fig. 18

ASSEMBLY

ASSEMBLY

TO ATTACH BOOSTER SEAT TO CHAIR

WARNING: Always secure the Booster Seat on a chair using the bottom and back attachment straps. Never use this Booster Seat on a stool or bench that does not have a seat back.

19) Detach Seat from Upper Frame Assembly by pushing both modular release buttons on each side of the seat and lifting seat upwards (Fig. 19). DO NOT remove with child in the seat.
20) Remove Footrest by pushing the release button on each side of the seat and pulling Footrest out of the Seat (Fig. 20).
21) Turn Booster Seat over. Slide Strip Compartments open on the bottom of the Booster Seat (Fig. 21a).
Pull the straps out of the Compartment (Fig. 21b). Then place the Booster Seat onto a chair that has a seat back with no armrests. Make sure there are not extra paddings or cushions on the chair.

Fig. 19
Fig. 20

Fig. 21a

Fig. 21b

• Wrap the back straps around the back of the chair. Buckle the straps making sure you hear the buckle CLICK closed (Fig. 21c).
  Pull the free ends of the strap to firmly tighten the Booster Seat to the chair (Fig. 21d).
• Wrap bottom straps around the bottom of the chair. Buckle the straps making sure you hear buckle CLICK closed (Fig. 21e).
  Pull the free ends of the straps to firmly tighten the Booster Seat onto the chair (Fig. 21d).
• Check that the Booster is tightly installed by attempting to move the Booster Seat from side-to-side and up. The Booster Seat should not move more than 1 inch.

TO REMOVE BOOSTER SEAT FROM CHAIR

22) - Tum Booster Seat over. Slide Strap Compartments open on the bottom of the Booster Seat (Fig. 22a).
- Fold the straps and put them in the compartment, then slide the Compartment Door closed (Fig. 22b).

ASSEMBLY

ASSEMBLY

ADJUST FRAME HEIGHT

WARNING: Never rest the height adjustment bracket on the locking pins.
23) Squeeze both left and right Release Handles of the Height Adjustment Bracket and adjust to the lowest position (Fig. 23a). DO NOT adjust with child in the seat.

ATTENTION:

The Height Adjustment Bracket must always be set at the same adjustment position on both legs before adding accessories or placing a child (Fig. 23b). NOTE: Ensure that both sides of the bracket are even in adjustment and completely locked into place.

Release Handle

Fig.23bFig.23a

TODDLER SEAT ASSEMBLY

24) ATTENTION: Recommended age for Toddler Seat use is 2-4 years of age.

NOTE: Make sure to adjust the harness to properly fit child. Adjust the harness and waist straps accordingly.

• Always assist your child into and out of the seat.
  Before using the toddler seat, remove tray (step 16), lock wheels (step 3c), before using toddler seat.

Fig. 24

2021 Baby Tend Int. All Rights Reserved. Toonk loe direchos reservatios. Toue crols reesiv

TO USE SAFETY BELT ON YOUTH SEAT

WARNING: The highchair should be used only by children capable of sitting upright unassisted and at least 6 months of age.
WARNING: Prevent serious injury or death from falls or sliding out. Always use the restraint system. The child should be secured in the high chair at all times by the 3-point restraining system, either in the reclining, semi-reclining or upright position.

25) Place the crotch strap between your child's legs. Insert the Harness Buckles into the Center Clasp with the Button.

• Adjust waist straps for your child's comfort and safety by sliding buckles in either direction. Safety straps are to fit snug around your child (Fig. 25).
• The straps of the 3-point harness have 2 attachment positions. To adjust the straps, select the slot that best fits your child. Refer to (Fig. 25).

TO RELEASE SAFETY BELT

26) - Push Button on Center Clasp, the two Harness Buckles will pop free (Fig. 26).

Adjust for a snug fit
Fig. 25

Fig. 26

Copyright 2021 Baby Trend Inc. All rights reserved. Terms & Conditions (e.g., pricing, product design, user preferences, etc.)

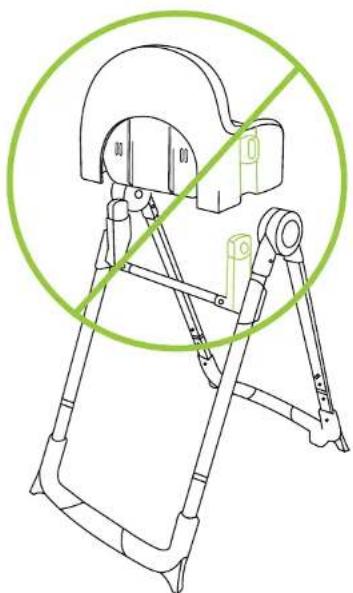

YOUTH CHAIR ASSEMBLY

ATTENTION:

The youth seat must be connected to the frame.

facing the forward direction ONLY.

DO NOT remove with child in the seat.

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todlos forrechos reservados. Tour drops reserved.

ASSEMBLY

MAINTENANCE

27) To make the youth chair mode, attach the seat to the frame.

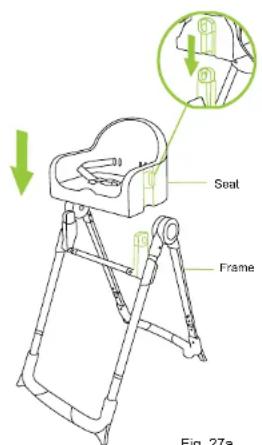

• Connect the seat and lock into place (Fig. 27a).

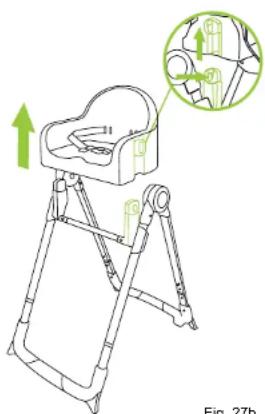

• Detach Seat from Upper Frame Assembly by pushing both modular release buttons on each side of the seat and lifting seat upwards (Fig. 27b).

Fig. 27a

Fig. 27b

CARE AND MAINTENANCE

WARNING: Harness Straps and Basket are NOT washable.

Dishwasher Safe Tray Insert: The Tray Insert is dishwasher safe to 160^ F (71^) . Do not use scouring pads on the Tray Insert as they will damage the surface and the Tray Insert will become more difficult to clean.

High Chair/Tray: Use mild soap and wash with damp cloth. Please use only a soft bristle brush, sponge or cloth to clean the surface or remove particles of food. DO NOT submerge High Chair and Tray in water. Surface clean only.

Seat Pad and fabrics (please refer to the care label on individual soft good pieces for cleaning instructions).

Basket

NOTE: Certain Models will have a Basket underneath the seat for storage. These Models will be packaged with the Basket already attached to the Seat Base. To remove: The Basket is attached by four snaps. Release these snaps for removal.

Copyright © 2021. Baby Trend Inc., All Rights Reserved. Todlos las detechos reservas. Tuis droits reservs.

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits réservés

PIEZAS

MODOS

Copyright 2021 Baby Trend Inc. All rights reserved. Terms & Conditions of use, usage, and法律责任. Terms & Conditions

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todas los derechos reservados. Touros druys reserved.

Copyright © 2021 Baby Trend Inc., All Rights Reserved. Unauthorized use of this work may violate ethical norms and violate the terms of the copyright holder.

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todlos los droits reservados. Touros droits n

MODES

AVERTISSEMENT

LES MODES D'UTILISATION

Copyright 2021 BabyTrend Inc. All Rights Reserved. Todes has deerehos reservacn. Toue drilis reesiv

Copyright © 2021 Baby Trends Inc. All Rights Reserved. Terms & Conditions of access, use, and reproduction.

Copyright © 2021, Baby Trend Inc., All Rights Reserved. Todlos los droits reservados. Tous droits réservés

ENSEMBLE

ENSEMBLE

ATTENTION:

Copyright 2021. Baby Trend Inc., All Rights Reserved. Unauthorized sales/redechos reserved. Terms & Conditions

PLIER LA CHAISE HAUTE

The Customer Service Department can be contacted at 1 [phone] Monday through Friday between 8:00 a.m. and 4:30 p.m. (PST). Return Authorizationss are required prior to returning product(s) to Baby Trend®.

BABY TREND® SERVICIO AL CLIENTE
