Product Type	Professional LED Light Panel
Brand	Chauvet
Model	onAir Panel 3 IP
Protection Rating	IP65 (dust-tight and protected against water jets)
Power Supply	100-240 VAC, 50/60 Hz (universal)
Typical Power Consumption	Approx. 172 W (at 230 V)
Operating Temperature	-30 °C to 45 °C (ambient); minimum startup at -20 °C
Safety Distance	Do not look at the light source from less than 5 m
Box Contents	onAir Panel 3 IP, omega bracket with mounting hardware, Seetronic Powerkon IP65 power cord, quick reference guide
Main Functions	Dimming, color, color temperature, saturation adjustment; built-in presets (A) and custom presets (B)
Control	Built-in control panel with navigation and adjustment buttons
Installation	Suspended mounting with omega bracket and safety cable; maintain at least 50 cm clearance around the product for ventilation
Power Cable	Seetronic Powerkon IP65 (locking connector)
Usage	Professional only (temporary indoor/outdoor)
Maintenance and Cleaning	Disconnect before cleaning; use a soft, dry cloth
Repairability	Light source not user-replaceable; power cord replaceable only by manufacturer or authorized service provider
Compliance	FCC Part 15 Class B (radio interference)
RF Warning	Minimum distance of 20 cm between antenna and user
Weight	Not specified in the manual
Dimensions	Not specified in the manual

Frequently Asked Questions - onAir Panel 3 IP Chauvet

What is the IP rating of the onAir Panel 3 IP?

The onAir Panel 3 IP is rated IP65, meaning it is dust-tight and protected against water jets. It can be used temporarily outdoors but must not be immersed.

Can I use an external dimmer with this panel?

No, it is forbidden to connect this product to a dimmer or rheostat. Use only the built-in control to adjust intensity.

How to install the onAir Panel 3 IP overhead?

Use the supplied omega bracket and attach it to a suitable mounting hook. Always attach a safety cable to prevent falls. Maintain at least 50 cm distance from adjacent surfaces for ventilation.

What is the maximum ambient operating temperature?

The maximum ambient temperature is 45 °C (113 °F). Do not operate the product above this limit.

Can I replace the LED light source myself?

No, the light source can only be replaced by the manufacturer, its service provider, or a qualified person. The product contains no user-serviceable parts.

How to clean the panel?

Always disconnect the device before cleaning. Use a soft, dry cloth. Do not use abrasive products or solvents.

What type of power cable is provided?

The product comes with a Seetronic Powerkon IP65 power cable, designed for outdoor use. It is locking to prevent accidental disconnection.

Can I connect multiple onAir Panel 3 IP together?

Yes, it is possible to daisy-chain multiple products. However, never exceed 12 A on a single circuit. Refer to the current table in the manual for limits.

What to do if the housing or cable appears damaged?

Do not use the product if the housing, lenses, or cables are damaged. Disconnect it immediately and contact the manufacturer or authorized service for replacement.

Does the product flash? Can it trigger epileptic seizures?

Flashing light (strobe) can trigger epileptic seizures. The user must comply with local laws regarding notification of strobe use. Avoid prolonged viewing at less than 5 m.

USER MANUAL onAir Panel 3 IP Chauvet

QR code image containing encoded data, no visible human-readable text

Scan the QR code to access the product page, warranty terms, and the complete User Manual

onAir IP

PANEL 3

Quick Reference Guide

English EN

Español ES

Français FR

Deutsch DE

Nederlands NL

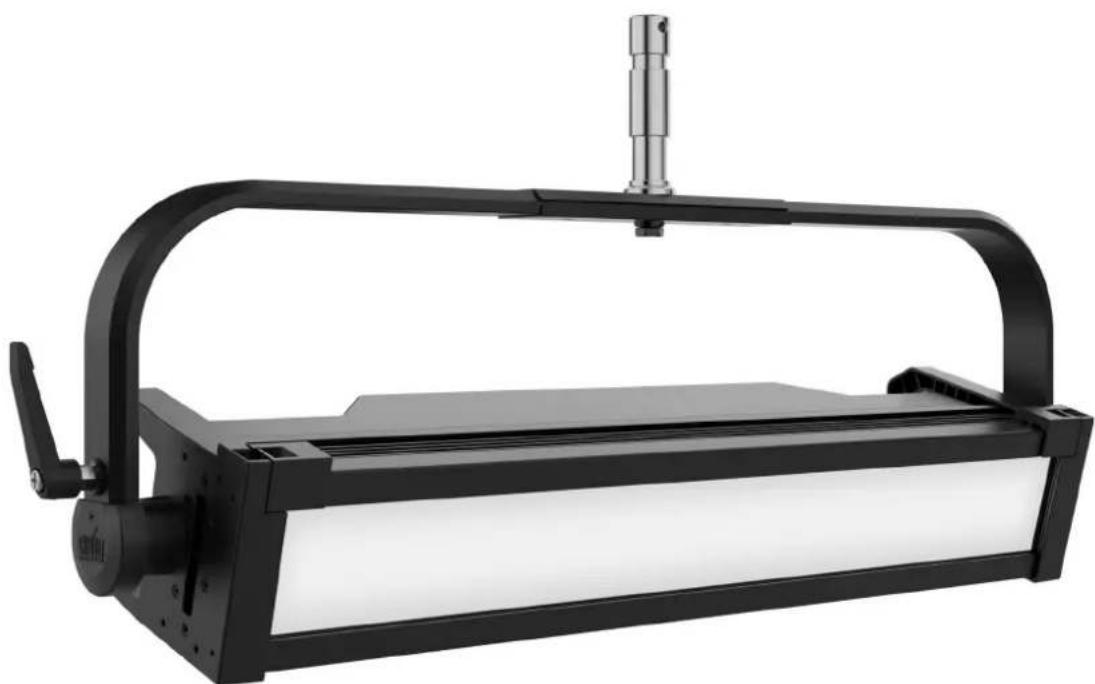

Black and white photo of a black industrial lamp or optical device with adjustable handle and top component (no visible text or symbols)

Model ID: ONAIRPANEL3IP

Intentionally Left Blank Page

Safety Notes

These Safety Notes include important information about installation, use, and maintenance of the onAir Panel 3 IP.

- The luminaire is intended for professional use only.

• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 16.4 ft (5 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or its service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or its service agent or a similar qualified person.

- CAUTION:

• This product's housing may be hot when operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• When transferring the product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow the product to fully acclimate to the surrounding environment before connecting it to power.
• Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding notification of strobe use.

• ALWAYS:

• Disconnect from power before cleaning the product.
• When using an IP65-rated product in an outdoor environment, use IP65- (or higher) rated power and data cable.
• Replace and secure IP-rated protective covers to all power, data, USB, or other ports when not in use.
• Use a safety cable when mounting this product overhead.
• Connect this product to a grounded and protected circuit.

D O N O T :

• Open this product. It contains no user-serviceable parts.
• Look at the light source when the product is on.
• Leave any flammable material within 1 m of this product while operating or connected to power.
• Connect this product to a dimmer or rheostat.
• Operate this product if the housing, lenses, or cables appear damaged.
  • Submerge this product (adhere to standards for the published IP rating). Regular outdoor operation is fine.

• Permanently install outdoors in locations with extreme environmental conditions. This includes, but is not limited to:

• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).

• Locations where normal temperatures exceed the temperature ranges in this manual.
• Locations that are prone to flooding or being buried in snow.
  • Other areas where the product will be subject to extreme radiation or caustic substances.

- ONLY use the hanging/mounting bracket to carry this product.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
• The minimum startup temperature is -4^ ( -20^ ). Do not start the product at lower temperatures.
- The minimum ambient temperature is -22^ (-30°C). Do not operate the product at lower temperatures.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- In the event of a serious operating problem, stop using immediately.

FCC Statement of Compliance

This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Warning for North America and Australia

Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and the user. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

What is Included

- onAir Panel 3 IP

• Omega bracket with mounting hardware

- Seetronic Powerkon IP65 power cable

- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to power link onAir Panel 3 IP products. See the table below for the current draw at each voltage and frequency:

	100 V, 60 Hz	120 V, 60 Hz	208 V, 60 Hz	230 V, 50 Hz	240 V, 50 Hz
Current Draw	1.694 A	1.392 A	0.823 A	0.747 A	0.722 A

Never exceed 12 A on a single circuit. Power-linking cables can be purchased separately.

Mounting

Before mounting this product, read the Safety Notes. Make sure the mounting clamp is capable of supporting the weight of the product. For the Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.

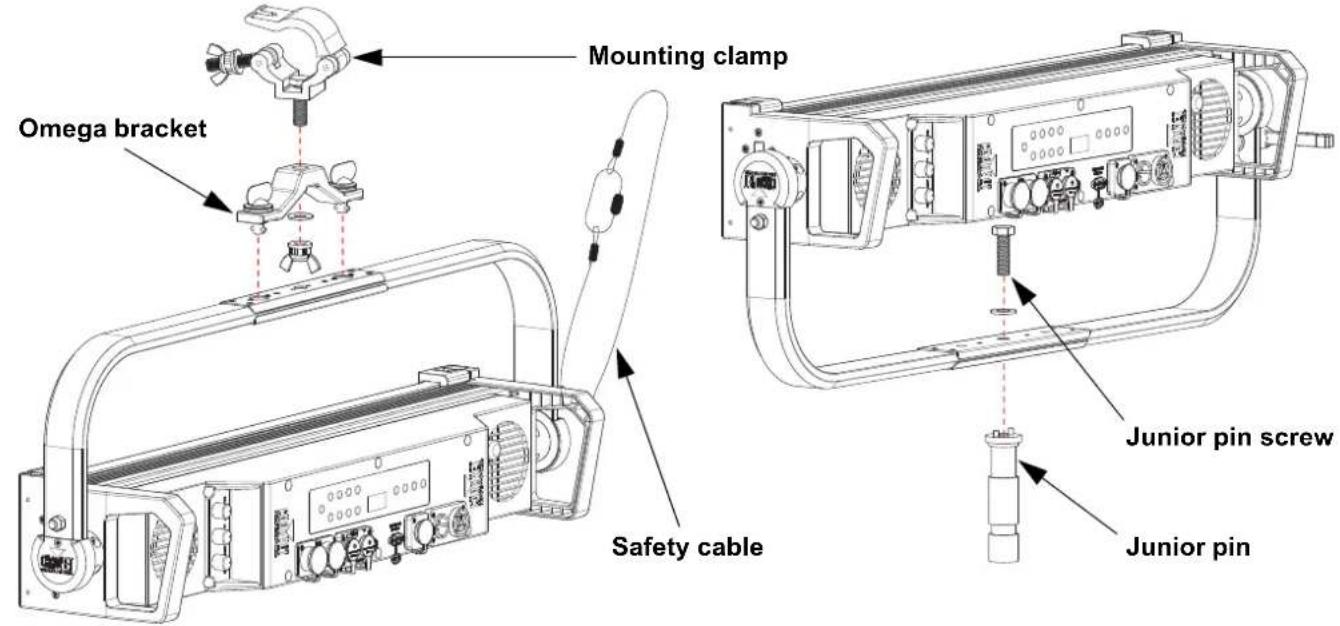

Mounting Diagram

Mounting clamp Omega bracket Safety cable Junior pin screw Junior pin

Control Panel Description

Button/Knob Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function
	Increases or decreases the dimmer value or intensity
	Increases or decreases the hue value or X value
	Increases or decreases the color temperature, saturation, or Y value
	Toggles between A presets (built-in) and B presets (custom)
<____K/B1-8>	Selects a preset. Hold for 3 seconds to save the current look to the selected B preset.

Notas de seguridad

Intentionally Left Blank Page

Sicherheitshinweise

Intentionally Left Blank Page

Contact Us

General Information Technical Support

Chauvet World Headquarters

Address: 3360 Davie Rd. Voice: [phone]

Davie, FL 33314 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet U.K.

Address: Pod 1 EVO Park Email: [e-mail]

Little Oak Drive, Sherwood Park

Nottinghamshire, NG15 0EB Website: www.chauvetprofessional.eu

UK

Voice: [phone]

Fax: [phone]

Chauvet Benelux

(Entrance by Calle 2)

Email: [e-mail]

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

UL 1573

CSA C22.2 No. 166

E113093

RoHS
