External SSD Premium - Hard Drive INTENSO - Free user manual and instructions

Product type	External SSD drive
Brand	Intenso
Model	External SSD Premium
Interface	USB 3.2 Gen 1x1 (5 Gbps, backwards compatible with USB 2.0/3.0)
Dimensions (L x W x H)	90 x 54 x 9 mm
Connectivity	USB-A (host) and USB Micro B (device)
System compatibility	Windows 8 and above, Mac OS 10.x and above
Operating temperature	5 °C to 40 °C
Power supply	Via USB port (bus-powered)
Main functions	Portable data storage, fast transfer, backwards compatible
Package contents	External SSD drive, USB-A cable, user manual
LED indicator	Yes (lit when connected, flashing during read/write operations)
Safety	Short-circuit protection; do not expose to water; do not open the housing
Maintenance and cleaning	Clean with a dry cloth; avoid dust, humidity, and excessive heat
Spare parts and repairability	Not user-serviceable; opening voids the warranty
Warranty	Legal warranty; improper use voids it
General information	Manufactured by Intenso International GmbH, Germany

Frequently Asked Questions - External SSD Premium INTENSO

How to connect the Intenso external SSD to my computer?

Use only the provided USB cable. Connect the USB Micro B plug to the SSD and the USB-A plug to the computer. Wait for the driver installation. A new drive named 'Intenso' appears.

How to safely remove the external SSD?

Before disconnecting, close all open files on the SSD. Depending on the operating system, disconnect the device using the 'safely remove hardware' icon. Do not unplug while the LED is flashing (active access).

Is the external SSD compatible with Mac?

Yes, it is compatible with Mac OS 10.x and above.

Which cable should I use for connection?

Use exclusively the USB-A cable provided with the device. Another cable might not work correctly.

What to do if the LED does not light up?

Check that the cable is properly connected at both ends and that the computer's USB port works. Try another USB port.

Can the SSD be used on a TV or gaming console?

The manual does not mention it. It is designed for PCs, laptops, and Macs. For other devices, check their USB compatibility.

How to avoid data loss?

Perform regular backups to another medium. Data recovery is not covered by the warranty.

What safety precautions should be taken?

Do not expose to water, do not open the housing, avoid strong magnetic fields, do not block ventilation openings, and do not use with wet hands.

How to clean the external SSD?

Use a dry, soft cloth. Avoid chemical or abrasive products. Store it away from dust and humidity.

How to dispose of the SSD at the end of its life?

Do not throw it in household waste. Dispose of it at a collection point for electronic devices in accordance with the WEEE directive (2012/19/EC).

USER MANUAL External SSD Premium INTENSO

Please read this manual carefully and observe and follow all the instructions mentioned in it to ensure a long service life and reliable use of the device. Keep this manual handy and pass it on to other users of the device.

USER MANUAL

Safety 2

Intended use 2

Safety instructions 2

Declaration of conformity 3

Scope of delivery 3

Use 4

System requirements 4

Connecting the external SSD 4

Removing the external SSD 4

Service/Distributor 5

Disposal 5

Technical data 5

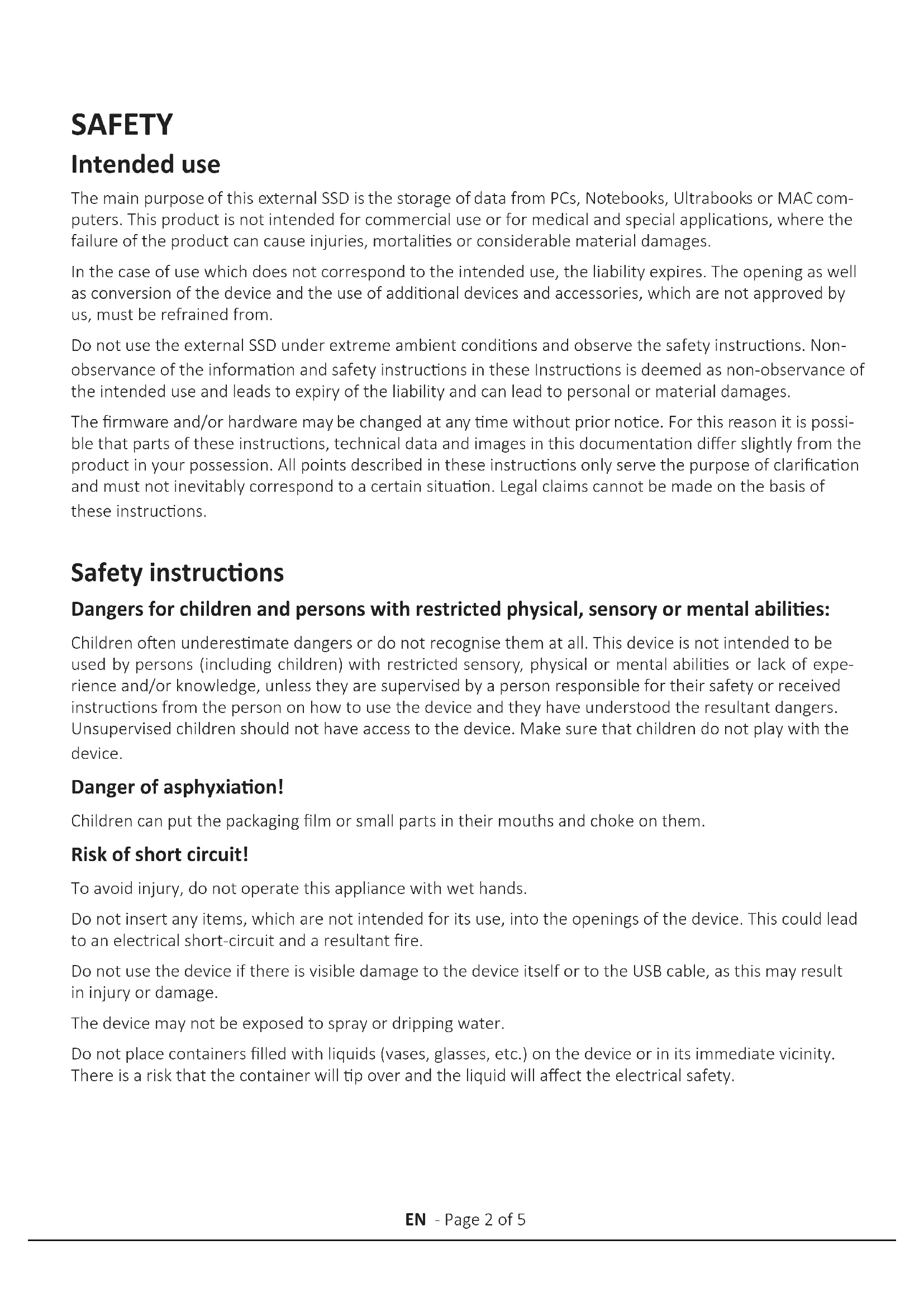

SAFETY

Intended use

The main purpose of this external SSD is the storage of data from PCs, Notebooks, Ultrabooks or MAC computers. This product is not intended for commercial use or for medical and special applications, where the failure of the product can cause injuries, mortalities or considerable material damages.

In the case of use which does not correspond to the intended use, the liability expires. The opening as well as conversion of the device and the use of additional devices and accessories, which are not approved by us, must be refrained from.

Do not use the external SSD under extreme ambient conditions and observe the safety instructions. Non-observation of the information and safety instructions in these Instructions is deemed as non-observation of the intended use and leads to expiry of the liability and can lead to personal or material damages.

The firmware and/or hardware may be changed at any time without prior notice. For this reason it is possible that parts of these instructions, technical data and images in this documentation differ slightly from the product in your possession. All points described in these instructions only serve the purpose of clarification and must not inevitably correspond to a certain situation. Legal claims cannot be made on the basis of these instructions.

Safety instructions

Dangers for children and persons with restricted physical, sensory or mental abilities:

Children often underestimate dangers or do not recognise them at all. This device is not intended to be used by persons (including children) with restricted sensory, physical or mental abilities or lack of experience and/or knowledge, unless they are supervised by a person responsible for their safety or received instructions from the person on how to use the device and they have understood the resultant dangers. Unsupervised children should not have access to the device. Make sure that children do not play with the device.

Danger of asphyxiation!

Children can put the packaging film or small parts in their mouths and choke on them.

Risk of short circuit!

To avoid injury, do not operate this appliance with wet hands.

Do not insert any items, which are not intended for its use, into the openings of the device. This could lead to an electrical short-circuit and a resultant fire.

Do not use the device if there is visible damage to the device itself or to the USB cable, as this may result in injury or damage.

The device may not be exposed to spray or dripping water.

Do not place containers filled with liquids (vases, glasses, etc.) on the device or in its immediate vicinity. There is a risk that the container will tip over and the liquid will affect the electrical safety.

Tripping hazard!

When positioning the device, pay attention that no one can tread on the cable or trip over it. Do not place any objects onto the cable.

Damage!

To avoid overheating, do not block or cover the openings of the product.

Do not cover the product completely during operation to ensure heat dissipation.

Keep the device away from any type of moisture and avoid dust, heat and direct sunlight.

Do not open the housing of the device and do not disassemble it into its component parts. Do not try to repair it yourself. The guarantee expires in this case.

Avoid using the device in strongly magnetized areas such as, for example, in the direct proximity of TV sets, loudspeakers, etc. to avoid data loss or other malfunctions.

During operation pay attention to a vibration-free base to avoid damages.

Data loss!

Carry out regular backups on another data storage device to avoid possible data loss in case of failure of this device.

Data recovery is not part of the guarantees and cannot be conducted by our Service Centre.

Declaration of conformity

The CE marking says that this product meets the requirements of all EU Directives applicable for this product.

The UKCA marking says, that this product meets the requirements of all UK Directives applicable for this product.

SCOPE OF DELIVERY

Intenso USB 3.2 Gen 1x1 (5 Gbps) external SSD (downwards compatible)
USB-A cable Operating instruction

Please check whether the contents of the packaging (see also graphic at the beginning of the manual on page 2) are complete and undamaged. If this is not the case, please contact the seller or our service department:

[e-mail]

USE

System requirements

This external SSD is compatible with Microsoft Windows 8 and higher and Mac OS 10.x and higher operating systems.

For USB 3.2 Gen 1x1 operation, a USB 3.2 Gen 1x1 interface is necessary. The external SSD is downward compatible to previous USB standards.

The hardware configuration of your PC and the operating system used can influence the accessibility of the external SSD and the transfer speed between the PC and the external SSD.

*Trademarks: Windows is a registered trademark of the Microsoft Corporation. Macintosh and MAC are registered trademarks of Apple Computer. All brands and third party names are the property of the respective user.

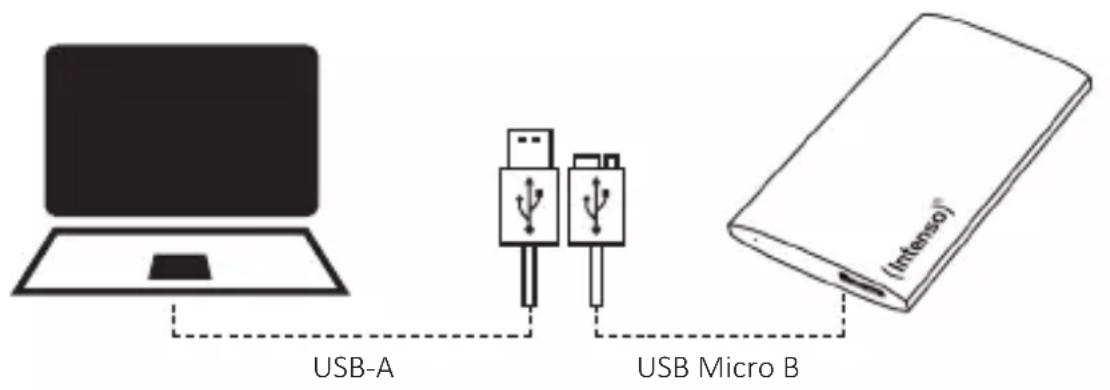

Connecting the external SSD

To connect the external SSD to your computer, please use only the supplied USB cable.

1. Connect the USB Micro B connector to the Intenso SSD and the USB-A connector to your computer.
2. Wait until the driver installation is complete. You now have another drive with the name "Intenso" at your disposal. As soon as the external SSD is connected to the computer, the LED lights up. The LED flashes when a write or read operation is being carried out.

Removing the external SSD

Depending on the operating system used, the external SSD must be logged off before the connection to the computer is interrupted. For more information, please refer to the help area of your operating system provider.

Please close all open files (photos, documents, etc.) on the external SSD before removing it from the computer to avoid data loss.

Please do not remove the external SSD if it is still being accessed. Active access is indicated by the flashing LED on the unit. This procedure can prevent damage and/or data loss.

SERVICE / DISTRIBUTOR

INTENSO INTERNATIONAL GMBH | Kopernikusstraße 12-14 I 49377 Vechta

Email (technical support): [e-mail]

Email (RMA number): [e-mail]

Internet: www.intenso.eu

Telephone (technical support): [phone] (Mon.-Thur. 09:00-16:30;

Fri. 09:00 - 14:00)

DISPOSAL

Disposal of old electronic equipment: The devices marked with this symbol are subject to the European Directive 2012/19/ EC. All electrical appliances and old electrical appliances must be disposed of separate from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. You avoid environmental damage with the proper disposal of old electrical equipment.

Packaging: Packaging is raw material. The packaging material of this product is suitable for recycl- cling and can be re-used. Please pay attention to the local recycling provisions when disposing of any materials.

TECHNICAL DATA

EXTERNAL SSD USB 3.2 GEN 1x1 SSD
Dimensions: 90 x 54 x 9 mm
Ready for operation: between 5°C and 40°C
Transfer rate: max. 5 GBit/sek (USB 3.2 Gen 1x1)
Capacity calculation: 1 MB = 1,000,000 bytes	1 GB = 1,000,000,000 bytes
