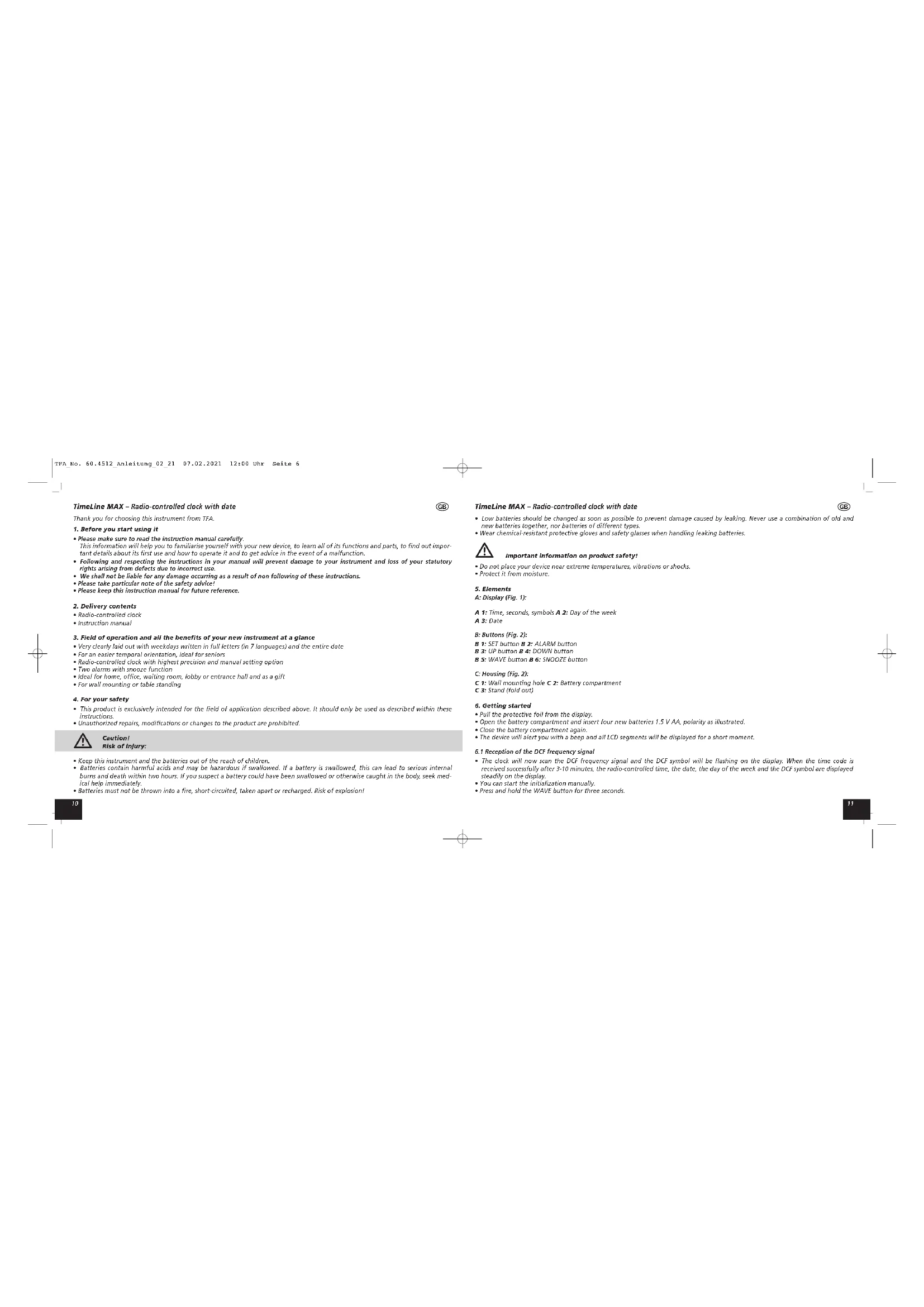

TimeLine MAX - Radio-controlled clock with date

Thank you for choosing this instrument from TFA.

1. Before you start using it
2. Please make sure to read the instruction manual carefully.
   This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.
3. Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
   We shall not be liable for any damage occurring as a result of non following of these instructions.
   Please take particular note of the safety service. Please keep this instruction manual for future reference.

2. Delivery contents

Radio-controlled clock
- Instruction manual

1. Field of operation and all the benefits of your new instrument at a glance
2. Very clearly laid out with weekdays written in full letters (in 7 languages) and the entire date
3. For an exact temporal orientation, ideal for opinion
   Radio-controlled clock with higher precision and manual setting option
4. Two alarms with spoofed function
   Ideal for home, office, waiting room, lobby or entrance hall and as a gift
   For wall mounting or table standing

4. For your safety

This product is exclusively intended for the field of application described above. it should only be used as described within these instructions.
- Unauthorized repairs, modifications or changes to the product are prohibited.

Caution!

Risk of Injury:

• Keep this instrument and the batteries out of the reach of children.
  Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical attention.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion?

TimeLine MAX - Radio-controlled clock with date

• low battires should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

Do not place your device near extreme temperatures, vibrations or shocks.
Protect it from moisture.

5. Elements

A:Display(Fig.1):

A 1: Time, seconds, symbols A 2: Day of the week
A3:Date

B: Buttons (Fig. 2):

B1:SET button B2:ALARM button
B3:UP button B4:DOWN button
B5:WAVE button B6:SNOOZEButton

C Housing (Fig. 2):

C1:Wallmounting hole C2:Battery compartment
C 3: Stand if oio ou

6. Getting started

Pull the protective foil from the display.
Open the battery compartment and insert four new batteries 1.5 V AA, polarity as illustrated.
Close the battery compartment again.
The device will alert you with a beep and all LCD segments will be displayed for a short moment.

6.1 Reception of the DCF frequency signal

• The clock will now scan the DCF frequency signal and the DCF symbol will be flashing on the display. When the time code is received successfully after 3-10 minutes, the radio-controlled time, the date, the day at the week and the DCF symbol are displayed on the screen.
  You can start the initialization manuquely.
  Press and hold the WAVE button for three seconds.

TimeLine MAX - Radio-controlled clock with date

The DCF symbol will be flashing.
- interrupt the reception by pressing the WAVE button again. The DCF symbol disappears. - The DCF operation shows the following three options: 1.00, 2.00, 3.00, 4.00 and 5.00 seconds.
The DCR received until 1:00 o'clock, the port cease operation is again at 1:00 o'clock in the morning.
- There are three different reception symbols:

fashing - reception is active
stays - reception is very good
No symbol - no reception / set time manually
- If the clock cannot detect the DCF signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The DCF symbol disappears and the clock will then work as a normal quartz clock. (See: Manual settings).

7. Note for radio-controlled time DCF

The time base for the radio-controlled time is a cesium atomic clock operated by the Physikalischtechnische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainfingen near Frankfurt via frequency signal DCF-77 (7.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. In Dark-Sight Sawning Time 5 is shown on the display. The quality of the reception depends mainly on the geographic location. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.

Please take note of the following:

The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters.
- Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.
- During night time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

8. Operation

• Press and hold the UP or DOWN button in the respective setting mode for fast running.
  The device will automatically quit the setting mode if no button is pressed for a long period of time.

8.1 Manual settings

• Press and hold the SET button in normal mode for two seconds.
  The year indication (2011 - default) will be flashing and you can adjust the year with the UP or DOWN button.
• Press the SET button again to make the settings in the following sequence: month, day, hour, minute and day-of-the-week language (GERMAN - default). Press the UP or DOWN button to adjust it.

TimeLine MAX - Radio-controlled clock with date

• Confirm the setting with the SET button.
• By a successful reception of the DCF signal, the manually set time will be overwritten.

8.1.1 Setting of the day-of-week language

In the setting mode you can make the setting of the day-of-the week language: GERMAN, FRECH, SPANISH, ITALIAN, DANISH.
DUTCH, ENGLISH

8.1.2 Setting of the 12 and 24 hours display

• Press the UP button in the normal mode to choose the 12 NR or 24 NR system.
  In the 12 HR system AM or PM (after 12 o'clock) appears on the display.

8.1.3 Setting of the second clock time

Press and hold the DOWW button in normal mode (or two seconds).
F appears on the display.
- Press and hold the SET button.
The hour digits will be flashing
- Press the UP or DOWN button to adjust the hours.
- Confirm the setting with the SET button
The display shows the second clock time.
- Press and hold the DOWN button again to return to normal mode.

• 17 and the second clock time disappears on the display.

8.2 Setting of the alarm times

• Press the SET button in normal mode, to enter the alarm mode.
• A1 and 0:00 (default) or the last adjusted first alarm time appear on the display.
• Press and hold the SET button.
  The hour digits will be flashing
• Press the UP or DOWN button to adjust the hours.
• Confirm the setting with the SET button and set minutes in the same way.
• Confirm the setting with the SET button
  The display shows the adjusted time.
• Press the SET button again to adjust eventually the second alarm time in the same way.
• Press the set button again to return to the current time.

8.2.1 Activate and deactivate the alarm time

To activate and deactivate the respective alarm function press the ALARM button in normal mode.
The corresponding symbol, and no atom symbol appears on the display.

GB

13/14

m = 311

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

TimeLine MAX - Radio-controlled clock with date

• When the adjusted alarm time is reached, the alarm will ring.
  The corresponding alarm symbol will be flashing
• Press any button and the alarm will stop.
  If the alarm is not stopped manually, the increasing alarm will automatically turn off after certain minutes and will be reactivated
  at the same time. The alarm symbol remains on the display.
  1.《关于回购股份方案的议案》
• From the sequence function is activated, Z will be following on the display.
  The alarm will be intuoted for 6-7moles
• Press the ALARM button to turn off the alarm and stop the function
  The alarm symbol and the snooge symbol disappear on the display.

9. Positioning and fixing

- With the suspension device you can fix the device with a nail or a solid screw and dowel on a wall. For table standing please fold out the interior (150 steps). The installation is successful if you have a click

10. Care and maintenance

Clean the instrument with a soft damp cloth. Do not use solvents or scouring agents.
- Remove the batteries if you do not use the device for a long period of time.
- Keep the device in a dry place.

10.1 Battery replacement

• Change the battery when the battery symbol appears on the display.
  Open the battery compartment and insert four new batteries 1.5 V AA, polarity as illustrated
• Close the battery compartment again.

11. Troubleshooting

Problems Solutions

No indication on the device Ensure that the batteries polarity are correct.

Change the batteries

No DCF reception

Press and hold the WAVE button for three seconds to activate the reception
Wait for attempted reception during
Choose another place for your product
→ Manual setting of the clock

TimeLine MAX - Radio-controlled clock with date

Check if there is any source of interference

Restart the device according to the manual

Incorrect indication Change the batteries

If your device fails to work despite these measures contact the supplier from whom you purchased it.

12. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste.
As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending

on national for stal regulations in order to protect the environment.

The symbols for the heavy metals contained are: Cd=calmodan, Ag =mercury, Pb=lead
This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).
Please do not dispose of this instrument in household waste. The user is obliged to take end-of-life devices to a design
nated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

13. Specifications

Power consumption: Batteries 4 x 1.5 V 4.4 (not included)

Use alkaline batteries

Housing dimension: 258 x 30 (120) x 212 mm

Weight:540g (instrument only)

No part of this manual may be reproduced without written consent of TPA Postman. The technical data are correct at the time of going to print and may change without prior notice.
The test technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

EU declaration of conformity

Herog, TFA Dostman dices that the radio equipment type 60 4512 is in compliance with Direcet 2014/53/PU. The full text of the EU actioration or conformance is available at the following internet address: www.fta-dostman.devisceration/downloadcode
