Product type	Tablet
Brand	ARCHOS
Model	70 Neon
Operating System	Android™
WiFi Connectivity	WiFi 802.11 b/g/n, WPS compatible
Bluetooth	Yes
Internal Storage	Fusion Storage (internal memory + microSD card)
Card Reader	microSD
Audio Jack	3.5 mm jack
Speaker	Built-in
Physical Buttons	ON/OFF, Reset
Power Supply	Supplied USB charger, rechargeable lithium battery
Display	Capacitive touch (size not specified)
Sensors	Accelerometer for auto-rotation
Software Features	Setup assistant, quick settings, airplane mode, location
Preinstalled Applications	Google, YouTube, Play Store, etc.
Multitasking	Recent applications with swipe to close
Customization	Wallpapers, widgets, application folders
User Management	Multi-user (Settings > Device)
Troubleshooting	Physical reset (reset button), long press ON/OFF

Frequently Asked Questions - 70 Neon ARCHOS

How to turn on the ARCHOS 70 Neon tablet?

Press the ON/OFF button located on the side of the device.

How to charge the battery?

Connect the supplied USB charger to the tablet and to a power outlet. For first use, fully charge the battery.

How to connect to a WiFi network?

Pull down the status bar, tap the WiFi icon, select your network and enter the password if necessary.

What is ARCHOS Fusion Storage?

It is a function that merges the internal memory and a microSD card to provide unified storage. It activates automatically when a card is inserted.

How to disable Fusion Storage?

Go to Settings > ARCHOS Fusion Storage, then select 'Disable ARCHOS Fusion Storage' and confirm. The device restarts.

What to do if the tablet is unresponsive?

Press the ON/OFF button for 10 seconds or use the Reset button with an unfolded paperclip.

How to extend battery life?

Decrease screen brightness and disable wireless connections (WiFi, Bluetooth) when not in use.

How to uninstall an application?

From the 'All applications' screen, press and hold the icon, then drag it up to the 'Uninstall' icon.

How to create an application folder?

On the home screen, drop an application icon onto another to gather them in a folder.

How to change the wallpaper?

Press and hold on an empty area of the home screen, then select 'Wallpapers' from the options.

USER MANUAL 70 Neon ARCHOS

Package contents....2

Getting started....3

Description of the device....4

Through the wizard....5

Connecting to a WiFi network....6

The Android ^TM interface....8

ARCHOS Fusion Storage....12

Getting familiar with Android™....14

Troubleshooting....16

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide. Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Package Content

Front view of a blank tablet device with no visible text or symbols on the screen or body

ARCHOS 70 Neon +

QSG booklet

Warranty, legal & safety booklet

USB cable Charger

2

Getting Started

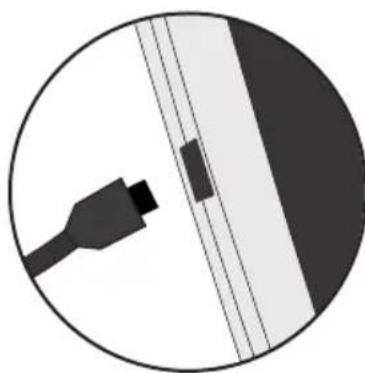

Charging

Circular diagram showing a USB cable inserted into a device, with no visible text or symbols.

1. Charge your device by plugging your power cable into the power connector. The ARCHOS device will start charging.
2. Press the Power button to turn on the device.
   -You can use your ARCHOS whilst it charges.
   -Let your device charge completely the first time you use it.
   -Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

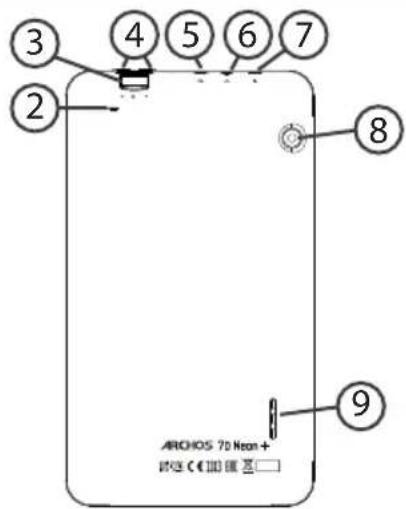

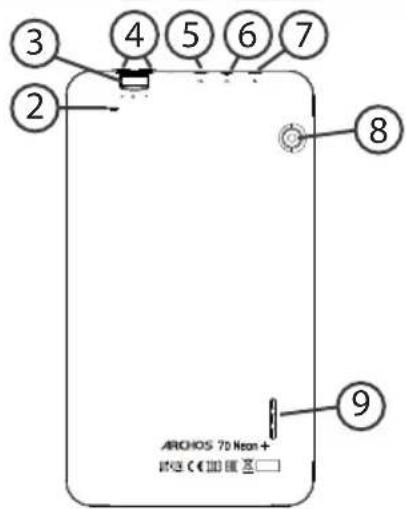

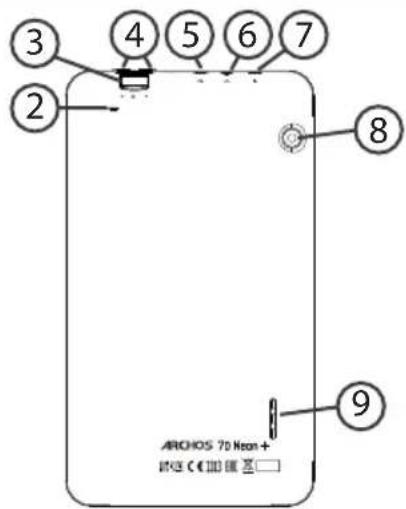

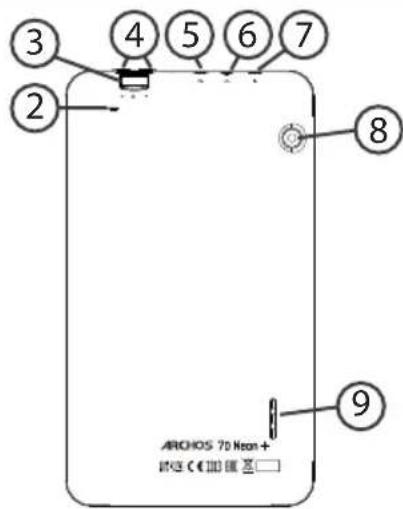

Description of the device

Line drawing of a tablet device with a labeled page number (1) and 'ARCHOS' at the bottom (no other text or symbols)

① Webcam

④ Volume buttons

⑦ ON/OFF button

② Hardware reset

⑤ Micro-USB port

⑧ Camera

③ Micro-SD card slot

⑥ Headphone jack

⑨ Loudspeaker

Through the Wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

-Language
-WiFi connection
-Date & time
-Your name
- Location service options
-3rd party apps

TIP:

We recommend that you set up your device in the WiFi zone of the network that you will regularly be using.

Connecting to a WiFi Network

WARNING: Make sure that you are in a WiFi zone.

You can access the WiFi settings quickly from the status bar.

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon to activate the WiFi connection
4. Select "WiFi" below the WiFi icon.
5. Touch the name of network you want to connect to. Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

-When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.

-To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

Connecting to WiFi using WPS

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.

3. Select the WiFi icon to activate the WiFi connection

4. Select "WiFi" below the WiFi icon.

5. Select the Menu button, then Advanced.

6. Select WPS Push Button.

7. Press the WiFi Protected Setup button on your router. It may be called "WPS" or contain a symbol:

Wi-Fi

Add network

Saved networks

Refresh

Advanced

Wi-Fi Direct

WPS Push Button

WPS Pin Entry

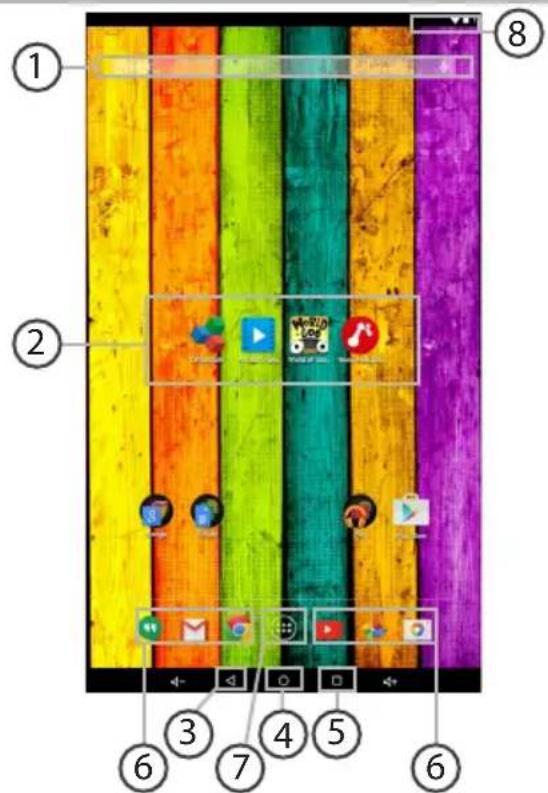

The Android™ Interface

8

① Google™ Search

Touch "Google" for text search or touch the microphone icon for voice search.
② Android™ apps shortcuts Touch to start an application.
③ Back button
④ Home button
⑤ Recent apps buttons
⑥ Permanent Android™ apps shortcuts > Touch to start an application
⑦ All Apps button Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.
⑧ The status bar Displays notifications and quick settings

The Android™ Interface

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

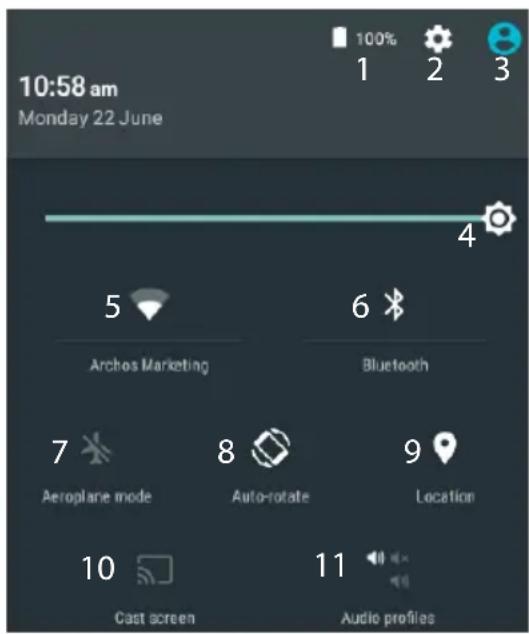

The Quick settings

1 Percentage of battery remaining
2 To access all your settings.
3 Current user
4 To adjust the screen brightness.
5 To turn on/off your WiFi connection.
6 To turn on/off your Bluetooth connection.
7 To activate/deactivate all wireless connections, especially when flying.
8 To activate/deactivate automatic screen orientation as you turn your ARCHOS.
9 Location services

10 To mirror your Android device to the TV so you can enjoy your great content exactly as you see it on your mobile device.

11 To select a notification type

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Archae Course-Self 2 Interlocking Version Original logo: 2001 version

Archives GamePart 2 (Unboxing)
Involve:
1 year ago - Date Range

Archives Game-PSB 2 Unlocking Created 1 year ago: 2005 History

Touch: to open an app.

Swipe left or right: to close an app.

Scroll up or down: to view other recent apps

ARCHOS Fusion Storage

Setting up fusion storage

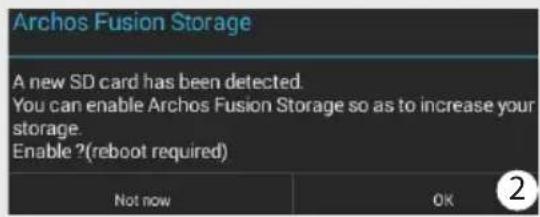

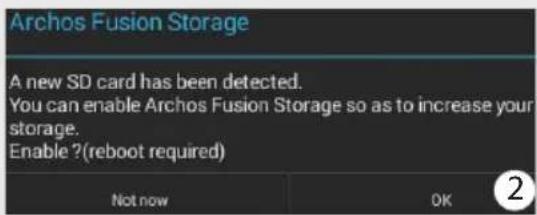

1. Insert a micro-SD card in the device's micro-SD card slot. Make sure to insert the card in the right direction.

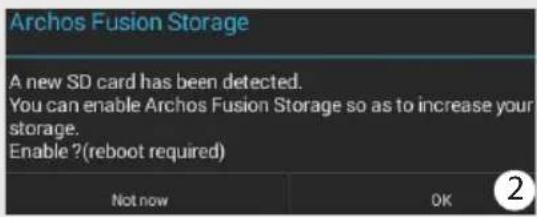

Your device will detect the micro-SD card automatically and offers you to merge the internal storage with the micro-SD card.

1. Select "OK".

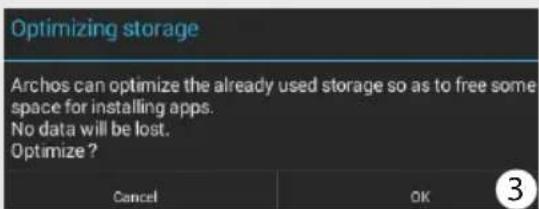

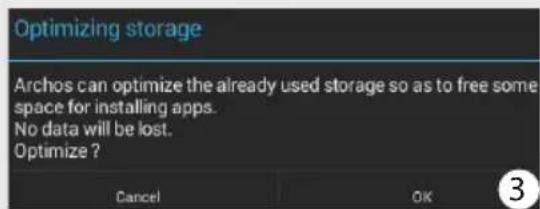

2. Select "OK" in the Optimizing storage window to confirm your choice.

Simple line drawing of an oval shape divided by a vertical line, with no text or symbols present.

The device will reboot.

• When the device restarts, you are informed that the ARCHOS Fusion storage is active.
  -In the status bar, a notification is displayed.
• Select the Settings app, then ARCHOS Fusion Storage. The merged storage is displayed.

Disabling fusion storage

1. Select the Settings app.
2. In the Settings app, select ARCHOS Fusion Storage.
3. When the ARCHOS Fusion Storage is active, select "Disable ARCHOS Fusion Storage" and confirm.

Your device will reboot in order to apply the changes.

OPTIONS

Disable Archos Fusion Storage

Get back to the initial configuration

Tip:

We recommend you to turn off the device before inserting the micro-SD card.

Getting familiar with Android™

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

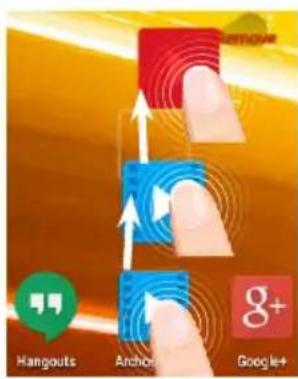

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If you want to extend the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.
