Product type	Electric slicer
Brand	Graef
Model	Concept 30S
Dimensions (L x D x H)	605 x 401 x 435 mm
Floor space	535 x 220 mm
Weight	25.3 kg
Blade diameter	250 mm
Blade rotation speed	190 rpm
Max cutting size (L x H)	250 x 198 mm
Slice thickness	Adjustable (from 0 to approx. 15 mm)
Power supply	230 V, 50/60 Hz
Protection rating	IP33
Noise level	< 69 dB(A)
Food contact material	Aluminum and special plastics compliant with hygiene standards
Motor type	Hybrid
Non-slip feet	Suction cups
Safety devices	Finger guard, blade guard ring, restart protection, emergency stop
Cleaning	Removable parts hand washable (do not put in dishwasher)
Sharpening	Sharpening device provided for manual sharpening
Intended use	Slicing of sausages, ham, cheese, fish (no frozen foods or with bones)
Included accessories	Sharpening device, heel pusher, residue support

Frequently Asked Questions - Concept 30S GRAEF

How to adjust the slice thickness?

Turn the slice thickness adjustment knob (mark 11) to adjust the distance between the blade and the stop plate. The adjustment range goes from zero to approximately 15 mm. For zero thickness (protection), turn the knob below zero.

How to clean the blade safely?

Turn off the machine and unplug it. Wear protective gloves (with pulse protection). Tilt the carriage and close the stop plate. Clean the blade from the center outward with a damp cloth, never from the edge toward the center. Use a clean, dry cloth to finish.

Can I slice frozen foods?

No, the machine is designed only for non-frozen food products such as sausage, ham, cheese or fish. Frozen foods may damage the blade and the machine.

What to do if the blade no longer cuts correctly?

Check if the blade is dull. If so, use the sharpening device provided to sharpen the blade (see chapter 8). If the blade is worn beyond 5 mm, it must be replaced by a professional.

How to sharpen the blade?

Place the sharpening device on the carriage in position '0', set the cutting thickness to 15 mm, then turn on the machine. Turn the knob to '1' to sharpen until a burr forms. Then switch to position '2' for deburring. Clean after use.

Why does the carriage not tilt?

The safety prevents tilting if the stop plate is not completely closed (position below zero). Turn the slice thickness adjustment knob clockwise to the stop, then lower the carriage.

What maintenance products to use?

Use Graef-approved maintenance products such as P3-steril or P3-alcodes, and an H1 maintenance oil (e.g., Graef oil). Never use abrasive products, high-pressure cleaners, or dishwashers.

Can I wash the parts in the dishwasher?

No. Removable parts (blade cover, scraper, spike plate, etc.) must be cleaned by hand with a brush and cloth. The dishwasher may damage them and void the warranty.

What to do in case of power failure?

The machine is equipped with restart protection. After a power cut, it will not restart automatically. Press the start button (green) to restart the machine.

How to transport the machine?

Before transport, close the stop plate by turning the thickness setting to the stop (below zero). Push the carriage fully forward and secure it with adhesive tape. The machine weighs more than 20 kg: move it with two people or use a cart.

USER MANUAL Concept 30S GRAEF

Concept 30 Concept 30S

Maschinen-Nr.:

Baujahr:

Typ: Concept 25, Concept 30

Typ: Concept 25, Concept 30

Typ: Concept 25, Concept 30

1 Introduction 34
2 Application and description of the machine 35

2.1 Intended use
2.2 Description
2.3 Component designation
2.4 Variants and technical data

3 Safety 38

3.1 Introduction
3.2 General sources of danger
3.3 Work place
3.4 Authorised operators
3.5 Working clothes
3.6 Behaviour in case of emergency
3.7 Checking the protection device

4 Transport and installation 41

4.1 Transport
4.2 Requirements on the installation location
4.3 Connecting
4.4 Checking the machine

5 Operating 42

5.1 Prior to commissioning
5.2 Cutting
5.3 Cutting remainders
5.4 After cutting

6 Cleaning 44

6.1 Cleaning instructions
6.2 Cleaning agents
6.3 Cleaning schedule
6.4 Disassembly for cleaning
6.4.1 Folding down the slide
6.4.2 Removing the knife cover
6.4.3 Removing the blade scraper
6.4.4 Removing the top plate
6.5 Cleaning the machine
6.5.1 Cleaning the knife and knife ring
6.5.2 Cleaning the stop plate
6.5.3 Cleaning the slide

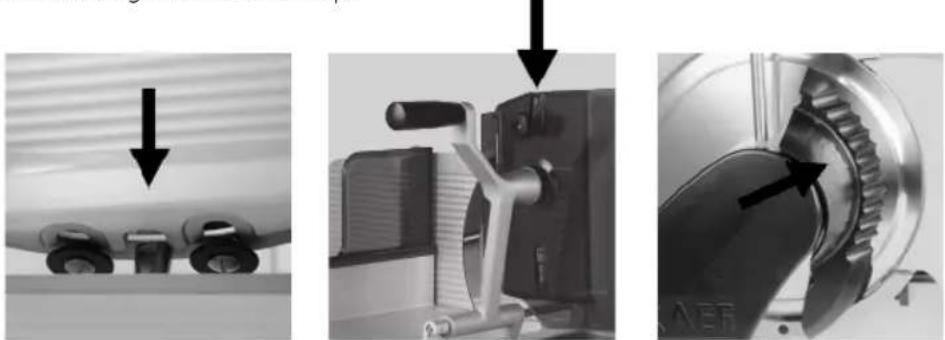

6.6 Assembly after cleaning

GRAEF

7 Maintenance 51

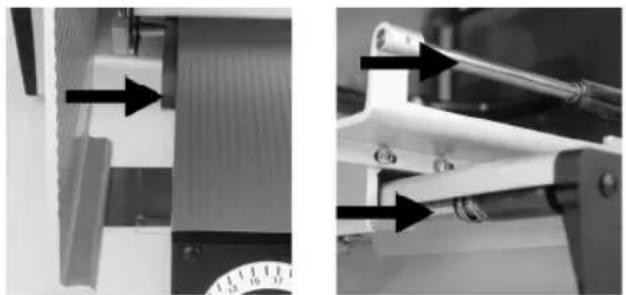

7.1 Greasing/oiling
8 Sharpen blade 51

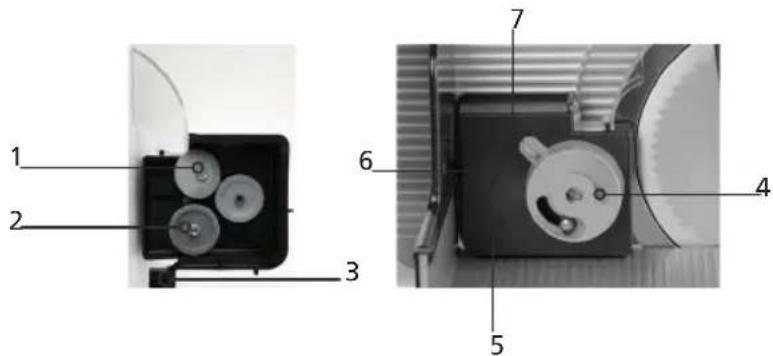

8.1 Description of the knife sharpener
8.2 Switch on machine

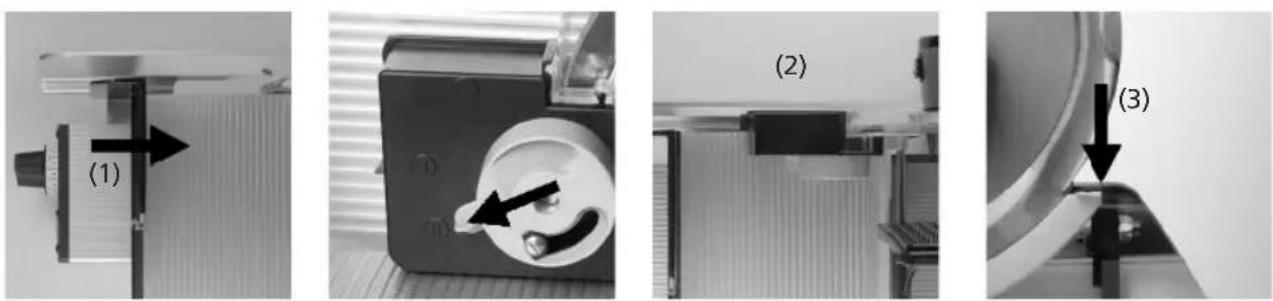

8.3 Putting on the blade sharpener
8.4 Sharpen blade
8.5 Checking the burr
8.6 Removing the blade
8.7 Removing the blade sharpener
8.8 Replacing blade
9 Miscellaneous 54
9.1 Frequent sources of error
9.2 Ordering spare parts
9.3 Warranty
9.4 Disposal of the cold-meat slicing machine

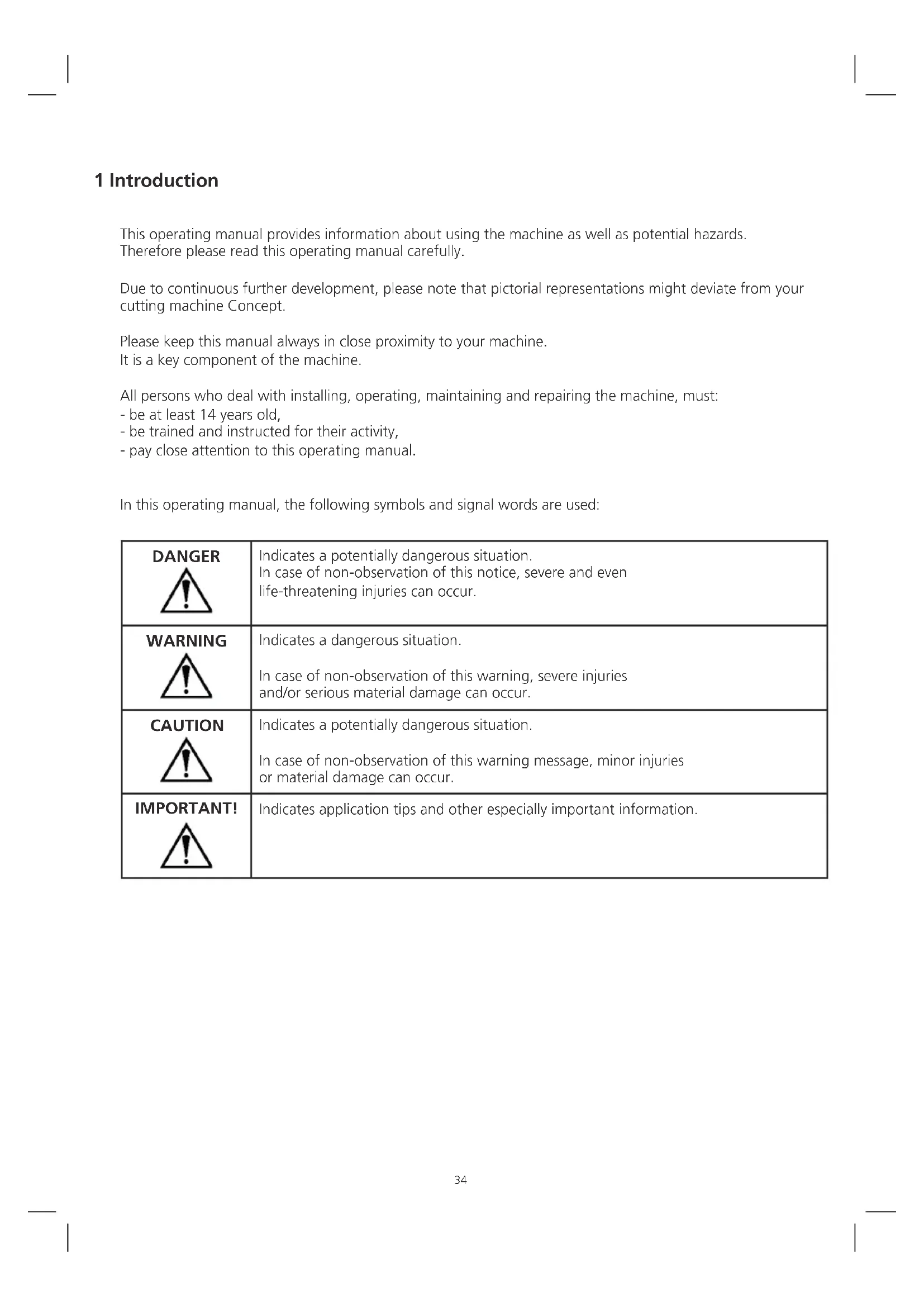

1 Introduction

This operating manual provides information about using the machine as well as potential hazards. Therefore please read this operating manual carefully.

Due to continuous further development, please note that pictorial representations might deviate from your cutting machine Concept.

Please keep this manual always in close proximity to your machine. It is a key component of the machine.

All persons who deal with installing, operating, maintaining and repairing the machine, must:

• be at least 14 years old,
• be trained and instructed for their activity,
• pay close attention to this operating manual.

In this operating manual, the following symbols and signal words are used:

DANGER	Indicates a potentially dangerous situation. In case of non-observation of this notice, severe and even life-threatening injuries can occur.
WARNING	Indicates a dangerous situation. In case of non-observation of this warning, severe injuries and/or serious material damage can occur.
CAUTION	Indicates a potentially dangerous situation. In case of non-observation of this warning message, minor injuries or material damage can occur.
IMPORTANT!	Indicates application tips and other especially important information.

2 Application and description of the machine

2.1 Intended use

The cold-meat slicing machine Concept has been designed as a working tool for the commercial sector. Its operation may be carried out only by instructed qualified personnel who are beyond 14 years of age.

The Concept is exclusively intended for cuttable foodstuffs such as: sausages, meat rolls, fish, ham and cheese.

The following must not be cut:
- Non-food articles
- Frozen cutting material
- Cutting material with bones or metal clips

The Concept machine has been designed for the use in kitchen areas and is not suitable for wet rooms or industrial environments. The machine must not be operated in an explosive atmosphere

Arbitrary modifications and changes to the machine are forbidden due to safety reasons.

The operating, maintenance and servicing instructions described in this operating manual must be observed. Repairs and blade changes have to be carried out by trained qualified personnel (please contact the authorised GRAEF SERVICE).

The machine has been designed for continuous operation.

2.2 Description

The Concept line is characterised by its slim design with large cutting material dimensions and good cleaning capabilities. The blade sizes range between 0250 and 0300.

The hybrid drive ensures high cutting forces at lowest possible heating.

All materials getting in touch with foodstuffs are made of aluminium or special plastics, all of which fulfil the current hygiene regulations.

Slide grooves on the blade cover, stop plate and slide facilitate the cutting material feed.

The machine is equipped with a restart protection in case of power interruption.

The slide can be swivelled by 90^ for cleaning. To do so, the stop plate must b completely closed (below zero position).

The machine stands on suction feet ensuring a firm and safe stand

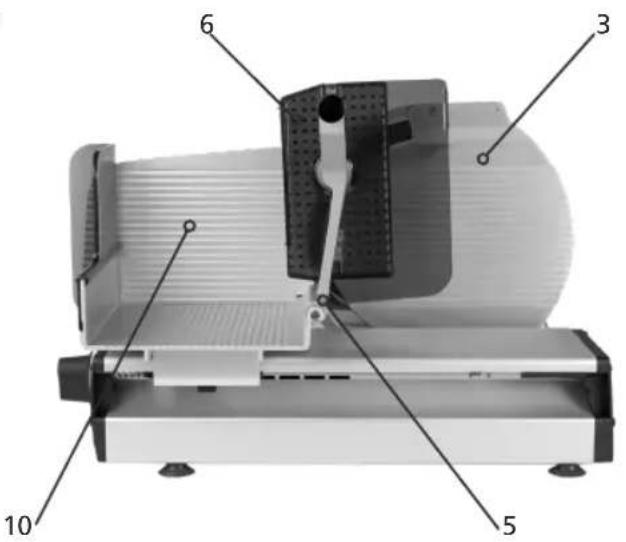

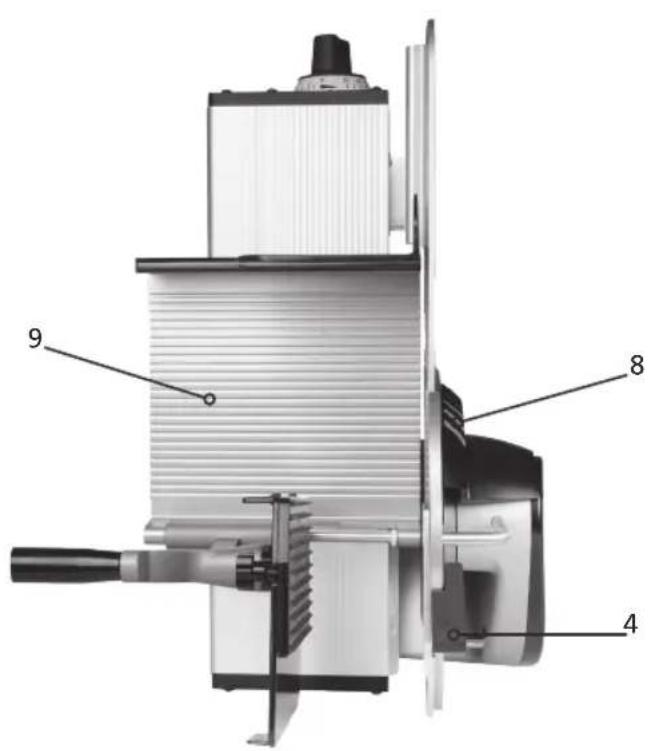

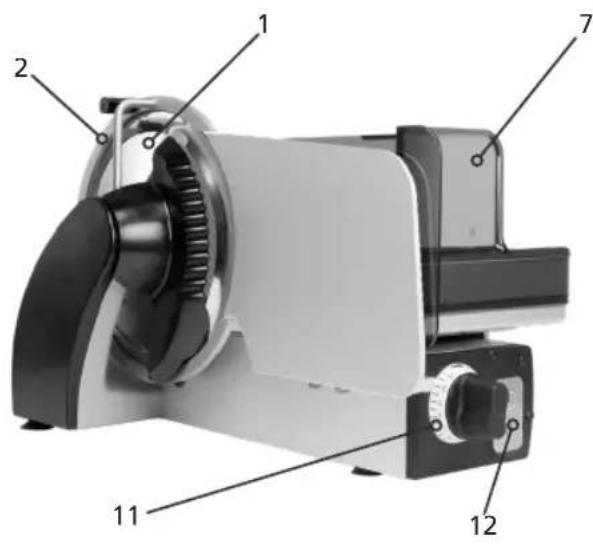

2.3 Component designation

1 Blade

2 Blade protecting ring

3 Blade cover

4 Blade cover handle

5 End piece holder with protective plate

6 Top plate

7 Finger protection

8 Scrape

9 Carriage

10 Stop plate

11 Setting of cutting thickness

12 On/off switch with lamp

13 Type plate

GRAEF

2.4 Variants and technical data

	CO25 CO30	CO25S CO30S CO25L CO30F
Design vertical vertical slanting	slanting vertical vertical
Dimensions in mm (L x W x H)	605 x 350 x 376	630 x 360 x 402	605 x 401 x 435	630 x 413 x 445	655 x 405 x 376
Work room in mm (L x W x H)	740 x 575 x 470	760 x 575 x 475 740	x 530 x 590 760	x 550 x 615 800 x 575	x 575 x 550 843 x 575
Floor space in mm (L x W)	470 x 315	495 x 315	510 x 220	535 x 220	520 x 315
Weight in kg	20.1 kg	21.6 kg	25.3 kg	27.1 kg	23.6 kg
Blade diameter in mm	Ø250	Ø300	Ø250	Ø300	Ø250
Blade speed in rev/min	190	190	190	190	190
Cutting size in mm (L x H)	230 x 180	230 x 198	230 x 180	230 x 198	300 x 180
Slide length in mm (L)	250	250	250	250	300
max. spacing of end-piece holder to the blade mm (L)	130	100	130	100	160
Power consumption, current, Voltage, frequency	See the type plate on the machine
Protection class	IP33
Sound pressure level according to EN ISO 11204 at idling speed	< 69 dB (A)
Vibration to which the hand /arm system is exposed	<2.5 m/s2

3 Safety

3.1 Introduction

The cold-meat slicing machines are equipped with protective devices. Incorrect operation or misuse of the system, however, pose hazards for:

• the health,
• the machine,
• other material assets of the operating company.

All persons who deal with installing, operating, maintaining and repairing the machine, must be sufficiently trained. Plan regular repetitions of training sessions.

3.2 General sources of danger

DANGER	With a blade standing still or rotating, there exists a hazard of cutting or cutting off. When the machine is not in operation, the stop plate must always be closed in zero position.
DANGER	The machine runs with a mains voltage of 230 V and thus must not be opened. The protective grounding system must absolutely be connected, because otherwise it may cause severe electrical shocks.
DANGER	Attention: Magnetic and electromagnetic fields! Before persons with active implants (heat pacemakers etc.) stay in the vicinity of the machine or operate it, an individual risk assessment must be carried out on site jointly with skilled persons, the company doctor and a cardiologist, if necessary.
WARNING	When tilting the slide, a hand can be squeezed. Therefore keep the hand which is not used away from the machine
CAUTION	In the area of the end-piece holder, there is a risk of injury due to the tips and the end-piece holder falling down during the insertion process.
CAUTION	When mounting dismounted components for cleaning.

GRAEF.

3.3 Work place

Operate the machine only when standing upright and safe.
Stand in front of the machine with a view to the ON/OFF button and the adjusting knob.
Always keep your workplace clean and clearly structured.
The machine must be set up on a firm and stable support
that withstands the weight stated in point 2.4 of the table and slight vibration.

3.4 Authorised operators

With the cold-meat slicing machine, only persons are allowed to work who:

• have read and understood the operating manual,
• have been trained in the operation by the operating company,
• have been informed about the dangers coming from the machine and the hygiene regulations,
• are over 14 years of age.

Repeat the training as required. The machine may be maintained and repaired only by trained specialist personnel only (mechanic, electrician). In your operation, take measures preventing unauthorised persons from using, cleaning or maintaining the machine.

3.5 Working clothes

Wear close-fitting clothes when operating the machine. Also observe the hygiene regulations. During cleaning and maintenance work on the blade, wear protective gloves with pulse protection. During transport of the machine, always wear shoes with a steel cap.

3.6 Behaviour in case of emergency

In case of emergency, immediately press the OFF button.

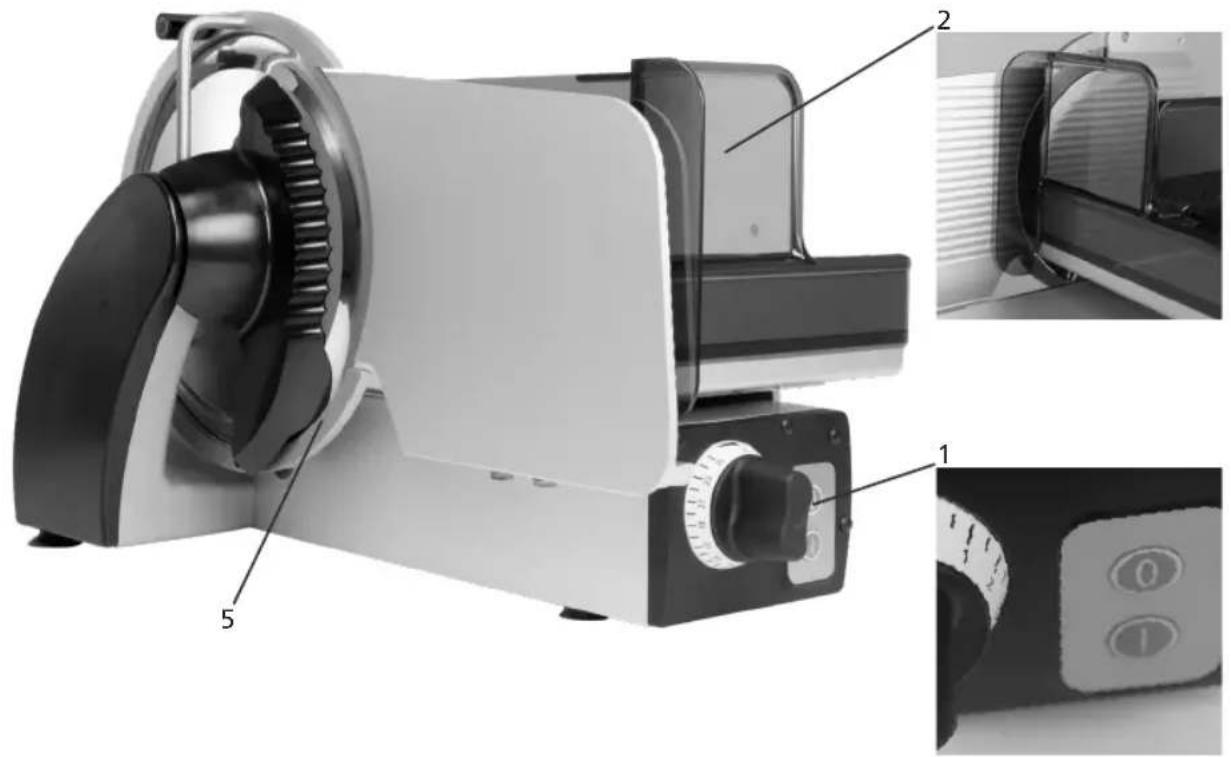

3.7 Checking the protection device

• Daily before starting work,
• After every maintenance or repair.

Check for required state and function.
Have defects removed by specialist personnel.
It is forbidden to remove, change or disable protective devices.

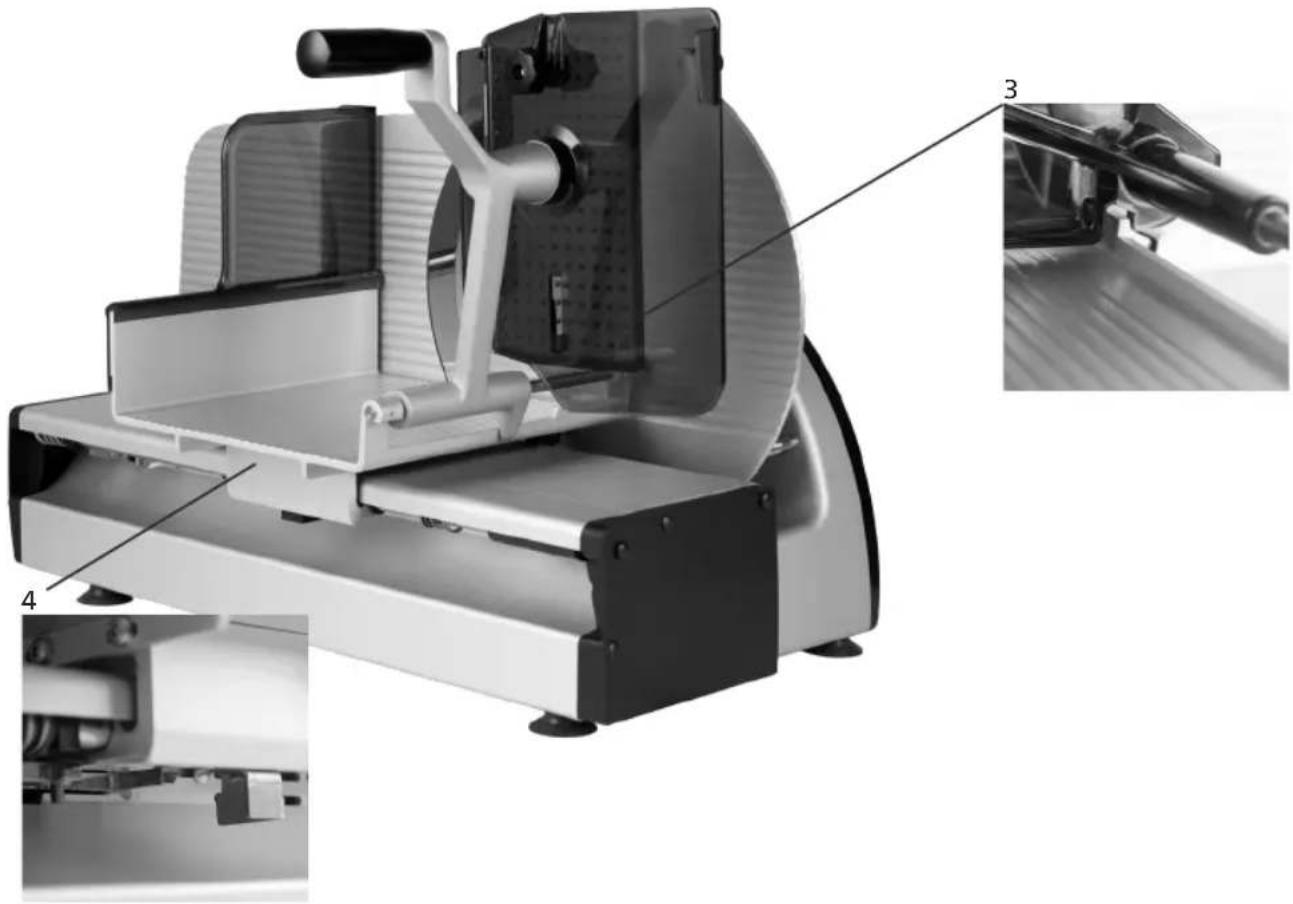

POS Setup Function
1 OFF button Immediate shutdown
2 Finger protection Avoids accidental access to the front side of the blade with the thumb/fingers.
3 Positively driven end-piece holder Forces the use with small pieces of cutting materials, e.g. leftover pieces, and thus avoids injuries to the fingers of the hand
4 Locking of the stop plate The slide can only be tilted if the stop plate has been fully closed (below-zero-position) and the blade edge is thus covered.
5 Blade protecting ring Prevents accidental access to the edge of the blade
6 Switch-on protection No automatic start of the machine following an interruption of power supply, e.g. "power failure".

GRAEF

4 Transport and installation

4.1 Transporting

Depending on the respective type, the cold-meat slicing machines have a weight of more the 20kg (see Table 2.4) and should be carried by 2 persons. For long transports within the business, use suitable transport carriages.

Prior to transport, set the cut thickness to below "0" by turning the adjusting knob up to the end stop. Push the slide completely to the front and fix it sufficiently using adhesive tape.

4.2 Requirements on the installation location

The machine is designed for installation in kitchens and salesrooms.
- Ambient temperature for operation and storage: -10 to +40^ (+14 to +104 degrees Fahrenheit)
- Humidity protection class IP 33. High humidity or condensation formation can result in damage to the machine.
- Relative humidity for operation and storage: 90% (condensation on the device is prohibited)
- For air convection in order to avoid inadmissible heating, free air convection must be possible to form around the machine.
- Stipulated lighting 500 lux

The support must comply with the following requirements:

• Sufficiently robust, stable, level and horizontal.
• Sufficiently high for upright body posture during cutting.
• Space requirement according to the following list (see Table under point 2.4)
• Install the machine away from in-house traffic routes.
• Install the machine away from doors. Not in the pivoting range of an opening door, not in the access area of a door.
• With stainless tables, Resopal supports or similar materials, ensure that no grease residues are on the surface area.

4.3 Connecting

• Check that the local operating voltage corresponds to the specifications on the type plate. In case of deviations, you must not connect the machine.
• Electrical socket must comply with the national safety regulations (in Germany: VDE).

Technical data for power supply

• Power connection Single-phase alternating current, refer to rating plate
• The machine is designed according to protection class I and must be connected to a grounding conductor
• Permissible tolerance for voltage (static) normal For 100 to 230V : +6% to -10% of nominal value
• Power frequency: 50 (60) Hz
  Permissible tolerance for power frequency: +2% to -2% of nominal value
• Max. discharge current protective conductor: 3.5 mA
• Take measures on site if the grid is "unclean", that means if thyristor controlled devices are used in the grid or grid asymmetries prevail that lead to voltage peaks.
• Lead the power cable away backwards in order to exclude stumbling over the cable.

4.4 Checking the machine

• Check the protective devices according to point 3.7.
• Check if the machine moves when it is switched on. Does it, or the support on which it stands, start moving away? If yes, provide a firmer support.

5 Operating

5.1 Prior to commissioning

Check the protective devices according to point 3.7.

DANGER

Rotating blade! Can cut off finger. Turn the adjusting knob for cut thickness setting clockwise to the end stop. Do not reach into the running blade.

GRAEF

5.2 Cutting

Check the protective devices according to point 3.7.

Provided that the same operator touches the product and the controls, they must be cleaned between every usage!

• Pull back the slide completely.
• Lift the end-piece holder.
• Put the cutting material on the rear wall of the slide.
• Put the end-piece holder on top of the cutting material.
• Press the ON button. The machine is started.
• Set the cutting thickness by using the cutting thickness controller.
• For cutting, push the slide forward and backward while guiding the cutting material to the stop plate by slight pressure with the hand.
• At the end of the cutting process, completely close the stop plate and switch off the machine using the red "Off button".

5.3 Cutting remainders

• Pull back the slide completely.
• Pull the holder for remainders outwards and lift it.
• Tied up end pieces: cut off the tied up end using the hand knife
• Insert the end piece with the original cut surface into the direction of the top plate on the slide back wall.

• Lower the end-piece holder and set it behind the end piece
• Switch on machine. The blade is rotating.
• Set the cutting thickness
• Using the end-piece holder, press the end piece by applying slight pressure against the stop plate and then push the slide forward and backward

• At the end of the cutting process, completely close the stop plate and switch off the machine using the red "Off button".

5.4 After cutting

• Basically, switch off machine
• Always close the stop plate completely so that the blade edge is fully covered.

6 Cleaning

Switch off the machine and additionally pull out the mains plug.

The machine must be cleaned thoroughly at least once a day.

DANGER !	Rotating blade! Can cut off finger. Prior to cleaning, switch off the machine. Pull the mains plug. During cleaning work on the blade, wear protective gloves with pulse protection.
IMPORTANT! !	When cleaning, observe the prescribed order. Do not use scouring agents to clean the machine. They scratch the metallic surfaces and thus impair the hygiene. Never clean the machine using a steam or high-pressure cleaner! In the event of non-observation of the above points, any liability on our side will be- come void.

6.1 Cleaning instructions

IMPORTANT!	You can easily clean removable parts with a dish-washing brush in the wash basin. Never clean parts in the dishwasher!
CAUTION	Please carefully check all parts for correct and tight fit. Improperly fastened parts can get loose during operation and thus lead to machine damage, and in the worst case, also to injuries of the operator.

When cleaning, observe the prescribed order. Do not use scouring agents to clean the machine.

They damage the surfaces and thus impair the hygiene.

Exclusively use the cleaning and hygiene agents approved by us in the prescribed thinning.

Do not use and aggressive cleaning and hygiene agents. For cleaning, do not use a high pressure cleaner. In the event of non-observation of the above points, any warranty claim will become void.

When using manual spraying devices, corresponding measures have to be taken so that there is no impairment to the environment.

The safety and product data sheets supplied with the cleaning and disinfection agents have to be observed.

Non-observation can lead to machine damages.

When using cleaning and disinfection agents which have not been approved by Graef, we will disclaim any warranty. Removable parts must not be cleaned in the dishwasher.

Installation of removed machine parts:

After cleaning, assemble the machine again in reverse order

GRAEF

IMPORTANT!	After cleaning, neutralize aggressive cleaning and hygiene agents using sufficiently clear water, because otherwise corrosion, particularly on the blade screw connection, can occur.
CAUTION	Please carefully check all parts for correct and tight fit. Improperly fastened parts can get loose during operation and thus lead to machine damage, and in the worst case, also to injuries of the operator.

6.2 Cleaning agents

P3 -sterile Ecolab
P3 - alcodes Ecolab
Maintenance oil: e.g. Graef service oil with H1 approval	GRAEF

IMPORTANT!	When using cleaning agents which have not been approved by us, we will disclaim any warranty. Never clean removable parts in the dishwasher! Corresponding measures have to be taken so that there is no impairment to the environment!
CAUTION	Absolutely observe the manufacturer specifications and instructions of the individual cleaning agents and oils

6.3 Cleaning schedule

Work steps Cleaning	agents Procedure Cleaning device Notes
1. Preparatory measures		Close the cutting thickness adjustment.Pull the mains plug.
2. Dismount the removable parts according to the operating manual
3. Coarse cleaning Manual		Removing the product residues with a Plastic scraper	Plastic scraper, also with removable parts.
4. Cleaning 2 % "P3"sterile", for example. Acting time: approx. 15 min (also see product data sheet)	after thorough pre-flushing with (max. 40°) water; acting time approx. 20 minutes	Brush, tub,Cleaning cloth,Hand spraying device	all dismounted and stationary machine parts
4. Disinfecting Additional measure	0.5 -2% „P3-alcodes“Acting time: see product data sheet	manual spraying Do not exceed the acting time according to the product data sheet	One-way cleaning cloth, hand spraying device
			additional protection, Spacing while spraying approx. 30 mm
5. Rinsing Drinking water Temperature	max. 50 °	One-way cleaning cloth	Remaining machine
		Hand spraying device	removed parts
		Water hose removed	parts
6. Checking visually for optical	cleanliness
7. Drying rubbing dry		One-way cleaning cloth	Machine, Put dismounted parts apart as possible
8. Maintaining Oils for the food-stuffs sector with H1 approval	Application by spraying or rubbing	One-way cleaning cloth	Prior to starting work, rinse all parts that get into contact with the cutting material
9. Mounting mounting takes	place in reverse order to dismounting (Operating manual)		Personnel must have clean and disinfected hands
10. Precautionary measures	Cover the machine when cleaning the environment with a spraying device

GRAEF.

IMPORTANT!

The statements refer to single-shift operation.

The safety and product data sheets supplied with the cleaning and disinfection agents have to be observed.

6.4 Disassembly for cleaning

6.4.1 Folding down the slide

• Completely close the stop plate.
• Using some drive, pull the slide against the spring pressure completely back and dump it towards the right side in one movement.

IMPORTANT!

The slide can be dumped only if the cutting thickness adjustment has been turned clockwise to the end stop and the stop plate is thus completely closed.

6.4.2 Removing the knife cover

• Put on cut-resistant protective gloves.
• Turn the black handle of the blade cover upward.
• Loosen the blade cover at the top.
• Then pull the blade cover upwards and then remove it from the machine.

6.4.3 Removing the blade scraper

• Pull out the blade scraper leftwards (dovetail guides).
• To do so, reach into the provided finger recesses, as shown in the figure.

6.4.4 Removing the top plate

• Preliminarily, swivel up the remainder holder.
• CO30, 30S, 30 F, CO25L: For some turns, loosen the black knurled nut (a).
• Pull the plate upward and swivel the lower retaining pin out of the elongated hole

• CO25, 25S: On the top plate, press the locking device (b) together and pull out the top plate upward
• Pull the plate upward and swivel the lower retaining pin out of the elongated hole

GRAEF

6.5 Cleaning the machine

Clean removable and non-removable parts according to point 6

DANGER !	Danger of injury! Wear safety gloves!
IMPORTANT! !	Do not put the parts on top of each other! Risk of damage!

6.5.1 Cleaning the knife and knife ring

DANGER

Sharp blade! Only clean them when the slide has been tilted and the stop plate is thus closed. Cleaning movements always only from the knife centre outward to the blade edge.

• From the front, insert a moistened cleaning cloth between the blade and the knife protecting ring.
• With your hands, pull through the cleaning cloth once or twice along the knife protecting ring.
• Press a wet cloth against the knife surface and slowly wipe off from the middle outwards.
• Clean the knife's rear side equally.
• Using a dry cloth, then dry off the knife in the same way.

6.5.2 Cleaning the stop plate

• Press a wet cloth against the stop plate and slowly wipe off away from the knife. (see Fig.)
• Clean the back side of the stop plate in the same way.
• Clean the gap between stop plate and knife in the same way as with the gap between knife ring and knife. (see above)
• Using a dry cloth, then dry off the stop plate in the same way.

6.5.3 Cleaning the slide

• Tilt the slide for cleaning
• Roughly clean the upper side of the slide from cutting material remainders.
• Then wipe off the slide using a damp cloth.

6.6 Assembly after cleaning

• Put the knife cover on the provided receptacles on the knife ring and position the upper borehole toward the upper screw on the knife ring.

Push the tension lever down.

• Insert the top plate into the end-piece holder.
• Swivel the slide back into the working position.
• From the left side, insert the blade scraper into the dovetail guide and carefully press it into the direction of the knife against the end stop.

GRAEF

7 Maintenance

7.1 Greasing / oiling

DANGER !	Rotating blade! Can cut off finger. Switch off the machine before maintenance.
IMPORTANT! !	For lubrication, use exclusively oils which have been approved by us.

Using the Graef service oil H1, lubricate the following positions with 1-2 drops each as required, but at least once per week.

As required, apply a bit of oil to:

• The end-piece holder bar

(always if it is hard to slide parts / after cleaning)

• The slide rail

(always if it is hard to slide parts / after cleaning)

8 Sharpen blade

Keep the knife sharpener that came with the machine in the vicinity of the machine.

The knife may be exclusively sharpened with the knife sharpener that came with the machine.

8.1 Description of the knife sharpener

Interior view

• Sharpening stone (1)
• Whetstone (2)
• Stop lug (3)

Exterior view

• Adjusting knob (4)
• Touchdown position "0" (5)
• Sharpening position, 1^ (6)
• Pull-off position "2" (7)

WARNING

Rotating blade! Can cut off finger. Sharpen the blade exclusively using the knife sharpener that came with the machine (cf. the serial number of the sharpener and machine!).

The knife may only be sharpened by qualified and trained personnel.

8.2 Preparing the machine

IMPORTANT!

The knife sharpener may be used for this machine only. Before the grinding process, clean the knife of the cold-meat slicing machine thoroughly from grease and cutting remnants (Chapter 7), because otherwise the grindstones will clog and sharpening will be heavily affected.

Remove all removable parts from the machine:

• Blade cover
• Scaper
  -Top plate

8.3 Putting on the blade sharpener

• Set the stop plate to "15 mm" cutting thickness.
• Move the slide to the middle position. (1)
• Using the adjusting knob, set the knife sharpener to position "0".
• Put the knife sharpener on the slide, as shown in the picture. (2)
• Slide it towards the blade until the lower stop lug of the sharpener rests against the knife ring. (3)
• Carefully close the stop plate so that the sharpener is clamped between the slide and stop plate

8.4 Sharpen blade

• Switch on the machine using the green ON button.
• Turn the rotary knob to grinding position "1".
• The grinding process starts.
• The grinding duration complies with the state of the knife.

GRAEF

8.5 Checking the burr

• Grind until a slight burr occurs.
• Switch off the machine using the red OFF button.

• Slide a sharp pencil slowly from the knife cover to the edge of the blade.

• Do you feel a resistance on the edge of the blade?

• This is the burr that occurred during grinding.
• If no burr has occurred, keep grinding even further and check again.

8.6 Removing the blade

• If a burr has formed on the edge of the blade, turn the adjusting knob to pull-off position "2".
• Let the machine rotate some turns and switch off the device using the OFF button.

8.7 Removing the knife sharpener

• Turn the adjusting knob of the knife sharpener to position "0".
• Open the stop plate and cautiously remove the sharpener upward.
• Close the stop plate completely.
• Clean the machine and knife from grinding dust.

8.8 Replacing blade

WARNING	Sharp blade! May cause severe cut injuries even at a standstill. The blade may be replaced by trained and qualified personnel only. Put on cut-resistant protective gloves.
IMPORTANT!	The knife must be replaced if the distance between the edge of the blade and the blade protecting ring exceeds 6 mm.

9 Miscellaneous

9.1 Frequent sources of error

Error Cause Solution
Slide is difficult to move Slide guide	bar is dry Oil the slide guide bar - point 8.1
End-piece holder is difficult to move	End-piece holder bar is dry Oil the end-piece holder bar Item 8.1
Slide cannot be tilted Slide protection	is blocked Close the stop plate completely
Poor cut Blade is dull Sharpen blade	Item 8.4
poor sharpening result Grinding discs	are greasy Replace the grinding discs
Blade cannot be sharpened Blade is	ground down beyond the admissible 5 mm	Replace the knife

9.2 Ordering spare parts

When ordering spare parts, please indicate the following:

• Machine number
• Year of construction
• Type
• Operating voltage
• Part description

IMPORTANT!

Use genuine spare parts only from Graef.

GRAEF

9.3 Warranty

With this machine, you have purchased a recognised quality product of German production. We assume the manufacturer warranty for defects which are due to production or material defects.

However, we cannot accept any liability for the following damages:

• naturally occurring wear and tear
• Ignorance or non-observance of this operating manual
• Due to cleaning in a dishwasher
• Unauthorised installation of the machine in a non-appropriate area

• Incorrect electrical installation on site (e.g. "unclean grid" of voltage peaks due to grid asymmetries)

• Self-executed conversions/changes to the cutting machine and/or the accessories;

• Disabling, manipulating of protective devices on the cutting machine and/or the accessories
• Use of other spare parts and accessory parts which are not genuine parts from Graef
• If not using the original packaging during transport

9.4 Disposal of the cold-meat slicing machine

As a customer, please return the machine to the manufacturer or dealer for environmentally compatible recycling.

Graef Company and its dealers are willing to take back the machine free of charge.

Please get in touch with your dealer.

The applicability of this disposal regulation shall depend on the respective legal stipulation in each country.

Contenu

6.4 Demontering for rengoring

6.4.1 Sla sleden op

6.6 Samling after rengoring
