CD9290 - Cd player/recorder Soundmaster - Free user manual and instructions

Product type	CD player/recorder
Brand	Soundmaster
Model	CD9290
Power supply	Mains adapter (input 100-240 V) or 2 AA/LR6 batteries (non-rechargeable) or 2 Ni-Cd rechargeable batteries
Disc drives	Audio CD and MP3 CD
Tuner	DAB/DAB+ and FM
Output power	Not specified (headphone: 3.5 mm jack)
Playback functions	Play, pause, stop, skip forward/backward, search, repeat (1, all, folder for MP3), intro, random, program (64 tracks max)
Anti-shock function	Yes (manually activated for audio CD, automatic for MP3)
Equalizer	Bass, Pop, Jazz, Rock, Classic (CD mode only)
Resume function	Yes (resumes at last position if same disc)
Auto power off	Yes (after 30 seconds of inactivity in CD mode)
Auditory protection	Volume limited at startup, can be deactivated by EQ/HI VOL button
Display	LCD screen
Laser	Class 1
Maintenance	Clean with a dry cloth. Do not use detergents or abrasive cloths.
Safety	Do not open (risk of electric shock). Do not expose to moisture, heat, naked flames or liquids. Use only in dry indoor areas. Disconnect during thunderstorms.
Spare parts and repairability	Mains adapter and batteries not included. Repairs exclusively by an authorized center. No user-serviceable parts.
General information	Compliant with directive 2014/53/EU. Suitable for moderate climates. Recycle according to WEEE directive. Do not dispose of with household waste.

Frequently Asked Questions - CD9290 Soundmaster

How to turn on the device?

Press the ON/OFF button in standby mode. To turn off, press this button again.

How to adjust the volume?

Turn the VOLUME knob to adjust the sound level. At startup, the volume is limited; press and hold the EQ/HI VOL button to deactivate this restriction.

How to play an audio CD?

Slide the OPEN button to open the compartment. Place a disc, label side up, and close the lid. Playback starts automatically. Use the PLAY/PAUSE, STOP, and SKIP buttons to control playback.

How to activate the anti-shock function?

For audio CDs, press the ASP/PRE button during playback. "ASP" appears on the screen. To deactivate, press again. For MP3s, the function is automatic.

How to program tracks in audio CD mode?

When stopped, press MENU/P-FUNC. "CD P01" is displayed. Use the skip buttons to select a track, then press MENU/P-FUNC to store it. Repeat up to 64 tracks. Press PLAY to start.

How to listen to DAB radio?

Plug headphones into the PHONO jack (the cord acts as an antenna). Turn on the device, then press MODE repeatedly until "DAB" is selected. The first automatic search starts. Use the skip buttons to select a station and confirm with OK.

How to save a preset station?

In DAB or FM mode, use the skip buttons to select the desired station and press OK. Press and hold the ASP/PRE button until "Preset store" appears. Choose a number with the skip buttons and confirm with OK.

What to do if the device does not turn on?

Check that the mains adapter is properly plugged in or that the batteries are installed correctly and not discharged. If using rechargeable batteries, make sure the charge switch is in the OFF position (except during charging). Try replacing the batteries.

How to clean the device?

Unplug the device. Clean the exterior with a soft, dry cloth. Never use detergents, solvents, or abrasive cloths. Avoid moisture entering the interior.

How to recycle the device at end of life?

Do not dispose of this device with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE). Used batteries must be deposited at designated collection points.

USER MANUAL CD9290 Soundmaster

Black and white photo of a soundmaster CD player with earphones and control panel (no visible text or symbols on device body)

DEUTSCH

ENGLISH

FRANÇAIS

NEDERLANDS

ITALIANO

Festsender speichern

Festsender speichern

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

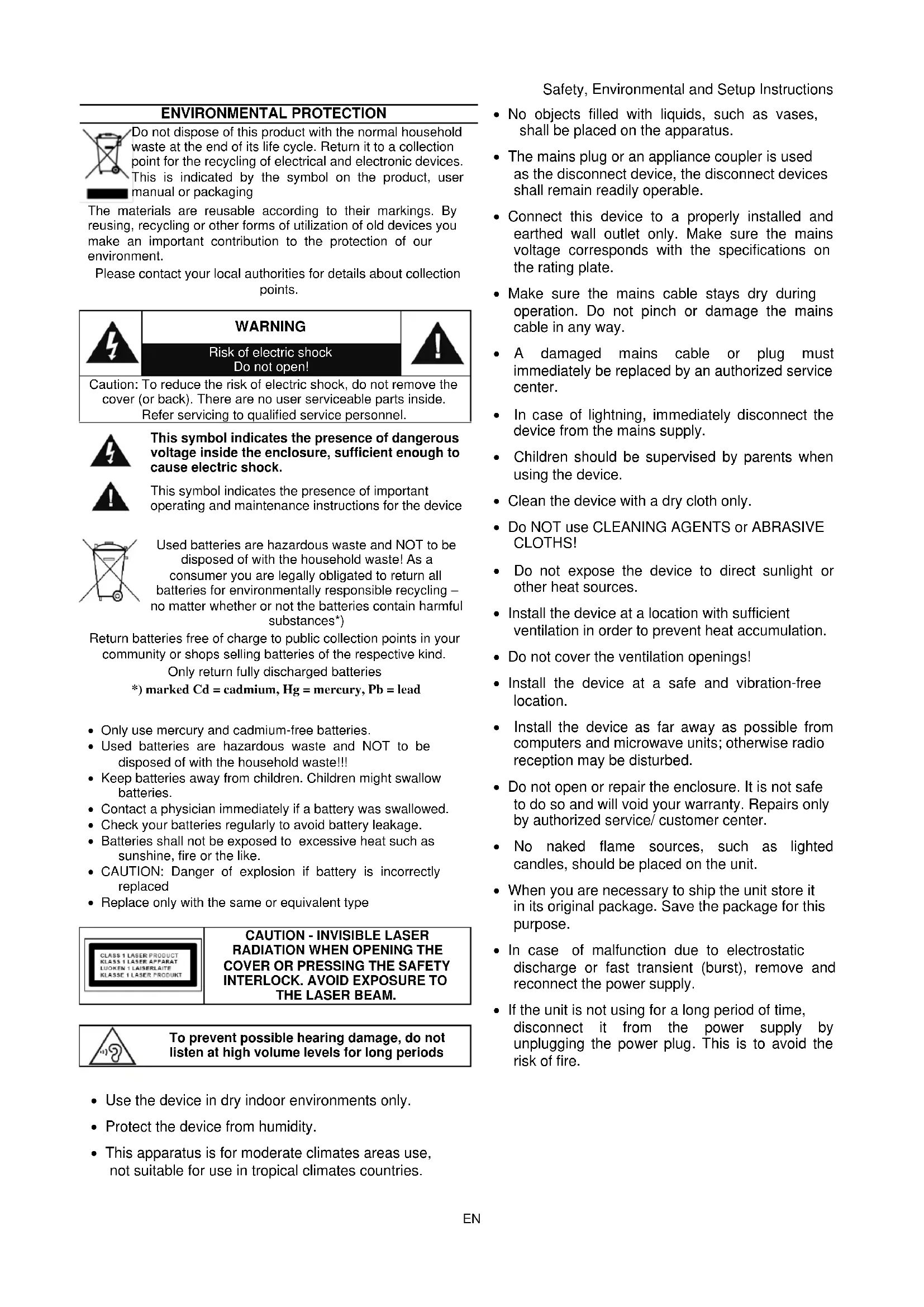

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment.

Please contact your local authorities for details about collection points.

	WARNING	!
	Risk of electric shockDo not open!

Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling – no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind.

Only return fully discharged batteries

*) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

CAUTION - INVISIBLE LASER RADIATION WHEN OPENING THE COVER OR PRESSING THE SAFETY INTERLOCK. AVOID EXPOSURE TO THE LASER BEAM.

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.

Safety, Environmental and Setup Instructions

• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.

- A damaged mains cable or plug must immediately be replaced by an authorized service center.

- In case of lightning, immediately disconnect the device from the mains supply.

- Children should be supervised by parents when using the device.

- Clean the device with a dry cloth only.

- Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!

- Do not expose the device to direct sunlight or other heat sources.

- Install the device at a location with sufficient ventilation in order to prevent heat accumulation.

- Do not cover the ventilation openings!

- Install the device at a safe and vibration-free location.

- Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.

- Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.

- No naked flame sources, such as lighted candles, should be placed on the unit.

- When you are necessary to ship the unit store it in its original package. Save the package for this purpose.

- In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.

- If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

LOCATION OF CONTROLS

UNIT

1 DC jack
2 Phone jack
3 MENU / P-FUNC button
4 EQ / HI VOL. button
5 SKIP / DOWN button
6 OK / INFO, PLAY / PAUSE button
7 OPEN knob
8 POWER button
9 SKIP / UP button
10 ASP / PRE button
11 MODE button
12 VOLUME knob
13 RECHARGE SWITCH (at the bottom)
14 STOP ■ SEARCH button
15 LCD display
16 Battery Compartment (at the bottom)

INSTALLATION

Content of Delivery

Main Unit
Headphone

AC Adapter
Instruction Manual

Battery Installation

ATTENTION!!!

On operation with standard/conventional batteries, be sure that the charging switch „RECHARGE“ is on „OFF“ position, otherwise the batteries may become hot and explode.

1. Open the Battery Compartment cover.
2. Insert 2 batteries ( UM-3, "AA", LR6 or equivalent ) in the correct polarity as indicated. Heavy duty batteries are recommended and close the clover.

Note:

If you want to use the CD player with batteries, disconnect the AC/DC adapter and set the RECHARGE switch to the "OFF" position.
➢ Please do not mix old and exhausted batteries or different types.
➢ Please remove the batteries when not in use for a longer period of time.

AC Adapter

1. Make sure that your mains supply matches the type plate of the mains adapter.
2. Connect the AC adapter cable to the DC power jack and the AC adapter to a wall outlet.

Rechargeable battery operation

1. Open the battery compartment cover and insert two of the recommended rechargeable batteries, matching polarity. (Both batteries must be of rechargeable nickel-cadmium type, otherwise the batteries may explode or leak).
2. Plug in the AC adaptor and set the Recharge switch to ON position to start charging. (Use only the AC adaptor supplied with the set for charging.)
3. After 15 hours. Please unplug the AC adaptor and switch the Recharge switch to the "OFF" position (Do not charge continuously for 24 hours or more. Doing so can cause the performance of the rechargeable battery to deteriorate).

Note: You may play DISCS whilst charging the batteries.

1. If the operating time decreases drastically even when the rechargeable nickel-cadmium batteries are properly recharge, purchase a new set of rechargeable nickel-cadmium batteries.

When charging for the first time or after a long time, playing time may be reduced. In this case, charge and discharge the batteries several times.

Low Battery Alert

When the low battery indicator appears on the display, please prepare to replace the new batteries.

Automatic Turn Off

IMPORTANT! If the player is in CD mode in Stop function for approximately 30 seconds, the player will turn off automatically.

BASIC OPERATIONS

Unit On/Off

Turn unit on: Push the "POWER" button in standby mode.

Turn unit off: Push the "POWER" button during on mode.

Selecting Modes

In on mode, press the "MODE" button repeatedly to switch between the modes.

Adjust the volume

Rotate the Volume knob to adjust the desired volume.

Switch off the volume restriction

To protect your hearing, after switching on the device, only reduced volume is available. You can switch off this "Volume restriction".

Press and hold the "EQ / HI VOL" button to de-activate the volume restriction.

Note: The volume restriction is reactivated after switching off or changing the disk.

Anti-Shock Function

The player has an Anti-Shock function. The function is automatically switched on when MP3 is used. For audio CD playback, press the "ASP / PRE" button. "ASP" appears in the display. To deactivate the anti-shock function, press the "ASP / PRE" key again.

CD

1. Insert the headphone plug to the "PHONE JACK".
2. Slide the "OPEN" knob to the right side and the CD door opens. Put a disc into the CD compartment with the label side upward and close the CD door.
3. The player now reads the CD, which may take a few seconds.

General Operation

PLAY/PAUSE button	Press once to start the playback.
	Press once again to interrupt the playback.
STOP button	Press once to stop the playback.
	Press the button once again to turn off the player.
SKIP button	Press the button to skip to the next track or to the previous track.
	Press and hold the button to search forward or backward.
MENU / P-FUNC	Press and hold the button to change the folder (for MP3-CD)

Resume function

This player is equipped with a resume function. That means the CD will start automatically at the position, where the CD was stopped by last use.

ATTENTION! This function works only, when no other disc was insert meantime into the player. If you wish to start with track 1, press the ▶button repeatedly until track 1 is shown in the display.

Playing modes

Press repeatedly the "MENU / P-FUNC" button during the playback to change the following functions:

During CD playback

ONE	■ Repeat the current track
ALL	■ Repeat the complete disc
INTRO	■ Play the first 10 seconds of each track
RAND	■ All the tracks on the disc will be played in random sequence.
No display	■ Function is de-activated

During MP3-CD Playback

ONE

- Repeat the current track

ALL

■ Repeat the complete disc

DIR

■ Repeat the complete folder

INTRO

■ Play the first 10 seconds of each track

RAND

- All tracks on the disc will be played in random sequence

No display

■ Function is de-activated

Program Play

For Audio-CD

1. In stop mode, press the "MENU / P-FUNC" button. "CD P01" will appear and "00 PROG" is flashing in the display. "P01" means the program number and "00" means the track number.
2. Press the 10 button to select the desired track.
3. Press the "MENU / P-FUNC" button to enter the track into the memory.
4. Repeat the steps 2 - 3 until all desired tracks are stored (max. 64).
5. Press the button to start the playback. On the right side of the display will appear the program indicator "P".
6. To stop the playback, press the "STOP ■ "button.
7. To erase the program memory, stop the playback.

For CD-MP3

1. In stop mode, press the "MENU / P-FUNC" button. "CD P01" will appear and "000 PROG" is flashing in the display. "P01" means the program number and "000" means the track number.
2. Press and hold the "MENU / P-FUNC" button to select the desired folder.
3. Press the 10 button to select the desired track.
4. Press the "MENU / P-FUNC" button to enter the folder and the track into the memory.
5. Repeat the steps 2 - 4 until all desired tracks are stored (max. 64).
6. Press the ▶ button to start the playback. On the right side of the display will appear the program indicator "P".
7. To stop the playback, press the "STOP ■" button and the program memory will be erased.

DAB

NOTE: The headphone cord works as an antenna. To insure the maximum tuner sensitivity, always keep the headphone cord fully extended!

1. Insert the plug of your headphone into the phone jack "PHONES"
2. Press the "POWER" button to turn on the unit.
3. Press repeatedly the "MODE" button to select the "DAB" mode.
4. If you select the DAB mode at the first time, the unit start automatically a full scan and store all available radio stations or you press the "SEARCH" button to start an automatic scan. The display shows the number of the found stations.
5. Select with the ◀ or ▶ button the desired radio station and press "OK" to confirm.

Save Preset Station

1. Select with the ◀◀ or ▶▶ button the desired radio station and press "OK" to confirm.

2. Press and hold the "ASP / PRE" button until "Preset store" is shown in the display.

3. Select with the ◀ or ▶ button the desired station number and press "OK" to confirm.

Recall Preset Station

1. Press the "ASP / PRE" button. The display shows "Preset recall" in the display.
2. Select with the ◀ or ▶ button the desired station number and press "OK" to confirm. The unit starts to play the selected radio station.

Information

Press repeatedly the "OK / INFO" button to show the following information: DLS, Genre (PTY), Channel/Frequency, Time/Date, Bitrate.

FM

NOTE: The headphone cord works as an antenna. To insure the maximum tuner sensitivity, always keep the headphone cord fully extended!

1. Insert the plug of your headphone into the "PHONO JACK"
2. Press the "POWER" button to turn on the unit.
3. Press repeatedly the "MODE" button to select the "FM" mode.
4. Press the "SEARCH" button or press and hold the ◀◀ or ▶▶ button to start an automatic scan. The unit stops at the next available radio station.
5. To tune the frequency manually, press the button. The unit tune in 50kHz steps.

Save Preset Station

Is the same as in DAB mode.

Recall Preset Station

Is the same as in DAB mode.

Information

Press repeatedly the "OK / INFO" button to show the following information: Radio Text, Genre (PTY), Time/Date, Frequency.

EQUALIZER

NOTE! The EQ function is only available in CD mode!

During playback you can choose between the following sound effects: "BASS, POP, JAZZ, ROCK, CLASSIC" by pressing the "EQ / HI VOL" button repeatedly. To turn off the effects, press the "EQ / HI VOL" button repeatedly until the "Sound Effects" indicator disappears.

SYSTEM SETTINGS

In DAB or FM mode, press the "MENU / P-FUNC" button to enter the system settings menu. Select with the ◀◀ or ▶▶ button one of the following settings and press "OK / INFO" to confirm.

Date/Time

Manual adjustment of date and time

System version

Show the current installed software version

➢ Factory reset

NOTE: When resetting the device to factory settings, all stored stations and settings are deleted!

Select "Yes" with the ◀◀ or ▶▶ button and press "OK / INFO" to confirm. The display show "Restarting". After the restart, the unit starts automatically a new DAB station scan.

Language

Select with the ◀◀ or ▶▶ button the desired menu language and press "OK / INFO" to confirm.

Technical changes and misprints reserved.

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Duplication only with the permission of Woerlein GmbH

PROTECTION DE L'ENVIRONNEMENT

D 90556 Cadolzburg, Germany

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Web: www.soundmaster.de

Hereby, Wörlein GmbH declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the declaration of conformity can be obtained from the above address.
