WT 265 - Alarm clock radio TECHNOLINE - Free user manual and instructions

Product type	Radio alarm clock
Brand	TECHNOLINE
Model	WT 265
Power supply	2 AAA 1.5 V batteries (not included)
Display	LCD with backlight (8 s)
Radio-controlled clock	DCF-77, automatic synchronization, 12/24 h format
Calendar	Continuous until 2099, day display
Indoor temperature	Range: -9.9 °C to 49.9 °C, display °C/°F
Alarm	1 daily alarm with snooze (5 min), crescendo 2 min
Approximate dimensions	12 x 7 x 5 cm
Approximate weight	200 g (with batteries)
Material	Wood or plastic (depending on version)
Compliance	Directives 2014/53/EU and ROHS 2011/65/EC
Ambient operating temperature	10 °C to 50 °C
Ambient humidity	20 % to 95 %
Maintenance	Clean with a soft, dry cloth
Safety	Do not open, do not expose to water, shocks, or extreme temperatures
Repairability	Not user-repairable
Spare parts	Batteries only (standard AAA)

Frequently Asked Questions - WT 265 TECHNOLINE

How to set the time manually?

Press and hold the TIME button for 2 seconds. First set the 12/24 h format with +/-, confirm with TIME. Then set the time zone, hours, minutes, then the date (year, month, day). Press TIME after each step. If no action for 30 s, the clock returns to normal display.

How to activate the alarm?

Press the ALARM ON/OFF button on the top of the product to activate the alarm: the bell icon and alarm time appear. To deactivate, press again.

How to set the alarm time?

Press and hold the ALARM button for 2 seconds until the alarm time flashes. Use + and - to set the hours, press ALARM to confirm, then set the minutes in the same way.

How to use the snooze function?

When the alarm sounds, press the (snooze) button. The alarm stops for 5 minutes, then sounds again. The 'z^2' icon flashes. To stop permanently, press any other button.

How to change the temperature display to °C or °F?

Press the - button to toggle between Celsius and Fahrenheit degrees.

How to manually force the DCF signal reception?

Press and hold the WAVE button. The DCF signal search starts (antenna icon flashes). If no signal is received within 7 minutes, the search stops and a new attempt will occur one hour later.

Why is my clock not receiving the DCF signal?

Reception may be disturbed by distance (transmitter in Germany), obstacles (concrete walls), interference (TVs, computers), or weather conditions. Place the clock near a window, at least 2.5 m from electronic devices and metal surfaces.

How to replace the batteries?

Open the battery compartment cover on the back of the device. Insert 2 AAA 1.5 V batteries respecting polarity (+ and -). Use new alkaline batteries. Do not mix old and new batteries.

What to do if the display is blank or dim?

Check that the batteries are correctly installed and not discharged. Replace the batteries if necessary. If the problem persists, the device may be defective. Refer to the precautions section of the manual.

How to set the time zone?

During manual time setting, after choosing the 12/24 h format, the time zone flashes (default set to +1 for Central Europe). Use + and - to adjust (e.g., -1 for the United Kingdom). Press TIME to confirm.

USER MANUAL WT 265 TECHNOLINE

B2: “ALARM ON/OFF” - Taste

B3: “WAVE” - Taste

Funktionen:

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Production Appearance

A1 18:30 59 A2 12°:30° & 25.6 A3 A4 A5 TIME ALARM + - A6 A7 A8

EN1

ALARM ON/OFF / z² B1 B2

B3 WAVE

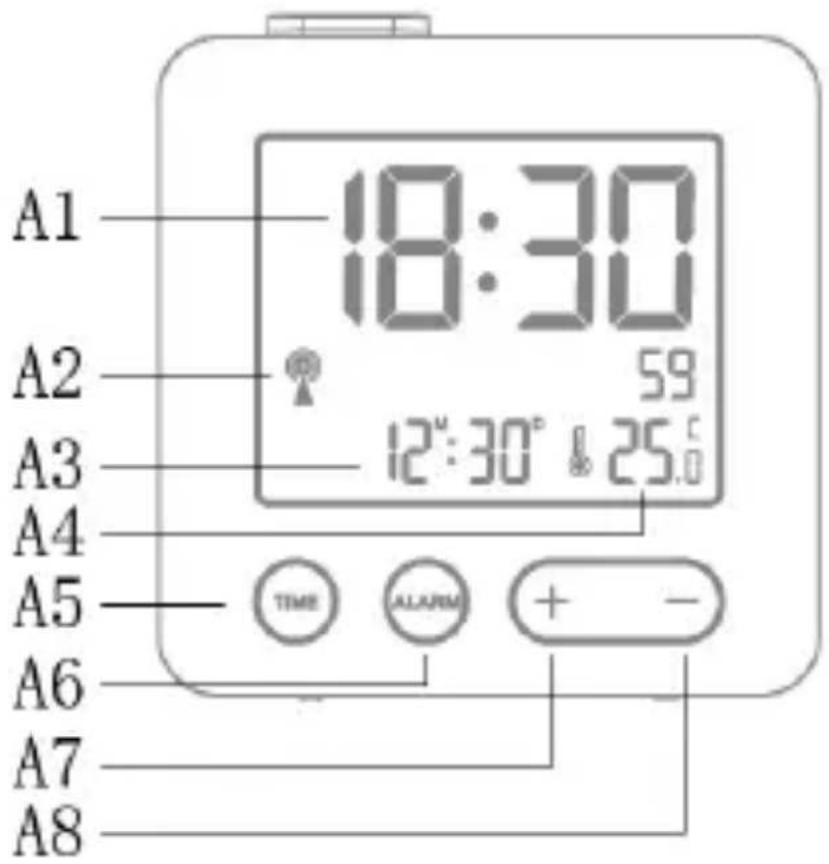

Part A- LCD + Buttons

A1: Time

A2: RCC symbol

EN2

A3: Date and Month A4: Temperature

A5: "TIME" button A6: "ALARM" button

A7: “+” button A8: “-” button

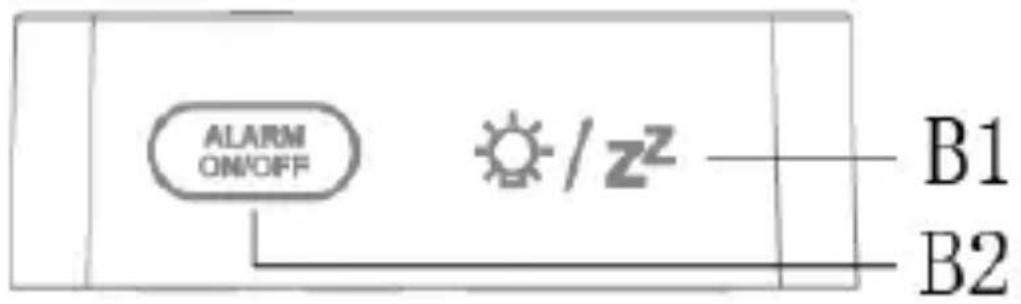

Part B-Buttons

B1: “” button / z ^z

B2: "ALARM ON/OFF" button

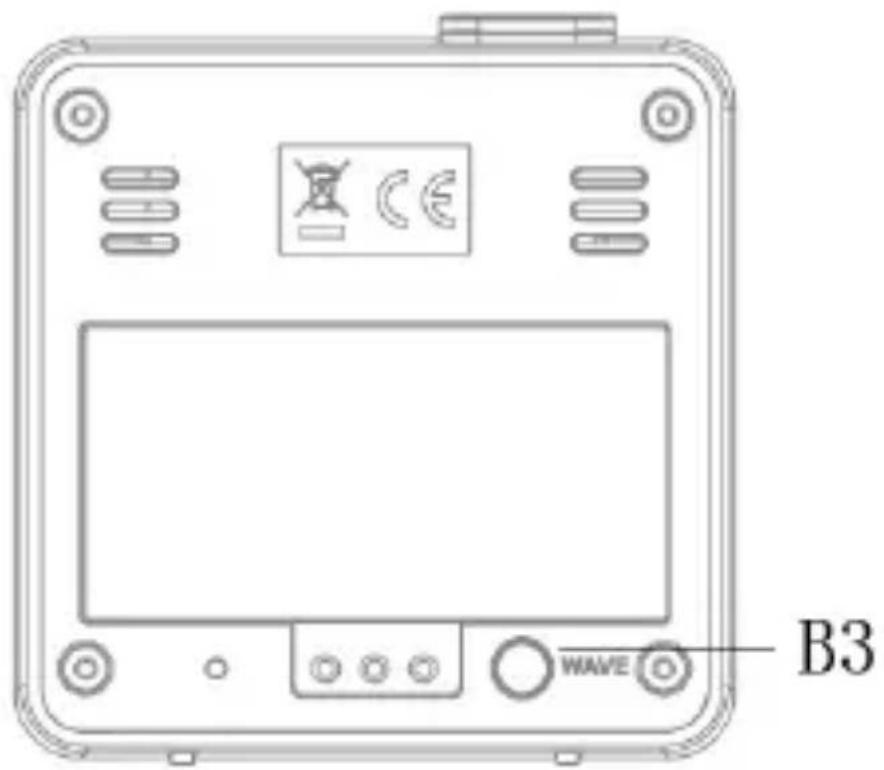

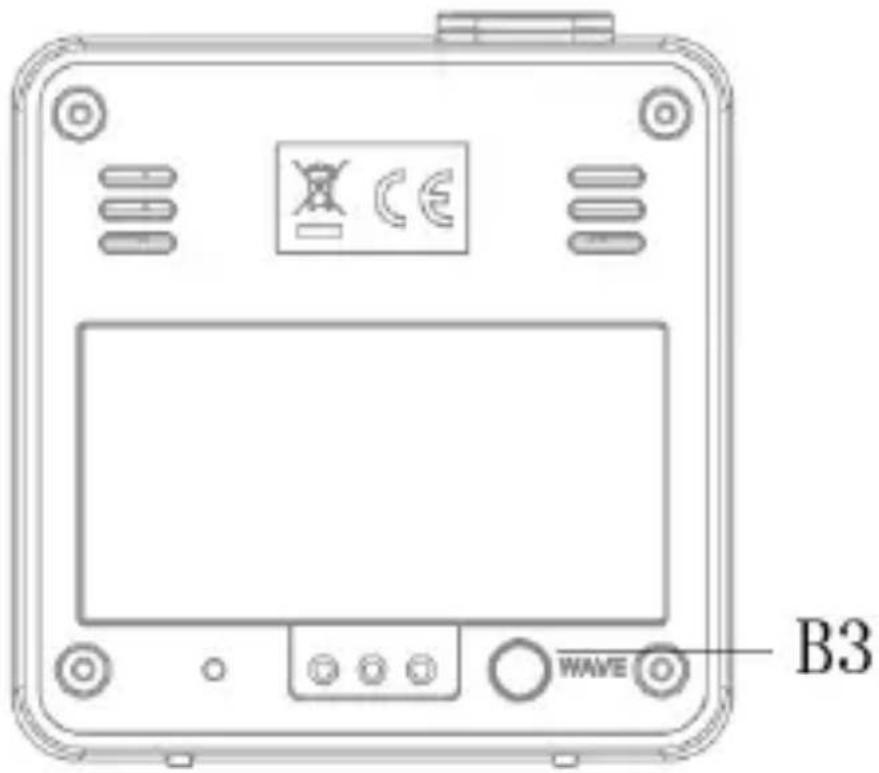

B3: "WAVE" button

Features:

• Radio controlled DCF-77 clock
• 12/24 hour time format

EN3

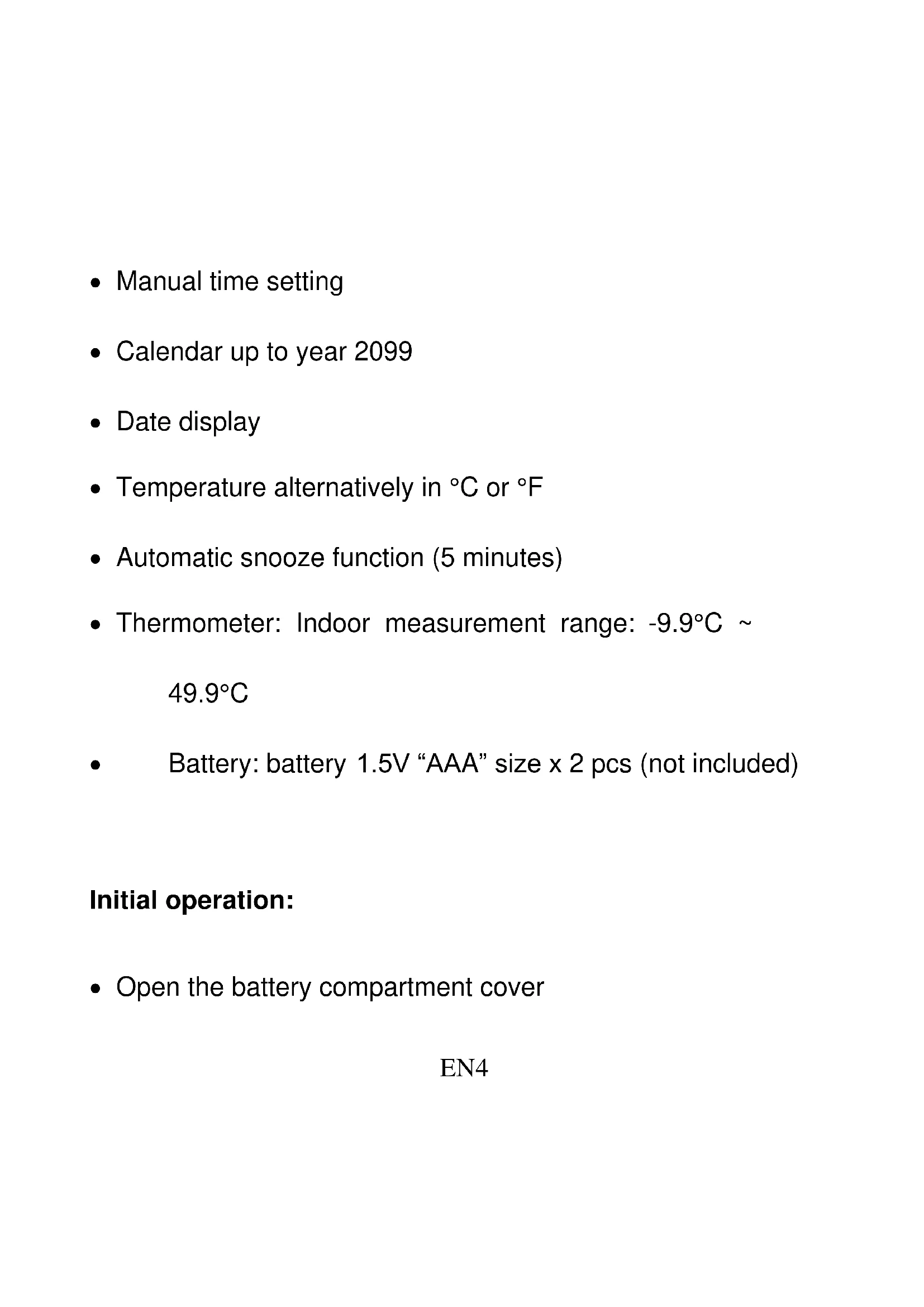

• Manual time setting
  • Calendar up to year 2099
• Date display
  • Temperature alternatively in °C or °F
  • Automatic snooze function (5 minutes)
• Thermometer: Indoor measurement range: -9.9°C \~ 49.9°C
• Battery: battery 1.5V "AAA" size x 2 pcs (not included)

Initial operation:

- Open the battery compartment cover

EN4

• Insert 2 x AAA batteries observing polarity [ “+” and “−” marks]
• When you insert the batteries, all icons on the LCD display will light up for 3 seconds, you will hear a beep tone and the station detects indoor temperature.

Reception of the DCF radio controlled signal:

• The clock automatically starts the DCF signal search after starting up. The radio mast symbol starts to flash.
• At 1:00am the Radio Controlled clock automatically carries out a synchronization procedure with the DCF EN5

signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (The radio mast symbol disappears from the display), the system will automatically attempt another synchronization at the next full hour. This procedure is repeated automatically up to 5 times.

- To start manual DCF signal reception manually, press and hold the “WAVE” button, If no signal is received within seven minutes, then the DCF signal search stops (the radio mast symbol disappears) and starts again the next full hour.

Please note:

- If the clock cannot receive the DCF signal (because the distance is too great to receive a signal from the transmitter in Mainflingen, Germany), you have the option of setting the time manually as mentioned below. As soon as the reception of the DCF signal is possible, then the clock is readjusted automatically.

- We recommend a minimum distance of 2.5 meters(8.2 Feet) to all sources of interference, such as televisions or computer monitors, Radio reception is weaker in rooms with concrete walls and in offices. In such extreme

circumstances, place the clock close to the window.

Manual time setting:

• Press and hold the “TIME” button for 2 seconds, 12/24HR start to flash. Now use “+” and “-” buttons to switch 12/24 hour mode.
• Press “TIME” to confirm your setting, the time zone starts to flash. Use“+” and “-” buttons to set a correct time zone. For UK time please set time zone to -1.
• Press “TIME” to confirm your setting, the hour display starts to flash. Now use “+” and “-” buttons to set the hour.
• Press “TIME” to confirm your setting, the minute displays EN8

starts to flash. Now use “+” and “-” buttons to set the minute.

• Press “TIME” to confirm your setting, the date and month symbols start to flash. Now use “+” and “-” buttons to set the Date-Month or Month-Date as display option.
• Press “TIME” to confirm your setting, the year display 2016 starts to flash. Now use “+” and “-” buttons to set the year.
• Press “TIME” to confirm your setting, the month display starts to flash. Now use “+” and “-” buttons to set the month.
• Press “TIME” to confirm your setting, the Date display EN9

starts to flash. Now use “+” and “-” buttons to set the date.

- Press “TIME” to confirm your setting and to end the setting procedures, enter the clock mode.

Please note:

- If there is no valid operation within 30 seconds, the clock will automatically return to normal time mode from the set mode.

Setting the daily alarm:

- Press and hold down the “ALARM” button for 2 seconds until the alarm time is flashing.

EN10

- The Hour display of the Alarm time starts to flash. Use the “+” and “-” buttons to set the hour. Press “ALARM” button to confirm your setting

- The Minute display of the Alarm time starts to flash. Use the “+” and “-” buttons to set the minute. Press “ALARM” button to confirm your setting and to end the setting procedure.

- To activate or deactivate the daily alarms, press the "ALARM" button once. When active, a bell icon is displayed.

EN11

Please note:

• If there is no valid operation within 30 seconds, the clock will automatically return to normal time mode from the set mode.
• The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.
• Rising alarm sound (crescendo, duration: 2 minutes)

Activate/Deactivate the daily alarm:

- This Clock possesses 1 daily alarms. To view the alarm

EN12

times, under the clock mode, press the “ALARM

ON/OFF" button at the top of the product to activate the

alarm function and the alarm symbol and the

alarm time are displayed on the screen.

- Press the “ALARM ON/OFF” button at the top of the product again to deactivate the alarm function and the alarm symbol no longer is displayed.

Automatic Snooze function:

- While the alarm is sounding, touch the “☀️ / zz” to activate snooze function. The Snooze function is active

EN13

and a flashing “ ” icon appears on the display.

• This stops the alarm for 5 minutes and will sound again.
• The Snooze function can be interrupted by pressing any other button.

°C/°F temperature display:

- The temperature is displayed either in °C or °F. Pressing the “-” button allows you to switch between °C or °F.

Backlight

- At any time, touch the “ ” button will light the backlight for 8 seconds.

EN14

Hereby, Technotrade declares that this product WT265 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665102658

Specifications:

Battery life 12 months

Environmental requirement:

Usage -10\~50°C & 20%\~95%

EN15

Storage -20\~60°C & 20%\~95%

Environmental reception effects

The clock obtains the accurate time with wireless technology.

Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
  • nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
• among tall buildings
  • inside concrete buildings

EN16

• near electrical appliances (computers, TV's, etc) and metallic structures
• inside moving vehicles

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.

EN17

• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  • Install batteries correctly by matching the polarities (+/-).
  • Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.

EN18

• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Simple line drawing of a trash bin with crossed lines indicating no text or symbols (no text or labels)

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used

batteries free of charge to your dealer and collection points.

As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

EN19

Consideration of duty according to the law of electrical devices

Simple line drawing of a trash bin with crossed diagonals and a circular symbol below (no text or labels)

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste

collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

ALARM ON/OFF / z² B1 B2

B3 WAVE

FR2

Partie A – LCD + Touches

A1: Heure

Diagram of a trash bin with crossed-out lines and labeled points, likely indicating a classification or disposal concept.

Simple line drawing of a trash bin with crossed diagonals and a black rectangle below (no text or symbols)

Abstract black-and-white icon depicting a person moving with circular arrows, symbolizing progress or cycle (no text or symbols)

FR

Simple line drawing of a storefront with awning and window (no text or symbols)

OU

Pure electrical circuit lines without any symbols

B2: "ALARM ON/OFF" -toets

B3: "WAVE" -toets

Eigenschappen:

B2: Pulsante "ALARM ON/OFF"

B3: Pulsante "WAVE"

Funzioni:

Pure electrical circuit lines without any symbols

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

A1: Godzina
A2: Symbol RCC

A3: Data

A4: Temperatura
A5: Przycisk "TIME"

A6: Przycisk "ALARM"
A7: Przycisk “+”
A8: Przycisk “-”

Część B – Przycisk

B1: Przycisk “☀️ / zZ”
B2: Przycisk "ALARM ON/OFF"
B3: Przycisk "WAVE"

Właściwości:
