USER MANUAL XS01x6 X-Sense

This user manual contains important information regarding the operation of your X-Sense smoke alarm. Ensure you read this user manual fully before installing and operating the alarm. If you are installing this smoke alarm for use by others, you must leave this manual (or a copy of it) with the end user.

Introduction

Thank you for purchasing our smoke alarm. This smoke alarm conforms with the European Standard EN 14604:2005+AC:2008 and is designed to detect smoke. Our products are constantly being improved and expanded.

- Battery Operated

A long-life lithium battery sealed inside the alarm ensures a 10-year lifetime in standby condition.

\*Low Battery Warning

The alarm beeps once and LED indicator flashes every 60 seconds when the battery is low.

- Malfunction Warning

The alarm beeps twice and LED indicator flashes every 40 seconds when the alarm is in malfunction.

Silence Mode

Silence your smoke alarm by momentarily pressing the test button when

non-emergency smoke (e.g. steam) causes nuisance alarms. The red light flashes every 5 seconds to remind you that the smoke alarm has been silenced. Press the test/silence button to exit the silence mode or wait 9 minutes for the alarm to

automatically exit the silence mode.

- Loud 85 Decibel Piezo Electric Alarm

The alarm automatically resets when a hazardous condition has passed.

Package Contents

1×AlarmUnit

1× Mounting Bracket

2×Screws

2 × Anchor Plugs

1×User Manual

Safety Information

IMPORTANT!

1. DANGERS, WARNINGS, AND CAUTIONS ALERT YOU TO IMPORTANT OPERATING INSTRUCTIONS OR TO POTENTIALLY HAZARDOUS SITUATIONS. PAY SPECIAL ATTENTION TO THESE SITUATIONS.
2. THIS ALARM IS NOT INTENDED TO ALERT HEARING IMPAIRED INDIVIDUALS. THE USE OF ALCOHOL OR DRUGS MAY ALSO IMPAIR ONE'S ABILITY TO HEAR. THE SMOKE ALARM.
3. FIRES IN CHIMNEYS, WALLS, ROOFS, DIFFERENT LEVELS OR BEHIND CLOSED DOORS MIGHT NOT BE DETECTED.
4. THIS DEVICE DOES NOT DETECT FLAMES, HEAT, CARBON MONOXIDE OR OTHER HAZARDOUS GASES.

WARNING!

1. NEVER IGNORE ANY ALARM. FAILURE TO RESPOND CAN RESULT IN SERIOUS INJURY OR DEATH.
2. THE SILENCE FEATURE IS ONLY FOR YOUR CONVENIENCE AND WILL NOT CORRECT A PROBLEM. ALWAYS CHECK YOUR HOME FOR A POTENTIAL PROBLEM AFTER ANY ALARM. FAILURE TO DO SO CAN RESULT IN INJURY OR DEATH.
3. TEST THIS SMOKE ALARM ONCE A WEEK IF THE ALARM EVER FAILS TO TEST CORRECTLY, REPLACE IT IMMEDIATELY!IFTHEALARMCANNOTWORKPROPERLY, IT WILL NOT ALERT YOU TO A PROBLEM.

Installation Positioning

Smoke Alarms

Smoke & Carbon Monoxide Alarms

Carbon Monoxide Alarms

Fire extinguishers

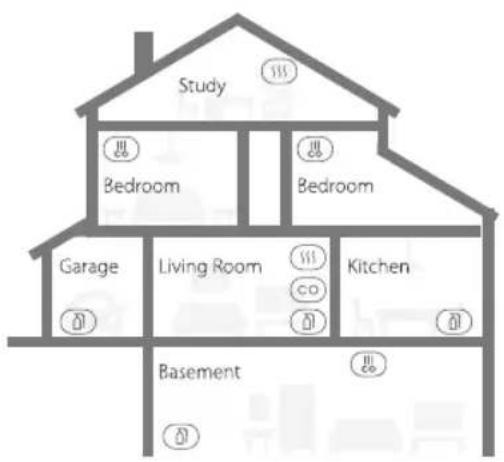

1. Prioritize the installation of a smoke alarm in the bedroom and walkways, and make sure you can hear the alarm from all sleeping areas. In a home with several bedrooms, install an alarm in every bedroom. If you install only one smoke alarm in your home, install the alarm near to all bedrooms where possible, and not in a basement or furnace room.
2. Install an alarm above the stairway and on every floor of the house.
3. Smoke, heat and anything burning will spread horizontally after rising to the ceiling, so install the alarm in the middle of the ceiling where possible. Ensure that the alarm is installed at the minimum distance away from corner.

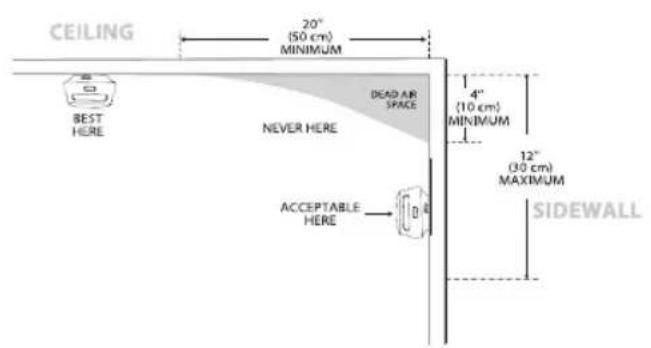

4. If an alarm cannot be installed in the middle of a ceiling, install it at a distance of 20 inches (50 cm) away from the corners of the room.
5. If an alarm is installed onto a wall, a distance of 4-12 inches (10-30 cm) should be kept below the ceiling.
6. If the length of a room or hall is beyond 30 feet (900 cm), several alarms should be installed in the same space.

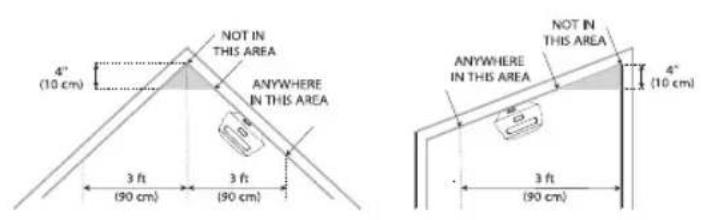

7. When the wall or ceiling is angled, the alarm needs to be installed within 3 feet (90 cm) of the highest wall or ceiling point (measured horizontally) in the room.

WARNING!

1. THIS ALARM SHOULD BE INSTALLED BY A COMPETENT PERSON.
2. ALARMS SHOULD NOT BE USED AS A SUBSTITUTE FOR PROPER INSTALLATION, USE AND MAINTENANCE OF FUEL BURNING APPLIANCES INCLUDING APPROPRIATE VENTILATION AND EXHAUST SYSTEMS.

InstallationMethod

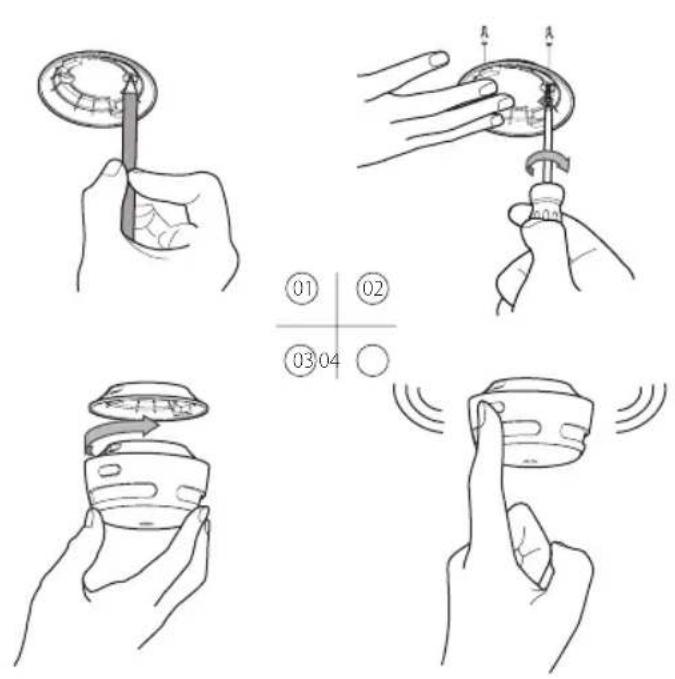

1. Use the mounting bracket to mark the screw holes on the ceiling or the wall.
2. Drill holes at the 2 marks using an appropriately-sized drill bit. Insert the anchor plugs and screw the mounting bracket using the screws provided.
3. Attach the alarm to the mounting bracket and turn clockwise to lock the alarm.
4. Test the smoke alarm according to the steps in the section below.

Alarm Test

The alarm must be properly attached to the mounting bracket before it can be tested.

1. Press the test button.
2. The unit beeps 3 times.
3. The red LED will flash once every second during the audible signal.

NOTE: The test function accurately tests the alarm's smoke sensing circuit without the need of test smoke. If your smoke alarm fails to give an audible test signal, please refer immediately to the troubleshooting guide at the end of this manual.

LED Indicator and Audible Alarm

Status	LED indicator	Audible alarm
Normal Red LED fl ashes once every 60 seconds. None
Test Red LED fl ashes once every second. 3 short quick beeps
Alarm Red LED fl ashes once every second. Short quick beeps
Silence Mode	Red LED fl ashes once every 5 seconds.	None
Low Battery	Red LED fl ashes once every 60 seconds.	1 beep every 60 seconds
Malfunction	Red LED fl ashes twice every 40 seconds.	2 beep every 40 seconds

Technical Specifications

Power Supply	10-year sealed lithium battery
Sensor Type	Photoelectric
Safety Standard	EN 14604:2005+AC:2008
Standby Current	< 6 uA
Alarm Current	< 60 mA
Coverage Area	20-40 m²
Best Operating Ambient Temperature	4.4-37.8℃
Operating Relative Humidity	≤ 85% (non-condensing)
Alarm Loudness	≥ 85 dB at 3 m @ 3.2 ± 0.3 kHz pulsing alarm
Silence Duration	About 9 minutes

Maintenance

To keep your smoke alarm in good working order, follow these simple steps:

1. Verify the unit's alarm sound and indicator are working properly by testing the unit once a week.
2. As a minimum your smoke alarm should be cleaned once every 3 months: Remove the unit from the ceiling and clean the alarm cover and vents with your vacuum cleaner fitted with the soft brush attachment to remove dust and dirt.

3. Never use detergents or other solvents to clean the unit.

4. Avoid spraying air fresheners, hair spray or other aerosols near the alarm.

5. Do not paint the unit. Paint will seal the vents and interfere with the sensor's ability to detect fire.
6. Never attempt to disassemble the unit or clean inside. Doing so will void your warranty.
7. When removed, place the smoke alarm back in its proper location as soon as possible, to assure continuous protection from fire.
8. When household cleaning supplies or similar contaminants are used, the area should be ventilated.

Troubleshooting

PROBLEM	SOLUTION
Your smoke alarm does not sound during testing.	•Please check whether the alarm is properly attached to the mounting bracket. •Make sure you push the test button firmly.
False alarms triggered intermittently or when residents are cooking, taking showers, etc.	•Check the location of your smoke alarm (see “Installation Positioning”). •Clean the smoke alarm (see “Maintenance”).
Red LED flashes and the alarm sounds 1 beep every 60 seconds.	The battery is low. Replace immediately.
Red LED flashes and the alarm sounds 2 beeps every 40 seconds.	The alarm is malfunctioning. Please clean your smoke alarm, or replace immediately.

Environmental Protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with Local Authority or retailer for recycling advice.
