M11860001 - Scale ADE - Free user manual and instructions

Product type	Electronic baby scale with length measurement
Brand	ADE
Model	M11860001
Weighing capacity	20 kg max, division 5 g, accuracy ±10 g / ±0.3%
Length measurement range	39.8 – 80.2 cm, division 0.2 cm, accuracy ±0.4 cm
Dimensions (without length system)	610 x 390 x 140 mm
Dimensions (with length system)	655 – 1055 x 390 x 140 mm
Net weight	3.5 kg (without) / 3.7 kg (with length system)
Power supply	4 AA 1.5 V batteries (≥5000 measurements) or 6 V DC mains adapter
Mains adapter (optional)	Ref. H2870-002, input 100-240 V AC, output 6 V DC / 1 A
Main functions	Weighing (HOLD, TARE, zero setting), length measurement, Bluetooth (optional), beep
Display	Digital display with symbols (Hold, Net, Zero, kg/lb units, cm/in)
Housing material	ABS plastic
Protection class	IP21 – protected against solid objects ≥12.5 mm and vertical water drops
Medical classification	Medical device, type BF applied part, class II for adapter
Electromagnetic compatibility	Compliant with CISPR 11 class B, IEC 61000
Bluetooth	Frequency 2.402 – 2.4835 GHz, power +4 dBm, range 10 m (optional)
Operating conditions	Temperature +10 to +45 °C, humidity 10-95% RH, pressure 700-1060 hPa
Cleaning and disinfection	Damp cloth, disinfectant suitable for PMMA (screen sensitive to alcohol)
Included accessories	Scale, 4 AA batteries, user manual with declaration of conformity
Optional accessories	Mains adapter (H2870-002), carrying case (MZ10060)
Warranty	2 years against defects in materials and workmanship (excluding batteries, cables, etc.)
Estimated service life	8 years
Manufacturer	ADE Germany GmbH, Neuer Höltigbaum 15, 22143 Hamburg, Germany

Frequently Asked Questions - M11860001 ADE

How to turn on the ADE M11860001 scale?

Briefly press the ON/OFF key. The display briefly shows a functional test then "0.00 kg" and the >0< symbol. The scale is ready. It starts automatically with the last function used.

What to do if the display shows nothing?

First check if the scale has turned off automatically (press ON/OFF). If nothing is displayed, check the batteries: replace with four new AA batteries. If using the mains adapter, ensure it is properly plugged into the mains (100-240 V AC) and into the scale.

How to use the tare function on the ADE baby scale?

Turn on the scale and wait for "0.00 kg". Place the additional weight (e.g., towel) on the scale, then briefly press TARE. The display flashes then shows "0.00 kg" and the Net symbol. Then place the baby with the towel: the scale shows only the baby's weight. To exit, press TARE again or turn off the scale.

How to use the Hold function to weigh a moving baby?

Turn on the scale, wait for "0.00 kg". Press HOLD. The Hold and non-calibratable function symbols appear. Place the baby on the scale. When the measurement is stable, the Hold symbol flashes, then the weight remains displayed even after removing the baby. To deactivate, press HOLD again.

How to measure my baby's length with this scale?

This function is only available on models with a measuring bracket. Press the L/W key to switch to length mode. Fully separate the two brackets. Place the baby on the weighing surface. Position the brackets on the head and feet: the length is displayed. To return to weight mode, press L/W again.

How to clean and disinfect the ADE baby scale?

Disconnect the mains adapter if used. Use a damp cloth or a disinfectant suitable for sensitive surfaces. The display is made of PMMA: avoid alcohol as it can make it cloudy. Do not use abrasive or acidic products. For disinfection, follow the disinfectant instructions. Never immerse the scale in water.

Which batteries to use and how long do they last?

Use 4 alkaline AA 1.5 V batteries (included). The battery life is at least 5000 measurements or over 100 hours of operation. Remove the batteries if the scale is not used for a long time. For mains operation, use the optional mains adapter (ref. H2870-002).

What do the error messages [Lo], [uLoad] and [oLoad] mean?

- [Lo] : low batteries. Insert new batteries or use the mains adapter. - [uLoad] : underload (negative weight). Turn the scale off and on again. - [oLoad] : overload or exceeding weighing capacity. Unload the scale.

Can the scale be used with a mains adapter?

Yes, an optional mains adapter (ref. H2870-002, input 100-240 V AC, output 6 V DC / 1 A) can be plugged into the port at the back. Use the cable guides to avoid interference with the measurement. Do not touch the baby and the adapter simultaneously.

How to activate Bluetooth on the ADE M11860001 scale?

The Bluetooth module is optional and disabled by default. To activate it, please contact ADE customer service. Pairing instructions will be provided when approved Bluetooth devices become available. Transmission can be initiated by the TRANSMISSION key.

USER MANUAL M11860001 ADE

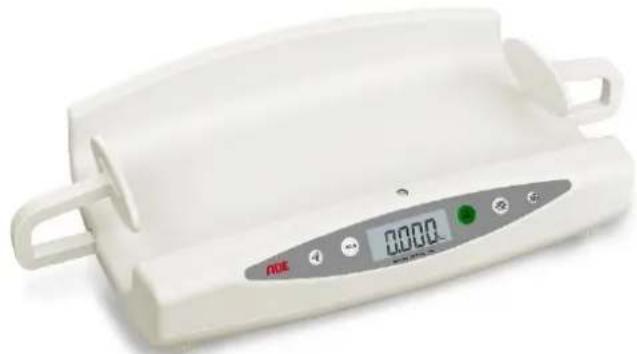

White baby care meter with digital display showing measurement reading (no visible text or symbols on device body)

White medical pressure monitor with digital display showing 0.000 mm, no visible text or symbols on device body

EN Instructions for Use – Electronic baby scale 21

1. Intended Use 22
2. Safety Instructions 22

2.1 General Safety Instructions....22
2.2 Safety symbols....24

1. Scope of delivery 25
2. Overview....25

4.1 Key names and functions....26

4.2 Display symbols 26

1. Getting started with the scale 27
2. How it works 27

6.1 Determination of Weight....27

6.1 Determination of Weight....27

6.2 Determination of Length 27

1. Using the scale 27

7.1 Starting the scale 27
7.2 Switching off the scale 27
7.3 Correct weighing 28
7.4 Hold function 28
7.5 Tare function 28
7.6 Length measurement 29
7.7 Beep....29
7.8 Bluetooth....29

1. Care and maintenance .... 30

8.1 Cleaning....30
8.2 Disinfection....30
8.3 Sterilisation....30
8.4 Faults and error messages .... 30
8.5 Maintenance....31
8.6 Storage and Transport Conditions 31
8.7 Accessories....31
8.8 Disposal 32
8.9 Warranty 32

1. Technical Data....33

2. Symbol description....34

3. Electromagnetic compatibility....35
4. CE marking and declaration of conformity 38
5. Contact information of the manufacturer 38

1. Intended Use

Your ADE electronic baby scale is a quality product and manufactured for determining weight (up to 20 kg) and optionally length (40 to 80 cm) of babies and toddlers, who cannot yet stand still on a personal scale by themselves without assistance.

The scale may be used in health care environments for control purposes.

The maximum capacity of the scale is 20 kg. To achieve precise results, please read the user guide carefully and follow the instructions contained therein. The scale may only be operated and maintained by trained personnel.

The device may only be used as intended. All applications of the device not mentioned in the chapter "Intended use" are considered as improper use. It is the user of the device, but not the manufacturer, who assumes liability for any resulting damage to property or personal injury resulting from misuse.

The use of accessories other than the original accessories supplied by the manufacturer may void this warranty.

Warning:

This device may not be modified without the manufacturer's permission.

During use, do not touch the mains adapter/battery and the baby to be weighed at the same time.

Do not use the device in an oxygen-rich environment.

A Class III calibrated scale must be used for medical, diagnostic and curative purposes.

2. Safety Instructions

2.1 General Safety Instructions

Be sure to read, understand and follow all instructions in this manual and others that accompany the system and its components, as well as country-specific installation standards, applicable safety regulations and accident prevention rules.

• Handle the scale with care and always keep in mind that it is a precision measuring instrument.
• Make sure that the baby to be weighed is centred on the weighing surface.
• The scale may only be operated and maintained by trained and authorised skilled personnel.
• Before first use, make sure that the mains voltage and current type stated on the name plate match the mains voltage and current type at the place of use.

- Never touch baby and mains adapter simultaneous. - Only the power adapters authorised by the manufacturer ADE may be used. Otherwise, there is a risk that other electrical devices will be affected.

- Only Bluetooth devices authorised by the manufacturer ADE may be connected. Otherwise, there is a risk that the specified performance level will be compromised.

- Anyone connecting additional equipment or power supply (other than specified in section 8) to the equipment is responsible that the system complies with the requirements of the standard IEC 60601-1.

- The plug/adapter connector isolates the device from the mains supply. Do not place the device in a position where it is difficult to disconnect the power supply to safely stop the operation of the device.

- Make sure that the mains cable is routed between the scale and the mains connection in such a way that there is no risk of stumbling.

- Make sure that the mains cable is routed between the scale and the mains connection in such a way that there is no risk of strangulation.

- Never push the scale back and forth without lifting, as this may cause damage to the load cells.

- Operate the device only within the permissible ambient conditions.

- After starting up the scale (connecting to the power supply or inserting the batteries), the scale must warm up for 15 minutes. Accuracy is only guaranteed after this time.

- Do not expose the scale to high temperatures, whether from neighbouring devices or direct sunlight.

- Use the scale at constant ambient temperatures and avoid using in draughts, otherwise the measurement results could be falsified.

- After storage under extreme conditions, allow at least 60 minutes for the scale to become acclimatised and ready for use as directed.

- If possible, place the scale away from other devices or sources that generate electromagnetic or other disturbances as these can falsify the measurement results.

- Use only approved accessories and peripherals.

- Before cleaning the device, disconnect the mains adapter from the mains.

- Do not immerse the device in water or other liquids.

- If the scale will not be used for a long time, it should be cleaned and stored in a protective film. The addition of a drying agent is desirable.

- Remove the batteries if you are not going to use the scale for a long time.

- If you have any problems with this device, such as problems with setup, maintenance or use, please contact your authorised dealer. Do not open or repair the device yourself.

- Please notify the authorised dealer if unexpected operations or events occur

DO NOT use the scale:

- If the mains adapter is damaged;

- If the battery compartment has an unnatural bulge;

- After long storage in a humid environment.

In such cases, please contact an authorised customer support.

Symbol Meaning Symbol Meaning

Keep away from babies and toddlers! Do not pull over your head! There is a choking hazard!

Pay attention to correct polarity. There is an explosion hazard!

Do not damage batteries/rechargeable batteries. There is an explosion hazard!

Batteries/rechargeable batteries are not a toy. There is a choking hazard!

Do not throw batteries/rechargeable batteries into fire. There is an explosion hazard!

Do not damage batteries/rechargeable batteries. There is an explosion hazard!

Keep the device out of the reach of children/pets to avoid inhalation or swallowing of small parts. If you are allergic to plastic/rubber, please don't use this device.

3. Scope of delivery

Check the scope of delivery for completeness immediately upon receipt of the scale:

• Scale
• 4 x 1.5 Volt AA batteries

• Instructions for Use with Declaration of Conformity

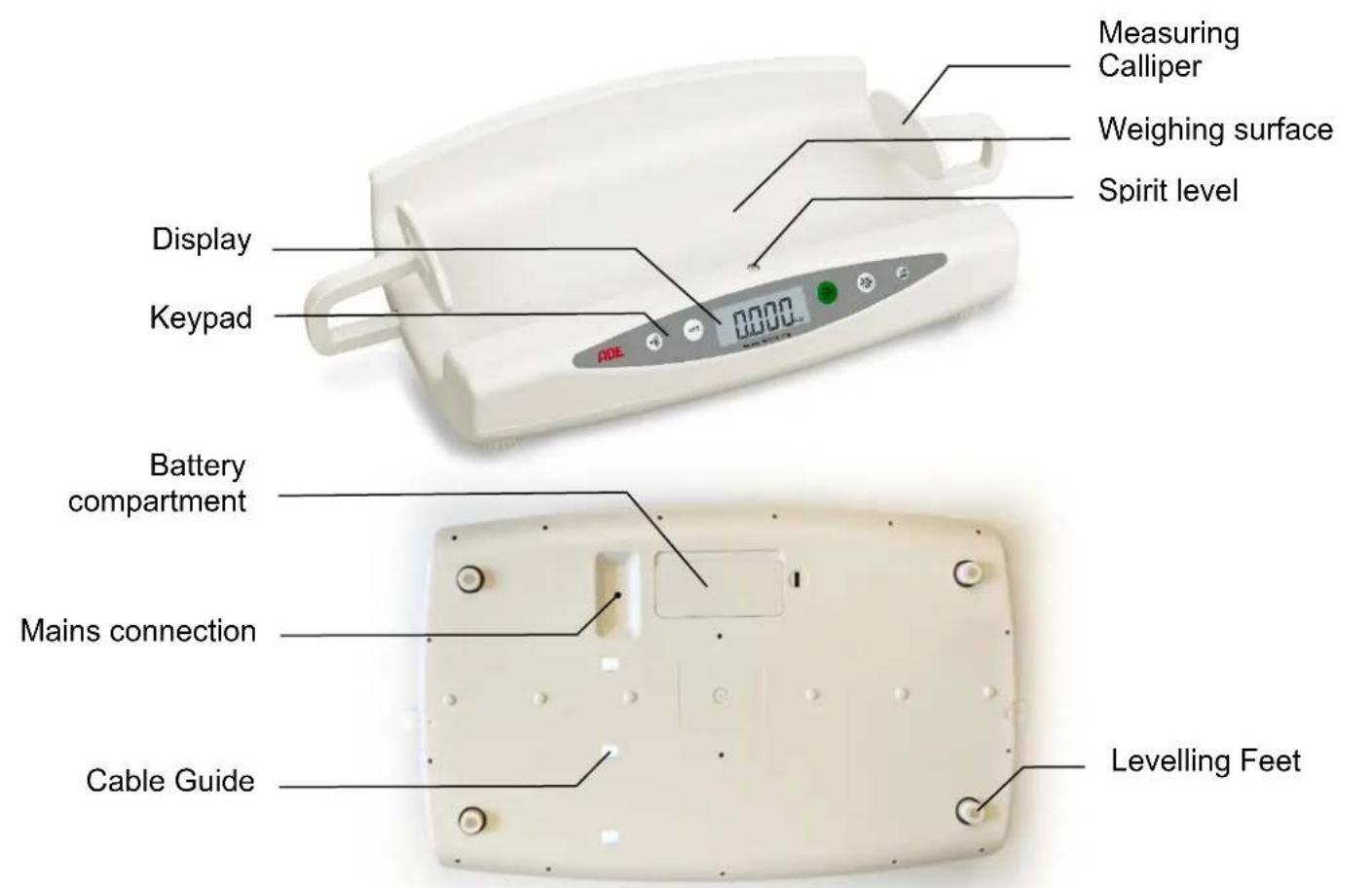

• Overview


Measuring Calliper Weighing surface Spirit level Display Keypad Battery compartment Mains connection Cable Guide Levelling Feet

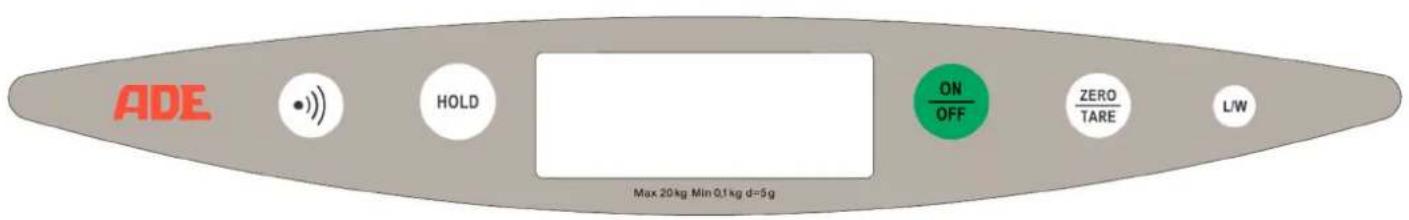

ADE HOLD ON OFF ZERO TARE L/W Max 20kg Min 0.1kg d=5g

4.1 Key names and functions

Symbol	Description Function
	ON/OFF	ON/OFF Key:Switches the scale on and off.
	ZERO / TARE	Multi-function key:ZERO key:Set the scale to "ZERO".(Only for loads in the range -0.2 kg to +0.6 kg).TARE key:Enables the tare function.(Only for loads less than -0.2 kg or greater than +0.6 kg).
	HOLD	HOLD key:Activates the automatic hold function.
	LENGTH / WEIGHT	Multi-function key:L/W key:Toggles the display between weight and length determination.(Only for scales with length measuring system.)
	TRANSMIT	TRANSMIT key:Transmits the measurement result to a compatible receiving device.(Only for scales with transmitter module.)

4.2 Display symbols

Symbol	Meaning
	Non-calibratable function!HOLD function determines weight from a sequence of measured values.
„Hold“ Hold function is activated.
„Net“ Tare function is activated.
>0< The scale is in zero point.
~	The weighing result is stable.
Kg / lb Determined weight in "kilograms" or "pounds".
'' / cm Determined body height in "inch" or "cm.
WI / WII Indicates the weighing range (only for multi-range version).
	Indicates the transmission of the measurement result to the paired receiving device.

5. Getting started with the scale

Carefully unpack the scale and remove all packaging materials.

Turn the scale over and insert four 1.5 V AA batteries supplied into the battery compartment. When inserting the batteries, make sure the polarity is correct (as shown in the battery compartment).

For mains operation, connect the optional mains adapter to the mains connection. Insert the cable into the cable guides.

A cable not inserted in the cable guides can lead to a force shunt and thus to incorrect measured values.

Place the scale on a level, stable surface. Align the scale using the levelling feet. Make sure that the air bubble of the spirit level is centred in the black frame.

Check the horizontal position of the scale after every change of location!

6. How it works

6.1 Determination of Weight

The mechanical forces acting on the scales are transformed into measurable and evaluable electrical signals by load cells. The weighing result is displayed continuously.

6.2 Determination of Length

The physical change of the length measuring device causes a change in impedance and is thus converted into measurable and evaluable electrical signals. By linking the two calipers, it is irrelevant at which position they are located. The result of the length measurement is displayed continuously.

7. Using the scale

7.1 Starting the scale

To switch on the scale, briefly press the ON/OFF key.

After a brief functional test, the scale shows "0.00 kg" and the symbol >0<.

The scale is now ready for use.

The scale starts automatically with the last function used.

7.2 Switching off the scale

7.2.1 Automatic switch off

The scale switches off automatically after approx. 90 seconds in battery operation and after approx. 7 minutes in mains operation.

7.2.2 Switching off with key

To switch off the scale, press and hold down the ON/OFF key for about 2 seconds.

The scale automatically saves the last settings used.

7.3 Correct weighing

Switch on the scale with no load. Wait for "0.00 kg" and the symbol >0< to appear on the scale display.

Place the baby to be weighed as centrally as possible on the weighing surface. The weight can be read off directly after standstill.

7.4 Hold function

With the Hold function (automatic hold function), the determined weight is still displayed even after the scale is unloaded).

Switch on the scale with no load. Wait for "0.00 kg" and the symbol >0< to appear on the scale display.

Briefly press the HOLD key. The symbols (non-calibratable function) and Hold additionally appear on the display.

Start the weighing process.

The end of weight determination is indicated by the now flashing Hold symbol.

The weighing result is permanently shown on the display (even after the scale has been unloaded) until the following weighing procedure or until the scale is (automatically) switched off.

NOTES: If multiple weighings shall follow each other in the hold function, it is not necessary to switch the hold function off and on again each time. However, the scale must have reached zero once before it is loaded again. When the scale shows the symbol >0< on the display, the next weighing can begin.

If the weighing procedure was started without using the hold function, this can still be switched on by pressing the HOLD key even if the scale is already loaded.

To deactivate the hold function, briefly press the HOLD key. The symbols ▲Hold will no longer be displayed.

7.5 Tare function

The tare function does not take into account any additional weight placed on the scale.

Switch on the scale with no load. Wait for "0.00 kg" and the symbol >0< to appear on the scale display.

Place the additional weight (e.g. towel) on the scale and briefly press the TARE key. The display will blink temporarily and then "0.00 kg" will appear on it. The symbol Net will light up on the display.

Remove the additional weight from the scale. The display shows „----“.

Place the baby with the additional weight (e.g. towel) on the scale. The scale determines the weight of the baby without the additional weight.

The value of the additional weight remains stored until the tare function or the scale is switched off.

Make sure that, for example, additional towels only come in contact with the weighing surface. If a towel also comes in contact with the surface on which the scale is placed, the weight readings will be incorrect.

To exit the tare function, briefly press the Tare key or switch off the scale.

7.6 Length measurement

NOTE:

Length measurement is only possible using models with mounted measurement calipper. With other models, it is not possible to switch between weight and length measurement.

The measuring function can also be upgraded. Please contact our customer service.

To switch to length measurement, briefly press the L/W key. The display shows the current measured length as well as the set unit.

Pull both measuring callipers completely apart.

Place the baby on the weighing surface. The exact position of the baby is irrelevant.

Place the two measuring callipers on the baby's head and feet. The display shows the measured length value.

To exit the length measurement, briefly press the L/W key again.

7.7 Beep

NOTE:

The beep tone is deactivated by default. If desired, you can activate the function. Please ask for the extended instructions.

If activated, a beep sounds when ...

... the scale is overloaded.

... the scale is underloaded.

... a key is pressed.

7.8 Bluetooth

NOTE: The (optional) Bluetooth module is disabled at the factory.

Information on activating and setting up the Bluetooth interface as well as pairing with other devices will only be announced once Bluetooth devices approved by ADE are available.

8. Care and maintenance

8.1 Cleaning

Clean the device if required.

Disconnect the mains plug before cleaning the scale. Use only a damp cloth or an ordinary disinfectant for cleaning. Do not use aggressive liquid cleaning agents, abrasive or acidic detergents.

Make sure that no liquid cleaning agent or water penetrates the scale and always follow the manufacturer's instructions for use.

8.2 Disinfection

The display is made of polymethyl methacrylate (PMMA). PMMA is sensitive to alcohol and can become cloudy if unsuitable disinfectants are used on it. Only use disinfectants suitable for sensitive surfaces. Suitable disinfectants are available from specialist dealers.

Ensure that the disinfectant is suitable for sensitive surfaces and polymethyl methacrylate (PMMA).

Follow the instructions on the disinfectant.

Disinfect the device at regular intervals using a soft cloth dampened with a suitable disinfectant.

Component Intervall
Tray Before and After every measurement
Housing, controls and display If required

8.3 Sterilisation

This device may not be sterilised.

8.4 Faults and error messages

8.4.1 Faults

Fault Cause Measure
The display shows nothing.	The scale has switched off automatically.	Switch on the scale.
The display shows nothing. Not connected to the mains. Use the optional mains adapter to connect the scale to the mains.
The display shows nothing. The battery is empty. Insert new batteries.
The display shows nothing. No battery is inserted. Insert batteries.
The scale wobbles. The scale is not levelled properly.		Adjust the leveling feet. Use the spirit level to check the horizontal position.
The displayed measurement results do not change or are obviously incorrect.	Wrong operating mode selected.	Toggle between weight and length measurement.

8.4.2

8.4.3 Error messages

Error message Description Troubleshooting
[Lo] Empty battery.		Insert new batteries.Use the scale in mains operation.
[uLoad] Underload (-20d) Switch the scale off and on again.
[oLoad] Overload (-9d) Unload the scale. Zero range or weighing capacity exceeded
[no 0.00] No zero point available. Zero the scale.
„----“	Negative weight values (e.g. in the tare function) are not displayed.	Load the scale.
„----“ Scale is loaded too slowly during the HOLD function.		Unload the scale. Wait until >0< is shown in the display.Load the scale again.

8.5 Maintenance

To ensure correct measurement, maintenance and repair should only be carried out by authorised personnel.

To prevent the intended level of accuracy the product must be set up carefully and services regularly. We recommend having it serviced every 3 to 5 years depending on how often the scales are used.

8.6 Storage and Transport Conditions

Keep all original packaging materials and components for eventual return of the scale to avoid damage during transport; these are not covered by the warranty.

To avoid damage disconnect all cables before transport.

8.7 Accessories

Item Item description Item number
Power adapter UES06WOCP-060100SPA H2870-006
Carrying bag	MZ10060	MZ10060

8.8 Disposal

Waste electrical equipment do not belong in household waste. Devices with this marking may not be disposed of as residual waste, but must be recycled.

Remove (if possible) all batteries and rechargeable batteries from the devices and send them to the battery disposal.

Make sure that only depleted batteries or batteries with insulated poles are disposed of so that there is no short circuit!

8.9 Warranty

You have a two-year warranty from the date of purchase against defects in materials and workmanship, the scale will be either repaired or replaced (please keep proof of purchase). All removable parts such as batteries, cables, mains adapter, rechargeable batteries etc. are not covered by the warranty. The warranty does not cover normal wear or damage caused by accident or misuse. Any warranty or liability claims are valid only if original ADE accessories and spare parts are used. Products that have been opened by unauthorised persons are not covered by the warranty.

Foreign customers should contact the local dealer for warranty.

9. Technical Data

Power supply

Mains operation:	Use only with mains adapter UES06WOCP-060100SPA
Mains voltage: 100 – 240 V AC, 0.2A
Frequency:	50/60 Hz
Supply Voltage:	6 V DC
Current: 1.0 A (max.)
Battery operation: 4 x 1.5 V AA alkaline batteries(>5000 measurements / >100 h operating time)

"Weight" Measuring range

Max. load capacity:	20 kg	44,09 lb
Division: 5 g 0,01 lb
Accuracy:	± 10 g / ± 0,3%

"Length" Measuring range

Measuring Range:	39,8 – 80,2 cm	15,625“ – 31,625"
Division: 0,2 cm 0,125" (1/8")
Accuracy:	±0,4 cm

Ambient conditions

Operating temperature:	+10°C to +45°C
Storage and Transport temperature:	-20°C to +60°C
Humidity: 10% - 95% RH
Air pressure:	700 hPa - 1060 hPa

Device classification

Mode of operation:	Continuous operation
Degree of protection:	Type BF applied part (scale top surface)
Battery mode:	Internally powered ME equipment
AC adapter mode:	Class II ME equipment

Software

The software version is displayed when the scale is switched on.

Wireless:

Frequency: 2402 MHz to 2483.5 MHz
Transmission power:	+4 dbm
Range:	10 metres

Housing

Dimensions: 610 x 390 x 140 mm	without length measuring system
655-1055 x 390 x 140 mm	with length measuring system

Net weight: 3,5 kg / 3,7 kg without / with length measuring system

Material: ABS plastic

Protection class: IP21; the device is protected against solid foreign objects with a diameter of ≥ 12.5 mm. Protected against vertically falling drops of water or condensation.

Service life: The design provides you with a service lifetime of 8 years.

10. Symbol description

Symbol Meaning

Instruction manual

Follow instructions for use

Manufacturer

Date of manufacture

Serial number

CE marking

0044 Number of notified body registered as medical device

Type BF applied part

AC / ∼

Alternating current

DC / ---

Direct current

Warning

11. Electromagnetic compatibility

Electrical equipment is subject to special precautions regarding EMC and must be installed and commissioned in accordance with the guidance below.

Portable and mobile HF devices (e.g. mobile phones) may affect medical electrical equipment.

The use of third-party accessories may increase the emission or reduce the immunity of the device. Do not use mobile phones or similar devices that emit electromagnetic fields near the product. This could adversely affect the functionality of the product.

Guidance and manufacturer's declaration - electromagnetic emissions

This PRODUCT is intended for use in the electromagnetic environment specified below. The customer or the user of the PRODUCT should make sure that it is used in such an environment.
Emission tests Compliance	Electromagnetic environment	guidelines
HF emissions as per CISPR 11/EN55011	Group 2	The device must emit electromagnetic energy to perform its intended function. Electronic devices in the area can be affected.
HF emissions as per CISPR 11/EN55011	Class B	The PRODUCT is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage network that supplies buildings used for domestic purposes.
Harmonic emissions as per IEC 61000-3-2	Class A
Voltage fluctuations/flicker emissions as per IEC 61000-3-3	Complies

Guidance and manufacturer's declaration - electromagnetic immunity

NOTE: UT is the alternating mains voltage prior to the application of the testing level.
This PRODUCT is intended for use in the electromagnetic environment specified below. The customer or the user of the PRODUCT should make sure that it is used in such an environment.

Immunity tests IEC 60601 Test Level Compliance level			Electromagnetic environment – guidelines
Electrostatic discharge (ESD) according to IEC 61000-4-2	±8 kV contact discharge ±15 kV air discharge	±8 kV contact discharge ±15 kV air discharge	Floors should be made of wood or concrete, or covered with ceramic tiles. If the floor is covered with synthetic material, the relative air humidity must be at least 30%.
Electrical fast transient/ burst as per IEC 61000-4-4	±2 kV power lines ±1 kV for input and output lines	±2 kV power lines ±1 kV for input and output lines	The quality of the supply voltage should correspond to that of a typical business or hospital environment.
Surges according to IEC 61000-4-5	±1 kV conductor-conductor ±2 kV conductor-earth	±1 kV conductor-conductor ±2 kV conductor-earth	The quality of the supply voltage should correspond to that of a typical business or hospital environment.
Voltage drops, short-term interruptions, and fluctuations of the supply voltage according to IEC 61000-4-11	0% UT for 1/2 period (100% break-in)0% UT for 1 period (100% break-in)40% UT for 5 periods (60% break-in)70% UT for 25 periods (30% break-in)80% UT for 250 periods (20% break-in)0% UT for 250 periods (short interruption)	0% UT for 1/2 period (100% break-in)0% UT for 1 period (100% break-in)40% UT for 5 periods (60% break-in)70% UT for 25 periods (30% break-in)80% UT for 250 periods (20% break-in)0% UT for 250 periods (short interruption)	The quality of the supply voltage should correspond to that of a typical business or hospital environment. If the user of the PRODUCT requires continued operation even during power interruptions, it is recommended that the PRODUCT be supplied by an uninterruptible power source or a battery.
Magnetic field at the supply frequency (50/60 Hz) according to IEC 61000-4-8	30 A/m 30 A/m		The line-frequency magnetic fields should correspond to the characteristics of a typical installation site in a commercial or clinical environment.

Guidance and manufacturer's declaration - electromagnetic immunity
This PRODUCT is intended for use in the electromagnetic environment specified below. The customer or the user of the PRODUCT should make sure that it is used in such an environment.
Immunity Tests	Immunity Tests	Immunity Tests	Immunity Tests
HF conducted disturbances as perIEC 61000-4-6	3 Vrms150 kHz to80 MHz 3 Vrms		Portable and mobile RF communications equipment should be used no closer to any part of the PRODUCT, including cables, than the recommended separation distance calculated from the equation applicable to the transmitter frequency.Recommended protective distance: d = 1.2
HF radiated disturbances as perIEC 61000-4-3	10 V/m80 MHz to2.7 GHz	10 V/m	d = 6E d = 1 80 Mhz to 800 Mhz d = 2 800 MHz to 2.7 GHzWhere (P) is the maximum output power of the transmitter in watts (W) according to the transmitter manufacturer's specifications and d is the recommended separation distance in metres (m).The field strength of fixed RF transmitters, as determined by an electromagnetic site survey a should be less than the compliance level i each frequency range.bIn the vicinity of devices that bear the following pictorial symbol, interference is possible:((•))
COMMENT 1 At 80 MHz and 800 MHz, the higher value shall apply.COMMENT 2 This guidance may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
a The field strength of fixed transmitters such as base stations for wireless telephones and mobile land radio services, amateur radio stations, AM and FM radio and television transmitters cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed HF transmitters, an electromagnetic site survey should be considered. If the field strength measured at the location of the PRODUCT exceeds the compliance level indicated above, the PRODUCT should be monitored for its normal operation at each place of use. If abnormal performance characteristics are observed, additional measures may be necessary such as reorienting or relocating the PRODUCT.b In excess of the frequency range 150 kHz to 80 MHz, the field strength should be less than 3 V/m.

Recommended separation distances between portable and mobile HF communications equipment and the PRODUCT

The PRODUCT is intended for operation in an electromagnetic environment in which HF radiated disturbances are monitored. The customer or user of the PRODUCT can help prevent electromagnetic interferences by maintaining minimum distances between portable and mobile HF communications equipment (transmitters) and the PRODUCT as recommended below, according to the maximum output power of the communications equipment.

Nominal power of the transmitter (W)	Separation distance according to transmitter frequency (m)
	150 KHz to 80 MHz d = 1.2	80 MHz to 800 MHz d = 1,2	800 MHz to 2.7 GHz d = 2,3
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
1 1,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23

F For transmitters whose maximum output power is not listed in the table above, the distance can be determined using the equation specified in the respective column, where P is the maximum output power of the transmitter in watts (W) according to the transmitter manufacturer's specification.

COMMENT 1	An additional factor of 10/3 has been used to determine the recommended separation distance of transmitters in the frequency range of 80 MHz to 2.7 GHz in order to reduce the likelihood that a mobile/portable communication device placed inadvertently in the patient area will result in interference.
COMMENT 2	This guidance may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

12. CE marking and declaration of conformity

ADE products are manufactured to the latest technical standards and with a long service life according to European standards and directives for worldwide products.

CE

Declaration of conformity by the manufacturer

ADE hereby declares under its sole responsibility that the M118600 und M118600-01 electronic baby scale complies with the directives 93/42/EEC, 2014/30/EU, 2014/35/EU, 2014/53/EU and 2011/65/EU.

The declaration will lose its validity if any modification is made to the device without our approval. The full text of the EU declaration of conformity is available at the following Internet address: www.ade-germany.de/DoC

Hamburg, April 2020

ADE Germany GmbH

13. Contact information of the manufacturer

Manufacturer: ADE Germany GmbH

Symbole Signification Symbole Signification
