Product type	1D Wireless Barcode Scanner
Brand	Approx
Model	appLS18I
Dimensions (scanner)	185 x 75 x 95 mm
Dimensions (base)	142 x 105 x 70 mm
Weight (estimated)	150 g
Power supply	5 V DC via USB, internal rechargeable battery
Interface	USB, 2.4 GHz (dongle), Bluetooth HID/SPP/BLE
Supported symbologies	UPC-A/E, EAN-8/13, Code 128/39/93/11/32, Interleaved 2 of 5, Codabar, UCC/EAN 128, Plessey, MSI, RSS, Pharmacode, IATA 2 of 5
Depth of field (UPC/EAN 15 mil)	35 - 310 mm
Scan angle	Rotation ±360°, tilt ±40°, skew ±40°
Operating consumption	200 mA
Standby consumption	24 mA
Operating temperature	0 °C to +50 °C
Storage temperature	-40 °C to +70 °C
Operating humidity	5 % to 95 % (non-condensing)
Light indicators	Red LED (charging/battery), blue (wireless connection), green (pairing)
Audible signal	Buzzer for power, reading, pairing, error
Configuration functions	Via configuration barcodes
Factory reset	Via dedicated barcode
System compatibility	Windows XP/7/8/10, Android, iOS
Maintenance	Clean with a soft dry cloth
Safety	Do not open, avoid liquids, do not crush the cable
Recycling	Follow regulations, remove battery at end of life

Frequently Asked Questions - appLS18I Approx

How to connect the scanner to an Android phone via Bluetooth?

Turn on the scanner and hold the button for 8 seconds to enter Bluetooth HID pairing mode. Enable Bluetooth on your phone, search for 'Barcode Scanner HID' and connect. A beep and a steady blue light confirm the connection.

What to do if the scanner does not scan some barcodes?

Some rare barcodes are disabled by default. You need to enable the corresponding type via a configuration code. Contact support if you don't know the type.

How to restore factory settings?

Scan the factory reset barcode provided in the manual. After scanning, the scanner returns to its initial settings.

What do the different lights mean?

Steady red = charging; red off = charged; flashing red = low or missing battery. Steady blue = wireless connection established. Flashing green = pairing in 2.4G mode. Alternating green and blue flashing = HID pairing. Synchronous = BLE pairing or update.

How to know if the battery is low?

The scanner emits five short beeps and stops scanning. The red light also flashes. Recharge the scanner via the USB base.

What is the difference between 2.4GHz mode and Bluetooth?

2.4GHz mode uses the included dongle for a wireless connection with a PC. Bluetooth allows a direct connection with smartphones, tablets, or Bluetooth-enabled PCs.

The scanner no longer connects, how to reconnect it?

Remove the 'Barcode Scanner HID' device from your device's Bluetooth list, then pair again as initially.

Can I use the scanner with a PC without Bluetooth?

Yes, use 2.4GHz mode by connecting the dongle (base) to the PC via USB. The scanner pairs automatically after scanning the '2.4G mode' code.

How to clean the scanner?

Use a soft dry cloth to clean the exterior. Do not use liquid or abrasive products.

What to do if the scanner does not turn on?

Make sure the battery is charged. Connect the base to a power source via USB and place the scanner on the base. If the red light does not turn on, check the connection or contact support.

USER MANUAL appLS18I Approx

Industrial Barcode Scanner

appLS18I

appLS18 User Guide

Introducción

Code39 60mm-120mm (5mil)

Barcode image with vertical black and white stripes, no visible text or symbols

Turn on pairing settings

Barcode image with vertical black and white stripes, no visible text or symbols

Bluetooth HID mode

Black and white barcode image with vertical lines and a central dot

2.4G mode

Black and white barcode image with vertical stripes

Factory default setting

Black and white barcode image with vertical lines and a central bar

Battery display

Our series scanner is developed to meet the increasing needs of 1D barcode identification. Before using the barcode reader, please read the instructions carefully.

Performance index

Scan performance

• Light Source: Visible red light, 625±10nm
• Supported Symbologies: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Code 32, Interleaved 2 of 5, Codabar (NW-7), UCC/EAN 128, Plessey, MSI, RSS, Pharmacode, IATA 2 of 5, etc.

- Depth of Field:

UPC/EAN

35mm-310mm

(15mil)

Code39 60mm-120mm (5mil)

• Print Contrast: 20%
• Scan Angle: corner 360^ , pitch angle ± 40^ , skew tolerance ± 40^

Machinery / Electrical parameter

• Communication interface: USB
• Appearance size: 185 (W)× 75 (D)× 95 (H) mm
• Base size: 142 (W) x 105 (D) x 70 (H) mm
• Working Voltage: DC 5 V
• Working current: 200mA
• Standby current: 24mA

Environment parameter

• Working Temperature: 0°C \~ +50°C
• Storage Temperature: -40°C \~ +70°C
• Working Humidity: 5%\~95% (no condensation)
• Ambient light: Normal indoor light source

Outlook

External view

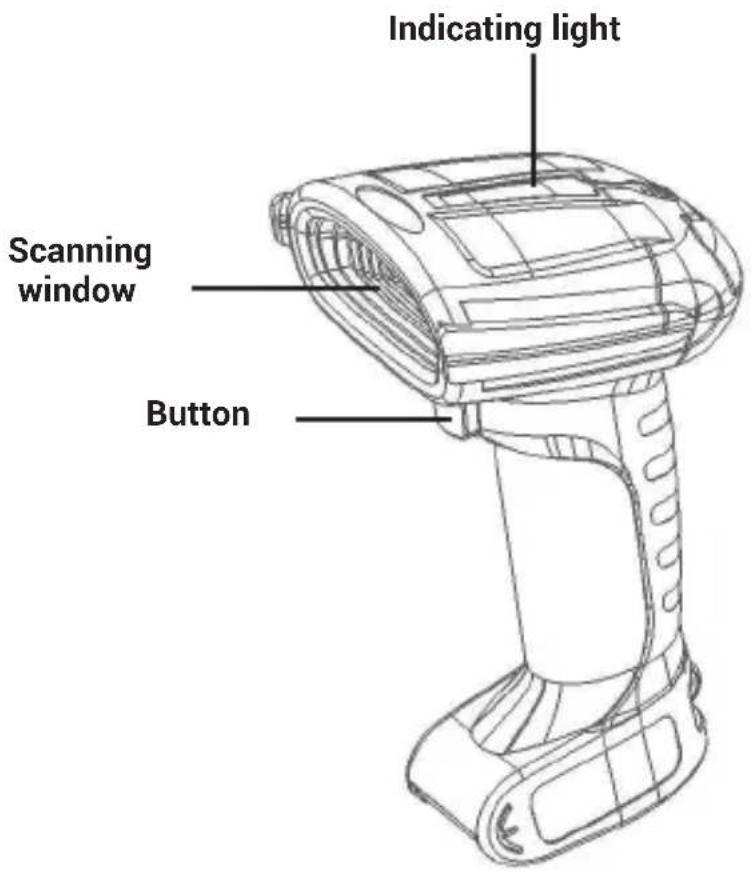

Indicating light Scanning window Button

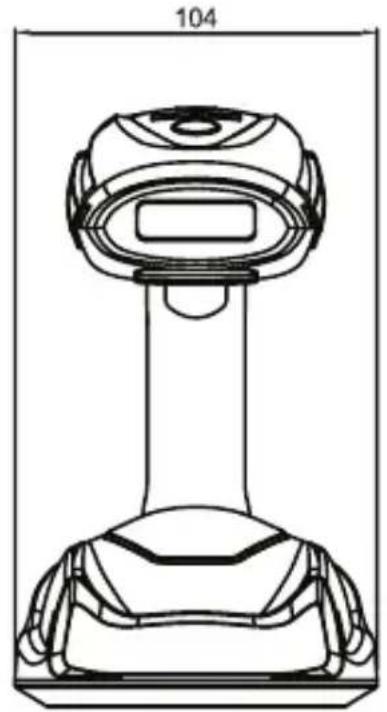

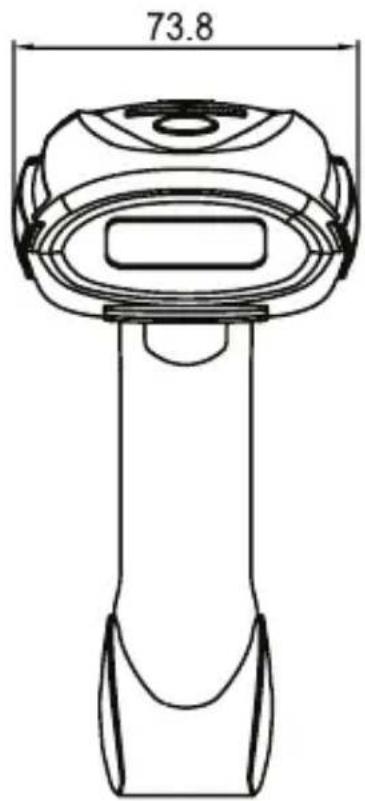

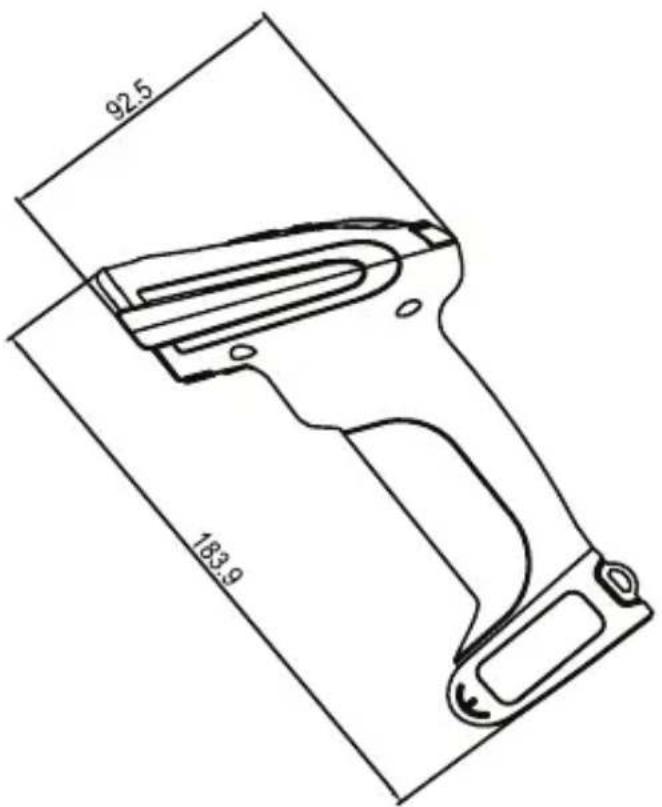

Dimention (mm)

92.5 183.9

73.8

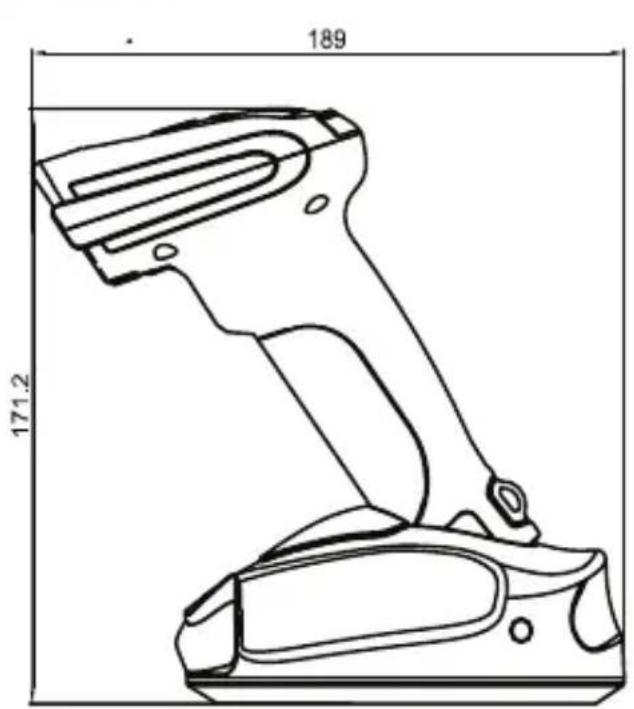

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a device with a top-mounted sensor or scanner (no text or symbols)

How to Use the Barcode Scanner

A. When using 2.4G feature, you can match desktop PCs or PC terminals that do not support Bluetooth. Scanner supports systems such as XP, Win7, Win8, Win10, etc.

B. When using Bluetooth, you can match Android, IOS mobile phones, or PC terminals with bluetooth capabilities.

Barcode menu

This model barcode scanner is designed to change settings by reading some special barcode, which we will give you a detailed introduction and show you all the barcodes for the corresponding setting in this section.

The greatest advantage of this setting method is direct, intelligible and user friendly.

Setting barcodes

Bluetooth HID mode

Match with Android, iOS mobile phone or PC terminal with Bluetooth function (optional).

Method 1: Manually enter the Bluetooth HID mode

A: Start the scanner, press and hold for 8 seconds, enter the Bluetooth HID pairing mode, the blue and green lights flash alternately.

B: Turn on the Bluetooth in the device, search for Barcode Scanner HID.

C: Click on the Bluetooth device to enter the pairing status.

D: The pairing succeeds "Di", the blue light is always on, in Bluetooth mode.

Method 2: Scan into Bluetooth HID mode

A: Start scanner, scanning "entering code".

Barcode image with vertical black and white stripes on both sides

Turn on pairing settings

B: Scan the code of "entering bluetooth HID".

Barcode image with vertical black and white stripes on both sides

Bluetooth HID mode

C: Open the bluetooth in the device, search "Bar code Scanner HID".
D: Click this bluetooth device, enter pairing.
E: Pair successfully, "Di" one sound, and green light is on.

2.4G mode (with pairing devices without Bluetooth, support XP/WIN7/WIN8/WIN10)

Start scanner scanning code entering 2.4G mode.

Barcode image with vertical black and white stripes, no visible text or symbols

2.4G mode

After plug the receiver, you will hear "Di" sound, pairing successfully, green light is on.

Set default parameters

Two vertical barcode patterns: one with black and white stripes, the other with black and white stripes

Enter setting mode Exit setting mode

Two identical barcode patterns, one with vertical stripes and the other with horizontal stripes.

Display version information Restore default settings

English

Battery level display

Barcode image with vertical black and white stripes on both sides

Battery display

Sleep time setting
Select sleep time interval barcode

Black and white barcode image with vertical stripes

Sleep time 30s

Image of a barcode with vertical grayscale bars, no visible text or symbols

Sleep time 60s

Black and white barcode image with vertical stripes, no text or symbols visible

Sleep time 2 mins

Abstract grayscale vertical bar pattern with no text or symbols

Sleep time 5 mins

Black and white barcode image with vertical stripes

Sleep time 10 mins

Black and white barcode image with vertical lines and a central dot

Sleep time 30 mins

Black and white barcode image with vertical stripes

No sleep

Barcode image with vertical black and white stripes on a light background

Sleep mode at on

Working mode setting

Barcode image with vertical grayscale bars, no visible text or symbols beyond the pattern

Normal mode

Black and white barcode image with vertical stripes

Black and white barcode image with vertical stripes, no visible text or symbols

Black and white barcode image with vertical stripes

Upload the data
Show total count

Black and white barcode image with vertical stripes

Clear data

Language setting

Choose the keyboard language you need

English (American)

German

French

Spanish

Italian

Finnish

Danish

Norwegian

Sound settings

Select sound and volume on/off adjustment barcode

Low volume Medium volume

Black and white barcode image with vertical lines on both sides

High Volume

English

Vibration setting

Two identical barcode patterns, one with vertical stripes and the other with solid black bars

Activate vibration Deactivate vibration

Reading mode

Two vertical barcode patterns, one black and one white with vertical stripes

Manual mode Continuous mode

Black and white barcode image with vertical lines and a small number '1' at the bottom

Autoflash mode

Data editing setting

Two vertical barcode bars, one with black and white stripes on both sides, likely representing a simplified barcode or data.

Add Enter

Two identical barcode patterns, each with vertical black and white stripes on a white background.

Add Enter and line feed Add line feed

Barcode image with vertical black and white stripes on both sides

Cancel terminator

Prefix and suffix setting

Two vertical barcode bars, one with black and white stripes and the other with black and white stripes.

Add prefix

Black and white barcode image with vertical stripes

Remove

Add suffix

Remove

Some parameters barcodes

O

1

2

3

4

5

6

7

8

9

A

B

LED light

Basic function description of the indicator light:

• Steady red light indicates charging, red light off indicates full or no wired charging, red light flashing indicates no battery installed or the battery is not installed well.
• The blue light is steady on, indicating that the wireless or wired connection is normal.
• Green light flashing indicates pairing status in 2.4G mode.
• Green light flashing quickly to indicate the pairing status in SPP mode.
• Green and blue lights flash alternately to indicate pairing status in HID mode.
• Green and blue light flashing synchronously indicates pairing status in BLE mode.
• Green and blue light synchronously flashing indicates entering upgrade status.

Buzzer

• One long sound (first lower then high frequency) indicates that power on means power on.
• One long sound (first high then low frequency) indicates that power on means power off.
• One short sound (low frequency) indicates that the normal barcode is read, or the pairing is successful, or the wireless connection is successful.
• One short sound (first lower then high frequency) indicates that scanned data is stored in the storage area.
• One short sound (first high then low frequency) Indicates that the setup code was scanned.
• Three short sounds (low frequency) indicates that the wireless transmission failed or the storage is full.
• Five short tones (low frequency) and stop scanning indicates that the battery is power off.
• Two short tones (low frequency) indicates wireless disconnection.
• Two short tones (high frequency) indicates that the scanned setup code is not working.

Common problem

How to do if I can't connect to my Android phone bluetooth?

Make sure that the phone is android 3.0 or above and you can connect directly.

Why we can't scan for some barcodes ?

Because some of the less commonly used barcodes are turned off by default at the factory, you can scan them normally by turning on the corresponding barcode settings. If you don't know the barcode type, please contact the manufacturer.

Why I can't upload barcodes to my computer or mobile phone after pairing?

A. Confirm whether the pairing is successful, the scanner LED display is blue if pairing bluetooth successfully
B. Whether the counting function has been enabled (the bar code will not be uploaded automatically in the inventory mode), you need to manually scan the corresponding barcode upload).
C. Change to normal mode, you can upload while scanning.

How to do if the computer or mobile phone cannot find the scanner bluetooth?

Make sure whether the selected communication mode is Bluetooth HID mode. Because other communication modes require related test tools, please contact the manufacturer if you need it.

The Bluetooth scanner has been connected to the phone or computer.

How do I pair it with the phone or computer again?

Delete the paired Bluetooth in the Bluetooth search interface, then re-pair the search connection.

Safety, maintenance and recycling instructions

1. Caution: Never open the device, the internal parts are danger, electrical shock.
2. Do not install this unit near water, for example, in a wet basement, in an unprotected outdoor installation or in any area classified as a wet.
3. Do not insert objects of any kind into this unit through openings as they may touch voltage points and short out parts that could result in fire or electric shock.
4. Do not spill any liquid on the unit. Danger of explosion!
5. Do not crush power cables, danger of short circuit!
6. Always connect to the manufacturer's recommended tension.
7. Clean the product with a soft and dry cloth.
8. Follow local regulations for disposing of the product.

Recycled

AEE REI-RAEE 5548 In this manual, the container (bin) symbol indicates that the product is subject to the European directive 2002/96 / EC, electrical and electronic products, batteries, and batteries and other acces-

English

sories must necessarily be subject to a selective collection.

At the end of the life of the device, make use of the recycling bins. This gesture Will help reduce the health risks and preserve the environment. Municipalities and distributors, Will provide essential details on recycling your old device. If this device carries an internal battery, it must be remo-

ved and deposited separately for proper management.

Français

Introduction

Code39 60mm-120mm (5mil)

Technical line drawing of a mechanical device with dimension annotations (171.2 and 189), no readable text or symbols beyond measurement markers.

Technical line drawing of a device with a top-mounted sensor or scanner (no text or symbols)

Barcode image with vertical black and white stripes on white background

Turn on pairing settings

B: Scannez le code "enter Bluetooth HID mode".

Barcode image with vertical black and white stripes on both sides

Bluetooth HID mode

Black and white barcode image with vertical lines and a central dot

2.4G mode

Black and white barcode image with vertical stripes

Factory default setting

Français

Black and white barcode image with vertical stripes

Battery display

Code39 60mm-120mm (5mil)

Technical line drawing of a mechanical device with dimension annotations (171.2 and 189), no readable text or symbols beyond measurement markers.

Technical line drawing of a device with a top-mounted sensor or scanner (no text or symbols)

Barcode image with vertical black and white stripes on white background

Turn on pairing settings

B: Escaneie o código "enter bluetooth HID mode".

Barcode image with vertical black and white stripes on both sides

Bluetooth HID mode

Black and white barcode image with vertical lines and a central dot

2.4G mode

Black and white barcode image with vertical stripes

Factory default setting

Black and white barcode image with vertical stripes

Battery display
