Brand	Craftsman
Model	CMCE040
Product Type	Cordless Soldering Iron
Power Source	18V Li-ion Battery (not included)
Rated Voltage	18 V
Temperature Range	200 °C to 480 °C (400 °F to 900 °F)
Temperature Adjustment	On/Off dial with temperature control
Light Indicator	Red (heating), Green (temperature reached), Flashing Red (auto shut-off)
Auto Shut-off	After 30 minutes of inactivity
Compatible Tip Diameter	6.35 mm (0.25 inch)
Cable Length	Cordless
Weight (approx.)	0.5 kg (with battery)
Dimensions (approx.)	20 x 15 x 8 cm (stand included)
Intended Use	Soldering of circuits, jewelry, stained glass, crafts - for household use only
Maintenance	Clean hot tip with a damp sponge; dust vents with compressed air
Safety	Do not touch hot tip; work in a ventilated area; wear safety glasses
Spare Parts	Replacement tips available (6.35 mm diameter)
Warranty	3 years (tool), 2 years (battery), 90 days satisfaction
Included Accessories	Pen stand, base, sponge tray, sponge

Frequently Asked Questions - CMCE040 Craftsman

How to turn on the CMCE040 soldering iron?

Ensure the battery is installed and charged. Place the pen in its stand, then press the temperature on/off dial. The red light indicates heating; it turns green when the temperature is reached.

What is the temperature range of the Craftsman CMCE040?

The adjustable temperature ranges from 200°C (low setting) to 480°C (high setting). Use the dial to adjust according to your work.

What type of battery to use with this soldering iron?

Use only compatible Craftsman 18V Li-ion batteries. The battery is not included.

How to clean the soldering iron tip?

While the tip is still hot, gently wipe it against the provided damp sponge. For deep cleaning, use a tip cleaner.

Can I use tips other than those recommended?

Only use 6.35 mm diameter tips recommended by Craftsman. Smaller tips may not heat properly or may fall off.

What to do if the light does not turn on?

Check that the battery is fully inserted and fully charged. If the problem persists, the battery or charger may be defective; contact an authorized service center.

The soldering iron turns off by itself, is that normal?

Yes, the tool has an auto shut-off after 30 minutes of inactivity to save battery and prevent accidents. Press the dial to turn it back on.

Can I use this soldering iron for stained glass?

Yes, it is suitable for stained glass work. Make sure to work on a heat-resistant surface and use solder with flux.

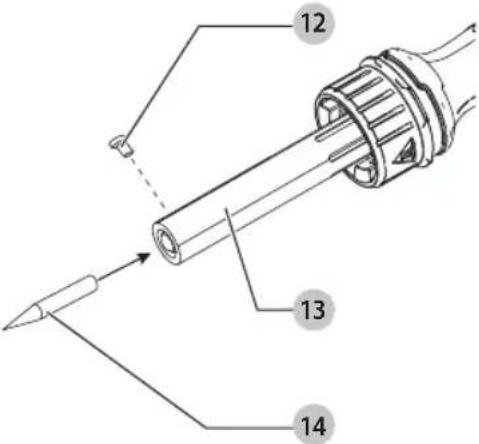

How to replace the soldering tip?

Let the tool cool down for at least 30 minutes, remove the battery, then loosen the barrel screw. Remove the old tip, insert the new one fully, and tighten the screw.

Where can I find spare parts or accessories?

Craftsman accessories are available at local retailers or authorized service centers. You can also call 1-888-331-4569 for assistance.

USER MANUAL CMCE040 Craftsman

Technical diagram of a CRUER EAN device with numbered components and internal wiring, including a magnified inset showing close-up details.

Components

1 Pen holder
2 Soldering iron base
3 Battery pack (not included)
4 Battery pack release button
5 Indicator light
6 On/Off Temperature Control Dial

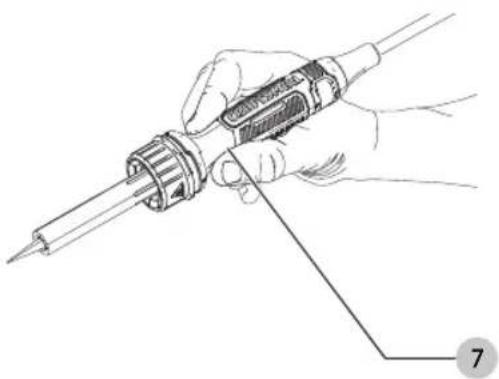

7 Soldering iron pen
8 Sponge tray
9 Sponge

Composants

Diagram of a mechanical device with numbered components and wiring connections

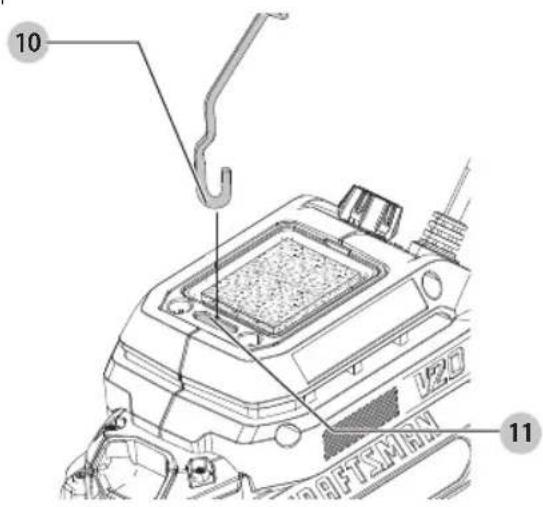

Fig. F

10 120 11 PAFTSMAN

Fig. G

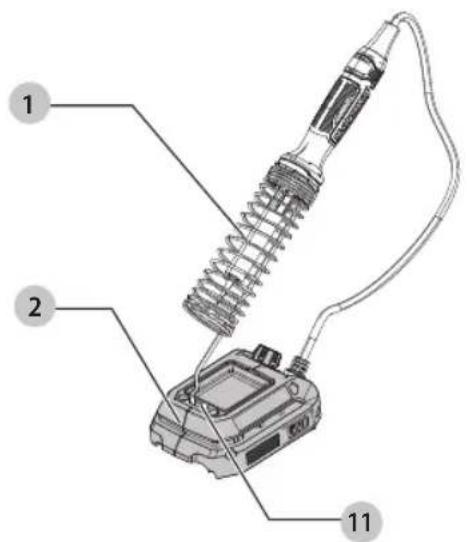

Diagram of a soldering iron with labeled parts including coiled spring and terminal connections

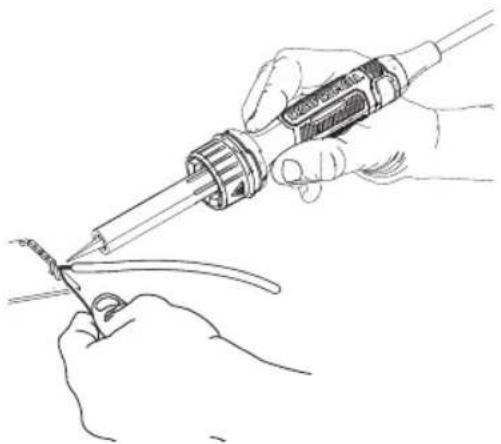

Fig. H	Fig. I
Fig.J

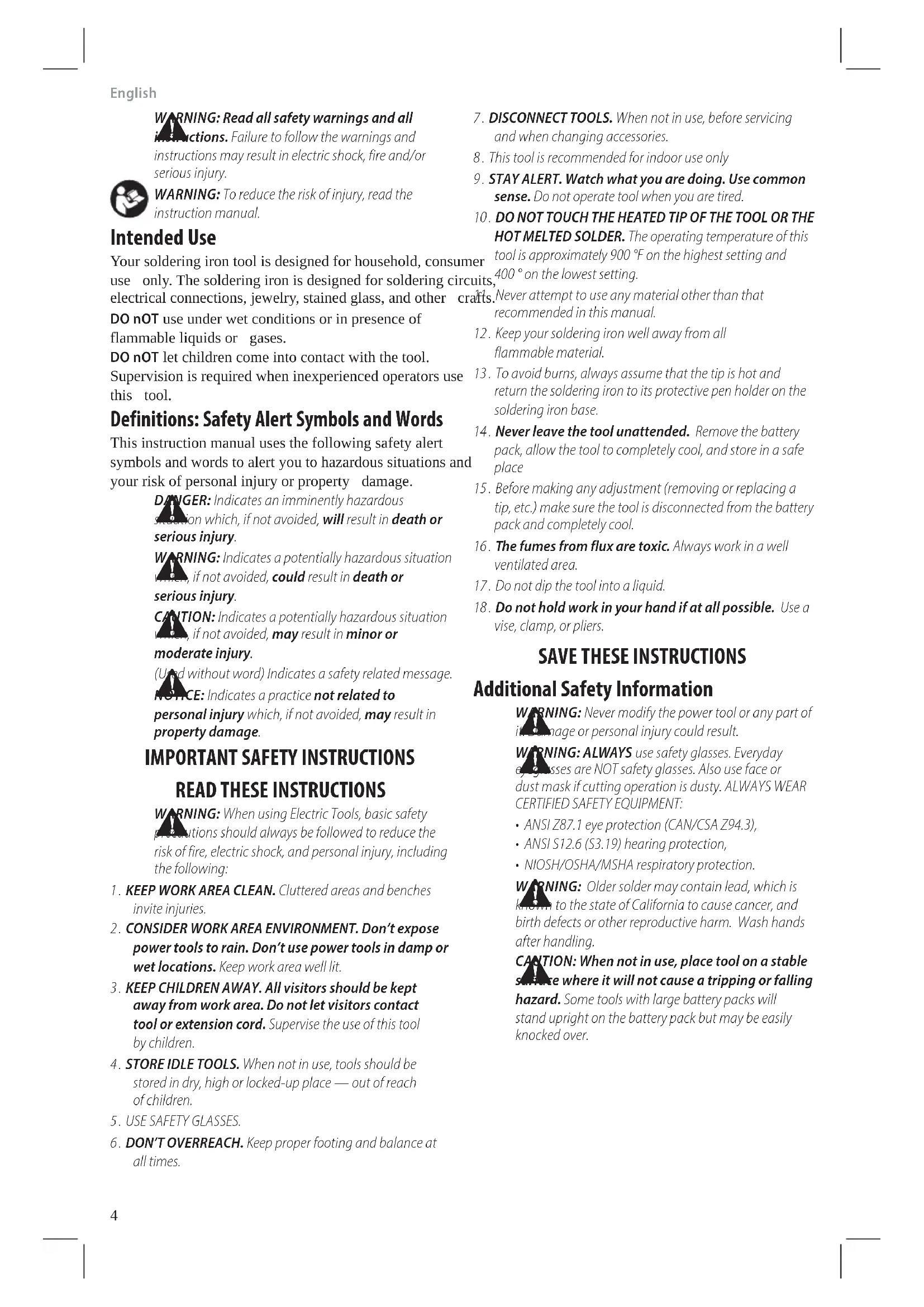

English

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

Intended Use

Your soldering iron tool is designed for household, consumer use only. The soldering iron is designed for soldering circuits electrical connections, jewelry, stained glass, and other crafts

DO nOT use under wet conditions or in presence of flammable liquids or gases.

DO nOT let children come into contact with the tool.

Supervision is required when inexperienced operators use this tool.

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation when, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

IMPORTANT SAFETY INSTRUCTIONS READ THESE INSTRUCTIONS

WARNING: When using Electric Tools, basic safety presentations should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:

1. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.

2. CONSIDER WORK AREA ENVIRONMENT. Don't expose power tools to rain. Don't use power tools in damp or wet locations. Keep work area well lit.

3. KEEP CHILDREN AWAY. All visitors should be kept away from work area. Do not let visitors contact tool or extension cord. Supervise the use of this tool by children.

4. STORE IDLE TOOLS. When not in use, tools should be stored in dry, high or locked-up place — out of reach of children.

5. USE SAFETY GLASSES.

6. DON'T OVERREACH. Keep proper footing and balance at all times.

7. DISCONNECT TOOLS. When not in use, before servicing and when changing accessories.

8. This tool is recommended for indoor use only

9. STAY ALERT. Watch what you are doing. Use common sense. Do not operate tool when you are tired.

10. DO NOT TOUCH THE HEATED TIP OF THE TOOL OR THE HOT MELTED SOLDER. The operating temperature of this tool is approximately 900 °F on the highest setting and 400 °on the lowest setting.

afts. Never attempt to use any material other than that recommended in this manual.

1. Keep your soldering iron well away from all flammable material.

2. To avoid burns, always assume that the tip is hot and return the soldering iron to its protective pen holder on the soldering iron base.

3. Never leave the tool unattended. Remove the battery pack, allow the tool to completely cool, and store in a safe place

4. Before making any adjustment (removing or replacing a tip, etc.) make sure the tool is disconnected from the battery pack and completely cool.

5. The fumes from flux are toxic. Always work in a well ventilated area.

6. Do not dip the tool into a liquid.

7. Do not hold work in your hand if at all possible. Use a vise, clamp, or pliers.

SAVE THESE INSTRUCTIONS

Additional Safety Information

WARNING: Never modify the power tool or any part of its damage or personal injury could result.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),

• ANSI S12.6 (S3.19) hearing protection,

• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Older solder may contain lead, which is known to the state of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

CAUTION: When not in use, place tool on a stable surface where it will not cause a tripping or falling

hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz.....hertz

min......minutes

- - - - or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

☐...... Class II Construction (double insulated)

n_0 no load speed

n......rated speed

PSI..... pounds per square inch

± earthing terminal

⚠️ ......safety alert symbol

▲......visible radiation do not stare into the light

E....wearrespiratory protection

wear eye protection

O....wearhearing protection

readall documentation

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog number and voltage.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

- Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.

- NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries and chargers.

- Charge the battery packs only in CRAFTSMAN chargers.

• DO NOT splash or immerse in water or other liquids.

• DO NOT allow water or any liquid to enter battery pack.

- Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104 °F (40 °C) (such as outside sheds or metal

buildings in summer). For best life store battery packs in a cool, dry location.

NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.
• Battery liquid may be flammable if exposed to spark or flame.
• Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center for recycling.

Storage Recommendations

The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of the charger.

Battery Pack Cleaning Instructions

Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Fuel Gauge Battery Packs (Fig. B)

Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product components, temperature, and end-user application.

Transportation

WARNING: Fire hazard. Do not store, carry, or transport the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Li-ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry-on baggage.

The RBRC® Seal

Please take your spent battery packs to an authorized CRAFTSMAN service center or to your local retailer for recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org, or call the toll free number in the RBRC® Seal.

RBRC ^® is a registered trademark of Call 2 Recycle, Inc.

Important Safety Instructions for All

Battery Chargers

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN chargers and battery packs are specifically designed to work together.
  • These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable battery packs. Charging other types of battery packs may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock or electrocution.
• Do not expose the charger to rain or snow.
• Do not allow water or any liquid to enter charger.
• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.
• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.
• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the heavier the cord and thus the greater its capacity. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on total length of all extension cords plugged together, and nameplate ampere rating. If in doubt, use the next heavier gauge.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120V 25 (7.6)		50 (15.2) 100	(30.5) 150 (45.7)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18	16 16 14
6 10 18	16 14 12
10 12 16	16 14 12
12 16 14	12 Not Recommended

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
• Do not operate the charger with a damaged cord or plug. Have them replaced immediately.
• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.
• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.
• Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities and ventilation slots.
  • Always unplug the charger from the power supply when there is no battery pack in the cavity.

Charging a Battery (Fig. C, D)

1. Plug the charger into an appropriate outlet.
2. Insert and fully seat battery pack. Green charging light(s) will continuously blink while charging.
3. Charging is complete when the green charging light(s) remain(s) continuously ON. Battery pack can be left in charger or removed.

WARNING: Only charge batteries in air temperature over 40 °F (4.5 °C) and below 104 °F (+40 °C).

1. Charger will not charge a faulty battery pack, which may be indicated by the charging light(s) staying OFF. Take charger and battery pack to an authorized service center

if light(s) stay(s) OFF.

NOTE: Refer to label near charging light(s) on charger for blink patterns.

NOTE: To remove the battery pack, some chargers require the battery pack release button to be pressed.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.

A cold battery pack may charge at a slower rate than a warm battery pack.

The hot/cold pack delay will be indicated by the green light(s) continuing to blink but with the red light continuously ON. Once the battery pack has reached an appropriate temperature, the red light will turn OFF and the charger will resume the charging procedure.

Electronic Protection System

Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off and the battery pack will need to be recharged.

Important Charging Notes

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65^ F – 75^ F ( 18^ C – 24^ C). DO NOT charge when the battery pack is below +40^ F (+4.5 °C), or above +104^ F (+40 °C). This is important and will prevent serious damage to the battery pack.
2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.
3. If the battery pack does not charge properly:
   a. Check operation of receptacle by plugging in a lamp or other appliance;
   b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;
   c. If charging problems persist, take the tool, battery pack and charger to your local service center.
4. You may charge a partially used pack whenever you desire with no adverse effect on the battery pack.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Wall Mounting

Some CRAFTSMAN chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm) long, with a screw head diameter of 0.28–0.35" (7–9 mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.

NOTE: Do not attempt to mount CMCB101 charger under a bench or table.

NOTE: Only mount CMCB101 charger with the charging lights pointed upward toward the ceiling.

VersaTrack™

WARNING: Do not charge batteries while charger is hung on Trackwall.

CRAFTSMAN chargers, except the CMCB101, can be stored on CRAFTSMAN VersaTrack™ Trackwall. Hooks and accessories are sold separately. Please refer to the VersaTrack™ Trackwall accessory sheet for further information.

NOTE: The CMCB101 charger is not CRAFTSMAN VersaTrack™ Trackwall compatible.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Pen Holder (Fig. F, G)

Assemble the pen holder 1 onto the soldering iron base 2 by sliding the hook 10 of the wire holder into the cavity 11.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Installing and Removing the Battery Pack (Fig. E)

WARNING: Ensure the tool/appliance is in the off package before inserting the battery pack.

NOTE: For best results, make sure your battery pack is fully charged.

English

To install the battery pack 3 into the soldering iron base 2, align the battery pack with the rails inside the tool's base and slide it into the base until the battery pack is firmly seated in the tool and ensure that it does not disengage.

To remove the battery pack from the tool, press the release button 4 and firmly pull the battery pack out of the tool base. Insert it into the charger as described in the charger section of this manual.

Turning the Unit On (Fig. A)

WARNING: Be aware that this product may ignite material. Where this is a concern, test a piece of scrap material. Also protect what is under the workpiece with a heat resistant material to avoid heat damage to a table.

NOTE: The soldering iron pen 7 must be in the pen holder 1 before the user presses the On/Off temperature control dial to turn on the tool.

Press the On/Off temperature control dial 6 to turn on the soldering iron. The indicator light 5 will illuminate.

nOTE: If the indicator light does not fully illuminate make sure the battery is fully charged.

Indicator Light Color Definition

Red The soldering iron is heating up.

Green The soldering iron has reached selected temperature

Flashing Red The soldering iron is shutting down

Automatic Shutdown/Turning the Unit Off

To turn off the unit push the On/Off temperature control dial 6.

After 30 minutes of operation, the unit will automatically power down and the Indicator light 5 will flash red. This preserves the tip and prevents powering an unattended tool. To restore power, press the control dial 6.

Proper Hand Position (Fig. H)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Grip the the soldering iron pen 7 between your thumb and forefinger like a pencil.

Usage (Fig. A, H, I)

1. Insure that the material in the vicinity of where soldering will occur is heat resistant and will not be harmed by any excess solder. For larger pieces, insure that your workpiece is resting on a heat resistant surface to avoid heat damage to a table. etc..

2. Hold the soldering tip against the larger workpiece near the joint area. The objective is to heat the two work pieces until they are hot enough to melt the solder. In stained glass work, lightly touch the soldering tip to the copper foiled seam.

3. Hold the solder against the workpiece near the joint, but not touching the soldering iron tip. When the workpiece is hot enough, the solder will flow into the joint.

4. After soldering, return the pen to the pen holder 1. Press firmly to make sure it is secure.
5. Press the on/off temperature control dial 6 to turn the soldering iron off. Indicator light 5 will flash red for 10 minutes and then turn off.
6. Clean the soldering tip as described in the Maintenance section.
7. Always allow soldering iron to completely cool before storing the tool.

NOTE: The process of "tinning" the soldering tip is helpful to insure a good soldering joint. A tinned tip has a thin layer of solder applied to it and is free of solder flux. "Flux" is the chemical contained in most solder wire which helps to clean the area about to be joined. When purchasing solder check to see that it contains flux or else apply flux to the joint area as directed.

Replacing Soldering Tips (Fig. E, J)

WARNING: ALWAYS allow the soldering tip to cool for a minimum of 30 minutes before removing the tip. Touching a hot soldering tip can result in serious personal injury.

1. Remove the battery pack 3.
2. Loosen screw 12 on barrel 13 of soldering iron pen, and pull soldering tip 14 out."
3. Insert new soldering tip 14 and fully seat it in the barrel 13. Securely tighten screw 12.

NOTE: Only use 0.25" (6.35 mm) diameter tips. Smaller diameter tips will not heat up properly and may fall out of the barrel.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Your CRAFTSMAN power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Soldering Iron Maintenance (Fig. A)

• While the tip is still hot, wipe it against the damp sponge 9 in the sponge tray 8 to remove debris.
• Keeping a clean tip is important to extend the life of the tip and will improve solder melting and flow during use.

Cleaning

WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials

used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Accessories

WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569.

Repairs

The charger and battery pack are not serviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
• Register online at www.craftsman.com/registration

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This

warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

2 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS

CMCB201, CMCB2011, CMCB2015

3 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS

CMCB202, CMCB204, CMCB205, CMCB206, CMCB209

NOTE: Battery warranty voided if the battery pack is tampered with in any way. CRAFTSMAN is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted by law.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

English

CMCB201, CMCB2011, CMCB2015

CONTRAT D'ENTRETIEN GRATUIT DE TROIS ANS SUR LES BLOC-PILES CRAFTSMAN

CMCB202, CMCB204, CMCB205, CMCB206, CMCB209

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

CMCB201, CMCB2011, CMCB2015

CMCB202, CMCB204, CMCB205, CMCB206, CMCB209

* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

WING: Use of any other battery packs may create a risk of injury and fire.
