Brand	RYOBI
Model	Max Power RY36LMM46A
Product type	Cordless electric lawn mower (battery powered)
Cutting width	46 cm
Power source	36 V Lithium-ion battery (compatible with Ryobi ONE+)
Runtime	Varies depending on grass height (approx. 30-45 min with 4 Ah battery)
Cutting height adjustment	Central, multiple positions (approx. 25-75 mm)

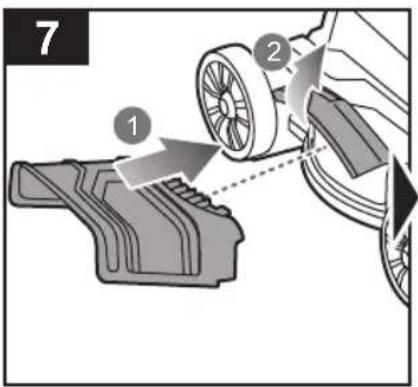

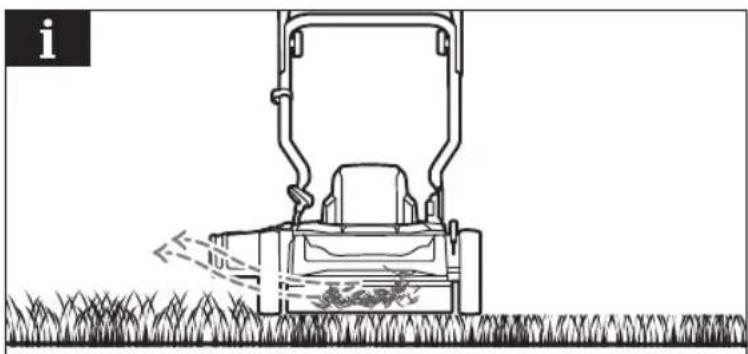

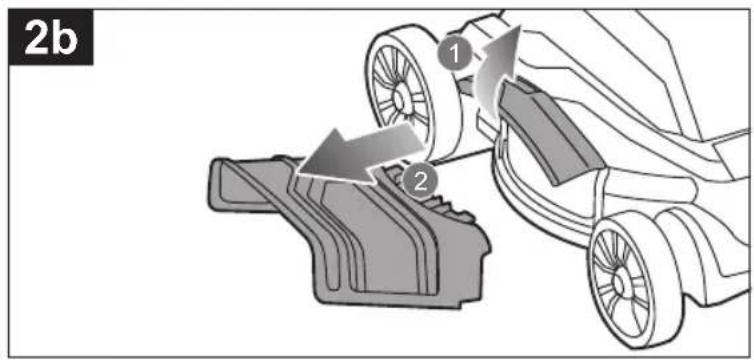

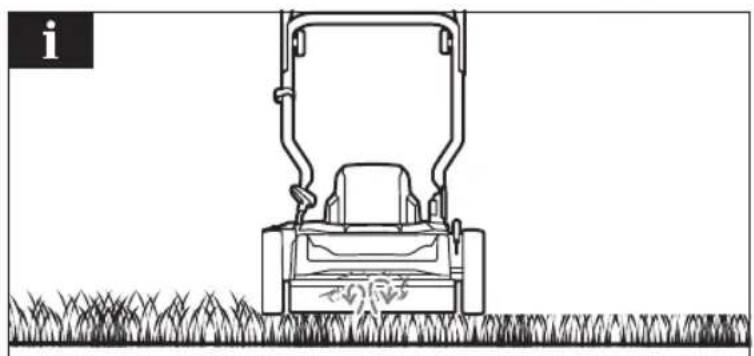

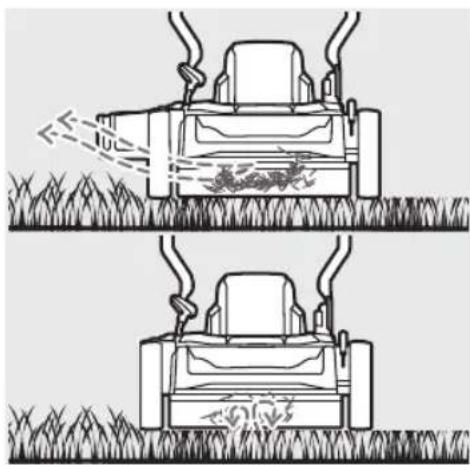

Main functions	Mulching, side discharge, bagging (bag optional)

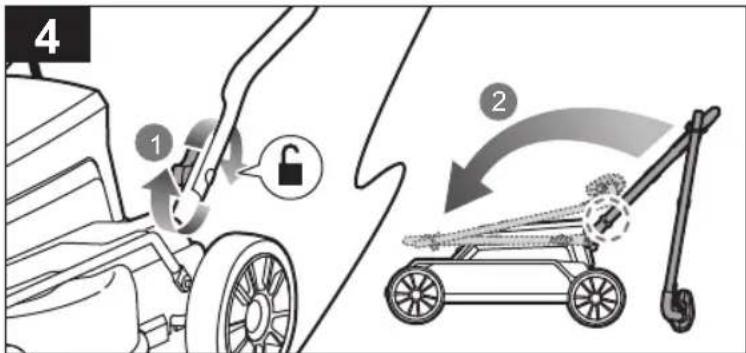

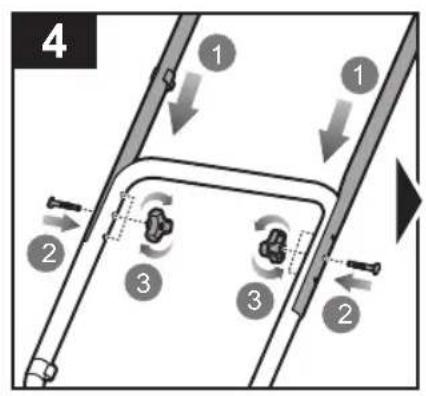

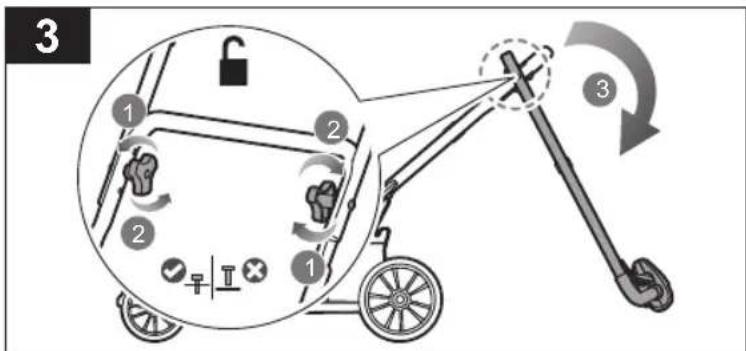

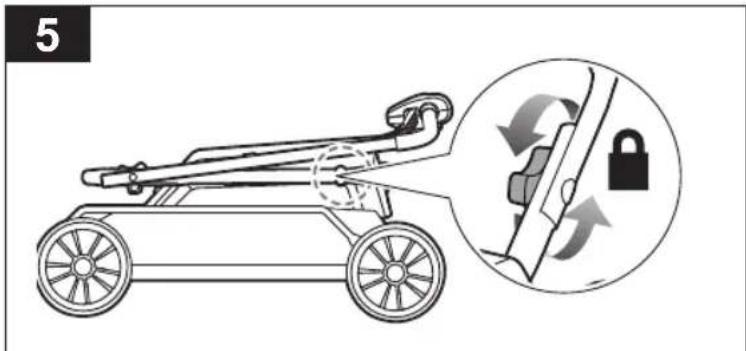

Handle	Folding for compact storage
Motor	Brushless
Sound level (guaranteed)	96 dB(A)
Weight (without battery)	Approx. 22 kg
Dimensions (L x W x H)	Approx. 140 x 46 x 105 cm
Safety	Isolation key, start button + on/off lever, automatic blade stop
Maintenance	Clean the housing after each use, check blade tightness, sharpen or replace blades if necessary
Spare parts and repairability	Parts available at authorized Ryobi dealers; repairs by authorized service center
Warranty	24 months (extendable to 36 months with online registration)
Intended use	Residential, lawn mowing on flat or moderate slopes (max 15°)

Frequently Asked Questions - Max Power RY36LMM46A RYOBI

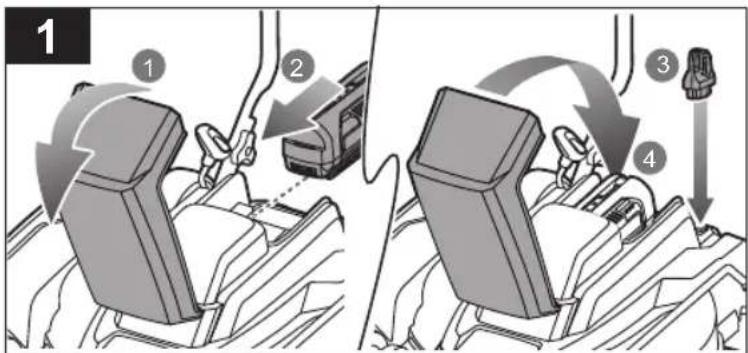

How to start the RY36LMM46A lawn mower?

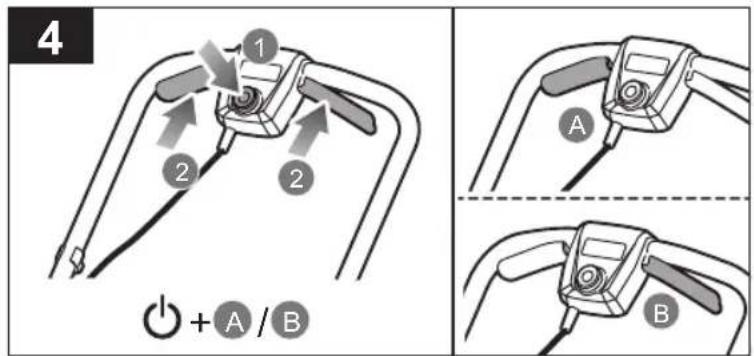

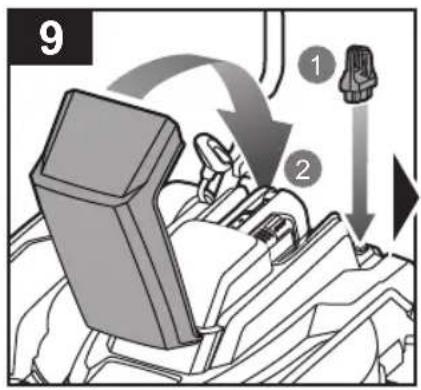

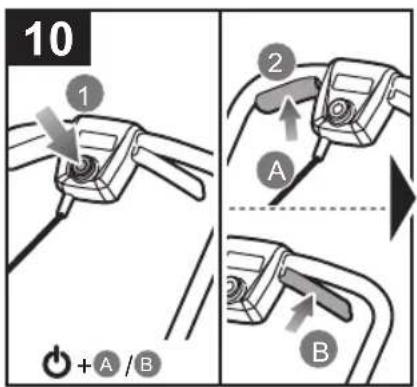

Insert the isolation key, install a charged battery, then press the start button while pressing the on/off lever towards the handle. Release the start button and hold the lever to continue mowing.

Which battery is compatible with this model?

The mower uses a 36 V Lithium-ion battery from the RYOBI ONE+ range. Lower capacity batteries (e.g., 2 Ah) will offer reduced runtime. Preferably use a 4 Ah or higher battery for a standard mowing session.

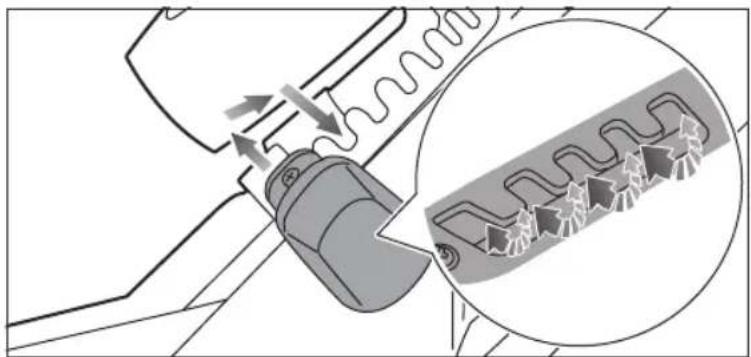

How to adjust the cutting height?

Use the cutting height adjustment lever located on top of the housing. It allows you to choose from several positions, typically from 25 mm (low cut) to 75 mm (high cut). Adjust according to your lawn condition.

What to do if the mower does not start?

Check that the isolation key is inserted properly and that the battery is charged and correctly engaged. Also ensure that the safety lever (button + lever) is operated correctly. If the problem persists, the battery may be too hot: let it cool down.

What is the battery runtime?

The runtime depends on the battery capacity, cutting height, and grass density. With a 4 Ah battery, expect approx. 30 to 45 minutes for normal mowing. For tall and dense grass, runtime will be reduced.

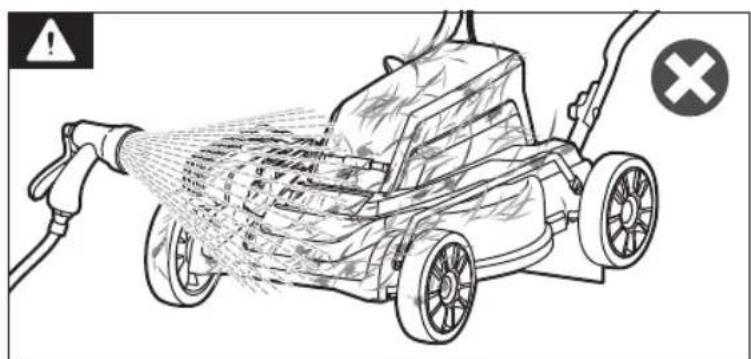

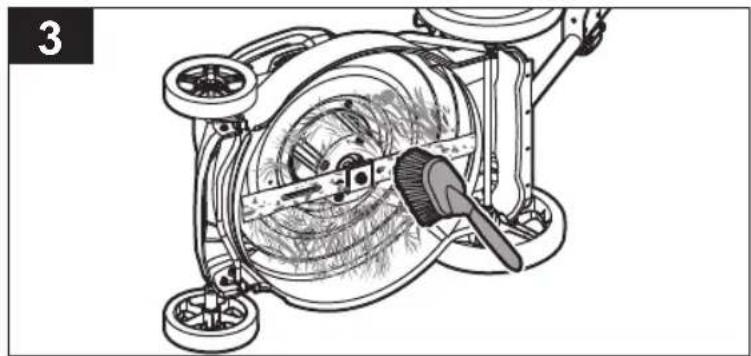

How to clean the mower after use?

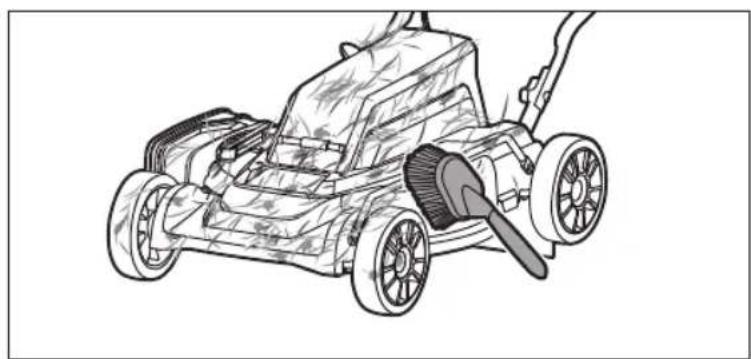

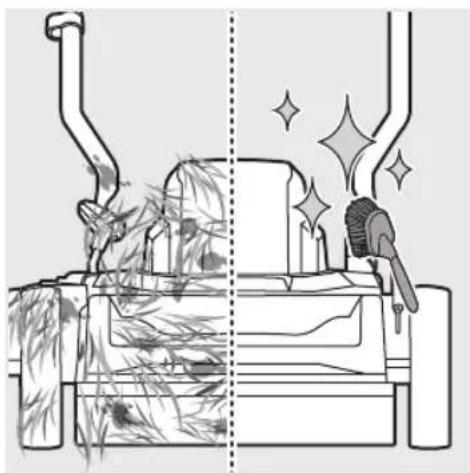

Stop the mower, remove the isolation key and battery. Use a soft, dry cloth to clean the plastic parts. Tip the mower on its side (carefully) to clean the housing and blade. Wear thick gloves to avoid cuts.

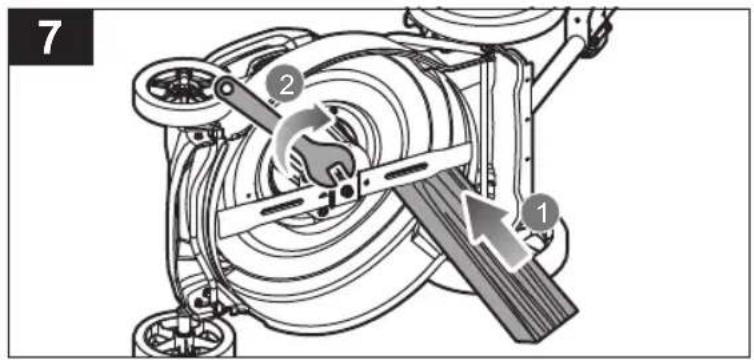

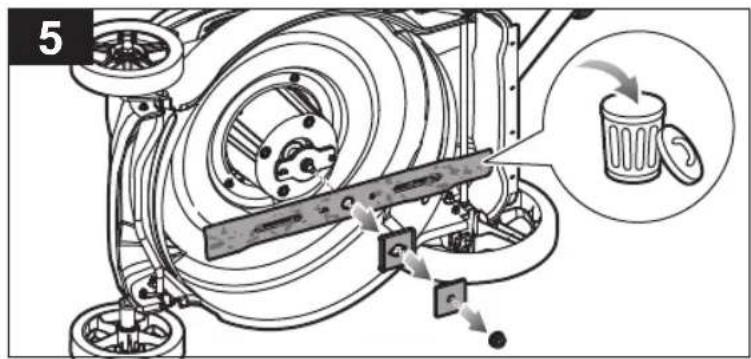

When to replace the blade?

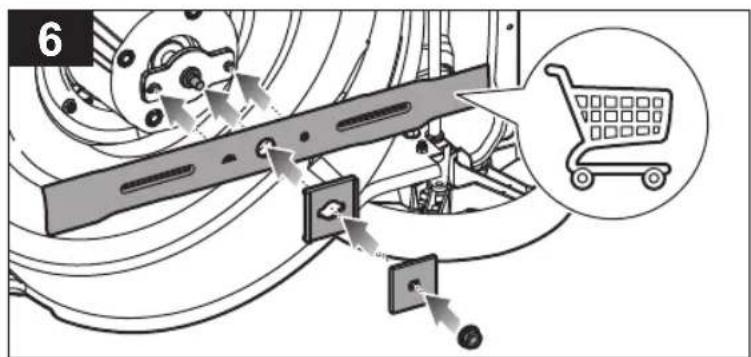

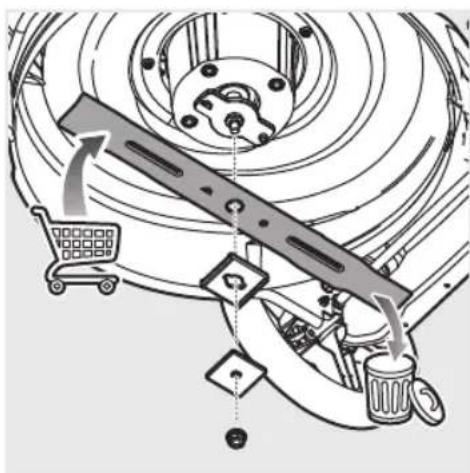

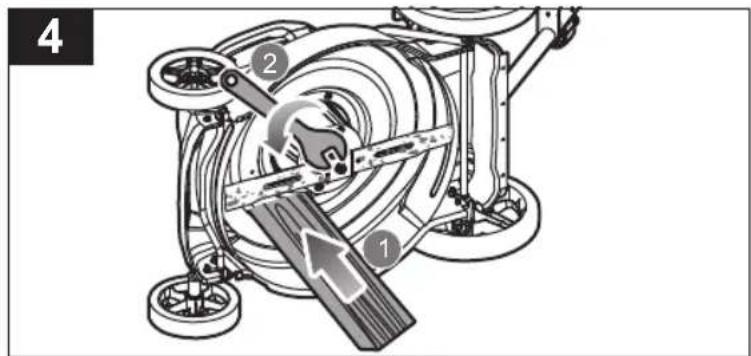

Replace the blade if it is dull, damaged, or deformed. A worn blade tears the grass instead of cutting it, which strains the motor and reduces runtime. Always use a genuine Ryobi blade and follow the torque specified in the manual.

Can the mower be used on a slope?

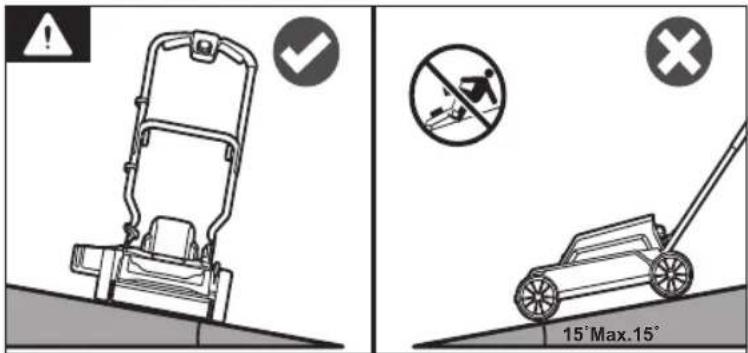

Yes, but only on slopes less than 15°. Always mow across the slope, never up or down. Be careful and wear non-slip shoes. Avoid steep slopes to reduce the risk of slipping.

How to store the mower in winter?

Clean the mower thoroughly, remove the battery and store it separately in a dry place between 10 and 20 °C. Store the mower in a dry, frost-free place. Fold the handle to reduce storage space. Do not forget to remove the isolation key.

Where to find spare parts?

Spare parts (blades, batteries, chargers, etc.) are available from authorized Ryobi dealers or on the official website ryobitools.eu. For repairs, contact an authorized service center. Always use genuine parts to maintain the warranty.

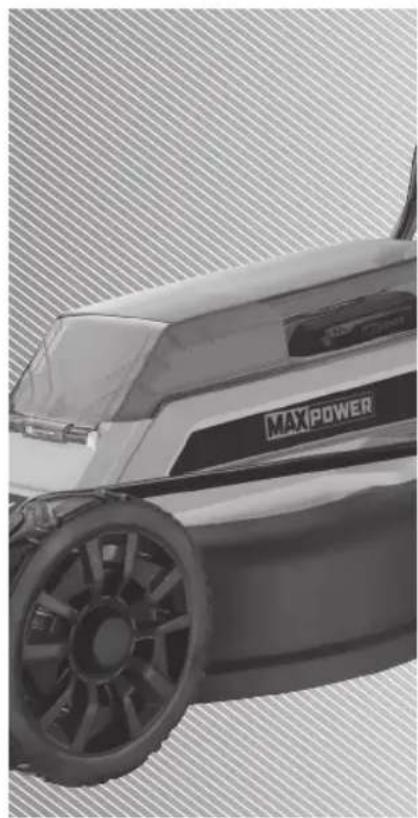

USER MANUAL Max Power RY36LMM46A RYOBI

Close-up of a small wheeled robot with visible wheels and head, set against a striped background (no text or symbols)

Side profile of a modern electric vehicle with 'MAXPOWER' branding on the side wheel (no additional text or symbols visible)

Close-up of a lawn mower with visible tire and handle (no text or symbols)

EN FR DE ES IT NL PT DA SV FI NO RU PL CS HU RO LV LT ET HR SL SK BG UK TR

RY36LMM46A

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E’ importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și operarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminį, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Önemli!	Ürünü monte etmeden, kullanmadan ve bakımını yapmadan önce bu kılavuzdaki talimatları okumanız önemlidir.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradené | Подлежи на технически модификации | Є ob’єктом для технічних змін | Teknik değişikliğe tabidir.

Safety, performance, and dependability have been given top priority in the design of your cordless mulching lawnmower.

INTENDED USE

The cordless mulching lawnmower is intended for outdoor use only.

The product is designed for domestic lawn mowing. It is a pedestrian-controlled walk-behind lawnmower designed to be pushed by hand.

The product should never be operated with the wheels off the ground. It should not be pulled or ridden on.

Do not use the product for any other purpose.

GENERAL PRODUCT SAFETY WARNINGS

⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) product or battery-operated (cordless) product.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

PERSONAL SAFETY

■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
■ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
- Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with switch is dangerous and must be repaired.
- Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

POWER TOOL USE AND CARE

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  ■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

LAWNMOWER SAFETY WARNINGS

• Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
  ■ Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation.
  ■ Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.

■ Before using the lawnmower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury.
- Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury.
- Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire.
■ While operating the lawnmower, always wear non-slip and protective footwear. Do not operate the lawnmower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade.
■ While operating the lawnmower, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
- Do not operate the lawnmower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury.
- Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
- When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
■ Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation.

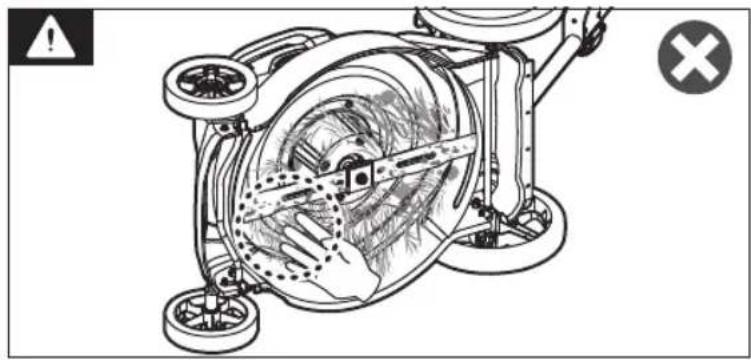

- Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
- When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and the battery pack is disconnected. Unexpected operation of the lawnmower may result in serious personal injury.
■ When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and remove the isolator key. Unexpected operation of the lawnmower may result in serious personal injury.

ADDITIONAL SAFETY WARNINGS

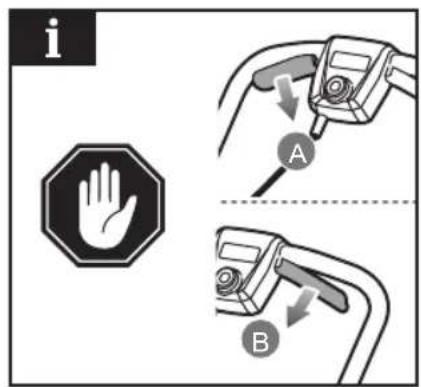

■ The product must be started with the user behind the handlebars in the operator safety zone. Never start the product if:
- The grass discharge opening is exposed and is not protected by the grass discharge chute or the grass discharge cover.
- Hands and feet of all persons are not clear of the cutting enclosure.

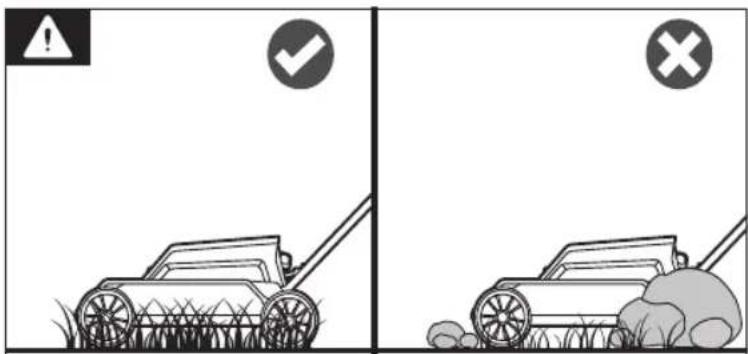

- Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. Uneven terrain could cause a slip-and-fall accident.

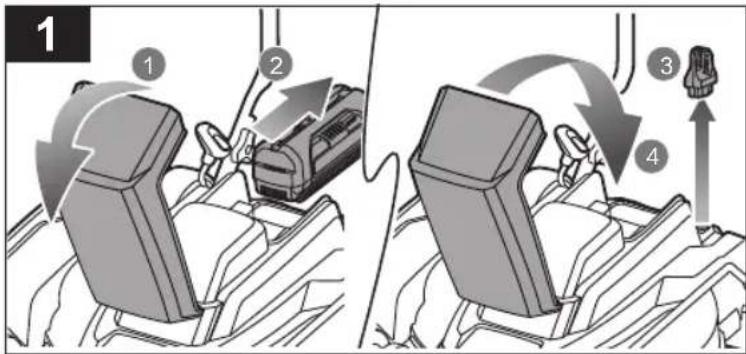

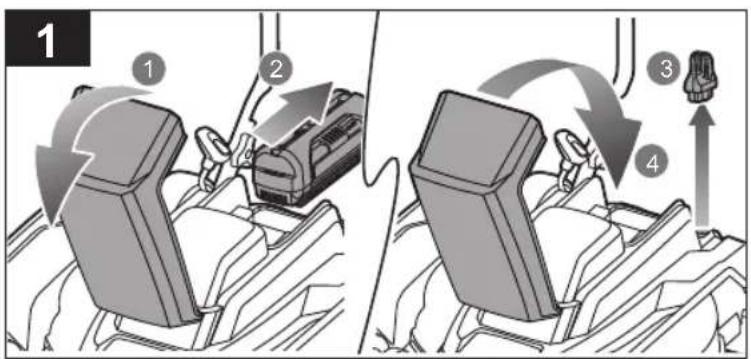

■ Turn off the product, remove the isolator key and the battery pack, and allow the blade to stop if the product has to be tilted for transportation, when crossing surfaces other than grass, and when transporting the product to and from the work area.

• Do not tilt the product when turning on the motor or while the motor is running. If absolutely necessary, raise the front of the lawnmower by no more than 5 cm to enable easy starting. Press down on the handlebar to achieve this. Always return the lawnmower to its normal position with all wheels on the ground before cutting. Tilting the lawnmower exposes the blade and increases the probability of objects being thrown and accidentally making contact with the blade.
  ■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop:

• whenever leaving the product unattended (including disposal of grass clippings)

• before clearing blockages or unclogging the discharge chute
• before checking, cleaning, or working on the product
• before removing the grass catcher or opening the grass discharge chute cover
• after striking a foreign object; inspect the product for damage and make repairs as necessary before restarting and operating the product
• if the product starts to vibrate abnormally (check immediately)

-inspect for damage, particularly the blades

-replace or repair any damaged parts

-check for and tighten any loose parts

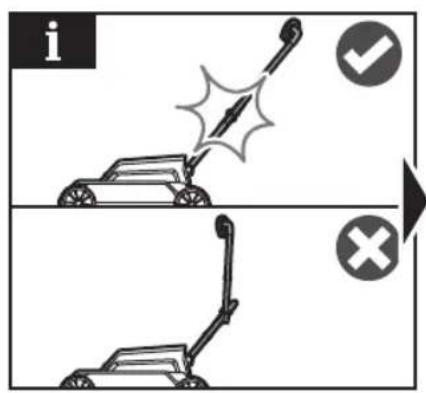

■ Always ensure that the motor control cable is never trapped, pinched, or otherwise damaged during assembly or when folding the handle. Never apply power to the product if this cable is damaged. Have the product serviced by an authorised service centre only.
■ Injuries may be caused, or aggravated, by prolonged use of the product. When using the product for prolonged periods, ensure to take regular breaks.
■ Operate the product only in temperatures between 0^ C and 40^ C.

ADDITIONAL BATTERY SAFETY WARNINGS

■ To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the tool, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.
- Charge the battery pack in a location where the ambient temperature is between 10°C and 38°C.
■ Store the battery pack in a location where the ambient temperature is between 0^ C and 20^ C.
■ Use the battery pack in a location where the ambient temperature is between 0^ C and 40^ C.

PRODUCT FEATURES

OVERHEAT PROTECTION

The battery pack has overheat protection. Excessive temperatures will cause the battery to stop powering the product. If the battery pack is too warm, allow it to cool down before resuming operation. If the product still does not work, recharge the battery.

NOTE: The battery pack LED indicator will not work if the battery protection feature has caused the battery pack to stop powering the product. Turn off the product or remove the battery pack from the product, and the battery pack LED indicator will resume normal function.

GENERAL MOWING TIPS

The run time of the battery depends on the condition, length, and density of the grass.

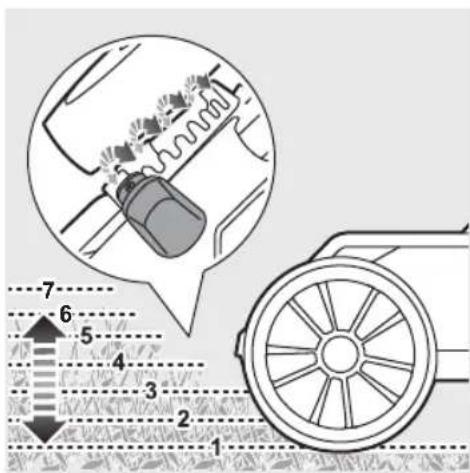

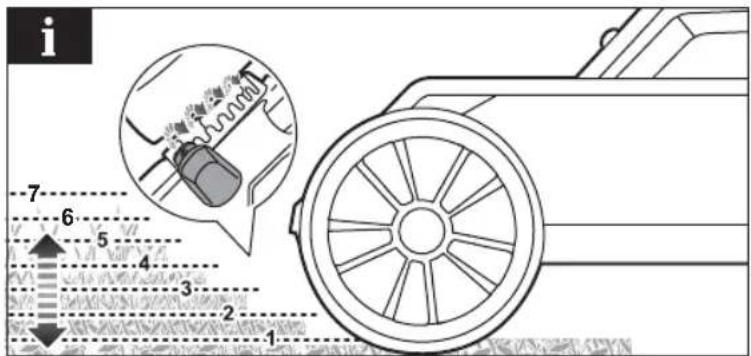

Adjust the cutting height of the lawnmower to suit the current condition of the lawn.

■ For best performance, always cut off one-third or less of the total height of the grass.
- When cutting long grass, reduce walking speed to allow for more effective cutting and a proper discharge of the clippings.
■ A higher cutting height extends the run time of the battery pack.
■ If frequent stalling occurs, adjust to a higher cutting height or reduce walking speed.

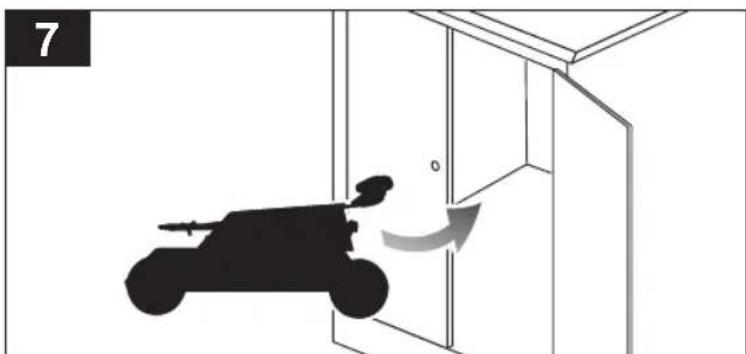

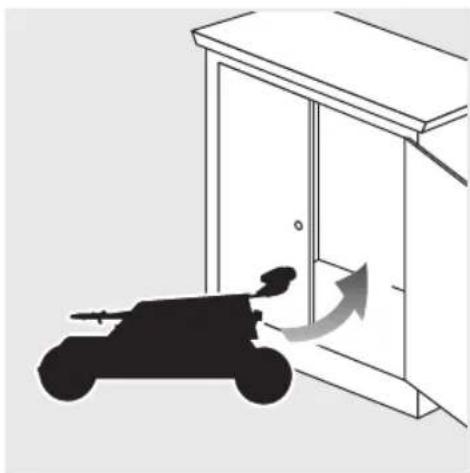

TRANSPORTATION AND STORAGE

■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop. Allow the product to cool down before storing or transporting.
■ Remove all foreign materials from the product. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and deicing salts. Do not store the product outdoors.
■ Store the product in a location where the ambient temperature is between 0^ C and 40^ C.

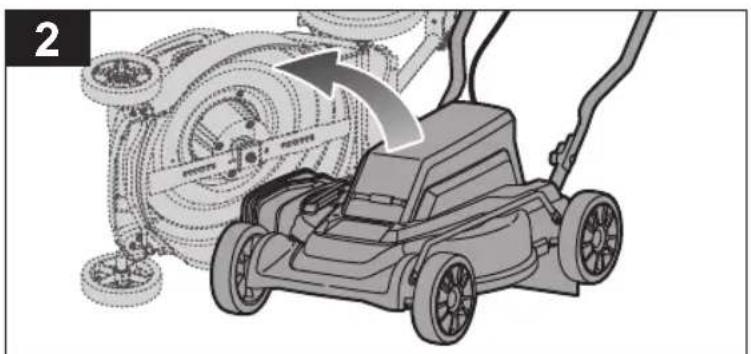

■ Use extreme caution when lifting or tilting the product for maintenance, cleaning, storage, or transportation. The blade is sharp; keep all body parts away from the blade while it is exposed.
For transportation in vehicles, remove the isolator key and the battery pack, and secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

• Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.
  ■ Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only.
• You may make adjustments and repairs described in this manual. For other repairs, have the product serviced by an authorised service centre only.

■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop before any cleaning or maintenance task.
- Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure that the product is in safe working condition.
■ After each use, clean the plastic parts with a soft, dry cloth. Any part that is damaged should be properly repaired or replaced by an authorised service centre.
■ Replace damaged blades and bolts in sets to preserve balance.
■ Be careful during adjustment of the product to prevent entrapment of the fingers between moving blades and fixed parts of the product.
■ The blade on the product is sharp. Use extreme caution, and wear heavy-duty gloves when fitting, replacing, cleaning, or checking bolt security.
- The blade bolts must be adequately tightened. See the manufacturer's recommendations for blade bolt torque, which can be found in the product specification table in this manual.
■ Be aware that even though the power source is turned off, the blades can still be moved.

CLEARING BLOCKAGES

■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop.
■ Always wear heavy-duty gloves when checking or clearing a blockage. The blades are sharp, and the blockage itself could be a sharp object.
■ Check the grass discharge chute, and carefully clear blockages.
■ Turn the product on its side. Check its underside and the area around the blade. Carefully remove any blockages. Remember that the blade may move during cleaning.

KNOW YOUR PRODUCT

See page 125.

1. Start button
2. On/off lever
3. Handle
4. Motor control cable
5. Handle knob
6. Motor control cable retainer
7. Cutting height adjustment lever
8. Battery door
9. Side discharge chute
10. Door
11. Rear wheel
12. Front wheel
13. Isolator key
14. Operator's manual
15. Battery pack
16. Charger

SYMBOLS ON THE PRODUCT

Safety alert

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Wear ear protection.

Wear eye protection.

Do not operate the product on inclines greater than 15^ . Mow across the face of slopes, never up and down.

Do not expose the product to rain or damp condition.

Beware of sharp blades. Blades continue to rotate after the motor is switched off. Remove the isolator key before maintenance.

Beware of thrown or fl ying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.

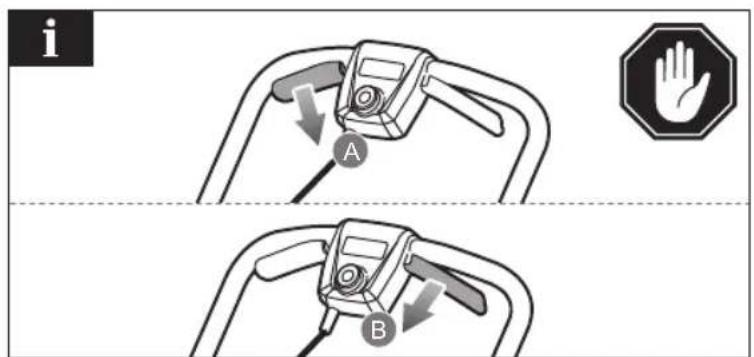

Press the start button, and squeeze the on/off lever to start the product. Release the start button and keep squeezing the on/off lever to run the product. Release the on/off lever to stop the product.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

European Conformity Mark

British Conformity Mark

EurAsian Conformity Mark

Ukraine Conformity Mark

Guaranteed sound power level

SYMBOLS IN THIS MANUAL

Parts or accessories sold separately

Note

Warning

CARACTÉRISTIQUES DU PRODUIT

PROTECTION CONTRE LES SURCHAUFFES

SYMBOLES APPLIQUÉS SUR LE PRODUIT

Alerte de sécurité

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 125.

SYMBOLE AUF DEM PRODUKT

Sicherheitswarnung

ALGEMENE PRODUCTVEILIGHEIDSWAARSCHUWINGEN

VEILIGHEIDSWAARSCHUWINGEN GRASMAAIMACHINE

SYMBOLER PÅ PRODUKTET

Sikkerheds Varsel

TRANSPORT OCH FÖRVARING

SYMBOLER PÅ PRODUKTEN

Säkerhetsvarning

SYMBOLER I MANUALLEN

KJENN PRODUKTET DITT

Se side 125.

SYMBOLER PÅ PRODUKTET

Sikkerhetsalarm

ELIBERAREA UNUI BLOCAJ

NOSPROSTOJUMA NOVĚRŠANA

SEADME ÜLDISED OHUTUSJUHISED

DODATNA VARNOSTNA OPOZORILA

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 125.

Two identical line drawings of a tractor with grass blades, showing blade and blade motion (no text or symbols)

Line drawing of a lawn mower on grass, no text or symbols present

Diagram of a car wheel assembly with a moving arrow indicating rotational motion (no text or symbols)

Line drawing of a lawn mower on grass, no text or symbols present

Diagram of a mechanical device with motion arrows and a magnified inset showing internal gear teeth (no text or symbols)

Diagram of a lawn mower system with mechanical components and motion arrows (no text or symbols)

Technical diagram of a mechanical device with labeled components and warning symbols (no readable text or labels)

Technical line drawing of a mechanical assembly with gears and a brush (no text or symbols)

Diagram of a mechanical device with a brush applying powder to a component, showing no text or symbols.

Line drawing of a lawn mower with a mounted tool, shown in technical sketch style (no text or symbols)

Illustration of a lawn mower with a hand spraying water, no text or symbols present

Illustration of a car entering a doorway with an arrow indicating motion (no text or symbols)

Silhouette of a car inside a vehicle door with an arrow indicating motion (no text or symbols)

20211119v1d4

English Français Deutsch Español Italiano
Product specifications	Caractéristiques produit Produkt-Spezifikationen Especificaciones del producto			Caratteristiche del prodotto
Cordless mulching lawnmower	Tondeuse mulching sans fil Akku-Mulchmäher Cortacésped inalámbrico con accesorio para mantillo			Tosaerba di macinatura senza fili
Model	Modèle Modell Modelo Modello
Rated voltage	Tension nominale	Nennspannung Tensión nominal	Voltaggio nominale
Width of cut	Largeur de coupe	Schnittbreite	Anchura de fresado	Larghezza di fresatura
Height of cut	Hauteur de coupe Schnitthöhe	Altura del corte	Altezza del taglo
No-load speed	Vitesse de rotation à vide	Leerlaufgeschwindigkeit	Velocidad sin carga	Velocità senza carico
Weight (without battery)	Poids (sans batterie)	Gewicht (ohne Akku)	Peso (sin la bateria)	Peso (senza batterie)
Blade bolt torque	Couple de serrage du boulon de lame	Drehmoment der Messerschraube	Par de torsión de los pernos de la cuchilla	Coppia di serraggio del bullone della lama
Vibration level (in accordance with EN IEC 62841-4-3)	Niveau de vibration (selon EN IEC 62841-4-3)	Vibrationsgrad (gemäß EN IEC 62841-4-3)	Nivel de vibración (de acuerdo con EN IEC 62841-4-3)	Livello vibrazioni (in accordo con la direttiva EN IEC 62841-4-3)
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
Noise emission level (in accordance with EN IEC 62841-4-3)	Niveau d'émission sonore (selon EN IEC 62841-4-3)	Geräuschemission (gemäß EN IEC 62841-4-3)	Nivel de emisión de ruido (de acuerdo con EN IEC 62841-4-3)	Livello di emissione rumori (in accordo con la direttiva EN IEC 62841-4-3)
A-Weighted sound pressure level at operator's position	Niveau de pression sonore pondéré A au niveau de l'opérateur	A-bewerteter Schalldruckpegel an der Position des Anwenders	Nivel de presión sonora ponderado A en la posición del operario	Livello di pressione sonora ponderala A alla posizione dell'operatore
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
A-Weighted sound power level	Niveau de puissance sonore pondéré A	A-bewerteter Schalleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA
Battery and charger	Batterie et chargeur	Akku und Ladegerät	Batería y cargador	Batteria e caricatore
Model	Modèle Modell Modelo Modello
Battery pack	Bloc de batterie	Akkupack	Bateria	Batteria
Charger	Chargeur	Ladegerät	Cargador	Caricatore
Compatible battery packs	Blocs des batterie compatibles	Kompatible Akkupacks	Paquetes de batería compatibles	Gruppo batterie compatibili
Compatible chargers	Chargeurs compatibles	Kompatible Ladegeräte	Cargador compatible	Caricatore compatibile
Replacement parts	Pièces de rechange	Ersatzteile	Piezas de repuesto	Parti di ricambio
Blade	Lame	Messer Hoja	Lama
Nederlands Português Dansk Svenska
Productgegevens Características do aparelho	Produktspecifikationer Produktspecifikationer
Draadloze gazonmaaier met mulchfunctie	Corta-relvas para cobertura morta ("Mulching") sem fios	Trádløs Mulching plæneklipper	Sladdløs mulchinggräsklippare
Model Modelo	Model Modell	RY36LMM46A
Toegekende spanning	Tensão nominal	Mærkespænding	Spänning	36 V d.c.
Freesbreedte	Largura de fresagem	Fræsebredde	Fråsbredd	46 cm
Hoogte van de snede	Altura de corte	Klippehøjde	Klipphöjd	25 - 102 mm
Snelheid zonder lading	Velocidade sem carga	Tomgangshastighed	Hastighet utan belastning	3400/min max
Gewicht (zonder batterij)	Peso (sem a bateria)	Vægt (uden batteri)	Vikt (utan batteri)	16,5 kg
Koppel voor mesbout	Binário de aperto do parafuso da låmina	Moment for klingebolt	Ätdragningsmoment bladskruv	35-40 Nm
Trillingsniveau (in overeenstemming met EN IEC 62841-4-3)	Nível de vibração (em conformidade com EN IEC 62841-4-3)	Vibrationsniveau (iht. EN IEC 62841-4-3)	Vibrationsnivå (enligt EN IEC 62841-4-3)	a_h = 1,4 m/s^2
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet för mätt	K = 1,5 m/s^2
Niveau geluidsemissie (in overeenstemming met EN IEC 62841-4-3)	Nível de emissão de ruído (em conformidade com EN IEC 62841-4-3)	Støjemissionsniveau (iht. EN IEC 62841-4-3)	Bullernivå (enligt EN IEC 62841-4-3)
A-gewogen geluidsdrukniveau bij positie van gebruiker	Nível de pressão sonora ponderada A na posição do operador	A-vægtet lydtryksniveau ved operatørens position	A-viktad ljudtrycksnivå vid operatørens plats	L_PA = 81,6 dB(A)
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet för mätt	K = 3,0 dB
A-gewogen geluidsniveau	Nível de potência sonora ponderada A	A-vægtet lydeffektniveau	A-vägd ljudeffektsnivå	L_WA = 95,10 dB(A)
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet för mätt	K = 1,37 dB
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	97 dB(A)
Accu en oplader	Bateria e carregador	Batteri og oplader	Batteri och batteriladdare
Model Modelo	Model Modell	RY36LMM46A-140		RY36LMM46A-0
Accu	Bateria	Batteri	Batteri	4 Ah
Lader	Carregador	Oplader	Batteriladdare	RY36C17A
Compatibele accupacks	Baterias compatíveis	Kompatible batterier	Kompatibla batteripaket	BPL36.., RY36B20B, RY36B40B, RY36B50B, RY36B60A, RY36B90A
Compatibele oplader	Carregador compatível	Kompatibel oplader	Kompatibel laddare	RY36C..
Vervangonderdelen	Peças de substituição	Reservedele	Utbytesdelar
Zaagblad	Lâmina	Klinge	Blad	RAC452 (639196002)
Suomi Norsk Русский Polski Čeština
Tuotteen tekniset tiedot	Produktspesifikasjoner Характеристики изделия Parametry techniczne Technické údaje produktu
Murskaava akkuruohonleikkuri	Trádløs luftegressklipper Беспрородная газонокосилка с функцией мульчирования		Kosiarka akumulatorowa z funkcją mulczowania	Akumulátorová mulčovací sekačka na trávu
Malli	Modell Модель Model Model
Nimellisjännite	Nominell spenning	Номинальное напряжение	Napięcie znamionowe	Jmenovité napětí
Jyrsintäleveys	Fresebredde	Ширина фрезеровки	Szerokość frezowania	Šířka frézování
Leikkuukorkeus	Klippehøyde	Высота стрижки	Wysokość cięcia	Výška sečení
Nopeus ilman kuormaa	Tomgangshastighet	Холостая скорость	Prędkość obrotowa bez obciążenia	Rychlost naprázdno
Paino (ilman akkua)	Vekt (uten batteri)	Вес (без батарей)	Masa (bez akumulatora)	Hmotnost (bez baterie)
Terăpultin vääntömomentti	Dreiemoment for knivbolten	Усилие затяжки фиксирующего болта лезвия	Moment dokręcania śruby noża	Utahovací moment śroubu noże
Tärinătaso (standardin EN IEC 62841-4-3 mukaisesti)	Vibrasjonsnivá (iht. EN IEC 62841-4-3)	Уровень вибрации (в соответствии с EN IEC 62841-4-3)	Poziom wibracji (zgodnie z normą EN IEC 62841-4-3)	Úroveň vibrací (v souladu s EN IEC 62841-4-3)
Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	Nejistota měření
Melutaso (standardin EN IEC 62841-4-3 mukaisesti)	Støyemisjonsnivá (iht. EN IEC 62841-4-3)	Уровень шума (в соответствии с EN IEC 62841-4-3)	Poziom emisji hałasu (zgodnie z normą EN IEC 62841-4-3)	Hladina emise hluku (v souladu s EN IEC 62841-4-3)
A-painotettu käyttajään kohdistuva äänenpainetaso	Støynivávekting ved operatørens posisjon	Амплитудно-взвешенный уровень звукового давления в рабочем месте оператора	Poziom ciśnienia akusytcznego (A) w miejsu operatora	Hladina akustického tlaku vážená funkci A v poloze obsluhy
Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	Nejistota měření
A-painotettu äänenteho	A-vektet lydeffektnivá	Уровень А-взвешенной звуковой мощности	A-ważony poziom mocy akustycznej	Hladina akustického výkonu vážená funkci A
Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	Nejistota měření
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA
Akku ja laturi	Batteri og lader	Аккумуляторная батарея и зарядное устройство	Akumulator i ładowarka	Nablječka a baterie
Malli	Modell Модель Model Model
Akku	Batteri	Аккумулятор	Akumulator	Baterie
Laturi	Lader	Зарядное устройство	Ładowarka	Nablječka
Yhteensopivat akut	Kompatible batteripakker Совместимая аккумуляторная батарея		Pasujące akumulatory	Kompatibilní akumulátory
Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	Zgodna ładowarka	Kompatibilní nabiječka
Varaosat	Erstatningsdeler	Запасные части	Części zamienne	Náhradní dily
Teră	Blad	Пильное полотно	Ostrze	Nůž

Magyar Română Latviski Lietuviškai
Termék müszaki adatai Specificațiile produsului Produkta specifikacijas Gaminio techninės			savybės
Akkumulátoros mulcsozó fūnyirò	Mașină de tuns gazonul, fără fir, cu mărunțire a ierbii	Akumulatoru plaujmašina ar mulčēšanu	Akumuliatorinė mulčiuojanti vejapjovė
Típus Model Modelis	Modelis	RY36LMM46A
Névleges feszültség	Tensiunea nominală	Nominălais spriegums	Nominali įtampa	36 V d.c.
Marási szélesség	Lătįme de frezare	Griežuma platums	Pjovimo plotis	46 cm
Vágásmagasság	Înăltįmea de tăiere	Griešanas augstums	Pjovimo aukštis	25 - 102 mm
Üresjáratı fordulatszám	Víteză fără sarcină	Tukšgaitas ātrums	Greitis be apkrovimo	3400/min max
Súly (akkumulátor nélkül)	Greutate (fără acumulator)	Svars (bez baterijas)	Svoris (be akumuliatorinės balerijos)	16,5 kg
Kėscsavar nyomatėka	Cuplul bolțului de fixare a discului tăietor	Asmens skrūves novilkšanas spēks	Peilio varžto užveržimo jėga	35-40 Nm
Vibrációs szint (az EN IEC 62841-4-3 szerint)	Nivel de vibrație (în conformitate cu EN IEC 62841-4-3)	Vibrácijas līmenis (saskaņā ar EN IEC 62841-4-3)	Vibracijos lygis (pagal EN IEC 62841-4-3 standartą)	a_ R = 1,4 m / s^2
Mérės bizonytalansága	Nesiguranja másurătorii	Mērījuma nenoteiktība	Matavimo paklaida	K = 1,5 m / s^2
Zajkibocsátási szint (az EN IEC 62841-4-3 szerint)	Nivel emisie zgomot (în conformitate cu EN IEC 62841-4-3)	Trokšna emisijas līmenis (saskaņā ar EN IEC 62841-4-3)	Triukšmo emisijų norma (pagal EN IEC 62841-4-3 standartą)
A-súlyozott hangnyomásszint a kezelõ helyén	Nivel presiune sunet greutate A la poziția operatorului	Lietotăja pozicijā ir ar A novērtēts skaņas spiediena līmenis	A svorinis triukšmo slėgio lygis operatoriaus padėtyje	L_ PA = 81,6 dB(A)
Mérės bizonytalansága	Nesiguranja másurătorii	Mērījuma nenoteiktība	Matavimo paklaida	K = 3,0 dB
A-súlyozott hangteljesítményszint	Nivel de putere acusticā ponderată A	A-līmeņa skaņas jaudas līmenis	A-svertinis akustinis lygis	L_ WA = 95,10 dB(A)
Mérės bizonytalansága	Nesiguranja másurătorii	Mērījuma nenoteiktība	Matavimo paklaida	K = 1,37 dB
L_ WA + K_ WA	L_ WA + K_ WA	L_ WA + K_ WA	L_ WA + K_ WA	97 dB(A)
Akkumulátor és töltõ	Bateria și încărcătorul	Akumulators un lădētăjs	Akumuliatorius ir jkroviklis
Tipus Model Modelis	Modelis	RY36LMM46A-140		RY36LMM46A-0
Akkumulátor	Acumulator	Akumulators	Baterija	4 Ah
Töltõ	Încărcător	Lădētăjs	Ijkroviklis	RY36C17A
Kompatibilis akkumulátorok	Acumulatori compatibili	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	BPL36... , RY36B20B, RY36B40B, RY36B50B, RY36B60A, RY36B90A
Kompatibilis töltõ	Încărcător compatibil	Saderigs lădētăjs	Suderinamas jkroviklis	RY36C..
Cserealkatrészek	Piese de schimb	Rezerves daļas	Atsarginės detalės
Kės	Lamă	Asmens	Geležtė	RAC452 (639196002)

The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.

The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may significantly increase the exposure levels over the total working period. An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is running idle. These conditions may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the accessories, keeping the hands warm (in case of vibration), and organising work patterns.

FR

⚠ AVERTISSEMENT

EN RYOBI WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries
– any product connected to improper power supply (amps, voltage, frequency)
– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)
– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
- Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.
– Any periodic adjustments to or maintenance cleaning of carburettors
- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey, Russia, and the United Kingdom. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

Any request or issue with the product can be addressed to your local authorised service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH, Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number and product type printed on the label.

FR RYOBI CONDITIONS D'APPLICATION DE LA GARANTIE

EN EC DECLARATION OF CONFORMITY

Cordless mulching lawnmower

Brand: RYOBI | Manufacturer ^1 | Model number ^2 | Serial number range ^3

We declare as the manufacturer under our sole responsibility that the product mentioned below fulfills all the relevant provisions of the following European Directives, European Regulations and harmonised standards ^1

Measured sound power level.... 95.10 dB(A)

Guaranteed sound power level.... 96 dB(A)

Conformity assessment method to Annex VI Directive 2000/14/EC amended by 2005/88/EC. Notified body ^3

Authorised to compile the technical file: ^6

FR DÉCLARATION CE DE CONFORMITÉ

Tondeuse mulching sans fil

Max-Eyth-Straße 10, 71364 Winnenden, Germany

2 RY36LMM46A

3 47595601000001 - 47595601999999

4 2006/42/EC. 2014/30/EU. 2000/14/EC. 2005/88/EC. 2011/65/EU

EN 62841-1:2015, EN IEC 62841-4-3:2021+A11:2021, EN ISO 12100:2010,

EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 63000:2018

Vice President, Quality – Asia

Winnenden, Dec. 31, 2021

^6 Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

GB-DECLARATION OF CONFORMITY

Manufacturer: Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare as the manufacturer under our sole responsibility that the product mentioned below

Cordless mulching lawnmower

Brand: RYOBI

Model number: RY36LMM46A

Serial number range: 47595601000001 - 47595601999999

fulfills all the relevant provisions of the following Regulations: S.I. 2008/1597 (as amended), S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended), S.I. 2001/1701 (as amended) and that the following designated standards have been used:

BS EN 62841-1:2015, BS EN IEC 62841-4-3:2021+A11:2021,

BS EN ISO 12100:2010, BS EN IEC 55014-1:2021,

BS EN IEC 55014-2:2021, BS EN IEC 63000:2018

Measured sound power level: 95.10 dB(A)

Guaranteed sound power level: 96 dB(A) Conformity assessment method to S.I. 2001/1701 Schedule 9 (as amended)

Approved body:

No. 8500 – AnP Certification Limited

2 Parkfield Street, Rusholme, Manchester, M14 4PN, United Kingdom

Todd Chipner

Vice President, Quality – Asia

Winnenden, Dec. 31, 2021

Authorised to compile the technical file:

Techtronic Industries (UK) Ltd

Fieldhouse Lane

Marlow Bucks SL7 1HZ

UK

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.

Three vertical panels with diagonal striped patterns, no text or symbols present

Techtronic Industries GmbH

71364 Winnenden, Germany

Techtronic Industries (UK) Ltd

Fieldhouse Lane

Marlow Bucks SL7 1HZ

UK

961479055-01
