HG00518 - Shower head MIOMARE - Free user manual and instructions

Product type	Hand shower with shower column
Brand	Miomare
Model	HG00518
Hand shower dimensions	28,5 x 15 cm (H x ∅)
Column length	70 cm (metal)
Hose length	150 cm (metal)
Hose connection	G 1/2" (approx. 21 mm)
Minimum operating pressure	1,5 bar
Number of spray settings	5 (rain, massage, foam, combined, etc.)
Water stop function	Yes
Water-saving element	Included in delivery
Column material	Metal
Hose material	Metal
Compatible water types	Pressure-resistant hot water systems (central heating, instantaneous water heater, etc.)
Intended use	Private, non-medical or commercial
Mounting	Wall-mounted (screws and wall plugs included)
Cleaning and maintenance	Soft cloth and descaling agent for limescale
Safety	Check water temperature; do not use as grab bar
Package contents	Hand shower, column, hose, 2 wall brackets, 2 types of screws, wall plugs, gaskets, water-saving element, soap dish, covers
Instructions	Available for free download

Frequently Asked Questions - HG00518 MIOMARE

How to install the shower column?

Installation must be carried out by a competent person. Check for pipes before drilling. Use the supplied materials (screws, wall plugs) suitable for your wall. First attach the upper wall bracket, then the lower bracket, and finally insert the column. Connect the hose to the standard G 1/2" faucet.

What is the minimum water pressure required?

The minimum operating pressure is 1.5 bar. Below this, the flow may be insufficient and some water heaters may shut off automatically.

How to change the spray setting?

Turn the spray setting lever (mark 15) on the hand shower. You have 5 settings: rain, massage, foam, and combinations. Changing the setting may cause the water temperature to vary; check it before stepping under the spray.

What is the water stop function for?

The water stop function allows you to temporarily cut off the flow to the hand shower, for example to soap yourself. Caution: when reopening, the temperature may vary; check the water before rinsing.

Can I use this product with a low-pressure water heater (wood, coal, etc.)?

No, this hand shower is designed for pressure-resistant hot water systems (central heating, instantaneous water heater). It is not suitable for low-pressure water heaters (wood, coal, oil, open gas, open electric storage heaters).

How to adjust the height of the hand shower?

Loosen the tightening wheel (mark 16) on the hand shower holder, slide it to the desired height on the column, then retighten the wheel. The inclination of the hand shower can also be adjusted via its holder.

What to do if water leaks at the connections?

Check that the gaskets (mark 2) are correctly placed and in good condition. Gaskets are wear parts: replace them if necessary. Make sure all connections are hand-tightened (do not force).

How to descale the column and hand shower?

Use a commercial descaler following the product instructions. Then clean with a soft, damp cloth. Avoid abrasive cleaners that could scratch the surfaces.

Where to find spare parts?

Spare parts (gaskets, water-saving element, etc.) are available from specialized retailers or via Lidl customer service. Refer to the instructions for part numbers.

Is the hose standard?

Yes, the hose has a standard G 1/2" (21 mm) connection compatible with most faucets. If your faucet has a G 3/4" (26.4 mm) connection, use an adapter available from DIY stores.

USER MANUAL HG00518 MIOMARE

PDF ONLINE www.lidl-service.com

Close-up of a modern showerhead with adjustable handle and base (no text or symbols visible)

MULTIFUNKTIONSBRAUSE-SET MIT BRAUSESTANGE / MULTIFUNCTION SHOWER HEAD WITH SHOWER RAIL / DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE

DE AT CH

MULTIFUNKTIONSBRAUSE-SET MIT BRAUSESTANGE

Kurzanleitung

GB IE

MULTIFUNCTION SHOWER HEAD WITH SHOWER RAIL

Quick start guide

FR BE

DOUCHETTE MULTIFONCTION AVEC BARRE DE DOUCHE

Technical diagram of a showerhead with numbered parts and exploded view, showing internal components and assembly steps.

C 11 5 7 8

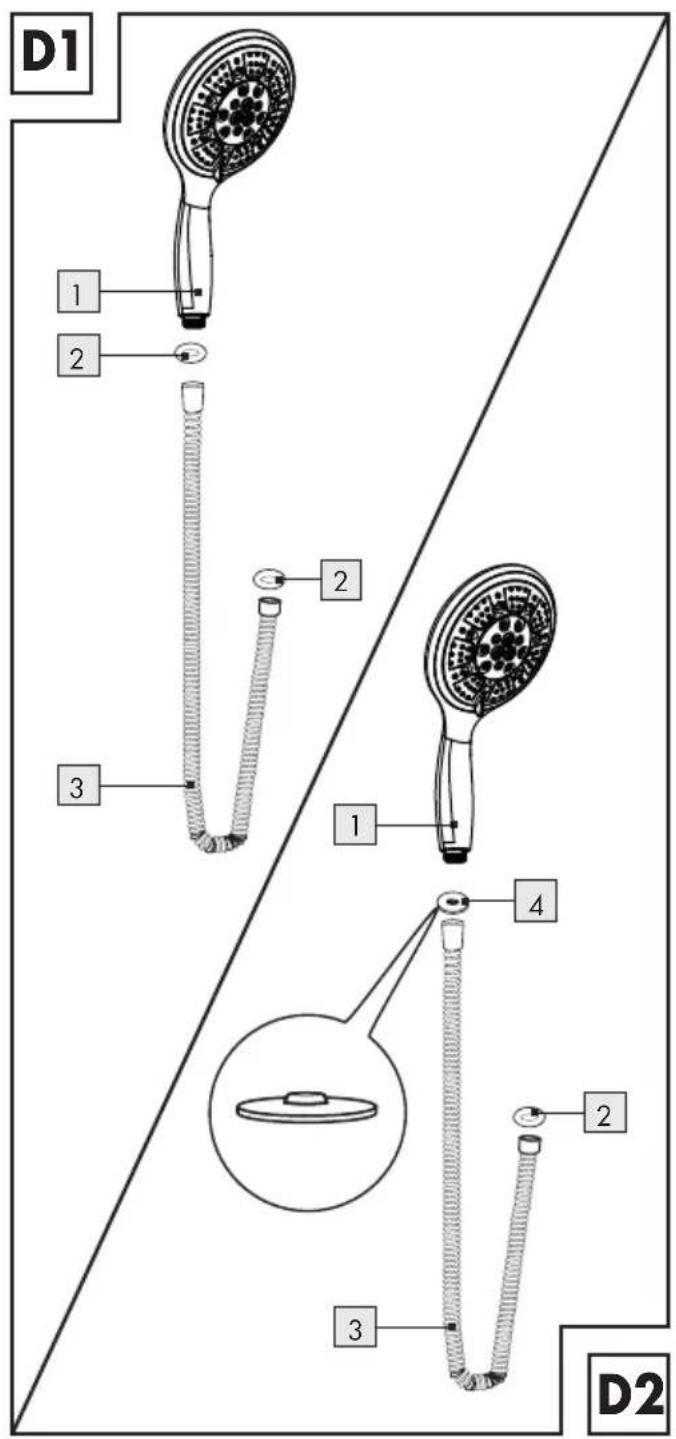

D1 1 2 3 2 1 4 2 3 D2

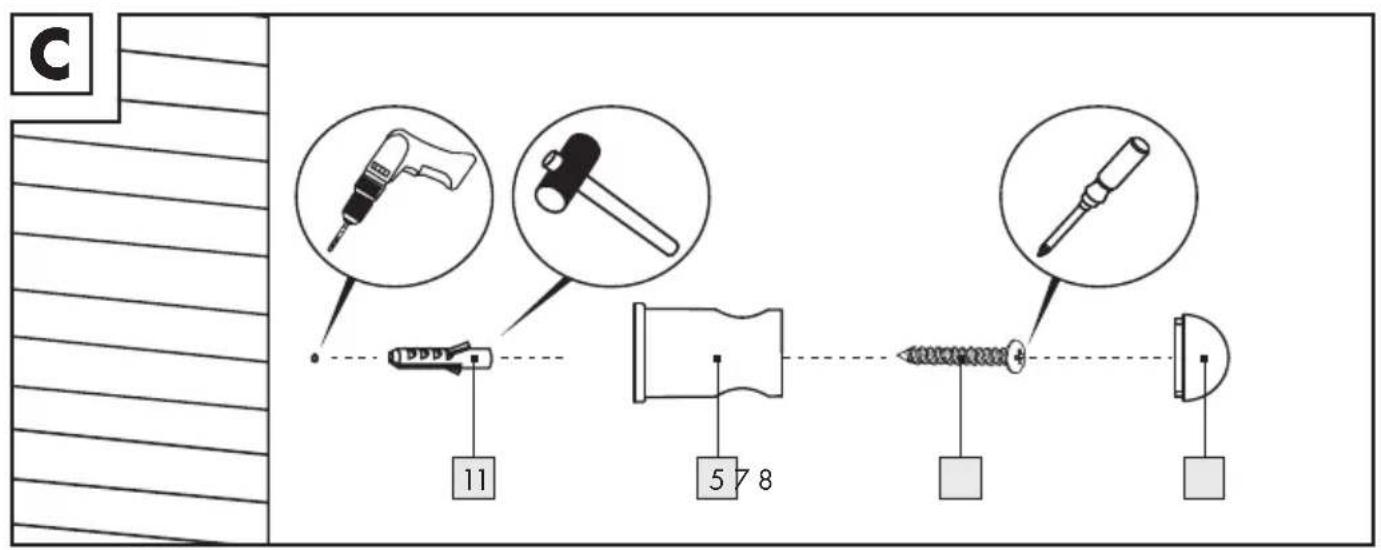

E 14 15

MULTIFUNKTIONSBRAUSE-SET MIT BRAUSESTANGE

Einleitung

Simple line drawing of a symmetrical abstract shape resembling a stylized 'X' or branching structure (no text or symbols)

Massagestrahl

Abstract geometric pattern with vertical lines and curved shapes, no text or symbols present

Simple line drawing of a rectangular container with vertical lines and a curved top (no text or symbols)

Regenstrahl

Simple line drawing of a container with a lid and vertical columns of circles (no text or symbols)

Simple diagram of a container with a curved top and rows of circular holes (no text or symbols)

Schaumstrahl

Wasserspareinsatz

This quick start guide forms an integral part of the instruction manual, which enables you to start up your product immediately. You may download the full instruction manual from this website: http://www.lidl-service.com.

Before using the product, read the instruction manual and pay particular attention to the safety notes contained in it. Keep this quick start guide in a safe place. When passing this product on to third parties, be sure to include all documentation.

- Intended use

Suitable for use with all pressure-resistant hot water systems such as central heating, continuous-flow water heater, pressure boiler etc. It is not suitable for low-pressure water heaters such as wood-fired or coal-fired hot-water heaters, oil-fired or gas-fired heaters, open electrical storage heaters. If in doubt, please consult a plumber or specialist. The product is intended for personal use only and not for medical or commercial use. The manufacturer does not accept any liability for any damage caused by improper use.

● Description of parts

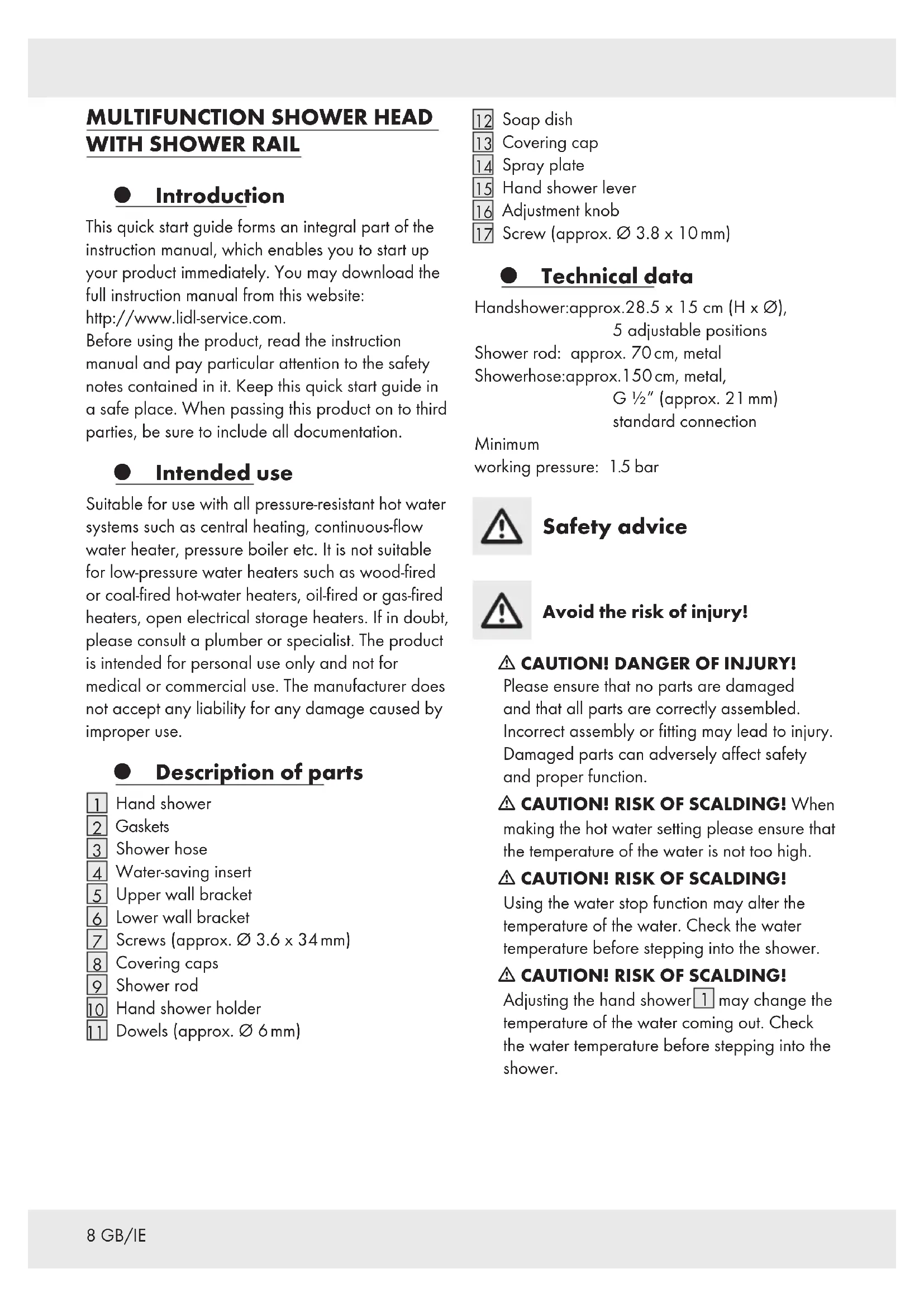

1 Hand shower
2 Gaskets
3 Shower hose
4 Water-saving insert
5 Upper wall bracket
6 Lower wall bracket
7 Screws (approx. ∅ 3.6 x 34 mm)
8 Covering caps
9 Shower rod
10 Hand shower holder
11 Dowels (approx. ∅ 6 mm)

12 Soap dish
13 Covering cap
14 Spray plate
15 Hand shower lever
16 Adjustment knob
17 Screw (approx. ∅ 3.8 x 10 mm)

● Technical data

Handshower:approx.28.5 x 15 cm (H x ∅), 5 adjustable positions

Shower rod: approx. 70 cm, metal

Showerhose:approx.150cm, metal,

G 1/2" (approx. 21 mm)

standard connection

Minimum

working pressure: 1.5 bar

Safety advice

Avoid the risk of injury!

⚠️ CAUTION! DANGER OF INJURY!

Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly or fitting may lead to injury. Damaged parts can adversely affect safety and proper function.

⚠️ CAUTION! RISK OF SCALDING! When making the hot water setting please ensure that the temperature of the water is not too high.

⚠️ CAUTION! RISK OF SCALDING!

Using the water stop function may alter the temperature of the water. Check the water temperature before stepping into the shower.

⚠️ CAUTION! RISK OF SCALDING!

Adjusting the hand shower 1 may change the temperature of the water coming out. Check the water temperature before stepping into the shower.

The shower 9 should not be used to attach or support anything, as the fixings and the rod 9 are designed to support only their own weight.

Avoid damage to property!

- Assembly should only be carried out by an experienced person! - Before wall mounting, check that the wall can take the weight of the shower rod set. If in doubt, ask in a specialist shop.

■ CAUTION! WATER DAMAGE! Before drilling, ensure that there are no water pipes where you intend to drill.

- Ensure that all gaskets are correctly seated. - Please note that gaskets are wear parts and therefore will require to be replaced from time to time.

Examine the wall before installation and choose suitable installation fixings. We have supplied fixings suitable for an ordinary solid masonry wall.

Mounting

Remarks:

For fittings with 26.4 mm (G 3/4'' ) connection, use an adaptor with 26.4 mm (G 3/4'' ) inner thread and 21 mm (G 1/2'' ) outer thread, available in DIY store or bathroom shops.

A water-saving insert is included in your shower rod set.
The conical nut of the shower hose can rotate freely for anti-twist function.

Operation

● How to adjust the hand shower

Adjust the height of the hand shower holder by using the adjustment knob 16.
Adjust the angle at which the hand shower is tilted by using the hand shower holder 10.

● Shower functions

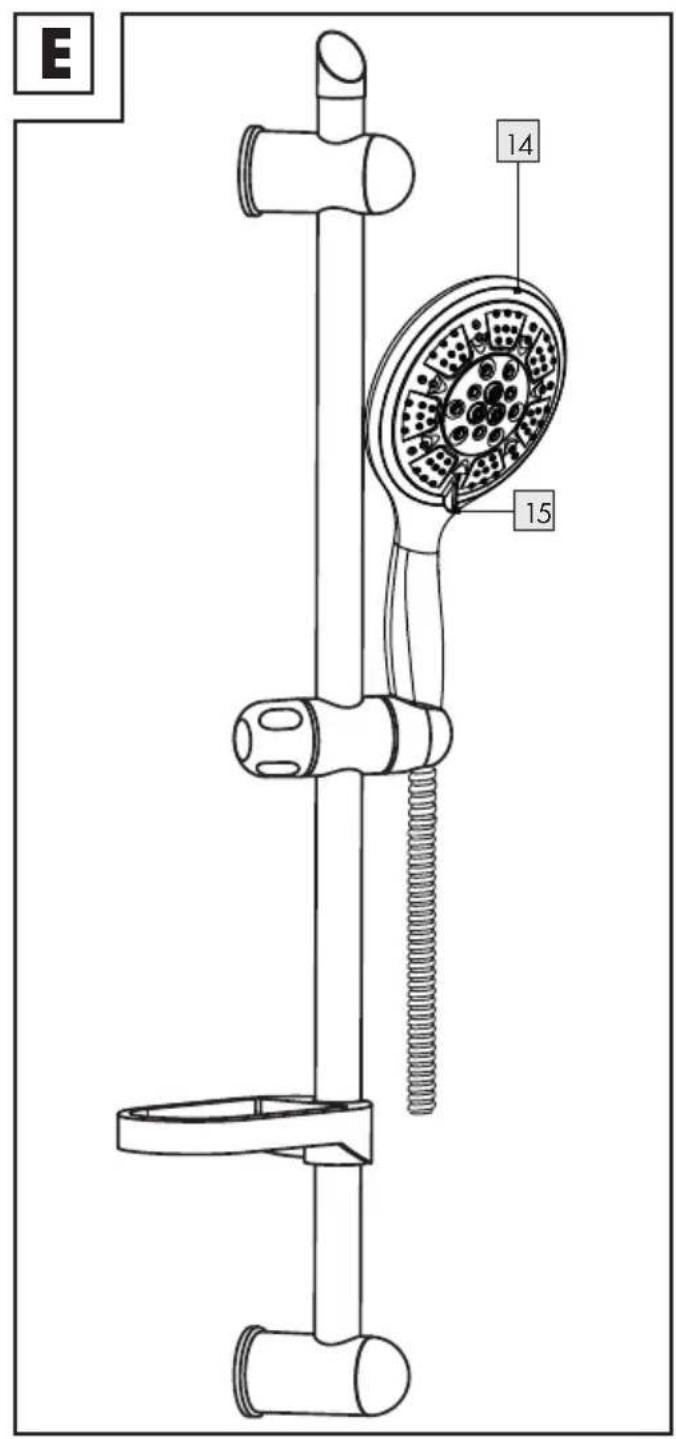

Turn the hand shower le ^15 to set the hand shower 1 function you wish to have (see Fig. E).

The hand shower 1 has the following functions:

Simple line drawing of a symmetrical abstract shape resembling a stylized 'X' or branching structure (no text or symbols)

Massage

Abstract diagram with vertical lines and curved shapes, no text or symbols present

Rain & Massage

Simple line drawing of a rectangular frame with vertical lines and a curved top (no text or symbols)

Rain

Simple line drawing of a container with a lid and vertical columns of circles (no text or symbols)

Gentle & Rain

Simple diagram of a container with a curved top and rows of circular holes (no text or symbols)

Gentle flow

Water-saving insert

The water-saving insert 4 reduces the flow of water. This may have an effect on how your continuous-flow water heater works. If the flow of water is too low, your continuous-flow water heater will automatically switch off.

● Cleaning and care

- Clean the product with a soft, damp cloth and use a mild cleaning agent if necessary.

■ Remove the limescale on the shower rod set by using a commercially available limescale remover. Please follow the directions for using your cleaning agent.
