USER MANUAL HG08422 Livarno Lux

Assembly, operating and safety instructions

FR BE

RUBAN LED, 1 M

SVETELNY LED PÁS, 1 M

Pokyny k montáži, obsluze a bezpečnostnéPokyny

SK

LED SVETELNY PÁS, 1 M

GB/IE Assembly, operating and safety instructions Page 23

LED: 30 LEDs (HG08422A)

32LEDs (HG08422B)

Introduction Page 24 Intended use Page 25 Parts description Page 26 Technical data Page 26 Scope of delivery Page 27

Safety notes... Page 28

Before use... Page 32

Mounting Page 32

Start-up Page 34 Switching the LED strip on/off.. Page 34

Cleaning and care... Page 34

Disposal... Page 34

Warranty Page 36 Warranty claim procedure Page 37 Service Page 38

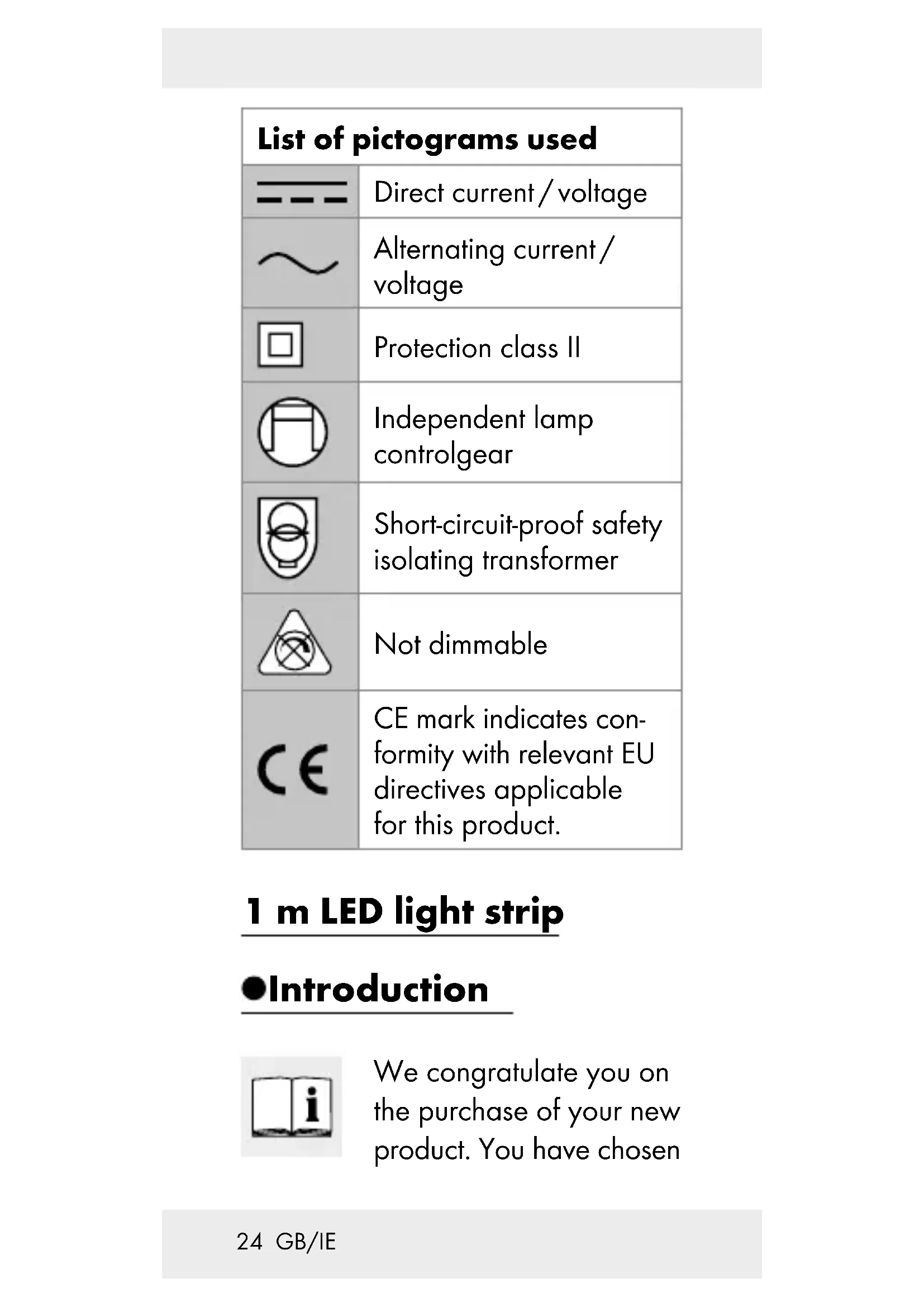

List of pictograms used
= = =	Direct current/voltage
~	Alternating current/voltage
□	Protection class II
	Independent lamp controlgear
	Short-circuit-proof safety isolating transformer
	Not dimmable
CE	CE mark indicates con-formity with relevant EU directives applicable for this product.

1 m LED light strip

Introduction

We congratulate you on the purchase of your new product. You have chosen

a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is intended for use in indoor environments and only for private,

domestic purposes and not for use in other applications.

The product can be used on all normally flammable, smooth surfaces. The product is not intended for commercial use. The manufacturer is not liable for damage caused by improper use.

For HG08422B only:

Not suitable for household room illumination.

- Partsdescription

1 Power adaptor
2 LED strip
3 Cable holder
4 ON/OFF cord switch
5 Supply cable
6 Adhesive pad

-Technicaldata

Power adaptor + LED Strip:

Total power

consumption: 2.8W

LED Strip:

LED: 30 LEDs

(HG08422A)

32 LEDs

(HG08422B)

Note: The LED cannot be replaced.

Power adaptor:

Input voltage: 100 - 240V~

50-60Hz, 0.07A

Output

voltage:12V = =,0.25A

Protection

class:

Model no.: SPA120025VL-01

SELV: Safety extra low

voltage

Ta: Maximum rated

ambient temperature

Tc: Rated maximum

operating tempera

ture of the case of a

controlgear

This product contains a light source of energy efficiency class "F" (for HG08422A).

- Scope of delivery

1 LED strip
2 Cable holders
1 Adhesive pad
1 Assembly, operating and safety instructions

Safetynotes

PLEASE READ THE INSTRUCTIONS FOR USE PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS FOR USE IN A SAFE PLACE!

Check the product for damage before use. Never use a damaged product.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

WARNING! The extremely high speed of the lights change during the colour change effect

can under certain circumstances result in visual impairment of children or predisposed persons (e.g. by mental illness).

Never use the product if it is damaged in any way.
Where breakage or damage to LEDs occurs the product must not be used/energised but disposed of safely.
Only use the product with the components described in these instructions.
Do not attach objects to the product.

CAUTION! RISK OF OVERHEATING! Do not operate the product inside the packaging or when it is rolled up.

• Protect the product from sharp edges, mechanical loads and hot surfaces.
• Do not expose the product to high temperatures or moisture, otherwise the product may be damaged.

• Do not secure with sharp staples or nails.

• Never open a component of the electrical equipment or insert anything into a component of the electrical equipment.
  If the product is not in use for any length of time (e.g. holidays), disconnect it from the power adaptor 1.
  The power cable cannot be repaired! Should the power cable be damaged, the product must be rendered useless and must be disposed off appropriately.
  Ensure that the available network voltage agrees with the required input voltage of the power adaptor before use (100-240V~).
  Always check the product for damage before connecting it to the power adaptor 1.
  Always unplug the power adaptor from the socket before installation, dismantling or cleaning.
  This product does not contain any parts that can be serviced by the user. The LEDs and LED driver cannot be replaced.

The product is only suited for use with the included power adaptor (model no. (SPA120025VL-01).
- Do not use the product when covered or recessed into a surface.
Interconnection shall be made only by the use of the supplied connectors. Any open ends must be sealed-off before use.
Do not connect this product to another manufacturer's product.
Please note that the power adaptor continues to draw a small amount of power even if the product is turned off as long as the power adaptor is plugged into a power outlet. To switch the product off completely, unplug the power adaptor from the socket.
The illuminants are not replaceable.
If the illuminants fail at the end of their lives, the entire product must be replaced.
Do not use the rope light when covered or recessed into a surface.

Interconnection shall be made only by the use of the supplied connectors. Any open ends must be sealed-off before use.

Do not connect this rope light to another manufacturer's product.

- Beforeuse

WARNING! DANGER TO LIFE BY ELECTRIC SHOCK! Before

performing any work, first disconnect the product from the mains power. Remove the power adaptor 1 from the socket.

Note: Remove all packaging materials from the product.

- Mounting

Note: Clean the surface well onto which you wish to mount the product. The surface must be clean, free from grease and dry. Otherwise the stickiness of the double-sided adhesive strip might be limited.

Remove the protective film from the adhesive strip on the back of the LED strip 2 and attach the LED strip 2 at the desired point (see Fig. B).
You can also mount the supply cable 5 by using the included cable holders 3 (see Fig. D).
- Attach the cable holders 3 using the attached double-sided adhesive strip.
Please ensure that the power adaptor 1 is always accessible.
Insert the power adaptor into the socket before you turn on the product.

Shorten the LED strip:

You are able to individually shorten the LED strip 2. It can be cut with scissors at the marked position (see Fig. C). Be sure to cover the open end of the LED strip 2 with the adhesive pad 6 before use (see Fig. E).

- Start-up

- Switching the LED strip on/off

Use the ON/OFF cord switch4 to switch the LED strip 2 on or off.

- Cleaning and care

WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!

Before performing any work, first disconnect the product from the mains power. Remove the power adaptor 1 from the socket.

Use only a dry, lint-free cloth for cleaning.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation,

which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately

for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to your worn-out product.

To help protect the environment, please dispose of the product properly

when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 374224_2104) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service

address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]
