IAN 288476 - LED Spotlight Livarno Lux - Free user manual and instructions

Product Type	LED Motion Sensor Floodlight
Brand	Livarno Lux
Model	IAN 288476
Operating Voltage	230 V ~ 50 Hz
Power Consumption	20 W
Bulb	COB-LED, 19 W (non-replaceable)
Motion Sensor Range	Max. 10 m (adjustable)
Detection Angle (Horizontal)	Approx. 180°
Lighting Duration	Adjustable from approx. 5 s to 7.5 min
Brightness Threshold	Adjustable from 20 lx to 20,000 lx
Sensor Sensitivity	Adjustable
Protection Rating	IP65 (dust-tight and protected against water jets)
Dimensions (without stake)	18 × 23 × 10 cm (approx.)
Weight (without stake)	1055 g (approx.)
Application	Outdoor
Package Contents	1 LED floodlight, 2 wall plugs (8 mm), 2 washers (20 mm), 2 screws (6×50 mm), 1 stake, 1 cable anchor, 1 protective screen, 1 manual
Warranty	3 years (from date of purchase)
Certifications	TÜV/GS, CE, IP65
Cleaning and Maintenance	Clean with a slightly damp, lint-free cloth and mild detergent
Safety Distance	At least 1.0 m from illuminated objects

Frequently Asked Questions - IAN 288476 Livarno Lux

How to install the Livarno Lux LED floodlight?

Electrical installation must be performed by a qualified electrician. Mount the bracket to the wall using the supplied wall plugs and screws (drill hole Ø 8 mm). For floor mounting, use the supplied stake. Observe safety distances and disconnect power before any work.

How to adjust the lighting duration?

Turn the TIME knob (16) under the motion sensor clockwise to increase the duration, from 5 seconds to 7.5 minutes.

How to adjust the motion sensor sensitivity?

Use the SENS knob (15): turn clockwise to increase sensitivity. Adjust according to seasons, as the sensor is more sensitive in cold weather.

How to adjust the brightness threshold (day/night)?

Turn the LUX knob (17): at the moon symbol (20 lx), the detector only reacts at night; at the sun symbol (20,000 lx), it reacts even in daylight.

Can the LED bulb be replaced?

No, the COB-LED bulb is integrated and non-replaceable. In case of failure, the floodlight must be replaced.

How to adjust the motion sensor direction?

Loosen the locking screw (8) on the sensor, aim it at the desired area, then retighten the screw. Perform this adjustment preferably at dusk.

Is the floodlight waterproof?

Yes, it has a protection rating of IP65, making it dust-tight and protected against water jets. It can be used outdoors without issues.

How to clean the floodlight?

Before cleaning, switch off the power (fuse or circuit breaker). Use a slightly damp, lint-free cloth with a mild detergent. Never immerse the device in water.

What is the ideal installation height?

The recommended height for the motion detector is between 1.80 m and 2.50 m for optimal range and detection angle.

What is the warranty period?

The floodlight comes with a 3-year warranty from the date of purchase, upon presentation of the receipt. The warranty covers material and manufacturing defects, but not normal wear and tear.

USER MANUAL IAN 288476 Livarno Lux

Assembly, operating and safety instructions

SE

LED-STRÄLKASTARE2OW

GB/IEAssembly,operating and safety instructionsPage 5

Scope of delivery.. Page 7

General safety instructions.. Page 7

Before installation.. Page 8

Installation

Connecting the lamp.. Page 9

Wall Mounting.. Page 10

Mounting with ground stake . Page 10

Start-up

Adjusting the motion detector.. Page 11

Setting the lighting duration.. Page 11

Adjusting the sensitivity of the sensor.. Page 11

Setting the daylight level . Page 12

Aligning the motion detector. Page 12

Cleaning and Care

Disposal.. Page 13

Warranty.. Page 13

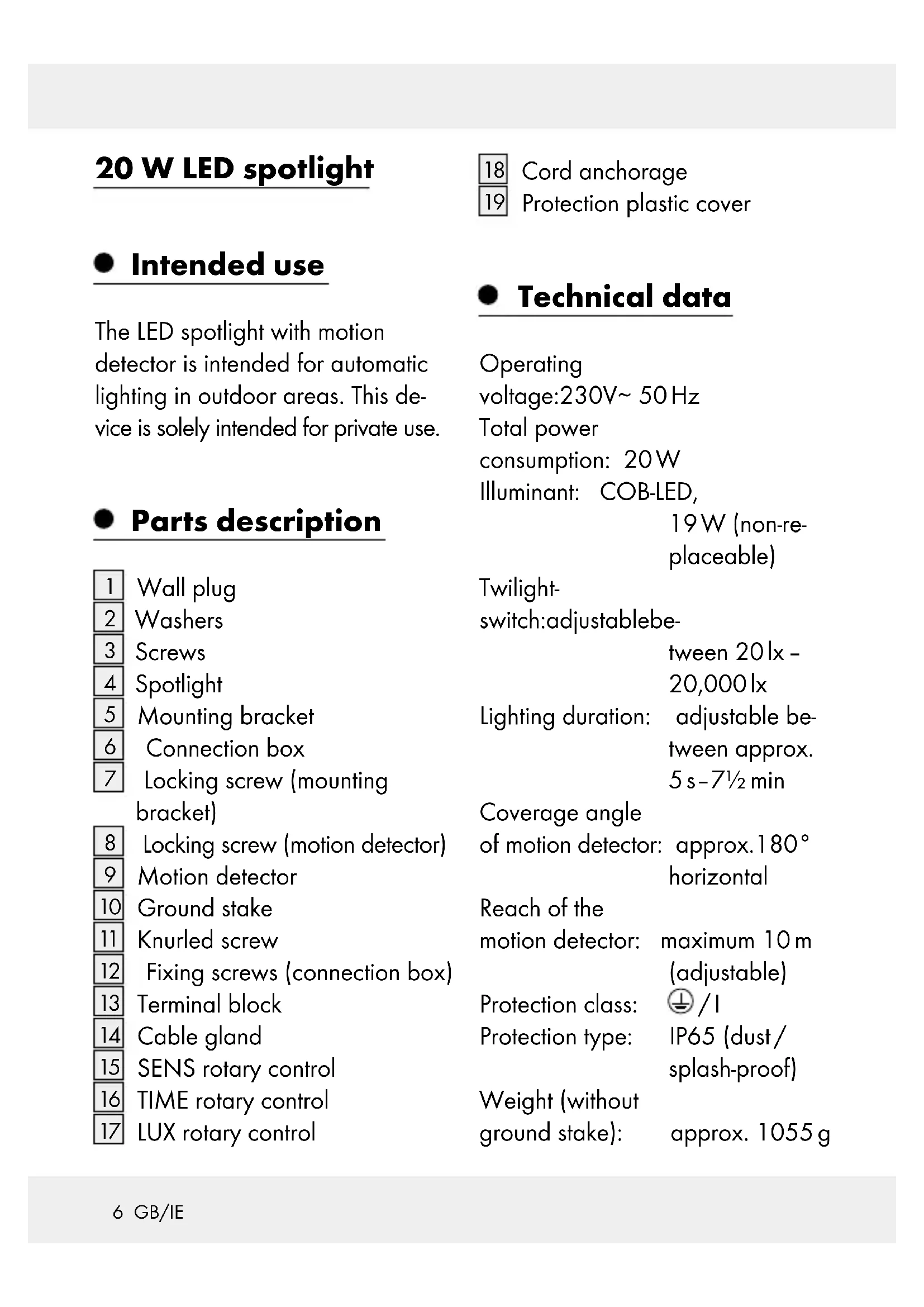

20 W LED spotlight

18 Cord anchorage
19 Protection plastic cover

- Intended use

The LED spotlight with motion detector is intended for automatic lighting in outdoor areas. This device is solely intended for private use.

- Parts description

1 Wall plug
2 Washers
3 Screws
4 Spotlight
5 Mounting bracket
6 Connection box
7 Locking screw (mounting bracket)

8 Locking screw (motion detector)
9 Motion detector
10 Ground stake
Knurled screw
12 Fixing screws (connection box)
13 Terminal block
14 Cable gland
15 SENS rotary control
16 TIME rotary control
LUX rotary control

- Technical data

Operating

voltage:230V~50Hz

Total power

consumption: 20W

Illuminant: COB-LED,

19W (non-replaceable)

Twilight-

switch:adjustablebe

tween 20lx- 20,000lx

Lighting duration: adjustable be

tween approx.

5s-712min

Coverage angle

of motion detector: approx. 180^

horizontal

Reach of the

motion detector: maximum 10 m (adjustable)

Protection class: /1

Protection type: IP65 (dust/

splash-proof)

Weight (without

approx. 1055 g

Dimension (without ground stake): approx. 18 × 23 × 10 cm

TÜV/GS tested.

- Scope of delivery

1 LED spotlight with motion detector
2 Wall plugs (0 8 mm)
2 Washers (0 20mm)
2 Screws (6mm× 50mm)
1 Ground stake
1 Cord anchorage
1 Protection plastic cover
1 Set of mounting and operating instructions

Generalsafety instructions

Before using the product, please familiarise yourself with all of the safety information and instructions for use! When passing this product on to others, please also include all the documents!

DANGER TO LIFE AND ACCIDENT HAZARD FOR

TODDLERS AND SMALL CHILDREN! Never leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep the product out of the reach of children at all times.

This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Children should not be allowed to play with the device. Cleaning and user maintenance should not be performed by children without supervision.

Danger to life by electric shock

Always check the light for damage before connecting it to the mains. Never use the light if it shows any signs of damage.
Prior to installation, verify that the mains voltage on site corresponds with the operating voltage required for the light (230V 50Hz) . Otherwise do not install the light.

CAUTION! DANGER OF BURN INJURIES! To pre-

vent burns, verify the light is switched off and has cooled down for at least 15 min before touching it. Lamps can become very hot.

FIRE HAZARD!

Fit the light so that it is at least 1.0m

away from the material to be illuminated. Excessive heat can result in a fire.

CAUTION! RISK OF INJURY! Bro-

ken lamp glass must

be replaced before any further use is made of the lamp.

The spotlight is only suited for use with the built-in LED control gear.
The product continues to draw a small amount of power even if the lamp is off as long as product is connected to supply mains. To switch the device off completely, the mains switch should be switched off.

Before installation

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations.
Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).

Use the voltage tester to verify the de-energised status.
The included mounting material (screws 3 and wall plugs 1) is suitable for ordinary solid concrete or masonry construction. Check which mounting material is suitable for your chosen mounting surface. If necessary, seek expert advice.
The included ground stake is suitable for mounting in soil (e.g. lawn or flower bed). The soil must be soft enough to push the ground stake in without applying force (e.g. hammer strike), but must be firm enough at the same time to ensure the lamp is securely fixed.

- Installation

When selecting the mounting location, pay attention to the following:

Make sure that the spotlight illuminates the desired area. You can move the spotlight vertically.
Make sure the motion detector 9 covers the desired area.

The motion detector has a maximum coverage range of 10m , with a coverage angle of about 180^ (depending on the mounting height - a height of 1.80 - 2.50m is ideal).

Make sure the motion detector is not illuminated at night by street lighting. This can influence its functioning.

Connecting the lamp

Open the connection box by using a Phillips screw driver to loosen the fixing screws 12 of the connection box (Fig. B).
Run the flexible supply line, type H05RN-F 3G 1.0 mm², through the cable gland [14] and into the connection box. The length for the flexible supply line should not exceed 2.5 m. Open the terminal block [13] by using a cross-head screw driver to loosen the fixing screws. Fix the connection cable by turning the nut of the cable gland (Fig. C).

Attach ferrules to the wires of the supply line. Also attach the cord anchorage 18 to the supply line and use pliers to tighten it on the supply line (Fig. D). Connect them with the terminal block 13 in the connection box. Pay attention to the markings on the terminal block (L for live, N for neutral and 12 for the earth wire) (Fig. E). Close the terminal block again by fastening the fixing screws.

Place the protection plastic cover 19 on the terminal block (Fig. F).
Close the connection box again by fastening the fixing screws (Fig. G).

- WallMounting

Place the mounting bracket on the wall and mark the fastening holes for the mounting bracket.
Now drill the fastening holes ( 8mm) and push the wall plugs into the drill holes.

Insert the included screw into the washers 2 (0 20 mm).
Fix the mounting bracket on the wall using the screws provided.
Align the spotlight into the desired direction. For this, you may need to slacken the locking screws of the hinge joint. After alignment, tighten the locking screws of the hinge joint again, to ensure a secure hold (Fig. J).

Mountingwith ground stake

Loosen the knurled screw of the ground stake 10 and secure the ground stake, using the knurled screw, onto the middle hole of the mounting bracket 5.
Insert the LED spotlight with the ground stake far enough into the ground so it is firmly seated. Make sure it is firmly placed. Do not use excessive force, e.g. strike with a hammer. This could damage the product.

Align the spotlight into the desired direction. For this, you may need to slacken the locking screws of the hinge joint. After alignment, tighten the locking screws of the hinge joint again, to ensure a secure hold.
After the fuse has been inserted or the fuse panel is switched on again, your lamp is ready for use.

Start-up

Adjustingthe motion detector

Depending on the pre-adjustments of the motion detector [9], the spotlight [1] will switch itself on for a certain period of time as soon as the motion detector detects movement. These pre-adjustments are made using the three controllers on the underside of the motion detector (Fig. H).

Setting the lighting duration

Turn the TIME rotary control on the bottom of the motion detector 9 clockwise to increase the duration of illumination. The lighting duration can be adjusted within a time window of approx. 5 seconds to 712 minutes.

Adjusting the sensitivity of the sensor

Turn the SENS rotary control on the bottom of the motion detector 9 clockwise to increase the sensitivity of the sensor.

Note: The motion detector responds to heat radiation. When outdoor temperatures are low, it is more sensitive to body heat than when outdoor temperatures are warm. Be sure to regulate the sensitivity of the sensor over the course of the year.

Note: Please observe that the motion detector primarily

detects movements transverse to the motion detector. If you move directly towards the motion detector, it cannot detect this movement.

Settingthe daylight level

Turn the LUX rotary control on the bottom side of the motion detector 9 clockwise to increase the daylight level: In the position, the motion detector only reacts at night (at approx. 20 lx). In the position, the motion detector also responds at daylight levels, as long as about 20,000 lx are not exceeded.

Aligningthe motion detector

Note: Perform this adjustment at twilight.

Loosen the locking screw (motion detector) 8.

Turn the LUX rotary control to position.
Align the motion detector into the central region of the desired coverage area.
Move about through the coverage area until you are satisfied with the response characteristics of the motion detector. To find the proper orientation, change the position of the SENS rotary control [15] or the orientation of the motion detector.
When you have aligned the motion detector satisfactorily, re-tighten the locking screws to fix the adjustment.

- Cleaning and Care

Before cleaning, remove the fuse or switch off the circuit breaker at the fuse box.
Never immerse the product in water or other liquids. Otherwise the product can be damaged.
Clean the spotlight with a lint-free, slightly moist cloth and mild cleaning agent.

Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Please contact your local municipality or city administration for information on how to dispose of the worn out product.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within

3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
