USER MANUAL Poussette Nuna

Designed around your lifeIMPORTANT! KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE: READ CAREFULLY2MIXX next instructions

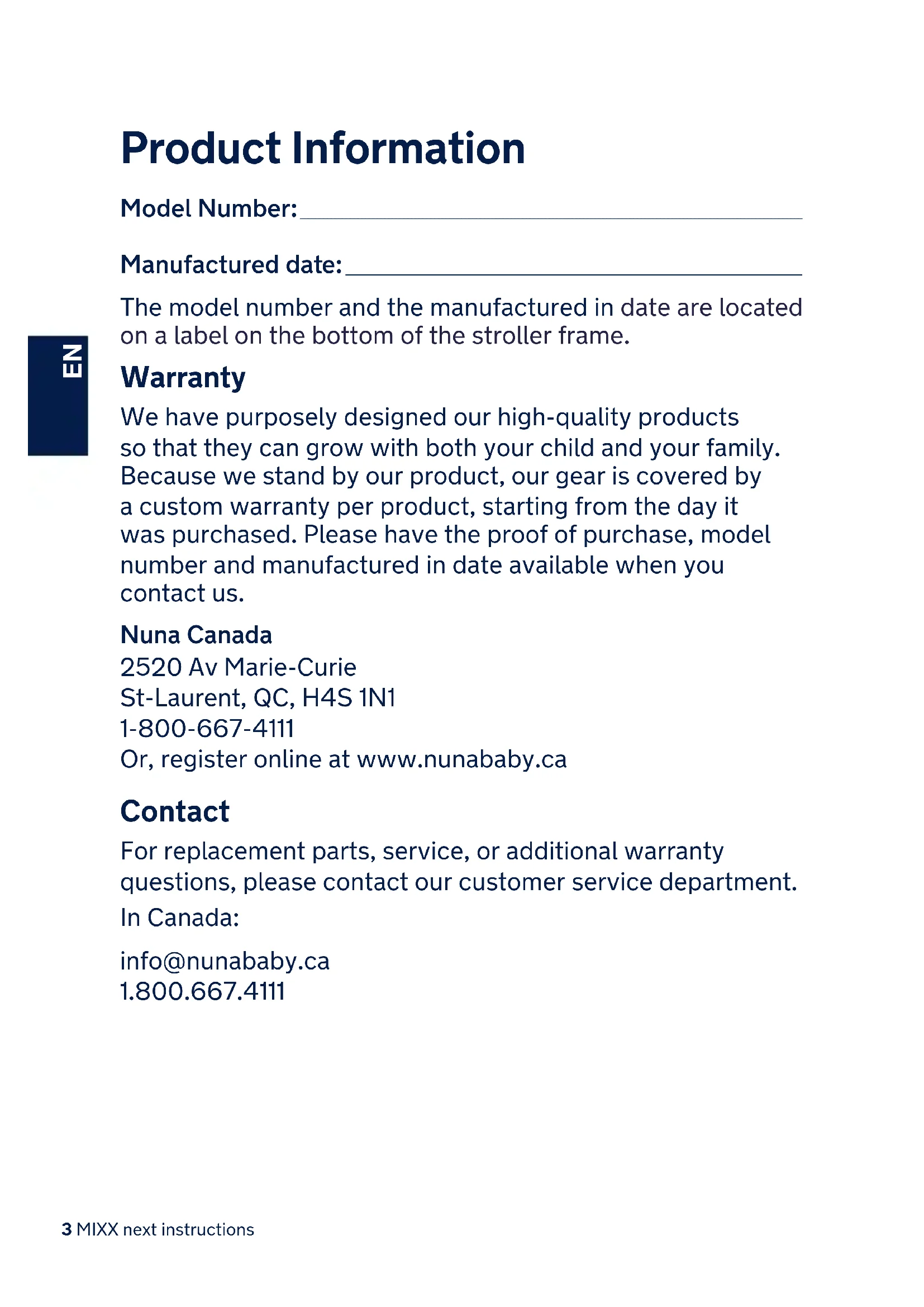

Product Information Model Number: ___________________________________________________________________________________________________________________________________ Manufactured date: _______________________________________________________________________________________________________________________ The model number and the manufactured in date are located on a label on the bottom of the stroller frame. Warranty We have purposely designed our high-quality products so that they can grow with both your child and your family. Because we stand by our product, our gear is covered by a custom warranty per product, starting from the day it was purchased. Please have the proof of purchase, model number and manufactured in date available when you contact us. Nuna Canada 2520 Av Marie-Curie St-Laurent, QC, H4S 1N1 1-800-667-4111 Or, register online at www.nunababy.ca Contact For replacement parts, service, or additional warranty questions, please contact our customer service department. In Canada: [e-mail]

Child Usage Requirements This stroller is suitable for use with children who meet the following requirements: Weight: up to 22.7 kg (50 lb) maximum Height: up to 114.3 cm (45 in.) When using the stroller frame with the MIXX bassinet or NUNA infant carrier, refer to the child usage requirements listed in those instruction manuals.5 MIXX next instructions

A child’s safety is your responsibility. NEVER leave your child unattended. To avoid any danger of suffocation, remove all plastic covers before using the stroller and destroy or keep away from babies and children! Keep small parts away from children as they pose a choking hazard. Discontinue using this stroller if it becomes damaged or broken. Use original Nuna parts and accessories only. Use of this stroller with a child weighing more than

22.7 kg (50 lb) or taller than 114.3 cm (45 in.) in

height will cause excessive wear, and stress on the stroller, and could create an unstable condition. Use the stroller with only one child at a time. To prevent a hazardous, unstable condition, do not place more than 4.5 kg (10 lb) in the storage basket before use. Do not place more than 4.5 kg (10 lb) in the pouch. To prevent a hazardous, unstable condition, do not place more than 0.45 kg (1 lb) in the storage pocket on the back of the seat. Negotiate curbs and rough ground carefully. Repeated impact could cause damage to this stroller. WARNINg Failure to follow these warnings and instructions could result in serious injury or death.6MIXX next instructions

This stroller is to be used only at walking speed and is not intended for use while jogging, skating, etc. The parking brake MUST be engaged when the stroller is stopped and when placing and removing child. Overloading, incorrect folding, and using accessories other than those approved by Nuna, e.g. child seats, bag hooks, rain covers, buggy boards, etc., may damage or make this stroller unsafe. Adding accessories such as purses, shopping bags, or parcels to the handle or canopy can cause the stroller to be unstable. This stroller does not replace a crib or a bed. Should your child need to sleep, they should be placed in a crib or approved sleeping area based on your child’s requirements. Avoid serious injury from falling or sliding out. Always use seat belt. After fastening buckles, adjust belts to get a snug fit around your child. This stroller has been designed to use from birth. We recommend using lowest reclined position for newborn babies. Child may slip into leg openings and strangle. NEVER use in full reclined position unless the calf support is raised to cover the front opening and the fabric flaps are snapped to the side of the stroller seat.7 MIXX next instructions

AVoid FiNgER ENTRApMENT Use care when folding and unfolding the stroller. Be certain the stroller is fully erected and latched before allowing your child near the stroller. STRANgUlATioN HAzARd Do not place items with a string around your child’s neck, suspend strings from the stroller, or attach strings to toys. AlWAYS keep your child in view while in this stroller. AlWAYS allow the fabric to dry naturally away from direct heat. AlWAYS check that the attachments are correctly engaged. do NoT let your child play with this stroller. do NoT place any item on the canopy of this stroller. do NoT leave this stroller exposed in the vicinity of a strong source of heat i.e. a radiator or open fire or store this stroller in a damp place. do NoT make any changes or modifications to this stroller that are not specified in this manual. do NoT use storage basket as a child carrier. NEVER use the stroller on stairs or escalators. You may suddenly lose control of the stroller or your child may fall out. NEVER allow your child to stand on the footrest.8MIXX next instructions

Car Seat Ring Adapter Use the car seat ring adapter only with a Nuna PIPA series infant car seat in combination with a Nuna MIXX series stroller. Read all instructions for the Nuna PIPA series infant car seat before use of this adapter. Check that the adapter and the infant carrier are installed correctly and securely latched before every use. AlWAYS make sure the child is properly harnessed in the infant carrier. do NoT exceed the maximum weight limit specified for the infant carrier. do NoT move the stroller and infant carrier assembly by the handle of the infant carrier. do NoT place any accessories on the stroller handle when using the adapter with the infant carrier, as the stroller may become unstable. The adapter interface may present a pinching hazard. Ensure all fingers and appendages are clear of the adapter when attaching the infant carrier.9 MIXX next instructions

Parts List Make sure all parts are available before assembly. If any part is missing, please contact customer service. No tools are required for assembly. CHokiNg HAzARd: Remove and immediately discard protective end caps from each wheel and wheel hub axle. 1 Front Wheel (x2) 2 Rear Wheel (x2) 3 Car Seat Ring Adapter 4 Canopy 5 Canopy Visor 6 Arm Bar 7 Calf Support 8 Front Wheel 9 Handle Adjustment Button 10 Shoulder Harness Pads 11 Canopy Clips 12 Stroller Frame 13 Buckle and Crotch Cover 14 Rear Wheel 15 Insert 16 Seat Release Button 17 Top Canopy Window 18 Back Canopy Window 19 Stroller Handle 20 Recline Adjustment Button 21 Folding Button 22 Seat Ventilation 23 Storage Pocket 24 Storage Basket 25 Brake Lever 26 Pouch10MIXX next instructions

1 - Pull the storage latch out.

2 - Lift up on the handle from the sides and rotate to the

rear of the stroller. A “click” sound means the stroller frame is open completely.

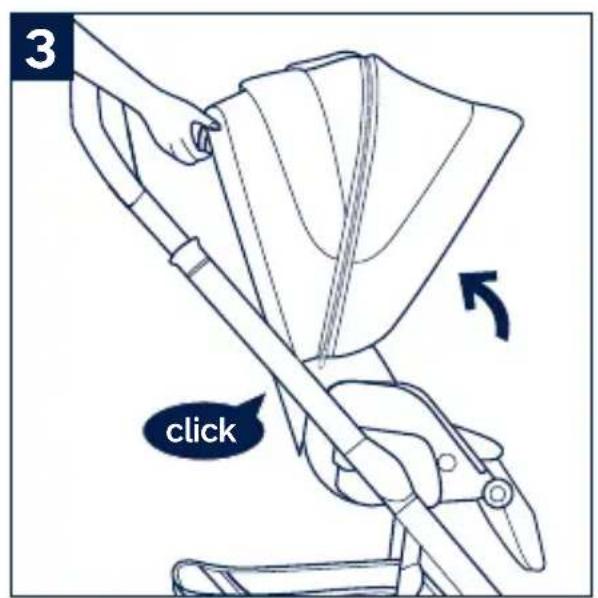

3 - Squeeze the recline adjustment button on the back of

the seat and rotate the backrest to the upright position. Check that the stroller is open completely before continuing. Canopy

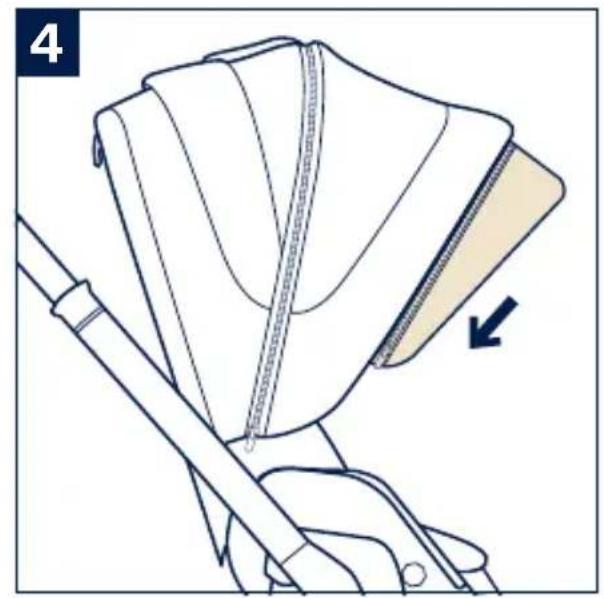

4 - Zip the canopy visor to the inside of the canopy.

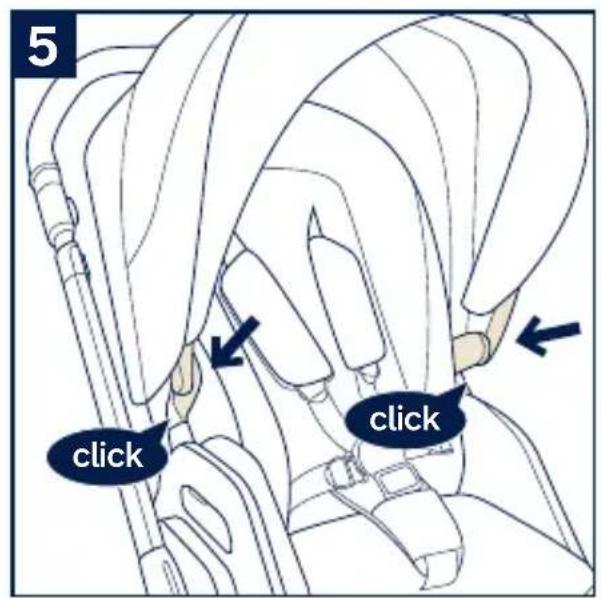

5 - Insert the canopy clips into the canopy mounts on the

sides of the stroller. A “click” sound means the canopy is assembled completely. 11 MIXX next instructions ENclick

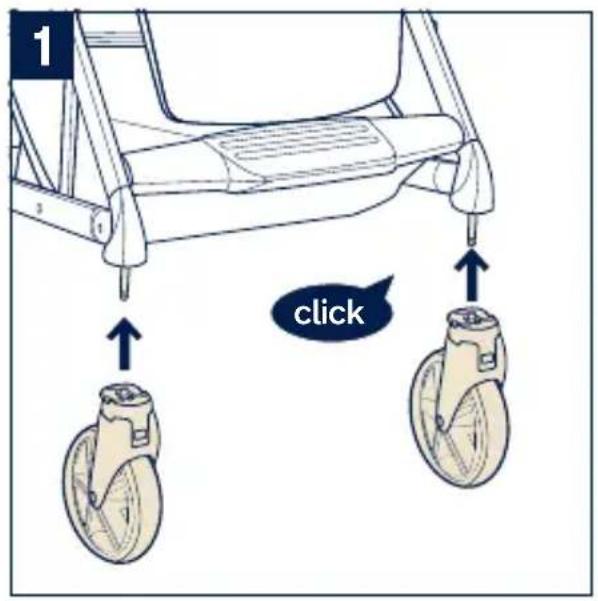

1 - Insert the front wheel into the front leg. A “click” sound

means the wheel is assembled completely. Check the wheel is securely attached by pulling on them. Repeat on opposite side.

2 - To remove the front wheel, press the release button (1)

and detach the front wheel from the front leg (2). Rear Wheels

3 - Insert the rear wheel into the rear leg. A “click” sound

means the rear wheel is assembled completely. Repeat on opposite side. Check that the wheel is securely attached by pulling on them.

4 - To remove the rear wheel, press the release button (1)

and detach the rear wheel from the rear leg (2). 13 MIXX next instructions ENclick

1Arm Bar Always secure the child with the harness. The arm bar is not a restraint device.

1 - Align the arm bar ends with the arm bar mounts, and

insert until it clicks into place. A “click” sound means the arm bar is assembled completely.

2 - To remove the arm bar, press the arm bar release

buttons (1) and lift the arm bar up. (2)

3 - Fasten the inner snaps of the seat pad to the inside

of the seating area as shown. Check Set Up Stroller frame is latched open Front and rear wheels securely attached Canopy is attached to stroller frame Arm bar is securely attached 15 MIXX next instructions EN2

16MIXX next instructions ENProduct Use The parking brake MUST be engaged when the stroller is stopped and when placing and removing child. Securing Your Child Avoid serious injury from falling or sliding out. Always use the seat belt. Make sure the harness is adjusted properly and your child is snugly secured. The space between the child and the shoulder harness should be about the thickness of one finger. do NoT cross the shoulder belts. This will cause pressure on your child’s neck.

1 - Push the top button on the buckle (1) to release

the buckle latch and remove the magnetic clips (2). Place your child in the stroller.

2 - Insert the magnetic clips into the buckle.

3 - Fit the harness snugly to your child by sliding the

adjustment straps to tighten (1). Then pull the waist adjustment straps out (2). Shoulder Harness Position

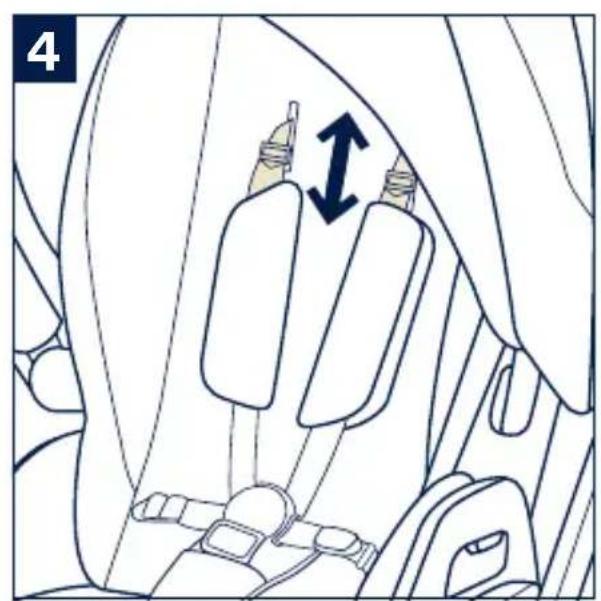

4 - The upper shoulder harness buckles can be moved up

and down for added adjustment. 17 MIXX next instructions EN18MIXX next instructions

1 - To open the canopy, pull the canopy toward the front

of the seat. To close the canopy, push it back.

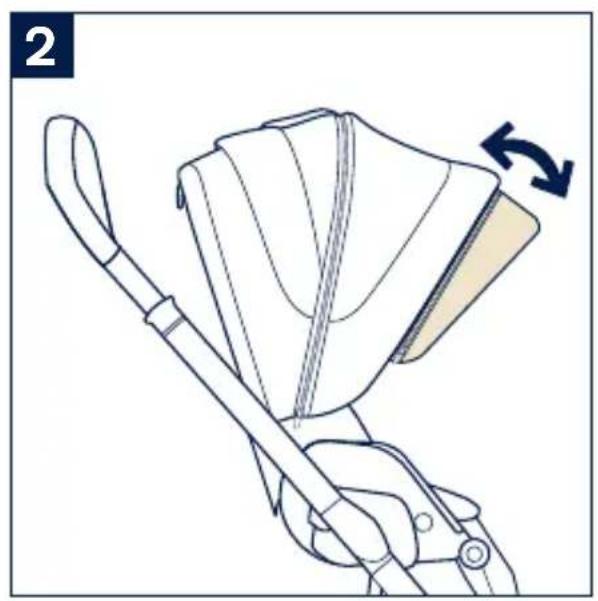

2 - Position the canopy visor forward or backward as

needed. When not in use, fold the canopy visor under the canopy.

3 - Open the zipper on the canopy for extra shade and

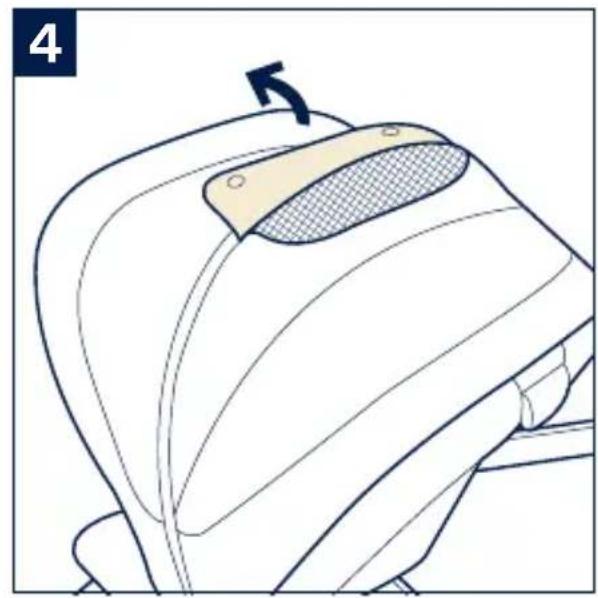

4 - For ventilation, flip up the top canopy window cover.

5 - For additional ventilation, flip up the back canopy

window cover (1) and fold down the top canopy window (2). The canopy is not removable. 19 MIXX next instructions EN20MIXX next instructions

2Front Swivel Locks It is recommended to use the front swivel locks on uneven surfaces.

1 - Squeeze (1) and pull out the front swivel lock (2) to

lock the front wheel forward facing. You may need to move the wheel to get it to lock.

2 - Push in the front swivel lock to unlock.

- To lock the rear wheels, step down on the red area on the brake lever.

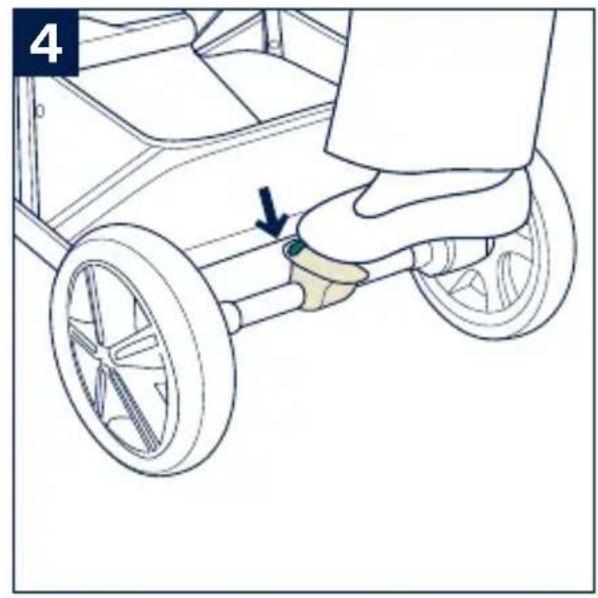

4 - To unlock the rear wheels, step down on the green

area on of the brake lever. Always apply the brake when the stroller is stopped. Push the stroller slightly to ensure the brake is engaged. Handle The handle has 3 positions.

5 - To adjust the height of the handle, press the handle

adjustment buttons (1) and pull the handle up or down (2). Recline Adjustment There are 5 recline positions for the backrest.

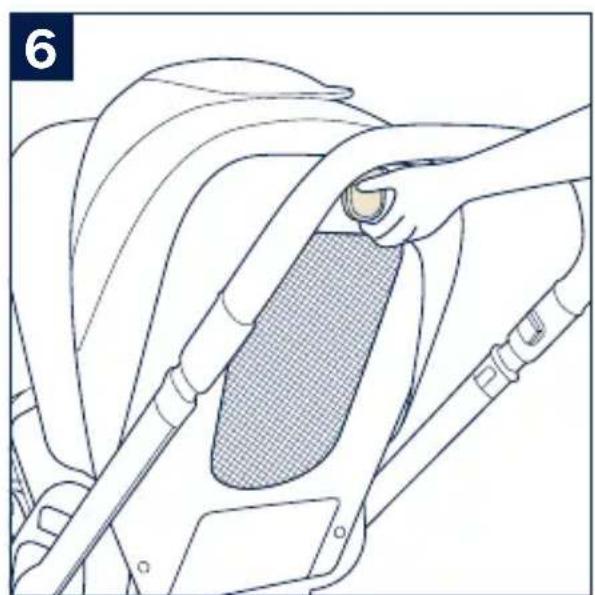

6 - To raise or lower the backrest, squeeze the recline

adjustment button, and pull the seat up or down. 21 MIXX next instructions EN22MIXX next instructions

3Calf Support The calf support has 3 use positions.

1 - To raise the calf support, lift up.

2 - To lower the calf support, press the adjustment buttons

on the sides (1), and push down (2). Full Recline Child may slip into leg openings and strangle. NEVER use in full reclined position unless the calf support is raised to cover the front opening and the fabric flaps are snapped to the side of the stroller seat. do NoT use enclosure with an older child that can push up on hands and knees or crawl out.

3 - Remove the arm bar before using the full recline.

Unfasten the front snaps from inside the seating area on both sides of the seat.

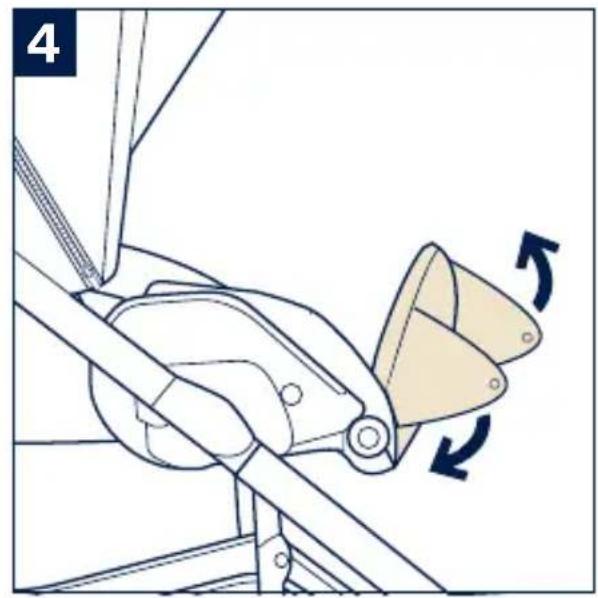

4 - Fully recline the seat, rotate the calf support to the

upright position and unfasten the flaps underneath the calf support.

5 - Fasten the flaps to the front snaps on the inside of

the seating area on both sides of the seat. 23 MIXX next instructions EN3 24MIXX next instructions

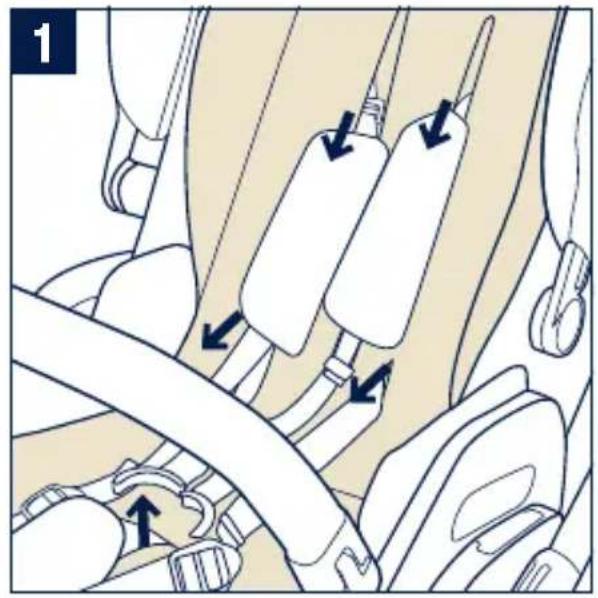

1 - To assemble the insert, place the insert over the seat

and thread the shoulder, waist and crotch harnesses through their respective slots.

2 - Attach the hook and loop fasteners.

Reverse Seat The seat can be used rear or forward facing.

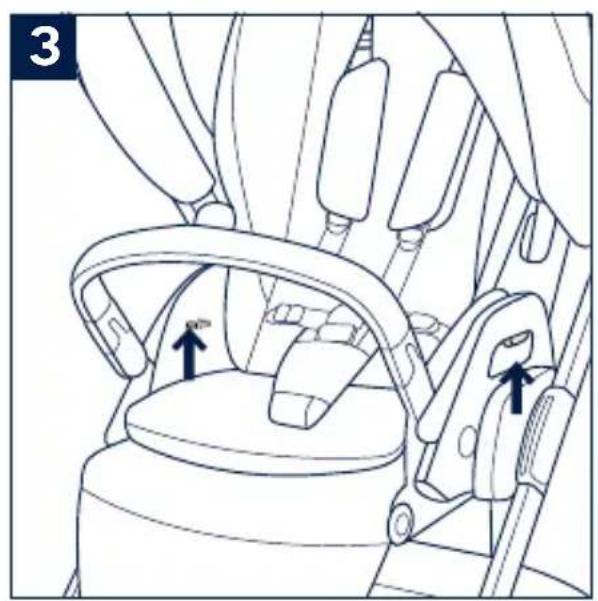

3 - Squeeze the seat release buttons and lift the seat up.

4 - Turn the seat in the opposite direction and place on the

seat mounts until it clicks into place. A “click” sound means the seat is attached. Check to make sure seat is securely attached by pulling up on it. 25 MIXX next instructions EN26MIXX next instructions

click 4Fold Before folding, push the canopy to the rear of the stroller.

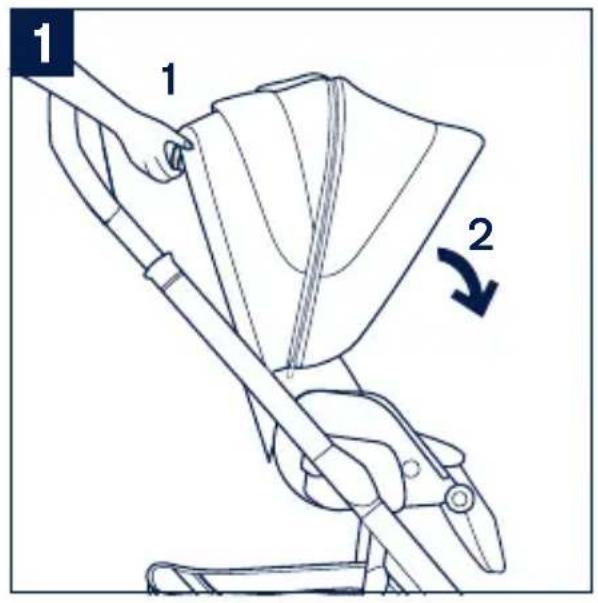

1 - Squeeze the recline adjustment button on the back

of the seat (1) and rotate the backrest to the stored position (2).

2 - Pull up on the folding buttons (1) and push the stroller

forward to fold (2).

3 - Lock the stroller by tucking the storage latch onto the

storage mount. 27 MIXX next instructions EN3 28MIXX next instructions

1 - Slide the two pieces of the adapter together until you

hear a click. The “click” sound means the adapter is connected. Pull outwards on either end to ensure the attachment is secure.

2 - To attach the adapter to the MIXX series stroller, place

the adapter onto the seat mounts until it clicks into place. A “click” sound means the adapter is attached.

3 - To attach the infant carrier, place the infant carrier onto

the adapter and press down. Listen for a “click” to ensure it is locked. Pull up on the infant carrier to check that it is securely locked to the adapter and that the adapter is securely locked to the stroller.

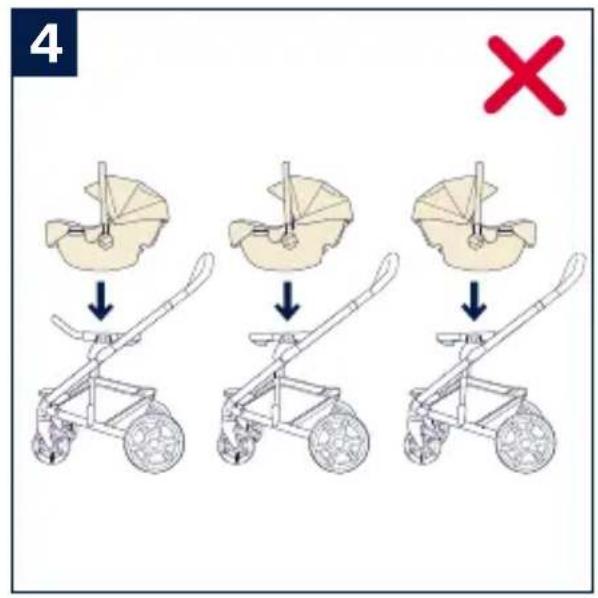

4 - do NoT attach the infant carrier in any of these

5 - To release the infant carrier, squeeze the release button

located on the back of the infant carrier (1), and pull up on the infant carrier (2).

6 - To remove the adapter, press the adapter release

buttons on both sides (1) and then lift up the adapter (2). See PIPA series instruction manual for proper usage of the infant carrier. Remove the infant carrier before folding. 29 MIXX next instructions EN30MIXX next instructions

Cleaning and Maintenance Clean the frame, plastic parts, and fabric with a damp cloth, but do not use abrasives or bleach. Do not use silicon lubricants as they will attract dirt and grime. Do not store your stroller in a damp place. Clean the stroller wheels regularly with water and remove any dirt. Clean the adapter with a damp cloth and a mild detergent and dry thoroughly. Do not use abrasives. To ensure long-lasting use, wipe off this product with a soft, absorbent cloth after using it in rainy weather. Refer to the care label attached to the fabric for washing and drying instructions. It is normal for fabric to color from sunlight and to show wear and tear after a long period of use, even when used normally. For reasons of safety, only use original Nuna parts. Check regularly if everything functions properly. If any parts are torn, broken, or missing, stop using this product.32MIXX next instructions
