USER MANUAL Triv carry cot Nuna

Silhouette of a hand holding a device with a warning symbol, set against a beige textured background (no text or symbols)

nuna®

Designed around your life

Simple line drawing of a rectangular object with a strap, no text or symbols present

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

2 1 click

4 2 1

2 click

5 2 1

Line drawing of a basket with handle and side panel, no text or symbols present

Line drawing of a baby护理 box with a lid (no text or symbols)

Line drawing of a bucket with handle and side arm, showing two downward arrows indicating measurement or force (no text or symbols)

Illustration of a hand pressing down on a curved object, possibly a medical or anatomical component (no text or symbols visible)

Diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a baby bottle with two arrows indicating direction (no text or symbols)

IMPORTANT - READ THE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.

Contents

Product Information 3

Product Registration

Warranty

Contact Child Usage Requirements 4

Warnings 5

Parts List 8

Product Set Up 9

Product Use 9

Cleaning and Maintenance 12

Energin (EPA) 12

Français (FR) Deutsch (DE)

Deutsch (DE) Nordsrands (NL) 27

Netherlands (NE) 57 Ueliana (IT) 49

Econel (55)

Español (20) 57 Dasturvía (PT) 73

Portugues (PT) Polaki (PL), PE

Česlov (CZ)

Slovenčina (SK)

Hrvatski (HP)

Slovenčina (SI)

Русский (RU)

Svenska (5V)

Suomi (FI) 168

Română (RO)

Ελλονικά (ΕΙ)

Turkce (TR)

T12

25

97

09

121

133

145

157

-

181

93

205

(AR) عَرِي

2TRN

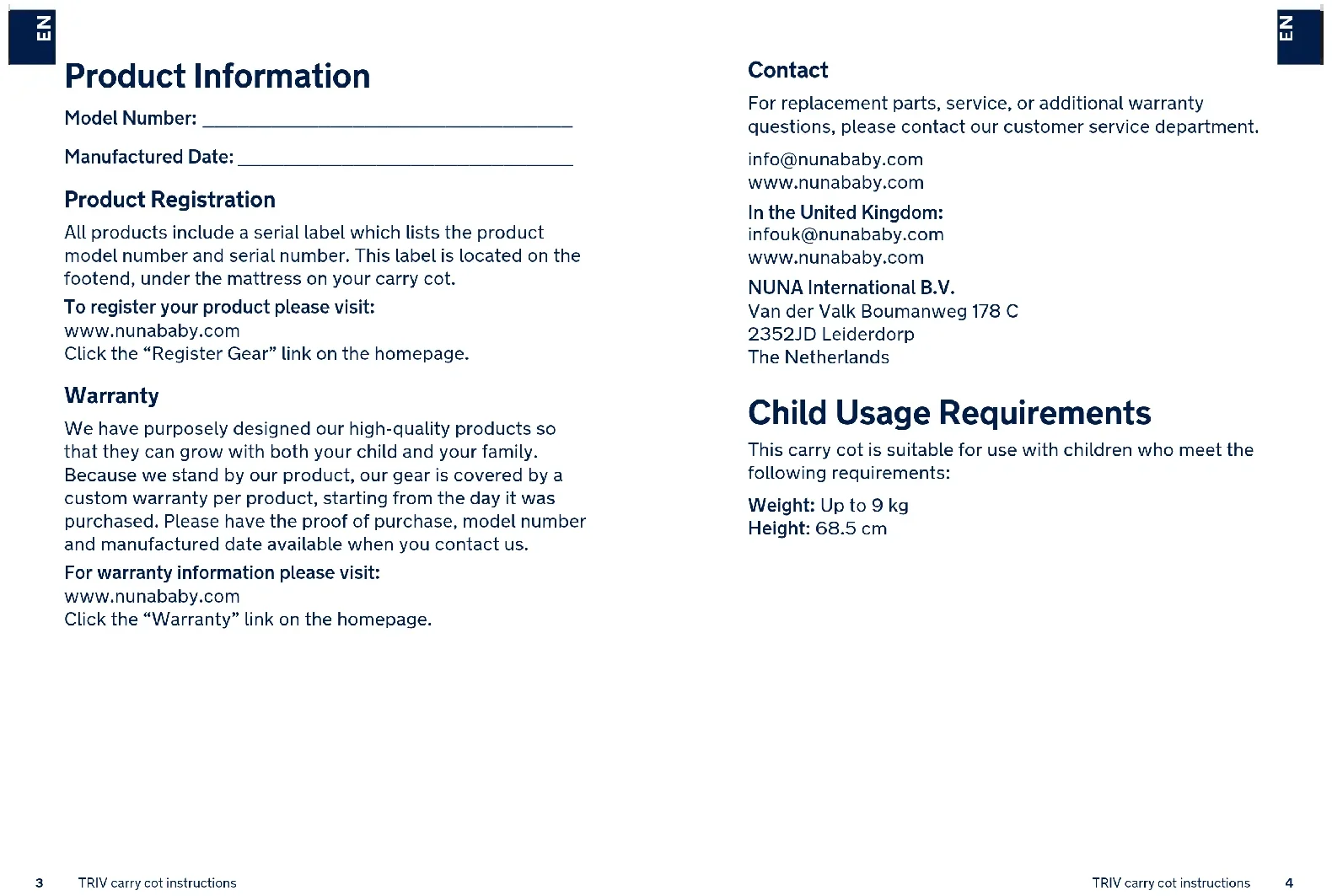

Product Information

Model Number: ____

Manufactured Date: ____

Product Registration

All products include a serial label which lists the product model number and serial number. This label is located on the footend, under the mattress on your carry cot.

To register your product please visit:

www.nunababy.com

Click the "Register Gear" link on the homepage.

Warranty

We have purposely designed our high-quality products so that they can grow with both your child and your family. Because we stand by our product, our gear is covered by a custom warranty per product, starting from the day it was purchased. Please have the proof of purchase, model number and manufactured date available when you contact us.

For warranty information please visit:

www.nunababy.com

Click the "Warranty" link on the homepage.

Contact

For replacement parts, service, or additional warranty questions, please contact our customer service department.

[e-mail]

www.nunababy.com

In the United Kingdom:

[e-mail]

www.nunababy.com

NUNA International B.V.

This carry cot is suitable for use with children who meet the following requirements:

Weight: Up to 9 kg

Height: 68.5 cm

WARNING

Failure to follow these warnings and the instructions could result in serious injury or death.

Any damage caused by the use of accessories not supplied by Nuna will not be covered in terms of warranty.

A child's safety is your responsibility.

Be aware of the risk of open fire or other source of strong heat, such as electric bar fires, gas fires, etc., in the near vicinity of carry cot.

Before carrying or lifting, make sure that the handle is in the correct position of use.

Check that the attachment devices are correctly engaged before use.

Ensure that all the locking devices are engaged before use.

Keep small parts away from children as they pose a choking hazard.

Only use on a firm, horizontal level and dry surface.

Overloading, incorrect folding, and the use of accessories e.g. child seats, bag hooks, rain covers, buggy boards, etc... other than those approved by Nuna may damage or make carry cot unsafe.

The carry cot is NOT to be used for long term sleeping.

The carry cot is not suitable for running or skating.

The carry cot is only suitable for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9kg.

The handle and the bottom should be inspected regularly for signs of damage and wear.

The head of the child in the carry cot should never be lower than the body.

To avoid any danger of suffocation, remove all plastic covers before using this item and destroy or keep away from babies and children.

To avoid injury ensure that your child is kept away when unfolding and folding the carry cot.

DO NOT leave the child unattended.

DO NOT store the carry cot in a damp place.

Always allow the fabric to dry naturally away from direct heat.

DO NOT carry additional children, goods, accessories in or on the carry cot except as permitted in this leaflet. They may cause the carry cot to become unstable.

DO NOT use or add any mattress other than the one supplied with the carry cot by Nuna.

DO NOT let the child play with the carry cot.

DO NOT use the carry cot if any part of the carry cot is broken, torn or missing.

DO NOT let other children play unattended near the carry cot.

DO NOT place the carry cot near an open fire or other source of strong heat.

NEVER use the carry cot on a stand.

NEVER place the child with their head at the foot end of the carry cot.

NEVER leave a child in the carry cot when ascending or descending stairs or escalators, or when traveling on other forms of transport.

NEVER carry more than one child at a time in the carry cot.USE original Nuna parts and accessories only.

USE ONLY replacement parts supplied or approved by Nuna.

WARNING Any load attached to the handle or canopy affects the stability of the carry cot.

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Carry Cot Cover 6 Carry Cot
(style may vary)
7 Canopy
2 Mattress Pad 8 Handle
3 Carry Cot Release Button 9 HandleAdjustment Button
4 AccessoryBag 10 Dream Drape ^™ (maximum load = 1.3 kg)
5 Carry Cot Lining

3 4 6 5 10

Two simple line drawings of a container or container with labeled points (1 and 2), no text or symbols present.

Line drawing of a 3D object with internal grid lines and a numbered label '11' (no text or symbols on the object itself)

Technical diagram of a mechanical component with numbered parts labeled 7, 8, 9, and 10

Product Set Up

1 Take the carry cot out. (1)
2 Ensure the 2 support mounts under the soft goods are securely attached. A "click" sound means the support mount is attached completely. (2)-1 (2)-2
3 To release the support mounts, see image (3).
4 Pull up the canopy as illustrated while pressing the buttons on both sides. (4)
5 Check to make sure the handle is secure before placing the child in the carry cot. (5)-1
! Make sure that the handle is in the correct position of use before carrying or lifting.
6 Always use the mattress when using the carry cot. (6)(7) Mattress cover can easily be removed to wash.
7 Assemble the carry cot cover. (8)(9)
Style of the carry cot cover many vary depending on the model purchased.

Product Use

Canopy

1 Pull the dream drape™ out from under the carry cot canopy, then secure it to the two sides of carry cot with magnets. (10)(11)

2 For more ventilation, fold the rear panel of the canopy up to reveal the canopy window. (12)-1

Carry Cot Window (On Certain Models)

Unzip the carry cot window fabric and fold it down. (12)-2

Carry Cot Attachment on Stroller Frame

1 To attach the post adapters, place the post adapters on the seat mounts. A "click" sound means the post adapters are attached. (13)(14)
2 Place the carry cot directly down until it latches into place. The carry cot is securely attached with a positive "click". (15)
Always remove the stroller seat before using the carry cot.
Do not fold the stroller when the carry cot is still attached.
3 The carry cot can be installed rear or forward facing on the post adapters. (16)
4 The carry cot can be used with TRIV.

Rain Cover

To assemble the carry cot rain cover, place it over the carry cot, and attach the hook and loop fasteners on the top of rain cover. (17)

! ALWAYS check ventilation when the rain cover is on the product.
! ALWAYS check that the rain cover has been cleaned and dried before folding.

Carry Cot Removal

Press each release side button as shown (18)-1, while lifting up the handle simultaneously. (18)-2

Soft Goods Removal

1 Remove the carry cot cover. (19)
2 Remove the mattress pad. (20)

To clean the mattress pad cover, remove the mattress pad before washing.

3 To remove canopy, unzip the canopy zipper located on the inside of the canopy handle (21) and the bottom panel of the canopy (22).
The canopy is not removable on certain models.
4 To remove the carry cot lining. Open the zippers on the carry cot. (23)

Cleaning and Maintenance

Clean the frame, plastic parts, and fabric with a damp cloth, but do not use abrasives or bleach. Do not use silicon lubricants as they will attract dirt and grime. Do not store the carry cot in a damp place.

To ensure long-lasting use, wipe this product off with a soft, absorbent cloth after using it in rainy weather and before storing away.

Refer to the care labels attached to the soft goods for washing and drying instructions.

It is normal for fabric to color from sunlight and to show wear and tear after a long period of use, even when used normally.

For reasons of safety, only use original Nuna parts.

Check regularly if everything functions properly. If any parts are torn, broken, or missing, stop using this product.

NUNA International B.V. Nuna and all associated logos are trademarks.
