Fassungsvermögen:10Maßgedecke PositiondesoberenKorbs:unterePosition Programm:ECO Klarspülereinstellung:6 Wasserenthärtungseinstellung:H3 GabelnBefore Calling forService Read this Manual Dear Customer, Please carefully read this manual before using the dish-washer, it will help you to use and maintain the dishwasher properly. Keep it as a refer in the later days. Pass it on to any subsequent owner of the appliance. This manual contains sections on safety Instructions, Operat-ing Instructions, Installation Instructions and Troubleshooting Tips, etc. To review the section on troubleshooting Tips will help you to solve some common problems by yourself. If you can not solve the problems by yourself, please ask for the help of professional technicians. NOTE: The manufacturer, following a policy of constant development and updating of the product, may make modications without giving prior notice.

Attention before or after loading the Dishwasher Baskets

7) Maintenance and cleaning 46

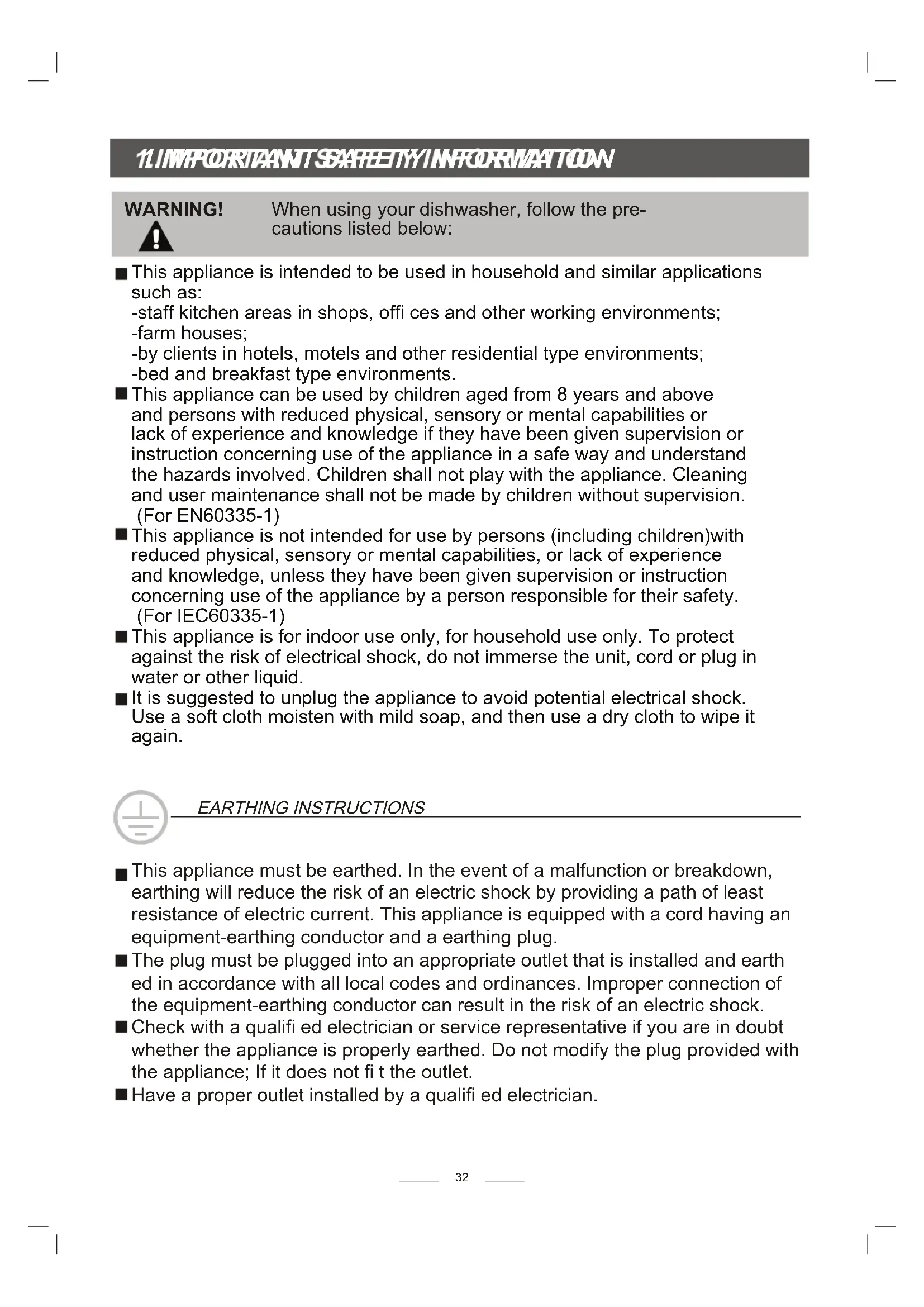

WARNING! When using your dishwasher, follow the pre- cautions listed below: EARTHING INSTRUCTIONS This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, of ces and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (For EN60335-1) This appliance is not intended for use by persons (including children)with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1) This appliance is for indoor use only, for household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. It is suggested to unplug the appliance to avoid potential electrical shock. Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again. This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a earthing plug. The plug must be plugged into an appropriate outlet that is installed and earth ed in accordance with all local codes and ordinances. Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a quali ed electrician or service representative if you are in doubt whether the appliance is properly earthed. Do not modify the plug provided with the appliance; If it does not t the outlet. Have a proper outlet installed by a quali ed electrician.33 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out. Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward. When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

2) Warning: Knives and other utensils with sharp points must be loaded in the

basket with their points down or placed in a horizontal position. Check that the detergent powder is empty after completion of the wash cycle. Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check th e m anufacturer‘s recommendations. Useonly det ergentand rins e add itives des igned for an aut omaticdish washer. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Children should be supervised to ensure that they do not play with the appliance. The door should not be left open, since this could increase the risk of tripping. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a hazard. During installation, the power supply must not be excessively or dangerously bent or attened. Do not tamper with controls. The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused. The maximum number of place settings to be washed is 10. The maximum permissible inlet water pressure is 1MPa. The minimum permissible inlet water pressure is 0.04MPa.34 Disposal WARNING! Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations:

Acrylonitrile Butadiene Styrene, e.g. Control Panel. Packaging material could be dangerous for children! For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofce and your household waste disposal service. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.35 Quick operation guide Switch on the appliance Fill the detergent dispenser Check the rinse aid level Check the regeneration salt level Load the baskets Select a programme Running the dishwasher Changing the programme Add forgotten dishes in the dishwasher. If the appliance is switched off during a wash cycle. Switch off the appliance Turn off the water tap, unload the baskets Open the door, press the On/Off button to switch on the appliance. Compartment A: With each wash cycle. Compartment B: For programmes with pre-wash only. (Follow the user instructions!) Mechanical indicator C Electric indicator on control panel (if provided). (On models with water softener system only.) Electric indicator on control panel (if provided). If there is no salt warning light in the control panel (for some models), you can estimate when to ll the salt into the softener by the number of cycles the dishwasher has run.

Scrape off any large amount of leftover food. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions. Press the Programme Button until the selected programme lights up. (See the section entitled Operation instruction) T urn on the water tap, close the door. The machine will start working after about 10 seconds. 1. A running cycle can only be modi ed if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispenser must be re lled. 2. Open the door. 4. Select a new programme. 3. Press the Programme Button for more than 3 seconds to cancel the running programme. 5. Restart the dishwasher. 1.Open the door a little to stop the dishwasher. 2.After the spray arms stop working, you can open the door completely. 3.Add the forgotten dishes. 4.Close the door, the dishwasher will start running again after 10 seconds. WARNING! Open the door carefully. Hot steam may escape when the door is opened! If the appliance is switched off during a wash cycle, when switched on again, please re-select the was-hing cycle and If the appliances is switched off during a wash cycle, when switched on again, please re-select the washing cycle and it will start operating from where it stopped.When the working cycle has nished, the buzzer of the dishwasher will sound 8 times, then stop. Turn off the appliance using the On/Off Button. Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break. They will also dry better.Unload the appliance, starting from the lower basket.

For detailed operating method read the corresponding content on the instruction manual.36

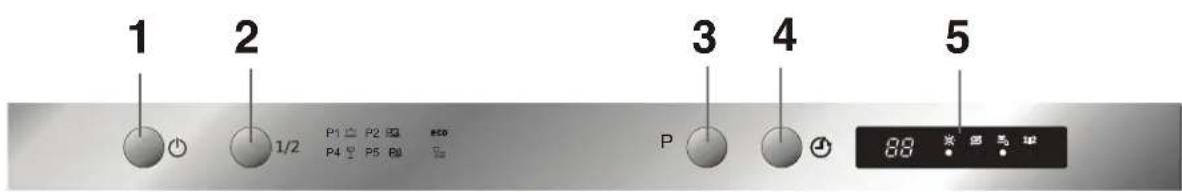

3Operation Instruction IMPORTANT To get the best performance from your dishwasher, read all operating instructions beforeusing it for the rst time. Control Panel

P5 P6 1.On/Off Button: To turn on/off the power supply. Half load functions Button: To select Half load functions.(With this Half load function you can only use it when youhave only about or less than 6 place setting dish wave,and you will see less water and energy consumption, canonly be used with Intensive, Normal, ECO, Glass and90 min.) Program Button : To Press the button to select a washProgram.4.Delay Button : To Press the button to delay. Dishwasher Features

5. Display screen: to show the error code, delay time etc.

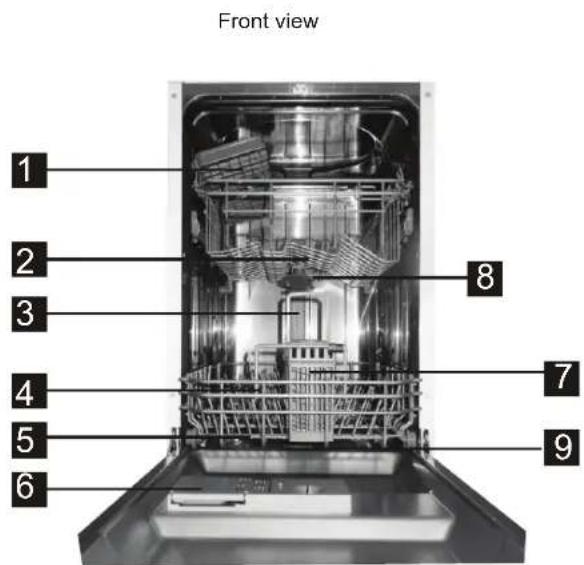

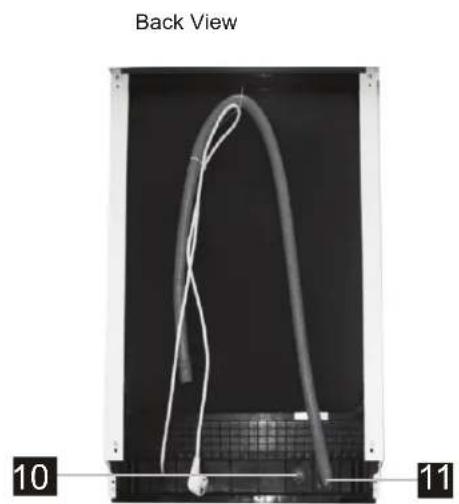

Rinse Aid indicator: Indicates when the dispenser needs to be relled. Add salt indicator: Indicates when the dispenser needs to be relled. Delay time, Program indicators or error codes indicator: Half load functions indicator: Infall Warning Light : Being on When faucets is not opened. Back View Cup shelf Upper basket Inner pipe Lower basket Salt container Dispenser Cutlery rack Spray arms Filter assembly Inlet pipe connector Drain pipe

WATER HARDNESSSelector PositionSalt c onsumption (gram/cycle)

35-55 61-98 43-69 6.1-9.8H6 60 NOTE: If your model does not have any water softener, you may skip this section. WATER SOFTENER The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container speci cally designed to eliminate lime and minerals from the water. 4Prior using for the rst time A Water Softener

Fill the rinse aid dispenser D. Fill in detergent Before using your dishwasher for the rst time: A. Set the water softener Add 1.5Kg dishwasher salt and then full ll the salt container with water The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. Adjusting Salt Consumption The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level o f salt consumption. Please follow the steps below for adjustment in salt consumption. 1. Open the door, Switch on the appliance;2. Within the rst 60 seconds after the appliance was switched on, press the program button for morethan 5 seconds to start the water softener set model (The Salt and Rinse aid warning lights will beon periodically when it gets into the set model);

3. Press the Program button to select the proper set according to your local environment, the sets will

change in the following sequence: H4

4. Press the Power button to end the set up model.

Note:1 dH=1.25Clarke=1.78fH=0.178mmol/l DH: German degree fH: French degree Clark: British degree Note:2 The manufactory setting: H3 (EN 50242) Contact your local water board for information on the hardness of your water supply.38 B Loading the Salt Into the Softener C Fill the Rinse Aid Dispenser NOTE:

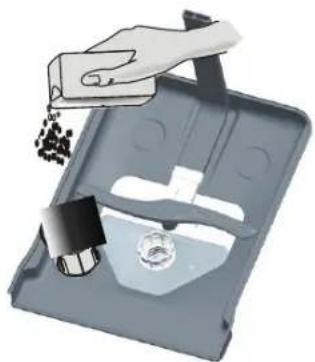

Open After the lower basket has been removed, unscrew and remove the cap from the salt container. Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt. Full ll the salt container with water, It is normal for a small amount of water to come out of the salt container.

Always use the salt intended for use with dishwasher. The salt container is located beneath the lower basket and should be lled as explained in the following: Attention! Only use salt speci cally designed for the use in dishwashers! Every other type of salt not speci cally designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused. Only ll with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion. After lling the container, screw the cap tightly back clockwise. The salt warning light will stop being after the salt container has been lled with salt. Immediately after lling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the lter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

1. The salt container must only be re lled when the salt warning light in the control panel comes on. Depend-

ing on how well the salt dissolves, the salt warning light may still be on even though the salt container is

lled.If there is no salt warning light in the control panel (for some Models), you can estimate when to ll the saltinto the softener by the cycles that the dishwasher has run.2. If there are spills of the salt, a rapid program should be run to remove the excessive salt. Rinse Aid Dispenser The rinse aid is released during the nal rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To ll the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml. Function of Rinse Aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. Attention! Only use reliable rinse aid for dishwasher. Never ll the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

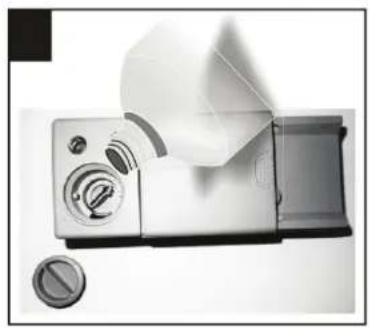

NOTE: Clean up any rinse aid spilled while during lling with an absorbent cloth to avoid excessive foaming during thenext wash. Don‘t forget to replace the cap before you close dishwasher door. D Function of Detergent

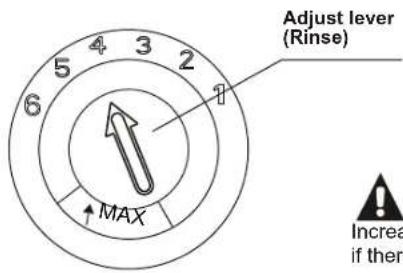

MAX NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish lm on glassware or knife blades. When to Re ll the Rinse Aid Dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator C located next to the cap. When the rinse-aid container is full, the whole indicator will be dark.As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1 / 4 full. As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. Full 3 / 4 full 1 / 2 full 1 / 4 full - Should re ll to eliminate spotting Empty C (Rinse-Aid indicator) To open the dispenser, turn the cap to the „open“ (left) arrow and lift it out. Pour the rinse aid into the dispenser, being careful not to over ll. Replace the cap by inserting it aligned with „open“ arrow and turning it to the closed (right) arrow. Adjusting Rinse Aid Dispenser Adjust lever (Rinse) The rinse aid dispenser has six or four settings. Always start with the dispenser set on „4“. If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to „5“. If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is „4“. (Factory value is „4“.) Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. Attention! Proper Use of Detergent Use only detergent speci cally made for the use in dishwashers. Keep your detergent fresh and dry. Don‘t put powdered detergent into the dispenser until you‘re ready to wash dishes.40 Press latch to open WARNING! Dishwasher detergent is corrosive! Take care to keep it out of reach of children. NOTE:

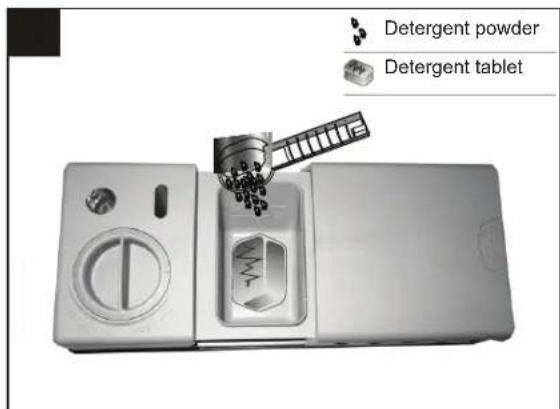

Detergent powder Detergent tablet Detergents There are 3 sorts of detergents 1.With phosphate and with chlorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to ll salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature. Concentrated Detergent Based on their chemical composition, detergents can be split in two basic types: conventional, alkaline detergents with caustic components low alkaline concentrated detergents with natural enzymes Detergent Tablets Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals. Detergent Dispenser The dispenser must be relled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly. Amount of Detergent to Use If the lid is closed: press release button. The lid will spring open. Always add the detergent just before starting each wash cycle. Only use branded detergent aid for dishwasher.41

NOTE: You nd information about the amount of detergent for the single programme on the last page. Please aware, that according to the level soiling and the specic hardness of water differences are possible. Please observe the manufacturer‘s recommendations on the detergent packaging.

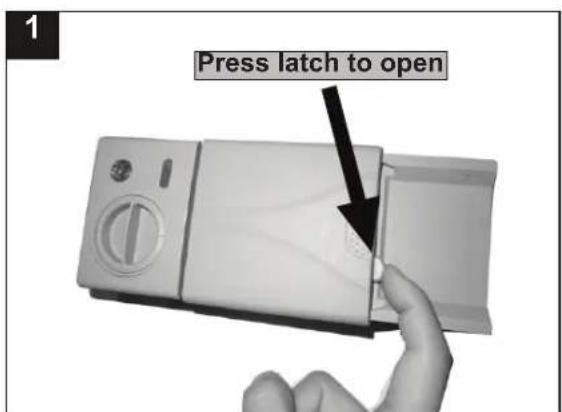

Fill in Detergent Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrat-ed on the right: The place of main wash cycle detergent placed. The place of pre-wash cycle detergent placed. Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging. Close the lid and press until it locks in place. If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase. Close the Detergent compartment If your dishes are only moderately dirty, you may be able to use less detergent than recommended. compartment. Press down the lid (1) until it clicks shut (2). If you are using detergent in tablet form, read the manufacturer recommendations on the packaging in order to determine where the tablets should be placed inside the dishwasher (e.g. in cutlery basket, detergent compartment, etc.). Make sure that the lid on the detergent compartment is closed, even if you are using tablets.42 For washing in the dishwasher the following cutlery/dishes 5 Loading the Dishwasher Baskets Recommendation Attention before or after loading the Dishwasher Baskets Removing the Dishes Consider buying utensils which are identi ed as dishwasher-proof. Use a mild detergent that is described as ‚kind to dishes‘. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended. Are not suitable Are of limited suitability Cutlery with wooden, horn china or mother-of-pearl handles Plastic items that are not heat resistant Older cutlery with glued parts that are not temperature resistant Bonded cutlery items or dishes Pewter or cooper items Crystal glass Steel items subject to rusting Wooden platters Items made from synthetic bres Some types of glasses can become dull after a large number of washes Silver and aluminum parts have a tendency to discolour during washing Glazed patterns may fade if machine washed frequently (For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.) Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way: 1.Items such as cups, glasses, pots/pans, etc. are faced downwards. 2.Curved items, or ones with recesses, should be loaded aslant so that water can run off. 3.All utensils are stacked securely and can not tip over. 4.All utensils are placed in the way that the spray arms can rotate freely during washing. NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket. To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket rst and then the upper basket. Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage to glasses, they must not touch. Load large items which are most dif cult to clean into the lower basket. The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Long bladed knives stored in an upright position are a potential hazard! Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.43 Pots, serving bowls, etc, must always be placed top down. Deeppotsshouldbeslantedtoallowwatertoowout. The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded. Adjusting the Upper Basket The Method Loading Normal Dishware Loading the Upper Basket Loading the Lower Basket We suggest that you place large items and the most difcult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the gure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. Cutlery Basket Folding Spikes of Lower Basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

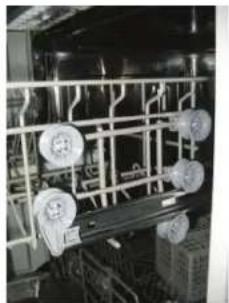

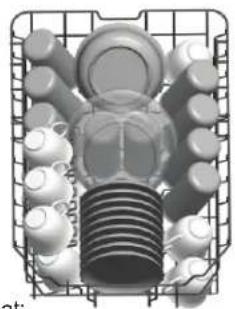

Please be reminded that: The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms..For better stacking of pots and pans, the spikes can be folded down as show in the picture below. Lower positionUpper position Wheels Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance. For a top quality cleaning, place the silverware in the basket making sure that: They do not nest togetherThey do not nest together Silverware is placed with the male face up Long utensils in the middle Folding back the cup shelives For better stacking of pots and pans, the spikes can be folded down as show in the picture right.44 Prewash (50 °C)Wash (60 °C)Rinse Rinse Rinse (70 °C)Drying Prewash (45 °C) Wash (55 °C)Rinse Rinse (65 °C) Drying Prewash Wash (45 °C)Rinse (65 °C)Drying Pre-wash wash (40 °C)Rinse Rinse (60 °C)Drying Wash (65 °C) Rinse Rinse (65 °C)Drying Wash (45 °C)Rinse Rinse (55°C) 6 Starting a washing program

Wash Cycle Table NOTE: ( ) Means: need to ll rinse into the Rinse-Aid Dispenser. Program Intensive Normal Cycle Selection Information For heaviest soiled crockery, and normally soiled pots, pans, dishes etc with dried on soiling. For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. (*EN5 0242)

Rapid This is standard programme, it is suitable to clean normally soiled tableware and it is the most ef cient programme in terms of its combined energy and water consumption for that type of tableware. For lightly soiled crockery and glass For lightly soiled loads that do not need excellent drying ef ciency. A shorter wash for lightly soiled loads and quick wash. Description ofCycle Detergent pre/main 3/22g (or3in1) 3/22g (or3in1) 3/22g (or3in1) 3/22g (Or3in1) 25g (Or3in1) 20g Running time (min)

Rinse Aid NOTE: *EN5 0242 : This programme is the test cycle. The information for comparability test in accord-ance with EN 50242, as follows: Capacity: 10 setting Position Upper basket: upper wheels on rails Rinse aid setting: 6 Pl:0.49w; Po:0.45w. Turning On the Appliance Starting a cycle wash Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket rst, then the upper one (see the section entitled “Loading the Dishwasher”). Pour in the detergent (see the section entitled „Salt, Detergent and Rinse Aid“). Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the speci cation of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure. Open the door, press the ON/OFF Button, and the ON/OFF light will turn on. Press the program Button, the wash program will be changed as follows direction: P1->P2->P3->P4->P5->P6; If a program is selected, the response light will light. Then close the door, the dishwasher begins to start.45 Forgot to Add a Dish? Change the Program NOTE: At the End of the Wash Cycle

WARNING! It is dangerous to open the door when washing, because the hot water may scald you. Premise: A cycle that is underway can only be modi ed if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be re lled (see the section entitled „ Loading the Detergent „). Open the door, press the Program button more than 3 seconds, the machine will be in standby state, then you can change the program to the desired cycle setting (see the section entitled „ Starting a wash cycle...“). If you open the door during a wash cycle, the machine will pause. The program light will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds. A forgotten dish can be added any time before the detergent cup opens. Open the door a little.After the spray arms stop working, you can open the door completely. Add forgotten dishes. Close the door 5The dishwasher will run after 10 seconds. When the working cycle has nished, the buzzer of the dishwasher will sound for 8 times, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better. Switch Off the Dishwasher The program light is on but is not blinking, only in this case the programme has ended. 1.Open the door.Switch off the dishwasher by pressing the ON/OFF button. 2.T urn off the water tap! Open the door carefully. Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher‘s door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved. Unloading the dishwasher It is normal that the dishwasher is wet inside. Empty the lower basket rst and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

Main lter Coarse lter Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse lter. To remove the items caught by the lter, gently squeeze the tap on the top of this lter and lift out. Fine lter This lter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during wash cycle. WARNING!

The dishwasher must never be used without the lters. Improper replacement of the lter may reduce the performance level of the appliance and damage dishes and utensils. Open Step 1 Turn the lter in anti-clockwise direction, Step 2 lift the lter assy up NOTE: When following this procedure from step1 to step 2, the lter system will be removed; when following it from Step 2 to Step 1, the lter system will be installed. 7 Maintenance and Cleaning Filtering System The lter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the lter, in this case they must be removed. The lter system consists of a coarse lter, a at (Main lter) And a micro lter (Fine lter). Food and soil particles trapped in this lter are pulverized by a special jet on the lower spray arm and washed down to drain. Filter assembly The lter ef ciently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the lter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the lter after each wash cycle by rinsing the semicircular lter and cup under running water. To remove the lter device, pull the cup handle in the upward direction.47 Caring for the Dishwasher WARNING! When cleaning the lters, don‘t knock on them. Otherwise, the lters could be contorted and the performance of the dishwasher could be decreased. NOTE: The entire lter assembly should be cleaned once a week. WARNING! To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components. Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface. NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons. Open Remarks: - Inspect the lters for blocking after every time the dishwasher has been used. - By unscrewing the coarse lter, you can remove the lter system. Remove any food remnants and clean the lters under running water. Cleaning the Filter To clean the coarse lter and the ne lter, use a cleaning brush. Reassemble the lter parts as shown in the gures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards. The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly. For the exterior, use a good appliance cleaning care product. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher. Cleaning The Door Protect Against Freezing please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows 1.Cut off the electrical power to the dishwasher. 2.Turn off the water supply and disconnect the water inlet pipe from the water valve. 3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water) 4.Reconnect the water inlet pipe to the water valve. 5.Remove the lter at the bottom of the tub and use a sponge to soak up water in the sump. Cleaning the Spray Arms It is necessary to clean the spray arms regularly for hard water chemi-cals will clog the spray arm jets and bearings. To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it. To remove the lower spray arm, pull out the spray arm upward. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.48 Warning Electrical Shock HazardDisconnect electrical power beforeinstalling dishwasher.Failure to do so can result in death or electrical shock. Installation preparation 8Installation instruction How to Keep Your Dishwasher in Shape After Every Wash When not in Use for a LongTime After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside. Remove the Plug Before cleaning or performing maintenance, always remove the plug from the socket. No Solvents or Abrasive Cleaning To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made speci cally for dishwashers. Attention: The installation of the pipes and elec-trical equipments should be done by professionals. It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance. Moving the Appliance If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back. Seals One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring. The installation position of dishwasher should be near the existing inlet and drain hoses and power cord. One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher. Note: please check the accompanying installation accessories (hook for aesthetic panel, screw)49 Figure2 Figure1 Figure3 Aesthetic panel‘s dimensions and installation Dishwasher Door of dishwasher Minimum space of 50mm Cabinet Electrical, drain and water supply line entrances Space between cabinet bottom and oor Please carefully read the installation instruction. Illustrations of cabinet dimensions and installation position of the dishwasher

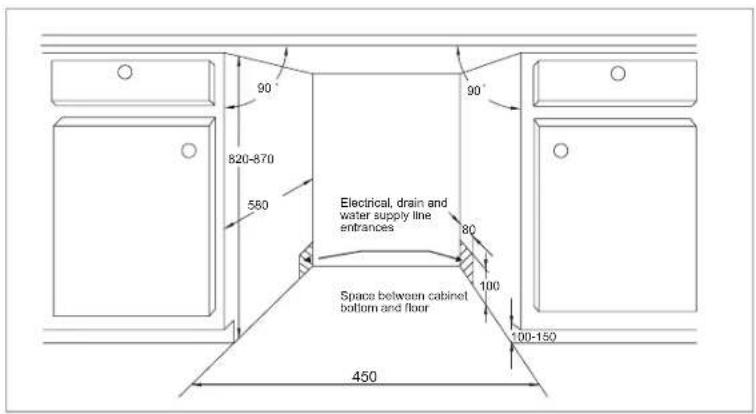

Preparations should be made before moving the dishwasher to the installation place. Choose a place near the sink to facilitate the installation of inlet and drain hoses (see gure 1). If dishwasher is installed at the corner of the cabinet, there should be some space (illustrated in gure 2) when the door is opened. Cabinet dimensions Less than 5mm between the top of dishwasher and cabi- net and the outer door aligned to cabinet. Minimum space when the door is opened 1 The aesthetic wooden panel could be processed according to the Figure 3. The aesthetic panel should be processed in accordance with the illustrated dimensions (Unit: mm) 720(MAX) dp8

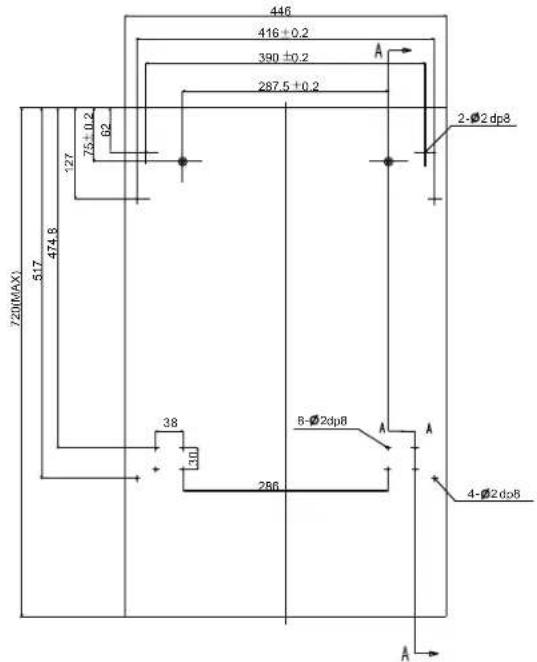

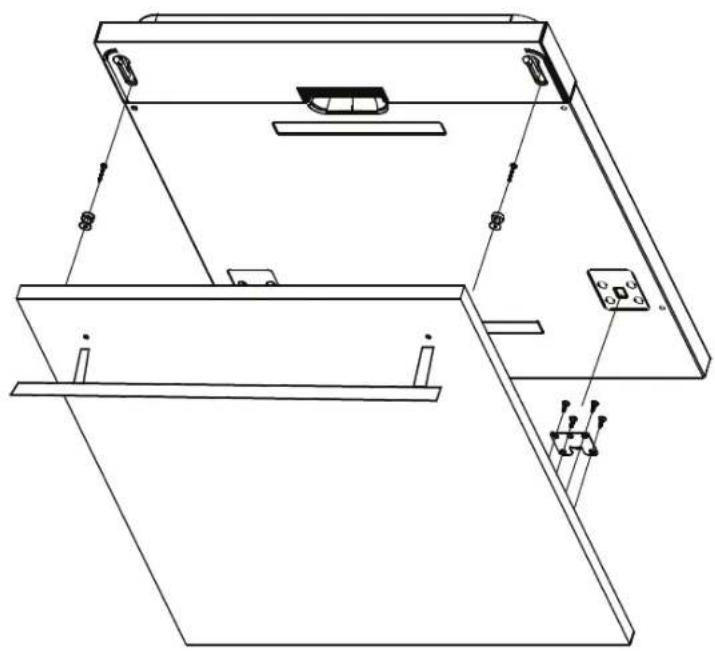

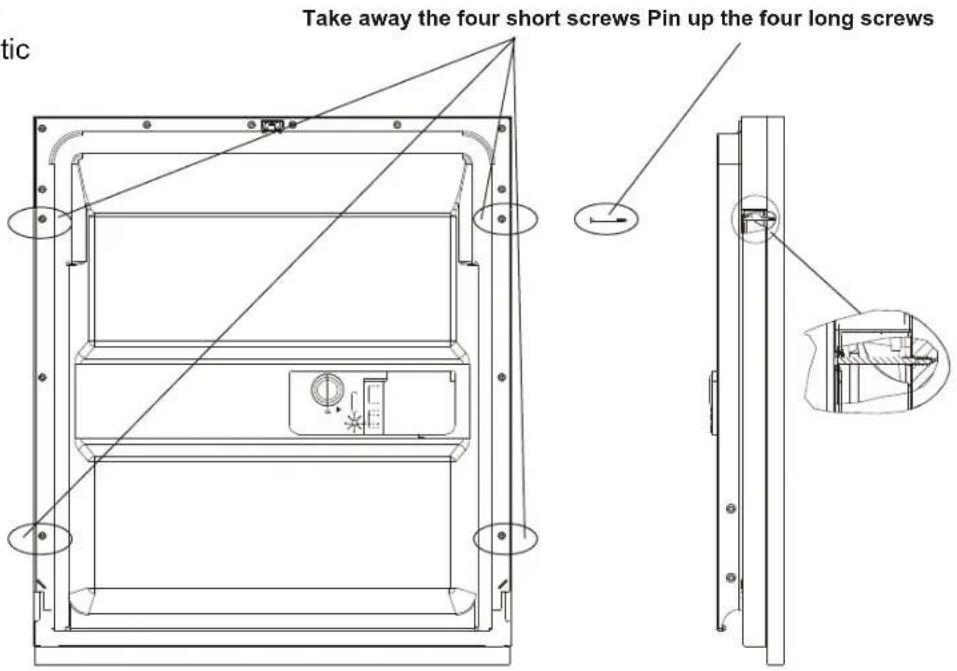

100-15050 Figure4a Take away the four short screws Pin up the four long screws 2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwash-er (see gure 4a). After positioning of the panel, x the panel onto the outer door by screws and bolts (See gure 4b). Installation of aesthetic panel Figure4b Installation of aesthetic wooden panel

1. take away the four

2. pin up the four long

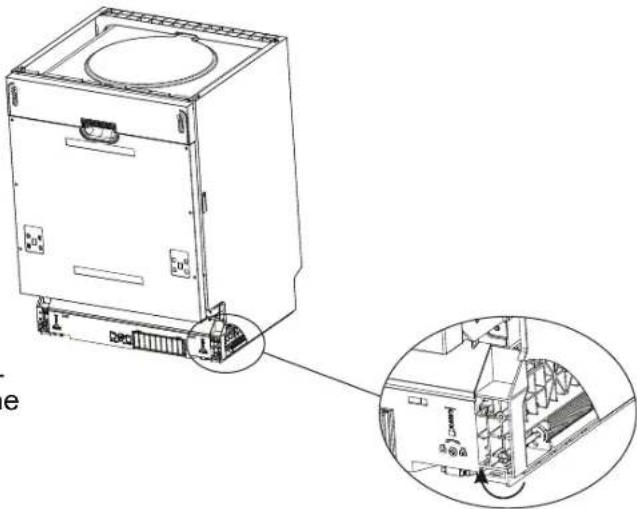

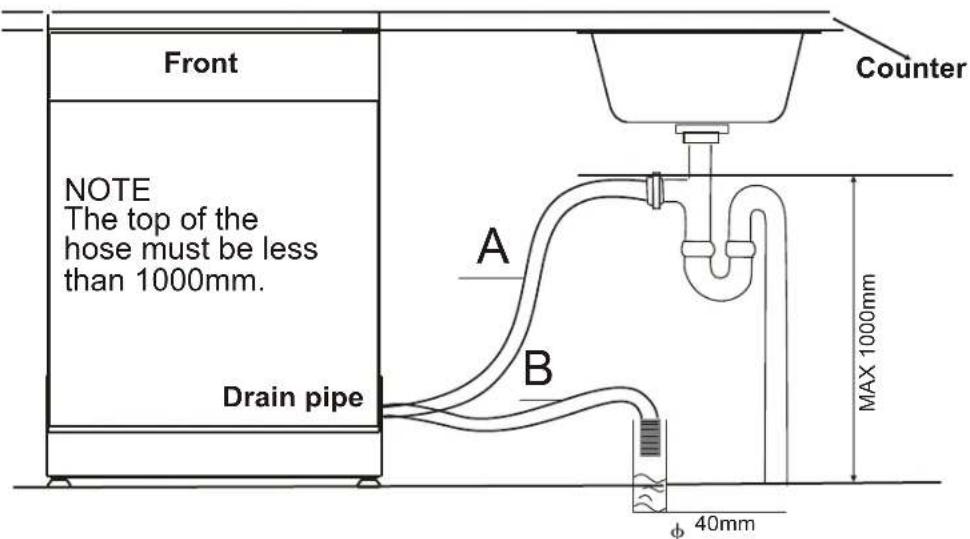

screws51 Connection of drain hoses Tension adjustment of the door spring PLEASE FIX THE DRAIN HOSE EITHER WAY OF A, B Front NOTE The top of the hose must be less than 1000mm. Drain pipe

40mm Counter MAX 1000mm The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see gure 5). Door spring tension is correct when the door remains horizontal in the fully opened position yet rises to a close with the slight lift of a nger. Figure5 Tension adjustment of the door spring Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bend- ing or crimping it. The top of the hose must be less than 1000mm.52 Figure7 Dishwasher installation steps 1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. 2 Carefully adjust the tension of the door springs by using an Allen Key. Turn in a clockwise motion to tighten the door springs on both sides of the door. Failure to do this could cause damage to your dishwasher (Illustration 2). 3 Connect the inlet hose to the cold water supply.

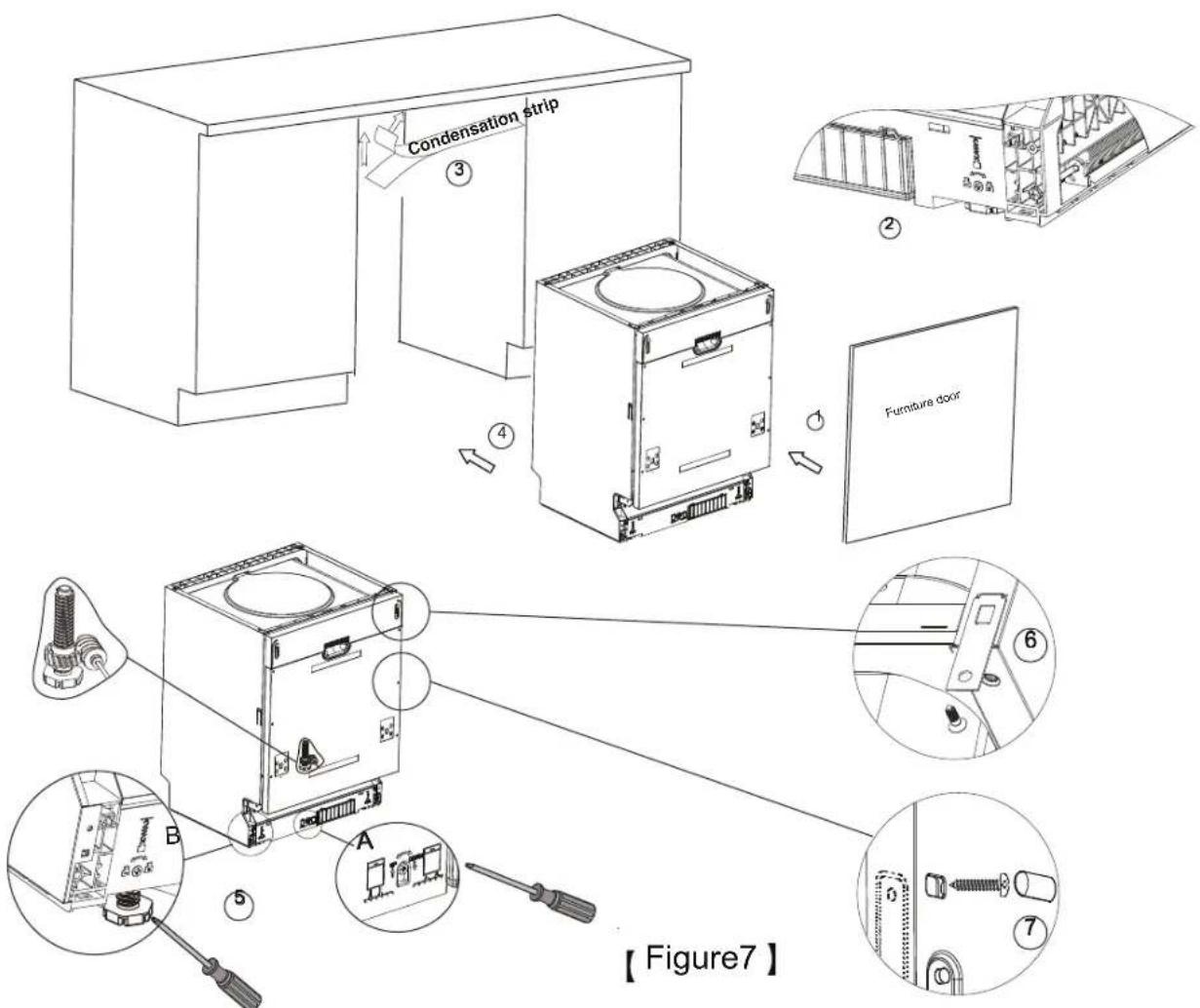

Connect the drain hose. Refer to diagram. (Figure 6) 5 Connect the power cord. 6 Af x the condensation strip under the work surface of cabinet. Please ensure the condensation strip is ush with edge of work surface. 7 Place the dishwasher into position. (Illustration 4) 8 Level the dishwasher. The rear food can be adjusted from the front of the dishwasher by turning the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust the front feet, use a at screw driver and turn the front feet until the dishwasher is level (Illustration 5B). 9 The dishwasher must be secured in place. There are two ways to do this: A. Normal work surface:Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws (Illustration 6). B. Marble or granite work top:Fix the side with Screw. (Illustration 7).

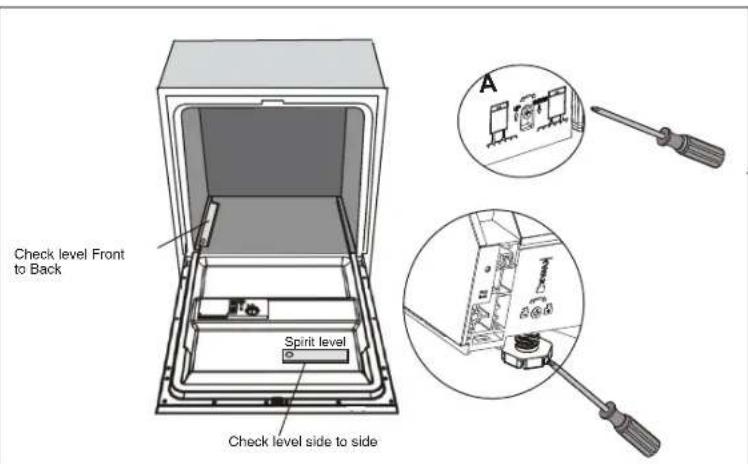

Dishwasher must be level for proper dish rack operation and wash performance. 1 Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. 2 level the dishwasher by adjusting the three levelling legs individually. 3 When level the dishwasher, please pay attention not to let the dishwasher tip over. Figure 8 Illustration of feet adjustment NOTE: The maximum adjustment height of the feet is 50 mm. Check level Front to Back About Power Connection WARNING! For personal safety: Spirit level Check level side to side

Do not use an extension cord or an adapter plug with this appliance. Do not, under any circumstances, cut or remove the earthing Connection from the power cord. Electrical Requirements Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. Insure proper ground exists before use Electrical Connection Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns. How to Connect the safety supply hose The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice.

1. Pull The safety supply hoses completely out from storage compartment located at rear of

2. Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.

3. Turn water fully on before starting the dishwasher.

ABOUT THE SAFETY SUPPLY HOSE. The safety supply hose consists of the double walls. The hose‘s system guarantees its intervention by blocking the ow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.54 Start of Dishwasher Attention: After installation, please make sure to keep this manual. The content of this manual is very helpful to the users. WARNING! A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended thet the hose be disconnected and the hole plugged. How to Disconnect the safety supply hose 1.Turn off the water. 2. Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severe splashing.3.Unscrew The safety supply hose from the faucet..

COLD WATER CONNECTION

Connect the cold water supply hose to a threaded 3/4 (inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appli- ance. Positioning the Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. How to Drain Excess Water From Hoses If the sink is 1000 higher from the oor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. Water Outlet Connect the water drain hose. The drain hose must be correctly tted to avoid water leaks. Make sure that the drain hose is neither kinked nor pinched Extension Hose If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced. Syphon Connection Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bend- ing or crimping it. The top of the hose must be less than 1000mm. The following things should be checked before starting the dishwasher. 1 The dishwasher is level and xed properly 2 The inlet valve is open 3 There is no leakage and the connections of hoses must be tightened4 The power cable is properly connected5 The power is switched on 6 The inlet and outlet hoses must not be entangled with each other7 All packing materials and printings should be taken out from the dishwasher55 9Troubleshooting Tips Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible CausesWhat To Do Dishwasher doesn‘t start Technical problems Fuse blown, or the circuit breaker acted Power supply is not turned on Water pressure is low Door of dishwasher not properly closed. water not pumped form dishwasher Suds in the tub Kink in drain hose Filter clogged Kitchen sink clogged Improper detergent Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket. Check that the water supply is connected properly and the water is turned on. Make sure to close the door properly and latch it. Check drain hose. Check coarse the lter (see section titled „ Cleaning The Filter „) Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink not draining, you may need a plumber rather than a serviceman for dishwashers. Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the rst step.Open the door after draining is stop and check if the suds is disappeared. Repeat if necessary. Spilled rinse-aid Always wipe up rinse-aid spills immediately. Stained tub interior General problems Noise White lm on inside surface There are rust stains on cutlery Detergent with co-lourant was used Hard water minerals Make sure that the detergent is the one without colourant. To clean the interior, use a damp sponge with dis-hwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds. The affected items are not corrosion resistant. A programme was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle. The lid of the softer is loose Knocking noise in the wash cabinet Rattling noise in the wash cabinet Knocking noise in the water pipes A spray arm is kno-cking against an item in a basket Items of crockery are loose in the wash cabinet Always run the quick wash programme. without any crockery in the dishwasher and without selecting the Turbo function (if present), after adding dishwasher salt. Check the lid. Ensure the x is ne. Interrupt the programme, and rearrange the items which are obstructing the spray arm. Interrupt the programme, and rearrange the items of crockery. This may be caused by on-site installation or the cross-section of the piping. This has no in uence on the dishwasher function. if in doubt, contact a suitably quali ed plumber.56 Codes Meanings Possible Causes

Longer inlet time. Faucets is not opened, or water intake is restric-ted, or water pressure is too low. Over ow. Some element of dishwasher leaks. Error Codes WARNING! If over ow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an over ll or small leak, the water should be removed before restarting the dishwasher. Problem Possible Causes What To Do The dishes are not clean Unsatis -factory washing result Unsatis -factory drying result Cloudiness on glassware Black or gray marks on dishes Detergent left in dispenser cups The dishes were not loaded correctly. The programme was not powerful enough. Not enough detergent was dispensed. Items are blocking the path of spray arms. The lter combination in the base of wash cabinet is not clean or is not correctly tted. This may cause the spray arm jets to get blocked. Com-bination of soft water and too much detergent. Aluminum utensils have rubbed against dishes. Dishes block detergent cups. Improper loading Too little rinse-aid Dishes are removed too soon Wrong program has been selected Use of cutlery with a low-quality coating See notes in „Loading the Dishwasher Baskets“ Select a more intensive programme. See“ Wash Cycle Table „. Use more detergent, or change your detergent. Rearrange the items so that the spray can rotate freely. Clean and/or t the lter combination correctly. Clean the spray arm jets. See „Cleaning the Spray Arms“. Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean. Use a mild abrasive cleaner to eliminate those marks. Re-loading the dishes properly. Load the dishwasher as suggested in the directions. Increase the amount of rinse-aid/re ll the rinse-aid dispenser. Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once t he dishes are barely warm to the touch. Empty the low basket rst. This prevents water form dropping off dishes in the upper basket. In short program the washing temperature is lower. This also lowers cleaning performance. Choose a program with a long washing time. Water drainage is more dif cult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher. When some malfunctions come on, the appliance will display error codes to warn you: The dishes are not drying57 Height : 815mm Width : 448mm Depth : 550mm (with the door closed) Power supply: see rating label Capacity: 10 place settings Technical Information

(with the door closed)

Manufacturer BLAUPUNKT Type / Description 5VT710NA Standard place settings

Energy ef ciency class

A++ Annual energy consumption

211 kWh Energy consumption of the standard cleaning cycle

Power consumption of off-mode

Power consumption of left-on mode

Annual water consumption

2520 liter Drying ef ciency class

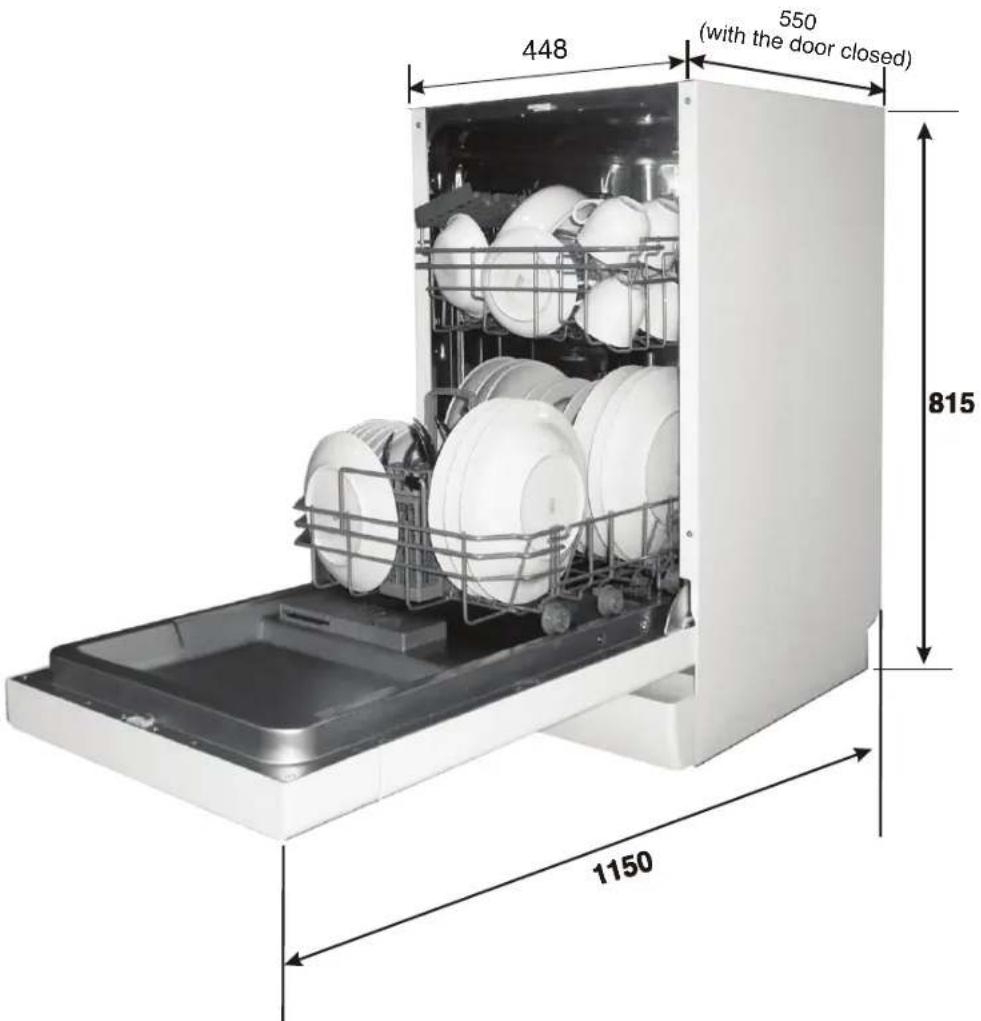

Standard cleaning cycle5 ECO 45 Program duration of the standard cleaning cycle 190 min Noise level 47 dB (A) re 1 pW Mounting build under Could be built-in Yes Height

Depth (with connectors) 55 cm Power consumption 1930 W Rated voltage / frequency 230 V~ 50 Hz Water pressure ( ow pressure) 0.4-10 bar = 0.04-1 MPa Technical Data Sheet NOTE

Sheet of household dishwasher according to EU Directive 1059/2010: A + + + (highest ef ciency) to D (lowest ef ciency) of the low power modes. Actual energy consumption will depend on how the appliance is used. how the appliance is used. A (highest ef ciency) to G (lowest ef ciency) This program is suitable for cleaning soiled to normally soiled tableware. It is the most ef cient programme in terms of its combined energy and water consumption for that type of tableware. The device meets the European standards and the directives in the current version at delivery (If the version number is not in conformity with the latest standards, please refer to the latest version number.): - LVD 2014/35/EU - EMC 2014/30/EU - ERP 2009/125/EC The above values have been measured in accordance with standards under speci ed operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc. The manual is based on the European Union‘s standards and rules. Water consumption 2520 litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on Energy consumption 211 kWh per year, based on 280 standard cleaning cycles using cold water ll and the consumption59 Loading the baskets according to En50242: Shelf

Medium serving bowl Large serving bowl
