Product type	Internal DVD drive (DVD-R/RW, CD-R/RW)
Brand	Pioneer
Model	DVR105
Dimensions (W x H x D)	148 x 42.3 x 198 mm
Weight	1.1 kg
Power supply	+12 V DC (0.6 A) and +5 V DC (1.1 A)
Interface	IDE (PIO Mode 4, DMA Mode 2, Ultra DMA Mode 2)
Buffer memory	2 MB
DVD-R write speed	1x, 2x (standard); 1x, 2x, 4x (high speed)
DVD-RW write speed	1x (standard); 1x, 2x (high speed)
CD-R write speed	4x, 8x, 12x, 16x
CD-RW write speed	4x (standard); 4x, 8x (high speed)
DVD-ROM read speed	12x (single layer), 8x (dual layer)
CD-ROM read speed	32x
Supported disc formats	DVD-R, DVD-RW, CD-R, CD-RW, CD-DA, CD-ROM, CD-Extra, CD Photo
Audio output	Analog stereo (headphone and line out jacks)
Headphone jack	Mini-jack with volume dial
Jumper configuration	Master, Slave, Cable Select
Orientation	Horizontal or vertical (12 cm discs only in vertical)
Power consumption	Less than 70 dB (acoustic noise)
Operating temperature	+5°C to +45°C
Operating humidity	5% to 85% (non-condensing)
Maintenance and cleaning	Clean with a damp cloth; do not use liquids or aerosols
Safety	Class 1 laser; do not open; service only by qualified personnel
Included accessories	Jumper x1, audio cable x1, mounting screws x4, user manual

Frequently Asked Questions - DVR105 PIONEER

What types of discs can I read and write with the Pioneer DVR105?

This drive supports reading and writing of DVD-R, DVD-RW, CD-R and CD-RW, as well as reading of DVD-ROM, CD-ROM, CD-DA, CD-Extra and CD Photo. It is compatible with 12 cm and 8 cm discs (the latter only in horizontal position).

How to install the drive in a computer?

Turn off the computer power, remove the cover, then insert the drive into a 5.25-inch bay. Secure it with the provided screws (length ≤ 5 mm). Connect the power cable, IDE cable (mind pin 1) and optionally the audio cable to the sound card. Set the configuration jumper (Master/Slave/Cable Select) as needed.

How to manually eject the tray if the eject button does not work?

Insert a rigid rod into the forced ejection hole located on the front of the drive, after turning off the power and waiting for the disc to stop completely. Only use this method in an emergency.

Can I use special shaped discs (heart, polygon)?

No, using non-standard shaped discs is discouraged as they may damage the drive. Use only round 12 cm or 8 cm discs.

What to do if the drive is not recognized by the computer?

First check that the IDE cable is properly connected (pin 1 aligned) and that the configuration jumper is set correctly (Master or Slave). Ensure the power is connected (+5V and +12V pins). Check the BIOS to detect the hardware. If the problem persists, test the drive on another computer.

How to clean the drive and discs?

For the device, use a soft cloth slightly dampened (no liquid, aerosol or alcohol). For discs, wipe them gently from the center outward with a soft cloth. Never use disc cleaners or anti-static agents.

Can the region code be changed?

Yes, but only 5 times total (including the first setting). The fifth change is permanent. Discs without a region code can be read on all drives.

Are there precautions to take in case of condensation?

If the device is moved from a cold to a warm place, condensation may form and affect performance. Leave the product in the new environment for 1 to 2 hours before powering it on.

What is the maximum transfer speed for reading/writing?

In DVD reading, up to 16.62 MB/s; in CD reading, up to 4.92 MB/s. In DVD writing (4x), about 5.54 MB/s; in CD writing (16x), about 2.46 MB/s. Actual speeds depend on disc condition.

What to do if a disc gets stuck in the drive?

Turn off the computer, wait for the disc to stop (more than one minute), then use the forced ejection hole with a rigid rod. If that fails, contact a qualified technician. Do not attempt to force open the tray.

USER MANUAL DVR105 PIONEER

Operating instructions

Mode d'emploi

Bedienungsanleitung

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated 'dangerous voltage' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. H002_En

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

H010 En

Information to User

H011En

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

[For Canadian model]

This Class B digital apparatus complies with Canadian ICES-003.

CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION : THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.

H013 En

WARNING!

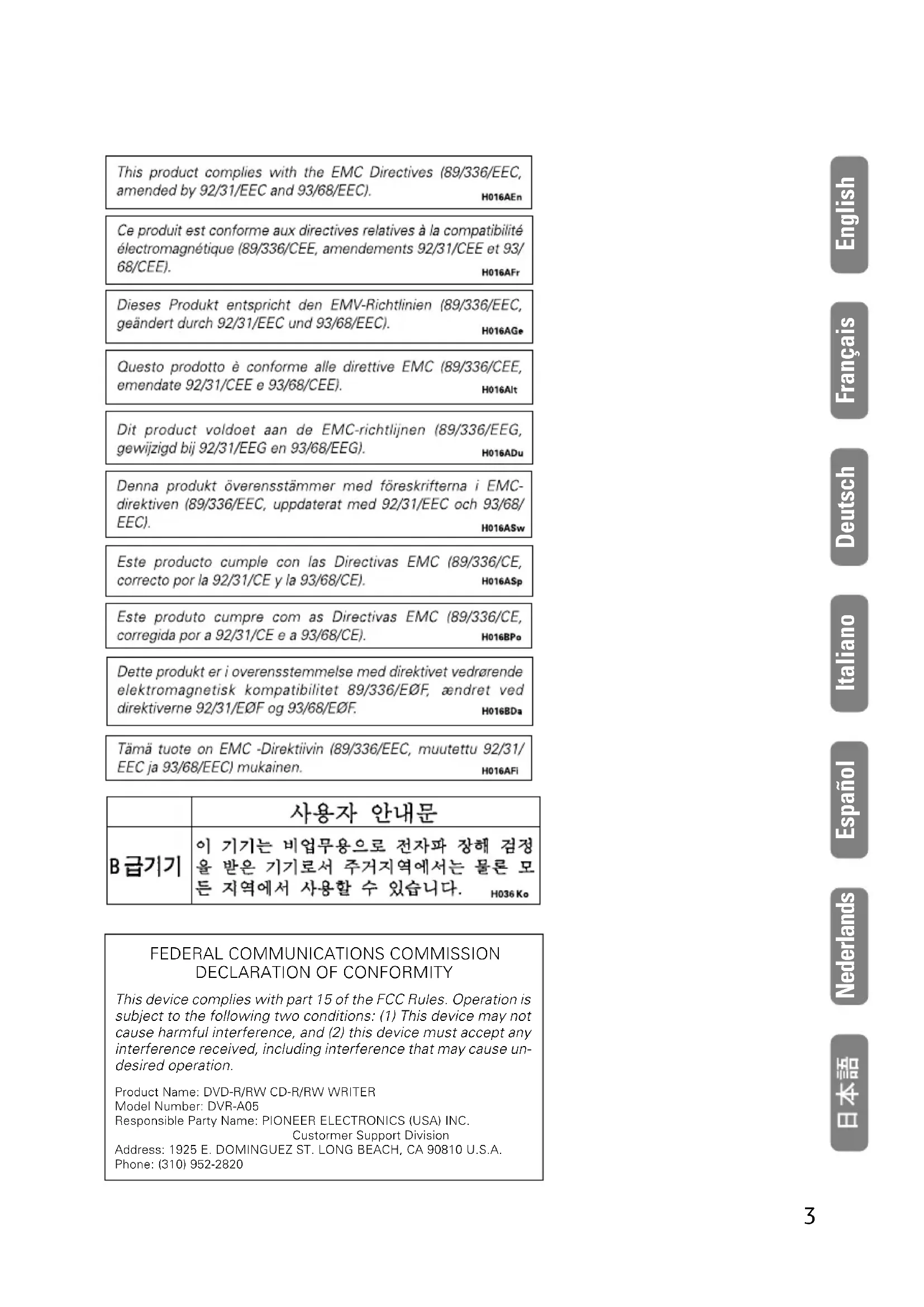

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Product Name: DVD-R/RW CD-R/RW WRITER Model Number: DVR-A05 Responsible Party Name: PIONEER ELECTRONICS (USA) INC. Customer Support Division Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810 U.S.A. Phone: [phone]

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. K015 En

WARNING: THE APPARATUS IS NOT WATERPROOFS, TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND DO NOT PUT ANY WATER SOURCE NEAR THIS APPARATUS, SUCH AS VASE, FLOWER POT, COSMETICS CONTAINER AND MEDICINE BOTTLE ETC.

The Generation of Acoustical Noise Is Less Than 70dB. (ISO7779/DIN45635)

CAUTION

This product contains a laser diode of higher class than 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product.

Refer all servicing to qualified personnel.

The following caution label appears on your unit.

Location: on top of the cover.

CLASS 1 LASER PRODUCT LASER KLASSE 1

For pluggable equipment the socket-outlet shall be installed near the equipment and shall be easily accessible.

IMPORTANT NOTICE

Record the model number and serial numbers of this equipment below. The numbers are on the top panel.

Model No. DVR-A05

Serial No. ____

Keep these numbers for future use. H059 En

To ensure your personal safety and to maximize the full operating potential of your Drive, read and follow these safety precautions:

ENVIRONMENT - Please do not use the unit at places with much dust, high temperature, or high humidity. Please use the unit at a place where it is not subjected to vibrations or shocks.

POWER - Turn off your system and attached hardware devices before installation.

READ INSTRUCTIONS - Read all safety and operating instructions before the Drive is operated.

RETAIN INSTRUCTIONS - Retain the safety and operating instructions for future reference.

FOLLOW INSTRUCTIONS - Follow all operating and use instructions.

HEED WARNINGS - All warnings must be adhered to.

CLEANING - DO NOT use liquid, aerosol cleaners, or alcohol. Use only a damp cloth to clean the exterior housing.

WATER AND MOISTURE - DO NOT use this product near water.

POWER SOURCES - Operate this product from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult Authorized Pioneer Dealer.

OVERLOADING - DO NOT overload wall outlets and extension cords. Doing so can result in fire or electric shock.

OBJECT AND LIQUID ENTRY - Never push objects of any kind into this product. Touching dangerous voltage points may cause a short resulting in fire or electric shock. Do not spill liquid of any kind on this product.

CONDENSATION - Moisture will form in the operating section of the product causing performance to be impaired if it is brought from cool surroundings into a warmer environment. If you are moving the unit to a location with a warmer temperature, let the product stand for 1-2 hours in the new location before turning it back on.

SERVICING - Do not attempt to repair this product yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. (Refer to the enclosed Service and Support Card.)

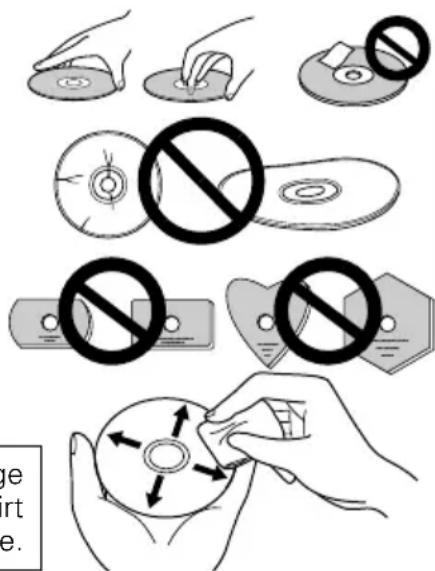

• Avoid touching or scratching the signal surface (shiny side) of the disc.
  ●Hold the disc by the edges or by the center hold and one edge.
• Do not affix paper or labels to the disc.
• Discard warped or cracked discs as they may cause damage to the drive.
  ●Avoid specially shaped discs such as hearts or polygons.
• Remove dust or lint from the disc with a soft cloth by wiping from the inside to the outside edge rather than in a circular motion.
• Do not use record-cleaning or anti-static agents as the solutions may cause damage to a disc.

Always be sure to store your discs in proper DVD-R storage cases when not in use, and always be sure to check for dirt or dust on discs (especially on the recording side) before use.

Illustration showing various disassembled components with prohibition symbols, including disc, pad, and pie.

- Write Speed

CLV 1X and 2X at DVD-R

CLV 1X, 2X and 4X at High-Speed DVD-R

CLV 1X at DVD-RW

CLV 1X and 2X at High-Speed DVD-RW

CLV 4X, 8X, 12X and 16X at CD-R

CLV 4X at CD-RW

CLV 4X and 8X at High-Speed CD-RW

• Maximum Read Speed

CAV 12X at DVD-ROM (single)

CAV 8X at DVD-ROM (dual)

CAV 6X at DVD-R, DVD-RW

CAV 32X at CD-ROM, CD-R, CD-RW

• Buffer Memory Size :
  2 MBytes (Write/Read)
• IDE Data Transfer Mode :
  PIO Mode 4/Multi Word DMA Mode 2/Ultra DMA Mode 2
  • Supports Video CD
• 5.25inch Half-Height built in type
• Stereo Audio Output
  • Head Phone Output & Head Phone Volume
  • LCD Tilt Servo Mechanism
  • Horizontal/Vertical orientation available
• Low vibration Mechanism by DRA system
  • Supports CD text format

Disc Format (Read/Write)

• DVD single layer/dual layer /120 mm disc/80 mm disc
- DVD-R (In case of write, 650nm disc for General only.)
• High-Speed DVD-R (4X-SPEED DVD-R Revision 1.0)
- DVD-RW
• High-Speed DVD-RW (2X-SPEED DVD-RW Revision 1.0)
- CD-ROM Mode 1
- CD-ROM XA Mode2 (form 1, form2)
- Photo CD (single and multiple session)
- CD-DA
- CD-Extra (CD PLUS)
- CD-R
• CD-RW, High-Speed CD-RW

Note:

Specific application program that support above format is needed to write.

ABOUT REGION CODES

The region code can be changed ONLY 5 times, including the 1st setting. Please be aware the 5th change will be PERMANENT, therefore, please pay attention when changing region codes.

- Region codes are part of the DVD Standard. However, Region codes on DVD discs are optional. DVD discs with no specified Region code can be played on all players.

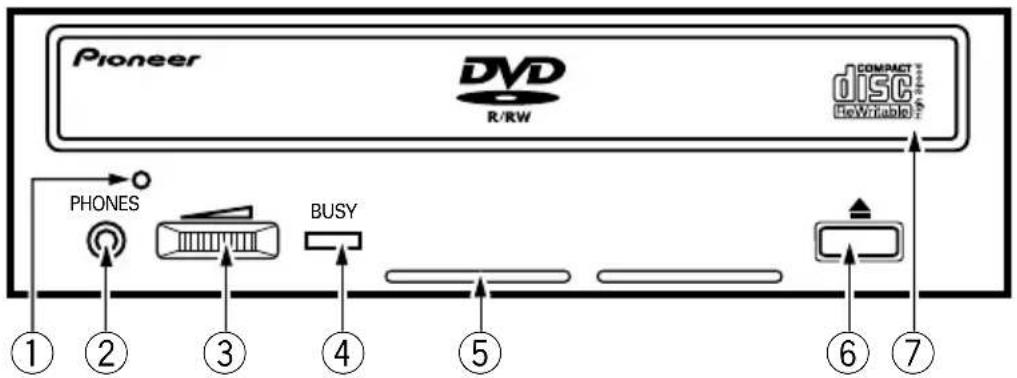

FRONT VIEW

Pioneer DVD R/RW COMPACT DISC ToVrable PHONES BUSY ① ② ③ ④ ⑤ ⑥ ⑦

① Forced Ejection Hole

Insert a stiff rod into the hole and push to eject the tray when the tray doesn't unload by pressing the Eject button. In the normal operation, the eject button should be used to unload the tray. Make sure the power of the drive is turned off and wait more than one minute till the disc rotation is stopped when access the eject hole.

②Headphone Jack (PHONES)

Stereo mini jack for head-phone.

Set "Volume Control Knob" minimum position before inserting headphone jack.

The audio output of rear panel is active even when a jack is inserted into the headphone plug.

③Volume Control Knob

This is the volume control knob for adjusting sound level on the headphone.

When the knob is turned to the right, the headphone volume goes up, when turned to the left, the volume goes down.

④BUSY Indicator

Operation status is indicated as follows.

During reading Lights

During writing Lights

⑤Ventilation Hole

Do not block this part.

⑥Eject Button (▲)

To unload /load the disc, press the button.

⑦Disc Tray

Open the loading tray by pressing the eject button, then place a CD or DVD disc into the slit with the label facing up.

Press the eject button or push the front part of tray to load the tray with the disc.

Do not attempt to pull out the disc tray forcibly.

Precautions on playing 8 cm (3.15") Discs

An 8 cm (3.15") disc cannot be played even an adapter is attached to the disc when the drive is upright condition.

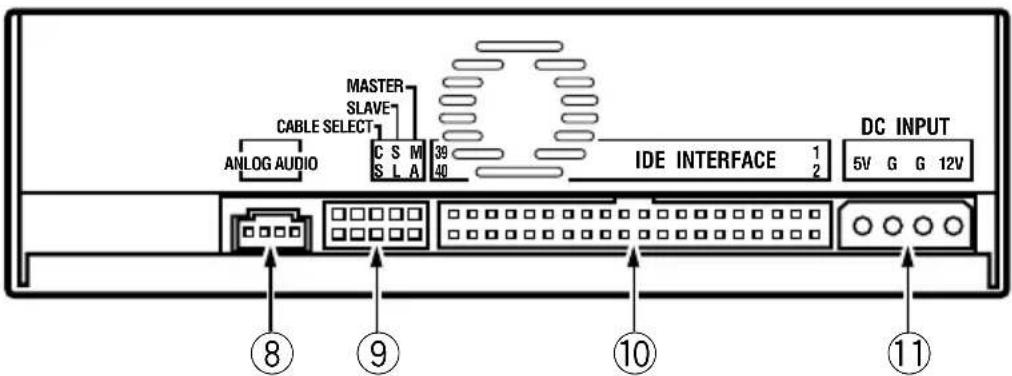

REAR VIEW

CABLE SELECT MASTER SLAVE ANLOG AUDIO C S M S L A 39 40 IDE INTERFACE 1 2 DC INPUT 5V G G 12V ⑧ ⑨ ⑩ ⑪

⑧Audio Output

This is a connector for output of analog audio.

This connector is compatible with `Molex 70553`, choose a suitable connection cable.

Pin	Name	Function
1 L	Left channel audio output.
2 G	Ground.
3 G	Ground.
4 R	Right channel audio output.

⑨Device Configuration Jumper

Switch becomes ON when short socket is put.

Make sure the power of the drive is off before changing jumper setting.

Pin # 1 is ON at the time of shipping from the plant.

Pin Name Function
1 MA on The drive is used in master mode.
2 SL on The drive is used in slave mode.
3 CS on Using Cable Select function.
4 Reserved.
5 Reserved.

⑩Host IDE Interface

This is a 40 pin I/O connector according to the ATA specifications.

⑪DC Input

Pin Name Function
1 +1	2 Power supply input for DC +12 V.
2 G	Ground.
3 G	Ground.
4 +5	Power supply input for DC +5 V.

①Turn off the power of the personal computer and remove the power cord from the AC outlet, then remove the cover or the front panel.
②Remove the blank panel installed on the front of the 5.25 inch slot.
③ Install the fixing slide rails on the drive. (When slide rails are required, please contact your shop or the computer manufacturer.)
④Insert the drive into the slot.
⑤When fixing is required, please refer to the instruction manual for the computer.

• Please use screws with a length of 5 mm (3/16 in.) or less for mounting. Using longer screws may cause damage on the drive.
• When the mounting screws are loose etc., the vibrations from disc rotation may generate ripping noise, to prevent it the screws should be tightened securely.

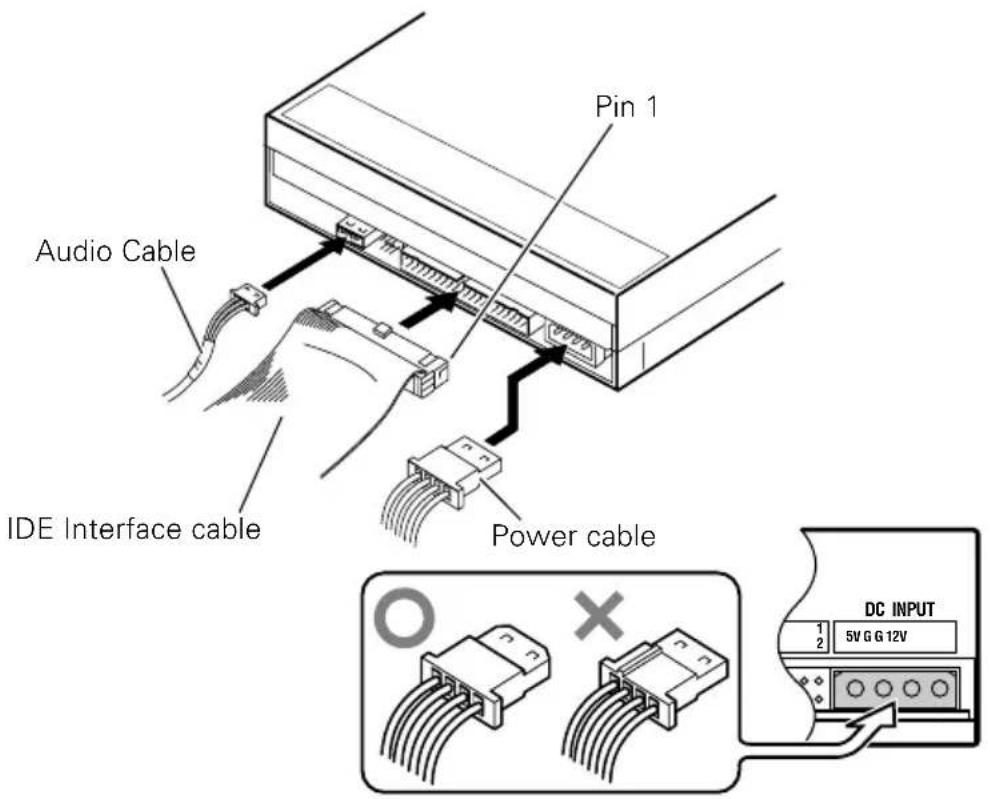

Pin 1 Audio Cable IDE Interface cable Power cable DC INPUT 1 2 5V G G 12V

●Turn off the power supply of the personal computer.
- Connect the power cable from the personal computer. At the time of connection, pay attention to the polarity of the cable.
- Connect the IDE interface cable. At this time, confirm that pin 1 of the IDE connector of the drive is connected correctly to pin 1 of the cable.
- When a sound card is being used, connect the audio output with an audio cable to the sound card.

Be sure to supply electrical power for this product from the personal computer which is connected to it. Do not use any other power supply than the internal one of the personal computer.

[Setting]

This drive is Horizontal and Vertical Use.

[Disc Size]

• 12 cm (4.72") / 8 cm (3.15")*

* 8 cm (3.15") discs cannot be used at upright position.

[Data Transfer Rate]

Data Read (Sustained)

DVD Max. 16.62 MBytes/sec.

CD Max. 4.92 MBytes/sec.

(13.7 - 32X CAV Mode over 16 block transfer)

Data Write (Sustained)

DVD Ave. 5.54 MBytes/sec. (4X DVD-R)

CD Ave. 2.46 MBytes/sec. (16X CD-R)

Host Interface specification

PIO Mode 4, Multi word DMA Mode 2 16.6 MBytes/sec.

Ultra DMA Mode 2 33.3 MBytes/sec.

- The data transfer rate may not be output due to disc conditions (scratches, etc.).

[Access Time/ Seek Time]

Access time (Random average)

DVD-ROM 140 ms CD-ROM 130 ms

Seek time (Random average)

DVD-ROM 120 ms CD-ROM 100 ms

[Audio Characteristic]

Line Out 0.7 ± 0.1 Vrms (at 10 kΩ load)

Headphone Out 0.7 ± 0.2 Vrms (at 32 Ω load)

[Others]

Power Supply DC +12 V, 0.6 A

DC +5 V, 1.1 A

Dimensions 148 (W) x 42.3 (H) x 198 (D) mm

(including front panel) 5-27/32 (W) x 1-11/16 (H) x 7-25/32 (D) in.

Weight 1.1 kg (2.43 lb)

Operation temperature +5°C to +45°C (41°F to 113°F)

Operation humidity 5% to 85% (no condensation)

Storage temperature -40^ to +60^ ( -40^ to 140^ )

Storage humidity 5% to 90% (no condensation)

[Accessories]

Short-circuit socket x 1

Audio cable x 1

Mounting screw x 4

Operating instructions x 1

NOTE:

- Specifications and design subject to possible modifications without notice, due to improvements.

CLASS 1 LASER PRODUCT LASER KLASSE 1

H018A_Fr

Diagram illustrating the use of a CD or DVD disc with prohibition symbols, showing how to displace disc features.

Publication de Pioneer Corporation.

© 2002 Pioneer Corporation.

CLASS 1 LASER PRODUCT LASER KLASSE 1

H018A_Ge

Diagram illustrating a disassembly or disassembly process with labeled circular components and prohibition symbols

DVD Max. 16,62 MBytes/sec.

CD Max. 4,92 MBytes/sec.

CLASS 1 LASER PRODUCT LASER KLASSE 1

H018A_It

Illustration showing various types of disc disc disassembly and no-dissipation, with hand holding a disc and no-dissipation symbol indicated.

Max. 16,62 Mbyte/sec.

Copyright © 2002 Pioneer Corporation.

CLASS 1 LASER PRODUCT LASER KLASSE 1

Diagram illustrating the use of a disc with prohibition symbols, showing how to displace or remove disc components.

Copyright © 2002 Pioneer Corporation.

CLASS 1 LASER PRODUCT LASER KLASSE 1

Diagram illustrating three types of mechanical components: cutting, rolling pin, and rolling pad with a prohibition symbol.

Two pictograms showing a prohibition symbol crossed out of two heart-shaped labels, indicating no restrictions or exclusion.

Line drawing of hands holding a CD or DVD disc with arrows indicating direction (no text or symbols)

- Schrijfsnelheid

⑩ Host IDE-interface

DVD Max. 16,62 MBytes/sec.

CD Max. 4,92 MBytes/sec.

Copyright © 2002 Pioneer Corporation.

Illustration showing a hand holding a CD or DVD disc with prohibition symbols, indicating no restrictions on the disc.

(13.7 \~ 32X CAV Mode over 16 block transfer)

データ書き込み（サスティンド）

DVD Ave. 5.54 MB/s(4X DVD-R)

CD Ave. 2.46 MB/s(16X CD-R)

ホストインターフェース規格

PIO Mode 4, Multi word DMA Mode 2 16.6 MB/s

Ultra DMA Mode 2 33.3 MB/s

AFTER-SALES SERVICE FOR PIONEER PRODUCTS

Please contact the dealer or distributor from where you purchased the product for its after-sales service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the Pioneer's subsidiaries (regional service headquarters) listed below:

PLEASE DO NOT SHIP YOUR PRODUCT TO THE COMPANIES at the addresses listed below for repair without advance contact, for these companies are not repair locations.

AMERICA

PIONEER ELECTRONICS (USA) INC.

CUSTOMER SUPPORT DIVISION

P.O. BOX 1760, LONG BEACH, CA 90801-1760, U.S.A.

EUROPE

PIONEER EUROPE NV

EUROPEAN SERVICE DIVISION

HAVEN 1087, KEETBERGLAAN 1, B-9120 MELSELE, BELGIUM

ASEAN

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

SERVICE DEPARTMENT

253, ALEXANDRA ROAD #04-01 SINGAPORE 159936

JAPAN AND OTHERS

PIONEER CORPORATION (HEAD OFFICE)

CUSTOMER SUPPORT CENTER

Published by Pioneer Corporation.

Copyright © 2002 Pioneer Corporation.

All rights reserved.

パイオニア株式会社

PIONEER ELECTRONICS (USA) INC.

2265 East 220th Street, Long Beach, CA 90810, U.S.A. TEL: [phone]

PIONEER EUROPE NV MULTIMEDIA DIVISION

PIONEER House, Hollybush Hill, Stoke Poges, Slough SL2 4QP U.K. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC. Industrial Products Department:

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]
