USER MANUAL PPMA 20Li A1 PARKSIDE

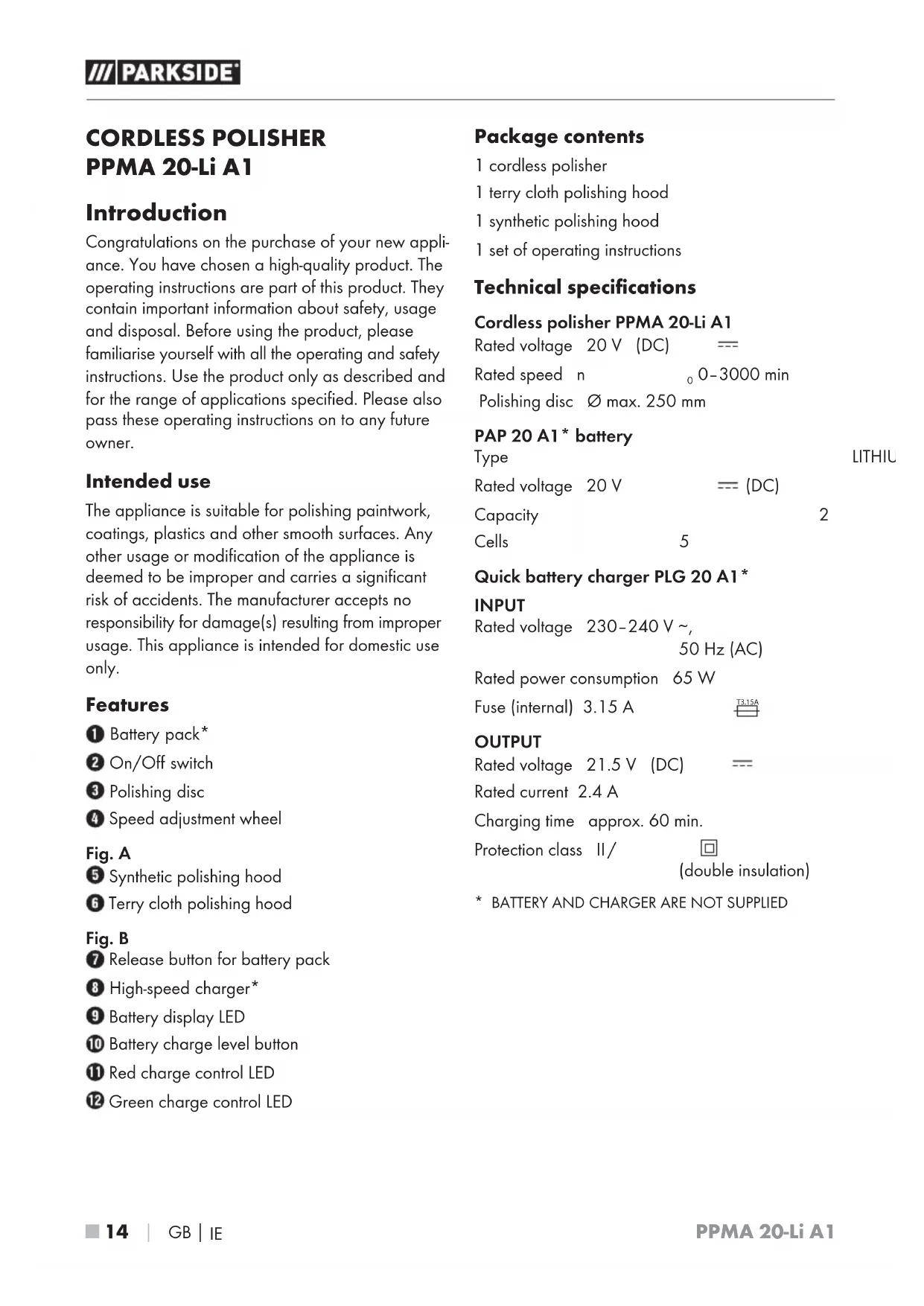

CORDLESS POLISHER PPMA 20-Li A1 Introduction Congratulations on the purchase of your new appli- ance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use The appliance is suitable for polishing paintwork, coatings, plastics and other smooth surfaces. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. This appliance is intended for domestic use only. Features Battery pack* On/Off switch Polishing disc Speed adjustment wheel Fig. A Synthetic polishing hood Terry cloth polishing hood Fig. B Release button for battery pack High-speed charger* Battery display LED Battery charge level button Red charge control LED Green charge control LED Package contents 1 cordless polisher 1 terry cloth polishing hood 1 synthetic polishing hood 1 set of operating instructions Technical specifications Cordless polisher PPMA 20-Li A1 Rated voltage 20 V (DC) Rated speed n

0–3000 min Polishing disc Ø max. 250 mm PAP 20 A1* battery Type LITHIUM ION Rated voltage 20 V (DC) Capacity 2 Ah Cells 5 Quick battery charger PLG 20 A1* INPUT Rated voltage 230–240 V ∼, 50 Hz (AC) Rated power consumption 65 W Fuse (internal) 3.15 A T3.15A OUTPUT Rated voltage 21.5 V (DC) Rated current 2.4 A Charging time approx. 60min. Protection class II / (double insulation)

 15 ■ Noise emission value Noise measurement value determined in accord- ance with EN62841. The A-rated noise level of the power tool is typically: Sound pressure level L

= 66.2 dB (A) Uncertainty K

= 3 dB Sound power level L

= 77.2 dB (A) Uncertainty K

= 3 dB Vibration emission value Total vibration values (vector total of three directions) determined in accordance with EN 62841: Hand/arm vibration a

The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparing one power tool with another. ► The specified total vibration values and the noise emission values can also be used to make a provisional load estimate. WARNING! ► Depending on the manner in which the power tool is being used and, in particular, the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool. ► Try to keep the vibration load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General power tool safety warnings WARNING! ► Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmos- pheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. IB_332964_PPMA20-LiA1_LB8.indb 15 02.03.20 09:18PPMA 20-Li A1 ■ 16 

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When working outdoors with an electrical power tool, always use extension cords that are also suitable for use outdoors. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not allow yourself to get lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second. IB_332964_PPMA20-LiA1_LB8.indb 16 02.03.20 09:18PPMA 20-Li A1

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any ad- justments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool acci- dentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dan- gerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and accessory tools etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Use and handling of the cordless

electrical power tool a) Charge a rechargeable battery using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used. b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire. c) When they are not being used, store re- chargeable battery units away from paper- clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire. d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns. e) Do not use damaged or modified batteries. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury. f) Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130°C (265°F) can cause an explosion. g) Follow all instructions regarding charging and never charge the battery or the cordless tool outside of the temperature range given in the operating instructions. Incorrect charging or charging outside of the permissible tempera- ture range can destroy the battery and increase the risk of fire. IB_332964_PPMA20-LiA1_LB8.indb 17 02.03.20 09:18PPMA 20-Li A1 ■ 18 

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries. Protect the rechargeable battery from heat; for example, from continuous exposure to sunlight, fire, water and moisture. There is a risk of an explosion.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never try to repair damaged batteries. Batteries should only be maintained by the manufacturer or an approved customer service centre. Additional safety instructions ■ Do not leave any loose parts hanging from the polishing hood, especially the tightening cords. Tuck away or shorten the tightening cords. Loose, spinning tightening cords can hit your fingers or get caught in the workpiece. ■ Secure the workpiece. A workpiece securely held by a clamping device or vice is much safer than one held in your hand. ■ Do not rest your hands next to or in front of the appliance and the area being worked as there is a risk of injury if you slip. ■ Ensure sufficient ventilation when working on plastics, paints, lacquers, etc. ■ Do not soak the materials or the area to be processed with liquids containing solvents. ■ Never work on moistened materials or damp surfaces. ■ Materials containing asbestos may not be processed. Asbestos is a known carcinogen. ■ Never use the appliance for purposes other than those for which it was designed and only with original parts/accessories. Using attach- ments or accessory tools other than those rec- ommended in the operating instructions can lead to a risk of injury. ■ The appliance must always be kept clean, dry and free from oil or grease. Original accessories/attachments ■ Use only the accessories and additional equip- ment specified in the operating instructions and which are compatible with the tool. WARNING! ■ Do not use any accessories that are not recommended by PARKSIDE. This can lead to electric shock and fire. IB_332964_PPMA20-LiA1_LB8.indb 18 02.03.20 09:18PPMA 20-Li A1

 19 ■ Safety guidelines for battery chargers ■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under super- vision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised. The charger is suitable for indoor use only. WARNING! ■ To avoid potential risks, damaged mains cables should be replaced by the manufac- turer, their customer service department or a similarly qualified person. ATTENTION! ♦ This charger can only charge the following batteries: PAP 20 A1/PAP 20 A2/PAP20 A3. ♦ An up-to-date battery compatibility list can be found at www.Lidl.de/Akku. Before use Charge battery pack (see fig. B) CAUTION! ► Always unplug the appliance before you remove the battery pack from or connect it to the charger. NOTE

Never charge the battery pack when the ambient temperature is below 10°C or above 40°C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0°C and 50°C. ♦ Connect the battery pack to the high-speed battery charger (see fig. B). ♦ Insert the power plug into the socket. The red charge control LED lights up to indicate that the appliance is charging. ♦ The green charge indicator LED indicates that the charging process is complete and the battery pack is ready for use. ♦ Push the battery pack into the appliance. Checking the battery charge level ♦ Press the battery charge level button to check the charge level of the battery. The status/remaining charge will be shown on the battery display LED as follows: GREEN/RED/ORANGE = maximum charge/ performance RED/ORANGE = medium charge/performance RED = low charge – charge the battery IB_332964_PPMA20-LiA1_LB8.indb 19 02.03.20 09:18PPMA 20-Li A1 ■ 20 

Mounting the polishing hoods ATTENTION! ► Make sure you remove the battery pack before fitting or removing the polishing hoods

♦ Turn the appliance over so that the polishing disc is facing upwards. ♦ Fit one of the polishing hoods / on the polishing disc . Make sure that the polishing hood is centred and taut on the polishing disc . Use Wear safety goggles! Setting the rotational speed ♦ Adjust the speed adjustment wheel to a position between 1 and 6. Polishing ■ Use the synthetic polishing hood for dewaxing or polishing. ■ Use the terry cloth polishing hood for applying polish. ♦ Apply some polish to the attached polishing hood / and the workpiece. ♦ Manually spread the polish over the surface you want to polish. NOTE

Do not apply the polish to the same surface too often, as the particles it contains could damage the finish. ► Mask any plastic components beforehand as these could be faded by the polish. ♦ Set the On/Off switch to the "I" position. ♦ Guide the appliance across the workpiece parallel to its surface. ♦ Move the appliance parallel and evenly over the surface being polished. ♦ Do not press the appliance down. Pressing down hard does not increases the working efficiency. ♦ When you are satisfied with the result, turn off the appliance. To do this, set the On/Off switch to the "0" position. ATTENTION! ► Depending on the size and nature of the workpiece, suitable safety precautions must be taken. Use suitable clamps to prevent the workpiece from slipping. Working procedures ■ Apply minimal pressure when working. ■ Work at a constant speed. ■ Carry out the polishing process parallel to the surface and overlap the polishing strokes. ■ After completing the task, lift the appliance from the workpiece and then switch it off. Maintenance and cleaning WARNING! ► Always disconnect the battery pack before carrying out any work on the appliance. The appliance is maintenance-free. ■ Always clean the appliance directly after completion of work. ■ Use a dry cloth to clean the housing. ■ Remove any sanding dust stuck to the appliance with a brush. ■ Never use sharp objects, petrol, solvents or cleaning agents which can damage plastic. Do not allow any liquids to get into the interior of the appliance. ■ If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry. IB_332964_PPMA20-LiA1_LB8.indb 20 02.03.20 09:18PPMA 20-Li A1

 21 ■ Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instruc- tions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. The warranty period does not apply to ■ Normal reduction of the battery capacity overtime ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazards Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g.IAN12345) available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be pro- vided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. IB_332964_PPMA20-LiA1_LB8.indb 21 02.03.20 09:18PPMA 20-Li A1 ■ 22 

You can download these instructions along with many other manuals, product videos and installation soft- ware at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by enter- ing the item number (IAN) 123456. Service WARNING! ► Have the appliances repaired by the Service Centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained. Service Great Britain Tel.: [phone] E-Mail: [e-mail] Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 332964_1907 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 44867 BOCHUM GERMANY www.kompernass.com Disposal The packaging is made from environ- mentally friendly material which can be disposed of at your local recycling plant. Do not dispose of power tools in the normal domestic waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environ- mentally compatible manner. WARNING! ■ Remove the battery before disposal. Do not dispose of batteries in your normal household waste! Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility. Please contact your local authority or town council for information about disposal options for used power tools/battery packs. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packag- ing material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. The product is recyclable, subject to extended producer responsibility and is collected separately. IB_332964_PPMA20-LiA1_LB8.indb 22 02.03.20 09:18PPMA 20-Li A1

 23 ■ Original declaration of conformity We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EMC (Electromagnetic Compatibility) (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards: EN 62841-1:2015 EN 62841-2-4:2018 EN 60335-1:2012/A13:2017 EN 60335-2-29:2004/A11:2018 EN 55014-1:2017 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 50581:2012 Type/appliance designation: Cordless polisher PPMA 20-Li A1 Year of manufacture: 12–2019 Serial number: IAN 332964_1907 Bochum, 20/11/2019 Semi Uguzlu - Quality Manager - We reserve the right to make technical changes in the sense of further product development. IB_332964_PPMA20-LiA1_LB8.indb 23 02.03.20 09:18PPMA 20-Li A1 ■ 24 

Ordering a replacement battery If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone. Due to limited stocks, this item may sell out in a relatively short time. NOTE

It might not be possible to order replacement parts online in some countries. In this case, please contact the Service hotline. Telephone ordering Service Great Britain Tel.: [phone] Service Ireland Tel.: [phone] (0,08 EUR/Min., peak · 0,06 EUR/Min., off peak) To ensure fast processing of your order, have the article number of your appliance to hand (e.g. IAN332964) in case of questions. The article number can be found on the type plate or the title page of these instructions. IB_332964_PPMA20-LiA1_LB8.indb 24 02.03.20 09:18PPMA 20-Li A1
