| Brand | Amica |
| Model | Leste VM 8100 |
| Vacuum type | Cordless stick vacuum with detachable handheld vacuum |
| Power supply | Lithium-ion battery 29.6 V / 230 V charger |
| Nominal power | 420 W |
| Maximum power | 450 W |
| Weight (without accessories) | 4.3 kg |
| Charging time | 4 to 6 hours |
| Runtime (max power) | Approximately 10 minutes |
| Runtime (medium power) | Approximately 25 minutes |
| Runtime (min power) | Approximately 60 minutes |
| Dust container capacity | Not specified (transparent container) |
| Filters | Dust filter (washable), foam filter, motor filter |
| Electric brush | Motorized brush with LED lighting |
| Included accessories | Hose, electric brush, wall bracket |
| Noise level | Not specified |
| Safety | Overheat protection, automatic shut-off if blocked |
| Maintenance | Empty container after each use, regular filter cleaning |
| Repairability | Battery replaceable by after-sales service |
| Usage | Household, indoor only |
| Operating temperature | 4.5°C to 40°C |
Frequently Asked Questions - Leste VM 8100 AMICA
User questions about Leste VM 8100 AMICA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual Leste VM 8100 - AMICA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Leste VM 8100 by AMICA.
USER MANUAL Leste VM 8100 AMICA

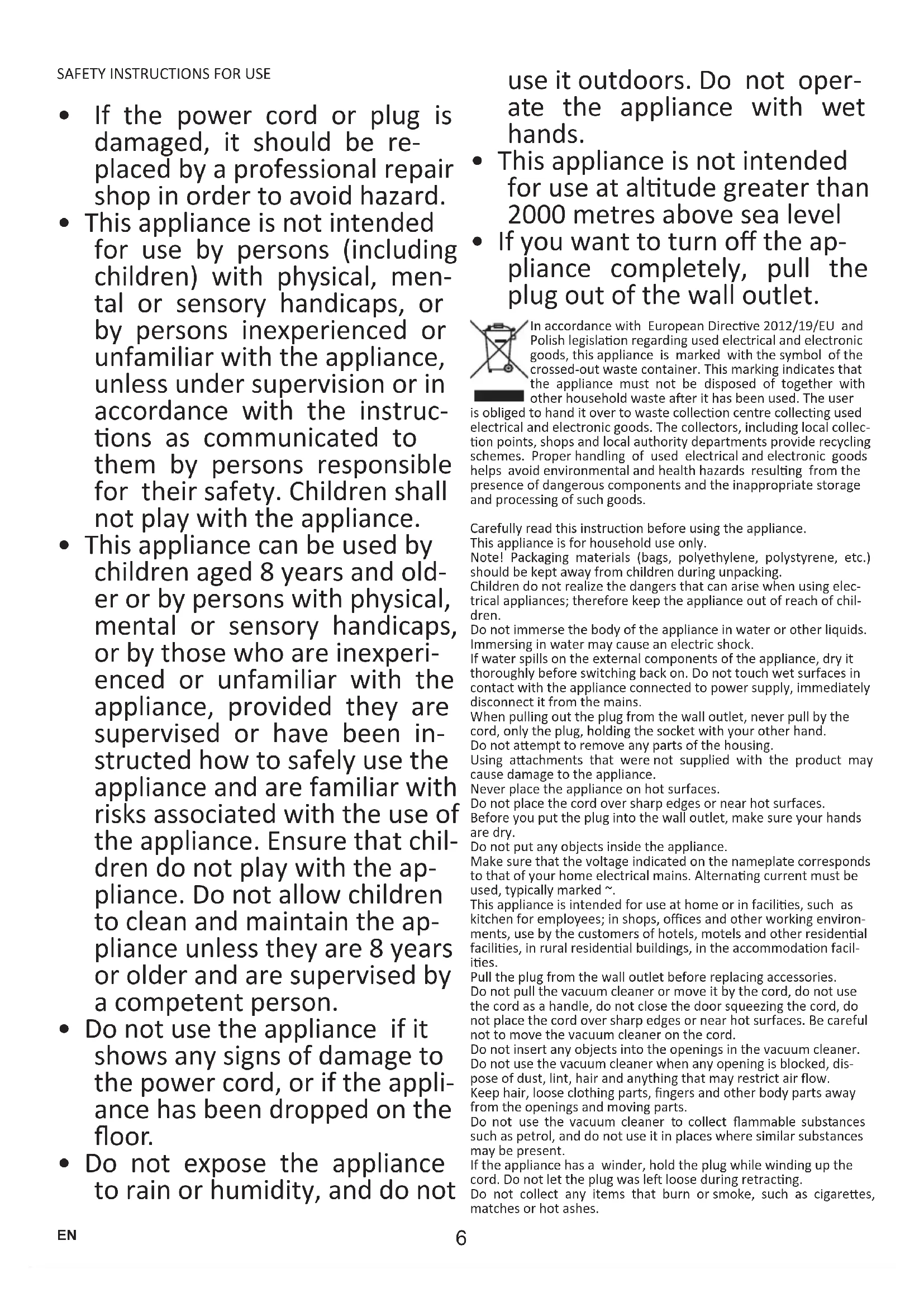

- If the power cord or plug is damaged, it should be replaced by a professional repair shop in order to avoid hazard.
- This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.
- This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Do not allow children to clean and maintain the appliance unless they are 8 years or older and are supervised by a competent person.
- Do not use the appliance if it shows any signs of damage to the power cord, or if the appliance has been dropped on the floor.
- Do not expose the appliance to rain or humidity, and do not
use it outdoors. Do not operate the appliance with wet hands.
- This appliance is not intended for use at altitude greater than 2000 metres above sea level
If you want to turn off the appliance completely, pull the plug out of the wall outlet.
In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user
is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.
Carefully read this instruction before using the appliance.
This appliance is for household use only.
Note! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
Children do not realize the dangers that can arise when using electrical appliances; therefore keep the appliance out of reach of children.
Do not immerse the body of the appliance in water or other liquids. Immersing in water may cause an electric shock.
If water spills on the external components of the appliance, dry it thoroughly before switching back on. Do not touch wet surfaces in contact with the appliance connected to power supply, immediately disconnect it from the mains.
When pulling out the plug from the wall outlet, never pull by the cord, only the plug, holding the socket with your other hand.
Do not attempt to remove any parts of the housing.
Using attachments that were not supplied with the product may cause damage to the appliance.
Never place the appliance on hot surfaces.
Do not place the cord over sharp edges or near hot surfaces.
Before you put the plug into the wall outlet, make sure your hands are dry.
Do not put any objects inside the appliance.
Make sure that the voltage indicated on the nameplate corresponds to that of your home electrical mains. Alternating current must be used, typically marked
This appliance is intended for use at home or in facilities, such as kitchen for employees; in shops, offices and other working environments, use by the customers of hotels, motels and other residential facilities, in rural residential buildings, in the accommodation facilities.
Pull the plug from the wall outlet before replacing accessories.
Do not pull the vacuum cleaner or move it by the cord, do not use the cord as a handle, do not close the door squeezing the cord, do not place the cord over sharp edges or near hot surfaces. Be careful not to move the vacuum cleaner on the cord.
Do not insert any objects into the openings in the vacuum cleaner. Do not use the vacuum cleaner when any opening is blocked, dispose of dust, lint, hair and anything that may restrict air flow.
Keep hair, loose clothing parts, fingers and other body parts away from the openings and moving parts.
Do not use the vacuum cleaner to collect flammable substances such as petrol, and do not use it in places where similar substances may be present.
If the appliance has a winder, hold the plug while winding up the cord. Do not let the plug was left loose during retracting.
Do not collect any items that burn or smoke, such as cigarettes, matches or hot ashes.
Do not use the vacuum cleaner without a dust bag and/or filters. If the opening, which sucks air, hose or telescopic tube are clogged, you should immediately turn off the vacuum cleaner Before restarting the vacuum cleaner, first remove the blocking item.
Do not use the vacuum cleaner too close to heaters, radiators, cigarette butts, etc.
Before using the vacuum cleaner, remove sharp objects from the floor to avoid damaging the dust bag.
Do not collect fine particles such as: flour, gypsum, printer toners, etc., as this may clog filters and damage the vacuum cleaner.
Make sure that extension tube is fully withdrawn before you put away your vacuum cleaner either in vertical or horizontal position. Store the lithium ion battery in a cool and dry place.
The lithium-ion battery comes pre-charged by the manufacturer to 40% . After purchase, charge it up to 100% . This is to extend the life of the battery.
Liquids leaking from the battery may cause irritation and burns. If the liquid contacts your skin, seek medical attention, wash and rinse off the liquid as soon as possible with soap and water, and neutralize with a weak acid such as lemon juice or vinegar. If the liquid gets into your eyes, rinse your eyes immediately with clean water for at least 10 minutes.
When not in use, keep the battery away from metal objects such as paper clips, coins, keys, nails, screws, or other small metal objects that could short-circuit the two battery terminals. Short circuit between battery terminals may cause burns or fire.
The appliance is designed for operation at temperature from 4.5^ to 40^
Do not use a damaged or modified appliance or battery. Damaged or modified batteries may be unreliable, causing fire, explosion, or injury.
Do not expose the appliance or battery to heat or fire. Temperature above 130^ may cause an explosion. Recycling and proper disposal of the battery helps to conserve natural resources. The product contains a lithium-ion battery. You must dispose of the battery properly. Before disposing of the vacuum cleaner, dispose of the battery in an environmentally safe manner. Do not dispose of the battery with domestic municipal waste.
The properties of lithium-ion batteries may slightly deteriorate over time depending on use. You can purchase a 29.6 V / 230 V battery or have it replaced by authorised service centre. For detailed information, please go to our website: https://czescizamienne.amica.pl/ Product/Part
SPECIFICATION:
| Power specification: 29,6V/230V | |
| Nominal power: 420W | |
| Maximum power: 450W | |
| Weight (without accessories) 4,3 kg | |
Charger specification:
Input voltage: AC 100V-230 V / 50-60Hz
Output voltage:
DC 33.0 V / 0.5A / 16.5W
DC 37.0 V / 0.5A / 18.5W

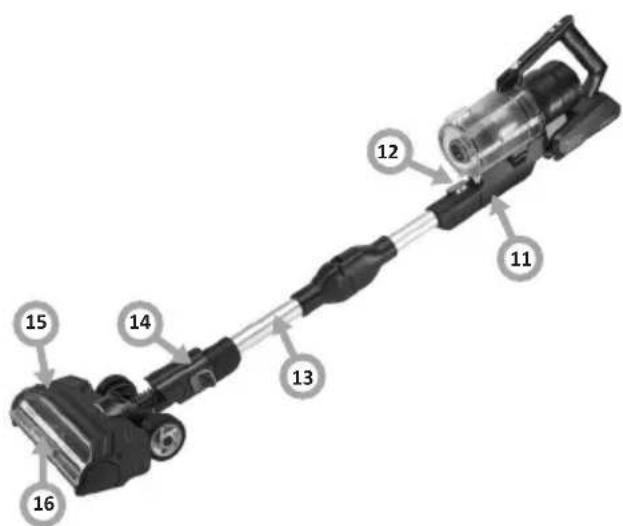

Features and components
- Handle
- Power on/off
- Bottom cover
- Suction attachment holder
- Dust bin lid release lever
- Dust bin
- Pump filter cover
- Lithium ion battery
- Charging socket
- Dust bin release button
- Detachable handheld vacuum cleaner
- Release button for handheld vacuum cleaner
- Tube
- Floor brush release button
- Electric brush
- Electric brush LED backlight
Assembly

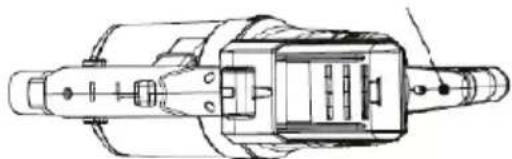

- Place the motor unit on a flat surface. Connect the adapter to the charging socket on the battery and insert the plug into a power socket. While charging, the power indicator flashes, one minute after charging, the indicator turns off.
-

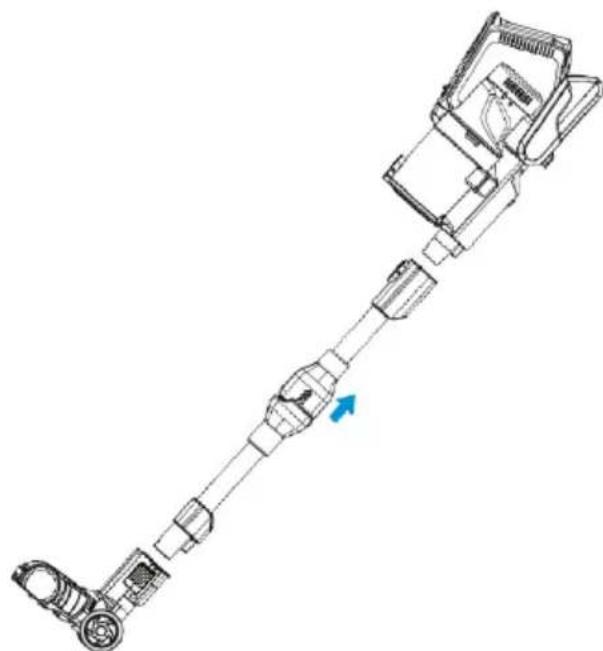

Insert the tube into the hand vacuum cleaner until it clicks into place.
-
Insert the tube into the floor brush until you hear a click.

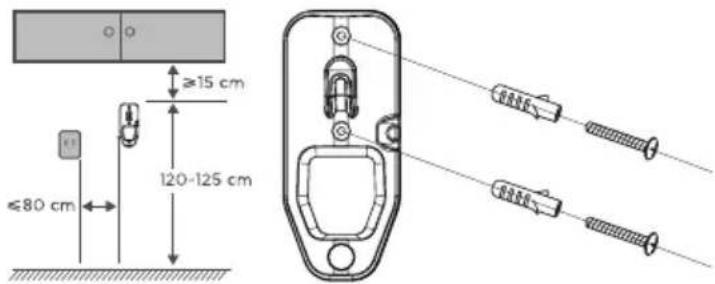

Install a wall bracket
- Choose a place near an electrical outlet.
- The height should be sufficient so that the brush tube hangs freely.
- Place the bracket on the wall and use a pencil to mark the holes to be drilled.
- Drill holes and insert wall plugs. Put the bolts through the holes in the handle and tighten.
Charge the battery and store accessories
- Hang the assembled vacuum cleaner on the wall bracket.
- Plug the charger into an electrical socket and then into the charging socket on the handheld vacuum cleaner.
- Place the accessories in the appropriate places on the wall bracket.
Battery indicators show the charge level.
- When fully charged, the indicators stop flashing.
- Fully charge the battery before first use. This may take 4-6 hours. Duration: At maximum power: approx. 10 minutes At medium power: approx. 25 minutes At lowest power: approx. 60 minutes The operating time of the vacuum cleaner may vary depending on the brushes used and the conditions of use.
Operation
- Press ON/OFF to start the appliance.
- Press ON/OFF again to turn off the appliance.
- Charge the appliance when only one power indicator flashes.

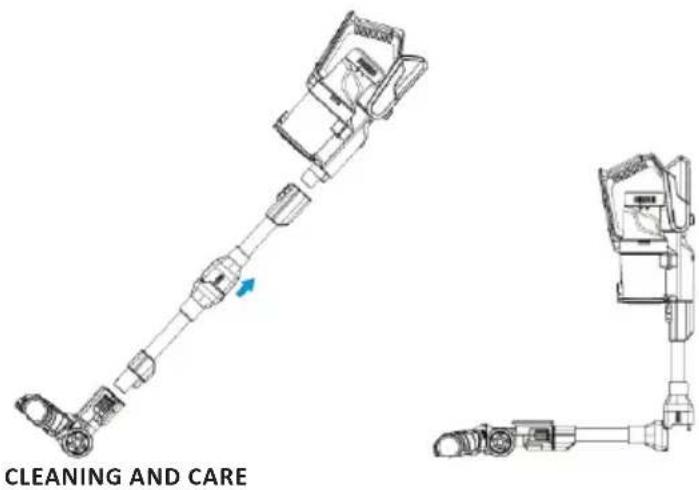

- You can bend the tube, if needed. Pull the tube sleeve upwards as shown by the arrow and the tube will bend.

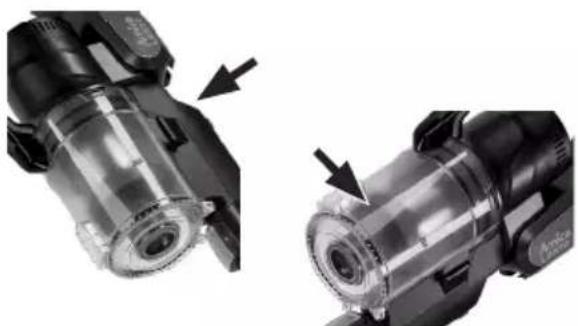

Empty the dust bin
Instructions:
- To maintain the suction power of the vacuum cleaner, empty the dust bin regularly.
- Press the release button, open the bottom cover and dispose of the dust.
Use the vacuum cleaner and accessories
- Moving parts! Always turn the vacuum cleaner off before attaching accessories.
Cleaning and maintenance

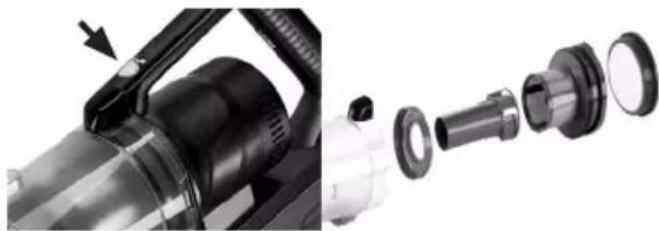

- Press the dust bin release button and remove the bin.
- Remove the filter from the dust bin.
- Dismantle the filter and clean it. All parts of the filter are washable.
- When all parts are cleaned, reassemble them in the reverse order.
Electric brush cleaning and maintenance
Note!

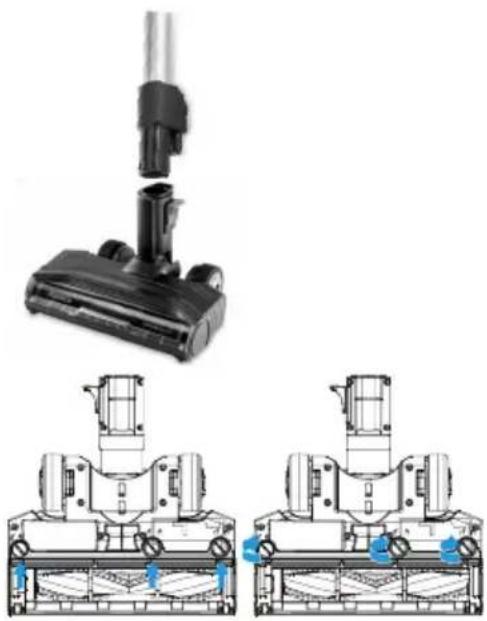

In order to ensure proper operation of the brush, regularly clean the brush roller and wheels from dust and tangled hair and threads. Make sure the appliance is turned off before removing the main brush. Press the release button and remove the brush. Open the brush cover, then remove and clean the brush roller. After cleaning the roller, replace it in the reverse order.
Instructions:
- Do not wash the brush. If hair is caught in the brush, remove it with scissors or a knife.
Clean the dust filter at least once a month, depending on frequency of use.
- Turn the dust bin and remove it.
- Twist the strainer and remove it.
- Remove the foam filter and bracket.
- Separate the foam filter from the fleece filter by sliding them apart.
- Rinse and dry thoroughly. Assemble when dry.
Clean a filter behind the motor every 6 months
- Turn the filter cover and remove it.
- Remove the filter located behind the motor
- Shake off the dust.
- Every 6 months, replace the filter or rinse and dry it thoroughly.
- Put the filter and cover back in and turn to the "locked" position.
| Description of the problem Procedure: | |
| 1. The vacuum cleaner does not clean well.. | 1. Empty the dust container. 2. Remove excess dust from the filters. 3. Wash the filters. 4. Ensure there is no blockage. |
| 2. The vacuum cleaner has turned off or is not working. | 1. Charge the vacuum cleaner (check that the mains socket is working and that the switch is on). 2. The appliance may be clogged - check points 1 to 4 above. 3. Product thermal protection activated. Turn off the vacuum cleaner and let the motor cool down for an hour before using it again. |
| 3. The floor brush motor overheats and turns off. | 1. The floor brush is blocked — refer to the “Remove and clean the floor brush and brush roller” section of this manual. 2. Roller brush motor overheated due to heavy load. This may be due to prolonged use on a long-pile carpet or soft rug. Allow the vacuum cleaner to cool down for an hour before using it again. |
