G3200P - Generator HUSQVARNA - Free user manual and instructions

Product Type	Portable Generator
Brand	Husqvarna
Model	G3200P
Engine Displacement	212 cm³
Maximum Power	3,000 W
Rated Power	2,800 W
Output Voltage	230 V (Single Phase)
Frequency	50 Hz
Phase	1
Net Weight	49.0 kg
Gross Weight	51.0 kg
Package Dimensions	625 x 495 x 495 mm
Oil Tank Capacity	0.6 L
Spark Plug Gap	0.76 mm (0.030 in)
Fuel Type	Unleaded Gasoline (max 10% ethanol)
Measured Sound Power Level	96 dB(A)
Guaranteed Sound Power Level	96 dB(A)
Starting System	Manual (recoil) and Electric (battery)
Safety Devices	Circuit breakers, low oil automatic shutdown, ground terminal
Outlets	230 V AC outlet, 12 V DC terminal
Usage	Outdoor only, well-ventilated area
Regular Maintenance	Oil change, air filter cleaning, spark plug replacement, spark arrester check

Frequently Asked Questions - G3200P HUSQVARNA

How to start the Husqvarna G3200P generator?

Make sure all appliances are unplugged. Open the fuel valve, set the switch to ON, set the choke to CLOSED (cold start), then pull the starter cord slowly until resistance, then pull quickly. For electric start, turn the key to START.

What type of engine oil to use?

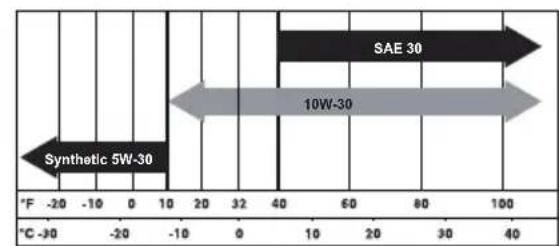

Use API service class SJ, SL or higher engine oil with viscosity suitable for ambient temperature (see table in manual). Do not use special additives.

Can the generator be used indoors?

No, indoor use is strictly prohibited due to carbon monoxide emissions, a toxic and odorless gas. Always use the product outdoors, away from windows, doors, and vents.

How to avoid overloading the generator?

Add up the total wattage of connected appliances. The total wattage must not exceed the rated capacity (2,800 W). Connect the appliances with the highest starting power first.

When and how to perform an oil change?

Change the engine oil every 50 hours or every 3 months. The engine should be warm for easier draining. Place a container under the drain plug, remove the plug and fill cap, let the oil drain, then replace the plug and refill with new oil.

What to do in case of fuel spill?

Wipe up any spills immediately. Do not use the product until the area is clean and dry. Avoid spilling fuel on a hot engine.

How to maintain the air filter?

Clean the air filter every 20 hours or once a month. Remove the cover and filter, wash with warm water, dry thoroughly, then reassemble. Replace the filter every 100 hours or every 6 months.

Why does the engine stop suddenly?

Possible causes: low oil level, empty fuel tank, poor quality gasoline, defective fuel cap, spark plug cap not properly installed. Check these points.

How to prepare the generator for long-term storage?

Add fuel stabilizer, run the engine for 10-15 minutes, drain the tank, let the engine run until it stops, drain the oil, remove the spark plug and pour 15 ml of oil into the cylinder, pull the starter 5 times, reinstall the spark plug, clean the product, and store it in a dry place.

The circuit breaker trips frequently, what to do?

This indicates overload. Unplug appliances, stop the generator, reset the circuit breaker, then reconnect appliances one by one while checking total wattage. If the problem persists, the product may need servicing.

USER MANUAL G3200P HUSQVARNA

G1300P, G2500P, G3200P, G5500P, G8500P

EN Operator's manual 2-18

BG PbkoBoDCTBO 3a ekCnloatauia 19-38

CS Navod k použiti 39-56

EL O8nyiecs xpnoans 57-75

To prepare the product for long-term storage. 14

Installation. 8

Technical data. 15

Operation. 9

EC Declaration of Conformity. 18

Introduction

Product description

This product is a portable generator with a combustion engine.

Intended use

The product supplies electrical power to operate electrical loads in locations where there is no electrical power available. Do not use the product for other tasks.

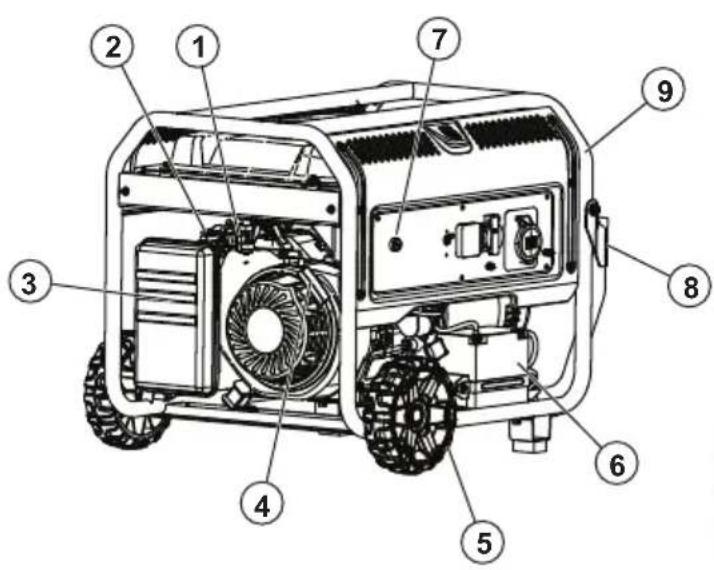

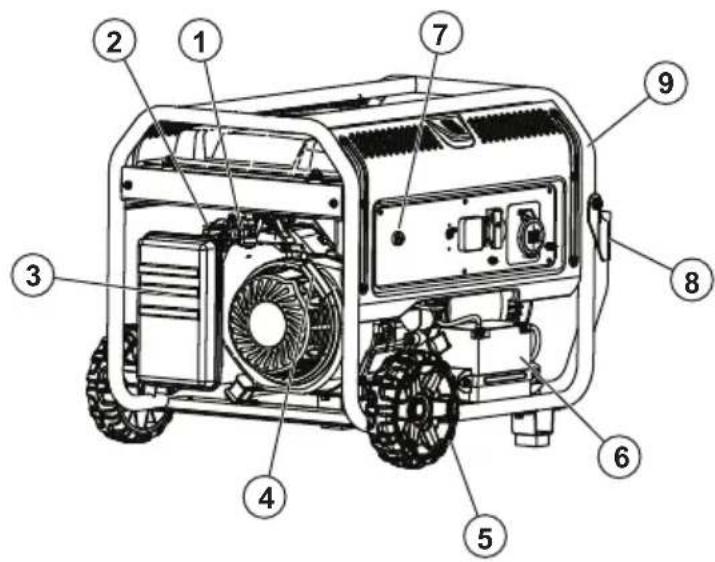

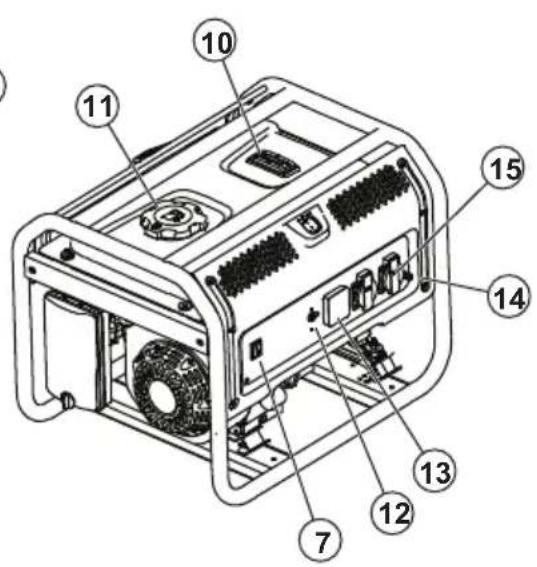

Product overview

1. Fuel valve
2. Choke
3. Air filter
4. Starter rope handle
   5.Wheel
5. Battery
6. Power switch
7. Handle
8. Frame
9. Fuel gauge

10. Fuel tank cap

11. AC circuit breakers

12. VFT meter
13. Ground terminal
14. AC receptacle

12 V DC terminal

The 12 V DC terminal is a power source for 12 V DC units.

VFT meter

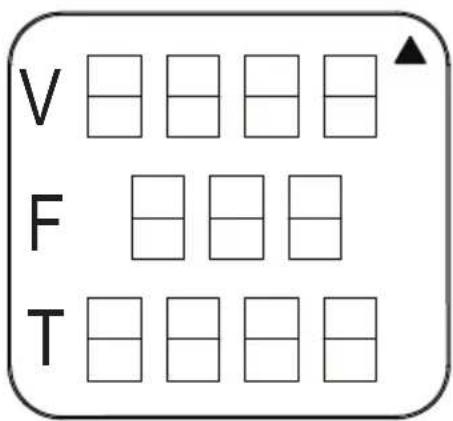

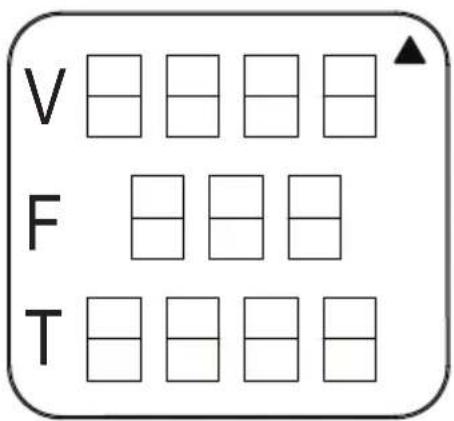

The VFT meter shows the voltage, frequency and total operation time of the product.

AC receptacles

The product has several AC receptacles to give power to tools and equipment. The AC receptacles are different in different market areas.

EU, 1-phase, 50Hz

A: 2-Prong, 230V receptacle.

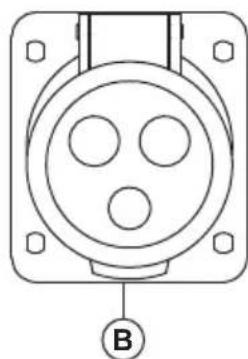

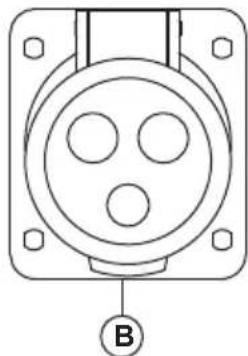

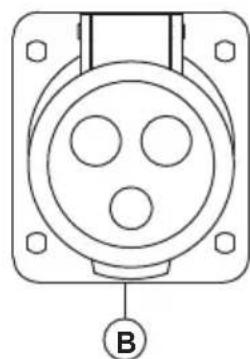

B: 3-Prong, 32 A 230 V receptacle.

US, 1-phase, 60Hz

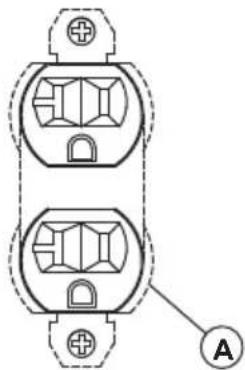

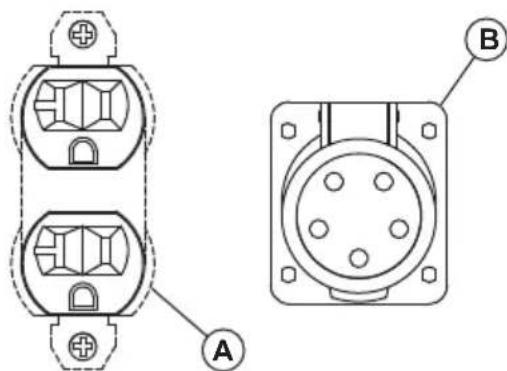

A: 3-Prong, duplex 120V receptacle.

B: 4-Prong, twist lock 30 A 120/240 V receptacle.

C: 4-Prong, 50 A 120/240 V receptacle.

US, 3-phase, 60Hz

A: 3-Prong, duplex 110V receptacle.

B: 5-Prong, 3-phase 127/220 V receptacle.

CN, 1-phase, 50Hz

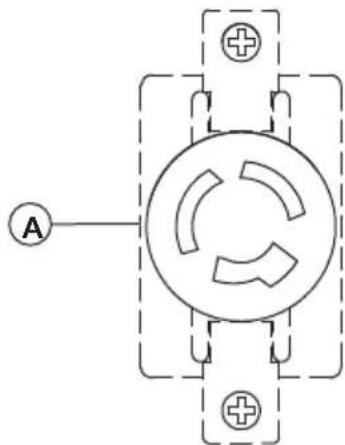

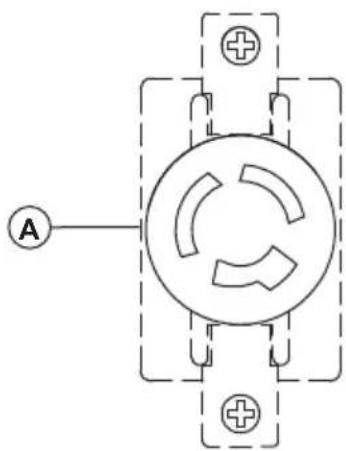

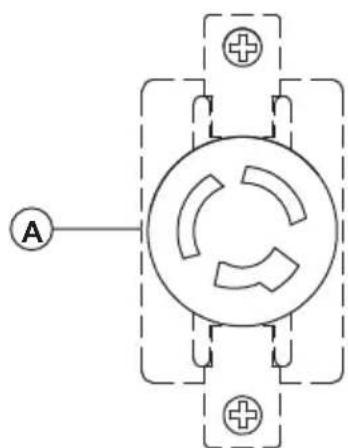

A: 3-Prong, twist lock, 230V receptacle.

Symbols on the product

WARNING! Be careful and use the product correctly. This product can cause serious injury or death to the operator or others.

Read the operator's manual carefully and make sure you understand the instructions before you use this product.

Risk of fire or explosion.

Risk of carbon monoxide poisoning. Do not operate the product in areas with bad airflow.

Risk of electrical shock.

Risk of burn injury.

Add oil.

Add fuel.

Open the fuel valve.

Set the power switch to the ON position.

Set the choke to the OFF position.

Set the choke to the ON position.

Pull the starter rope handle.

Connect the electrical loads.

Disconnect the electrical loads.

Close the fuel valve.

Noise emissions to the environment according to European Directive 2000/14/EC and New South Wales legislation "Protection of the Environment Operations (Noise Control) Regulation 2017". Noise emission data can be found on the machine label and in the Technical data chapter.

Do not use the product indoors.

Use the product outdoors.
Keep the product away from windows, doors or vents.

Set the choke to the ON position and wait for 50 seconds.

Set the choke to the OFF position and wait for 50 seconds.

Wait 30 seconds and set the power switch to the OFF position.

Type plate

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read and understand the warning instructions that follow before you use the product.

• Read and understand the operator's manual and safety decals on the product before operation. Your safety and the safety of others is your responsibility.
• Obey the instructions in this operator's manual.
• It is not possible to give a warning for each situation that can occur during operation and maintenance of this product. Always be careful and use your common sense.

Fuel safety

WARNING: Read and understand the warning instructions that follow before you use the product.

Gasoline is highly flammable and its vapors are explosive. Do not permit smoking, open flames, sparks or heat in the vicinity while handling gasoline.
- Never add fuel while the product is running or hot.
Allow the engine to cool completely before adding fuel.
- Never fill the fuel tank indoors.
- Comply with all laws regulating storage and handling of gasoline.
- Do not overfill the fuel tank. Always allow room for fuel expansion. If the fuel tank is over-filled, fuel can overflow onto a hot engine and cause a fire or an explosion.
- Never store the product with fuel in the fuel tank where gasoline vapors might reach an open flame, spark or pilot light (as on a furnace, water heater or clothes dryer). Fire or explosion may result. Allow the product to cool entirely before storage.
- Wipe up any fuel or oil spills immediately. Ensure that no combustible materials are left on or near the product. Keep the area surrounding the product clean and free from debris. Keep a clearance of 5 ft. on all sides to allow for proper ventilation of the product.
- Do not operate the product if a connected electrical device overheat, if the electrical output is lost, or if flames or smoke are observed while the product is running.
- Keep a fire extinguisher near the product at all times.
- Avoid spilling fuel on a hot engine.

• Do not smoke or light cigarettes near the product or fuel.
• Drain fuel into an approved container outdoors, away from open flame. make sure that the engine is cool.

Exhaust safety

WARNING: Read and understand the warning instructions that follow before you use the product.

• Never operate the product in an enclosed area or indoors! Never use the product in the home, in a vehicle, or in partly enclosed areas such as garages, even if doors and windows are open! Only use the product outdoors and far from open windows, doors, vents, and in an area that will not accumulate deadly exhaust.
• The engine exhaust fumes contain carbon monoxide, which you cannot see or smell. This poisonous gas, if breathed in sufficient concentrations, can cause unconsciousness or even death.
• Adequate, unobstructed flow of cooling and ventilating air is critical for correct product operation. Do not alter the installation or permit even partial blockage of ventilation provisions, as this can seriously affect safe operation of the product. The product must be operated outdoors.
• Always use a battery-operated carbon monoxide alarm indoors, installed according to the manufacturers instructions.
• If you start to feel sick, dizzy, or weak after the product has been running, move to fresh air immediately. See a doctor, as you could have carbon monoxide poisoning.

Electrical safety

WARNING: Read and understand the warning instructions that follow before you use the product.

• The product produces dangerously high voltage when in operation. Avoid contact with bare wires, terminals, connections, etc., while the product is running, even on equipment connected to the product. Ensure that all appropriate covers, guards and barriers are in place before operating the product.
• Never handle any kind of electrical cord or device while standing in water, while barefoot or while hands or feet are wet. Dangerous electrical shock can occur.

• Some countries may require the frame and external electrically conductive parts of the product be properly connected to an approved earth ground. Some countries may also require proper grounding of the product. Consult with a local electrician for grounding requirements in the area.

• Use a ground fault circuit interrupter (GFCI) in any damp or highly conductive area (such as metal decking or steel work).

• Do not use worn, bare, frayed or otherwise damaged electrical cord sets with the product.
• In case of accident caused by electric shock, immediately shut down the source of electrical power. If this is not possible, attempt to free the victim from the live conductor. Avoid direct contact with the victim. Use a non-conducting implement, such as a rope or board, to free the victim from the live conductor. If the victim is unconscious, apply first aid and get immediate medical help.

Safety instructions for operation

WARNING: Read and understand the warning instructions that follow before you use the product.

• Only operate the product on level surfaces and where it will not be exposed to excessive moisture, dirt, dust or corrosive vapors.
• Keep hands, feet, clothing, etc., away from drive belts, fans, and other moving parts. Never remove any fan guard or shield while the unit is operating.

• Certain parts of the generator get extremely hot during operation. Keep clear of the generator until it has cooled to avoid severe burn injuries.

• Do not operate the product in rain.

• Do not alter the construction of the product or change controls which might create an unsafe operating condition.
• Never start or stop the product with electrical loads connected to receptacles and with connected devices turned on. Start the engine and let it stabilize before connecting electrical loads. Disconnect all electrical loads before shutting down the generator.
• Do not insert objects through the cooling slots of the product, even if the engine is not running.
• When working on this equipment, remain alert at all times. Never work on the equipment when physically or mentally fatigued.
• Never use the product or any of its parts as a step. Stepping on the product can stress and break parts, and may result in dangerous operating conditions from leaking exhaust gases, fuel leakage, oil leakage, etc.
  Make sure that you have knowledge about all controls and adjustments before operation.
• Do not overload the product. Also, do not overload individual panel receptacles. These outlets are protected against overload with circuit breakers. If amperage rating of any circuit breaker is exceeded, that breaker opens and electrical output to that receptacle is lost.
• Never start or stop engine with electrical devices plugged into the receptacles and devices turned on.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. If the safety devices are defective, speak to your Husqvarna service agent.

Power switch

Use the power switch to start and stop the engine.

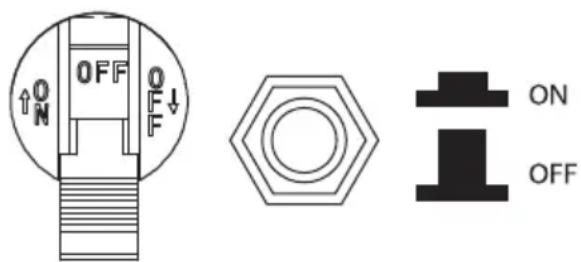

Circuit breakers

The circuit breakers prevents overload in the product. Information about rated value of the circuit breaker is shown near the circuit breaker.

Ground terminal

The ground terminal makes sure that the product is correctly grounded. Before each operation, a ground wire must be connected to the ground terminal.

Safety instructions for maintenance

WARNING: Read and understand the warning instructions that follow before you do maintenance on the product.

• For safety reasons, the manufacturer recommends that the maintenance of this equipment is carried out by an Authorized Dealer. Inspect the generator regularly, and contact the nearest Authorized Dealer for parts needing repair or replacement.

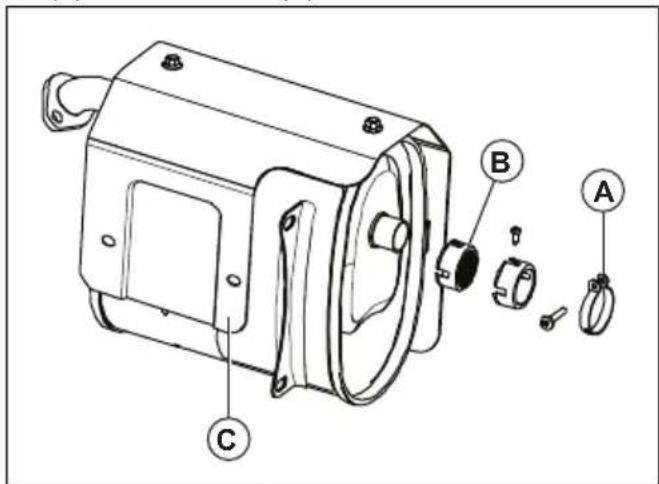

• This product is equipped with a muffler that has a spark arrester. The spark arrester must be maintained in effective working order by the owner/ operator.
• The exhaust system must be properly maintained. Do nothing that might make the exhaust system unsafe or non-compliant with local codes and/or standards.
• Before performing maintenance on the product, disconnect the engine starting battery (if equipped) to prevent accidental start up. Disconnect the cable from the battery terminal indicated by a negative, NEG or (-) first. Reconnect that cable last.
• Any attempt to crank or start the engine before it has been properly serviced with the recommended oil may result in engine failure.
• When working on the product, always disconnect the spark plug cap from spark plug and keep the spark plug cap away from the spark plug.
• Hot oil may cause burns. Allow engine to cool before draining oil. Avoid prolonged or repeated skin exposure to used oil. Thoroughly wash exposed areas with soap.
• The warranty of the product does not cover items that have been subjected to operator abuse of negligence. To receive full value from the warranty, the operator must maintain the product as instructed in this operator's manual.

Assembly

Introduction

WARNING: Read and understand the safety chapter before you assemble the product.

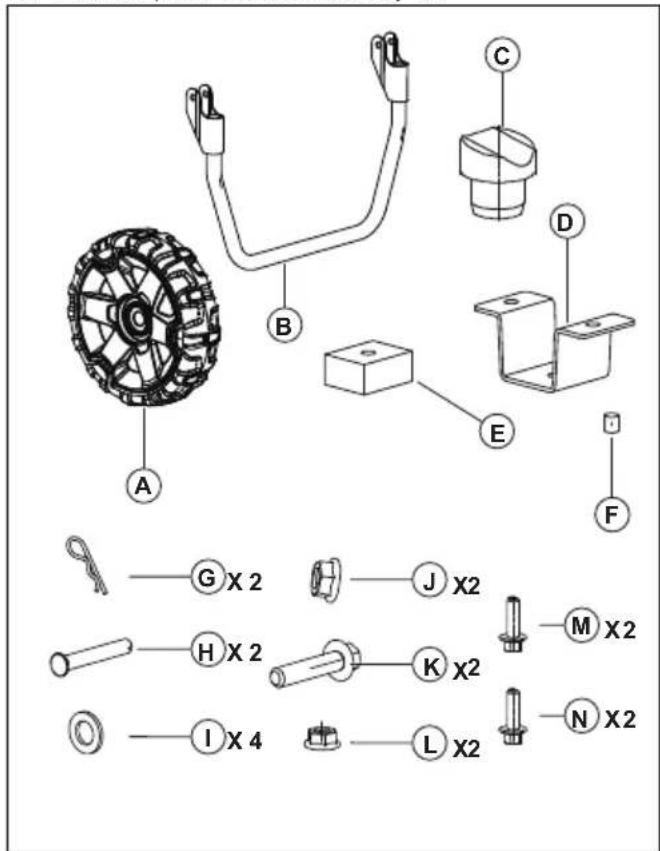

To assemble the accessory kit (G5500P, G8500P)

1. Learn the parts of the accessory kit.

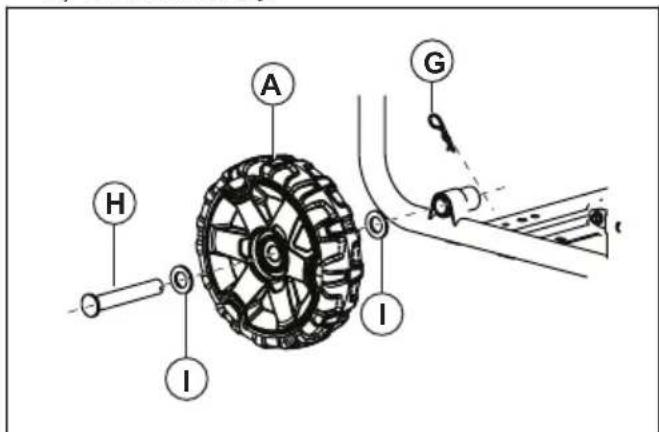

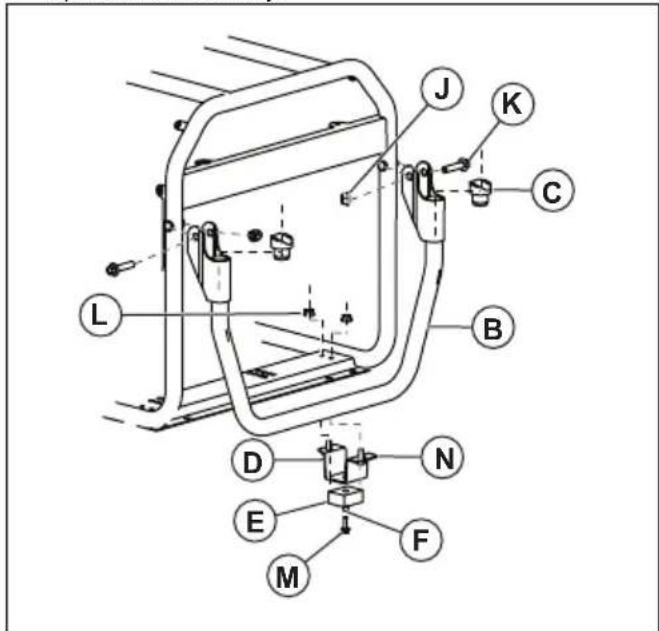

1. Assemble the accessory kit. Refer to the illustrations. a) Wheel assembly:

b) Handle assembly:

Installation

Introduction

WARNING: Read and understand the safety chapter before you install the product.

To ground the product

WARNING: The product must be grounded by a person with good experience and knowledge in the field of electricity. In some areas an approved electrician must do the installation. Obey local regulations.

1. Install a ground rod at a minimum of 24 in. into the ground.

WARNING: The ground rod must be made of brass or copper.

1. Connect a 2.5mm^2 ground wire from the ground terminal on the control panel to a ground rod.

Note: The ground wire and the ground rod are not supplied with the product.

To connect the product to the electrical system of a building

some areas an approved electrician must do the installation. Obey local regulations.

WARNING: The product must be grounded by a person with good experience and knowledge in the field of electricity. In

• Use a manual transfer switch to connect the product to an electrical system.
  Make sure that you do the procedure in compliance with all national and local regulations.

Operation

Introduction

WARNING: Read and understand the safety chapter before you use the product.

To fill fuel

Use unleaded gasoline. Do not use gasoline with more than 10% ethanol and do not use E85 gasoline.

CAUTION: Do not mix gasoline with oil.

1. Stop the engine and let the product become cool. Refer to To stop the product on page 10.
2. Make sure that the product is on level ground and in an area with good airflow.
3. Remove the fuel tank cap.

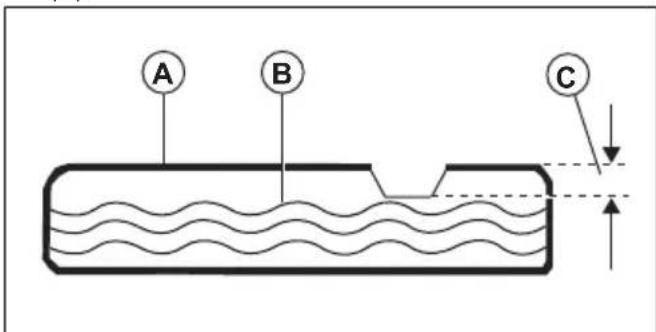

4. Carefully fill the fuel tank (A). Fill fuel (B) to the mark (C).

1. Clean the product from fuel spillage.

CAUTION: Fuel spillage is a fire risk and can cause damage to the environment.

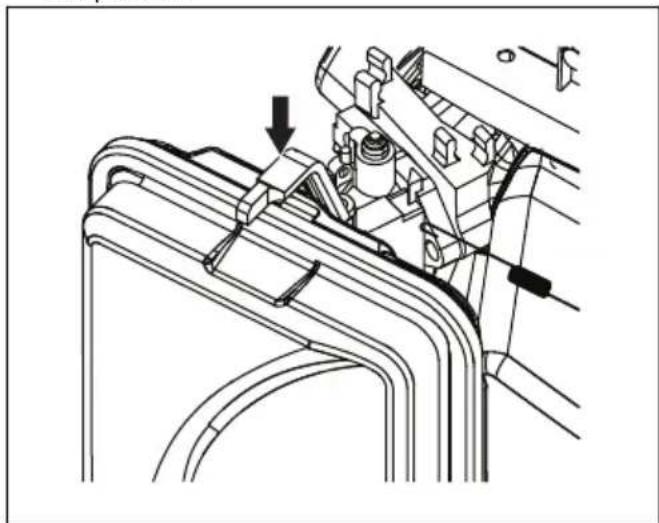

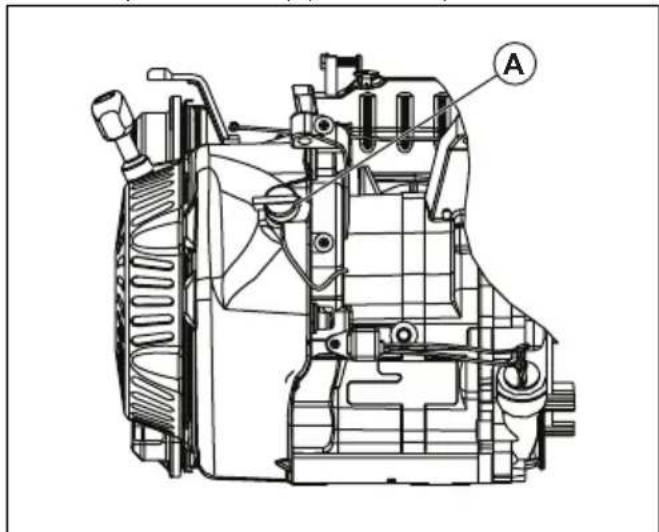

To start the product

1. Disconnect all electrical loads from the receptacles on the control panel.
2. Make sure that the product is on a level surface.

3. Open the fuel valve.

4. Set the power switch (A) to the ON position.

1. Set the choke to the OFF position.
2. Pull the starter rope handle slowly until you feel resistance.
3. Pull the starter rope handle quickly and with force until the engine starts.
4. For electric start, do the steps that follow.

a) Push and hold the ON/OFF/START key in the start position.
b) When the engine starts, move the ON/OFF/ START key to the ON position.

1. Move the choke to 12 choke position.
2. When the engine runs smoothly, set the choke to the ON position.

Note: For G1300P, the ON and OFF positions of the choke are at the opposite positions.

To connect the electrical loads

WARNING: Do not connect 240 (230)

V to 120 (110) V receptacles. Do not connect 3-phase electrical loads to a 1-phase product. Do not connect 50Hz electrical loads to a 60Hz product.

1. Start the engine and let it become warm for some minutes. Refer to To start the product on page 9.
2. Connect and start the electrical loads.
3. Make sure that there is no overload in the product. Refer to To prevent overload in the product on page 10.

To prevent overload in the product

Overload in the product can cause damage to the product and to connected electrical devices. Do the steps that follow to prevent overload in the product.

• Add the total amount of W of all electrical devices to be connected at the same time.

CAUTION: The total W must not be more than the W capacity of the product.

• The rated W of lights can be used from light bulbs. The rated W of tools, equipment and motors can be found on a decal on the device.
• If there is no amount of W specified in the product, tool or equipment, multiply V with the rated A value.
• Always connect electrical devices with the highest start up W to the product first. Then add the W of all other connected electrical loads.

To stop the product

1. Stop and disconnect the electrical loads from the receptacles on the control panel.

WARNING: Do not stop the engine if the electrical loads are on and connected to the product.

1. Let the engine operate without load for 30 seconds.
2. Set the power switch to the OFF position.
3. Close the fuel valve.

Maintenance

Introduction

WARNING: Read and understand the safety chapter before you do maintenance on the product.

Maintenance schedule

• Clean at a more regular interval if the product is used in conditions with much dust.
  ** Maintenance must be done by an approved servicing dealer.

Maintenance	Daily maintenance before operation	Maintenance interval in hours
		20 hours or each month	50 hours or each 3 months	100 hours or each 6 months	300 hours or 1 time each year	Each 2 years
Clean the product. X
Do a check of the engine oil level. X
Do a check of the air filter. X
Clean the air filter. X
Do a check of the deposit cup. X
Replace the engine oil. X*
Clean or replace the air filter. X*
Do a check of and clean the spark plug. X
Do a check of the idle speed. Adjust the idle speed if it is necessary.					X**
Do a check of the valve clearance. Adjust the valve clearance if it is necessary.					X**
Clean the fuel tank, fuel strainer and carburetor. X**
Clean the combustion chamber. X**
Replace the fuel lines if it is necessary. X**

To clean the product

CAUTION: Do not use water to clean the product. Water can cause damage to the product.

• Use a moist cloth to clean the external surfaces of the product.
• Use a soft brush to remove dirt and oil.
• Use a vacuum cleaner to remove clean dirt and unwanted material from the product.
• Use compressed air to remove dirt from cooling slots and other opening on the product.

CAUTION: The pressure of the compressed air must not be more than 25 psi.

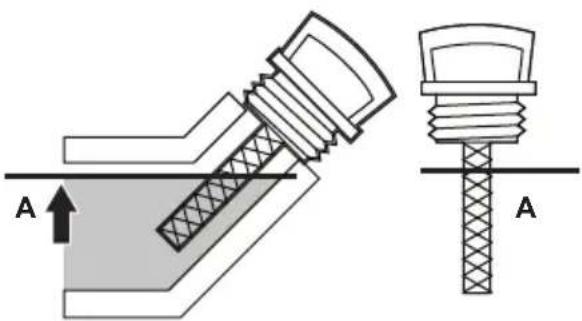

To do a check of the engine oil level

CAUTION: Do not operate the product with low engine oil level. It can cause damage to the engine.

CAUTION: Use engine oil that has SJ class, SL class, or better, from the American Petroleum Institute (API). Do not use special additives. Select a viscosity range that agrees with the ambient temperature. Refer to the illustration below.

1. Stop the product fully and make sure that the product is on level ground.
2. Clean the area around the oil tank.
3. Remove the oil tank cap and dipstick.
4. Clean the oil from the dipstick.
5. Put the dipstick back fully into the oil tank.
6. Remove the dipstick.
7. Examine the engine oil level on the dipstick.
8. If the engine oil level is low, fill engine oil until the engine oil is to the mark (A) on the dipstick. Refer to Technical data on page 15 for the oil tank capacity.

1. Do a check of the engine oil level again.
2. Install the oil tank cap and dipstick.

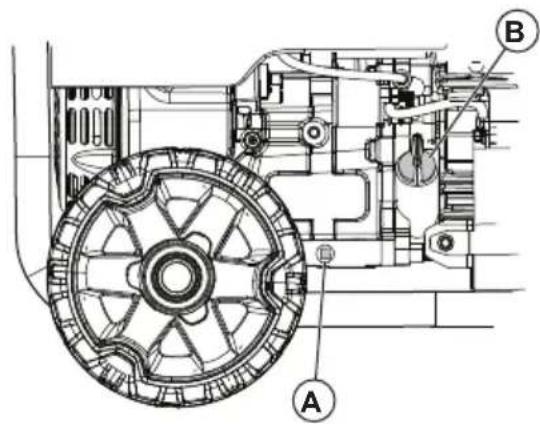

To replace the engine oil

Note: Drain the engine oil while the engine is warm. Warm engine oil is faster to drain.

WARNING: The engine oil becomes very hot and can cause burn injuries. Let the engine become cool before you drain the engine oil.

1. Clean the area around the oil drain plug (A).

1. Put an applicable fuel container below the drain hole.
2. Remove the oil drain plug and the oil tank cap (B).
3. Drain the engine oil into the container.
4. Install the oil drain plug and tighten it.
5. Fill engine oil. Refer to To do a check of the engine oil level on page 11.
6. Remove oil spillage.
7. Recycle the used engine oil at an approved disposal location.

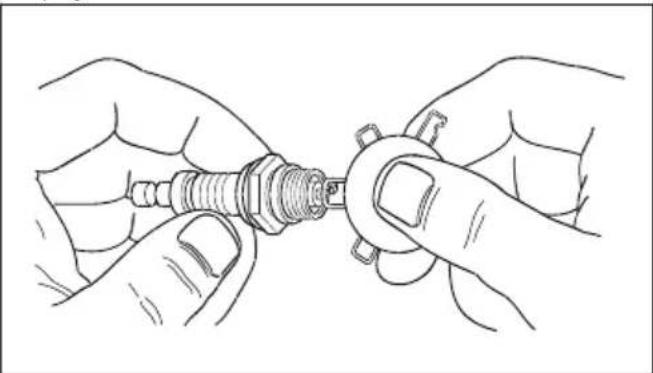

To replace the spark plug

Replace the spark plug 1 time each year.

1. Stop the engine.
2. Remove the spark plug cap from the spark plug.

3. Clean the area around the spark plug and remove the spark plug from the cylinder.

4. Set the electrode gap. Refer to Technical data on page 15.

1. Install a new spark plug. Torque to 15 ft/lbs.

To do a check of the spark arrester screen

Do a check and clean the spark arrester screen 1 time each year or more frequently if it is necessary.

WARNING: In some areas and conditions, you must use a spark arrester screen to prevent the risk of fire. Obey local regulations.

1. Remove the clamp (A) and the spark arrester screen (B) from the muffler (C).

1. Clean the spark arrester screen with commercial solvent.
2. Examine the spark arrester screen for wear and damage. Replace the spark arrester screen if it is necessary.

CAUTION: Do not use a product with a damaged spark arrester screen.

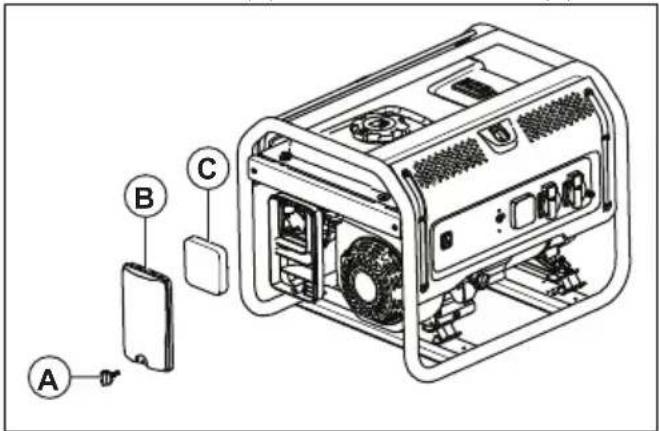

To do a check of the air filter

1. Remove the knob (A) and the air filter cover (B).

1. Remove the air filter (C).
2. Clean the air filter and the air filter cover with soap water.
3. Let the air filter and the air filter cover become dry.
4. Install the air filter, the air filter cover and the knob.

Troubleshooting

Troubleshooting schedule

Problem Cause Solution
The engine stops when it has too much load.	The air filter is not clean. Clean or replace the air filter.
	The engine is not warm. Let the engine become warm before operation.
The engine misfires. The spark plug is loose. Do a check of the wire connections.
Incorrect electrode gap. Replace the spark plug cap.
The spark plug cap is damaged. Replace the spark plug cap.
Expired or low quality gasoline. Fill fuel.
Incorrect compression. Adjust the compression.
The engine stops suddenly. The engine oil level is low. Fill engine oil.
The fuel tank is empty or has low quality gasoline.		Fill fuel.
Defective fuel tank cap. Replace the fuel tank cap.
Defective magnet. Speak to an approved servicing dealer.
The spark plug cap is not correctly installed.		Install the spark plug cap.
Engine knocking occurs. Expired or low quality gasoline. Fill fuel.
Overload in the engine.		Refer to To prevent overload in the product on page 10.
Mechanical problem.		Speak to an approved servicing dealer.
Engine backfire occurs. Low quality gas	gasoline. Fill fuel.
	The engine is too cold. Use fuel for cold conditions and oil additives.
	The inlet valve is blocked or the engine is too hot.	Speak to an approved servicing dealer.
	Incorrect ignition timing. Do a check of the ignition timing.
The product has no power. The product is not connected to the electrical source.		Stop the product and disconnect it. Connect the product and start it again.
A circuit breaker has tripped. Stop the		product and disconnect it. Restart the circuit breaker. Connect the product and start it again.
The receptacle is engaged. Stop the		product and disconnect it. Do a test of the receptacle. If the receptacle is not damaged, start and connect the product again.
Servicing is necessary. Speak to an approved servicing dealer.
The product does not operate correctly.	Problem with an electrical device. Disconnect the electrical device. Speak to an approved servicing dealer.
	There is too much load in the product.	Decrease the quantity of electrical devices connected to the product.

CAUTION: Speak to an approved servicing dealer if the problem stays.

To prepare the product for long-term storage

Do the steps that follow if the product will be kept in storage for more than 30 days. The procedure that follows prevents problems with the fuel system.

1. Add a fuel stabilizer to the fuel. The fuel stabilizer must agree with the recommendation from the manufacturer.
2. Operate the product for 10-15 minutes.
3. Let the engine become cool and drain the fuel tank.

CAUTION: Do not keep fuel in long-term storage. Discard gasoline that is not clean.

1. Start the engine and let it operate until all the fuel has been used and the product stops.
2. Let the engine become cool and replace the engine oil.

3. Remove the spark plug cap and put 12 oz/15 ml of engine oil into the cylinder.

4. Put a cloth on the spark plug hole for protection.

5. Pull the starter rope handle 5 times to lubricate the engine parts.
6. Install and tighten the spark plug.

WARNING: Do not install the spark plug cap.

1. Clean the product.
2. Put the product in a clean and dry location indoors.
3. Put a cover on the product for protection.

WARNING: Do not put a cover on the product if it is warm.

Technical data

Technical data

	Husqvarna G1300P	Husqvarna G1300P	Husqvarna G2500P	Husqvarna G2500P	Husqvarna G3200P
Engine displacement, cc	98.5 98.5 196 196	212
Peak power, W1	1000 1200 2200 2800 3000
Rated power, W 800 1000 2000 2500	2800
Voltage, V 230 110/220,120/240 230	110/220,120/240 230
Rated frequency, Hz	50 60 50 60 50
Phase 1 1 1 1
Net weight, kg 28.0	28.0 43.0 43.0 49.0
Gross weight, kg 29.2	29.2 29.2 45.0 45.0 51.0
Package size, mm	500X375X435 500X375X435 500X375X435 500X375X435 5625X495X495
Oil tank capacity, l	0.45 0.45 0.6 0.6 0.6
Electrode gap, mm/in.	0.76/0.030 0.76/0.030 0.76/0.030 0.76/0.030
Type Gasoline Gasoline Gasoline Gasoline
Measured Sound Power Level, dB (A)			95 95 96
Guaranteed Sound Power Level, dB (A)			95 95 96

	Husqvarna G3200P	Husqvarna G5500P	Husqvarna G5500P	Husqvarna G8500P	Husqvarna G8500P
Engine displacement, cc	212 389 389 458 4	58
Peak power, W2	3200 5500 6000 8000 8500
Rated power, W 3000 5000 5500 7500	8000
Voltage, V 110/220,120/240 230 110/2	20,120/240 230 110/220,120/240
Rated frequency, Hz	60 50 60 50 60
Phase 1 1 1 1
Net weight, kg 49.0	88.0 88.0 106.4 106.4
Gross weight, kg 5	1.0 91.0 91.0 109.5	109.5
Package size, mm	625X495X495 720X560X585 720X560X585	720X560X585 720X560X585	720X560X585	720X560X585
Oil tank capacity, l	0.6 1.1 1.1 1.1 1.1
Electrode gap, mm/in.	0.76/0.030 0.76/0.030 0.76/0.030 0.76/0.030
Type Gasoline Gasoline Gasoline Gasoline
Measured Sound Power Level, dB (A)	96
Guaranteed Sound Power Level, dB (A)	96

Watt reference guide

Note: All numbers are approximate. Refer to the data label on the appliance for wattage requirements.

Device Running W	Additional start-up W
Emergency
Refrigerator/freezer	700	1500
Radio	100	0
Job site
Air compressor - 1/2 HP 1000	1000
Table saw - 10"	1700	1300
Belt sander - 3"	1200	1200
Hand drill - 1/2"	600	600
Halogen work light	1000	0
Reciprocating saw	900	900
Recreation
AM/FM radio	100	0
Device Running W Additional start-up	W
Electric grill 1700 0
Inflation pump 50 100 -
CD/DVD player 100 0
Box fan - 20" 200 200
Coffee maker 600 0
Household
Computer with monitor 800 0
Electric clothes dryer 5500 500
Electric range 2100 0
Electric water heater 2000 0
Light bulb - 100 W 100 0
Microwave - 1000 W 1000 200
Sump pump - ½ HP 1000 1100
Television 400 0
Washing machine	1100 1100
Well pump - ½ HP 1000 1000
Lawn and garden
Hedge trimmer	400 400
Pressure washer	1200 1200
Lawn mower	1200 1200
Edger	1000 1000
Heating and cooling
Central AC - 10000 BTU	1500 1500
Furnace fan - ½ HP	900 1400
Space heater	1800 0
Window AC - 10000 BTU	1200 600

EC Declaration of conformity

For the following machinery:

Product name: Portable Generator
- Function: Low-power generating set
- Model No.: G 2500P, G 3200P
- Serial No.: 1945013770, 1945013793 and onwards

is herewith confirmed to fulfill all the relevant provisions of

• Machinery Directive (2006/42/EC)
  Low Voltage Directive (2014/35/EU)
• Restriction of Hazardous Substances (RoHS) Directive (2011/65/EU)
  Electromagnetic Compatibility Directive (2014/30/EU)
• Noise Emission Directive by equipment for use outdoors (2000/14/EC + 2005/88/EC)

and the following harmonized standard has been complied with:

EN ISO 8528-13:2016, EN 61000-6-1:2007; EN 55012:2007+A1

Conformity Assessment Procedure: 2000/14/EC, amended by 2005/88/EC- Annex VI

TÜV Rheinland LGA Products GmbH, Notified Body for Machinery (notified under 0197), Tillystraße 2

• 90431 Nürnberg, Germany, carried out the noise certification. For information about noise emissions, refer to Technical data on page 15.

Huskvarna, 2020-06-10

Claes Losdal, Development Manager/Garden Products (Authorized representative for Husqvarna AB and responsible for technical documentation).

CbDbPkaHne

BbVeJeHne. 19

Bezonachoct. 22

MOnTak. 25

NHCtajnpahe. 26

Oepaia 27

Pondpbckka. 28

OTctpaHbAHe Ha npo6Jemn. 31

3a da noDroTBeTe npOdyKa 3a npOdbJxHTeJIHO cbxpaHeHne. 33

Texnueckn daHHN. 34

Deknapa3a cboTBcTbne Ha EO. 38

BbVeHne

OnncanHe Ha npodykTa

To3n npoDyKT e npeHocm rHepaTOp c DnBraTeJ C BbTpEwHO ropeHe.

PpeHa3NaueHne

IpoodykTbT ocHrypBa 3axpaHbaHe 3a eJeleKtpoyeNi Ha MeCTa, KbTeTo HMa HAnuHo eJeleKtpo3axpaHbaHe. He n3noJI3BaIte npOdyKa 3a dpyr 3aDaun.

O6u npereIeHa npodykta

1. TopnbEn Knaanah
   2.Дрocen
   3.Bb3dywenΦnTbp
   4.ДьхkaHaВЖteToHa cTapTepa
2. Kōnejo
3. Akymylatop
   7.Ппекьсвay
4. PbkoXBaTka

5. Pamka
   10.ИнданаTopа roриВо

6. Kanayka Ha pe3epBoapa 3a ronpbo
   12.П配电ьсвачиHa eileKtpnueckaTa Bepura 3a npOMEHINB TOK

7. LufpoB n3MepBaTeJeh ypeI: noka3Ba HapexKeHneTo, YecToTaHa p60THnte YacObe.
8. Kjema 3a 3a3emBaHe
9. KoHTaKT 3a IIpOMeHJINB TOK

Klema 3a 12 V noctoHEN TOK

KlemaT3a 12V noCToHEn TOKe n3TOUHnK Ha 3axpaHbAe 3a ypeDn, pa6Toeun C 12V npab TOK.

LHpOB n3MepBaTeJeH ypeI: NOKa3Ba HApEKeHneTo, YecTOTaTa I pa60THnte YacObe.

INHnKaTOpbT NOKa3Ba HAnpeXeHneTo, YecToTaN O6toTO BpeMe Ha pa6oTa Ha npOdykTa.

KoHTaKTn 3a npOMeHnIB TOK

IpoNyKbT hMa HAKOJIKO KOHTaKTa 3a IpnOMeHJIb TOK 3a IpoJaBaHe Ha eHepnKaBM INHCTpyMeHTn N O6OpyDbaHe. KOHTaKTnte 3a npOMeHJIb TOK ca pa3nnuHn 3a pa3nnuHnTe na3apn.

EC,1-pha3eH,50Hz

A:2-NonHcEN KOHTaKT,230V.
B:3-NOJIIOCEH KOHTaKT, 32 A 230 V.

CAU,1-0a3eH,60Hz

A:3-NonIOceH DBOeH KOHTaKT,120V.
B:4-NonIOceH KOHTaKT CbC 3aKIIIOUbaHe CbC 3aBbPtaHe, 30 A 120/240 V.
C:4-NonIOceH KOHTaKT,50A120/240V.

CAU,3-0a3eH,60Hz

A:3-NonIOceH DBOeH KOHTaKT,110V.
B:5-noniocen KOHTaKT,3-0a3eH,127/220V.

Knta,1-pha3eH,50Hz

A:3-nIOHcEH KOHTaKT CbC 3aBbPtaHe CbC 3aKIOUbaHe, 230V.

CnmboJIbBpXyMaunHaTa

IPEyIPEKDEHNE!BnMaBaTe n 3no3BaTe npOdykTa npaBnHo.To3n npOdyKT MOKe Da npuHH cepNo3HO HapaHbAHe Nn CmbpT Ha onepaTopa n dpyn Xopa.

PpoyeTe BnMaTeJH0 pkoBocTBOTo 3a onepaTopa n ce yBepeTe, ye pa3bnpate nHCTpyKunTe, npedn da n3no3BaTe TO3n npOdyKT.

Puck ot nojkap nnn ekcnno3na.

PnCKOTOTpABHe C BbTnepeH OKnI. He pa6oTeTe C npOyKTA B 30HN C HeNoCTaTbUeH Bb3DyUWeH NOTOK.

OnachocOT eJneKtpnuecknydap.

Onachoct ot n3rapaHe.

Dó6aBete macNo.

IobabeTe ropuBO.

OTBOpTe TropNBnKnaHaN.

IocTaBeTe npeKbCbAa B noJIOKeHne BKII.

IocTabeTe cmykaa B noJooKeHne I3KJI.

IocTabeTe cmykaa B noJIOKeHne BKJI.

IpbHete dpbKkata Ha cTapTePHOTOBxke.

O6uHnHCTpyKuH 3a 6e3oNaCHOCT

PPEyPExKDEHNE: PpOeTeT E pa36peTe CneDbaUte
PpeynpeNTENH NcHTpyKuN, PpeN da
n3noJ3BaTe npOyKta.

• Ppei Da npntbnte KbM pa6oTa, npoTeTe n pa36epTe HnctpykunraTa 3a ekcnnoataqna 3HaNTe 3a 6e30nacHocT Bbpxy npodykta. Bne cTe OTROBOPn 3a BaWata 6e30nacHocT n 3a 6e30nacHocTt Ha dpyrnte.

Cn3BaIte HnCTpyKuHTe B Ta3n HnCTpyKuYra 3a eknnnoataua.
He e Bb3MOxHO da ce OTnpaBn npdeynpejxEHne 3a BcKa Bb3MOxHa CNTyaUNo Bpeme Ha pa6oTaTaN TexHueCKOTO o6CJyXBAHe Ha To3N npOyKT. BuHaru 6bDeTe BHMaTeJIHN n NOxoxKdAte pa3ymHO.

БezonaCHOCT np pa6ota c roPBO

PPEyPPEKDEHNE: PpOeTeT E pa36peTe CneDbaunite npEynpeNtEnn yka3aHna, npEi da n3noJ3BaTe npOdykTa.

-BeHnBt e MHOrO neCHO 3anaJIM n 3napeHnra My c3daBAT onaCHOCT OT EKcnNo3na. He donyckaIte Nywehe,OTKPNT PnAmbK, NCKPN JIN TOJIInHa B 6JN3oCT, KOrATO 6OpabNTe C 6eH3NH.
Hikora He doabayte ropnBO,dokato npodytbT pa60tn nne ropeu. OctabeTe Dniratela da ce oxlaHn HnHIO, npdi da doabnte ropnBO.
- Hikora He 3apejdaite pe3epboapa 3a ropno Ha 3akpnto.
CnbaBte BCnKu 3aKOnH,peRynpaun CbXpAHHeHTo n6OpabeHTo c6eH3nH.
He npenbIbaIte pe3epBoapa 3a ropnBO. BInhar octabTMe MCTO 3a pa3wnpRBAhe Ha ropNBOTo. Ako pe3epBoapbT 3a ropnBO e npenblHe, ropNBOTOMoKe da npenee Bbpxy ropeunr DbrarTeI n da npuHnIOxapnn EKcNIO3n.
Hikora He cbxpaHbAite npOdykTa c rOpBBO pe3epBoapa Ha Macto, KbTeTo 6eH3nHOBInTe nap MoRaT Da DOCTnIHAT Do OTKpNT nIaMbK, NCKpa NIK KOHTponHa CBeTJlnHa (HaNP. Ha cyphna, BoJnep nn cyuINnHa 3a dpexn). Bb3MOXHo e da Bb3HNKe

nojkap nJn ekcnlo3na. OcTaBeTe npOdykTa da ce oxJaDi n3qJeNo npEi ciBxpaHHeHne.

• N36bpseTe BeDnHa raP3JIrTO rOpBIO nIN MaCNo. YBepeTe ce, Ye Bbpyu nnB 6bn3OCT do npodykTa Hma 3anaIIMMaTeepnaJIn. POnDbpKaIte 3oHata OkIo npOdykTa YnctA, 6e3 OTNaDbUc. OcTaBeTe pa3CToRHe oT 5 cyta OT BCnuKc CTpaHn, 3a da OCnrypnte npabunHa BeHTnlaucn Ha npodykTa.
  He n3noJ3BaIte npOdyKta, aKO cBbP3aHO C Hero eNeKTPnuecko yCTpOoiCTBO npEprpa, aKO eNeKTPnuecka MoUHOC T ce r6n nn aKO ce Ha6JIIODaBA PnAmbK Nn dM, DOKaTO npOpyKTbT pa60tN.
  BunHn npbXte noXaporacnteI 6nn3o do npOdykTa.
• N36raBaiTe pa3JIbAHeTo Ha roPnBO Bbpxy ropeu DBrIaTeJ.
  He npweTe Hn napeTe uRapu 6n3o Do npOdykTa nnrnpBOTo.
• N3ToBaIe TepuBTo B Odo6peH KOHTeHep Ha OTkpnto, daJeue OT OTkpnt PnAmbK. YBepeTe ce, ye DBuratelaT E XnaDeH.

БezonaCHOCT OTHOCHO OTPa60TeHnTe ra3OBe

PPEyPPEKDEHNE: PpOeTeT E pa36peTe cneDbaUte npEynpeNTEHN yKa3aHnA, npeN da n3noJ3BaTe npOdykTa.

HnKora He n3non3BaIte npOyKta B 3aTbOpEH 30Hn IIN Ha 3akpIto! Hnkora He n3non3BaIte npOyKta BkBUn, B npeBO3HO cpeCTBO INB YactuHO 3aTbOpEH NOMEueHn KaTO rapaXn, DOpN aKO BpaITe n IpOzOpUITE ca OTbOpEH! N3non3BaIte npOyKTA CaMO Ha OTKpIto, DaJIeue OT OTbOpEH nP03OpU, BpaTI, BeHTnlaunOHn OTbOpN HA MRCTo, B KOeTO HMa da Ce HaTPynAT CmbpTOHOOTpa6oTeH ra3OBe.
- Otpa6oTeHnte ra3Obe Ha dBnraTeJIe CbIbpxKAT BByIepoJeH OKiC, KOITo He MoXeTe Da BnIte Hnn NOMpNWeTe. Ako Ce BdIIwA B DoCTaTbUHa KOHcEHTpaIy, To3N OTPOBeH ra3 MoXe Da npuHn 6e3Cb3HaHne Hnn IOpn CMbPT.
- OoctaTbUHnIrN 6e3npenTCTBEN NOTOK Ha Bb3dyX 3a OxnaKdane N BEHTUNIPAhe e OT peWabuO 3NaueHne 3a npabunHata pa60ta Ha npoDyKTA. He n3MeHnTe NHCTanAuaNraTn H ne DOnyckaIte dopn qactnHcBoknpeHa npedBndeHata BEHTUNaqur, Tb KATO TOBA MOKe cepno3HO da nobInre Ha 6e3onacHata pa60ta Ha npoDyKTA. C npoDyKTA Tp8Ba Da ce pa60tn Ha oTKpntO.
BnomeueHnra Ta BnHaT Tp6Ba Da nMaTe pa6oTea c 6aTePna aIapMa 3a BbIpeOpeN OKNC, INCTaIInpaHa CbJIaCHO INHCTpyKuNTe Ha npOn3BOUnteJI.
Ako 3anoyheTe da ce yBCTBaTe 3Je, 3amayHn nn cnabn cneK kato npoDyKTbT e paobTuJ, He3a6abHO ce npemecTeHa uNCT Bb3dyx. Otundete Ha Jekap,

TbKATO E Bb3MOXHO da NMATE OTPaBHe C BbIpeOdeH OKC.

EneKtpnuecka 6e3oNaCHOCT

PPEyPPEKDEHNE: PpOcTeTe n pa36peTe cneDbaunTe npEpyPepiTeHN yka3aHnna, ppeN da n3noJ3BaTe npOdykTa.

• Ito BpeMe Ha pa6oTa npOdyKTbT npOn3BexJa onaCHO BnCOKO HnpeXeHne. JOKaTo npOdyKTbT pa6oTu, n36raBaIte KOHTaK T c roJn npOboDnUc, KJIeMn, Bp3Kn N T.H., DOpN C O6OpyDbaHeTo, CBbp3aHO KbM npOdyKTA. YBepTe ce, ye ca NoCTaBeHN BCNUn NOxOJaun KaNau, npEtnaTeJIu N npErpaDN, npEn da pa6oTIne C npOdyKTA.
  Hikora He 6opabeTe c eJektpnueckn Ka6en nn yctpoiCTBO, aKO CTOnTE BbB BOda, aKO cTe 6ocu nn aKO pbcTe nn kpaKaTa Bn ca moKpn. MoKe da Bb3HnKHe onaceH eJektpnueckn ydap.
  HЯкоДьржавиMoratДаИЗИСВаТ pamkaTaNbHUNHe eJIeKTpOpOBODIMN YacTH Na npOdyKTaДa 6bDAt npabINHO CBbp3aHN KbM Odo6peHo3a3EmBaHe. B HЯкоДьржавиМоже cIuO daCEИЗСКВApabINHO 3a3EmBaHe Ha npOdyKTa.KoHCyNTnPaIte ce C MeCTe eJIeKtpOTexHnK 3aИЗССВанЯТа 3a 3a3EmBaHe B paNoHa.
• 3n0nl3BaIte DnDpeHcuaJHOTOKOBa 3auNTa (GFCI) BBB BcraKa BnaXHa IIN CNHOpBOdIma 3OHa (kaTo MeTaIIHn HAcTUNKn IIN CTOMaHEH N KOHCTpykUIn).
  He n3noJ3BaIte c npOdykTa n3HocEHn, orOJeHN, npoTpuN nn noBpeDeHN no dpyr Naun H eJeKtpuYeCKn kaBeJI.
  BcnyaHa 3lononyka, npuynHeHa ot eJektpnueckn ydap, He3abABHO n3KnUoyete u3TOUYHka Ha eJektpnuecka eHepnra. Ako ToBa He e Bb3MOxHo, ONtAaTe ce da ocBO6oDnte keptBaTaOT npOBODHka NOd HAppeXeHne. N36yBaTte dIpeKTHNkOHTaKT CKeptBaTa. N3No13BaIte HnPpOBoDAu PpeDMet, KATO BbXe NIN DbCKa, 3a Da OCBO6oDnte KeptBaTa OT npOBODHka NOd HAppeXeHne. Ako KeptBaTa e B 6e3cb3HaHne, OKaXeTe PbPbA NOMOuN He3a6abHO nOtbpCte MeDNsHcKa NOMOu.

A:Prise 230Và2trous.
B:Prise 230V32Aà3trous.

US, monophasée, 60 Hz

A:Prise double 120V a3trous.
B:Prise verrouillable 120/240 V 30 A a 4 trous.
C:Prise 120/240 V 50 A a 4 trous.

US, triphasée, 60 Hz

A:Prise double 110 V a3 trous.
B: Prise triphasée 127/220 V à 5 trous.

CN, monophasée, 50 Hz

A:Prise verrouillable 230V a 3 trous.

Desligue as cargas electrolycas.

Feche a valvula de combustivel.

"Protection of the Environment Operations (Noise Control) Regulation 2017"

Ligar as cargas electrolycas

ATENÇA: Nao ligue 240 (230) V a connectores de 120 (110) V. Nao ligue cargas elétricas trifásicas a um produit monofásico. Nao ligue cargas elétricas de 50Hz a um produit de 60Hz .

Original instructions

OpnHaJIHn HNCTpyKcH

Puvodni poukyny

ApxikcS obnyieS
