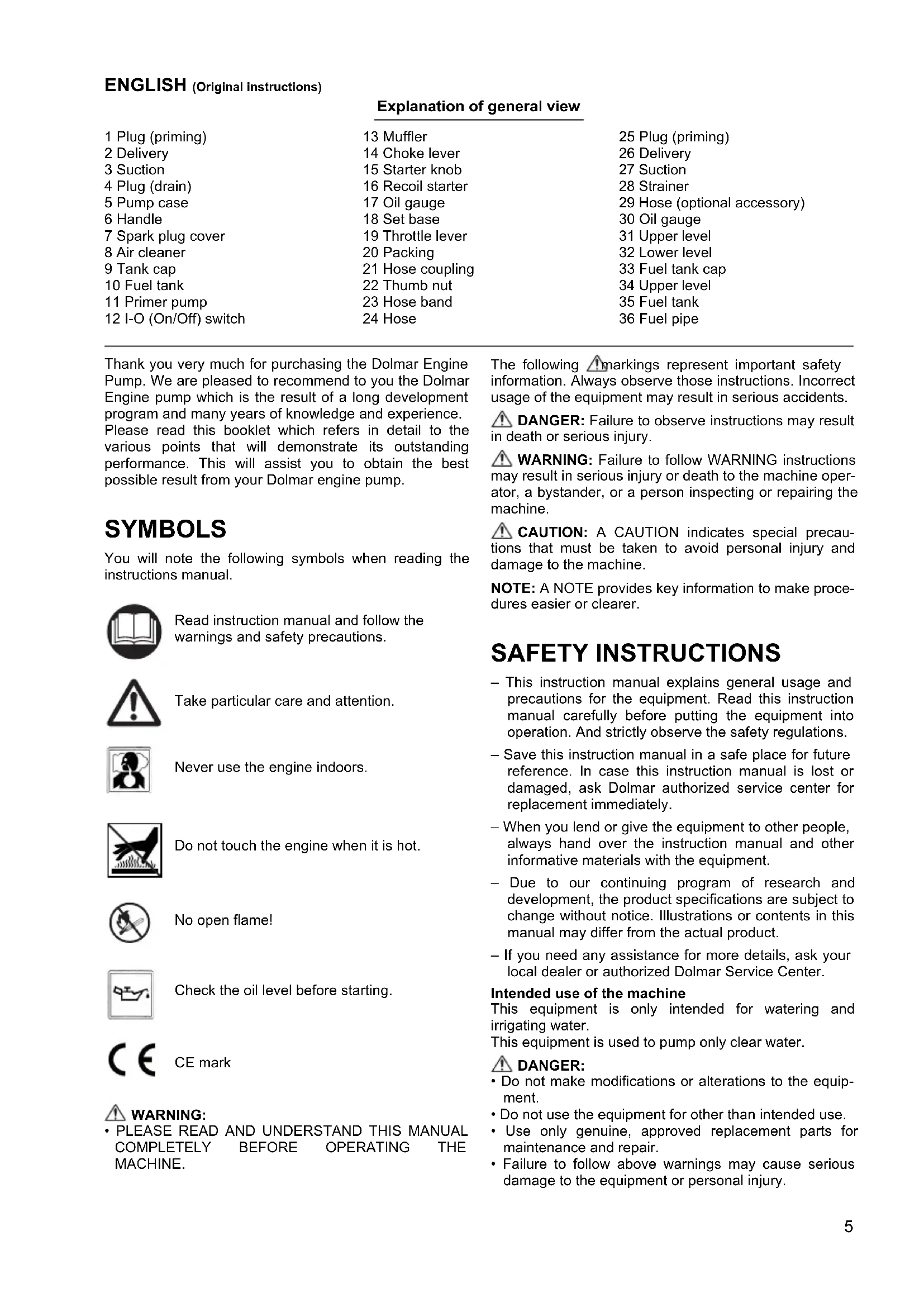

Explanation of general view

1 Plug (priming)	13 Muffler	25 Plug (priming)
2 Delivery	14 Choke lever	26 Delivery
3 Suction	15 Starter knob	27 Suction
4 Plug (drain)	16 Recoil starter	28 Strainer
5 Pump case	17 Oil gauge	29 Hose (optional accessory)
6 Handle	18 Set base	30 Oil gauge
7 Spark plug cover	19 Throttle lever	31 Upper level
8 Air cleaner	20 Packing	32 Lower level
9 Tank cap	21 Hose coupling	33 Fuel tank cap
10 Fuel tank	22 Thumb nut	34 Upper level
11 Primer pump	23 Hose band	35 Fuel tank
12 I-O (On/Off) switch	24 Hose	36 Fuel pipe

Thank you very much for purchasing the Dolmar Engine Pump. We are pleased to recommend to you the Dolmar Engine pump which is the result of a long development program and many years of knowledge and experience. Please read this booklet which refers in detail to the various points that will demonstrate its outstanding performance. This will assist you to obtain the best possible result from your Dolmar engine pump.

SYMBOLS

You will note the following symbols when reading the instructions manual.

Read instruction manual and follow the warnings and safety precautions.

Take particular care and attention.

Never use the engine indoors.

Do not touch the engine when it is hot.

No open flame!

Check the oil level before starting.

CE mark

WARNING:

• PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THE MACHINE.

The following markings represent important safety information. Always observe those instructions. Incorrect usage of the equipment may result in serious accidents.

DANGER: Failure to observe instructions may result in death or serious injury.

WARNING: Failure to follow WARNING instructions may result in serious injury or death to the machine operator, a bystander, or a person inspecting or repairing the machine.

CAUTION: A CAUTION indicates special precautions that must be taken to avoid personal injury and damage to the machine.

NOTE: A NOTE provides key information to make procedures easier or clearer.

SAFETY INSTRUCTIONS

• This instruction manual explains general usage and precautions for the equipment. Read this instruction manual carefully before putting the equipment into operation. And strictly observe the safety regulations.
• Save this instruction manual in a safe place for future reference. In case this instruction manual is lost or damaged, ask Dolmar authorized service center for replacement immediately.
• When you lend or give the equipment to other people, always hand over the instruction manual and other informative materials with the equipment.
• Due to our continuing program of research and development, the product specifications are subject to change without notice. Illustrations or contents in this manual may differ from the actual product.
• If you need any assistance for more details, ask your local dealer or authorized Dolmar Service Center.

Intended use of the machine

This equipment is only intended for watering and irrigating water.

This equipment is used to pump only clear water.

DANGER:

• Do not make modifications or alterations to the equipment.
• Do not use the equipment for other than intended use.
• Use only genuine, approved replacement parts for maintenance and repair.
• Failure to follow above warnings may cause serious damage to the equipment or personal injury.

EXHAUST PRECAUTIONS

• Never inhale exhausts gasses. They contain carbon monoxide, a colorless, odorless and extremely dangerous gas which can cause unconsciousness or death.
• Never operate the engine indoors or in a poorly ventilated area, such as tunnel, cave, etc.
  Exercise extreme care when operating the engine near people or animals.
• Keep the exhaust pipe free of foreign objects.

REFUELING PRECAUTIONS

• Be sure to stop the engine prior to refueling.
• Do not overfill the fuel tank.
• If fuel is spilt, wipe it away carefully and wait until the fuel has dried before starting the engine.
• After refueling, make sure that the fuel cap is secured to prevent spillage.

FIRE PREVENTION

• Do not operate the equipment while smoking or near an open flame.
• Do not use the equipment around dry bush, twigs, cloth rags, or other flammable materials.
• Keep the engine at least 1 meter away from buildings or other structures.
• Keep the engine away from flammables and other hazardous materials (trash, rags, lubricants, explosives).
• Never put the hot Pump onto dry grass or onto any combustible materials.

For European countries only

EC Declaration of Conformity

The EC declaration of conformity is included as Annex A to this instruction manual.

TECHNICAL DATA

		MP-245.4 MP-335.4
Weight kg 5.8 7.3
Dimension mm 327 x 231 x 319 356 x 234 x 336
Type Self-priming CENTRIFUGAL PUMP
Diameters (suction-discharge) inch 1

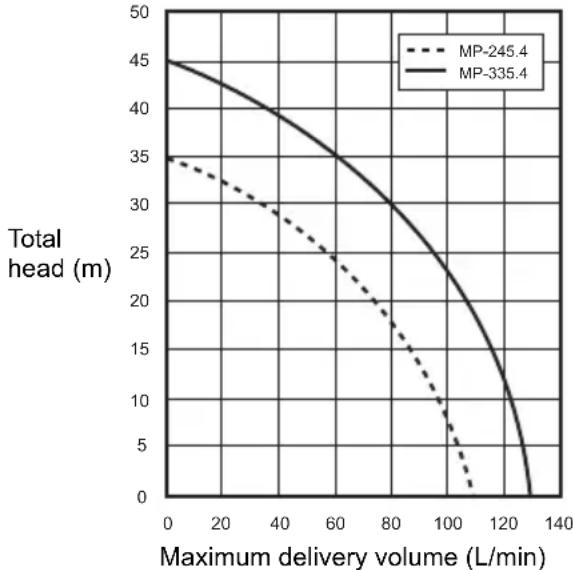

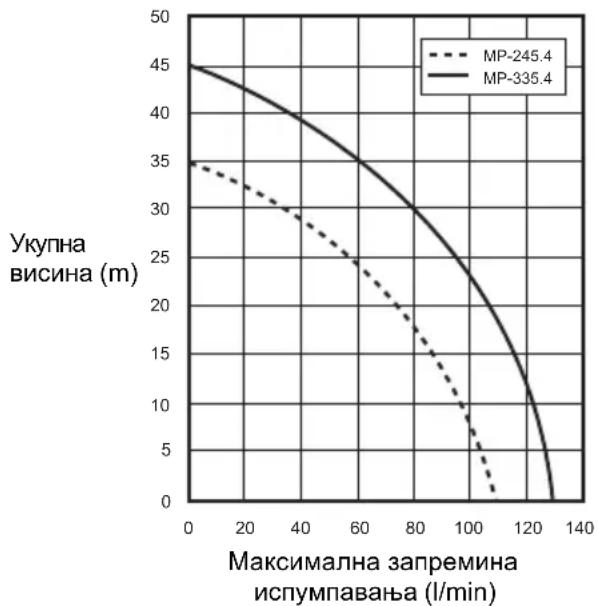

Total head	m	35	45
Maximum delivery volume	L/min	110	130
Maximum suction lift	m	8	8
Volume (fuel tank)	L	0.5	0.65
Volume (oil tank)	L	0.08	0.1
Engine displacement	cm3	24.5	33.5
Maximum engine performance	kW	0.71 at 7,000 min-1	1.07 at 7,000 min-1
Carburetor	type	Diaphragm
Ignition system	type	Solid state ignition
Spark plug type	NGK CMR6A
Electrode gap	mm	0.7 - 0.8
Fuel		Automobile gasoline
Engine Oil		SAE 10W-30 oil of API Classification, Class SF or higher (4-stroke engine for automobile)
Applicable water temperature	°C	5 - 40	5 - 40
Sound pressure level	LpA eq	dB (A)	88.4
	Uncertainty K	dB (A)	3
Sound power level	LwA, d	dB (A)	109

Note: Wear ear protection during operation.

DESIGNATION OF PARTS (Fig. 1 & 2)

ASSEMBLY (Fig. 3)

WARNING:

• Before doing any work on the equipment, always stop the engine.
• Start the engine only after having assembled the equipment completely.

HOSE INSTALLATION

1. Install the hose joints on the pump.

CAUTION:

• When installing the joint to the pump, be sure the packing is in place.
• Connect the hoses on the joints with band.
  Check the hose band is securely tightened.
• Connect the strainer on the inlet hose end.

NOTE:

If air leaks, water could not be drawn up.

CAUTION:

• Do not remove strainer or pump damage may occur by foreign material.

Check the hose band is securely tightened.

• Before doing any work on the equipment, always stop the engine. And always carry on work on flat and stable surface.
• Check the equipment for loose screw or loose connection parts before starting engine.
• Avoid touching the engine and muffler with any part of your body or clothing during inspection or repair, while they are still hot.
• Take special care of ventilation. Beware of CO poisoning.

INSPECTION AND REFILL OF ENGINE OIL (Fig. 4)

Perform the following procedure, with the engine cooled down.

Assure that the engine is on horizontal position.
- Do not thread the oil gauge into oil filler to check oil level.
- Check if the oil level is between the lower or upper limit on the oil gauge.
- If the oil level is below the lower limit, add oil.
- You may need to refill oil approximately every 10 operating hours (every 10 refueling).
- If the oil changes in color or mixes with dirt, replace it with new one.

Recommended oil: SAE 10W-30 oil of API Classification, Class SF or higher (4-stroke engine for automobile)

Oil volume:

For model MP-245.4: Approx. 0.08L

For model MP-335.4: Approx. 0.1L

NOTE:

• If the engine is not positioned horizontal, an inaccurate indication of oil level may occur and oil may be over-filled. Filling oil above the upper limit may cause oil contamination or white smoke.

Refilling engine oil

1. Keep the engine in horizontal position, and detach the oil gauge.
2. Fill with oil to upper limit mark. Use oil bottle when filling.
3. Securely tighten the oil gauge. Insufficient tightening may cause oil leakage.

After refilling oil

Wipe any spilled oil with a rag immediately.

Replacement of oil: Oil gauge

• Remove dust or dirt near the oil refill port.
• Keep the detached oil gauge free from sand or dust. Otherwise, any sand or dust adhering to the oil cap may result in problems with irregular oil circulation or wear on the engine parts.

FUEL

WARNING:

• Fuel is highly flammable and poisonous. Keep away from open flames (cigarette, stove, fireworks), electric spark (battery, short circuit, spark from shorted switch, welding spark etc.) when handling the fuel.
• Be sure to stop the engine before refueling. Do not refuel when the engine is still hot.
• Other than the occasion of refueling, even when decanting fuel to small container, always pay ample attention.
• After refueling, securely tighten the fuel tank cap, and wipe out spilled fuel completely.

Handling of fuel

It is necessary to handle fuel with utmost care. Fuel may contain substances similar to solvents. Refueling must be performed in a sufficiently ventilated room or in the open air. Never inhale fuel vapor, and keep fuel away from you. If you touch fuel repeatedly or for a long time, the skin becomes dry, which may cause skin disease or allergy. If fuel enters into the eye, clean the eye with fresh water. If your eye remains still irritated, consult your doctor.

Storage period of fuel

Fuel should be used within a period of 4 weeks, even if it is kept in a special container in a well-ventilated and shaded area.

Otherwise, fuel may deteriorate in one day.

Storage of machine and refill tank

• Keep the machine and tank at a cool place free from direct sunlight.
• Never keep the fuel in a car.

Type of fuel:

The engine is a four-stroke engine. Be sure to use an unleaded automobile gasoline 87 or higher octane (R + M) / 2 .It may contain no more than 10% alcohol E- 10).
- Never use a gasoline mixture which contains engine oil. Otherwise, it will cause excessive carbon accumulation or mechanical troubles.

Fuel tank capacity:

For model MP-245.4: 0.5L
For model MP-335.4: 0.65L

Refueling (Fig. 5)

1. Keep the engine in horizontal position.
2. Loosen the fuel tank cap a little to release the tank pressure.
3. Detach the fuel tank cap, and refuel. DO NOT fill fuel up to the top of the tank.

4. After refueling, securely tighten the fuel tank cap.

5. Wipe the outside of the fuel tank cap to prevent debris from entering into the fuel tank.

6. If there is any flaw or damage on the fuel tank cap, replace it.
7. The fuel tank cap wears out in course of time. Replace it every two to three years.
8. DO NOT put fuel in the oil fill port.

Priming water (Fig. 6)

CAUTION:

• Do not start the pump without water in the pump case. Otherwise mechanical seal could be damaged.

Remove priming plug and add clear water until pump case is filled up with water. After filling tighten the priming plug.

NOTE:

• If the water intake is not sufficient, self-priming capacity becomes lower.
• Be sure the pump is placed on the firm place and as near to available water source as possible.
• The higher the suction head is the more time will be required for priming with a less discharge.

CHECKING ENGINE:

• Carefully check fuel hoses and joints for looseness and fuel leakage. Leaked fuel creates a potentially dangerous situation.
• Check bolts and nuts for looseness. If any, retighten them. A loose bolt or nut may cause serious engine trouble.
• Check the engine oil and refill if necessary.
• Check the fuel level and refill if necessary. Take care not to overfill the tank.
• Keep cylinder fins and recoil starter free of dirt, grass and other debris.
• Wear snug fitting working clothes when operating the engine.

OPERATION

WARNING:

• Never touch a hot engine muffler especially when restarting the engine. The engine muffler becomes hot after running the engine.
• Do not put your hands or foreign objects in the release valves when the pump is in use.

WARNING:

Beware of water-hammering

• Do not allow the wheel of a vehicle to run over the delivery hose. Do not close the delivery valve abruptly, because a water-hammer will occur which may result in heavy damage to the pump.

Starting:

CAUTION:

• Because the lubricating oil has not yet spread enough, do not rev up the engine just after engine starts. Unnecessary high-revolution shortens life of the equipment or cause damage.

• Check that the pump case is filled with water.

• Check that the strainer is set under the water.

CAUTION:

• Employ some preventive method when the bottom of the water is covered with mud or sand.
• Check there is no obstacle on the mouth of delivery hose.
• Turn the engine I-O (ON/OFF) switch to the "I" (ON) position.
• Check that the throttle lever indicates "L". (Fig. 7)

• Continue to push the primer pump until fuel comes into the primer pump. (In general, 7 to 10 pushes.)

• Adjust the choke lever.

• If the engine is cold or the ambient temperature is low, close the choke lever fully. (Fig. 8)
• If the engine is warm or the ambient temperature is high, open the choke lever half-way, or keep it fully open.
• Pull the starter knob gently until a certain resistance is felt. Then, return the starter knob, and pull it strongly. Never pull the rope to the full extension.
• Adjust the choke lever.
• If the engine is cold or the ambient temperature is low, close the choke lever fully. (Fig. 8)
• If the engine is warm or the ambient temperature is high, open the choke lever half-way, or keep it fully open.
• Pull the starter knob gently until a certain resistance is felt. Then, return the starter knob, and pull it strongly. Never pull the rope to the full extension. Once the starter knob is pulled, never release your hand immediately. Hold the starter knob until it returns
  Once the starter knob is pulled, never release your hand immediately. Hold the starter knob until it returns to its original point.
  If it is difficult to start the engine, open the throttle by about 1/3.
• Once engine starts, set choke lever to the OPEN position if you have closed the choke lever. (Fig. 9)
• Allow the engine to properly "warm up". Continue warm-up operation for 2 to 3 minutes at "L" position.

Running engine:

Turn the throttle lever to middle position, and check water come out from the delivery hose.

Finishing operation

Stopping engine

Turn the throttle lever to "L" position to set the engine at the lowest revolution.

Turn the engine I-O (ON/OFF) switch to the "O" (OFF) position.

Drain of water after use

Water inside the pump case freezes at below 0^ in winter and pump may possibly break. After use, drain water from the drain at bottom to store.

SERVICING INSTRUCTIONS

WARNING:

• Before doing any work on the equipment, always stop the engine. Do not perform any work when the engine is still hot.

CAUTION:

• Do not modify or adjust the carburetor. It is already factory adjusted for its best efficiency. In case adjustment is required, ask your local service center.
• Do not wash the engine with water during servicing.

ENGINE OIL CHANGE

WARNING:

• The engine and engine oil is still hot just after stopping engine. Allow sufficient time for the engine and engine oil to cool down. Otherwise a skin burn may result.

CAUTION:

• Before changing oil, check for a suitable way to dispose of old oil. Do not pour it down into sewage drains, onto garden soil or into open streams. Your local zoning or environmental regulations will give you more detailed instructions on proper disposal.

Deteriorated engine oil shortens the life of the engine. Be sure to check the oil and level regularly.

NOTE:

• If the oil filled above the limit, it may be contaminated or may catch fire with white smoke. Allow sufficient time after stopping engine for the engine oil to return to the oil tank to ensure accurate reading of the oil level.

Interval of replacement: After first 20 operating hours, followed by every 50 operating hours.

Recommended oil: SAE 10W-30 oil of API

Classification SF Class or higher (4-stroke engine oil for automobile)

Oil volume:

For model MP-245.4: Approx. 0.08L

For model MP-335.4: Approx. 0.1L

1. Remove the oil gauge. (Fig. 10)
   Be cautious to place the oil gauge in a place where it will not gather dirt, dust or other foreign matter.
2. Place a cloth or paper towel to the area around the oil filler hole.
3. Remove the oil gauge, then tilt the engine and drain the oil into a pan or other receptacle.
4. Put the equipment on a level surface. Pour the oil in from a squeeze bottle or other appropriate. Fill with the oil up to the point of overflowing the filler neck. (Fig. 4)
5. After filling the engine with oil, reinsert the oil gauge. Ensure that the oil gauge is tight, as if it loosens later oil will leak out.

CHECKING THE SPARK PLUG (Fig. 11)

CAUTION:

• Never touch the spark plug connector while the engine is running (danger of high voltage electric shock).

Interval of Cleaning and Inspection: Daily (every 10 operating hours)

• Only use the supplied universal wrench to remove or to install the spark plug.
• The gap between the two electrodes of the spark plug should be 0.7 - 0.8mm

If the gap is too wide or too narrow, adjust it. If the spark plug is clogged or contaminated, clean it thoroughly or replace it.

CLEANING OF AIR CLEANER (Fig. 12)

WARNING:

• Shut off the engine. Keep away from open flames. Dirty air cleaner element causes starting difficulty, power loss, engine malfunctions, and shortens engine life extremely. Keep the air cleaner element clean.

Interval of Cleaning and Inspection: Daily (every 10 operating hours)

1. Place the choke lever to the fully closed position so that dust and dirt are not allowed to enter the carburetor.
2. Remove the fixing bolt of air cleaner cover.
3. Pull out the lower edge of the cover to remove the air cleaner cover.
4. Remove the element, and then clean it with a solution of warm water and a mild detergent, thoroughly drying it afterward.
5. Install it in alignment with the lines as shown in illustration.
6. Wipe off any oil adhering to the area around the air cleaner cover and breathe with a cloth.
7. After cleaning, reassemble the cleaner cover (insert the tab at the top first, then insert the bottom tab) and tighten the fixing bolt.

CLEANING OF FUEL FILTER

WARNING:

• Shut off the engine. Keep away from open flames. Do not smoke.

Interval of Cleaning and Inspection: Monthly (every 50 operating hours)

The fuel filter is used to filter the fuel required by the carburetor. A periodical visual inspection of the fuel filter is to be conducted.

1. Open the fuel tank cap, use a wire hook and pull out the suction head through the tank opening.
2. Remove the hose clamp and pull out the fuel filter from fuel pipe.
3. Wash the fuel filter with kerosene.
4. After washing, reassemble it.
5. If the filter is hard or clogged up, replace it with new one.

Replace the fuel filter at least quarterly to ensure an enough fuel supply to the carburetor. Otherwise an insufficient fuel supply may cause the engine start failure and limited maximum speed.

After checking, cleaning or replacing, fix the fuel filter onto the fuel pipe with the hose clamp.

Push the fuel filter in all the way to the bottom of the fuel tank. (Fig. 13)

REPLACEMENT OF FUEL PIPE (Fig. 14)

WARNING:

• Shut off the engine. Keep away from open flames.

Interval of Cleaning and Inspection: Daily (every 10 operating hours)

Replacement: Annually (every 200 operating hours)

Replace the fuel pipe every year, regardless of operating frequency. Fuel leakage may lead to fire.

If any leakage is detected during inspection, replace the fuel pipe immediately.

INSPECTION OF BOLTS, NUTS AND SCREWS

• Retighten loose bolts, nuts, etc.
• Check the fuel cap and oil cap for tightness. Check for fuel and oil leakage.
• Replace damaged parts with new ones for safety operation.

CLEANING OF PARTS

• Always keep the engine clean by wiping down with a cloth rag.
• Keep the cylinder fins free of dust or dirt. Dust or dirt adhering to the fins may cause piston seizure.

Periodic maintenance schedule table

Item\Operating time		Before operation	Daily (10h)	50h 200h		Before storage
Engine oil Inspect/REFILL		○
	Replace *1			○
Tightening parts (bolt, nut)	Inspect	○
Fuel tank Clean/INSPECT		○
	Drain fuel					○
Throttle lever Check function		○
I-O(ON/OFF) switch Check function		○
Air cleaner Clean			○
Spark plug Inspect			○
	Clean/Adjust				○
Cooling air passage and cylinder fins	Clean/INSPECT		○
Fuel pipe Inspect			○
	Replace *2				◎
Fuel filter Clean/replace				○
Valve clearance (intake valve and exhaust valve)	Inspect/adjust				◎*2
Engine overhaul if necessary					◎*2
Carburetor Drain fuel						○
Pump set	Clean		○
Strainer	Inspect/Clean	○

1 Perform initial replacement after 20h operation.
Before changing oil, check for a suitable way to dispose of old oil. Do not pour it down into sewage drains, onto garden soil or onto open streams. Your local zoning or environmental regulations will give you more detailed instructions on proper disposal.
2 For the 200 operating hours inspection, request authorized service center.

STORAGE

WARNING:

• When draining the fuel, be sure to stop the engine and confirm that the engine cools down. Just after stopping the engine, it may still hot with possibility of burns, inflammability and fire.

CAUTION:

• When the equipment is kept out of operation for a long time, drain all fuel from the fuel tank, and keep it at a dry and clean place.

Before storage

1. Completely remove any water from the drain port.

2. Pull gently the recoil starter handle on the engine until resistance is felt.

3. After removing fuel from the fuel tank, push the primer pump until fuel in the gas pipe runs out. Remove the fuel from the pump once more.

4. Set the throttle lever in the "L" position.
5. Wipe away any dirt or dust.
6. Store the pump in a dry, warm location where there is no chance of freezing.

Transporting

When lifting and transporting the machine, hold the handle firmly with both hands.

TROUBLESHOOTING

Before making a request for repairs, check for trouble by yourself. If any abnormality is found, control your machine according to the description of this manual. Never tamper or dismount any part contrary to the description. For repairs, contact authorized service center.

Trouble Cause Remedy
Engine does not start	Failure to operate primer pump.	Push 7 to 10 times.
	Low pulling speed of starter rope.	Pull strongly.
	Lack of fuel. Feed fuel.
	Clogged fuel filter. Clean it.
	Disconnected fuel tube. Connect fuel tube properly.
	Bent fuel tube. Straighten fuel tube.
	Deteriorated fuel.	Deteriorated fuel makes starting more difficult. Replace with new fuel. (Recommended replace-ment: 1 month).
	Excessive suction of fuel.	Set throttle lever to medium or "H" position, and pull starter handle until engine starts. If engine still does not start, remove spark plug, dry the electrode, and reassemble them as they originally were. Then, start as specified.
	Detached plug cap. Attach securely.
	Contaminated spark plug. Clean it.
	Abnormal clearance of spark plug.	Adjust clearance.
	Other abnormality of spark plug.	Replace it.
	Abnormal carburetor. Make request for inspection and maintenance.
	Starter rope cannot be pulled.	Make request for inspection and maintenance.
	Abnormal drive system. Make requuest for inspection and maintenance.
Engine stops soon Engine speed does not increase	Insufficient warm-up. Perform warm-up operation.
	Choke lever is set to "CLOSE" although engine is warmed up.	Set to "OPEN".
	Clogged fuel filter. Clean it.
	Contaminated or clogged air cleaner.	Clean it.
	Abnormal carburetor. Make requuest for inspection and maintenance.
	Abnormal drive system. Make requuest for inspection and maintenance.
Pump does not work. Sticking of impeller.	Ask your local Dolmar authorized service center to repair it.
Pumping volume is small.	Air enters suction side. Check	piping at suction side.
	Drop of engine output.	Ask your local Dolmar authorized service center to repair it.
	Breakage of mechanical seal.	Replace packing.
	High suction lift. Lower the suction lift.
	Thin or long or kink of hose. Thicken or shorten or straighten.
	Leak of water from water passage.	Stop leak.
	Clogging of foreign substance in impeller.	Ask your local Dolmar authorized service center to repair it.
	Wear of impeller.	Ask your local Dolmar authorized service center to repair it.
Pump does not self-prime.	Suction of air at suction side. Check piping at suction side.
	Insufficient priming water inside pump case.	Prime fully.
	Imperfect tightening of drain cock.	Tighten the 2 plugs completely.
	Imperfect revolution of engine.	Ask your local Dolmar authorized service center to repair it.
	Entrance of air from mechanical seal.	Replace packing.

Descriptif

Mny ayyicTe TOV KIVNTnpa OTV AVEi CEOTc.

Oxiyuuvcfoyec!

EaeyTe Tn 0aOu Aaiou IV EKIVnoeT.

ΣημαCE

1 PPOEIADONIOH2H:

• ΔIABA ΣTE KAI KATANO ΘΕ ΠΑHPΩ Σ AYTO TO ERXEΙΡΙΟ ΠΡΙΝ ΘΕ ΣΕ ΕΤΟ ΜΗΧΑΝΗ ΣΕ ΑΕΙΤΟΥΡΙΑ.
  Oi akolouoec evoeieic avitipooowteouov onmuavtke cpi npopopiec yia tvn oopaia. Na tnpite Tavataute c tic odnyies. H lavthetayn xpion tou Eotlioou mtopei va exe wcgntetelena oobapac atuxmuata.
  KINADYNOs: Av 8ev TnpieT Tc 08nyieC, mTopei va Tpoknthei 8avatoC n oobapoc TpaumatiooC.
  IPOEIODOIHsH:Av dev tnpieTIC oDnyiesoTIG IPOEIADONOIHSEI, mtopei va Tpoknthei oobapoc Tpaumatiooc n thavatoC tov xepiotn Tou uXavnuatoC, eKATOIOV TEPaOtiKO n 0To aTOU EeYxEi n ETIOKEUAzE1 TO uXavna.
  NPOOXH: Mia evdEiEg NPOOXH TAPouoiacei EIOKEc Tpoqulaeic TOU TpeTVEA LnqOouv TPOKIEVou va atoepuxo i o aotmuoc Tpauaiooc KAI n Tpokknon zniuc stnxa.
  NAPATHPHSH: Mia NAPATHPHSH TApexi Baaikec TAnpoopiec wote va yivovtaoi diakacic TIO Eukoae nTIO oapeic.

O△HΓΕΣ AΣΦΑΛΕΙΑΣ

Tia tis eupwtaikcs xwpe s movo

Anawon oumuoppwong EK

He TopkaTecs DnBryHa, KOIN BIn rapaHn.

He BnKOpNCTOByBaTn npicptpi no6nn3y BiDKpntoro BOHIO!

Ipeep3anyckom nepeBipTre pibH MaCTnJa.

MapkyBaHHCE

1NONEPEDKEHHRA

• INEPW HIX KOPNUCTYBATNCA BNIPOBOM, NOBHICTHO INPOHTAITE TA 3PO3YMITE LIO IHCTPYKLIIO.

HabeHe HnKHe No3HaueHHcynpOBoJyOtB BaxJIbI BiDOMocTi 0oTo TexHikn 6e3neKn. 3aBXdN DoTPmYTeCg LHX Bka3IBOK. HenpaBnIbHe BnKOpNCtAHn O6NaHaHH MoKe npN3BeCTn Do cepNo3Hx HeuacHnx BnJaIKB.

HE6E3NEKA! HeDToPImaHHB KBa3iBOK MOKe CnpuHHTn CmepTb a6o BaXkI TpaBMN.

NONEPEDXEHH! HeDopmAHnB Bka3IBOK, nob'3aHnx i3 NONEPEDXEHHAM, MoKe cnpuHHTBaxKi TpaBMn a6o Cmeptb onepatopa 0bnadHaHH, Oc6n JkA npOBOnTb nepeBipky a6o peMOHT Bnpo6y, H3NaOOnTbCnPnD.

YBAGA! CnoBOM YBAGA! no3NaueHo cneuaJIbHi 3aCTepeXHi 3axOHi, kNkx cnId yKuBaTHn DnI nonepedJxHn TpaBMyBaHHn IIODei i NOnIKoDxHeHHn 06naHaHHn.

PIMITKA. Y PIMITKAX HaBeJeHO OCHOBH BiDOMOCti, np3HaueHi cnpocTnTu NIOAChNTn Ipoec.

IHCTPYKlI 3 TEXHIKN E3NEKN

• Y ciin hctpykuii Micntbcr noaehnna 3araJIbHOI ekcnnyatau ta 3axoijb6e3neKn iid yac KopncTyBaHHraHaHHaHm. PeTeNbHO O3HaHOMTeCe 3 ciio IHCTpyKciIO, nepw HIX NOHNATN KopncTyBaTcra cIM npictpoem. TaKoK cnid HeyxINbHO dOtpmyBaTnc npabNI TexhIKn 6e3neKn.
  36epiraTeIIO IHCTpyKciio BHaDiHOMyMiCiI DnB NKOPNCtAHNBA MAn6yTHbOMy.YBnnaDky BtpaTu N0WKoJKeHHI HCTpyKciI HeraiHo 3BepHiTbcr Do yNOBHOBaxeHOrO cepBichoro cHTpy Dolmar dner II 3amHn.
• RaIIO Bn No3NuaTe a6o nepeJaTe o6NaHaHHa HINMM IHOJAM, 3ABXKn NepeDaaBte pa3OM i3 O6NaHaHHaHm IHCTpyKciTO Ta iHwi IHOpMauiHi MaTepiAII.
• 3BaKaHOn Ha Te, IIO B Hac NoctiHo DiI nporpaMa DocnIddKeHb i po3BNTky, TexHiHi XapakTepnCTNK Bnpo6y MoKe 6ytN 3MiHeHO 6e3 NObIDOMLeHH. 3o6paXeHHa 60 3MICT ciEi IHcTpkyi MoKytb BiDpi3HrTncB iD HaraBHoro Bnpo6y.
• YKuo Bam nopti6hi DOKnaHiiwi BiDOMOci, 3BepTaIteCn No DonOMOry Do MicceBoro DInepa a6o yNoBHOaxKeHOro cepBicHOro ceHTpy Dolmar.

BnKOpncTaHHo6NaHaHnHa 3a npu3HaueHnHaM

Lc obnaHannn np3Nauehe nIwe nnnoiBaHH Ta 3poWeHH.

Ioro MoXHa BnKOpNCToBbATn dIaI INaIe YIncToi BOIN.

HEBE3NEKA!

KaTeOpuH0 3a6OpOHeo BHOCHTn 6yNb-aki MoNΦiKaui 603miHn B O6naHaHH.
- He KopinCTyIeTcE O6JIaHHaHHM dIg BnKoHaHH po6iT, dIg JAKNX BOHO He npu3HaueHe.
-ДляТexнчногообсунговьаннЯтapeMOHTy BnKOpNCTOBuYTe LNsE CXBaJIeHi opriHaJIbHi 3aIuaCTHn.
HeDToPmHaHH BkJaDeHnx Bnue NonepeJXeHb MoKe CnpuHHTn cepNo3He yKoJXeHHa 6bnHaHH a60 TpaBMyBaHH JIOJe.

3ACTEPEXEHHJIODOBUXJIOHNXFA3IB

• Kateropnno 3a6bOpOHeo BAnxatn BuxlonHi ra3n. BoHm MicTAYdHn ra3, 6e3KolipHn ra3 6e3 3anaxy, knn, npote, e Ha3BnuaHNo He6e3neuHm i MOKe cnpuHHrtn Btpaty CbIDOMocTi a60 Cmeptb.
  Kateropnno 3aboponeho KopncTyBaTnca DnBnyHom y npimiueneHHi a6o B HeocTaTHbO npOBiTpIOBaHOMy Micui, HanpNKna, TyHeni, neepi TOno.
  -БудьTe OcO6nNo BO OepeKHi, BnKOpNCToBvOuN DnBryH nO6n3y IIOdeI a6o TBapIn.
  CniikkyTe 3a Tm, uo6 y BuxnOnHy Tpy6y He noTpannnn CTopOHnI npedMeTI.

3ACTEPEXEHHJIIOJO 3APABJIHHJ

• Iepu Hix 3anpaBnTn naNBn6ak, noTpipHo BIMKHyTN DBNyH.
• He 3aɪnbaɪte næbHe B 6aK Bɪuʒe MaKcɪmʌlɒhʊrɒpɪbHry.
• Y pa3i po3nTTT naNBHoro petenbHO BnTpItb Noro Ta doyeKaIteCra NobHOrO BnCnxAHHnaOBepxHi, nepu HIX 3anyckatn DBNrHy.
• Picn3anpaBkn ⅢJbHo 3akpyTtB KpnuKy 6aKy, 0o6 nonepeDHTN BNTiKaHH.

IIOXEKHA B2E3NEKA

He kypitb nid qac KopncTyBaHHo6nHaHHm i He KopncTyItecBupobom no6n3y BiKpntoro nonym'a.
- He kopncTyIeC8 o6nadHaHnHm npuy i3 cyxMn KyuamN, TpaBOU, raHypJMa Ta iHsMMn IerKo3aIMNCtUMM MaTepiJamN.
BicTaHb MIX DBNyHom i 6yDIBJMaN a6o IHsIMn cnOpyamn NOBUNHa CTaHOBHTU UOHaIMeHSe 1 metp.
- TpmaIte DbIryH Ha BiIcTaHi BiI 3aIMnCTnx Ta iHux He6e3neuHnx MaTepiJIIB (cmITT, raHypOK, MactInbHnx MaTepiJIIB, Bb6yXOBx peOBNH).
Hikoln He KnaiItb rapaY nomny Ha cyxy TpaBy a6o 6ydb-aki iHwi 3aMncti MaTepiann.

Tilbkn dIy kpaIH CbpOnn

Deknapaia npo BiNoBIdHictb CtaHapTaM EC

Deknapaia npo BiNIOBIDHicTB cTahapam EC BkIIOueHa do daTkA Uici iHCTpyKu3 eKcnnyataui.

TEXHIUHIXAPAKTEPNUCTUKN

1. BcTaHOBITb ciYactn foIbTp Ha KHeuB BnyCKHoro ⅢnaHry.

PIMITKA.

• Y BUNaIky BNTOKy NOBITpy BOJa MOKe He BCMOKTyBaTnCra.

YBAGA!

He 3HimaTe ciTuaCTn fInbTp, oCKiNbKn CTOpOHNIpeDMETMOKytB NOOKoNTN NOMny.
IpepeBipTe HaidinHicTh 3aTARHeHHXOMyTiB.

IPEBIPKA IPEPPOBOTOIO

1 NOPEDAKENHRA!

-ПepeиВИКОHAHHЯM 6удь-якx pOБiT i3 DBuRyHOM HeoDMiHHO 3yUHITb NOrO. Po6Oty cIiD 3aBxDi BИKOHyBaTn Ha pIBHi CTiKII NOBepxHi.
- Iepu HIX 3anyckatn DInyH, nepeBipTe o6naHaHHa Ha HABHicThb Nocna6neHX TBnHTiB a6o 3'cHaHb.
-Пдчac ornaу ch peMoHTy He TopkaTecra rapaYorOBBryHa Ta rnyuHnka HabiTb OJrrom.
-Дбайтпpo Hanexky BeHTnIaIIO.Пam'ЯтaiTe npo He6e3neky OtpyehHry qaHIM ra3OM.

IPEBIPKA PIBHMACTNJIA TA 3APABJEHHRAm.4

Oncahi HnKxue iii CJIi DnBkoHbATn Ha XoIoHOMy DnBHyHi.

-ДингMae nepe6yBaTn B ropu3OHTaNbHOMy nonoJKeHHi.
- IpebeipraoupiBHeMaCTnna, He BkpyyTe uyn y 3aINBHN OTBip DnMaCTnna.
Pibehb MaTnma 6yTu mix No3HaKamMiHimaJIbHor i MAcCmAmJbHor pIBHra Ha uyni.
- JaKIO pIBeHb MaCTnHa HIXKYe MIHImaJIbHOrO, MaCTnIO cnID DonHTN.
- MaCtnIIO noTpi6Ho DoJIuBaTn OpiEHTOBHO uepe3 KoxHi 10 roDIn hpo6OtN (KoxHa 10 3anpaBka).
- RaKUo MaCTnIO 3MiHoe KOIp a6o MiCTuTb DomiUKn 6pydy, Ioro cniD 3aMIHTN.

PekomeHdoBaHe Mactnno: Mactno SAE 10W-30 3a knacnphiKaicEIO API,Knac SF a6o BNui (nra 4-takTHnx ABTOMO6iBHNx DBNHyH)

06'EM mactnla:

Дпma mo徳и MP-245.4:6n3bko 0,08 n Дпma mo徳и MP-335.4:6n3bko 0,1 n

PIMMITKA.

• RaKIO DnRHyH He cToiTb Ropn3OHTaJIbHO, pIBeHb MaCTnIa MoKe BiO6paKaTncr HeTOUHO, 0o MoKe CTATn npuHHo NOro nepenBaHH. NpePnBAAHH MaCTnIa BnIe MaKcMaJIbHO rO pIBHra MoKe npN3BeCTn Do 3a6pydHeHH MaCTnIa a6o yTBOpEHH 6JlORo dmy.

DOnnBaHHMaCTNJa DnA DBnryHa

1. BctaHObitb DnBryh y rOpN3OHTaJIbHe nIoJKeHHra Ta BnIMtB uyn pIBH MaCTIna.
   2.ДоиTe MaCTINIO Do NO3HaUKN MaKcMmaJIbHOro pIBH.NIЯ HANBaHHB BnKOpNCTOBuTE MaCenbHnUky.
2. HadiHo 3akpyTitb uyn. HeoctaThe 3atrHeHH MoKe CnpuHHTn NiTiKaHH MaCTnla.

IicJIdoJINBaHHMaTnla

• RaKuo MaCTnIO npOuNocra, HeraHNO BntpItb Ioro raHcipKOIO.

3aima MaCTnla: uyn dny MaCTnla

Bntpitb nnil a6o 6pyd HABKOIO 3aINBHoro OTbopy dnia MaCTnna.
- CTeKTe 3a Tm, 106 Ha 3HrTn 1uyn He nOTpanNB nicok a6o nn. HAnnnanHHnicky a6o nnNy Ha Kpnuky 6aky a6o npn dJa MaCTnJa MoKe npnsBecn Do hepBHomipHOi CpKjLauii MaCTnJa a6o 3HoWeHHn DeTaneN dBuryHa.

NAJIbHE

1 NOPEPEDKEHHRA!

• Panahe - ue Hau3BnauH0 3aMnCTa Ta OtpuHa peOBOHa. NiD yac po6OTn 3 naBHM TpMaHTe NOro Ha BiDcTani BiD BiIDKpNToro BORHO (CirapETn, nei, feepBepky), eNEKTPuHnx icKOp (6atapeN, KOPOTKO 3AMKaHH, icKOp BiD 3AMKaHH B nepemkaqi, icKpn 3BaPBOAHH ToIO).
• PepeДdo3anpaBJIeHHЯI naIbHOrO o6OB'3KOBO 3yInHITb DBIgHy. He 3anpaBJaTe naIbHe, nOKI DBIgHy rapAyn.
• DToPmMyTeC8 BnHrTkOBoOi ObepeKHoCTi He NnWe nIq Yac 3anpaBnHH, ane i B IHnx CnTyauqix, HABITb nIq Yac 3NBAHH NaJbHoro B MeHuy CMHicTb.
• Picnla 3anpaBkn HaDiH No3akpytiB KpUkny naJINBHO 6aky Ta peTeNbHO BntPiTb po3nnte naJbHe.

NoBODKeHHaNaIbHnM

I3 nalbHnM cIi NOBODNTNc HAn3BnUaHNo oBepeKHo.
Pahlhe MoKe MICTTN peOBOHN, NODi6Hi do
pO3uHHNKIB. 3anpaBky cIi npoBDHTu HaNeXHM
YHOM npoBItpIOBAHOmpiMeHHi a60 Ha BiKpTOMy
NOBITpi. KateropuH No6OpOHeHO BdIXaTHn Bnnapu
6eH3Hy; 3abXdn TpMaJte Ioro Ha BiDCTahi. Yactn
a60 TpNBaan KOtAKT naIbHoro 3i WkipoIO BnKNkae
cyxictb i MOKe BnKNKaTu WKipHI 3axBOPOBAHNa a60
anepriIO. y pa3i NOTpannHa HnBHorO B Oci npomnTe
ix uCToIO BOHO. RaQIO noPa3HeHHa B Oci He MnHaec,
cIi 3BepHyTnc DO NiKapra.

TepmiH 36epirAHnnaIbHorO

Panahe cnid BnKOpncTaTn npoTAROM 4 TnXHIB HABITb 3a yMOBN Ioro 36epirAHNBA CneiianbHOMy KOHTeHepi y do6pe npoBtProBaHOMy Ta 3axuueHOMy BiD CBiTna micui.

B iHoumy paizi nanbHe moKe 3incyBaTncs3a oDIn DeHb.

36epiraHHBnpo6y Ta 6aky 3 naJIbHm

-36epiraTe Bupi6 i 6ak dny 3anpaBky npoxoJOnHomy Micci, 3axuJeHomy BiD npramnx cohrynX npomeHb.
- KaTeropuHOn 3a6OpOHeHO 36epiratn NaIbHe B aBTOMo6JIi.

Tn nanbHoro:

ДВИгУМOTONOMNQUOTIPBOXTAKTHN.ДЯ HBORO cIД BKNOPINCTOBYBATNЛИWE ABTOM6iJIbHNI 6eH3nH,SO He MICTNTCBIHIO,3OKTAHOBNM YNCJOM 87 a6o BNUIM (R + M) / 2) .BeH3nH MOKe MiCTNTn He 6iNbue 10% cnInpy (E-10).

• KaTeropuHOn 3a6OpOHeHO BnKOpNCToByBaTu 6eH3nHOby cymi, kka MICTNb MaCTNIO dIa DnBnHyHa. Lc MoKe CnpuHHTn HAdMpHe HAKoPnueHHcaXi abo MeXaHiHi N0wKOJxehHn.

Mictkictb naHNBHoro 6aky:

Длг модел MP-245.4:0,5 n

Дя мо徴и MP-335.4: 0,65 n

3anpaBneHHa (MaI.5)

1. BctaHObitb DnHyH B roPn3OHTaJIbHe nIOJoxeHHA.
2. 3Jerka BiDkpyiTb KpNshky nAINBHorO 6aKy, 0o6 cnYcTnTn TnCK.

3. 3Himits kpnuky naunBHoro 6aky ta doJnTe naIbHe. HE doJnBaTe naIbHe do Bepxu 6aKy.
   4.Писяз苹равкицлбно зakpyтг Кршky naINBHorO 6aky.
   BntpItb KpnuKy nannBHoro 6aky 33OBHI, 06 yHnKHyTu noTpapanJHH 6pyDy B 6ak.

4. Kkuo KpuuKa nannBHorO 6aky Mae deqekT a60 noUKoDKxeHH, ii cnid 3amHHTn.

5. I3 yacom KpnuKa nannBHOro 6aky 3HOwyeTbcra. iCnId 3amHHOBaTN KOxHi DBA-TpN pOKn.
6. HE NaIbAaTe NaIbHe B 3aINBnO TBip ImaCTnJa.

3aJIbBaHHBODn (MaJ.6)

YBAGA!

He 3anyckaIte Bnp6, ksoB KOpnyi nomn HeMae BoDn. Lc MoKe CnpuHHTn NookoJKeHHa MexahiHoro yuiJIbHeHHa.

3HimItb 3aJIbHy npo6Ky i HAnOBHiTb KOpNc NOMn YnCTOIO BOIO IO Bepxy. Nicna IboIg 3akpyTiB 3aINbHy npo6Ky.

PIMITKA.

• YKuo 3a6ip BOIN 6ynde HeoCTaTHIM, 3daTHicTb cam03anOBHeHHI NOMIN 3Hn3NTbc.
• POMny cniD po3aWObyBaTu Ha TBepiN nobepxHi Ta KOMORA 6nXKHe Do DkepeNa BOH.
• Ⅲo 6inbwa BnCota niHMy BOIN Ha BCMOKTyBaHHi, TO 6inbwe yacy 3HaIO6Bntbcr nIra 3aONBHeHHr, noaAva Bcbomy BnnaKy 3MeHNtbcr.

NEPEBIPKA DBNIYHA:

• PeTeNbHo orrJaHbTe naIINBHi IJnAHr Ta 3'EDHaHH Ha npEeMTe nocna6BeHHra Ta BtIKaHHra naIbHoro. BuTik naIbHorO CTBOpO e NOteHcuiHO He6e3neHy cnTyauio.
• Ipepeipte 3atjkky rBnHtib i raioK. y pa3i notpe6n 3atrHiTb ix. He3atraHytn rBnHT a6o raKa moKytb cnpuHHtu cepno3Hi yukOKeHHa dBuryHa.
• PpebipTe pBeHb MaCTnla Ta DoJIne Ioro B pa3i notpe6n.
• Ipebeipte pibHb naIbHoro Ta doJnIte noro B pa3i notpe6n. CTeKTe 3a Tm, 0o6 He nepeNoBHHTn 6ak.
• OxonodkyBaBbHi pe6pa cunHdpa Ta shHypobn CTapTeP cIiT prMaTu B uCToTi (6e3 6pyy, TpaBn Ta iHux Yactok).
  -Пдчacpo60TN3DBNryHOMOJraIteIJIbHo npnlaqHnpo6oHnOJaR.

EKCnIyATAUIA

NONEPEDXEHH!

Kateropnno 3aboponeh0 Topkatae rnyuHnka rapayoro DnuryHa, oocnbno niJ qac noBtropHO 3anycky DnuryHa. Iid qac po6otn DnuryHa rnyuHnK HarpiBaetbcr.
-Пд уac kopnctybaHHЯ NOMnoI He nIDCTaJIЯTe pykn a6o iHsi npedmetni BUNyckHi KJanaHn.

NONEPEDXEHH!

Pam'raTae npo ripabnHn ydap.

CTeXTe 3a Tm, 06 no 7nHaHy nOdaHi He i3dnnn abTomo6i. He 3akpBaIte pizko Knaan HnOaqi, OckIbKn BhacniDOK cBoro BnHnKHe ripabJiHn yIap, kNMOKe cepNo3HO NOWKODNTI NOMny.

3anyck:

YBAGA!

He 36ilbwyte o6eptn DnBnryHa BiDpa3y nicna 3anycky, OckjIbKn Ha cei MOMeHT MaCTNIO ue HeIOCTaTHbO po3noJineHe. Po6ota Ha HAdTo BucOKnx o6eptax ckopooye Tepmin EKcnnyataqii oblaHaHHra Ta MoKe CnpuHHTN NOUKoDKeHHra.
1. IpebeipTe, uKopnyc nomn 3anOBHeH N BOIOJ.

1. Cityactn fInbtp nobHEn 6ytn nokpntn BOIOJ.

YBATA!

• Koln dHo pe3epByapa 3 BOIOU BKPnte Mynom a6o nICKOM, BxNBaIte DoDAtKOBuX 3axNCHx 3axOJIB.
• Ipepebipte, uH He 3a6nokobHo BInyckHn OTrbip UJnaHry noaui.
• BctaHObitb nepemukau Dnuryha I-O (yBIMK./BIMK.) B noJoxeHHra "I" (yBIMK.).
• Baxinb perynatopa noaqui nabhoro ma 6ytn b noJoxeHHi "L". (MaI.7)
• HatnckaTe naJIbHy nomny, nOKn B Hei He notpanntb naJIbHe. (IpepeBaJHo noTpioHo BiD 7 do 10 HATNCHeH.)
• BidperyHoiTe BaxInb DpocenIOBaHHa.
• RaIIO DnRHyN XoIoDnH a6o Temnepatypa Nobitpr Hn3bKa, BaxiNb DpocenIOBaHHcNlD NOBHCIO 3akPHTn. (MaI.8)
  -Якшо ДВИгун TeПлн a6o TempepaTypa nobiTPa BnCOKa, BiДКрNiTe BaXiЛb ApocelHOBaHHa HANOJOBuHy a6o NobHicTIO.
• 3Jerka notarHitb pyky cTapTepa,doKn He BiDyyeTe onip.PicraIzboro noBepHITb pyky cTapTepa Ha Micue i CunbHO notarHITb ii.

Hikon He Bntaryte UHyp Ha BCIO DOBXHNy.

IotraHyBwn 3a pyky cTapTepa, He BiDnyckaTe II BiDpa3y. TpMaIne pyky, NOKn BOHa He nobepHebcr B NoaTKOBe NOLOKeHHJ.

KuO 3anyCTnT DBNyH BNABNEbCBAKKo, BiDKPNIte Dpocenb Ha 1/3.

9.Писязanycky DBnryHa BCTaHOBiB BaKInbДрocenIOBaHHу y noNoxKeHHN BIDKPHTO,Якso BIN6yB 3akpTuN.(MaN.9)
10.ДВИУн сид HanexKHO "nporpitn".Проррьанн B noLoXeHHI "L" MaE TpNbAtn 2-3 xBUnHn.

Ppauoouohn DBNrHy:

Pobephitb BaxkibpeyIaTopa noa hi nabHoro B cepeHne nooxeHHn i nepeBipTe, H 3i uHaHra noaHi BXOHTb BOa.

3aBepeHH np60Tu

3ynnHa dBnryHa

BctaHObitb Baxinb peryIaTopa noaui naHoro B noIOxehn“L”，063MeHNtO6epTu DnuryHa.

BctaHObitb nepemHKau DnBryHa I-O (yBIMK./BMMK.) y noJIOXKeHHa "O" (BMMK.).

3nnte body nicra 3akinueHH po60tn

B3IMKy 3a Temnepatypn 0^ Boda B Kopnyci nomnn 3amep3ae Ta MoKe po3ipBaTu KOpnyc nomn. Picna 3akHueHH np6OTn NOBHCtHO 3NIte BOy uepe3 3JNBHN OTBip BH3y.

BKA3IBKNIIOO OBCJYROBYAHNRA

1 NOPEEDXEHHRA!

• Ipeep BnKoHaHHa 6yNb-jkx po6it i3 DnHyHom HeoDMiHHO 3ynHITb Ioro. He BnKohyTe JQdHnx po6it, NOKI DnHyH He oxONoHe.

YBAGA！

• He BINO3MInHoiTe i He peryNIOte Kap6IopatOp. Noro 3aBOcBi Ka HanaSTyBaHHra 3a6e3neuyTOb HauBnUy epeKTHBnICTb PObOt BNPO6y. RaKuo Bnpi6 BCE J NOTpi6HO BiDpEryNIOBaTn, 3BepHiTc8 Do MlCeBOrO CEHTpy O6CnyROByBaHHra.
• He MInTe DnBryH BDOIO nID Yac o6cnyroByaHHra.

3AMIHA MACTILA Y DBNYHI

1 NOPEDEXJEHHRA!

-ПисяЗуннКДВИгУСаСмДВИгYIМaCTNIOB HbOMy 3aIIuAOTbcra rapaHm.CniДDocTaTHbO NOeKaTn, 6OB DVBryHIMactNIO oxoJOnN. BInOwmy pa3i e pN3NK onikB WkpN.

YBAGA!

• Ipeep 3amio Mactna niiroTytecra Do HaneXhoi ytniaqii CTaporo MaCTnla. He 3nBaTe noro B kaHaiiaqio, Ha 3emIoo afo y Biikpnti pich. MiceBi HopMaTnBHI nOIOKeHH npo 3axnc TdoBkiJIa MiCTy6 biIbwe DOKnaDHOI IHOpMaui npo HaneKHy ytniaqio. BiippaCbObaHe MaTnO cKopooye Tepmin po6Ot n DBnryHa. PAm'raTae npo HeobxidHicThperyJrpho nepeBiprtn cTaH i pBeH MaCTnla.

NPUMITKA.

• RaIIO DoJIHTN MaCTIno BnIe MaKcImaIbHoro pIBH, ce MoKe npU3BecTn Do Ioro 3a6pydHeHH a60 3ropaHH 3 6iIM dNMOM. Uo6 ToHOb Bu3HaunTn pBeHb MaCTIna, NoeKaIte NeBHi yac nicra 3yINHKn DBNrhya, Uo6 MaCTIno CTekNo B6ak.

Intepban 3amHn: Picna nepux 20 roDnH po6oTu, notim uepe3 kOxHi 50 roDnH po6oTu.

PekomeHdoBaHe MacTNo: Mactno SAE 10W-30 3a KnaCnΦiKauiEo API,Knac SF a6o Bnui (nra 4-takTHnx ABTomO6ijbHx DnBHyH)

06'EM mactnla:

Дпmaоdeni MP-245.4:6n3bko 0,08 n

IPEBIPKA CBIJK 3AIIJIOBAHHRA (MaI.11)

YBATAI

• KateropuHNo 3a6oPoHeHO TopKaTnCra DpoTy CbiUKN 3anaJIbBaHHa, KOIN DBNHyn npaIoo (He6e3neKa ypaXeHHE neKTPnuHm CTpyMOM BnCOKOi Hanpyr).

IntepBaI qHEnHa Ta orJy: OoHn (KoXHi 10 roHN po6Oti)

-ДяЗИМАнгТа BCTaHOBNeHHCBIOK 3anaJIIOBaHHKOPINCTyITEcR JNlle yHIbepCaJIbHIM KJIIOYeM,ЯКINBXODNTbdoKOMNNEKTe.

-BiDcTaHb MIX BOMa eJekTpOamn CBiK3anaJIIOBaHHI NOBUNHa CTAHOBUTN 0,7-0,8 MM.

Kaio cy Bldctanb 6ilbwa a6o MeHwa, BiDperyIIOHTe II. Kaio cbivka 3anaIIOBAAHH 3a6nIacb a6o 3a6pydHeHa, petelbHO ouNCTiTb a6o 3amHiTb II.

OuHueHHI NOBITPRAHO FOINbTPA (man. 12)

1 NONEPEDJXEHHRA！

BIMKHiTb DnHyh. TpMaIte 0bnHaHHa Ha BiDcTaHi BiD BiKpntoro BOrHIO.

3a6pydHEnn NOBITpHn FJIbTp CnpNHHre TpyHOu3 3anyckom, BtpaTy NOTyXHocTi, HecnpaBHOcti B po60ti DBnryHa i cyTBe BO CKOpOuye TepMih Ioro ekCNIyataaII. CTexTe 3a YnCTOTOIO NOBITpHoro FInbTa.

IntepBan YnueHn Ta orJy: LOnn (KoXn 10 roHn po6Otn)

1.ПовситуЗakриTe Baxinb ДрocenIOBaHHa，цo6 yHnKHyTuNotpapanJIHHa ПИу Ta 6pydY b Kap6IopatOp.
2. 3HimItb 3aTnCKHn 6oNT Ha KpUuCi nOBiTpHaHO φinbTpa.
3. Μοδ 3NЯТи кршky nobiTpraHoro φiЛьтpa, notaHITb 3a iI HxKHi KpaI.
4. BnMItb pInbTp, npomHte y BoDi 3 DoaBaHHaM M'kaKOro MNOyoro 3acO6y, nicra Yoro peTeBHO BucuWtB.
5. BctaHOBb Ioro, dOtpmMyKCHc b KOHTpy, 3o6paKeHOrHa MaJIHOHky.
6. BntpiTb raHcipkoMactnno, kKe moTIO HAnInHyTH NABKONO KPNiUKN NOBITpHoro fIbTpTa ta canyHa.
7. Nicna OunueHH BCTaHObit KpnWky fInbtpa Ha Micce (Cnoatky BCTaHObit BepxHi Kpa, notim HnKhi), nicra yoro 3akpyTih 3atnckHn 6oNT.

OuHJEHNAJIINBHOFOIJIbTPA

NONEPEDJXEHHRA

BIMKHiTb DnHyh. TpMaIte 0bnHaHHa Ha BiDcTaHi BiD BiKpntoro BOrHIO.He Kypitb.

Intepban YnueHHa Ta ory: Lomicra (KoXhi 50 roDnH po60t)

PnNBnΦinbTp BnKOpNCtOByETbcra nIaNbtpyBaHH naNbHoro, kae nOTpanJIe B KAp6Opatop. CnId nepioDnUHO orJaATn NaINBnΦInbTp.

1. Biikpnite KpiuKny naiNBHorO 6ky i uepe3 oTBip y 6aky BnMIb rOJIIBKy BCMOKTyBaHHra 3a DonomoroIO dpoTaNHO raka.
2. 3HIMtB 3aTnCKaU ShaHa r i BnIMiTB naNHBn IpIbTp i3 6eH3OpBOyD.
3. Помптелалньнифлграсом.
4. Nicna npommbaHHBcTaHObIb NOro Ha Micue.
   5.Якшо Флльт 3аТВердв abo 3a6nBcra, 3amHITb Ioro Ha HOBni.

3a6e3neuHTnoauy DoCTaTHbOi KjIbKoCTi naIbHorOB Kap6Opatop, naINBnHn fJIbTp cIid 3amIHOBaTu npHaumHi KOxHi TpN Micu. JaKIO zuoro He po6HTn, HeIOCTaTHra Noaay naJbHO rO MoKe cnPruHHNT np6nemn 3 3anyckOM DBNyHa Ta o6MeKHTn MAKcImaJIbHy WbUdKiCTb.

Iicna nepebipkn, ouuueHHa 60 3amHn BCTaHOBITb naNBn fInbTp Ha 6eH3Opobid i3 3aTnckayem Wnahry.

PpoWToBxHItb naNBnI ΦInbTp Do caMOrO dHa naNBHoro 6aky. (MaN.13)

3AMIHA BEH3OPOBOy (man. 14)

PONEPEDEXEHHRA!

BIMKhitbDnHyh.TpMaTe 0bnHaHHHa BicTaHi BiBikpntoro BOrHIO.

IInTeBaI YnueHn Ta orJy: IooHn (KoXHi 10 roDnH po6Otn)

3amHa: lOpoky (KoXnI 200 roDIn np6Otn)

He3aJExKHO BID qactOTn po6OTn 6eH3OpOBiCnI3amHrTn UOpOky. BuTikAHNnaBHoro MoKe npu3BecTu DO BHNKHHeHHNoKexKi.

Kaio n iac orny BnBneHO Btikahna, 6eH30npoBi cIi HeraiHo 3amHHTN.

NEPEBIPKA BOJITIB, TAIOK I TBNHTIB

• DotrHtB Bci nocna6neHi 60ntu, raKu Ta rBuHTn.
• Ipepeipte repmetnucHictb Kpuiwok naiNBHOTo Ta MactnibHOro 6akB. OrJraHbTe nomny Ha npedmet BNTiKaHHa naIbHOrTa MaCTnla.
  -3 MeTOIO 3a6e3neHHeHH 6e3neHnx yMOB po60TN 3aMIHTb NOUKoJKeHi YACTuHN.

YUHJYACTINH

• DnHyCNiD TpMaTn B YNCTOTI Ta BNtnpaT NOrO raHjpkamn.
• Ha oxoJoxyBaIbHnx pe6pax uINiHpa He noBnHHo 6ytu nnny cn 6pydy. HAnnnaHn nnny a6o 6pydy Ha pe6pa moKe npn3BeCTn do 3aKnHOBaHHn nopUHNr.

Ta6nra rpaiky nepioDnHoro texhiHoro 0cJyroBaHH

UCYHEHHH HECNPABHOCTE

Nepu Hix 3BepTaTcna Do cneuaicitB 3nTuHb peMOHTy, nepeBipTe npo6IeMy camocTiHo. Y BnuaKy BuHnKHeHHa He3BnuaHnx RaBnDu iTe 3riDHO i3 BkazIBkamu y ciu iHCTpyKcii. KaTEROpuHNo 3a6opOHeo po3bnpaTn qn 3HimaTn 6yNb-aki YacTHnH, kUo ce He npeDeBaHeo IHCTpyKciEIO. IJra npoBeDeHHra peMOHTy 3BepTaTecra BynoHBaXKeHH cepBichn UeHTp.

SRODKI OSTROZNOSCI ZWIAZANE Z UKLADEM WYDECHOWYM

model MP-245.4:ok.0,08L

model MP-335.4:ok.0,1 L

UWAGA:

model MP-335.4:ok.0,1 L

Pre model MP-335.4: Priblizne 0,1 I

POZNÁMKA:

Pre model MP-245.4:0,5 I

Pre model MP-335.4: 0,65 I

Doplinie paliva (Obr. 5)

Pre model MP-335.4: Priblizne 0,1 I

Pro model MP-335.4:0,65 I

Doplnovani paliva (Obr. 5)

• Karburátor nomenclature and its application to the field of biophysics, including the use of a variety of methods.
• Karburátor's work on the synthesis and characterization of new biological products, including the synthesis of new drugs, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological product, pharmaceutical product, and pharmaceutical product.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical product.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceutical products, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceutical products, and pharmaceutical product.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceutical, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceuticals, and pharmaceutical products.
• Karburátor's work on the synthesis and characterization of new biological products, pharmaceutical, and pharmaceutical products
  P riopravachneumyvejte motor vodou.

VYMENA MOTOROVÉHO OLEJE

VAROVÁNÍ:

FORHOLDSREGLER FOR ETTERFYLLING AV DRIVSTOFF

Modelim MP-335.4: 0.65 I

Degvielas uzpildisana (5. att.)

1. Novietojiet dzineju horizontala stavokli.
2. Mazliet paskruvejiet vale degvielas tvertnes vaciu, lai tvertne samazinatu spiedenu.
3. Nonemiet degvielas tvertnes vaciu un uzpildiet degvielu. Degvielu NEDRIKST uzpildit lidz tvertnes malam.
4. Pec uzpildisanas ciesi pieskruevjiet degvielas tvertnes vaciu.
   Rupigi apslaukiet visapkart degvielas tvertnes vacinam, lai degvielas tvertne neiekltu netirumi.
5. Ja degvielas tvertnes vacins ir deformets vai bojats, nomainiet pret jaunu.
6. Laika gaitā degvielas tvertnes vacinš nolietojas. Nomainiet to ik pēc 2 vai 3 gadiem.
7. Ellas uzpildisanas atvere NEDRikST liet degvielu.

Udens iesuksana (6. att.)

UZMANIBU!

Ja sukna korpusa nav udens, sukni nedrikst darbinat. Preteja gadijumavar sabojat mehanisko izolaciju.

Iznemiet iesuksanas aizbazni un ielejiet tru udeni, lidz sukka korpuss ir pilns ar udeni. Pec uzpildisanas ciesi dostipriniet iesuksanas aizbazni.

PIEZIME.

• Ja udens netiek pietiekami labi uzsqknets, zud pauzsqkşanas kvalitate.
• Sūknim jabut novietotam uz cietas pamatnes un peciespejas tuvak udens avotam.
• Jo augstak atrodas suknešanas galviṇa, jo ilgaksi laiks vajadzigs udens iesukšanai ar mazaku padevi.

DZINEJA PÄRBAUDE:

• Rupigi parbaudiet, vai degvielas šlūtenes un savienojumi nav valigi un tajos nav degvielas nopūdes. Degvielas nopūde var radī bīstamus apstāklus.
• Pärbaudiet, vai skruves un uzgriežni nav valjigi. Ja ir, pievelciet tos. Valjiga skruve vai uzgrieznis var izraisit nopietnus dzineja bojajumus.
• Pärbaudiet dzineja ellas lmeni un pec vajadzibas uzpildiet.
• Pärbaudiet degvielas liimeni un péc vajadžibas uzpildiet. Raugieties, lai neuzpilditu parak daudz degvielas.
• Regulari iztiriet dubus, zali un citrus netirumus no cilindra ribam un rokas startera.
• Stradājot ar dzineju, valkajiet ciesi piegulošu darba apgerbu.

EKSPLUATACIJA

BRIDINAJUMS!

Enne hoiule assetamist

MEPbI INPEIOCTOPOXHOCTN OTHOCNTIELHO BbIXJIOOB

• Hn B Koem cnyae He BdbixaTe BbIXIOHbIe ra3bl. OHn coepkaT yrapbIi ra3, Ype3BbUaHNo onaChbI ra3 6e3 ZBeTa n 3anax, KOTOpbI MoKet BbI3BaTb noTePHo CO3HaHnI nn Cmeptb.
  HnKoIa He nCNoIb3yIe MOTOP B NOMEuEHN IIN B MeCTAX C nIOXoB BeHTUNLAuEne, HAnpUmEp, B TOHHeJx, NeUepax u T.I.
• PpOraBnIaTe OcO6yH BHNMaTeIbHoCTb npn pa6oTe MOTopa B6JIn3N IIOJe NIN JKNBOTbIX.
• He donyckaia Te nonaadaHnB BbIXlonHyIO Tpy6y noCTopOHnX npEdMeTOB.

MEPbI INPEIOCTOPOXHOCTN PIP3APABKE TOJIIBA

-Перед 3апраькоу TOПЛINBOM 6язATEьHO octaHOBUte MOTOp.
-He 3aJIbBaTe CnIuKOM MHO TOnJIbBA B TOJIINBHyI6ak.
- Ecnn TOnJIINBO npOJIINOCb, TuaTeIbHO BbITnTe ero n noDoJxNte, noka OHO He BbICOXHET, npEKe De Yem 3anyckaTb MOTop.
- Pocne 3anpaBkn 6b3aTeBn npOBepbTe, yTo6bl KpbIka TOnJIbHOrO 6aka 6bIa 3aKpIta, IJn npedOTbpaueHn npOIbAHn.

ПОНTOЖAPHBIEMEРы

-He nCnoJb3yIte o6OpdyObaHne BO BpemK ypeHn nnB6JIn3N OTKpbIToro IJaMeHn.
-He nCnoJb3yIe o6OpyDObaHne pIOM c cyXIMN KycTAMn, BcTKamn, TpIKNkAmn N DpyrIMN orHeonacBbIMMaTePnaJAmn.
-ДеркиTe MoTOp,п крайнeМepe,B1 MeTppe ot 3daHnN npyInx cTpoEHN.
-ДерхиTe MToTOp BdaJIn OT OrHeOnaChbIX npyrNx OnaChbIX MaTePnaJIbO8 (Mycop, TprIKN, Cma3OuHbIe NIN B3pbIBOONaChbIe BeUcE7Ba).
- Hn B Koem Cnyae He CTaBbTe NOMny Ha MOKpyo TpaBy, a TaKke Ha NIO6bIe DpyrIe NERKO BO3ropaEmble MaTePnaJIbI.

TolbkoДЯ ebponecknx ctpaH

CeptnuKat COOTBcTbna EC

CepTnΦnKAT COOTBETCTBNA EC BHeCen KaK PpUNoXeHne A K daHHo INHCTpyKuIN NO 3KcNpyatauIN.

TEXHnueCKNE DAHHbIE

• BbIKJIIOUHTe MOTOp. Bbl6epNTe MecTo BdaIIN OT OTKpbITOrTO PJIaMeHn.

3aarp3HeHHbI 3JeMeHT Bo3DyXooHCTnTeJI Bbl3bIbAe 3aTpUdHeHn Ipn 3aynCe, CHNXeHne MOuHocTN, HEnCnpabBHOctb MoTopa N 3HaunTeJbHo COKpauaet cPok cnYk6bl MoTopa. POndepXnBaTe YnCTOTy 3JeMeHTa Bo3DyXooHCTnTeJI.

PpomexytoK uNCTKN npOBepKn: EkeHHeBHO (kaKdbie 10 yacob pa6oTbI)

1. NomeCTnTe pbyar BO3dyuHOn 3acNoHKn B NOJIHOCTbIO 3akpyIToe INOJOKeHne TAKIM O6pa3OM, YTO6bl Nblb INrpa3b He MOJIN IONaCTb B KAP6IopatOp.
2. YdaHnTe 60NT KpbIuKn BO3dyXooHcTHeJIa.
3. BbITAHNTe HxHn KpaKpbIuKn, YTO6bl ydaIHTb KpbIuKy BO3dyXooUcTntTeJr.
4. YdaJInte 3JIemEHT, a 3aTeM OCHNTe erO pactBopOM TENIOI BObl MRAKORO MOUcero CpeDCTBa, TuaTeJIbHO BbICyWB ERO NOCNE 3TOrO.
5. YctaHOBnte ero B COOTBetCTBUN C JINHnMn, KAK NOKa3aHO Ha pncyHKe.
6. Bbtpnte Tprnkoi Macno, nonaBuee B 06naCTb BOKpyr KpbIuKN BO3dyXooHcNTteJI N BCacbIBaHOSeI Tpy6bl.
7. Nocne YnCTKn 3aHOBO co6epnte KpbIuKy BO3dyXooCHNTeTn (BCTaBBte Chauana yuKO CBepxy, a 3aTEM BCTaBBte HxKHee yuKO) n 3akpyTnTe fHKCnpyIOuN 6oJt.

CHCTKA TOJIINBHOFO NJIbTPA

PNEOCTEPEXEHNE:

• BbiknouhTe MOTop. Bbl6epnte MeCTO BdaJIH OT OTKpbI toro nnaMeHH. He Kypnte.

PpomexytoK uNCTkn n npOBepKn: ExeMeecuHo (kaKdble 50 yacob pa6oTbl)

TOnnBbHbI pNt npONb3yeTcI dIaHbtpaunn TOnnBa, Heo6xOIMoro IpaKap6Opataopa. Heo6xOIMIO npOBODIb nepNOUeCKN Bu3yaJIbHbIOcmToTOnnBHO rPbPa.

1. OtkpoIte KpbIuKy TOnnBHorO 6aKa, nCnoJb3yIte npoBOIoHbI KpHouK N BbITauNTe BCacbIBaHOUToIIOBky Upe3 OTBepCTne 6aKa.
2. YdaInte 3axm IJHaHra N BbITAHNTe TOnJIINBHyBI ΦnIbTp n3 TOnJIINBONpOBOda.
3. IpnomOnTe TOnnBHybI ΦnJbTp KepocnHOM.
4. Iocne npombibkn 3aHOBO co6epnTe erO.
5. Ecnn fnbtp 3atBepdennnn 3a6nnc, 3ameHnte ero Ha HOBBi.

3aMeHnTe TOnJIINBHyI ΦnIbTp, no KpaIHei Mepe, exeKbapTaIbHO dIg OBeCneYeHn DaCTaTOUHO nOdaHn TOJIINBa B Kap6Opatop. B npOTNBHom cnyae HeIOCTaTOUHa IODaYa TOnJIINBa MoKeT npNBecTN K c6oIO B 3aNyCe MOTopa N K orpaHueHIO MAkCMaJIbHO CKOpocTN.

Iocne npoBepKu, uCTKn nn 3aMeHbI 3akpeNITe TOnJIINBHyI Ntbp Ta HnTOnNBONpOBoE C NOMOIO 3axmMa IJNaHra.

BdABnTe TOJINBHyI ΦnIbTp NOJIHOCTbIO CHN3y TOJINBHorO 6aka. (Pnc.13)

3AMEHA TOPINIBOBNPOBODA (Puc. 14)

PPEOCTEPEXEHNE:

• BbiklouhTe MOTop. Bbl6epnte MeCTO BdaJI NOT OKpbI toro nJaMeHn.

PpomexyToK uNCTKN npOBepKn: EkeHHeBHO (kaKdbie 10 yacob pa6oTbl)

3aMeHa:ExkeoQHO（kaXdbie200yacOBpa60TbI)

3aMeHnTe TOnNtBONpOBoD exKeroJHO BHe 3aBNCmOCTn OT YactOTbI pa6Otbl. YteKa TOnNtBa MoKet npNBecTn K BO3rOpAHIO.

Ecnn BO Bpem npOBepkn 6hApyKeHa yTeKa, HEmeDneHHO 3aMeHInTe TOJINBONPOBOd.

NONCK HENCnPABHOCTEIN

IpepeobpaueHem 3a peMOHTOM camocToTebHO npOBepbTe HeNCpabHocTn. Ecn no6HapyKeHa HHeOpMaJIbHoCTb, npOBepbTe BaWe ycTpoiCTBO B COOTBcTcBm C ONICAHN Mn D aHHoN IHCTpyKcNn. HIKoRda He IpepeEnbBaIte n He MOHTpyIe Hkakne yactn HeCMOTpr Ha ONICAHne. Iyra BInONHeHnpeMOHTa o6paNTecb B yIOJNHOMOeHHbIeHTp NO TexO6CNIyKuBAHnIO.

OZNAKA DELOV (Sliki 1 in 2)

SESTAVA (Slika 3)

OPOZORILO:

• P r e d z a cetkom kakrsnega koli dela na opremi,vedno zaustavite motor.
• Motor zaženite samo, ko v celoti sestavite opremo.

Za model MP-335.4: pribl.0,1 I

OPOMBA:

Zamodel MP-245.4:pribl.0,08I

Zamodel MP-335.4:pribl.0,1I

1. Odstranite merilnik za olje. (Slika 10) Bodite pozorni, da merilnik za olje odložite na mesto, kjer se nanj ne morejo prijeti umazanija, prah ali tujki.
2. Okoli odprtine za dolivanje olja namestite krpo ali papirnato brasa.
3. Odstranite merilnik za olje, nagnite motor in iztocite olje v posodo ali drugi zbiralnik.
4. Opremo položite na ravno povrsino. Olje nalijte s plastenko ali drugo primerno posodo. Olje nalijte do točke prelivanja. (Slika 4)
5. Ko motor napolnite z oljem, znova vstavite merilnik za olje. Zagotovite, da je merilnik za olje Čvrsto privit, ker lahko sicer izteka olje.

PREGLED VZIGALNE SVECKE (Slika 11)

POZOR:

3aMbpceHnT Bb3dyWeH cHnTbp MoKe Da npuHH 3aTpudHeHO CTaptnpaHe, 3ary6a Ha MOUHOCT, HEN3npabHOCtN I Da cbKpaTN 3HaHTeHNO None3HnJ XNBOT Ha DnuratEn. POnDbpxKaIte Bb3dyHnH qHnTbp YnCT.

HHTepBaJ 3a nouchTbaHe n npOBepka: EkeDHeBHO (Ha BCEKn 10 pa6oTHn Yaca)

1. NocTaBe TnocTa 3a ynpabHeHne Ha noDaBaHnBb3dyx B 3aTBopeHo nOLOKeHne, 3a Da He MoKe Bkap6ypatopa da nonaHaT npax mPbcoTna.
2. Cbaene 3akpenBaun 6oT Ha kanaKa Ha Bb3duHnA qntTp.
   3.ИЗдьрай Te Долни рбо Ha Kanaka, 3a Da CBаNTe Kanaka Ha Bb3dUnHnФmNTp.

3. CbaIeTe fHNTbpa Iro noUcTeTe do6pe c pa3TBOp OT TOnJa BOda I MEK NOUcTBAu npenapaT.
   5.Инсталларе go, KaTo ro noДравНe no JINHnTe, KaKTo e nOKa3aHo Ha nIOcTpalra.

4. ɪəsɒpʌte c napcaŋ noŋeɪnHaIɔTo macNo OKoNOKaNaKa Ha Bb3dUwHnɪ ΦɪntTbɪŋ Oɪ ᵷuWnɪka.

5. Cnei nouctbahe crno6e oTHOBKanaka Ha cnIbpa (MwHete npBBO rOpHata yact, a cnei TOBa DOJHATA qACT) n 3aterHete 3akpenBaun6oNT.

IOnHCTBAHE HA TOPINBHHN ANJITbP

NPEyPEXJEHNE:

• N3kIIOUeTe DnBraTeTEn. IpbXTe daJeu OT OTKpNT ObH nIpaMbun. He nywete.

HHTepBAn 3a nouchTbaHe n npOBepka: EkeMeceHOr (Ha BCEKn 50 pa6oTHn Yaca)

TOpNBHnT ΦnIITbp ΦnIITpnpa TropBOTO, Heo6xOIMo 3a pa6oTaHa KaP6ypaTopa. Tp6Ba Da ce n3BbPwBa nepNoDnUHa Bn3yaJHa npOBepKa Ha TropNBHn TpIbP.

1. OTbOpTe pe3epBoapa 3a ropuBO u n3noJ3BaIte kyKa ot TeJ, 3a da u3nbPnATE CmykATEHATA rnaBA npes OTbopa Ha pe3epBoapa.
   2.CBaJTe CkO6HrHa MapKya n 13DbpaIte Bb3dyuHn4mNtbpOT Tpb6ata 3a rOpBBO.
   3.ИЗМИТЕФЛТБРаСКЕСИН.
2. Cne KaTo ro n3MnTe, MOHTnpaIte ro OTHOBO.
3. Ako ΦnTbPbT ce BTBbpN INe 3aApbCTeH, CmHeTe rC HOB.

CmeHnTe rOpBnHnФnTbP Hn-MaNko BeHbX Ha TpImeceue, 3a Da rapaHTnpate, Ye KbM Kap6ypatopace NoDABA DocTaTbUHO rOpBO. B npOTuBEH cnyaH HeaDEKBaTHOTO NOdaBaHe Ha rOpBO MOKe Da DOBeHe HEb3MOxHOCT 3a CTApTnpAHe IIN OrpaHnueHa MaKcMmaHa CKOpOCT.

Cne npOBepKa, NOUcTBaHe n CmHa MOHTnpaTe rOpBnHnFaHnTbp Ha Tpb6aTa 3a rOpNBO cbc cKo6aTa 3a Mapkyu.

N36yTaIte rOpBnHna qnnTbp Ha nbHOTo Ha pe3epBoapa 3a rOpBO. (Φn.r.13)

CMRAHA HATPbBATA 3A TOPINBO (Mn.14)

I PEPDyPPEKDEHNE:

• N3Klnoute DnBraTeTn. IpbXkTe DaJIeU OT OTKpNT ObH n PnAmbU.

HHTepBaJ 3a nouchTbaHe n npOBepKa: EkeDHeBHO (Ha BCEKn 10 pa6oTHn Yaca)

CmHa:ToDnHNo(HaBceKn200pa6oTHNuaca)

CmeHnTe Tpb6ata 3a RopNBOTo BcKa roDnHa He3aBNCmO OT YecToTata Ha yNoTpe6a. TeybT Ha rOpNBO MOKe Da CtaHe npuHnHa 3a noXap.

Ako no BpeMe Ha HHCNEKUNa 6bJe OTkpuT Teu, CMeHete He3a6abHO Tpb6aTa 3a rOpNo.

HNCNEKUNHA BONTOBE,RAIKNIBNHTOBE

• 3aTeHHe TcNk pa3Xna6eHN raK, 6oJItoB e n np.
  -Провете далкалачкпгуpeзрьарпte 3a Горив И MacNo ca Добpe 3aTeHа.T. ПроветeдалИ ИмА TeчOBe Ha TropиВ Ил МСNo.
  -CmeHeTe NOBpeHnTe YacTn C HOBn, 3a da ocInpynte 6e3onacha pa6ota.

ПОЧECTBAHEHAЧТITE

BnHaHn noDbPkaIte DBrIaTeIa YIcT, KaTO ro n36bpcBaTe c npauJ.
- PpIbPkaIte pe6paTa Ha cIIINHbPa YcIcTn OT npax mPbcoTna. IOpENHaJIte npax n MpbCoTna no pe6pata Morat Da IOBeDat Do 3acJaHe Ha 6ytano.

Ta6nua c rpaΦka 3a nepnoDnHa noDpBjKka

Model MP-335.4:0,651

HnkoraH He BneyeTe ro jaxeTo eo kpaJ.

Otkako Ke ro nobneyeke konhe To 3a cTapTyBaHe, He Tprajte ja BeHaaw BaWata paka. IpxeTe ro konhe To 3a cTapTyBaHe doKeKa He ce BpaTN BO HerOBata opnHHaHaNoJok6a.

Kora MOTOPOT TeuKO ce cTapTyBa, OTBopTe ja paKaTa Ha racot 3a 1/3.

1. OTKAKO KE CTAPTyBa MOTOpOT, NOCTaBete ja paKaTAt Ha cayxOT Ha no3nJia OTBOPEHO dOKoNky npETXoNDHO tE ja 3ATBOpHne. (Cn. 9)
   10.OCTaBeTe ro MOTOpT da ce,3arpee".IpoDoJIkeTe co 3arpeBaHe ha MOTOpT 2do 3MnHyTN,CTaBeH Ha no3nuiJa,L".

Pa6oTeHe co MoTOpOt:

CTabete ja paKaTa Ha racot Ha cpeHa nO3nJa I npOBepTe daH Ioara BODa OD UpeBOTO 3a Ncnpoka.

3aBpyBaBe co pa6oTa

Tachehe Ha MOTOPOT

CTabete ja paaykata Ha racot Ha no3nuija „L" 3a da ro noctabite MOTOPOT Ha HajHn3OK 6poj Ha BpTeKn.

CTabeTe ro npeKnHyBaoyoT ha MoToPOT I-O (BKnyUeHO/ NCKnyUeHO) Ha no3nucja, O" (NCKnyUeHO).

IPOBEPKA HA CBEKNUKA (Cn. 11)

BHIMAHNE:

• HnKoraw He DonnpajTe ro KOHEKTopoHa CBeKnUkata DoNeKa pa60rMOTOpOT (ONaCHOCT Od CTpyeH yap co BnCOK HanoH).

BpeMeHcKn nHTepBaI Ha YnCTeHe n npOBepKa: CekojdHeBHO (Ha ceko1 10 pa6OTH yacobn)

KopncTeTe ro camo npnIOxKeHNOt yHnBep3aJeH Knyu 3a BaDeHe mOHTnpaHBe Ha CBeKnUkata.
- 3a30pOT MeIy DBeTe eNeKTpOuHa CBeKnUkata Tpe6a da 6nDe 0,7-0,8 MM.

DOKONKY 3a3OpOT e MHORY shpOK nIN MHOY TeceH, npncnoc6eTe ro. DOKONKY CBeKnUkata e 3aTHata INN KOHTAMHHnpaHa, cENOCHOcHcTeTe ja INN 3aMeHeTe ja.

YHCTEHE HA ΦNITEPOT 3A BO3DyX (Cn. 12)

NPEyNPEDYBAHbE:

• U3rachete ro MOTOP.Држete ro noHactpaHa oD OTBOpEN nIaMeH.

HeuCTnOT fHnTep 3a BO3dyx npEiN3BkyBa TeUko CTapTyBaHBe, r6beHe Ha MOkHOCTa, DepeKTN BO MOTOpOT n EKCTpeMHO ro cKaPaTyBa pa6oTHNOt BEK. FnTepOT 3a BO3dyx ODPKByBajTe ro UcT.

Bpemehckn HHTepBaH Na YnCTeHe n npOBepka: CekojdHeBHO (Ha ceko1 10 pa6OTH yacobn)

1. Ctabete ja paaykata Ha cayxot Bo ceIIOCHO 3aTBopeHa No3njuja 3a Da cnpeHTe HABNeryBaHc Ha npaunHa n HeuNCTOTnja BO Kap6ypatopOT.
   2.ИЗваде тг 3аьрткite 3a Фнксраьe Ha Ka napokT ha ФнлтepOT 3a BO3dYx.
2. Nobnehe To hAdBOp dOnHnO t pa6 Ha kanaKOT 3a da To n3BaAnTe KanaKOT Ha qntepoT 3a BO3dyx.
   4.ИЗвадеTe ro eIeMENTOT,notoa nCnHcTeteTo co pactBop Ha TOnIIa BOda n 6nar DeTePreHT n Ha Kpaj ueIOCHO nCyWeTe ro.
3. MoHTnpajTe ro Taka 6To Da 6nDe nopamHet co JINHHTE KAKO 6TO e npKkaKaHO Ha CInKaTa.
4. N36pniwete ro co Kpna MacNoTo wTo ce 3aJenHNO OKOy KanakOT Ha cHNTepoT 3a BO3dyx N BEHTnIOT.
5. Nocne YnCTeHbTeo CKlonete ro kanakot Ha qntepot 3a BO3dyx (BMETHeTe ro npBO ja3uHcTo Ha rOpHnOT DeJ, a notoa ja3uHcTeo Ha DOJIHNOT DeJ) n npuCBpCTe je HABPTkata.

YHCTEHE HA ΦNJITEP 3A ΓΟΡΙΒΟ

NPEUYPENEYBAIbe:

• I3rachete ro MOTOP.Држete ro noHaCTpaHa od OTBOpeH nJaMeH. He nywete.

BpemeHckn nHTepBaJ Ha YncTeHe n npOBepka: MeceHo (Ha ceKoN 50 pa6OTHn Yacobu)

ΦnITepoT 3a rOpINO ce KOpNCTn 3a ΦnITpnpaHbHe Ha rOpNBOTo nOte6Ho 3a Kap6ypatopOT. Tpe6a Da Ce BpuN nepNoDnUHa BN3yeJHa npOBepKa Ha ΦnITepoT 3a rOpINO.

1. OTbopete ro kanakot Ha pe3epBoapot 3a ropnBO, a notoa co nomou Ha Kyka od Knuca noBneye Ta raNaBaTa 3a WMyKaHe Hn3 OTbOpOT Ha pe3epBoapot.
   2.ИЗваде Г стerte HaцpeBOTo И nobIeHTe roФиNTepoT 3a ropuBO OД цЕКаТа 3a ropuBO.
   3.ИзмujTe ro Фиntepo3a ropnoCo kepo3nH.
2. NocJIe MHeIbeto, NOBTOpHO cKJoneTe ro.
3. AkoФиNTepOT e UbpCT nIN 3aTHaT, 3ameHete ro co HOB.

MeHyBajTe ro fInTepOT 3a rOpINBO 3a da o6e36eInTe DOBOJHO cA6dyBaHe Ha Kap6ypatopOT co rOpINBO. Bo CnPOTINBO, HeoBOJHOTc A6dyBaHe co rOpINBO MoKe Da npEiN3BnKa TeuKOTn npi CTapTyBaHeTo Ha MOTOPOT I ORpaHnueHa MaKcImaHa 6p3nHa.

Iocne npOBepKaTa, YnCTeHbeto 3aMeHaTa, npuCBpCTeTe ro fntepo 3a rOpBO BO CpEBOTo 3a ropBO CO Ctera 3a CpEO.

PnTnCHeTe ro fntepo3a rOpuBO BHaTppe Do dHOTo Ha pe3epBoaop 3a rOpuBO. (Cn.13)

Ioc6hO o6paTne npKHy.

Hemojte Kopunctu MOTOp y 3aTBopeHom npocTopy.

MEPE INPEDOCTPOXHOCTN 3A AYCNYX

• Hemojte ydncatn n3dyBHe racobe. OH caipxye yJbEHN-MOHOKCnD, BeOMa ONacAH rac 6e3 6oje mmpca kojn moKe da doBeJe Do ry6ntKa CBeCTN INM CMPTN.
• Hemojte Kopnctntypehaj y 3aTbopeHOM IIN IIOwe npoBeTpEHOM npocTopyNONyt TyHena, neHHa NTd.
• Noc6Ho Na3nte KaJa KOpNCTnte MOTOp y 6n3Hn JbYdN INJIN KINBOTnHa.
• Na3nTe Da y n3dYBHOJ CEbN HeMa cTpaHx npEdmeta.

MEPE INPEIOCTPOXHOCTN3A CINNAHE TOPNBA

• 06abe3no 3ayctabnte MOTOP npe cnnaHa ronpBa.
• Hemojte npekomepho nyHHTn pe3epBOap 3a rOpuBO.
• Ako ce ropnbo npocne, naKbnuBo ra o6pnuHte n cauekajTe da ce ocyu npe Hero uTo NOKpeHete MOTOP.
• HakoH cunhaBa rOpBa Do6po npuBpcTne noknonaKakO 6nCTe CnpeuNII npocnnaBe.

3AHTNTA OIIOKAPA

• Hemojte Kopunctu ypehaj dok nyuTE uynu 6n3uHn OTBOpeHor nameHa.
• Hemojte Kopncttn ypehaj oko cybor rpmba nn npraHnuca, kpn nnp dpyror 3anaJbHor MaTejujana.
  -Држnte MToP Ha HajMaHe 1 MeTap OJ 3rpaJa Ипдугnx cTpykТуpa.
  -ДржITE MOTOP NOdaJIbe OI 3anaIbIbIX IpyrIX onaChNX MaTePnJaNA (CmeHa, KpNa, Ma3NuBa, ekCnIO3NuBA).
  Hemojte ctabbaTn Bpyny nymny Ha cyBy TpaBy nn 6nno koj npyru 3anaabnu Maepujan.

Camo 3a ebponcke 3embe

E3 n3jaba o ycarnaaehoctn

E3 najaba o ycarnaaeneoctn je HabeJeHa y DoaTkY A OBor ynyTCTBa 3a ynotpe6y.

TEXHnUKNIOdaun

		MP-245.4 MP-335.4
Текинаб 5,8 7,3
Димензione mm 327 x 231 x 319 356 x 234 x		336
Тир			Самонунега LCEHTРИФУГАЛHA ПУМПА
Прechници (увлиашие-иславпаваьe)		Инч	1
Укетпа висиа		m	35
Мakсимална зап EMна И с胤малваьa		I/min	110
Мakсимална висиа увлианы		m	8
Зап EMна (peзерboaр ratиba)		I	0,5
Зап EMна (peзерboaр уьa)		I	0,08
Зап EMна моторa		cm³	24,5
Мakсимално пофорmansе моторa		kW	0,71噼и 7.000 min-1
Карбу ratop		Тир	Диюфразma
Систем палова		Тир	Елковограду Елковский паловe
Сveица		Тир	NGK CMR6A
Размak селковая		mm	0,7-0,8
Гориво			Аутомоблски бенин
МOTOPНО ульe			Улье SAE 10W-30 API Кlasифikaциja, Класа SF пи Виша (чеборотakтуни утомobлски мотор)
Применльва Temпера typа boide		°C	5-40
Нимо звуног припstska	LpA eq	dB (A)	88,4
	Кесигуности	dB (A)	3
Нимо звуне сане	LwA.d	dB (A)	109

Hanomeha: Tokom Kopuusheneha Hocnte 3awtny 3a ywn.

O3HAKEДЕЛОВА (cI.1n2)

CACTABJbAHbE (cI. 3)

YNO3OPEHbE:

• Ппег коршениа урehajа увек заустов.TMOTOP.
• Покренте MOTOP TEK Када NOTnyHO caCTaBnteype Haj.

IOCTABJbAHe LPEBA

1. Ioctabte cnojebe uebHa npmny.

ONPE3:

-ПиИнКOM NOCTaBlaBa Cnoja Ha nymny NOCTaBte DnXTyHr Ha MeCTO.
2. Повекитураь на сноюnomоу трак.
PpOBepeTe da JI ne TpaKa ueBn YBpCTo 3aTeHyTa.
3. IocTabInTe ueinbky Ha yna3Hom kpaJy upeBa.

HANTOMEHA:

• Ako Ba3dyx Cypn, B0da He MoKe da ce yByue.

DnPE3:

• Hemojte cknatn ueinbky jep moke doohn oOwTeheBa nymne cTpaHm npedmetom.

PpOBepTe da IJ je Tpaka cEBN YBPCTo 3aTeHyTa.

ПОBEPE ПЕ KОПИШЕHBА

YNO3OPEHbE:

-Ппе коршениа урeshaja ybek 3ayctabnte motop.Cbe paOBe obabjajte ha paBhoJ n cTa6nHoj nobpunHn.
-Ппе покета hypehajapnoBepnte da lyHa Heemy mma na6abnX 3aBpTbeBa nIu na6abnx cnojeBa.
- HemojTe DoOpnbATn MOTop HHTN aycnyx TeONM nnn OdeHOM TOKOM ppeJIeDa nn nonpaBke (DOK cy jow Bpyh).
- Noc6Hn na3nte Ha npoBeTpabaHe. ImajTe Ha yMy TpoBaHbe yIbeH-MOHOKCnIDOM.

PPERLEI CNHANBE MOTOPHOYbA (cn. 4)

ObaBnte doJeHaBeEHN noCTynak kaJa je MoTOp oxnaheH.

• IocTabnte MOTOp y xOpn3OHTaJIHN noJIOXaj.
• Y6aunTe Mepaay yIba y OTBop 3a yIbe da 6nCTe npoBepniln HnBO yIba.
• PpOBepTe da nn je HnBO yIba n3MeHy doHe n rOpHe rpaHnue Ha MepaCy yIba.
• Ako je HnBO yIb a nCnoD doHe rpaHnce,doaJte yIbe.
• MoKda he 6nTn noTppe6Ho da doJaTe yJbe otnpnIke Ha cBAknx 10 paHnx caTn (cBAknx 10 docnnaHa roPbA).
  -Ako ce npomeHn 6oja yba nnn ce oHO nomeHa ca npJbawtHOM,3aMeHHTe ra HOBM.

IpenopyeNo yBe: YBe SAE 10W-30 API KnaCnФиkaUne,Knaca SF nNn Bnua (yETBOPoTakTHn ayTomO6uNcKn MOTOP)

3anpeMHa yJba:

3a moen MP-245.4: Ok0 0,08 I

3a moen MP-335.4:Oko 0,1

HANOMEHA:

Ako MOTOp He cToJN XOpu3OHTaJIHO, MoXe DoHn Do HetaUHor OUYTABAHa HnBOa N npEnyTaBaHaBa. YKoIInKO ce yBe Cnna npeko rOpHe rpaHnCe, MoXe DoHn Do KOHTAMHaCUnJe yBa nn noJaBe 6enor dima.

Cunhahe motophor yba

1.Држnte MToTp y xOpn3oHTaJIHOM nONoKajy u cKnHnte mepauyJbA.
2. Cnajte ybe do rope rpaHne. 3a cnnahe Kopncntte pfnauy yba.
3.Добpo 3aterHnTe Мерач yba.YkOniko ra He 3aterHete DOBOJbHO,MOKe DoHn Do cypeBa yba.

HaKoH cInaHa yBa

• YkOJInKO ce yIbe npocne, oDmax ra obpniuTe Kpnom.

3aMeHa yIb:a: Mepau yIb:a

• O6pnuHTe npaunHy nnn npBaBHTnHy oKO OTbopa 3a cunhaBe yJba.
• Na3nte Da Ha N3BaHeHm MepaU yBa He DoCnejy Necak nn npaunHa. Y cynpoTHOM necak n npaunHa Ha NOKIOnu 3a yBe MOry Da DOBey Do npo6nema Ca HnpaBnHOM UnpKyJaunom yBa nn XabHa DeNoBa MOTopa.

TOPNBO

YNO3OPEHbE:

• FopnBO je BeOMa 3anaJbNBO n OTOPOBHO. PpunNKOM pyKOBaHa rOpNOM dPKHTe ra NOdaJIbe OD OTBOpeHOr nIaMeHa (uIrapete, uNopet, BATpomet), eNEKtpuHnx BapHnUa (6atepiJa, KpataK cNoj, BAPHnUa od KpaTko cNojeHOR npeknDaUa, BAPHnUa od 3abapNBaHa nTd.).
• 06abe3Ho 3ayctabnte MOTOP npe cinnaba ropnBa. HemojTe CINaTn rOpNBO DOK je MOTOP jow Bpyh.
• YBek 6yDnTe BeOMa naxJbN Bu N y npuJNKama OCIM CnnaBa rOpNBa, qak N KaDa npeCnNaTe rOpNBO y Many Nocdy.
• HakoH cinnaba ropna, yBpctO 3aTe rHnTe noknonau pe3epBoapa 3a roPBO n oTnyHO o6pnuHTe npocyTo ropBO.

PykoBaHe roPnBOM

TropBOM Mopate pyKOBaTN BeOma naXbNBO. TropBOM OMe Da caDpxn CyntaHue CInuHpe pa3peHnbauHm. CnnaBe rOpBa ce Mopa obabbaTn y DOBObHO npoBETpeHOJ npocToPOnjn nn Ha OTBoPeHOM npocTopy. HEmoJte yDncatn nCnpaeBa rOpBa n DpKnTe rOpB0 daJIbe oD ce6e.AKO 6yDeTe Bnne nyTa DoDnPbAanr TropBIO nIIN ONo Dyke 6yde y DoDnpy ca BaWOM KOKOM, OHa he Ce nCywn, StO MoKe DoBecTu Do OboBeHa kOKe nII anepnje. AKO Bam rOpBIO DoCne y OUn, nCnepnTE INx YnCTom BoDM. AKO Bam OUn n daJIbe 6dy NaDpaXKeHe, ObpatNTe ce nekapy.

Pok cknaDiuIteHa rOpBa

Topno 6n Tpebano da ce nckopncTny poky o4 HepeBe, yak n ako ce dpxny npoc6hoj nocdyn Ha do6po npoBETpeHOM mpaHOM MeCTy.

Y cynpoTHOM ce moKe deCHTIa ce nokBapn 3a jean dAn.

Cknadnthehe ypehaja n pe3epBoapa 3a donybaBaBe

Дркnte ypehajи pe3epBoap Ha xlaHOM MeCTy Koje je 3aWtInHeO od DnpeKTHOr cyHua.
HemojTe dpkaTn ropuBO y ayTomo6nny.

Tn ropuBa:

Ypeaj nMa YeTBOPoTAkTHN MOTOp. O6aBe3HO KOpHCTnTe 6e3OIOBHN ayTOMOBuJICKN 6eH3uH ca 87 uIN BnIe OKTaHa ((R + M) / 2) . He cme da caDpKn BnIe od 10 % ankoXona (E-10).

HemojTe KOpNCTnTm MeuabHy 6eH3nHa Koja caApxM MOTOPHO yIbe. Y cynpOTHom MOKe DohN Do IpeKOMepHor HArOMnJIaBaHa yIbEHNKa mExAHUKNX npo6JIema.

KanaunTe pe3epBoapa 3a ropnBO:

3a moJeI MP-245.4:0,51

3a moeJMP-335.4:0,65I

Cnnahe ronpBa (cN.5)

1.Држnte MOTOp y XOpN3OHTaJIHOM nIOJokajy.
2. MaIIO oJIa6aBNTe noklonau pe3epBoapa 3a roPnBO kaKo 6nCTe OTNyCTnII npTnCaK y pe3epBoay.
3. CkHnTe noklonaц pe3epBoapa 3a roPBOи cInajte roPBO. HEMOJTE cnatn roPBOdo Bpxa pe3epBoapa.
4. HakoH cinnaba do6po 3aTeHnTe noklonau pe3epBoapa 3a roPBO.
- O6pnHnte cnoBHN Deo noklonua pe3epBoapa 3a roPBO kaKo 6nCTe cnpeuHn npOIpaHe oTnpa y pe3epBoap 3a roPBO.
- Ako je noknonaq pe3epBoapa 3a ropnBO oWtehen, 3ameHnte ra.
- POKNONaц pe3epBoapa 3a roPbBO ce BpeMeHOM xa6a. MeHajTe ra Ha CBake 2-3 roDInHe.
HEMOJTE cunatn ropuBO y oTBOP 3a cunbae yba.

Nybebe BOOM (cI.6)

ONPE3:

Hemojte nokpeTaN ymny aKO y kyhunTy nymne Hema Bode. Y cynpoTHOM MOKe DoHN Do OwTeheBa MexaHnue 3aNTNBke.

CknHnTe qen 3a nyhebe n cinnajte Yncty Body DOK ce kyhniwTe npmne He HanyHn BODom. HakoH nyheba 3aTerHnTe qen 3a nyhebe.

HANOMEHA:

• Ako yBnauehe BoJe Hnje DOBOJbHO, KaNaHTet camonyhbeBa ce CmAbye.
• O6aBe3Ho cTaBnTe nymny Ha cTa6nHnMo mecTo n uTo je Moryhe 6JnxKe DOCTynHom N3BOpy BoJe.
• ITo je BnCnHa 3a yBnaeHe BeHa, To he 6ntn Notpe6Ho BnWe BpemeHa 3a NyBeHe y3 MaHe nCnymnabaHe.

IIPOBEPA MOTOPA:

• PAnKbNoI npOBepnte da IIN cy ueBa 3a ropBIO n cnojeBn IabABn IIN cype. LypeHe roPbBa CTbapa notEHnJaJHNO onachy cnTuayuJy.
• PpOBepnTe Da JIn cy 3aBPTbN mMatnue Na6abN. Ako jecy, 3aterHnTe nx. Na6ab 3aBPTaH nIn MaTnca MoKe Da y3pOKye o3bNb He npo6neme ca MOTOPOM.
• PpOBePte yIbe MoTopa n DoCnTe ra aKO je noTpe6Ho.
• Поверпге НИВО Рогива и ДOCПпге ra akо јеотpeбно. Паэпгда He пpenyнгte pe3epBoap.
• PanaTe Da Ha pe6pMa cUJINHpa n HAMOTajy CTapTepa He 6ye npaunHe, TpaBe n Dpyror OTnada.
• Ppunikom KopuheHa MoTopa Hocnte npunjehy paHny oJeHy.

PYKOBAHbE

YNO3OPEHbE:

• HemojTe DoIupnBaTu Bpyh aycnyx MOTopa, noroTOBO npuNKOM NOHOBHor NOKpeTaHa MOTopa. Aycnyx MOTopa ce 3arpeBa HAcOH paDa MOTopa.
• HemojTe cTaBbataN pyke HHTN cTpaHe npedMeTe y nCnyche BeHTnne KaJa Ce Nymna KopnCTn.

yN03OPEHbE:

Pn3nte Ha BoDHe ydape

• HemojTe 03BOJNT Da ToaK Bo3nA nphe npeko UpeBa 3a NcynmnaBaHe. HemojTe Harno 3aTbapatu BeHTNJ 3a NcynmnaBaHe, jep he doHn Do yDapa BOe, ITO MOKe Da DOBeDe Do O36nBHor OwTeHeHa nymne.

PokpeTaHe:

ONPE3:

• PoiTo ce yIbe 3a NODma3NBAhe jow Hnje npOuInpNo, HemoJTe TpynpaTn MOTOP THK HAKOH NOKpeTaHa. Henotpe6Ho Bucok 6poj o6ptaja he ckpatTu paHn BEkypehaja nn DoBecTu do OwTeHeHa.

• IpoBepTe Da JI ne kyHnTe npmne nyHO Bode.

• IpoBepnTe da JI ne ueeJbKa noD BOOM.

ONPE3:

Ako je dHO BOe npeKpNBHeo 6IaTOM NIN neCKOM, yNOTpe6nte Heky MeToy 3aU7nTe.
3. Поверпente дулma прпера на ула3уцpeBa 3a Испymпави.
4.прбачиTe I-O npkeидч МOTopa (yKbUyBaHbe/ nckbyuBaHe)Ha noLoXaj,I" (yKbUyeHo).
5. IpoBepTe Da nIe Ce Ha nonyru raca BuDuL". (Cn.7)

1. Hactabnte da rypate npmny 3a nphebe doK ropbo He yhe y npmy 3a nphebe. (Y npnHunny, 7 do 10 rypaHa.)
2. Nodecite noIyry cayxa.
   Ako je MOTOP xnaadan nJn je TeMnepatypa cpeHne npehncka,notnyHO 3aTBOpNTe nOyry cayxa. (cn.8)
   Ako je MOTOp 3arpejan nn je TeMnepaTpa cpeHHe BnCOKa, OTBOPnte NOnyr Cayxa Do NIOOBnHe nn je Dpxknte NOTnyHO OTBopeHy.
3. Hekho NObyuTe pyuCy CTapTepa DOK He ocTe 6naTn OTnop. 3aTM BpaNTe pyuCy CTapTepa n jako je NObyuTe.

HemojTe nOtnyHO n3BJIaHTn KaHaN.
Kada noByeTe pyuCy cTApTepa, HEmoJTe OdMax nyTuTaN pyKy. DpxKeTre pyuCy cTApTepa DoK ce He Bpatn Ha npBo6nTHn NOJokaj.
Ako ce motop teuko nokpehe, otbOpTe rac 3a oko 1/3.
9. Kaça ce motop nokpeHe, noctabuTe noIyry cayxa y noIoxkaj OPEN (otbopeHn noIoxkaj) ako cTe je 3aTbapAn. (cN. 9)
10. NcTne MoToP Da ce npaBnHNo 3arpeje. HacTaNte 3arpeBaHe Ha 2 Do 3 MNHyTa y noJoxajy,L".

PaMoTopa:

Okpene nonyry raca y cpeHn noIoojaj npOBepTe Da nn BODa n3Ja3n 3 upeBa 3a nCnyMnaBaHe.

3aBpuetak pada

3ayctabbahe MoTopa

OkpeneHte nonyry raca y noJoxkaj ,L" kako 6ncte nocTabNJM MOTOP Ha HajMaHb 6pOj o6ptaja.

Ipe6aunTe I-O npeknau MoTopa (yKbYnBaHe/ nCKbYnBaHe) Ha noLoXaj ,O" (NCKbYueHo).

IcTaKaHe HakoH ynotpe6e

Boda y kyhunty nymne ce 3amp3aba Ha TemnepatypmaHobj od 0^ 3mMn mOKe doHn do oUTeheha nymne. HakoH ynoTpe6, nctOHTe BDOy npEko nCnycTa Ha dHy padncknaadnTeha.

YNYTCTBA 3A CEPBUNCPAHe

YNO3OPEHbE:

3a moDen MP-335.4:Oko0,1I

1.ИЗвадитemepeaуьа.(cI.10)
PaxKbNO CTaBNTe Mepa yBa Ha MeCTO Ha KOME ce Ha Hemy Hehe HakyNbaTn npBaBHTnHa, npaunHa nn Dpyre Ctpane MaTepuje.
2. Ctabnte kpy nnn nannpHn y6pyc Ha npocTOp oko OTbopa 3a cinnabe yba.
3.ИЗВАДиTe Мерач уьа,a 3aTUM HArHInTe MoTOp Источte yIbe y Ieprny nIIN HeKу dpyrI NOcyd.
4. Ctabnte ypehaj Ha paBHy noBpunHy. Cnajte yIbe n3 pfnawe nn npyror oDROBapajyher cyda. Cnajte yIbe do Taue KnpelNba HpInHa 3a Cnaihe. (Cn.4)
5. HakoH cunha yIba y MOTOp BpATnte MepaY Iba Ha MeCTo. 3aterHnTe MepaY Iba.AKO ce ONa6abN, YIbe he nCypETn.

UHHeBcYCTAUBXA (cI. 12)

YN03OPEHbE:

• NckbyuTe motop.Дркite noaJIbe od OTbOpeHOr nIaMeHa.

Ako je enemnt npeunshnbaa Ba3dyxa 3anpbaH,doh he npo6nema ca nokpeTaHem,rybntka chare, KBapoba MOTopa n 3pa3nTOR ckpaheha paHOR BEKa MOTopa. PanaTe da enemt Ynctaa Ba3dyxa 6ynde NCT.

HInTePbAn YnWheBa n pnerIeJa. CBAKOdHeBHO (Ha cBaKnx 10 paDnHex catn)

1. NocTabnte noJyry cayxa y notnyho 3aTbopeH noJoxkaj kako npaunHa n npbabTuHa He 6n MoTIN da npoDpy y Kap6ypatop.
2. CkHnTe 3aBpTaH KoJIM je npuBpuH en noknonau npeuunhBaay Ba3dyxa.
   3.ИЗБУСТЕdoHbIиВицупOKПОЦаКAKOбNTeСИнHyЛпOKПОДАnpeЧИшнИВачаBa3dYxa.

3. CkHHTe eJEMeHT, a 3aTm ra OYnCTHTe pactBopOM TOnne BOe n 6Naor dTepeHtA. Nocne tora ra do6po ocUHNTe.

4. NocTabte ra tako da ce nopabHa ca nnHjama, OhaKo kaKo je npka3aHo Ha nlyctpaun.

5. 06pnuHTe yIbe ca o6nactn OKO noknonca YnctaVaBa3dyxa nncnycta Kpnom.
6. HakoH uHHeBa BpaTne NOKlona npeuHnBaHa (npBO y6aunTe je3nuaK Ha BpXy, a 3aTm je3nuaK Ha dHy) n 3aTeHNte 3abptAb.

CHWHeBc HJTEPA 3A TOpNBO

YNO3OPEHbE:

• NckbyuHTe MOTOp. IpxuTe noaJIbe oI OTBOpeHOr nlaMeHa. HemoJte da nyuHTe.

HInTePbAunuHHeBa n npereJa. MeceHNO (Ha CBAKnx 50 paHnX caTn)

Φnntep ropBa cnyKn 3a ΦnntpnpaHe ropuBa Koje je notpe6Ho 3a Kap6ypatOp. NobpeMeHO nperJeJaTe Φnntep ropBa.

1. OTbOpnte noKlononaц pe3epBoapa 3a roPnBOи kykom OД кИп eN3ByuNTe rIaBy 3a yBnaueHbe KpO3 OTbOp pe3epBoapa.
2. CkHnTe cTe3aJbKy 4peBa n 13ByuTe fHnTep roPnBa KpO3 4peBO 3a rOpNBo.
3. Onepnte fintep ropnBa kepo3nHOM.
4. NHOBO rA NOCTaBnTE HAKOH npaHa.
5. Ako je φηιπερ TBPД ИЛN 3anyuWeH, 3aMeHnte ra HOBIM.

3aMeHnte fHnTep rOpBa 6ap jeHOM y TpN Meceua KaKo 6nCTe 06e36eHN IOBOJbAH DOBOd rOpBa y Kap6ypatop. Y cynpOTHom HeIOBOJbHN DOBOd rOpBa MoKe Da IObEe Do npOBeMa ca NOKpeTaHem MOTopa n OrpaHnueHe MaKcImaJIne 6p3nHe.

HaKoH npOBepe, uuHeBa uu 3aMeHe, npuBpCTnTe nItep rOpBa 3a ueB 3a roPBO nomohy cTe3aJbKe UpeBa.

TpyHnTe fHnTep rOpBa Do Kpaja Ha dHo pe3epBoapa 3a rOpBO. (cN.13)

3AMEHA LEBN 3A TOPNBO (cI.14)

YNO3OPEHbE:

• NckbyyuTe MOTOp. IpxkTe nOaJIbe OJ OTBOpEHOTnJaMeHa.

HHTepBAn uNshHeBa n nperrna. CbakoDheBHO (Ha cBAknx 10 paHnx catn)

3aMeHa: IodnHbe (Ha cBaKnx 200 paDnHex caTn)

Mehajte 3a ropnBO CBAke roDnHe, 6e3 oBnpa Ha yuectanoct KopuunheBa. Lypehe ropnBa MoKe da IOBede Do noKapa.

Ako TOKOM npereIeJa yOuHTe UpeHe, OdMax 3aMeHnTe UEB 3a rOpNBo.

PPEIe3ABPTbEBA MAtuCA

• 3aTeHnIte na6abe 3aBpTHe, MaTIue nTД.
• Поберавajte ду су полonaц за ratropиBO u ybe 3aterHyTN. Поберавajte ду по ratropиBO nIn yBe type.
• Mehajte othehe He denobe HOBma paH 6e36ednKopuheha.

CHUHTHe DEJIOBA

• Пази te Да мотор увек Буде чист takошто нет e ra 6рсати крnom.
• PanaTe Da Ha pe6pMa cunHnDpa He 6ynde npJbawTInHe HHTn npaWnHe. IpaWHa nnI npJbawTInHa Ha pe6pMa Mory da DoBedy do KOheBa KInna.

Tabena pacnopeda nepnoDnHOr odpkaBaHa

3-11-8, Sumiyoshi-cho,

Anjo, Aichi 446-8502 Japan
