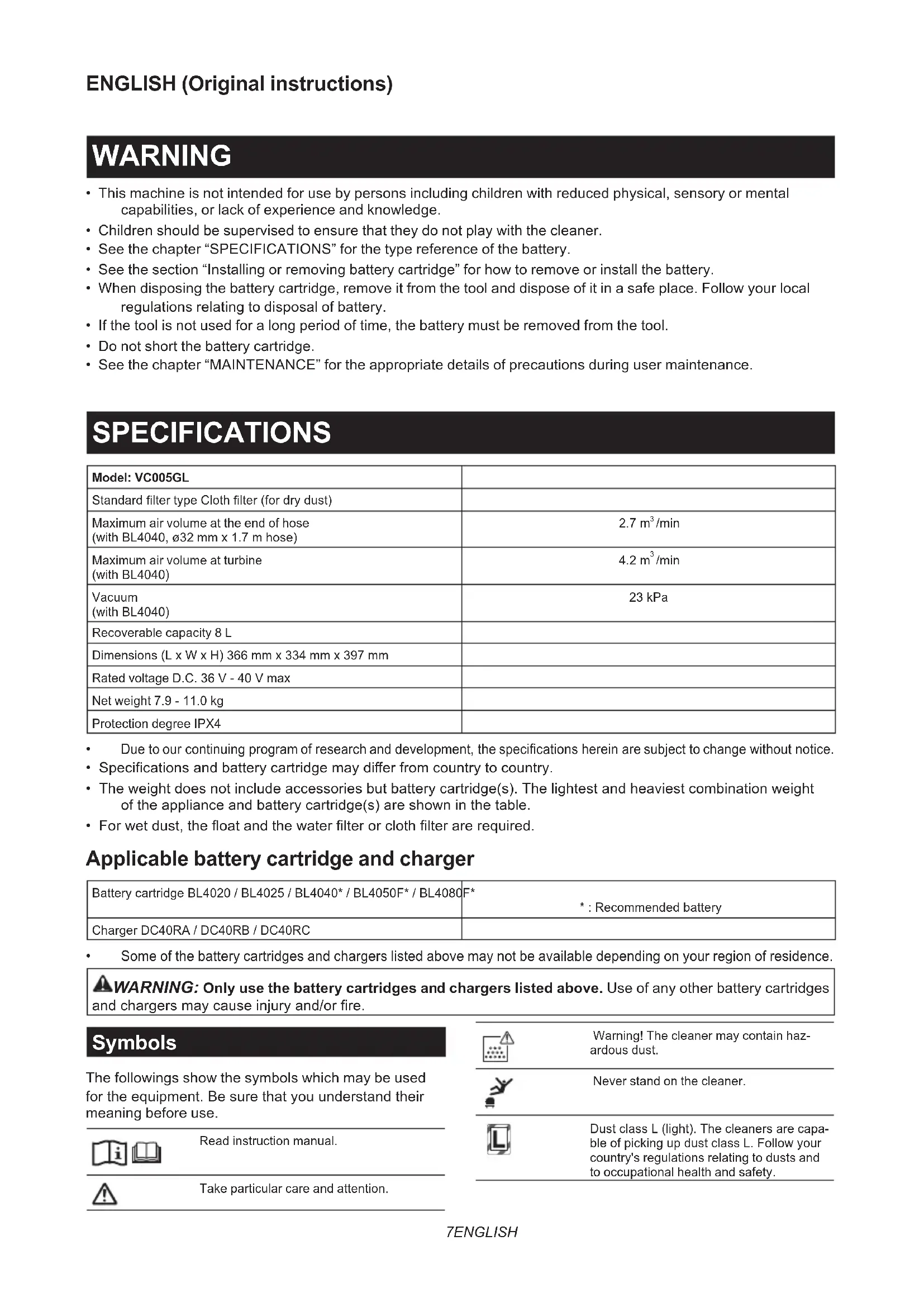

| Product Type | Cordless Vacuum Cleaner |
| Brand | Makita |
| Model | VC005GLZ |
| Max air volume (at hose end) | 2,7 m³/min (with BL4040 battery) |
| Max air volume (at turbine) | 4,2 m³/min (with BL4040) |
| Maximum vacuum | 23 kPa |
| Tank capacity | 8 liters |
| Dimensions (L x D x H) | 366 x 334 x 397 mm |
| Net weight | 7,9 to 11,0 kg (depending on battery) |
| Rated voltage | DC 36 V - 40 V max |
| Protection degree | IPX4 |
| Standard filter | Cloth filter (for dry dust) |
| Compatible batteries | BL4020, BL4025, BL4040*, BL4050F*, BL4080F* (*recommended) |
| Compatible charger | DC40RA, DC40RB, DC40RC |
| Noise level | Sound pressure ≤ 70 dB(A) (uncertainty 2.5 dB(A)) |
| Vibrations | Emission ≤ 2,5 m/s² (uncertainty 1,5 m/s²) |
| Power supply | Lithium-ion battery (2 slots) |
| Runtime | Varies depending on battery; dual battery for extended use |
| Variable suction power | Yes, continuous adjustment |
| Cordless operation | Yes, with batteries |
| Usage | Dry dust, commercial use (hotels, schools, etc.) |
| Maintenance | Regular filter cleaning, tank emptying, annual inspection |
| Spare parts available | Filters, bags, hoses, nozzles, battery, charger |
| Warranty | Manufacturer's warranty (see terms) |
Frequently Asked Questions - VC005GLZ MAKITA
What types of batteries can I use with the VC005GLZ vacuum cleaner?
Compatible batteries are Makita models BL4020, BL4025, BL4040 (recommended), BL4050F and BL4080F. Always use genuine Makita batteries.
Can the vacuum cleaner pick up liquids?
No, this vacuum cleaner is designed only for dry dust. Never vacuum liquids, foam or humid dust.

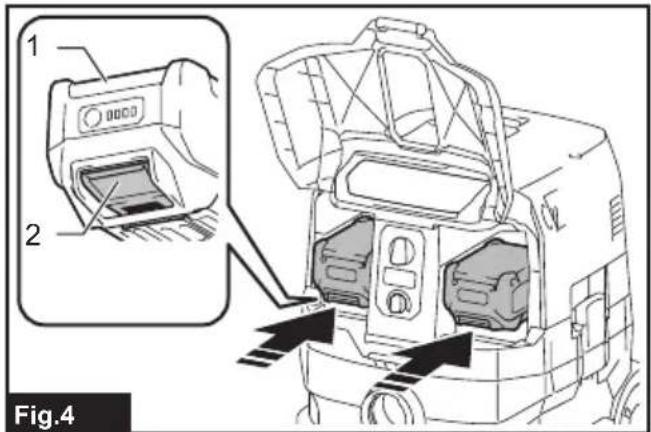

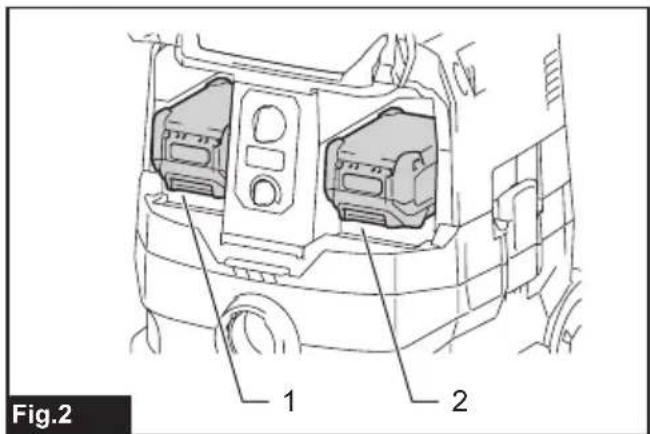

How to install a battery in the vacuum cleaner?
Open the battery cover by releasing the lock. Insert the battery by aligning the tabs with the grooves, push until it clicks. Lock the cover. The device has two slots, with priority on the left slot.

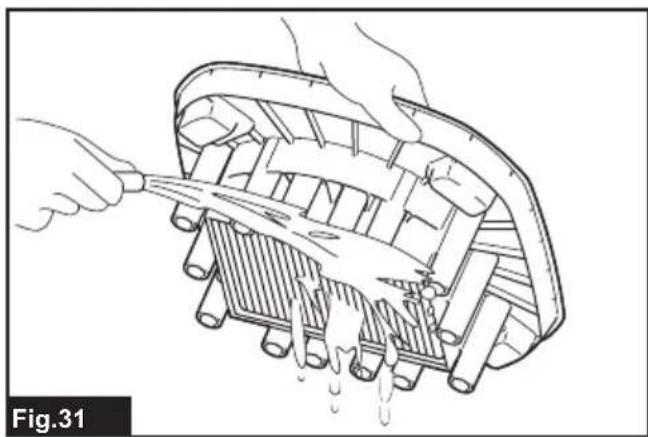

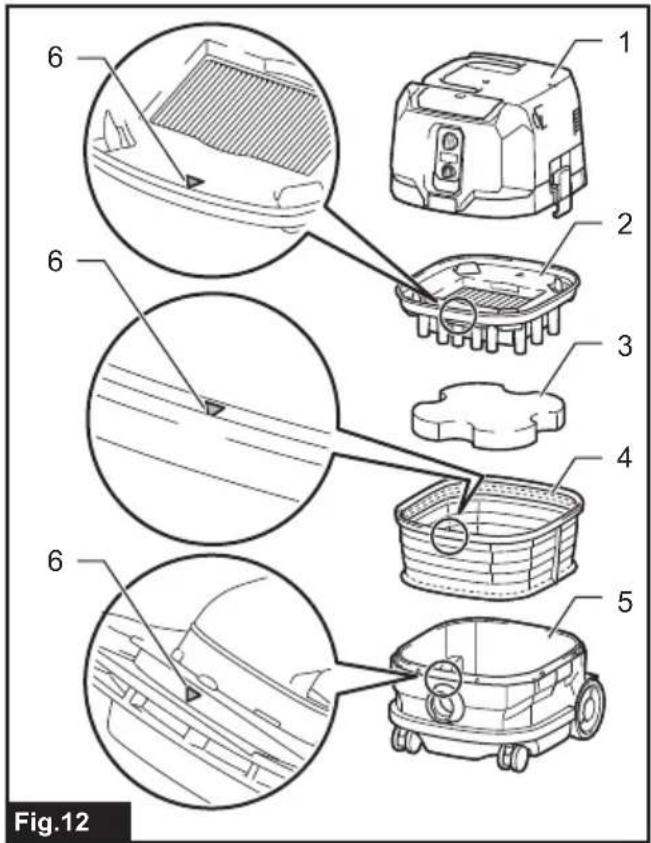

How to clean the cloth filter?
Remove the filter and shake it to remove dust. You can also wash it with clean water and dry it completely in the shade before reinstalling. Do not use aggressive detergents.
What to do if the vacuum cleaner stops suddenly?
This may be due to an overload, overheating or a discharged battery. Turn off the device, let it cool down and recharge or replace the battery. If the problem persists, contact a Makita service center.
What is the tank capacity?
The tank has a capacity of 8 liters. It is recommended to empty it at least once a day or when full to avoid loss of suction.

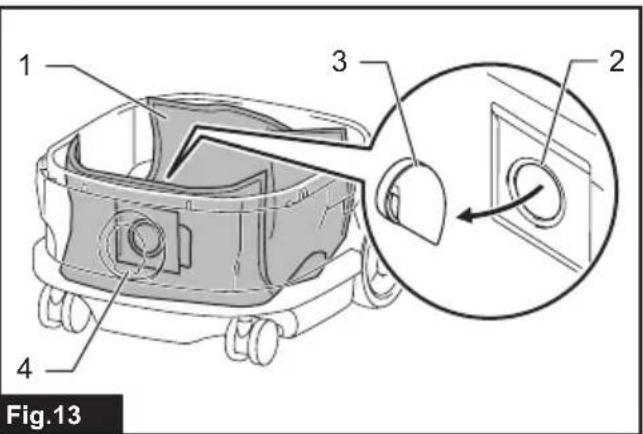

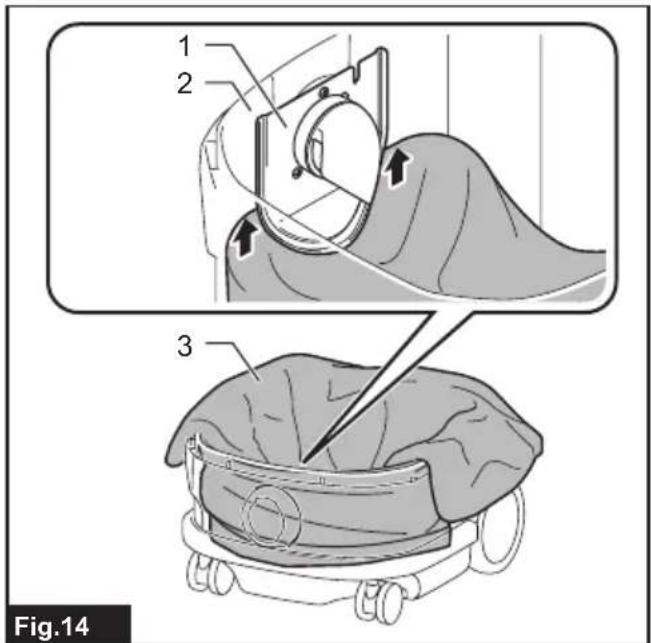

Can I use a paper bag with this vacuum cleaner?
Yes, a paper bag (optional accessory) can be used. Make sure to also use the cloth filter or pre-filter to avoid damaging the device. Do not vacuum liquids with a paper bag.
How to adjust the suction power?
Turn the suction power adjustment knob located on the head unit. Turn left to reduce power, right to increase it.
What type of periodic maintenance is required?
Clean the filter regularly and empty the tank. Check the condition of the hose and accessories. A technical inspection by the manufacturer or a trained person must be carried out at least once a year.

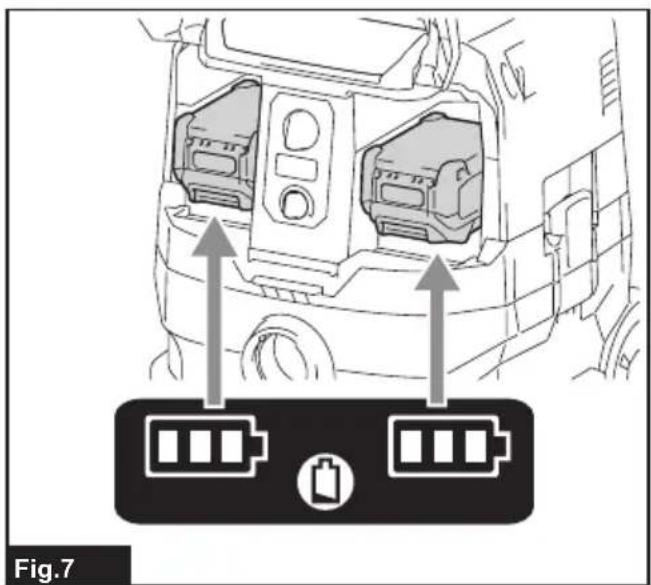

Can the vacuum cleaner be used with a single battery?
Yes, the vacuum cleaner works with a single battery, inserted into one of the two slots. With two batteries, the runtime is extended thanks to automatic switching.
