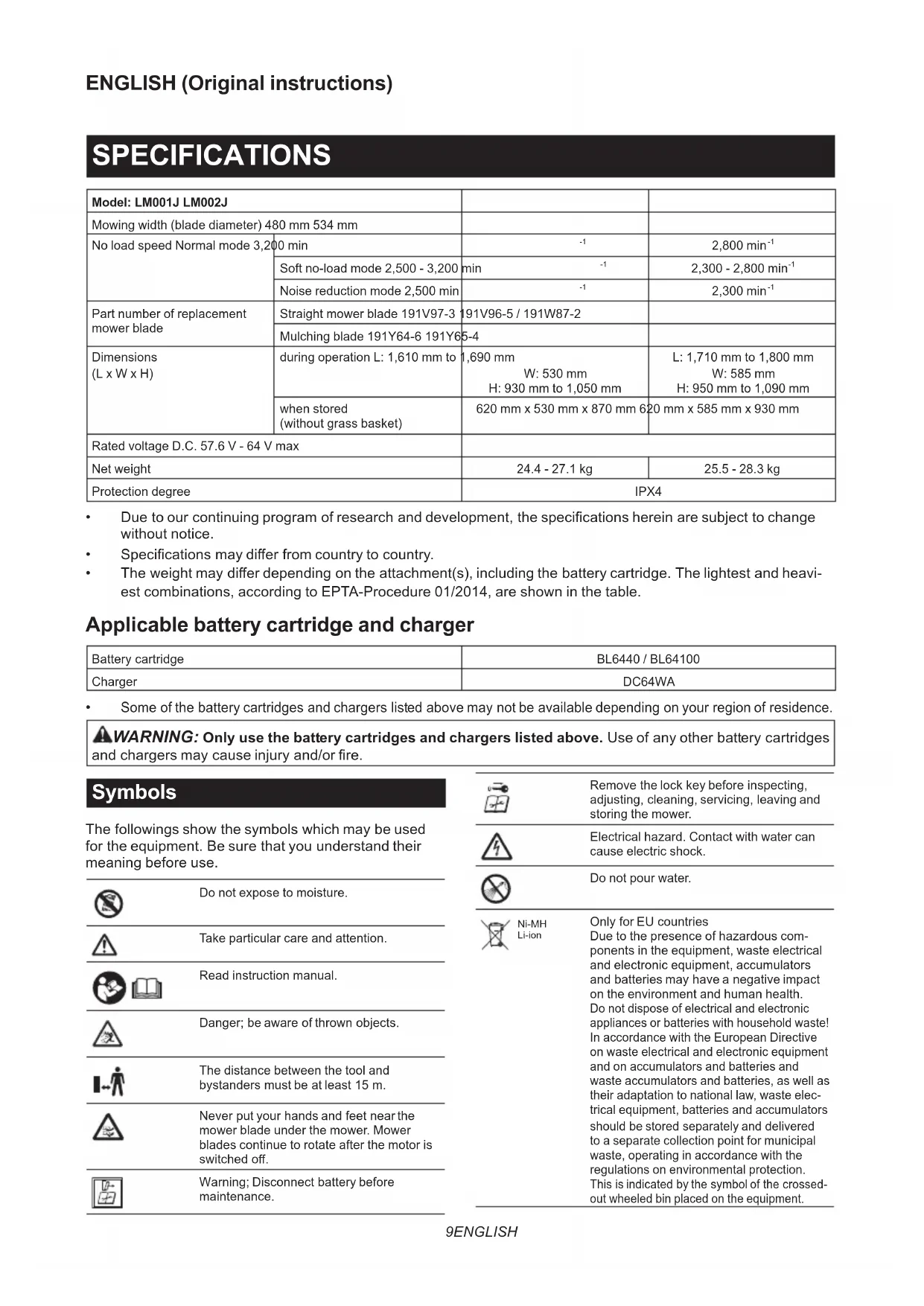

Cordless Lawn Mower INSTRUCTION MANUAL 9

Part number of replacement mower blade Straight mower blade 191V97-3 191V96-5 / 191W87-2 Mulching blade 191Y64-6 191Y65-4 Dimensions (L x W x H) during operation L: 1,610 mm to 1,690 mm W: 530 mm H: 930 mm to 1,050 mm L: 1,710 mm to 1,800 mm W: 585 mm H: 950 mm to 1,090 mm when stored (without grass basket) 620 mm x 530 mm x 870 mm 620 mm x 585 mm x 930 mm Rated voltage D.C. 57.6 V - 64 V max Net weight 24.4 - 27.1 kg 25.5 - 28.3 kg Protection degree IPX4

• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange without notice.

• Specicationsmaydi󰀨erfromcountrytocountry.

• Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi- est combinations, according to EPTA-Procedure 01/2014, are shown in the table. Applicable battery cartridge and charger Batterycartridge BL6440 / BL64100 Charger DC64WA

WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges

andchargersmaycauseinjuryand/orre. Symbols Thefollowingsshowthesymbolswhichmaybeused fortheequipment.Besurethatyouunderstandtheir meaning before use. Do not expose to moisture. Take particular care and attention. Read instruction manual. Danger;beawareofthrownobjects. The distance between the tool and bystandersmustbeatleast15m. Neverputyourhandsandfeetnearthe mower blade under the mower. Mower blades continue to rotate after the motor is switchedo󰀨. Warning;Disconnectbatterybefore maintenance. Removethelockkeybeforeinspecting, adjusting,cleaning,servicing,leavingand storing the mower. Electrical hazard. Contact with water can cause electric shock. Do not pour water. Ni-MH Li-ion OnlyforEUcountries Due to the presence of hazardous com- ponents in the equipment, waste electrical and electronic equipment, accumulators andbatteriesmayhaveanegativeimpact on the environment and human health. Do not dispose of electrical and electronic appliances or batteries with household waste! In accordance with the European Directive on waste electrical and electronic equipment and on accumulators and batteries and waste accumulators and batteries, as well as their adaptation to national law, waste elec- trical equipment, batteries and accumulators shouldbestoredseparatelyanddelivered to a separate collection point for municipal waste, operating in accordance with the regulations on environmental protection. Thisisindicatedbythesymbolofthecrossed- out wheeled bin placed on the equipment.10 ENGLISH Guaranteed sound power level according to EU Outdoor Noise Directive.Sound power level according to Australia NSW Noise Control Regulation. Intended use The machine is intended for lawn mowing. Noise ThetypicalA-weightednoiseleveldeterminedaccord- ing to EN IEC 62841-4-3: Model Measured sound power level (L

(dB(A))Guaranteed sound power level (L

(dB(A))LM001J 92 95LM002J 94 97Model Sound pressure level (L ) : (dB(A))Uncertainty for sound pressure level (K) : (dB(A))LM001J 85 3LM002J 85 3 NOTE: The declared noise emission value(s) has been measured in accordance with a standard test methodandmaybeusedforcomparingonetoolwith another. NOTE: The declared noise emission value(s) mayalsobeusedinapreliminaryassessmentof exposure.

WARNING: Wear ear protection.

WARNING: The noise emission during actual

use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration The vibration total value (tri-axial vector sum) deter- mined according to EN IEC 62841-4-3: Model LM001J Vibration emission (a

Model LM002J Vibration emission (a

NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method andmaybeusedforcomparingonetoolwithanother. NOTE:Thedeclaredvibrationtotalvalue(s)mayalso beusedinapreliminaryassessmentofexposure.

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Declarations of Conformity For European countries only TheDeclarationsofconformityareincludedinAnnexA to this instruction manual. SAFETY WARNINGS General power tool safety warnings WARNING Read all safety warnings, instruc- tions, illustrations and specications provided with this power tool. Failure to follow all instructions listed belowmayresultinelectricshock,reand/orserious injury. Save all warnings and instruc- tions for future reference. Theterm"powertool"inthewarningsreferstoyour mains-operated(corded)powertoolorbattery-operated (cordless) power tool. Cordless Lawn Mower Safety Warnings

1. Do not use the lawnmower in bad weather

conditions, especially when there is a risk of lightning. This decreases the risk of being struck bylightning.

2. Thoroughly inspect the area for wildlife where

the lawnmower is to be used.Wildlifemaybe injuredbythelawnmowerduringoperation.

3. Thoroughly inspect the area where the lawn-

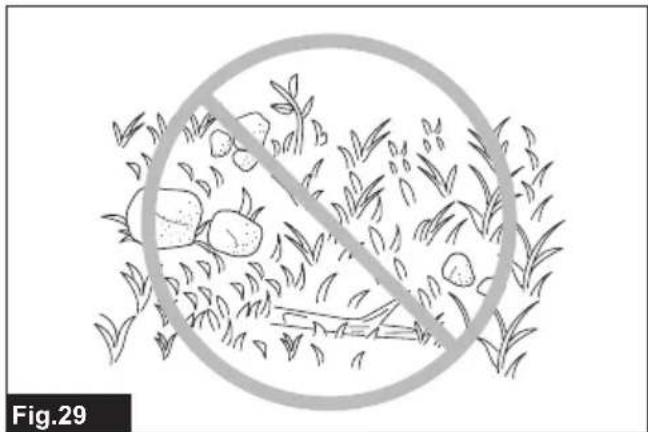

mower is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrownobjectscancausepersonalinjury.

4. Before using the lawnmower, always visually

inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damagedpartsincreasetheriskofinjury.

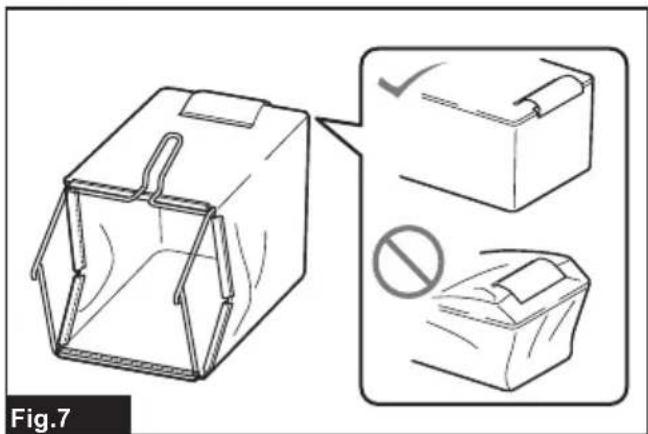

5. Check the grass catcher frequently for wear or

deterioration. A worn or damaged grass catcher mayincreasetheriskofpersonalinjury.11 ENGLISH

6. Keep guards in place. Guards must be in work-

ing order and be properly mounted. A guard that is loose, damaged, or is not functioning cor- rectlymayresultinpersonalinjury.

8. While operating the lawnmower, always wear

non-slip and protective footwear. Do not oper- ate the lawnmower when barefoot or wearing open sandals.Thisreducesthechanceofinjury to the feet from contact with the moving blade.

9. While operating the lawnmower, always wear

long trousers. Exposed skin increases the likeli- hoodofinjuryfromthrownobjects.

10. Do not operate the lawnmower in wet grass.

Walk, never run. This reduces the risk of slipping andfallingwhichmayresultinpersonalinjury.

Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slippingandfallingwhichmayresultinpersonalinjury.

12. When working on slopes, always be sure of

your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and fallingwhichmayresultinpersonalinjury.

13. Use extreme caution when reversing or pulling

the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation.

14. Do not touch blades and other hazardous

moving parts while they are still in motion. This reducestheriskofinjuryfrommovingparts.

15. When clearing jammed material or cleaning

the lawnmower, make sure all power switches are o󰀨 and the battery pack is disconnected. Unexpectedoperationofthelawnmowermay resultinseriouspersonalinjury. SAVE THESE INSTRUCTIONS.

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all safety warnings and

all instructions. Failure to follow the warnings and instructionsmayresultinelectricshock,reand/or seriousinjury. Save all warnings and instruc- tions for future reference. Training

Read the instructions carefully. Be familiar with the controls and the proper use of the mower.

2. Never allow children or people unfamiliar with

these instructions to use the mower. Local regulations can restrict the age of the operator.

3. Never operate the mower while people, espe-

cially children, or pets are nearby.

4. Keep in mind that the operator or user is

responsible for accidents or hazards occurring to other people or their property.

5. Children should be supervised to ensure that

they do not play with the mower.

6. Physical condition - Do not operate mower

while under the inuence of drugs, alcohol, or any medication. Preparation

While operating the mower, always wear sub- stantial footwear and long trousers. Do not operate the mower when barefoot or wearing open sandals. Avoid wearing clothing or jewelry that is loose tting or that has hanging cords or ties. They can be caught in moving parts.

2. Before use, always visually inspect the mower

for damaged, missing or misplaced guards or shields.

3. Be sure the area is clear of other people before

mowing. Stop mower if anyone enters the area.

4. Do not insert the lock key into mower until it is

5. Always wear protective goggles to protect

your eyes from injury when using power tools. The goggles must comply with ANSI Z87.1 in the USA, EN 166 in Europe, or AS/NZS 1336 in Australia/New Zealand. In Australia/New Zealand, it is legally required to wear a face shield to protect your face, too. It is an employer's responsibility to enforce the use of appropriate safety protective equip- ments by the tool operators and by other per- sons in the immediate working area.

6. Check the blades or blade bolts carefully for

cracks or damage before operation. Replace cracked or damaged blades or blade bolts immediately.

7. Remove foreign matters such as rocks, wire,

bottles, bones and large sticks from the work area before mowing to prevent personal injury or damage to the mower.

8. Objects struck by the mower blade can cause

severe injuries to persons. The lawn should always be carefully examined and cleared of all objects prior to each mowing.

9. Watch for holes, ruts, bumps, rocks, or other

hidden objects. Uneven terrain could cause a slip and fall accident. Tall grass can hide obstacles.12 ENGLISH

10. Use personal protective equipment. Always

wear eye protection. Protective equipment such asadustmask,non-skidsafetyshoes,hardhator hearing protection used for appropriate conditions willreducepersonalinjuries. Operation

1. Do not overreach. Keep the balance at all

times. Always be sure of the footing on slopes. Walk, never run.

2. Stop the mower and remove the lock key, and

make sure that all moving parts have come to a complete stop: - whenever you leave the mower, - before clearing blockages or unclogging chute, - before checking, cleaning or working on the mower, - after striking a foreign object. Inspect the mower for damage and make repairs before restarting and operating the mower, - whenever the mower starts vibrating abnormally.

3. Never operate the mower with defective

guards or shields, or without safety devices, for example deectors and/or grass basket, in place.

4. Avoid using the mower in bad weather con-

ditions especially when there is a risk of lightning.

5. Wear eye protection and stout shoes at all

times while operating the mower.

6. Operate the mower only in daylight or in good

7. Switch on the mower carefully according to

instructions and with feet well away from the blade(s).

8. Take care against injury to feet and hands from

9. Always ensure that the ventilation openings

are kept clear of debris.

10. Mow across the face of slopes, never up and

down. Exercise extreme caution when chang- ing direction on slopes. Do not mow exces- sively steep slopes.

11. Use extreme caution when reversing or pulling

the mower towards you.

12. Stop the blade(s) if the mower has to be tilted

for transportation when crossing surfaces other than grass, and when transporting the mower to and from the area to be used.

13. Do not tilt the mower when switching on the

motor, except if the mower has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part, which is away from the operator. Always ensure that both hands are in the operating position before returning the mower to the ground.

14. Do not put hands or feet near or under rotating

parts. Keep clear of the discharge opening at all times.

15. Do not transport the mower while the mower is

16. Avoid operating the mower in wet grass.

17. Always keep a rm hold on the handle.

18. Don't grasp the exposed cutting blades or

cutting edges when picking up or holding the mower.

19. Keep hands and feet away from rotating

blades. Caution - Blades coast after the mower is switched o󰀨.

20. Stop operation immediately if you notice

anything unusual. Switch o󰀨 the mower and remove the lock key. Then inspect the mower.

21. Never attempt to make cutting height adjust-

ments while mower is running if the mower has cutting height adjustment feature.

22. Release switch lever and wait for blade rota-

tion to stop before crossing driveways, walks, roads, and any gravel-covered areas. Also remove the lock key if you leave the mower, reach to pick up or remove something out of your way, or for any other reason that may distract you from what you are doing.

23. If the mower strikes a foreign object, follow

these steps: - Stop the mower, release the switch lever and wait until the blade comes to a complete stop. - Remove the lock key and the battery cartridge. - Thoroughly inspect the mower for any damage. - Replace the blade if it is damaged in any way. Repair any damage before restarting and con- tinuing to operate the mower.

24. Do not start the mower when standing in front

of the discharge opening.

25. If the mower starts to vibrate abnormally

(check immediately) - inspect for damage, - replace or repair any damaged parts, - check for and tighten any loose parts.

26. Never direct discharged material toward

anyone. Avoid discharging material against a wall or obstruction.Materialmayricochetback toward the operator. Stop the blade when crossing gravel surfaces.

27. Do not pull the mower backwards unless

absolutely necessary.Whenyouarecompelled to back the mower from a fence or other similar obstruction, look down and behind before and while moving backwards.

28. Shut the motor o󰀨 and wait until the blade

comes to a complete stop before removing the grass catcher. Beware that the blades coast after turno󰀨.

29. When you use the machine on muddy ground,

wet slope, or slippery place, pay attention to your footing.

30. Do not submerge the machine into a puddle.

31. When operating the machine, pay attention to

piping and wiring. Maintenance and storage

1. Replace worn or damaged parts for safety.

Use only genuine replacement parts and accessories.

2. Inspect and maintain the mower regularly.

3. When not in use, store the mower out of the

reach of children.13 ENGLISH

4. Keep all nuts, bolts, and screws tight to

be sure the equipment is in safe working condition.

5. Check the grass basket frequently for wear or

deterioration. For storage, always make sure the grass basket is empty. Replace a worn grass basket with a new factory replacement for safety.

6. Use only the manufacturer genuine blades

specied in this manual.

7. Be careful during adjustment of the mower

to prevent entrapment of the ngers between moving blades and xed parts of the mower.

8. Check the blade mounting bolt at frequent

intervals for proper tightness.

9. Always allow the mower to cool down before

10. When servicing the blades be aware that, even

though the power source is switched o󰀨, the blades can still be moved.

11. Never remove or tamper with safety devices.

Check their proper operation regularly. Never do anything to interfere with the intended function of a safety device or to reduce the protection provided by a safety device.

12. Do not leave the machine unattended outdoors

light and rain, and store it in a place where it does not get hot or humid. Battery tool use and care

1. Recharge only with the charger specied by

the manufacturer. A charger that is suitable for onetypeofbatterypackmaycreateariskofre whenusedwithanotherbatterypack.

2. Use power tools only with specically desig-

nated battery packs.Useofanyotherbattery packsmaycreateariskofinjuryandre.

3. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.Shortingthebatterytermi- nalstogethermaycauseburnsorare.

4. Under abusive conditions, liquid may be

ejected from the battery; avoid contact. If con- tact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help.Liquidejectedfromthebatterymaycause irritation or burns.

5. Do not use a battery pack or tool that is dam-

aged or modied.Damagedormodiedbatteries mayexhibitunpredictablebehaviourresultingin re,explosionorriskofinjury.

6. Do not expose a battery pack or tool to re or

excessive temperature.Exposuretoreortem- peratureabove130°Cmaycauseexplosion.

7. Follow all charging instructions and do not

charge the battery pack or tool outside the temperature range specied in the instruc- tions.Chargingimproperlyorattemperatures outsidethespeciedrangemaydamagethe batteryandincreasetheriskofre. Electrical and battery safety

1. Do not dispose of the battery(ies) in a re.

Do not open or mutilate the battery(ies). Released electrolyteiscorrosiveandmaycausedamageto theeyesorskin.Itmaybetoxicifswallowed.

Do not charge battery in rain, or in wet locations.

4. Do not charge the battery outdoors.

5. Do not handle charger, including charger plug,

and charger terminals with wet hands.

6. Do not replace the battery in the rain.

7. Do not wet the terminal of battery with liquid

such as water, or submerge the battery. Do not leave the battery in the rain, nor charge, use, or store the battery in a damp or wet place. If the terminal gets wet or liquid enters inside of bat- tery,thebatterymaybeshortcircuitedandthereis ariskofoverheat,re,orexplosion.

8. After removing the battery from the machine or

charger, be sure to attach the battery cover to the battery and store it in a dry place.

9. Do not replace the battery with wet hands.

10. Avoid dangerous environment. Don't use the

machine in dump or wet locations or expose it to rain. Water entering the machine will increase the risk of electric shock.

11. If the battery cartridge gets wet, drain the

water inside and then wipe it with a dry cloth. Dry the battery cartridge completely in a dry place before use. Service

1. Have your power tool serviced by a qualied

repair person using only identical replacement parts.Thiswillensurethatthesafetyofthepower tool is maintained.

2. Never service damaged battery packs. Service

ofbatterypacksshouldonlybeperformedbythe manufacturer or authorized service providers. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge.Itmayresultinare,excessiveheat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.14 ENGLISH

If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge.Suchconductmayresultina re,excessiveheat,orexplosion.

9. Do not use a damaged battery.

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. Forcommercialtransportse.g.bythirdparties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Pleasealsoobservepossiblymoredetailed national regulations. Tapeormasko󰀨opencontactsandpackupthe batteryinsuchamannerthatitcannotmove around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliantproductsmayresultinare,exces- siveheat,explosion,orleakofelectrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge.Itmaycauseheating,catchingre, burstandmalfunctionofthetoolorbatterycar- tridge,resultinginburnsorpersonalinjury.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near high-voltage electri- cal power lines.Itmayresultinamalfunctionor breakdownofthetoolorbatterycartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that havebeenaltered,mayresultinthebatterybursting causingres,personalinjuryanddamage.Itwill alsovoidtheMakitawarrantyfortheMakitatooland charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

it for a long period (more than six months). ASSEMBLY

WARNING: Always be sure that the lock key

and battery cartridge are removed before carrying out any work on the mower. Failure to remove the lockkeyandthebatterycartridgemayresultinseri- ouspersonalinjuryfromaccidentalstart-up.

WARNING: Never start the mower unless it is

completely assembled. Operation of the machine inapartiallyassembledstatemayresultinserious personalinjuryfromaccidentalstart-up. Installing the handle NOTICE: When installing the handles, be careful not to pinch the cord between the handles. If the cordisdamaged,themowerswitchmaynotwork.

1. Align the hole in the lower handle with the hole

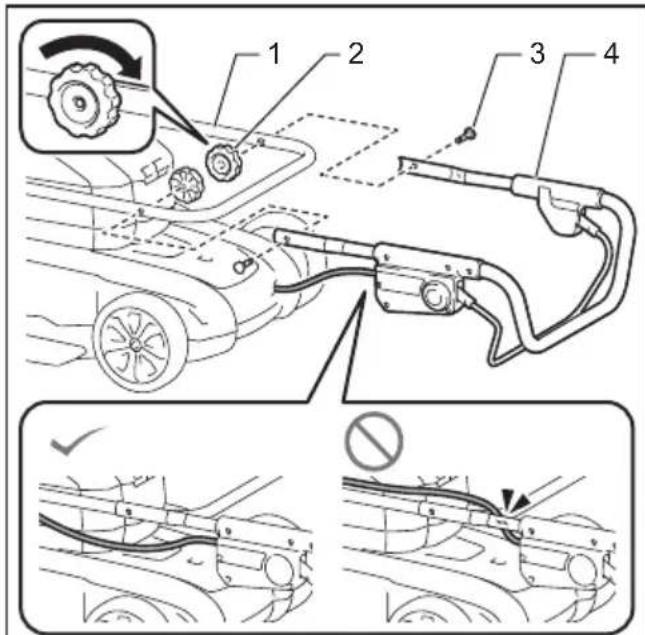

in the upper handle, then insert the bolt from outside, and then tighten the thumb nut from inside. Perform the same procedure on the other side. ►Fig.1: 1. Lower handle 2. Thumb nut 3. Bolt

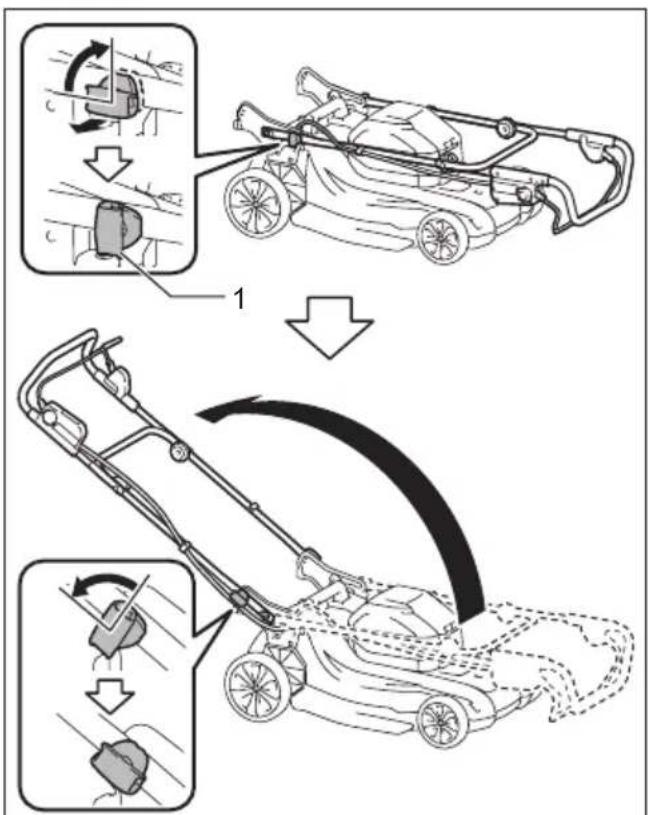

lower handle to release the locking pin. Perform the same procedure on the other side. Raise the handle, and then turn the knob on both sides 90°. Make sure thattheknobsaresecurelyxed. ►Fig.2: 1.Knob NOTE: Supporting the handle makes it easier to release the locking pin when pulling the knob.15 ENGLISH Removing the mulching plug

1. Open the rear cover.

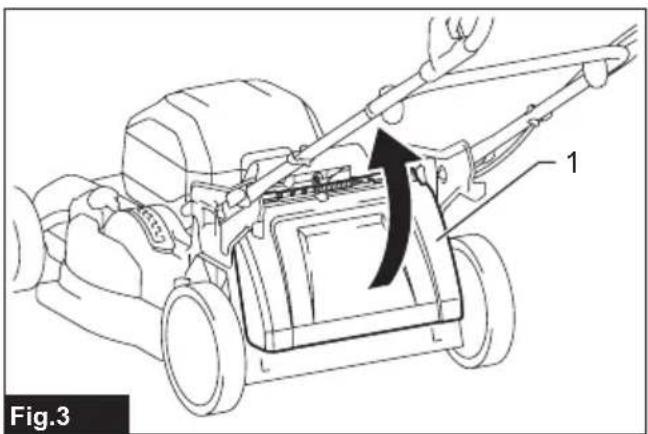

►Fig.3: 1. Rear cover

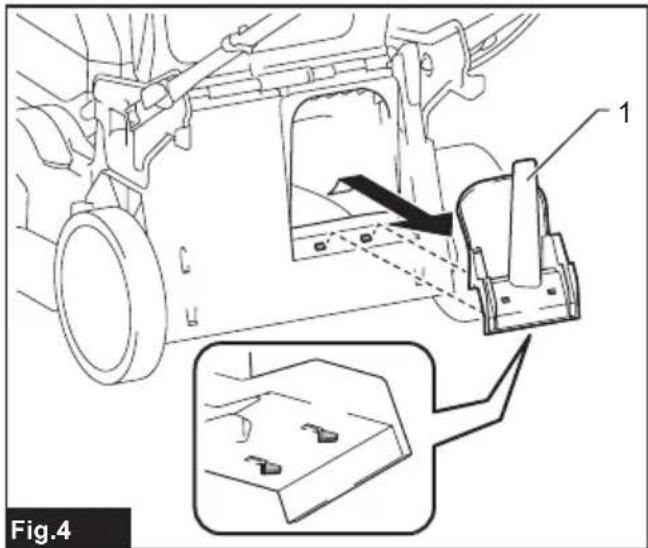

2. Liftupthemulchingplugslightly,andthenremove

it. ►Fig.4: 1. Mulching plug Assembling the grass basket

1. Pick up the upper clip of the grass basket.

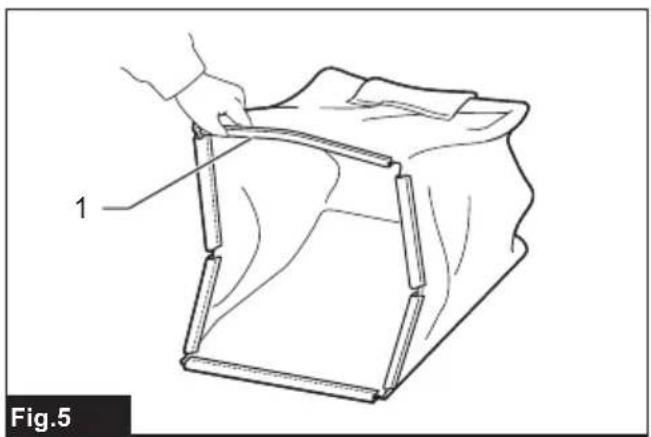

►Fig.5: 1. Upper clip

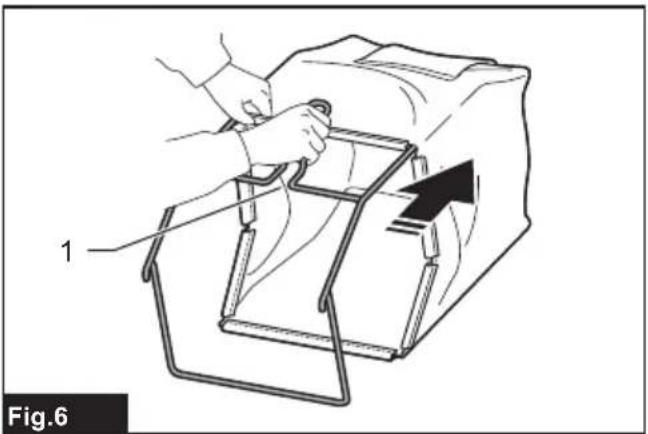

2. Insert the frame into the grass basket as far as it

will go while holding the handle of the frame. ►Fig.6: 1. Handle NOTICE: Do not insert the handle into the grass basket. Be sure to insert the frame along the stitch of the grass basket.

3. Make sure that there is no sagging on the corners

of the grass basket. ►Fig.7

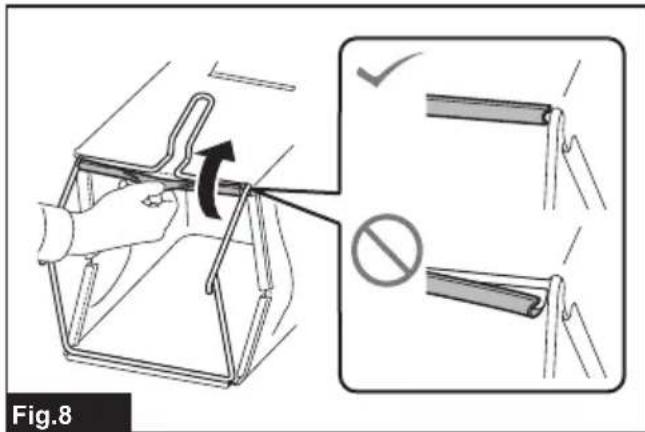

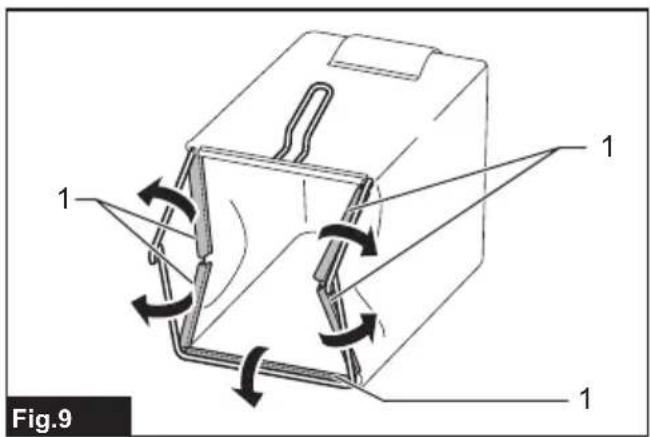

4. Open the upper clip, and attach it to the frame.

1. Open the rear cover.

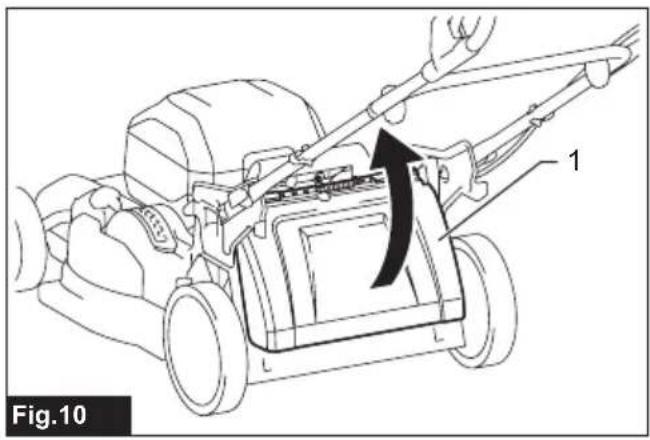

►Fig.10: 1. Rear cover

2. Hold the handle of the grass basket, and then

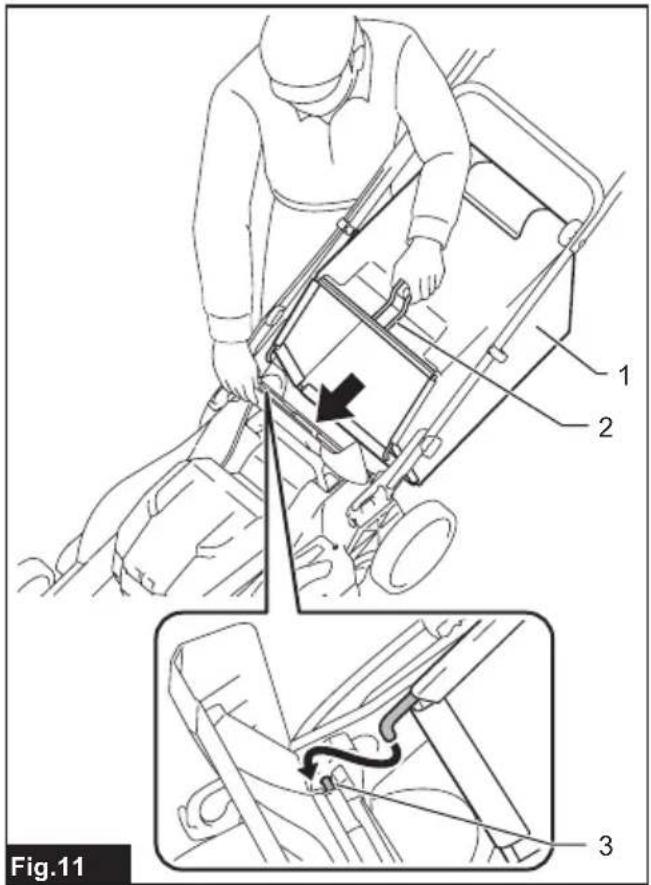

hookthegrassbasketontherodofthemowerbodyas showninthegure. ►Fig.11: 1. Grass basket 2. Handle 3. Rod To remove the grass basket, open the rear cover, and thenremovethegrassbasketbyholdingthehandle. Attaching the mulching plug

1. Open the rear cover, and then remove the grass

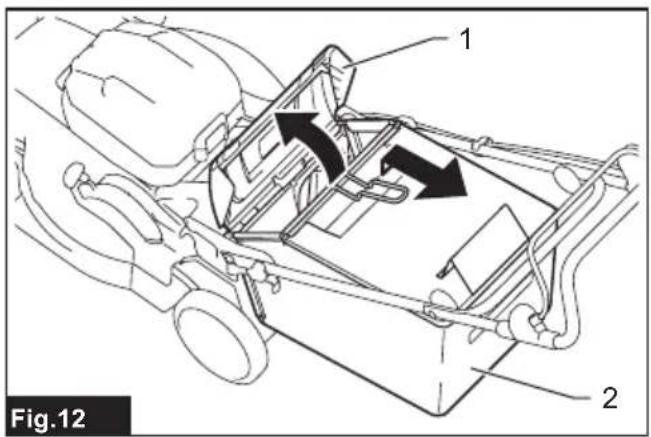

basket. ►Fig.12: 1. Rear cover 2. Grass basket

2. Attachthemulchingplugbypushingitasfarasit

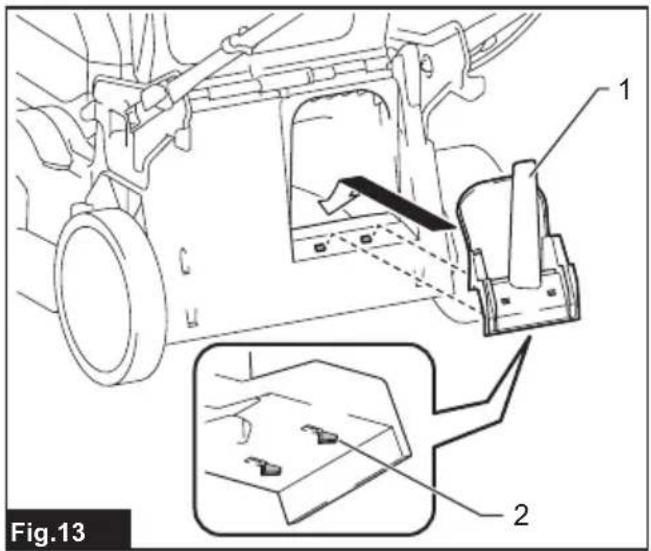

willgosothattheprotrusionsonthemulchingplugt into the holes on the machine. ►Fig.13: 1. Mulching plug 2. Protrusion FUNCTIONAL DESCRIPTION Installing or removing battery cartridge CAUTION: Always switch o󰀨 the machine before installing or removing of the battery cartridge. CAUTION: Hold the machine and the battery cartridge rmly when installing or removing bat- tery cartridge. Failure to hold the machine and the batterycartridgermlymaycausethemtoslipo󰀨 yourhandsandresultindamagetothemachineand batterycartridgeandapersonalinjury. CAUTION: Make sure that you lock the battery cover before use. Otherwise,mud,dirt,orwatermay causedamagetotheproductorthebatterycartridge. CAUTION: Do not install the battery cartridge forcibly.Ifthecartridgedoesnotslideineasily,itis notbeinginsertedcorrectly. CAUTION: Hold the battery cover rmly when installing or removing the battery cartridge. To install the battery cartridge;

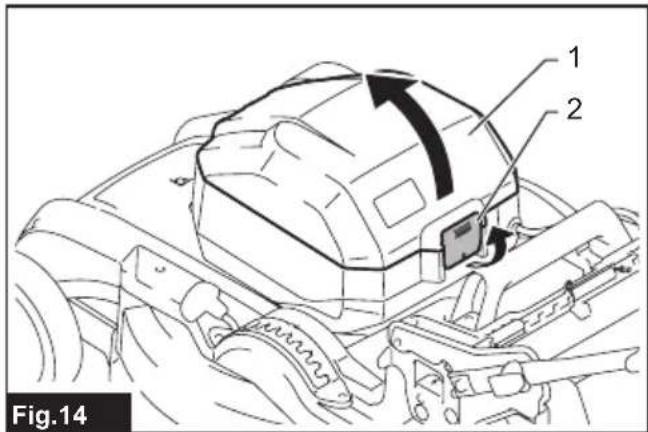

1. Pullupthelockinglever,andthenopenthebattery

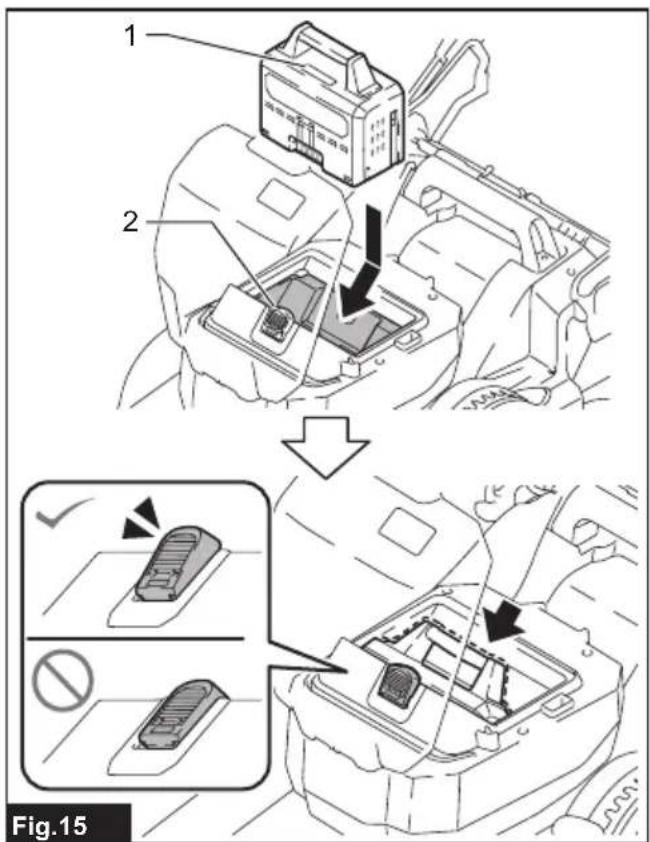

with the indicator lamps facing forward. Insert the bat- terycartridgeintothemachineuntilitislatchedwiththe batterylocklever. ►Fig.15: 1. Indicator lamps 2.Batterylocklever NOTE:Pushingthebatteryverticallyfromabove makes the machine harder to move and makes it easiertoinstallthebattery. ►Fig.16

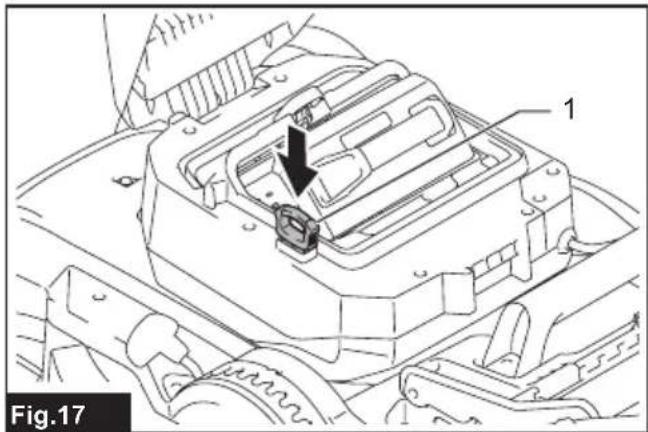

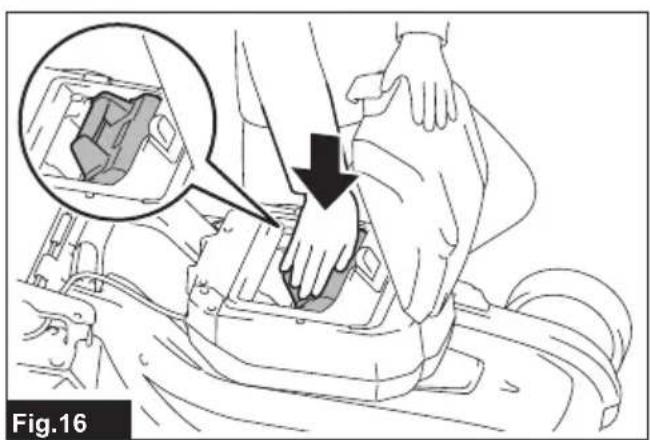

3. Insertthelockkeyintheplaceshowninthegure

as far as it will go. ►Fig.17: 1.Lockkey

4. Closethebatterycoverandpushituntilitis

latched with the locking lever. To remove the battery cartridge;

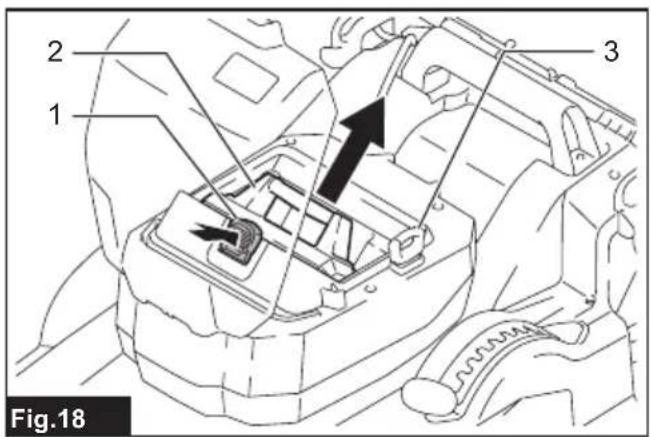

2. Pushthebatterylocklever,andthenpulloutthe

Machine / battery protection system Themachineisequippedwithamachine/battery protectionsystem.Thissystemautomaticallycutso󰀨 powertothemotortoextendmachineandbatterylife. Themachinewillautomaticallystopduringoperationif themachineorbatteryisplacedunderoneofthefol- lowing conditions: Overload protection Whenthemachineorbatteryisoperatedinamanner thatcausesittodrawanabnormallyhighcurrent, themachineautomaticallystopsandthemainpower lamp blinks in green. In this situation, turn the machine o󰀨andstoptheapplicationthatcausedthemachine to become overloaded. Then turn the machine on to restart. Overheat protection Ifthemachineorbatterycartridgeisoverheated,the machinestopsautomatically.Whenthemachineis overheated, the main power lamp lights up in red. When thebatterycartridgeisoverheated,themainpower lampblinksinred.Letthemachineand/orbatterycool down before turning the machine on again. Overdischarge protection Whenthebatterycapacityisnotenough,themachine stopsautomaticallyandthemainpowerlampblinksin red. Inthiscase,removethebatteryfromthemachineand chargethebatterycartridgeorchangethebatterycar- tridgetofullychargedone. Protections against other causes Protectionsystemisalsodesignedforothercausesthat could damage the machine and allows the machine to stopautomatically.Takeallthefollowingstepstoclear the causes, when the machine has been brought to a temporaryhaltorstopinoperation.

2. Chargethebattery(ies)orreplaceit/themwith

rechargedbattery(ies).

3. Letthemachineandbattery(ies)cooldown.

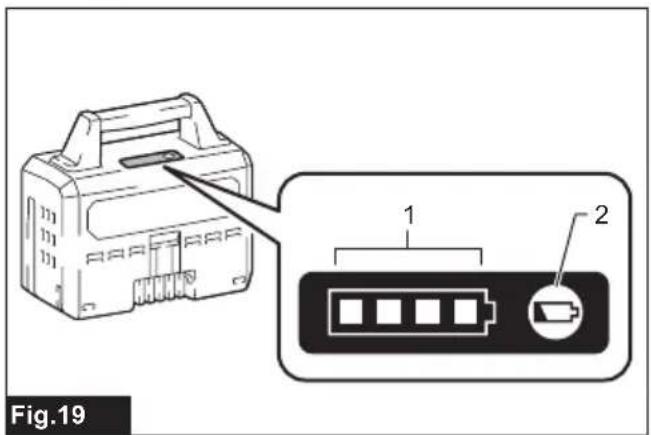

Ifnoimprovementcanbefoundbyrestoringprotection system,thencontactyourlocalMakitaServiceCenter. Indicating the remaining battery capacity Pressthecheckbuttononthebatterycartridgetoindi- catetheremainingbatterycapacity.Theindicatorlamps light up for a few seconds. ►Fig.19: 1. Indicator lamps 2. Check button Indicator lamps Remaining capacity Lighted O󰀨 Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. Thebattery mayhave malfunctioned. NOTE: Depending on the conditions of use and the ambienttemperature,theindicationmaydi󰀨erslightly fromtheactualcapacity. NOTE:Therst(farleft)indicatorlampwillblinkwhen thebatteryprotectionsystemworks. Control panel The control panel has the main power switch and the mode switching button. ►Fig.20: 1. Soft no-load mode lamp 2. Noise reduc- tion mode lamp 3. Mode switching button

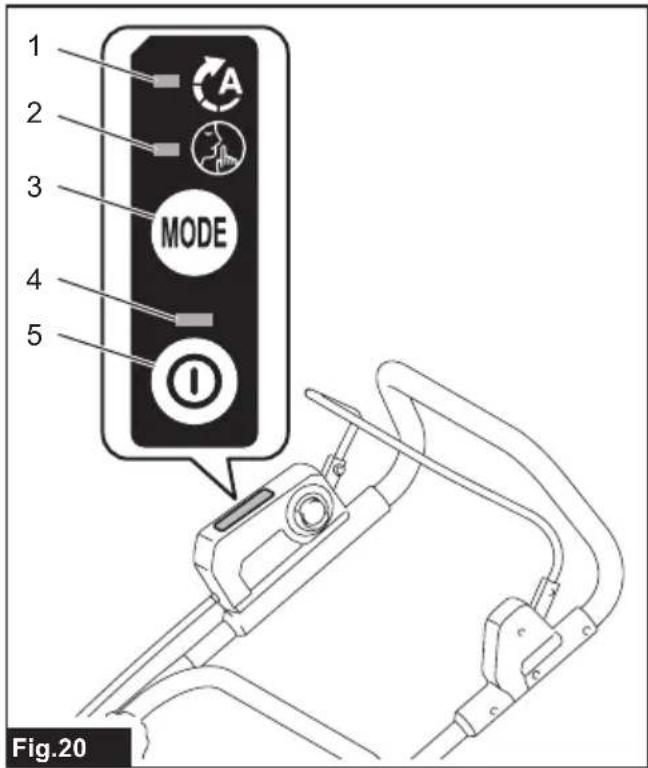

4. Main power lamp 5. Main power switch

WARNING: Always turn o󰀨 the main power

switch when not in use. To turn on the machine, press the main power switch. Themainpowerlamplightsupingreen.Toturno󰀨the machine, press the main power switch again. NOTE: If the main power lamp lights up in red or blinks in red or green, refer to the instructions for machine/batteryprotectionsystem. NOTE:Thismachineemploystheautopower-o󰀨 function. To avoid unintentional start up, the main powerswitchwillautomaticallyshutdownwhenthe switch lever and drive lever (if equipped) are not pulled for a certain period after the main power switch is turned on.17 ENGLISH Mode switching button Youcanswitchtheoperatingmodebypressingthe mode switching button. When the machine is turned on, the machine starts up in the normal mode. Whenyoupressthemodeswitchingbutton,the machine shifts to the soft no-load mode and the soft no-load mode lamp lights up in green. In the soft no-loadmode,youcanminimizesstart-upshock. Whenyoupressthemodeswitchingbuttonagain,the machine shifts to the noise reduction mode and the noise reduction mode lamp lights up in green. In the noisereductionmode,youcandecreasethenoiseat mowing. Whenyoupressthemodeswitchingbuttonagain,the machine returns to the normal mode. Switch action

WARNING: Before installing the battery car-

tridge, always check to see that the switch lever actuates properly and returns to the original posi- tion when released. Operating the machine with a switchthatdoesnotactuateproperlycanleadtoloss ofcontrolandseriouspersonalinjury. NOTE: The mower does not start without pressing the switch button even the switch lever is pulled. NOTE:Mowermaynotstartduetotheoverload whenyoutrytomowlongordensegrassatatime. Increase the mowing height in this case. Thismowerisequippedwiththelockkeyandhandle switch.Ifyounoticeanythingunusualwitheitherofthe lockkeyorswitch,stoptheoperationimmediatelyand havethemcheckedbyyournearestMakitaAuthorized Service Center.

2. Press the main power switch.

3. Pulltheswitchlevertowardyouwhileholding

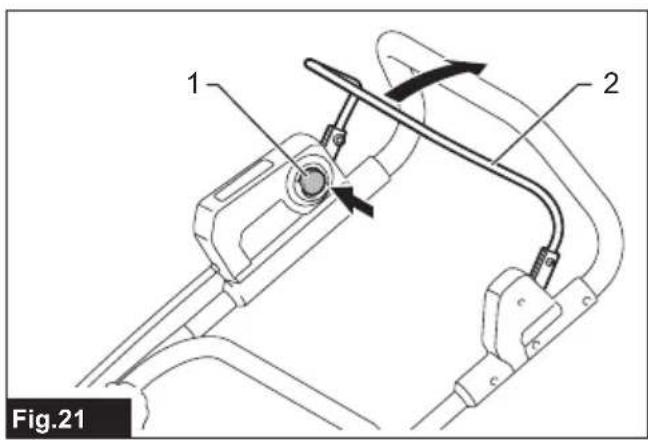

down the switch button. Release the switch button as soon as the motor starts running. ►Fig.21: 1. Switch button 2. Switch lever NOTE:Ifthelockkeyisnotinserted,thepowerlamp blinksingreenwhenyoupulltheswitchlever.

4. Release the switch lever to stop the motor.

Adjusting the mowing height

WARNING: Never put your hand or leg under

the mower body when adjusting the mowing height.

WARNING: Always make sure that the lever

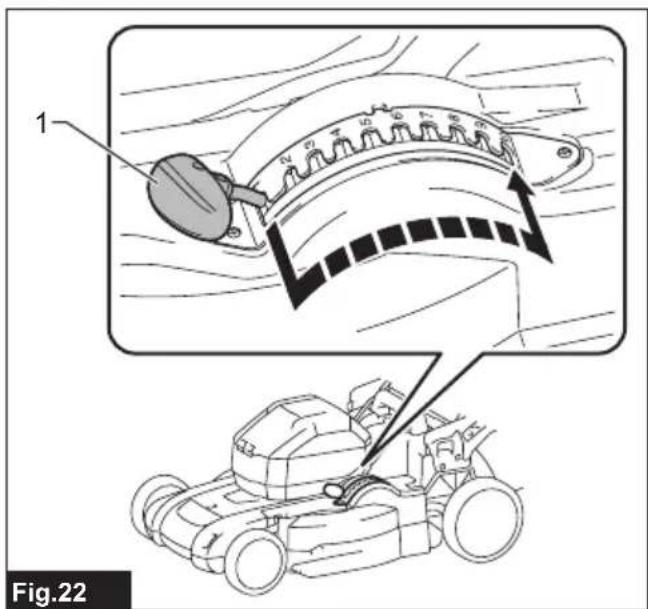

ts in the groove properly before operation. Themowingheightcanbeadjustedintherangeof between 20 mm and 100 mm. Removethelockkey,andthenpullthemowingheight adjustingleveroutwardofthemowerbodyandmoveit toyourdesiredmowingheight. ►Fig.22: 1.Mowingheightadjustinglever The table below shows the relationship between the numberonthemowerbodyandtheapproximatemow- ing height. Number Mowing height 1 20 mm 2 26 mm 3 32 mm 4 40 mm 5 49 mm 6 59 mm 7 70 mm 8 81 mm 9 92 mm 10 100 mm Hold the lower handle with one hand, and then move themowingheightadjustingleverwiththeotherhand. ►Fig.23: 1.Mowingheightadjustinglever2. Lower handle NOTE:Themowingheightguresshouldbeused justasaguideline.Dependingontheconditionsof thelawnortheground,theactuallawnheightmay becomeslightlydi󰀨erentfromthesetheight. NOTE:Tryatestmowingofgrassinalessconspicu- ousplacetogetyourdesiredheight. Grass level indicator Grass level indicator shows the volume of mowed grass. When the grass basket is not full, the indicator oatswhilethebladesarerunning. ►Fig.24: 1. Grass level indicator When the grass basket is almost full, the indicator does notoatwhilethebladesarerunning.Inthiscase,stop theoperationimmediatelyandemptythebasket. ►Fig.25: 1. Grass level indicator NOTE: This indicator is a rough guide. Depending on the conditions of inside of the basket, this indicator maynotworkproperly. Adjusting the handle height Thehandleheightcanbeadjustedintwolevels.

1. Hold the lower handle, and then turn the knob 90°

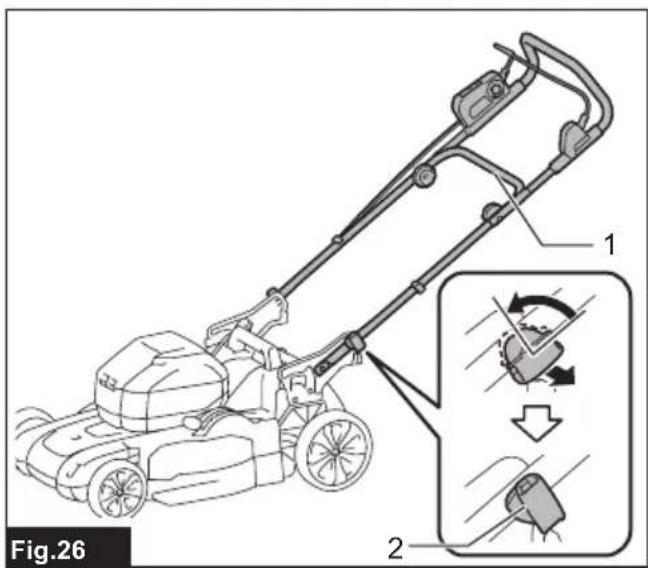

while pulling the knob on the lower handle to release the locking pin. Perform the same procedure on the other side. ►Fig.26: 1. Lower handle 2.Knob NOTE: Supporting the handle makes it easier to release the locking pin when pulling the knob.

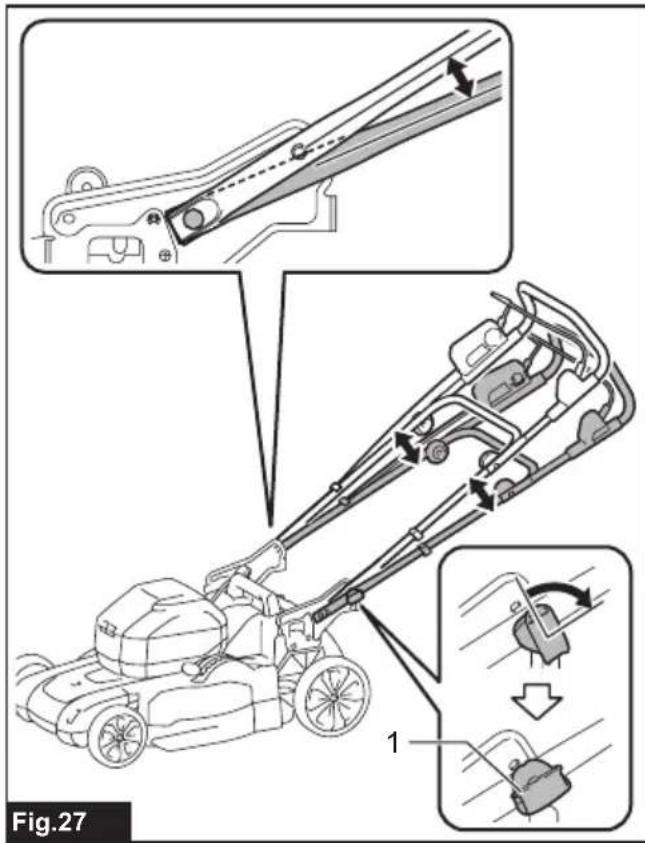

2. Adjustthehandleheight,andthenturnthe

knob on both sides 90°. Make sure that the knobs are securelyxed. ►Fig.27: 1.Knob18 ENGLISH Using mulching plug Themulchingplugallowsyoutoreturnthecutgrassto the ground without gathering the cut grass in the grass basket.Whenyouoperatethemachinewiththemulch- ing plug, be sure to remove the grass basket. NOTICE: When using the machine with the mulching plug, make sure that the total length of grass after cutting is 30 mm or more, and the cut length is 15 mm or less. ►Fig.28: (1) 30 mm or more (2) 15 mm or less Using the rear discharge Usingthereardischargeallowsyoutodischargethecut grass to the ground from the rear side of the machine without gathering the cut grass in the grass basket. Whenyouoperatethemachineusingthereardis- charge, be sure to remove the grass basket and mulch- ing plug, and close the rear cover. Electronic function The machine is equipped with the electronic functions foreasyoperation.

• Constant speed control of blade rotation Electronic speed control for obtaining constant speed.Possibletogetnenish,becausethe rotating speed is kept constant even under load condition.

• Electric brake This machine is equipped with an electric brake. Ifthemachineconsistentlyfailstoquicklystop the mower blades after releasing the switch lever, have the machine serviced at Makita Authorized Service Center. OPERATION Mowing

WARNING: Before mowing, clear away sticks

and stones from mowing area. Furthermore, clear away any weeds from mowing area in advance.

WARNING: Always wear the safety goggles or

safety glasses with side shields when operating the mower. CAUTION: If the cut grass or foreign object blocks up inside of the mower body, be sure to remove the lock key and battery cartridge and wear gloves before removing the grass or foreign object. NOTICE: Use this machine for mowing lawn only. Do not mow weeds with this machine. ►Fig.29 Firmlyholdthehandlewithbothhandswhenmowing. Themowingspeedguidelineisapproximately7to14 meters per 10 seconds. ►Fig.30 The center lines of the front wheels are guidelines to mowing width. Using the center lines as guidelines, mowinstrips.Overlapbyonehalftoonethirdtheprevi- ousstriptomowthelawnevenly. ►Fig.31: 1. Mowing width 2. Overlapping area

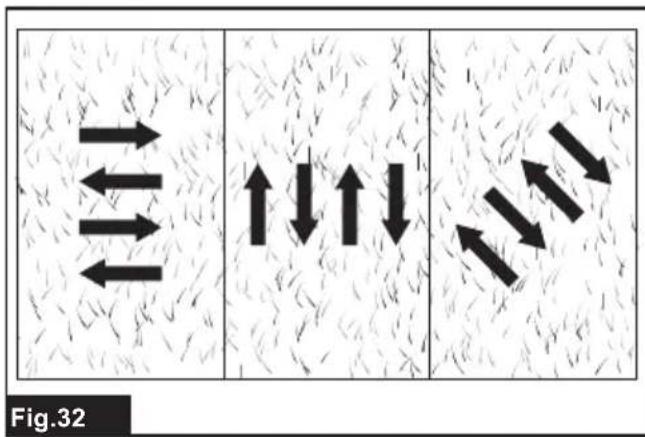

Change the mowing direction each time to prevent the grassgrainpatternfromforminginjustonedirection. ►Fig.32 Periodicallycheckthegrassbasketformowedgrass. Emptythegrassbeforeitbecomesfull.Beforeevery periodical check, be sure to stop the mower then removethelockkeyandthebatterycartridge. NOTICE: Using the mower with the grass basket full prevents smooth blade rotation and places an extra load on the motor, which may cause breakdown. Mowing a long-grass lawn Donottrytocutlonggrassallatonce.Instead,mow thelawninsteps.Leaveadayortwobetweenmowings untilthelawnbecomesevenlyshort. ►Fig.33 NOTE: Mowing long grass to a short length all at oncemaycausethegrasstodie.Thecutgrassmay alsoblockupinsideofthemowerbody. NOTE: If the unevenness in the length of lawn or poor nishisfoundaftermowing,ordecreaseofthemotor speed is found during mowing, decrease the mowing speed, or raise the mowing height. Emptying the grass basket

WARNING: To reduce a risk of accident, reg-

ularly check the grass basket for any damage or weakened strength. Replace the grass basket if necessary.

3. Open the rear cover and take out the grass basket

WARNING: Always be sure that the lock

key and battery cartridge are removed from the mower before storing or carrying the mower or attempting to perform inspection or maintenance.

WARNING: Always remove the lock key when

the mower is not in use. Store the lock key in a safe place out of reach of children.

WARNING: Wear gloves when performing

inspection or maintenance.

WARNING: Always wear the safety goggles or

safety glasses with side shields when performing inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs,anyothermaintenanceoradjustmentshould beperformedbyMakitaAuthorizedorFactoryService Centers,alwaysusingMakitareplacementparts. Maintenance

2. Put the mower on its side. Clean grass clippings

accumulated on the underside of mower deck.

3. Pour water toward the bottom of the machine to

which the blade is attached. NOTICE: Do not wash the machine with high pressure water.

4. Check all nuts, bolts, screws, etc. for tightness.

Inspect moving parts for damage, breakage, and wear. Damaged or missing parts should be repaired or replaced.

Store the mower in a safe place out of the reach of children. Carrying the mower CAUTION: Before carrying the mower, make sure that the battery cartridge and lock key are removed. Whencarryingthemower,holdthereargripandthe lower holding part at the front of the machine with two peopleasshowninthegure. ►Fig.35: 1. Lower holding part 2. Rear grip Storing CAUTION: When putting the machine in the upright position, place the machine on a at and stable surface. If the machine is placed on an unsta- blesurface,themachinemayfalloverandcausean injury. Storemowerindoorsinacool,dryandlockedplace. Don't store the mower and charger in locations where thetemperaturemayreachorexceed40°C.

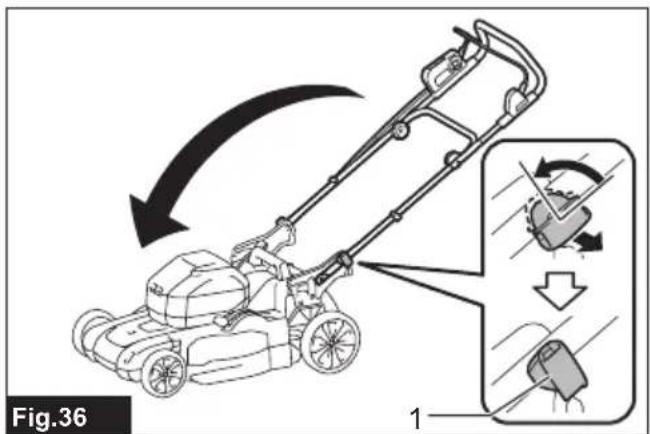

lower handle to release the locking pin. Perform the same procedure on the other side, and then fold the handle. ►Fig.36: 1.Knob NOTE: Supporting the handle makes it easier to release the locking pin when pulling the knob.

3. Turn the knob on both sides 90°. Make sure that

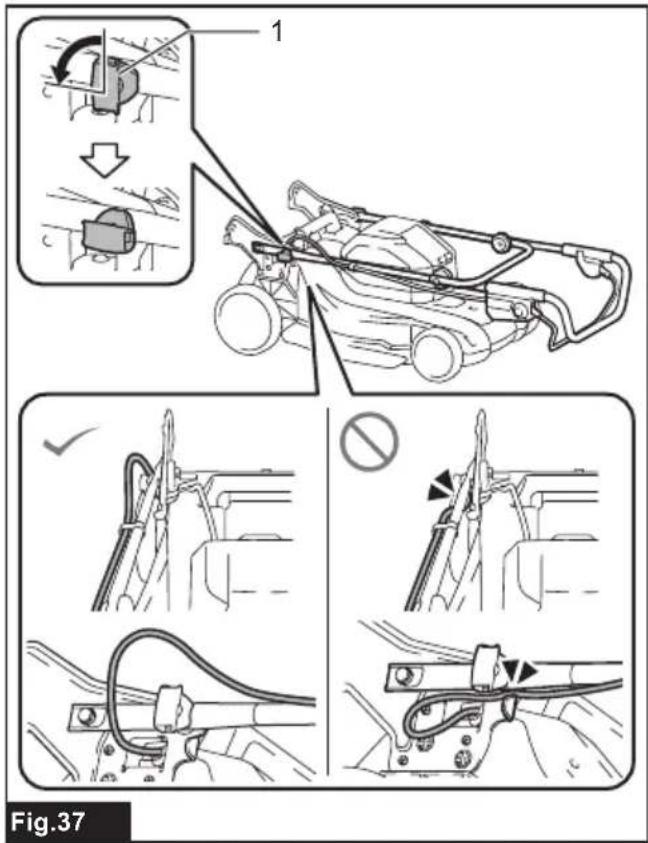

theknobsaresecurelyxed. ►Fig.37: 1.Knob NOTICE: Be careful not to pinch the cord when folding the handle.

4. Loosen the thumb nuts on both sides, and then

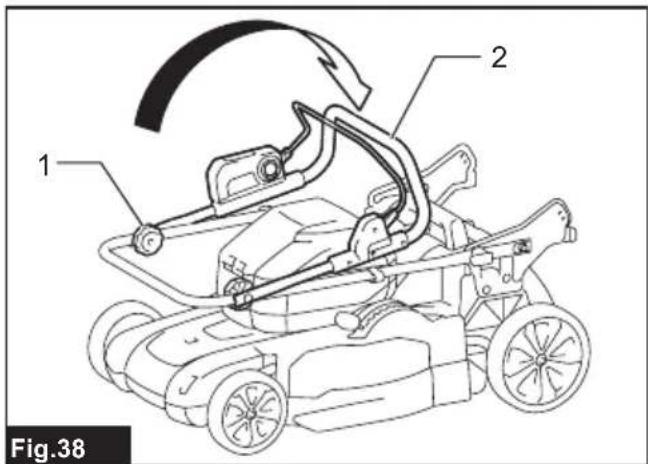

foldtheupperhandleasshowninthegure. ►Fig.38: 1. Thumb nut 2. Upper handle

5. Place the machine in the upright position.

NOTE: When putting the mower in the upright posi- tion,donotholdthehandleonly,butholdthemower bodyandhandle.

WARNING: The blade coasts for a few sec-

onds after releasing the switch. Do not start any operation until the blade comes to a complete stop.

WARNING: Always remove the lock key and

battery cartridge when removing or installing the blade. Failure to remove the lock key and battery cartridge may cause a serious injury.

WARNING: Always wear gloves when han-

dling the blade. NOTICE: When removing or installing the mower blade, use the box wrench included in the machine package. Removing the mower blade

1. Put the mower on its side so that the mowing

heightadjustinglevercomestothelowerside.

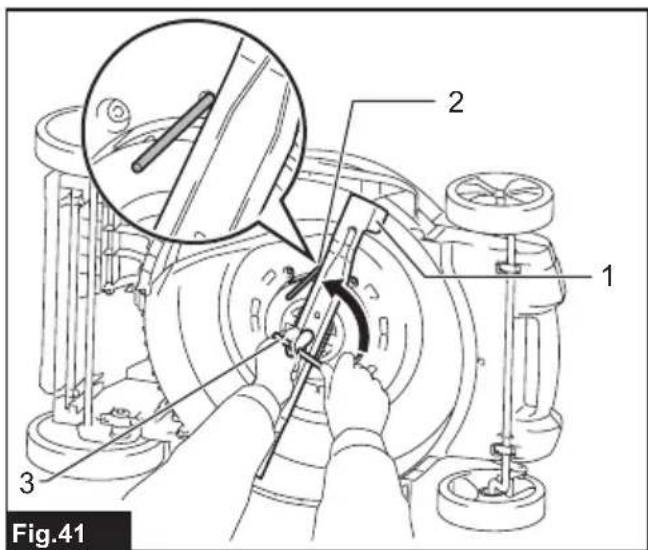

2. To lock the blade, insert the pin into the hole on

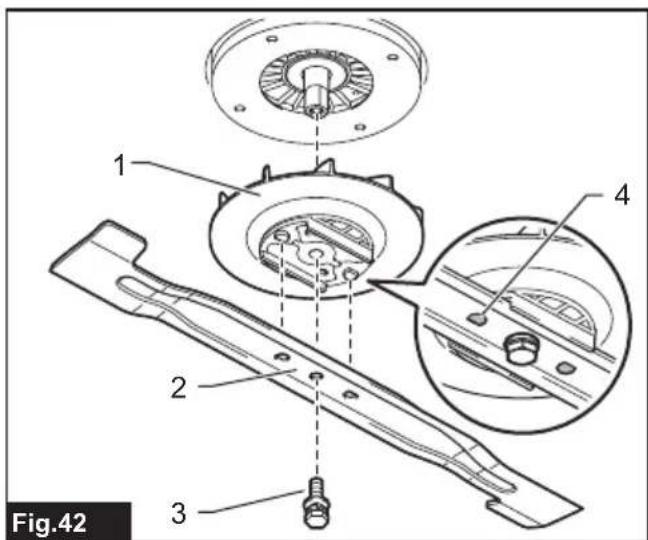

NOTICE: When installing the mower blade, make sure that the protrusions on the blade support t in the holes in the mower blade.20 ENGLISH Installing the mower blade

WARNING: Install the mower blade carefully.

It has a top/bottom facing.

WARNING: Tighten the bolt clockwise rmly

to secure the blade.

WARNING: Make sure that the mower blade

and all the xing parts are installed correctly and tightened securely.

WARNING: When you replace the blades,

always follow the instructions provided in this manual. NOTICE: When tightening the bolt to install the mower blade, apply 19 - 29 N•m as tightening torque (the values are just for a reference). NOTICE: After installing the mower blades, remove the pin from the mower body. To install the mower blades, perform the removal proce- dure in reverse. TROUBLESHOOTING Beforeaskingforrepairs,conductyourowninspectionrst.Ifyoundaproblemthatisnotexplainedinthemanual, donotattempttodisassemblethemachine.Instead,askMakitaAuthorizedServiceCenters,alwaysusingMakita replacement parts for repairs. State of abnormality Probable cause (malfunction) Remedy Mower does not start. Batterycartridgeisnotinstalled. Installchargedbatterycartridge. Batteryproblem(undervoltage) Rechargethebatterycartridge.Ifrechargingisnot e󰀨ective,replacebatterycartridge. Thelockkeyisnotinserted. Insertthelockkey. Motor stops running after a little use. Battery'schargelevelislow. Rechargethebatterycartridge.Ifrechargingisnot e󰀨ective,replacebatterycartridge. Cutting height is too low. Increase the cutting height. Cut grass is clogged in the mower. Remove the clogged grass from the mower. Motor does not reach maximum RPM. Batterycartridgeisinstalledimproperly. Installthebatterycartridgeasdescribedinthismanual. Batterypowerisdropping. Rechargethebatterycartridge.Ifrechargingisnot e󰀨ective,replacebatterycartridge. Thedrivesystemdoesnotworkcorrectly. Askyourlocalauthorizedservicecenterforrepair. Mower blade does not rotate: stopthemowerimmediately! Foreignobjectsuchasabranchis jammedneartheblade. Removetheforeignobject. Thedrivesystemdoesnotwork correctly. Askyourlocalauthorizedservicecenterforrepair. Abnormal vibration: stopthemowerimmediately! Bladeisimbalanced,excessivelyor unevenlyworn. Replace the blade. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita machine specied in this manual.Theuseofany other accessories or attachments might present a risk ofinjurytopersons.Onlyuseaccessoryorattach- ment for its stated purpose. Ifyouneedanyassistanceformoredetailsregard- ingtheseaccessories,askyourlocalMakitaService Center.

Model LM002J Trillingsemissie (a

Model LM002J Vibrationsemission (a
