USER MANUAL PKZS 2000 A1 PARKSIDE

3. Scope of delivery 16

7. Before starting the equipment 20

8. Attachment and operation 20

13. Disposal and recycling 23

Before commissioning, read and observe the operating instructions and safety instructions!

Wear safety goggles!

Important! Risk of injury. Never reach into the running saw blade!

Important! Laser radiation

Protection Class II (double shielded)

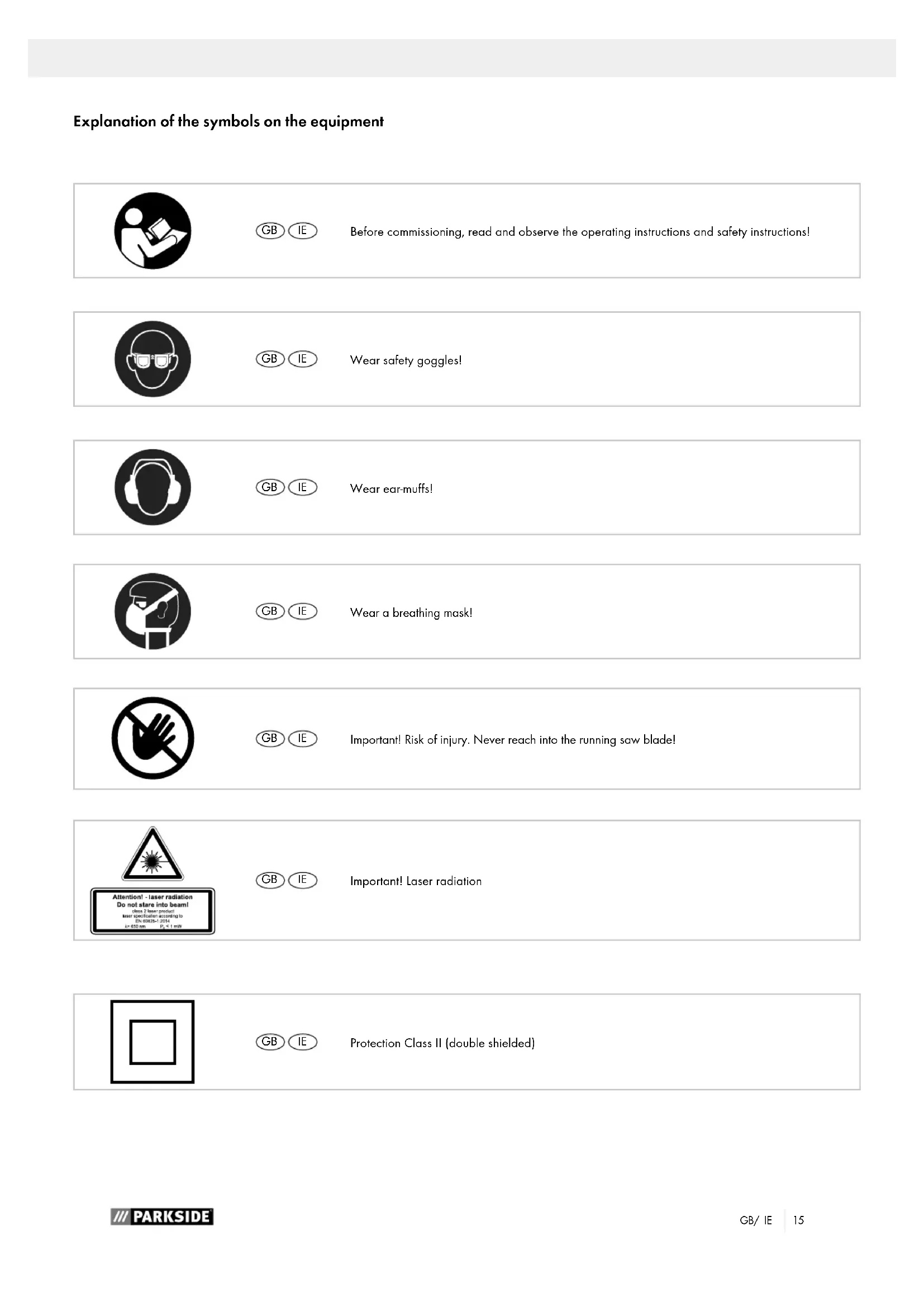

Wear a breathing mask! Explanation of the symbols on the equipment16 GB/ IE

MANUFACTURER: scheppach Fabrikation von Holzbearbeitungsmaschine GmbH Günzburger Straße 69 D- 89335 Ichenhausen DEAR CUSTOMER, we hope your new tool brings you much enjoyment and suc- cess. NOTE: According to the applicable product liability laws, the man- ufacturer of the device does not assume liability for dam- ages to the product or damages caused by the product that occurs due to:

• Non- compliance of the operating instructions,

• Repairs by third parties, not by authorized service tech- nicians,

• Installation and replacement of non- original spare parts,

• Application other than specified,

• A breakdown of the electrical system that occurs due to the non- compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113. We recommend: Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommen- dations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine. In addition to the safety regulations in the operating instruc- tions, you have to meet the applicable regulations that ap- ply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with. In addition to the safety instructions contained in this oper- ating manual and the specific regulations of your country, the technical rules generally accepted for the operation of machines of the same type must be observed. We accept no liability for damage or accidents which arise due to non- observance of these instructions and the safety information.

5. Movable blade guard

8. Workpiece support

9. Locking screw for workpiece support

16a. Moveable stop rail 16b. Set screw

2 7. Adjustment screw (90°)

28. Adjustment screw (45°)

3. Scope of delivery

• Open the packaging and remove the device carefully.

• Remove the packaging material as well as the packaging and transport bracing (if available).

• Check that the delivery is complete.

• Check the device and accessory parts for transport damage.

• If possible, store the packaging until the warranty period has expired. ATTENTION The device and packaging materials are not toys! Chil- dren must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suf- focation!17 GB/ IE

• Crosscut, drag and mitre saw

• 2 x Clamping device (7)

• 2 x Workpiece support (8)

The Crosscut, drag and mitre Saw is designed to crosscut wood and plastic respective of the machine’s size. The saw is not designed for cutting firewood. Warning! Not use the saw to cut materials other than those specified described in manual. Warning! The supplied saw blade is only intended for the sawing of wood! Do not use this blade for the sawing of plastic! The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. The equipment is to be operated only with suitable saw blades. It is prohibited to use any type of cutting- off wheel. To use the equipment properly you must also observe the safety information, the assembly instructions and the operat- ing instructions to be found in this manual. All persons who use and service the equipment have to be acquainted with this manual and must be informed about the equipment’s potential hazards. It is also imperative to ob- serve the accident prevention regulations in force in your area. The same applies for the general rules of health and safety at work. The manufacturer will not be liable for any changes made to the equipment nor for any damage resulting from such changes. Even when the equipment is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the ma- chine’s construction and design:

• Contact with the saw blade in the uncovered saw zone.

• Reaching into the running saw blade (cut injuries).

• Kick- back of workpieces and parts of workpieces.

• Saw blade fracturing.

• Catapulting of faulty carbide tips from the saw blade.

• Damage to hearing if ear- muffs are not used as necessary.

• Harmful emissions of wood dust when used in closed rooms. Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our war- ranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Safety information

Attention! The following basic safety measures must be observed when using electric tools for protection against electric shock, and the risk of injury and fire. Read all these notices before using the electric tool and keep the safety in- structions for later reference. Safe work

1. Keep the work area orderly

- Disorder in the work area can lead to accidents.

2. Take environmental influences into account

- Do not expose electric tools to rain. - Do not use electric tools in a damp or wet environ- ment. - Make sure that the work area is well- illuminated. - Do not use electric tools where there is a risk of fire or explosion.

3. Protect yourself from electric shock

- Avoid physical contact with earthed parts (e.g. pipes, radiators, electric ranges, cooling units).

4. Keep children away

- Do not allow other persons to touch the equipment or cable, keep them away from your work area.

5. Securely store unused electric tools

- Unused electric tools should be stored in a dry, el- evated or closed location out of the reach of children.

6. Do not overload your electric tool

- They work better and more safely in the specified out- put range.

7. Use the correct electric tool

- Do not use low- output electric tools for heavy work. - Do not use the electric tool for purposes for which it is not intended. For example, do not use handheld circular saws for the cutting of branches or logs. - Do not use the electric tool to cut firewood.

8. Wear suitable clothing

- Do not wear wide clothing or jewellery, which can become entangled in moving parts. - When working outdoors, anti- slip footwear is recom- mended. - Tie long hair back in a hair net.

9. Use protective equipment

- Wear protective goggles. - Wear a mask when carrying out dust- creating work.

10. Connect the dust extraction device

- If connections for dust extraction and a collecting de- vice are present, make sure that they are connected and used properly. - Operation in enclosed areas is only permitted with a suitable extraction system.

11. Do not use the cable for purposes for which it is not in-

tended - Do not use the cable to pull the plug out of the outlet. Protect the cable from heat, oil and sharp edges.

12. Secure the workpiece

- Use the clamping devices or a vice to hold the work- piece in place. In this manner, it is held more securely than with your hand. - An additional support is necessary for long work- pieces (table, trestle, etc.) in order to prevent the ma- chine from tipping over. - Always press the workpiece firmly against the work- ing plate and stop in order to prevent bouncing and twisting of the workpiece.

13. Avoid abnormal posture

- Make sure that you have secure footing and always maintain your balance.18 GB/ IE

23. Have your electric tool repaired by a qualified electri-

cian - This electric tool conforms to the applicable safety regulations. Repairs may only be performed by an electrician using original spare parts. Otherwise ac- cidents can occur. Additional safety instructions

1. Safety precautions

- Warning! Do not use damaged or deformed saw blades. - Replace a worn table insert. - Only use saw blades recommended by the manufac- turer which conform to EN 847-1. - Make sure that a suitable saw blade for the material to be cut is selected. - Wear suitable personal protective equipment. This includes: - Hearing protection to avoid the risk of becoming hearing impaired, - Respiratory protection to avoid the risk of inhaling harmful dust, - Wear gloves when handling saw blades and rough materials. Carry saw blades in a container whenever practical. - Wear goggles. Sparks generated during work or splinters, chippings and dust coming from the de- vice can lead to loss of eyesight. - Connect a dust collecting device to the electric tool when sawing wood. The emission of dust is influ- enced, among other things, by the type of material to be processed, the significance of local separation (collection or source) and the correct setting of the hood/guide plates/guides. - Do not use saw blades made of high- speed alloy steel (HSS steel).

2. Maintenance and repair

- Pull out the mains plug for any adjustment or repair tasks. - The generation of noise is influenced by various fac- tors, including the characteristics of saw blades, condition of saw blade and electric tool. Use saw blades which were designed for reduced noise de- velopment, insofar as possible. Maintain the electric tool and tool attachments regularly and if necessary, initiate repairs in order to reduce noise. - Report faults on the electric tool, protective devices or the tool attachment to the person responsible for safety as soon as they are discovered.

- Make sure that a suitable saw blade for the material to be cut is selected. - Never use the machine to cut other materials as spec- ified. - To transport the machine follow the procedure of point 9. - Avoid awkward hand positions in which a sudden slip could cause one or both hands to come into con- tact with the saw blade.

14. Take care of your tools

- Keep cutting tools sharp and clean in order to be able to work better and more safely. - Follow the instructions for lubrication and for tool re- placement. - Check the connection cable of the electric tool regu- larly and have it replaced by a recognised specialist when damaged. - Check extension cables regularly and replace them when damaged. - Keep the handle dry, clean and free of oil and grease.

15. Pull the plug out of the outlet

- Never remove loose splinters, chips or jammed wood pieces from the running saw blade. - During non- use of the electric tool or prior to mainte- nance and when replacing tools such as saw blades, bits, milling heads.

16. Do not leave a tool key inserted

- Before switching on, make sure that keys and adjust- ing tools are removed.

17. Avoid inadvertent starting

- Make sure that the switch is switched off when plug- ging the plug into an outlet.

18. Use extension cables for outdoors

- Only use approved and appropriately identified ex- tension cables for use outdoors. - Only use cable reels in the unrolled state.

19. Remain attentive

- Pay attention to what you are doing. Remain sensible when working. Do not use the electric tool when you are distracted.

20. Check the electric tool for potential damage

- Protective devices and other parts must be carefully inspected to ensure that they are fault- free and func- tion as intended prior to continued use of the electric tool. - Check whether the moving parts function faultlessly and do not jam or whether parts are damaged. - All parts must be correctly mounted and all conditions must be fulfilled to ensure fault- free operation of the electric tool. - The moving protective hood may not be fixed in the open position. - Damaged protective devices and parts must be prop- erly repaired or replaced by a recognised workshop, insofar as nothing different is specified in the operat- ing manual. - Damaged switches must be replaced at a customer service workshop. - Do not use any faulty or damaged connection cables. - Do not use any electric tool on which the switch can- not be switched on and off.

- Exercise elevated caution for double mitre cuts.

- The use of other insertion tools and other accessories can entail a risk of injury.19 GB/ IE

8. Make sure that fixed reducer rings are parallel to each

9. Handle insertion tool with caution. They are ideally

stored in the originally package or special containers. Wear protective gloves in order to improve grip and to further reduce the risk of injury.

10. Prior to the use of insertion tools, make sure that all pro-

tective devices are properly fastened.

11. Prior to use, make sure that the insertion tool meets the

technical requirements of this electric tool and is prop- erly fastened.

12. Only use the supplied saw blade for cutting wood,

never for the processing of metals. Attention: Laser radiation Do not stare into the beam Class 2 laser Protect yourself and you environment from accidents using suitable precautionary measures!

• Do not look directly into the laser beam with unprotected eyes.

• Never look into the path of the beam.

• Never point the laser beam towards reflecting surfaces and persons or animals. Even a laser beam with a low out- put can cause damage to the eyes.

• Caution - methods other than those specified here can re- sult in dangerous radiation exposure.

• Never open the laser module. Unexpected exposure to the beam can occur.

• The laser may not be replaced with a different type of la- ser.

• Repairs of the laser may only be carried out by the laser manufacturer or an authorised representative.

Wavelength of laser ............................................. 650 nm Laser output .......................................................... < 1 mW *S6, continuous operation periodic duty. Identical duty cycles with a period at load followed by a period at no load. Running time 10 minutes; duty cy- cle is 25% of the running time. - When transporting the electric tool, only use the transport devices. Never use the protective devices for handling or transport. - Operate the machine only if the protective devices are functional, in good condition and in the correct position. - The floor around the machine must be level, clean and free of loose particles, such as chips and cutting residues. - Only use saw blades for which the maximum permis- sible speed is not lower than the maximum spindle speed of the machine and which are suitable for the material to be cut. - Be sure to only use spacers and spindle rings speci- fied by the manufacturer as suitable for the intended purpose. - Attention! Do not replace the laser by a different type. Repairs may only be carried out by the manufacturer or an authorized representative. - Do not remove any cutting residues or other parts of workpieces from the cutting zone while the machine is running and the saw unit is not at rest. Instructions for proper and safe sawing: a.) Clamp the workpiece always at the saw table firmly. Therefore please use the supplied clamping device. b.) Make sure that the machine is secured before each sawing; c.) If necessary attach the machine to a workbench or the like. Fasten the machine to the workbench, using the holes at the fixed saw table. d.) Support long workpieces (e.g. with a roller table) to prevent them sagging at the end of a cut. e.) Make sure that the saw blade does not touch the rotary table in any position by pulling out the mains plug and rotating the saw blade by hand in the 45° and 90° po- sition. If necessary, readjust the saw head. Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or pas- sive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physi- cian and the manufacturer of the medical implant prior to operating the electric tool. Safety Instructions for the handling of saw blades

1. Only use insertion tools if you have mastered their use.

2. Observe the maximum speed. The maximum speed

specified on the insertion tool may not be exceeded. If specified, observe the speed range.

3. Observe the motor / saw blade direction of rotation.

4. Do not use any insertion tools with cracks. Sort out

cracked insertion tools. Repairs are not permitted.

5. Clean grease, oil and water off of the clamping sur-

6. Do not use any loose reducing rings or bushes for the

reducing of holes on saw blades.

7. Make sure that fixed reducer rings for securing the in-

sertion tool have the same diameter and have at least 1/3 of the cutting diameter.20 GB/ IE

8. Attachment and operation

• In order to adjust the rotary table (14) loosen the set screw (26) approx. 2 turns.

• Turn the rotary table (14) and pointer (12) to the desired angle measurement on the scale (13) and secure with the set screw (26).

• Pressing the machine head (4) lightly downwards and re- moving the locking bolt (23) from the motor bracket at the same time disengages the saw from the lowest position.

• Swing the machine head (4) up until the release lever (3) latches into place.

• It is possible to secure the clamping devices (7) to the left or right on the stationary saw bench (15). Insert the clamp- ing devices (7) in the holes on the rear side of the stop rail (16) and secure it with the star grip screws (7a).

• Attach the workpiece supports (8) to the fixed saw table as shown in Figure 5 and fasten with the screw (9).

• It is possible to tilt the machine head (4) a max. 45° to the left by loosening the set screw (22).

8.2 Precision adjustment of the stop for crosscut 90°

• No stop angle included.

• Lower the machine head (4) and secure using the locking bolt (23).

• Loosen the set screw (22).

• Position the angle stop (a) between the saw blade (6) and the rotary table (14).

• Adjust the adjusting screw (27) until the angle between the saw blade (6) and rotary table (14) is 90°.

• It is not necessary to fix this setting because it is maintained by the spring pretension.

• Subsequently check the position of the angle indicator. If necessary loosen the pointer (19) using a Philips screw- driver, set to position 0° on the angle scale (18) and re- tighten the retaining screw.

8.3 Cross cut 90° and turntable 0° (Fig. 8)

In the case of cutting widths up to approx. 100 mm it is pos- sible to fix the traction function of the saw with the set screw (20) in the rear position. In this position the machine can be operated in cross cutting mode. If the cutting width is over 100 mm then it is necessary to ensure that the set screw (20) is loose and the machine head (4) can move. Attention! For 90° cross cuts, the moveable stop rail (16a) must be fixed in the inner position.

• Open the set screw (16b) on the moveable stop rail (16a) and push the moveable stop rail (16a) inwards.

• The moveable stop rail (16a) must be locked in a position far enough from the inner position that the distance be- tween the stop rail (16a) and the saw blade (6) is no more than 8 mm.

• Before making the cut, check that no collision could occur between the stop rail (16a) and the saw blade (6).

• Tighten the set screw (16b) again.

• Move the machine head (4) to its upper position. The work piece must have a minimum height of 3mm and a minimum width of 10 mm. Make sure that the workpiece is always secured with the clamping device. Noise Total noise values determined in accordance with EN 61029. Sound pressure level L

.........................................................3 dB Wear hearing protection. The effects of noise can cause a loss of hearing Residual risks The machine has been built according to the state of the art and the recognised technical safety requirements. However, individual residual risks can arise during op- eration.

• Health hazard due to electrical power, with the use of im- proper electrical connection cables.

• Furthermore, despite all precautions having been met, some non- obvious residual risks may still remain.

• Residual risks can be minimised if the „safety instructions“ and the „Proper use“ are observed along with the whole of the operating instructions.

• Do not load the machine unnecessarily: excessive pres- sure when sawing will quickly damage the saw blade, which results in reduced output of the machine in the pro- cessing and in cut precision.

• When cutting plastic material, please always use clamps: the parts which should be cut must always be fixed be- tween the clamps.

• Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet.

• Use the tool that is recommended in this manual. In doing so, your machine provides optimal performance.

• Hands may never enter the processing zone when the ma- chine is in operation.

• Release the handle button and switch off the machine prior to any operations

7. Before starting the equipment

• The equipment must be set up where it can stand securely. Secure the machine on a workbench or a stand with 4 screws through the holes in the fixed saw table (15).

• All covers and safety devices have to be properly fitted before the equipment is switched on.

• It must be possible for the blade to run freely.

• When working with wood that has been processed before, watch out for foreign bodies such as nails or screws, etc.

• Before you press the ON/OFF switch check that the saw blade is fitted correctly. Moving parts must run smoothly.

• Before you connect the equipment to the power supply make sure the data on the rating plate are dentical to the mains data.21 GB/ IE

• Loosen the set screw (22) and use the handle (1) to angle the machine head (4) 45° to the left.

• 45° - position angle stop (b) between the saw blade (6) and rotary table (14).

• Adjust the adjusting screw (28) until the angle between the saw blade (6) and rotary table (14) is precisely 45°.

• It is not necessary to fix this setting because it is maintained by the spring pretension.

• Subsequently check the position of the angle indicator. If necessary loosen the pointer (19) using a Philips screw- driver, set to position 45° on the angle scale (18) and re- tighten the retaining screw.

8.6 Mitre cut 0°- 45° and turntable 0° (Fig. 1/2/12)

The crosscut, drag and mitre saw can be used to make mitre cuts of 0° - 45° in relation to the work face. Important! To make miter cuts (inclined saw head), the ad- justable stop rail (16a) must be fixed at the outer position.

• Open the set screw (16b) for the adjustable stop rail (16a) and push the adjustable stop rail (16a) outwards.

• The adjustable stop rail (16a) must be fixed far enough in front of the innermost position that the distance between the stop rail (16a) and the saw blade (6) amounts to a maximum of 8 mm.

• Before making a cut, check that the stop rail (16a) and the saw blade (6) cannot collide.

• Secure the set screw (16b) again.

• Move the machine head (4) to the top position.

• Fix the rotary table (14) in the 0° position.

• Loosen the set screw (22) and use the handle (1) to angle the machine head (4) to the left, until the pointer (19) in- dicates the desired angle measurement on the scale (18).

• Re- tighten the fixing screw (22).

• Cut as described in section 8.3.

8.7 Mitre cut 0°- 45° and turntable 0°- 45°(Fig. 2/4/13)

The crosscut, drag and mitre saw can be used to make mitre cuts to the left of 0°- 45° in relation to the work face and, at the same time, 0° - 45° to the left or 0° - 45° to the right in relation to the stop rail (double mitre cut). Important! To make miter cuts (inclined saw head), the ad- justable stop rail (16a) must be fixed at the outer position.

• Open the set screw (16b) for the adjustable stop rail (16a) and push the adjustable stop rail (16a) outwards.

• The adjustable stop rail (16a) must be fixed far enough in front of the innermost position that the distance between the stop rail (16a) and the saw blade (6) amounts to a maximum of 8 mm.

• Before making a cut, check that the stop rail (16a) and the saw blade (6) cannot collide.

• Secure the set screw (16b) again.

• Move the machine head (4) to its upper position.

• Release the rotary table (14) by loosening the set screw (26).

• Using the handle (11), set the rotary table (14) to the de- sired angle (refer also to point 8.4 in this regard).

• Re- tighten the set screw (26) in order to secure the rotary table.

• Undo the locking screw (22)

• Use the handle (1) to push back the machine head (4) and fix it in this position if required (dependent on the cutting width).

• Place the piece of wood to be cut at the stop rail (16) and on the turntable (14).

• Lock the material with the clamping devices (7) on the fixed saw table (15) to prevent the material from moving during the cutting operation.

• Push down the release lever (3) to release the machine head (4).

• Press the ON/OFF switch (2) to start the motor.

• With the drag guide (21) fixed in place: use the handle (1) to move the machine head (4) steadily and with light pressure downwards until the saw blade (6) has completely cut through the work piece.

• With the drag guide (21) not fixed in place: pull the machine head (4) all the way to the front. Lower the handle (1) to the very bottom by applying steady and light downward pressure. Now push the machine head (4) slowly and steadily to the very back until the saw blade (6) has completely cut through the work piece.

• When the cutting operation is completed, move the ma- chine head back to its upper (home) position and release the ON/OFF button (2). Attention! The machine executes an upward stroke automatically due to the return spring, i.e. do not release the handle (1) after completing the cut; instead allow the machine head to move upwards slowly whilst applying light counter pressure.

8.4 Cross cut 90° and turntable 0° - 45° (Fig. 9)

The crosscut, drag and mitre saw can be used to make cross- cuts of 0° -45° to the left and 0° - 45° to the right in relation to the stop rail. Important. To make 90° crosscuts, the adjustable stop rail (16a) must be fixed at the inner position.

• Open the set screw (16b) for the adjustable stop rail (16a) and push the adjustable stop rail (16a) inwards.

• The adjustable stop rail (16a) must be fixed far enough in front of the innermost position that the distance between the stop rail (16a) and the saw blade (6) amounts to a maximum of 8 mm.

• Before making a cut, check that the stop rail (16a) and the saw blade (6) cannot collide.

• Secure the set screw (16b) again.

• Loosen set screw (26).

• Use the handle (11) to adjust the rotary table (14) to the desired angle. The pointer (12) on the rotary table must match the desired angle on the scale (13) on the fixed saw table (15).

• Re- tighten the set screw (26) in order to secure the rotary table (14).

• Cut as described under section 8.3.

8.5 Precision adjustment of the stop for mitre cut 45°

• No stop angle included.

• Lower the machine head (4) and secure using the locking bolt (23).

• To switch on: Move the ON/OFF switch of the laser (34) to the “1” position. A laser line is projected onto the mate- rial you wish to process, providing an exact guide for the cut.

• To switch off: Move the ON/OFF switch of the laser (34) to the “0” position.

8.12 Adjusting the laser (Fig. 20)

If the laser (33) ceases to indicate the correct cutting line, you can readjust the laser. To do so, open the screws (e) and set the laser by moving sideways to that the laser beam strikes the teeth of the saw blade (6).

• Tighten the set screw (26) in order to lock the rotary table (14)

• Activate the release lever (3), press the machine head (4) downwards and secure with the safety pin (23). The saw is now locked in its bottom position.

• Fix the saw’s drag function with the locking screw for drag guide (20) in rear position.

• Carry the equipment by the fixed saw table (15).

• When reassembling the equipment proceed as described under section 7.

m Warning! Prior to any adjustment, maintenance or ser- vice work disconnect the mains power plug! General maintenance measures Wipe chips and dust off the machine from time to time using a cloth. In order to extend the service life of the tool, oil the rotary parts once monthly. Do not oil the motor. When cleaning the plastic do not use corrosive products. Brush inspection Check the carbon brushes after the first 50 operating hours with a new machine, or when new brushes have been fitted. After carrying out the first check, repeat the check every 10 operating hours. If the carbon is worn to a length of 6 mm, or if the spring or contact wire are burned or damaged, it is necessary to replace both brushes. If the brushes are found to be usable following removal, it is possible to reinstall them. When servicing the carbon brushes, open the two latches counterclockwise (as shown in Figure 21). Then remove the carbon brushes. Replace the carbon brushes in the reverse order.

Store the device and its accessories in a dark, dry and frost- proof place that is inaccessible to children. The optimum stor- age temperature is between 5 and 30˚C. Store the electrical tool in its original packaging. Cover the electrical tool in order to protect it from dust and moisture.

• Use the handle (1) to tilt the machine head (4) to the left until it coincides with the required angle value (in this con- nection see also section 8.6).

• Re- tighten the fixing screw (22).

• Cut as described under section 8.3.

8.8 Limiting the cutting depth (Fig. 3/14)

• The cutting depth can be infinitely adjusted using the screw (24). To do this loosen the knurled nut on the screw (24). Move the stop for the cutting depth limitre (25) to the out- side. Turn the screw (24) in or out to set the required cutting depth. Then re- tighten the knurled nut on the screw (24).

• Check the setting by completing a test cut.

8.9 Sawdust bag (Fig. 1/22)

The saw is equipped with a debris bag (17) for sawdust and chips. Squeeze together the metal ring on the dust bag and attach it to the outlet opening in the motor area. The debris bag (17) can be emptied by means of a zipper at the bottom.

8.10 Changing the saw blade (Fig. 1/2/15-18)

Remove the power plug! Important! Wear safety gloves when changing the saw blade. Risk of injury!

• Swing the machine head (4) upwards and lock with the safety pin (23).

• Press the release lever (3). Swing up the saw blade guard (5) to the point where the recess in the saw blade guard (5) is above the flange bolt (29).

• Firmly press the saw shaft lock (31) and slowly rotate the flange bolt (29) in clockwise direction. The saw shaft lock (31) engages after no more than one rotation. Attention! When loosening the screw, the machine head lowers slightly.

• Now, using a little more force, slacken the flange bolt (29) in the clockwise direction.

• Turn the flange screw (29) right out and remove the exter- nal flange (30).

• Take the blade (6) off the inner flange (32) and pull out downwards.

• Carefully clean the flange screw (29), outer flange (30) and inner flange (32).

• Fit and fasten the new saw blade (6) in reverse order.

• Important! The cutting angle of the teeth, in other words the direction of rotation of the saw blade (6) must coincide with the direction of the arrow on the housing.

• Before continuing your work make sure that all safety de- vices are in good working condition.

• Important! Every time that you change the saw blade (6), check to see that it spins freely in the table insert (10) in both perpendicular and 45° angle settings.

• Important! The work to change and align the saw blade (6) must be carried out correctly.23 GB/ IE Please provide the following information in the event of any enquiries:

• Type of current for the motor

• Machine data - t ype plate

13. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packag- ing can be reused or recycled. The equipment and its acces- sories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council. The packaging is wholly composed of environment- ally-friendly materials that can be disposed of at a local recycling centre. Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices. Old devices must not be disposed of with household waste! This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company. Store the operating manual with the electrical tool.

12. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the appli- cable VDE and DIN provisions. The customer‘s mains connection as well as the exten- sion cable used must also comply with these regula- tions.

• The product meets the requirements of EN 61000- 3-11 and is subject to special connection conditions. This means that use of the product at any freely selectable connection point is not allowed.

• Given unfavorable conditions in the power supply the product can cause the voltage to fluctuate temporarily.

• The product is exclusively intended for use at connection points that have a continuous current- carrying capacity of at least 100 A per phase.

• As the user, you are required to ensure, in consultation with your electric power company if necessary, that the connection point at which you wish to operate the product meets the specified requirements. Important information In the event of an overloading the motor will switch itself off. After a cool- down period (time varies) the motor can be switched back on again. Damaged electrical connection cable The insulation on electrical connection cables is often dam- aged. This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.

• Kinks where the connection cable has been improperly fastened or routed.

• Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall outlet.

• Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life- threatening due to the insulation damage. Check the electrical connection cables for damage regu- larly. Make sure that the connection cable does not hang on the power network during the inspection. Electrical connection cables must comply with the applica- ble VDE and DIN provisions. Only use connection cables with the marking „H05VV- F“. The printing of the type designation on the connection cable is mandatory. AC motor

• Extension cables up to 25 m long must have a cross- sec- tion of 1.5 mm

Connections and repairs of electrical equipment may only be carried out by an electrician.24 GB/ IE

Fault Possible cause Remedy Motor does not work Motor, cable or plug defective, fuses burnt Arrange for inspection of the machine by a specialist. Never repair the motor yourself. Danger! Check fuses and replace as necessary The motor starts up slowly and does not reach oper- ating speed. Voltage too low, coils damaged, capacitor burnt Contact the utility provider to check the voltage. Arrange for inspection of the motor by a specialist. Ar- range for replacement of the capacitor by a specialist Motor makes excessive noise Coils damaged, motor defective Arrange for inspection of the motor by a specialist The motor does not reach its full power. Circuits in the network are overloaded (lamps, other motors, etc.) Do not use any other equipment or motors on the same circuit Motor overheats easily. Overloading of the motor, insufficient cooling of the motor Avoid overloading the motor while cutting, remove dust from the motor in order to ensure optimal cooling of the motor Saw cut is rough or wavy Saw blade dull, tooth shape not appropriate for the material thickness Resharpen saw blade and/or use suitable saw blade Workpiece pulls away and/or splinters Excessive cutting pressure and/or saw blade not suitable for use Insert suitable saw blade Service information Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Wear parts*: carbon brushes, saw blade, table inserts, dust collecting bags

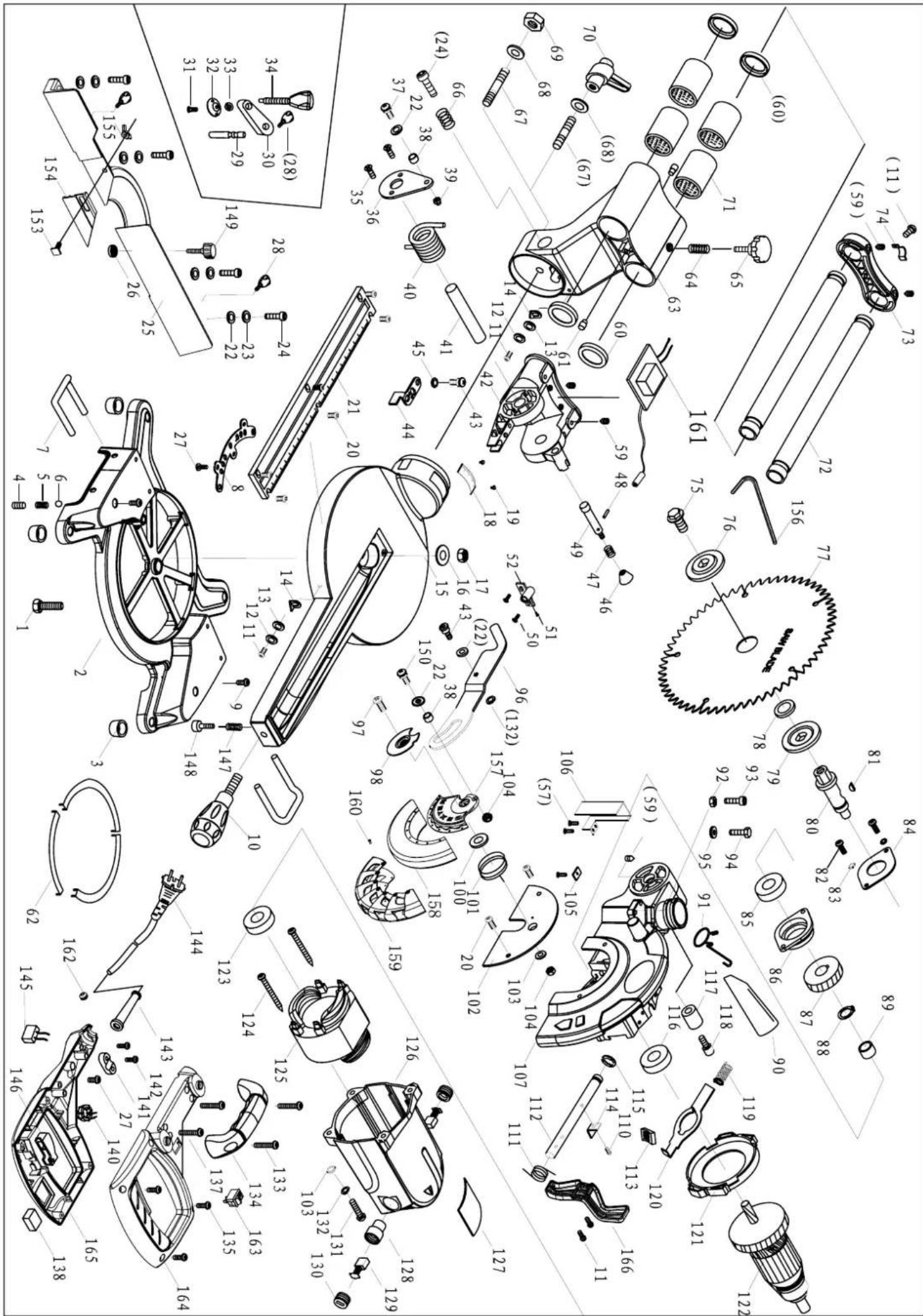

• Not necessarily included in the scope of delivery!25 GB/ IE

15. Warranty certificate

Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

• These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.

• Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or indus- trial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applica- tions or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappro- priate use (such as overloading of the device or use of non- approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. The guarantee is rendered null and void if any attempt is made to tamper with the device.

• The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submit- ted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on- site service is used.

• In order to assert your guarantee claim, please send your defective device postage- free to the address shown below. Please en- close either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device. Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Service-Hotline (GB/IE): [phone] (0,00 EUR/Min.) Service-Email (GB): [e-mail] Service-Email (IE): [e-mail] Service Address (GB/IE): GreatStar Europe Unit 55 Romsey Industrial Estate, Romsey Hampshire SO51 0HR26 FR/BE Table des matières: Page:
