DO354VD - Food Dehydrator DOMO - Free user manual and instructions

Product type	Food dehydrator
Brand	DOMO
Model	DO354VD
Capacity	5 stainless steel trays + 1 fruit leather tray + 1 drying sheet
Temperature range	35 °C – 75 °C (adjustable in 5 °C increments)
Timer	1 to 24 hours (adjustable per hour, digital display)
Features	Automatic shut-off at end of cycle, continuous fan for 10 s after shut-off, adjustable temperature and time during use
Display	Digital with temperature and remaining time display
Tray material	Stainless steel
Included accessories	5 stainless steel trays, 1 fruit leather tray, 1 drying sheet
Power supply	220-240 V ~ 50/60 Hz (estimated for standard household appliance)
Power	Approximately 500 W (estimated for this type of appliance)
Dimensions (approx.)	30 x 30 x 30 cm (estimated for 5 trays)
Weight (approx.)	3 kg (estimated)
Care and cleaning	Clean the trays, fruit leather tray, and drying sheet with warm water and a little detergent; do not put in dishwasher. Wipe the interior and exterior with a damp cloth. Never immerse the lid.
Safety	Automatic shut-off after timer, overheat protection (not specified but standard), do not use for more than 24 hours without a 2-hour break
Warranty	2 years from purchase date (parts and labor), 6 months for accessories and wear parts
Customer service	[phone] / [e-mail] (Mon-Thu 8:30-17:00, Fri 8:30-16:30)

Frequently Asked Questions - DO354VD DOMO

What foods can I dehydrate with the DOMO DO354VD?

You can dehydrate almost all foods: fruits (apples, bananas), vegetables (tomatoes, carrots), herbs, meats, fish, and even make fruit leathers. Use the drying sheet for small fruits or sticky foods.

How do I set the temperature and dehydration time?

Press the switch, then use the temperature adjustment buttons (35-75 °C, in 5 °C increments) and timer buttons (1-24 h, per hour). Then press the start button. You can adjust settings during operation.

Can I leave the appliance running all night?

Yes, the timer allows programming up to 24 hours. The appliance stops automatically at the end of the cycle. Make sure not to exceed 24 consecutive hours and let it cool for 2 hours before reuse.

How do I clean the trays and the dehydrator?

Wash the trays, fruit leather tray, and drying sheet with warm water and a little detergent, then dry them. Do not put them in the dishwasher. Clean the interior and exterior of the appliance with a damp cloth. Never immerse the housing.

Why does smoke or odor come out during the first use?

This is normal during first use. Run the appliance empty for 30 minutes, then rinse the trays again. Ensure good ventilation.

What is the best temperature for dehydrating herbs?

Herbs are best dehydrated at low temperature, around 35-40 °C, to preserve their aromas. Use the drying sheet to prevent them from falling through the grids.

Can I dehydrate foods without peeling them?

Yes, peeling is not mandatory. It reduces drying time but loses vitamins and minerals. Simply wash the food and remove damaged parts.

How do I store dehydrated foods?

Let them cool completely, then place them in airtight containers or vacuum bags. Store in a dry, cool place (≤15 °C) away from light. Fruits and vegetables keep up to 1 year, dried meat 3 months in the fridge or 1 year in the freezer.

What to do if the appliance does not turn on?

Check that the plug is properly inserted and the outlet works. Ensure the door is closed properly (the appliance may have a sensor). If the problem persists, contact DOMO customer service at [phone].

Can I use an extension cord with this appliance?

No, using an extension cord or power strip is not recommended for safety reasons. Plug the appliance directly into a grounded wall outlet.

USER MANUAL DO354VD DOMO

Modern kitchen appliance with digital display and 'DOMO' branding (no visible text beyond branding)

DO354VD

Handleiding Digitale voedseldroger

Mode d'emploi Déshydrateur digital

Gebrauchsanleitung Digitaler Nahrungstrockner

Instruction booklet Digital food dryer

Manual de instrucciones Deshidratador de alimentos

Istruzioni per l'uso Essiccatore di frutta e verdura

Návod k použití Digitální sušička potravin

Návod na použitie Digitálná sušička potravín

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Prohibition sign depicting a trash bin crossed out by a diagonal line, with a blank rectangular base below.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

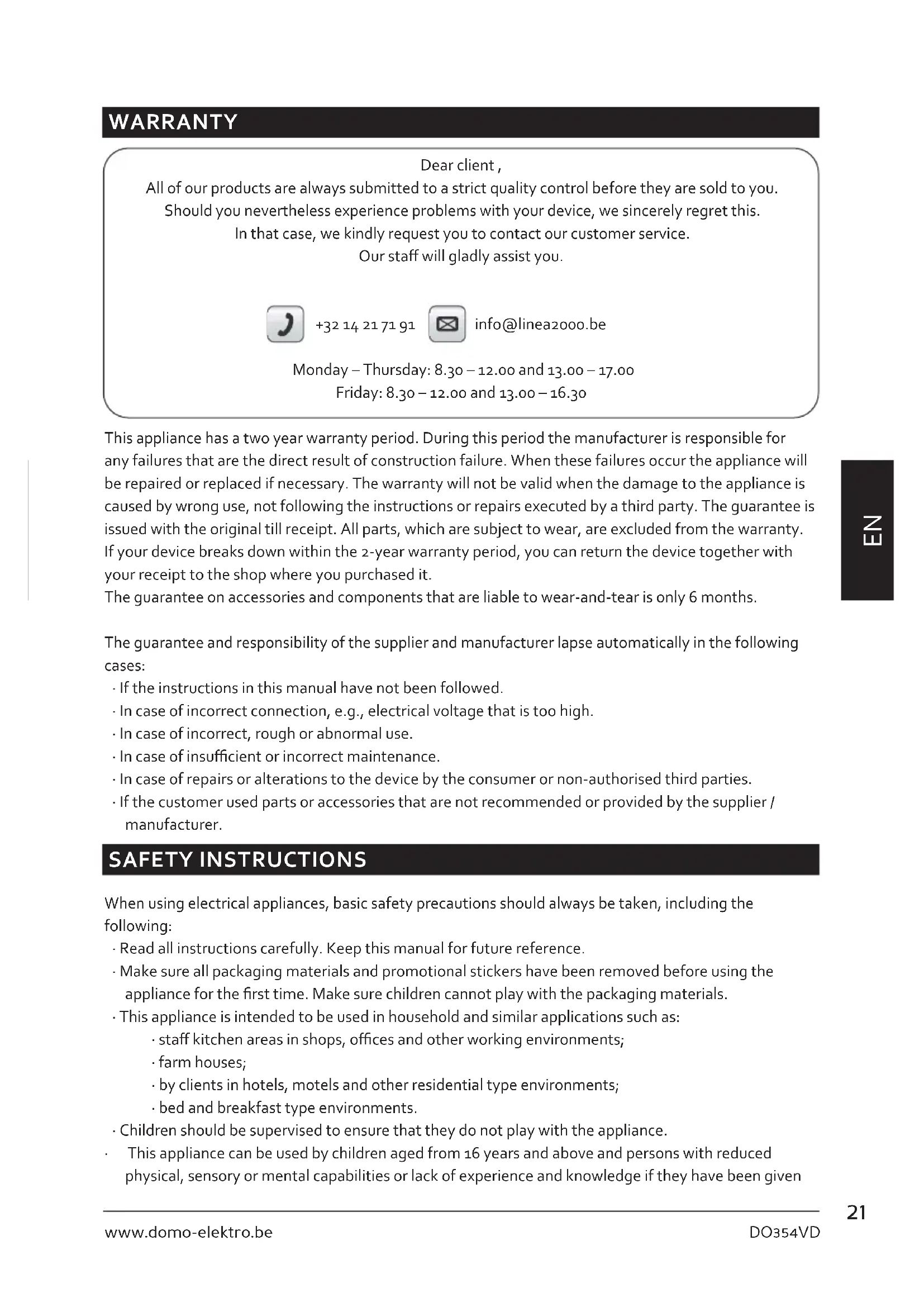

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
• In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

· All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- The appliance may not be used with an extension lead or a multiple socket.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

· Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

△CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

- Never cover the machine with towels or similar objects. Covering the ventilation holes may cause a fire.

- The parts are not dishwasher safe, unless otherwise stated in this manual.

- Avoid contact with moving parts. To reduce the risk of personal injury and/or damage to the food dryer, keep hands, hair, clothing, spatulas, and other kitchen utensils away from the food during use.

- Do not operate the appliance for more than 24 hours at a time. After 24 hours, unplug the food dryer and let it cool down for at least two hours before using it again.

- Do not use the appliance near bathtubs, washbasins, or other objects containing water or other liquids, or when standing in or on damp or wet surfaces. Do not store the appliance in a damp environment or room.

- Nevertheless, if the appliance should fall into water, turn off the mains supply to the socket and then immediately unplug the appliance from the socket. Never put your hands in the water.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

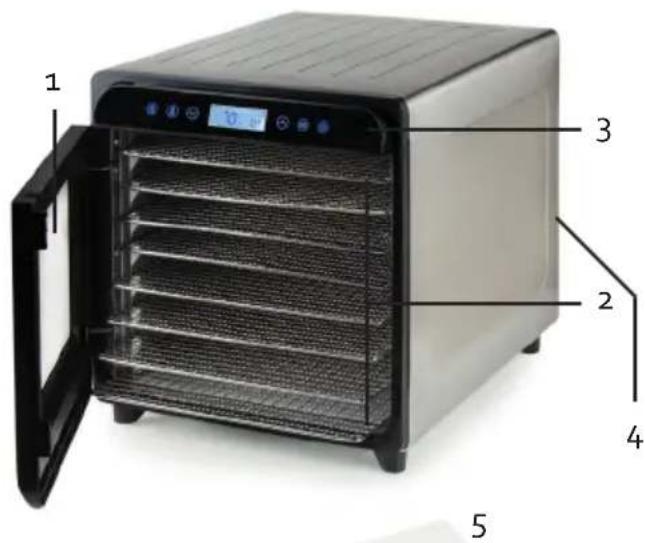

PARTS

1. Door
2. Stainless steel trays
3. Control panel
4. Ventilation opening
5. Drying sheet
6. Drip tray/tray for fruit leather
7. Timer: 1-24 hours
8. Setting the temperature: 35-75 °C
9. Lower
10. Display
11. Raise
12. Start button
13. On/off button

1 2 3 4 5

70 °C 10 H 7 8 9 10 11 12 13

6

BEFORE THE FIRST USE

1. Rinse the stainless steel trays, the drying sheet, the drip tray and the door - never rinse the entire appliance - with water and dry them with a towel.
2. Start the empty machine and allow it to run while empty for 30 minutes. Light smoke and an odour may be released; this is normal. Ensure adequate ventilation.
3. Rinse the shelves again and dry them with a cloth.
4. The machine is now ready for use. (This is only necessary the very first time you use the machine, after you have unpacked it.)

USE

PREPARATION

· Wash the food and pat it dry with a towel or paper towel.
- Peeling the food prior to drying it does decrease the drying time, but it also results in the loss of valuable vitamins and minerals.
- Cut the food into pieces, slices or strips of approximately the same size and thickness. Remove seeds, pits, etc. if necessary. Cut away any damaged or bruised areas.
- Hard food (e.g. hard vegetables) and vegetables that may not be consumed raw are best if blanched first, so that it is semi-soft prior to drying. This decreases the drying time and ensures that less vitamins are lost. Make sure that the food is sufficiently dried prior to drying it.

FILLING THE TRAYS

· Divide the food evenly over the stainless steel trays. Do not allow pieces to overlap.
• Make sure that a maximum of 90 % of the tray is covered, in order to allow for good air circulation.
· Depending on the size of the food, the trays can be adjusted in height.
- Use the drying sheet for smaller food, such as herbs and berries, or for sticky food, such as bananas and tomatoes.
- Place the collection tray on the bottom of the food dryer to keep it clean. You can also use the collection tray for making fruit leather.

DRYING FOOD

1. Close the door after filling the shelves. Plug the power cord into a socket. You will hear a signal and the display will light up.
2. Press the on/off button.
3. Set the temperature. The appliance is automatically programmed at 70^ C with a timer set at 10 hours. Press the temperature button to set the temperature ( 35-75^ C). By increasing and decreasing the temperature, you can choose the temperature you want. You can set it per 5^ C.
4. Set the time. Press the timer button. By increasing and decreasing the time, you can choose the time you want (1-24 hours). This can be set per hour.
5. When both the desired temperature and time have been selected, press the start button and the appliance will start drying. You can hear the fan running and the 'H' of the time display will flash.
6. During operation, the time on the display will count down. If the remaining time is less than one hour, the countdown time will be displayed in minutes. When the set time has elapsed, the appliance will beep and switch off automatically. The fan will continue to run for 10 seconds.

55°

55^ - 70^

65°

70°

70°

- The table above provides the recommended temperatures for different types of food. This is only a guideline.

- The best temperature or time setting depends on several factors, such as the humidity of the food, the humidity in the air, the thickness of the food, the volume of food to be dried, the number of shelves used, personal preference, etc.

- To make it easier to determine the settings, we recommend keeping track of the weight and times for drying.

· Always use the food dryer in a dust-free, dry, and well-ventilated area.

· While drying food, the temperature and timer can be adjusted at any time, if so required.

· If you want to stop drying earlier, press the on/off button.

- Check the status of your food every hour.

PRESERVATION OF DRIED FOOD

• Allow the food to cool completely before putting it away
• Save the food in air-tight jars or bags so that the food cannot absorb any moisture. In this way the food can be preserved for a long time.

• Save the food in a dry, dark place.

• Store in a cool place, preferably at 15^ C or below.

• Do not use a metal container for storing dried food.
• If properly packed and stored, dried fruit, vegetables, herbs, nuts, and bread can be kept for up to one year.
• If properly packed and stored, dried meat, poultry, and fish can be kept for up to three months in the refrigerator or up to one year in the freezer.

CLEANING AND MAINTENANCE

· Turn off the machine and remove the plug from the outlet before cleaning the machine.
- Allow the machine to cool.
- Wash the trays, the drip tray, the drying sheet, and door in warm water with a little dish soap. Do not put them into the dishwasher. Dry all the parts.
- Wipe the interior and exterior of the appliance clean with a moist cloth.
- Note: Never immerse the lid in water or allow it to come into contact with water. This could be dangerous.
- Do not use aggressive or abrasive cleaning products.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two plain rectangular plates, one labeled with number 5 and the other with number 6, against a white background (no text or symbols on the plates themselves)

PŘED PRVNÍM POUŽITÍM

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with a small transparent clip, placed on a plain white surface (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker, and a rectangular container with dark liquid (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
