MP100 Plus - Speaker EDIFIER - Free user manual and instructions

Brand	Edifier
Model	MP100 Plus
Product type	Portable Bluetooth speaker
Output power	5 W
Frequency response	200 Hz - 18 kHz
Power supply	Built-in rechargeable battery
Connectivity	Bluetooth
Supported Bluetooth profiles	A2DP, HFP, AVRCP
Bluetooth range	10 meters
Charging port	USB (type not specified)
Functions	Play/pause, volume control, previous/next track, hands-free
LED indicator	Blue and red depending on status
Operating temperature	0°C to 35°C
Maximum altitude	2000 m
Box contents	Speaker, user manual
Cleaning	Dry cloth, unplug before
Safety	Do not expose to water, do not open, use certified accessories
Warranty	See Edifier website for terms

Frequently Asked Questions - MP100 Plus EDIFIER

How to connect the speaker via Bluetooth?

Turn on the speaker by pressing and holding the power button. Enable Bluetooth on your device and select EDIFIER MP100 Plus. Once connected, the blue LED stays on and the speaker emits a notification.

What to do if the speaker does not turn on?

Check that the battery is charged by plugging in the charging cable. If the speaker remains off, contact authorized after-sales service.

How to use the hands-free function?

During an incoming call, press the Bluetooth button to answer. To hang up, press again. To reject a call, press and hold the Bluetooth button.

What does the fast flashing blue LED mean?

The fast flashing blue LED indicates that the speaker is in Bluetooth pairing mode (discovery). Press the Bluetooth button to activate this mode if needed.

What is the Bluetooth range of the speaker?

The effective Bluetooth range is 10 meters without obstacles. If you exceed this distance, the connection may be unstable.

How to clean the speaker?

Turn off and unplug the speaker before cleaning. Use a dry, soft cloth. Never use chemicals, alcohol, or solvents.

Can I use the speaker while charging?

Yes, you can use the speaker while charging. However, for optimal charging, it is recommended to turn it off.

What to do in case of parasitic noise in the speakers?

Disconnect the audio cables and increase the volume. If you hear no noise at 1 meter, the problem may be from the audio source. Check the Bluetooth connection.

How to skip to the next track?

Press and hold the volume up button to skip to the next track. Press and hold the volume down button to go back to the previous track.

Why does the speaker automatically turn off after 30 minutes?

If the speaker is not connected to any Bluetooth device, it automatically turns off after 30 minutes to save battery. Connect it to a device to avoid this.

USER MANUAL MP100 Plus EDIFIER

Portable Bluetooth Speaker

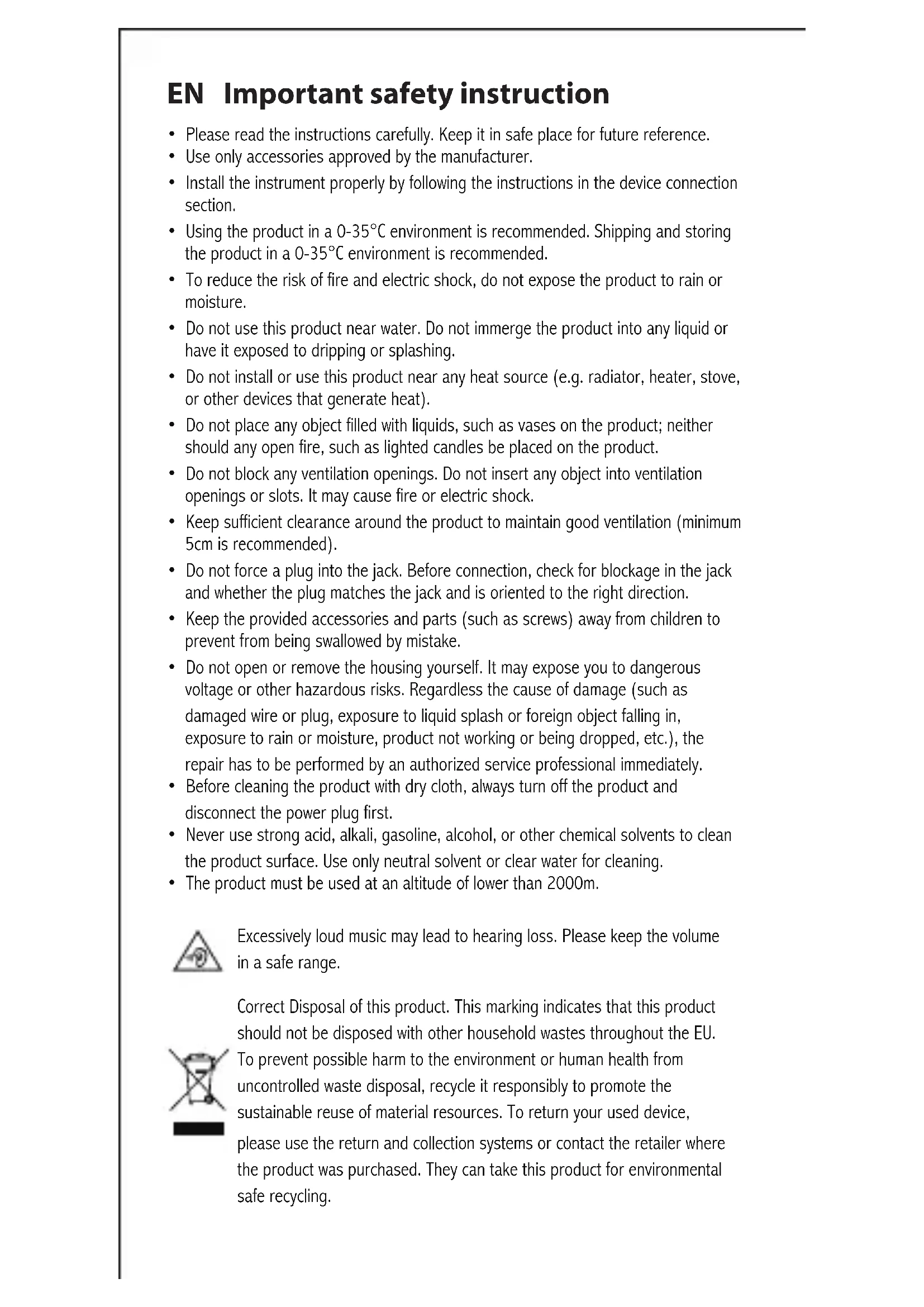

EN Important safety instruction

• Please read the instructions carefully. Keep it in safe place for future reference.
• Use only accessories approved by the manufacturer.
• Install the instrument properly by following the instructions in the device connection section.
• Using the product in a 0 - 35^ environment is recommended. Shipping and storing the product in a 0 - 35^ environment is recommended.
• To reduce the risk of fire and electric shock, do not expose the product to rain or moisture.
• Do not use this product near water. Do not immerse the product into any liquid or have it exposed to dripping or splashing.
• Do not install or use this product near any heat source (e.g. radiator, heater, stove, or other devices that generate heat).
• Do not place any object filled with liquids, such as vases on the product; neither should any open fire, such as lighted candles be placed on the product.
• Do not block any ventilation openings. Do not insert any object into ventilation openings or slots. It may cause fire or electric shock.
• Keep sufficient clearance around the product to maintain good ventilation (minimum 5cm is recommended).
• Do not force a plug into the jack. Before connection, check for blockage in the jack and whether the plug matches the jack and is oriented to the right direction.
• Keep the provided accessories and parts (such as screws) away from children to prevent from being swallowed by mistake.
• Do not open or remove the housing yourself. It may expose you to dangerous voltage or other hazardous risks. Regardless the cause of damage (such as damaged wire or plug, exposure to liquid splash or foreign object falling in, exposure to rain or moisture, product not working or being dropped, etc.), the repair has to be performed by an authorized service professional immediately.
• Before cleaning the product with dry cloth, always turn off the product and disconnect the power plug first.
• Never use strong acid, alkali, gasoline, alcohol, or other chemical solvents to clean the product surface. Use only neutral solvent or clear water for cleaning.
  The product must be used at an altitude of lower than 2000m

Excessively loud music may lead to hearing loss. Please keep the volume in a safe range.

Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

For wireless product:

• Wireless product may generate shortwave radio frequencies and interfere with the normal use of other electronic devices or medical equipment.
• Turn off the product when it's disallowed. Do not use the product in medical facilities, on airplane, at gas stations, near automatic gates, automatic fire alarm system or other automated devices.
• Do not use the product in the vicinity of a pacemaker within a 20cm range. The radio waves may affect the normal operation of the pacemaker or other medical devices.

Battery powered products:

Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.

Never disassemble, hit with force, squeeze batteries or dispose of batteries in fire. Do not expose batteries in conductive materials, liquid, fire or heat.

Do not let metal object contact two battery poles. If the battery looks swollen, leaking, discolored, having odor or any abnormal appearance, stop using it. Do not use the battery after immersed in water.

Improper use of battery may lead to explosion or leakage, causing skin burn or other injuries; in the event of battery leakage, handle it with care and immediately dispose of the battery in the manner in compliance with applicable laws and regulations in your locality.

The battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.

Box Contents

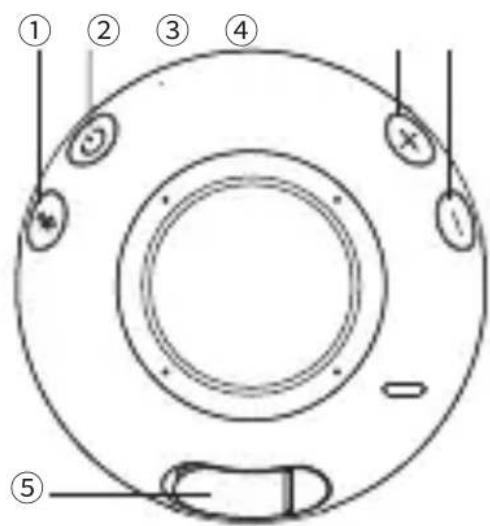

Functional operation

① Bluetooth switch Press and hold: disconnect Bluetooth and enter Bluetooth pairing
② Power switch Press: pause/play Press and hold: power on/off
③ Volume up button Press: volume up Press and hold: next track
Volume down button Press: volume down Press and hold: previous track
⑤ Charging port
⑥ LED indicator

Note:

1. If the speaker is not connected after power on, it will automatically power off after 30 minutes.
2. In the Bluetooth mode, the "previous/next track" is only valid for devices that support the AVRCP profile (Audio/Video Remote Control Profile).

Operating instructions

- Bluetooth playback

1. When the speaker is powered on, select "EDIFIER MP100 Plus" in your device setting to connect.

1. After the connection is successful, the speaker will emit a prompt, then start playing music.

- Bluetooth hands-free phone function

When there is a Bluetooth connection between the phone and the speaker, and there is an incoming call:

• Press and hold "B" to reject a call
• Press "求" to answer, then press to end a call
• When calling, press and hold " × " to transfer the call to the phone

Note:

1. Please make sure your device supports A2DP (Advanced Audio Distribution Profile) / HFP (Handsfree Profile) profiles.
2. Pin code for connection is "0000" if needed.

LED instructions

	ChargingStatus	Non-charging/fully charged
Bluetooth pairing	Blue LED blinks rapidly Blue LED blinks rapidly
Bluetooth connected	Red LED steady lit	Blue LED steady lit
	Red LED blinks slowly Blue LED blinks slowlyBluetooth HID
Power off	Red LED steady lit	/

Note:

1. When the speaker enters the Bluetooth hidden state, it cannot be connected with the mobile phone.
2. Press the Bluetooth switch to enter the Bluetooth pairing state and then connect.

Specifications

Power output: 5W

Frequency response: 200Hz-18KHz

Input: 5V = 1A

Note:

• Images are for illustrative purposes only and may differ from the actual product.
• For the need of technical improvement and system upgrade, information and specifications contained herein may be slightly different from actual product. If any difference is found, the actual product prevails.

Troubleshooting

No sound

• Check if the speaker is ON.
• Try to turn up the volume using the volume control.
• Ensure the audio cables are firmly connected and the input is set correctly on the speaker.
• Check if there is a signal output from the audio source.

Cannot connect via Bluetooth

• Make sure the speaker is switched to Bluetooth input. If it is in other audio input modes, Bluetooth will not connect. Disconnect from any Bluetooth device by pressing and holding the " × " button, then try again.
• Effective Bluetooth transmission range is 10 meters; please ensure that operation is within that range.
• Try another Bluetooth device for connection.

Noise coming from speakers

• EDIFIER speakers generate little noise, while the background noise of some audio devices are too high. Please unplug audio cables and turn the volume up, if no sound can be heard at 1 meter away from the speaker, then there is no problem with this product.

To learn more about EDIFIER, please visit www.edifier.com

For EDIFIER warranty queries, please visit the relevant country page on www.edifier.com and review the section titled Warranty Terms.

USA and Canada: [e-mail]

South America: Please visit www.edifier.com (English) or www.ediferla.com (Spanish/ Portuguese) for local contact information.

@Edifierglobal @Edifier_Global @Edifier_Global

Model: EDF100018

Edifier International Limited

P.O.Box 6264

General Post Office

Hong Kong

Tel: [phone]

Fax: [phone]

www.edifier.com

© 2022 Edifier International Limited. All rights reserved.

Printed in China

NOTICE:

For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.

Products of EDIFIER will be customized for different applications. Pictures and illustrations shown on this manual may be slightly different from actual product. If any difference is found, the actual product prevails.

Entree: 5V = = 1A

Remarque:

General Post Off Ice

Hong Kong

電話：[phone]

FFA3Ks: [phone]

www.edifier.com

© 2022 Edifier International Limited. 禁無斷軸載

印刷：中国

注意

There is no restriction of use.

Hereby, Edifier International Limited declares that the radio equipment type EDF100018 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.edifier.com/int/eu-doc.html

FCC statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IC statement: CAN ICES-003(B) / NMB-003(B).

FCC ID: Z9G-EDF158

IC: 10004A-EDF158
