Square - Basket Airforce - Free user manual and instructions
Find the device manual for free Square Airforce in PDF.
| Product type | Kitchen hood |
| Brand | Airforce |
| Model | Square |
| Available dimensions | 60 cm and 90 cm (depending on version) |
| Power supply | 230 V, 50 Hz (depending on country) |
| Maximum power | Not specified |
| Maximum airflow rate | Greater than 650 m³/h |
| Number of speeds | 4 (1st, 2nd, 3rd and timed intensive) |
| Lighting type | LED |
| Control type | Touch control with LED display |
| Grease filter | Metal, washable (every month) |
| Charcoal filter (recirculating version) | Active, replace every 6 months |
| Operating mode | Extracting or recirculating (with charcoal) |
| Installation distance (electric hob) | 70 cm |
| Installation distance (gas/mixed hob) | 75 cm (or more according to hob instructions) |
| Power cable length | 1250 mm |
| Automatic shut-off function | Yes, after 4 hours of inactivity |
| Intensive speed timer | 7 minutes, then return to previous speed |
| Recommended differential protection | 30 mA |
| Standards and certifications | CE, WEEE (DEEE) |
Frequently Asked Questions - Square Airforce
User questions about Square Airforce
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Basket in PDF format for free! Find your manual Square - Airforce and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Square by Airforce.
USER MANUAL Square Airforce
| GB | INSTRUCTIONS ON MOUNTING AND USE |
| F | PRESCRIPTIONS DE MONTAGE ET MODE D'EMPLOI |
| NL | MONTAGEVOORSCHRIFTEN EN GEBRUIKSAANWIIZING |
| ES | MONTAJE Y MODO DE EMPLEO |
| I | ISTRUZIONI DI MONTAGGIO E D'USO |
| SV | MONTERINGS- OCH BRUKSANVISNINGAR |
| HU | SZERELÉSI ÉS HASZNÁLATI UTASÍTÁS |
| SK | NÁVOD NA MONTÁŽ A POUŽITE |
| PL | INSTRUKCJA MONTAŽU I OBSŁUGI |
| CZ | NÁVOD K MONTÁŽI A POUŽITÍ |
| DK | MONTERINGS- OG BRUGSVEJLEDNING |
| TR | MONTAJ VE KULLANIM TALÝMATLARI |
| HR | UPUTSTVA ZA MONTAŽU I UPORABU |
| GR | ΟΔΗΓΙΕΣ ΓΙΑ ΤΟ ΜΟΝΤΑΡΙΣΜΑ ΚΑΙ ΓΙΑ ΤΗΝ ΧΡΗΣΗ |
| RO | INSTRUCTIUNI DE MONTARE ȘI FOLOSIRE |
| EST | PAIGALDUS- JA KASUTUSJUHEND |
| FIN | ASENNUS- JA KÄYTTÖOHJEET |
| PT | INSTRUÇÕES DE MONTAGEM E DE USO |
| RU | ИНСТРУКЦИИ ПО МАНТАЖУ И ИСПОЛЬЗОВАНИЮ |
| SLO | NAVODILA ZA MONTA•O IN UPORABO |
| SR | INSTALACIJA |
L= X-H-255
Version : CRISALIDE Lux
Version : CRISALIDE Lux
Version : Eco
2 - Turn on the motor at the higher speed
The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!
The accessible components can overheat when the cooktop is in use.
Air must not be released into a duct used to release discharge fumes produced by gas or other fuel combustion appliances. There must always be adequate ventilation of the premises when the kitchen hood is used at the same time as other appliances that use gas or other fuel. It is strictly forbidden to flambé food under the hood. Use of open flames can damage the filters and can cause fires, therefore they must be avoided in all cases. Frying must be carried out under supervision to avoid the oil overheating and catching fire. For technical and safety measures to implement for fume discharge, strictly comply with the regulations of the competent local authorities.
This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.
The symbol 📄 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must
be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.
Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.
You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.

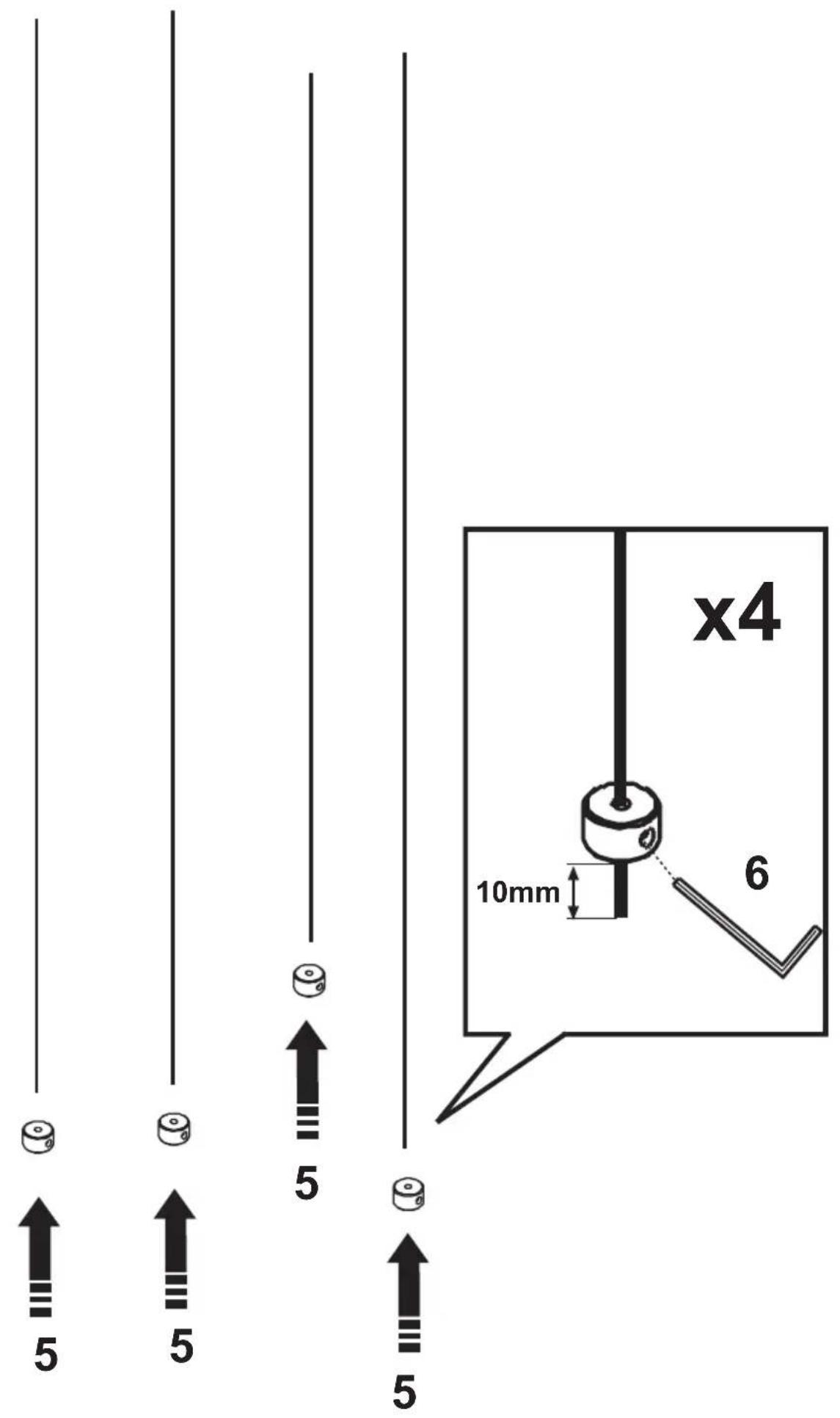

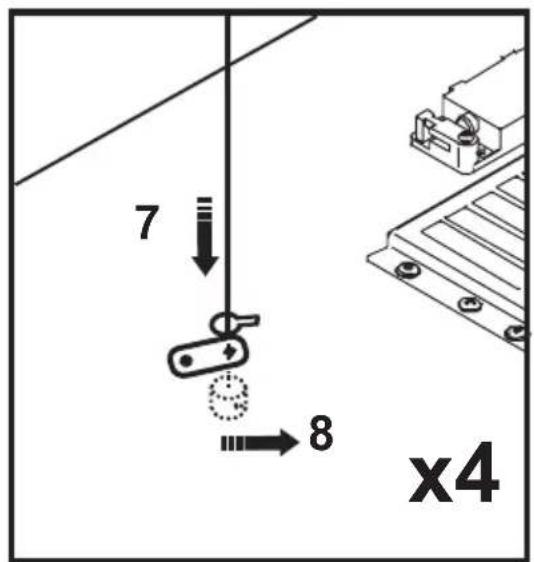

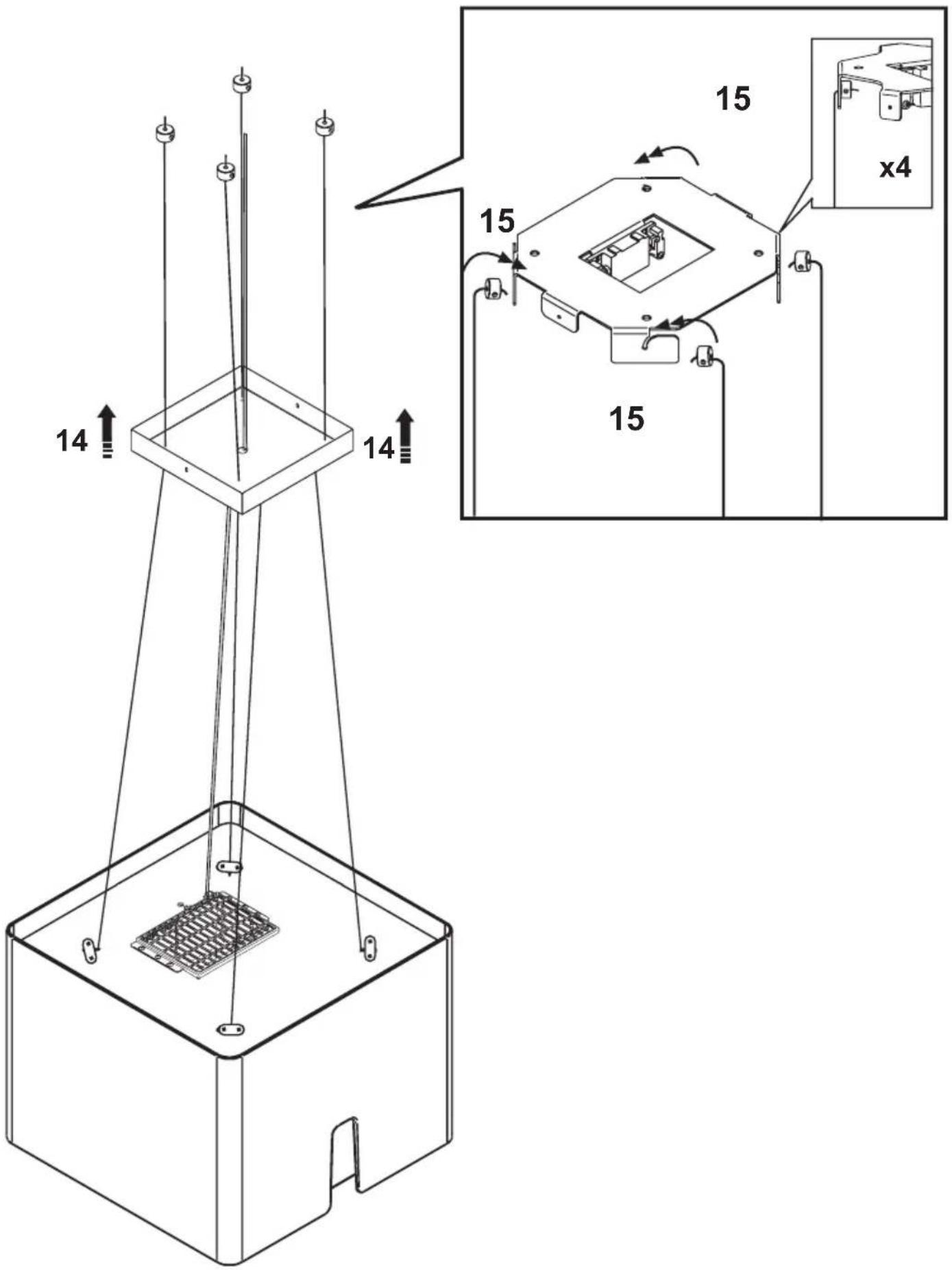

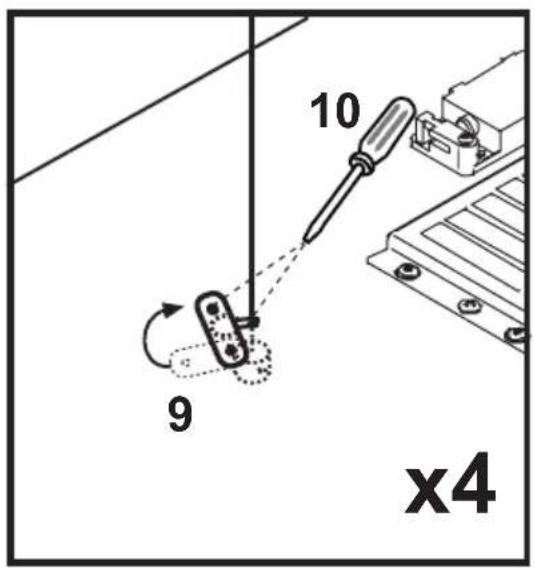

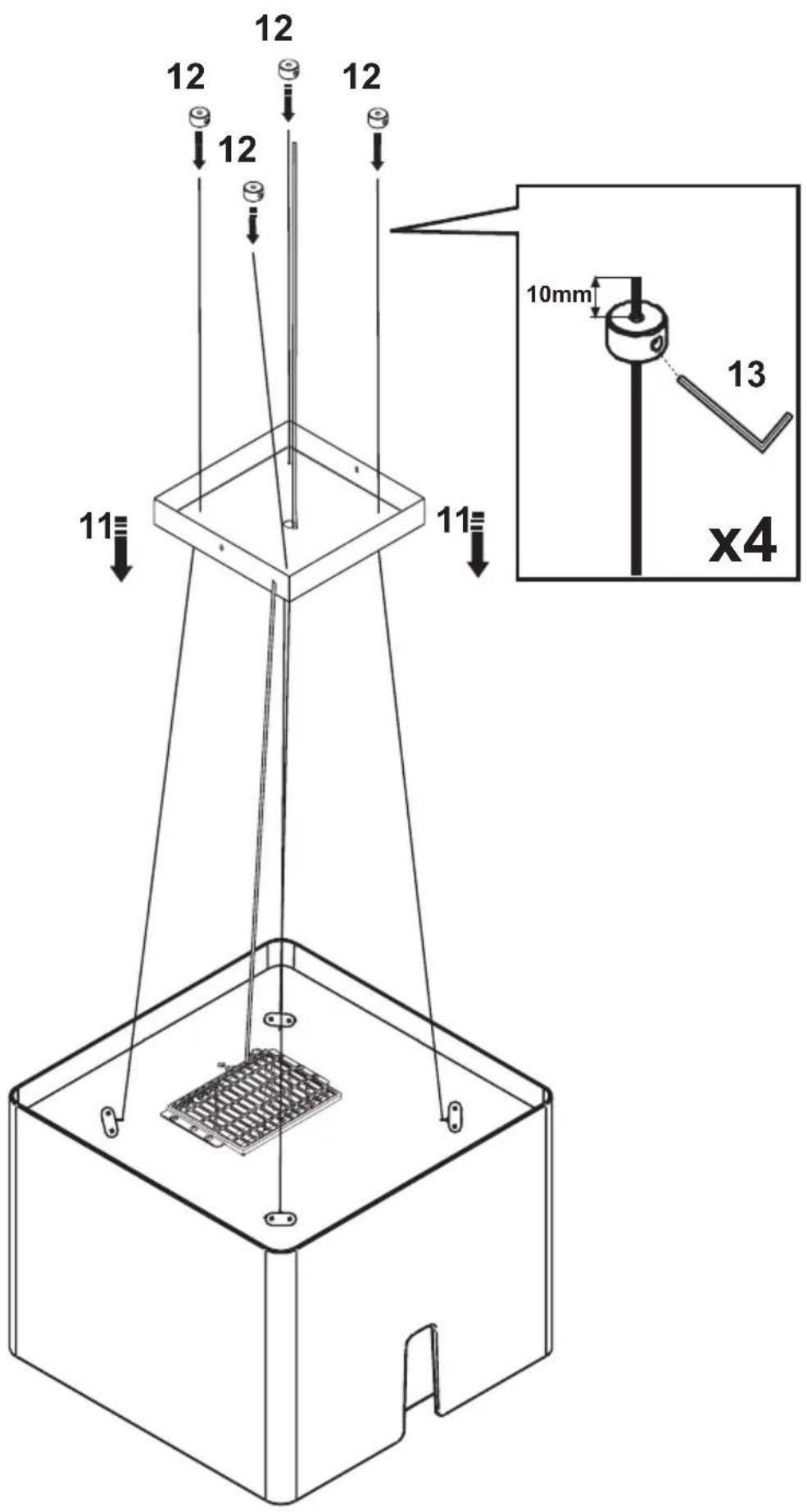

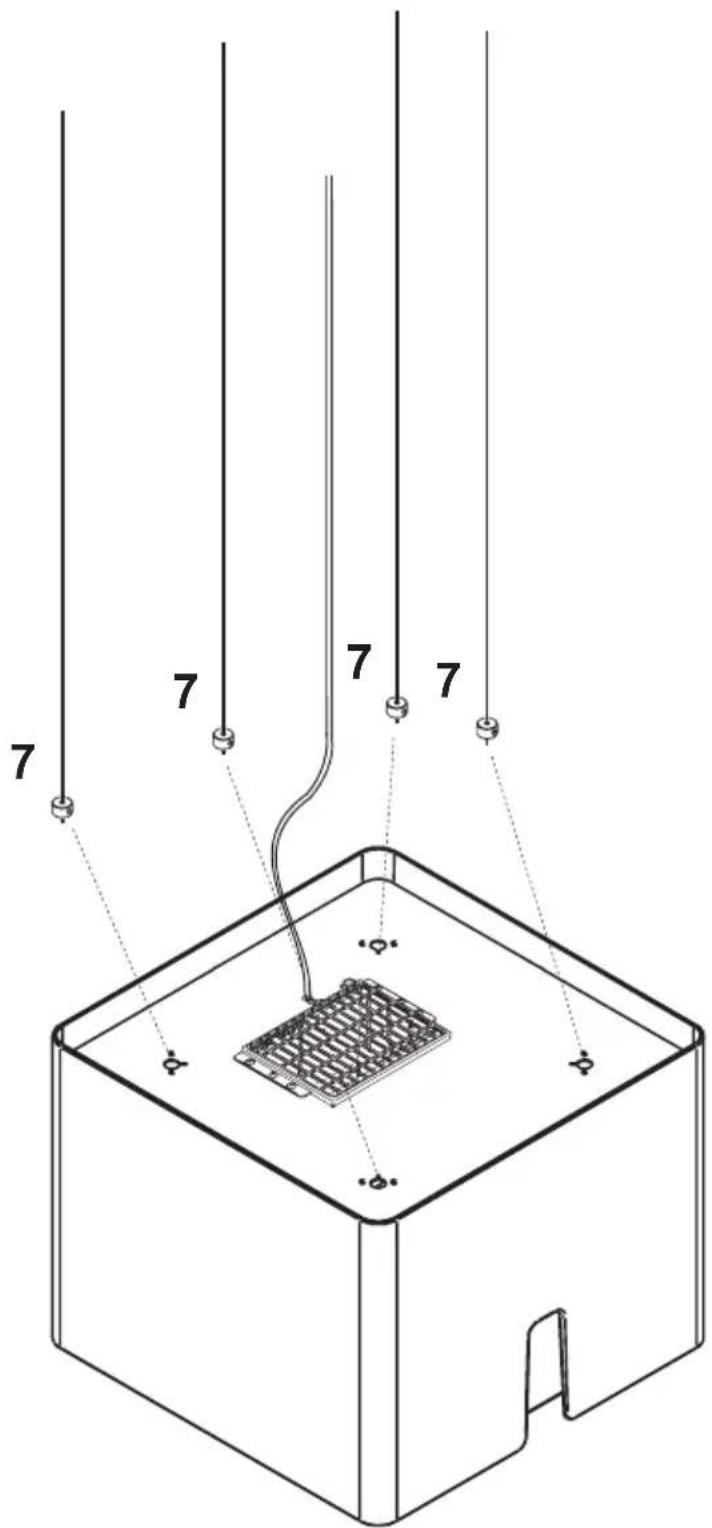

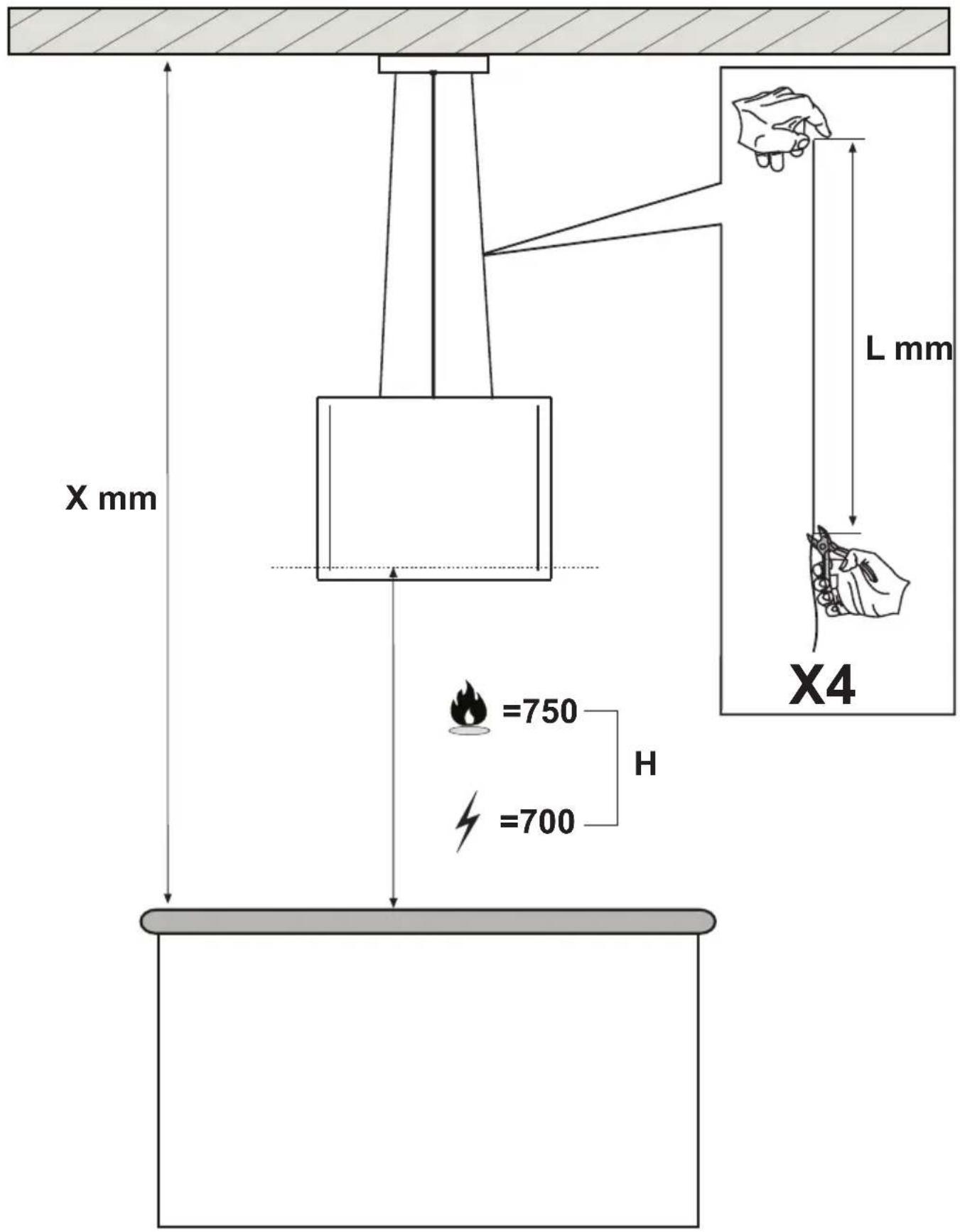

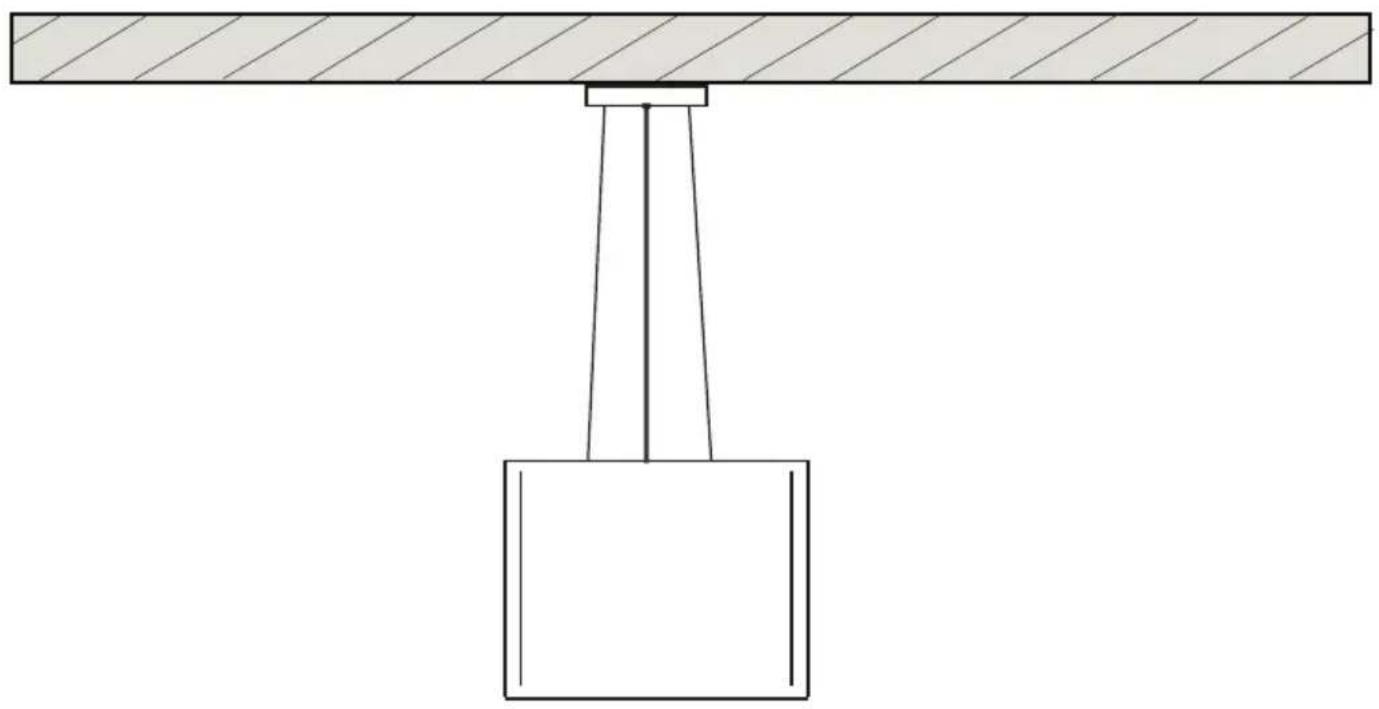

The cooker hood must be placed at a minimum distance of 70 cm from the cooking plane for electric cookers and 75cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.
Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.
The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A-exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.

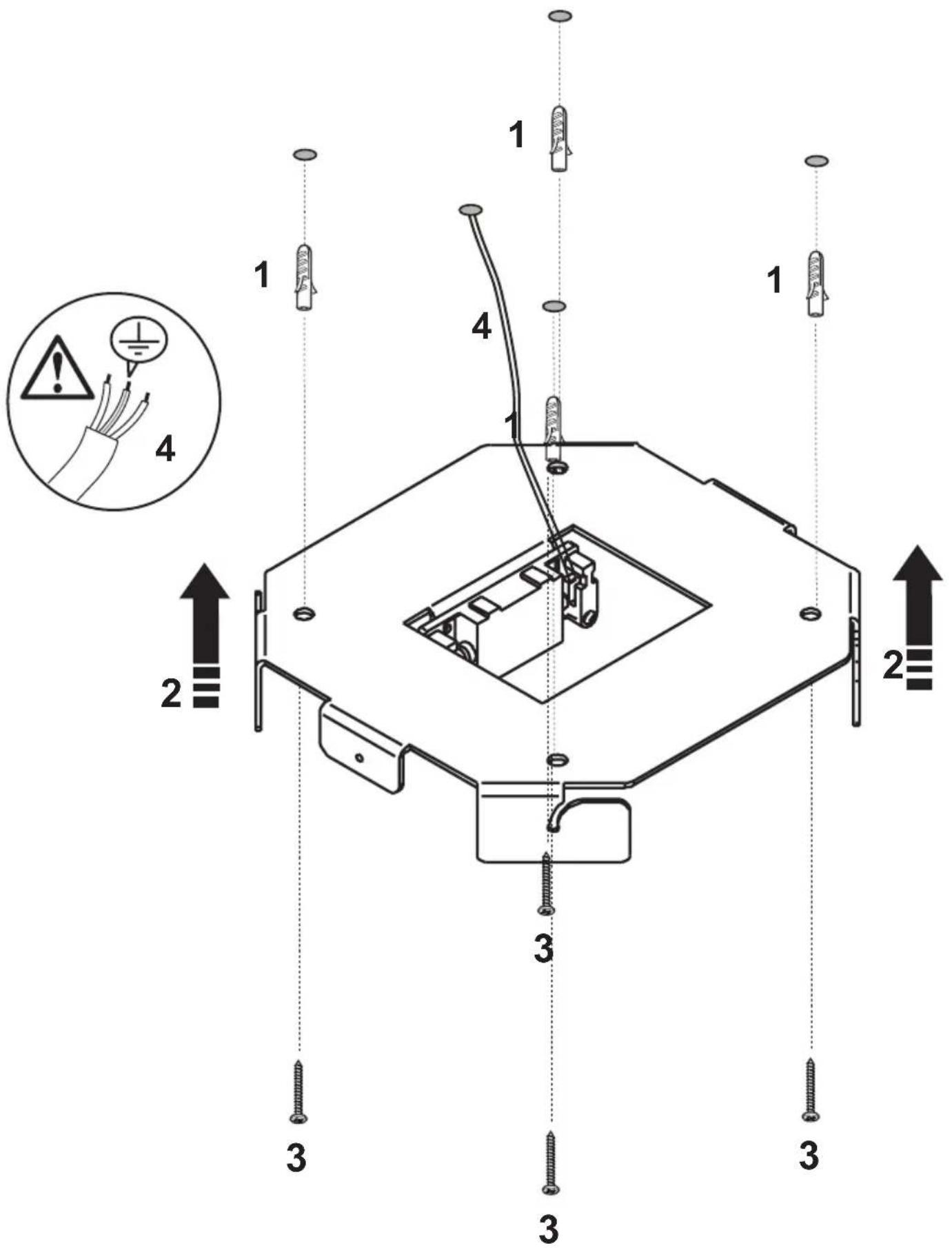

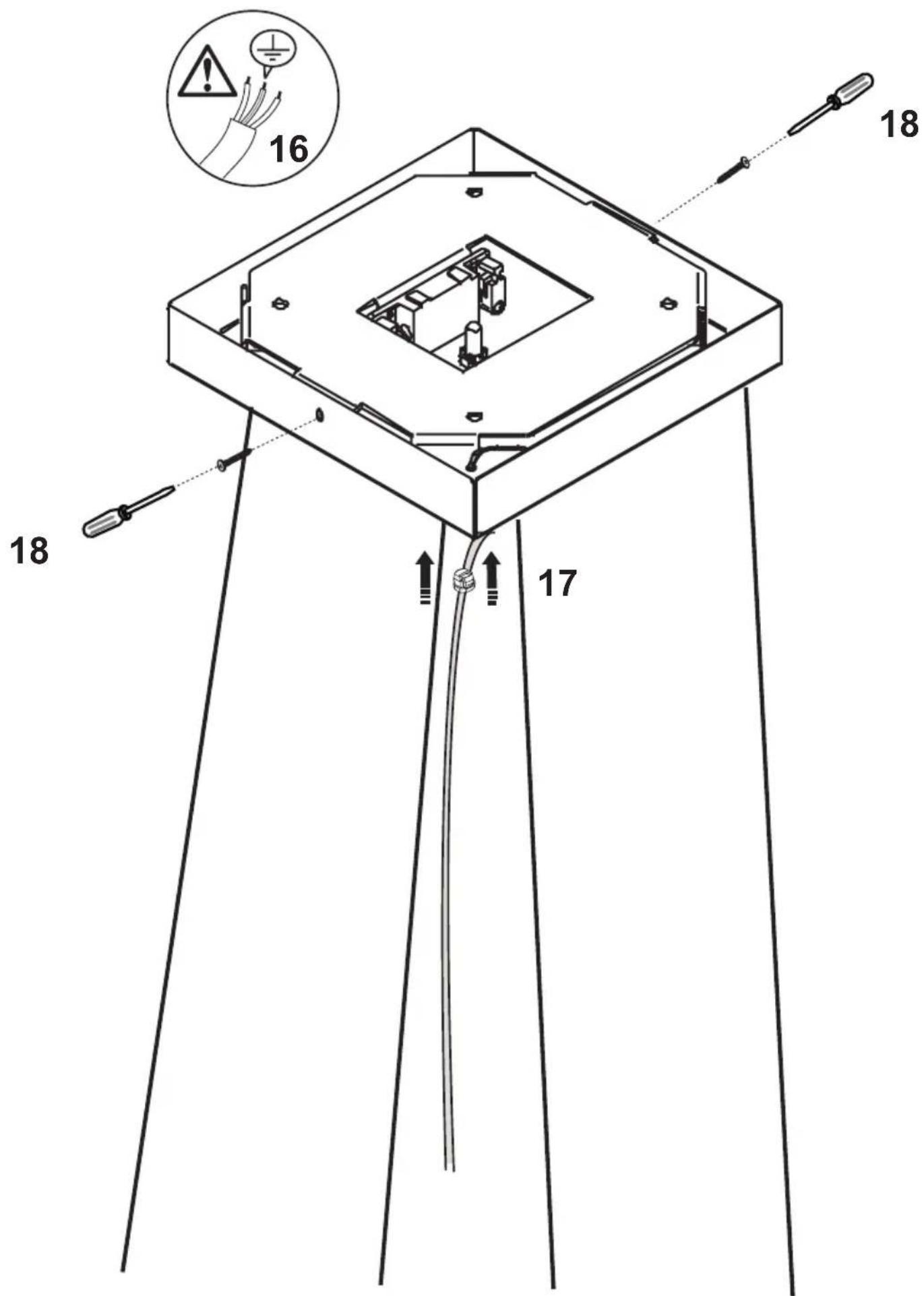

Ensure there is an electricity mains access point near the hood and that the system has a 30 mA differential switch. The mains voltage must correspond to the voltage on the characteristics label inside the hood. The hood is equipped with an electricity cable measuring 1250 mm long with or without a plug: if with a plug, connect the hood to a socket compliant with standards in force placed in an accessible zone. If without (connect directly to the mains), apply a device that ensures omnipolar disconnection from the mains, with an opening distance of the contacts that allows complete disconnection of category III overvoltage.
If the cooking top is in use, the cooker hood must always operate.
Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591
Maximum performance is achieved by placing the mobile panels, if any, in the open position.
Any presses or shelves beside the hood must be installed at least 1 mm from the product.
For correct extraction, you are advised to dimension the hob based on the dimension of the hood.
For example:
60cm hood for a 60cm hob (up to 4 burners)
90cm hood for a 78cm hob (up to 5 burners)
90cm hood for a 90cm hob (up to 6 burners)
TlloCo
1: + motor
2: On/Off motor
3: - motor
4: On/Off light
5: Led
Note: the LED on the hood indicates the various speeds: green 1st speed, orange 2nd speed, red 3rd speed and flashing red 4th speed. All hoods with capacities exceeding 650m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.
If the remote control unit is changed, the appliance must be reset to the frequency of the new unit as follows: Initialization procedure:
- Cut off power to the hood
- Power the hood again
- Within the first 5 sec, press the light button and release it after the lights turn on (the control must be turned on via key 3)
- Within 5 sec, press the motor key and release it
Now you have to wait for about 10 seconds – then you can use the hood normally.
Notes: after 4 hours from the last use of a key, the hood turns off automatically.
Should there be interferences with other nearby remote controls, carry out the code change procedure.
Should it be required to replace the radio control, the frequency of the electronic system of the new radio control must be calibrated again via the initialization procedure.
Procedure for generating a new code for the radio control.
The radio control is supplied with default codes. If you want to generate new random codes you need to follow the procedure below: simultaneously press the plus and minus keys for at least 10 seconds; the LED will turn on, then press the two buttons again (within 3 seconds). The LED flashes three times to indicate that the operation has been completed. Once you changed the radio control you must run again the initialization procedure.
CRISALIDE

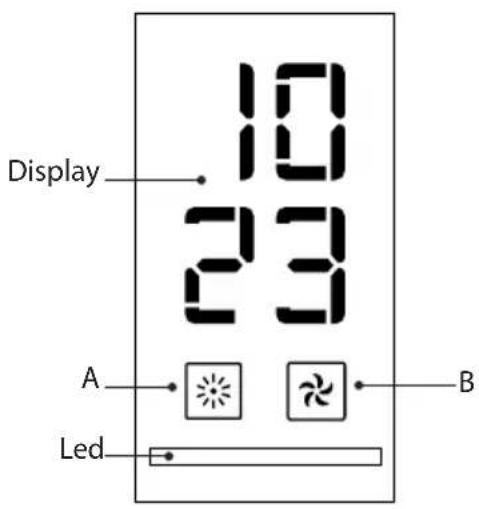

A.Light ON/OFF key: press this key to switch on or off the hood lights.
B.Motor ON/OFF key: press this key to start/stop the motor and scroll cyclically among the extraction speeds. (0-1-2-3-timed intensity-0)
Time adjustment: to set the time, simultaneously press keys A and B, the display starts to flash. Use key A to adjust the hours, key B the minutes. Once the time is set, simultaneously press A and B to end the procedure.
Note: the LED on the hood indicates the various speeds: green 1st speed, orange 2nd speed, red 3rd speed and flashing red 4th speed. All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.
This product is equipped with a receiver that allows operating it from a distance via remote control (available as optional) or from the hob (sold separately).
If you do not have the remote control, follow the procedure below to disable the receiver and prevent any interferences:
1 Unplug the device for at least 10 seconds
2 Plug it back in
3 Press the light key on the hood control panel until the lights turn on
4 Press the start key. If all the lights are off, it means that the receiver has been disabled successfully.
To re-enable the receiver, follow the remote control or hob pairing procedure.
Mainhitenance
Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.
Cleaning
The hood is frequently cleaned except for the area behind the grease filter (at least the same frequency as the fat filter maintenance), both internally and externally. For cleaning use a damp cloth with neutral liquid detergents. Avoid using abrasive products.
Warning
Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

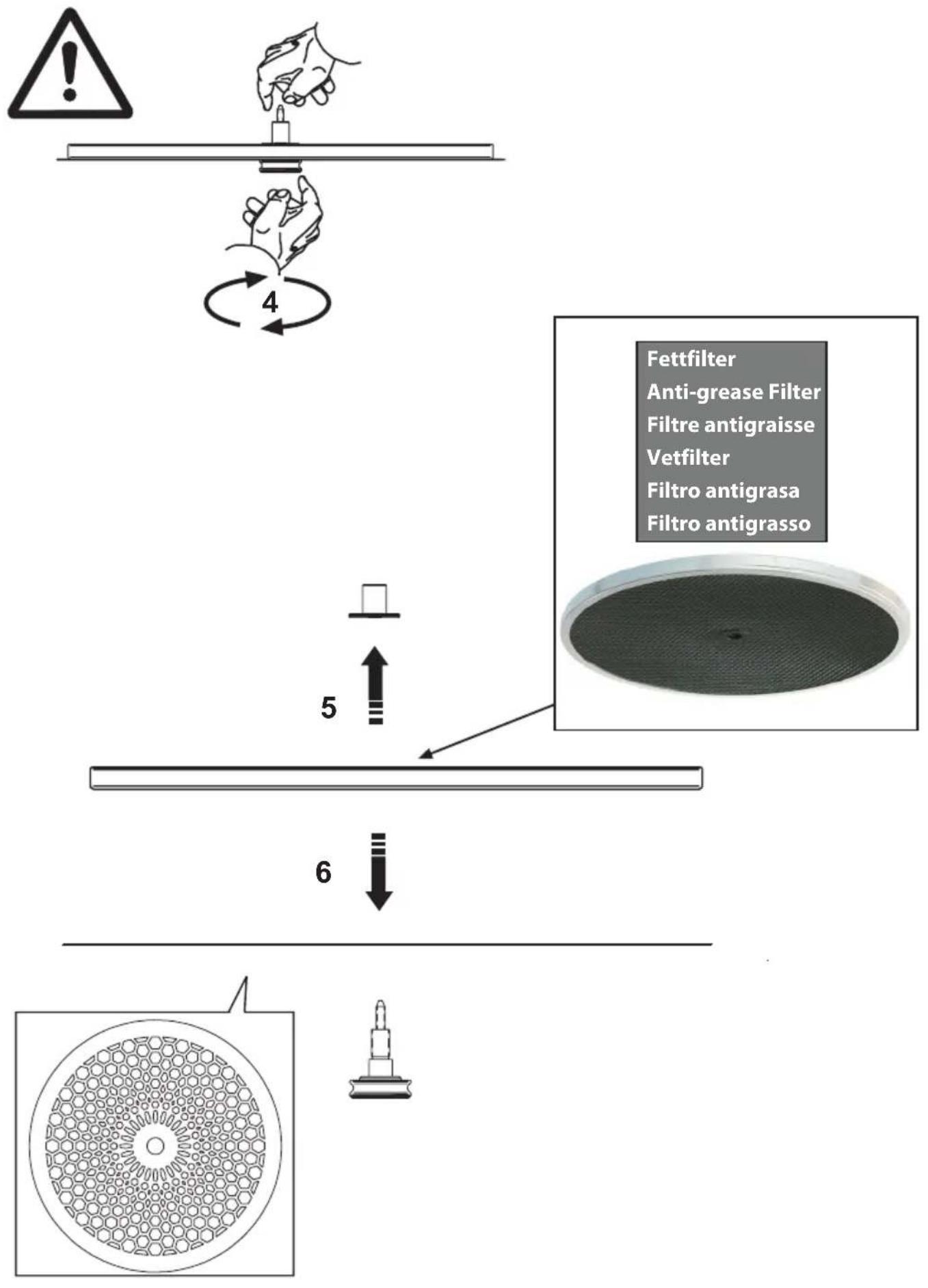

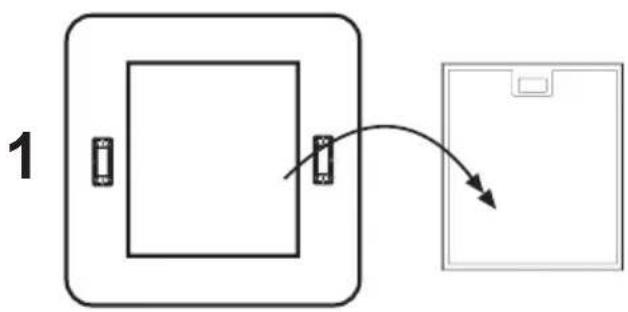

Anti-grease Filter
must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

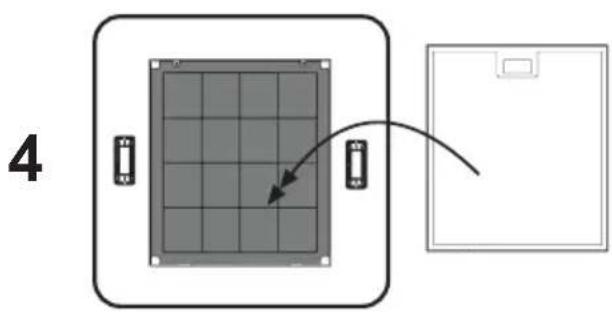

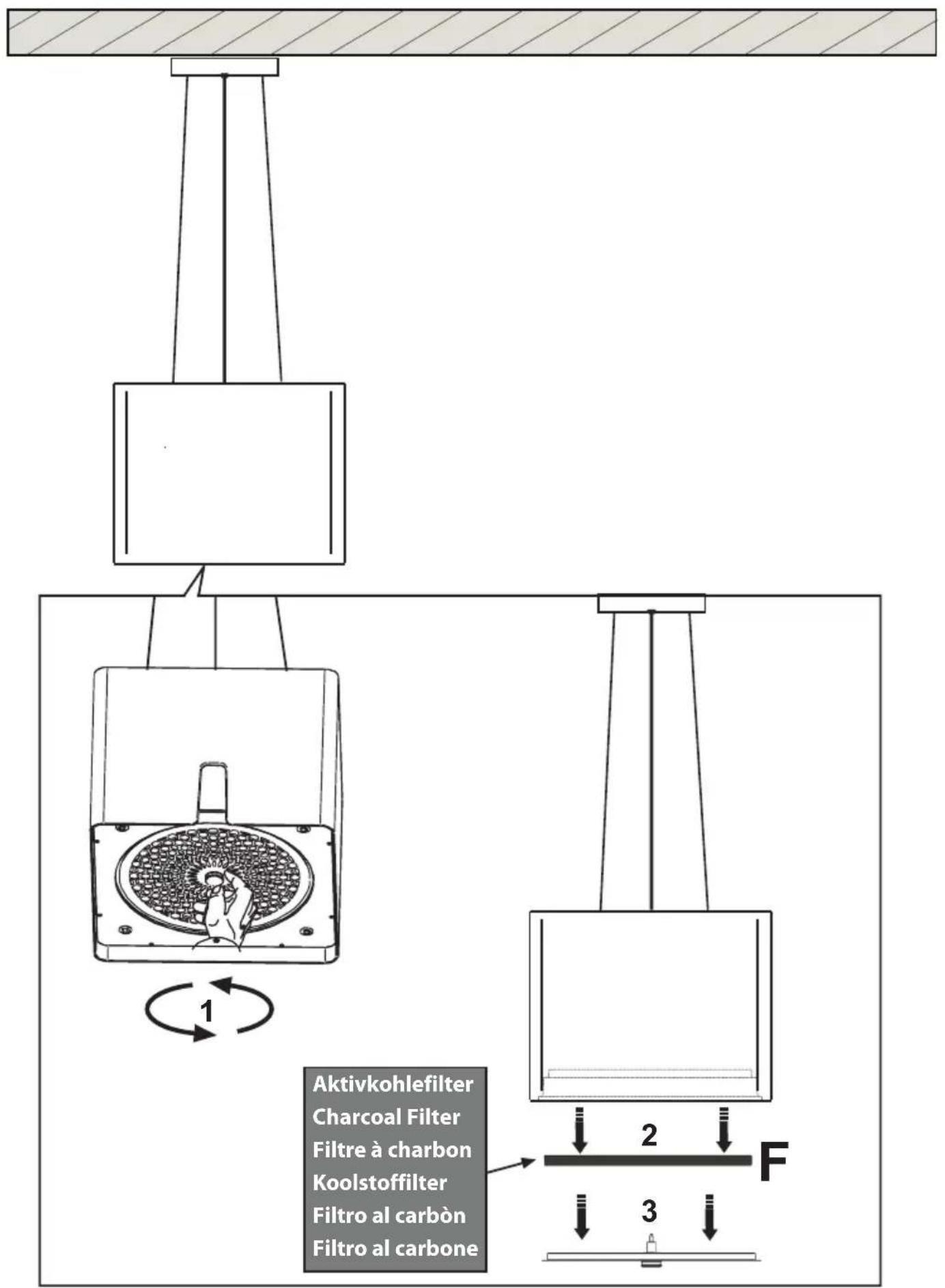

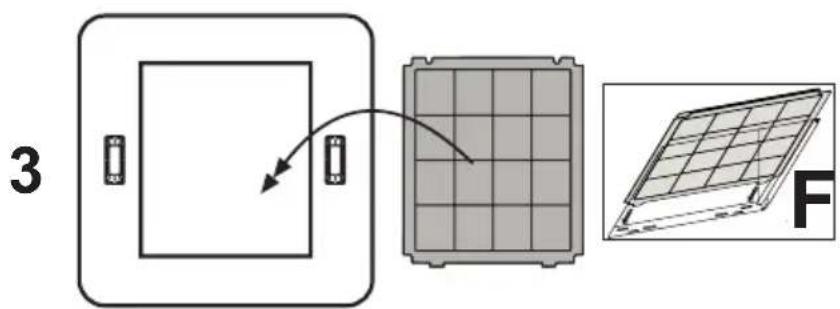

Charcoal Filter - (only for filter version)
The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.
Reducing environmental impact:
To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.
Replacing lightbulbs
Led Light
If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.
Declaration of Conformity:
We, Airforce S.p.A. via Ca' Maiano 140/E 60044 Fabriano
AN ITALY, declare that the models:
-Square
to which this declaration refers conform to the following European directives with the amendments and national legislation implementing these directives:
-EMC 2014/30/EU ;
-LVD 2014/35/EU.
For further technical information or contact details, please turn to the last page of the manual.
