TelMe - Talkie Walkie ALBRECHT - Free user manual and instructions

Product Type	Wireless communication system (walkie-talkie) for group guidance
Brand	ALBRECHT
Model	TelMe
Frequency range	2403 - 2480 MHz (2.4 GHz ISM band)
Modulation	GFSK with frequency hopping
Transmission power	100 mW max
Receiving sensitivity	-95 dBm
Maximum range	110 meters (open field)
Battery life (TelMe-T/R)	20 hours
Battery life (TelMe-E)	12 hours
Battery type (TelMe-T/R)	Li-ion 3.7 V / 1100 mAh
Battery type (TelMe-E)	Li-polymer 3.7 V / 400 mAh
Number of groups	39 selectable groups
Volume adjustment	8 levels
Charging	Micro USB port
Voice latency	< 30 ms
Data rate	2 Mbps
Channel spacing	1 MHz
Warranty	2 years (European)
Included accessories	Transceiver (TelMe-T), receiver (TelMe-R), receiver headset (TelMe-E), microphone, earphones, neck straps, USB cables
Optional accessories	Flexible earpiece, lapel microphone, clip-on microphone, in-ear earphone, charging trays for 20 or 40 devices
Compatibility	Use throughout Europe (ISM band)
Display	LCD screen
Maintenance	Clean with a soft, dry cloth. Do not use harsh chemicals.
Safety	Complies with EU directives (99/05/EC, 2004/108/EC, 2006/95/EC). Do not expose to moisture or extreme temperatures.

Frequently Asked Questions - TelMe ALBRECHT

How to turn the walkie-talkie on and off?

For the TelMe-T/R, push the Power switch up to turn on and down to turn off. For the TelMe-E, press and hold the Power button for more than 2 seconds to turn on or off.

How to select a group?

For the TelMe-T/R, turn off the device, press and hold the ▲ and ▼ buttons, then turn on. The GRP indicator blinks. Press ▲ or ▼ to select the group (1-39) and release all buttons for 5 seconds to confirm. For the TelMe-E, turn it on, then press and hold ▲ and ▼ for more than 2 seconds to enter group mode; pairing with the TelMe-T occurs automatically.

How to adjust the volume?

For the TelMe-R, press the Mode button, the VOL indicator displays, then use ▲ or ▼ to select a level from 0 to 8. For the TelMe-E, use ▲ (increase) and ▼ (decrease) directly without entering mode.

What is the maximum range?

The range is up to 110 meters in open field, thanks to the 2.4 GHz ISM band.

How to charge the battery?

Plug the supplied Micro USB cable into the device's charging port. The red indicator lights up during charging and turns off when the battery is fully charged.

What is the battery life?

For the TelMe-T and TelMe-R, battery life is approximately 20 hours. For the TelMe-E, it is approximately 12 hours.

Can I use earphones?

Yes, earphones are included with the TelMe-R. You can also use optional accessories like the flexible earpiece (EHE01) or the in-ear earphone (EHR01).

What to do if the connection between transmitter and receiver fails?

For the TelMe-E, if grouping fails within 5 seconds, the device goes into general mode. Restart the group selection procedure from the beginning: turn on the TelMe-E, then press and hold ▲ and ▼ for more than 2 seconds until the indicator blinks blue and red.

How to activate the local effect on the TelMe-T?

Turn off the device, press and hold ▲ and ▼, then turn on. The GRP indicator blinks. Press Mode, then use ▲ or ▼ to select SO (activate) or SF (deactivate). Release all buttons for 3 seconds to confirm.

Where to find the declaration of conformity?

The CE declaration of conformity is available at http://www.service.alan-electronics.de or in the paper manual. The manufacturer is Maytel Co., Ltd and the distributor is Alan Electronics GmbH.

USER MANUAL TelMe ALBRECHT

Close-up of a black handheld device with a coiled cable, no visible text or symbols

2.1. TelMe-T 2.2. TelMe-R

Diagram of a mobile phone panel with numbered components and labeled parts in Chinese

Diagram of a device with numbered components, showing front and side views with labeled parts.

Diagram of a handheld device with numbered parts labeled 1 through 6 for identification.

Close-up of a black handheld device with a curved cable or strap (no visible text or symbols)

Manual

English

1. General Information

1.1. Introduction

The “TelMe” series is the ideal wireless group connecting solution. It combines quality and versatility into a compact and easy to use system with state of the art technology.

1.2. Main Feature

• Europe-wide compatible due to 2.4Ghz ISM band solution
- Easy to use and user friendly
• Crystal clear sound reception up to 110m range
• 39 groups selectable and 8 steps volume adjustable
- More than enough battery life, with 20 hours operating time
- Convenient Micro USB charging solution compatible with most mobile phone charging adapters

1.3. Included accessories

TelMe-TTRANCEIVER	Microphone
	Neck Strap
	USB Charging Cable
TelMe-RRECEIVER	Earphone
	Neck Strap
	USB Charging Cable
TelMe- EHEADSET RECEIVER	USB Charging Cable

1.4. Optional Accessories

• EHE01; flexible earpiece (Art.code 29952)
• PM01; Pin-microphone (Art.code 29953)
• CM01; Clip on type Pin microphone (Art.code 29954)
• EHR01; In-Ear Headset (Art.code 29955)
• CB20; Charging Container for 20 sets (Art.code 29956)
• CB40; Charging Container for 40 sets (Art.code 29957)

12 English

2. Controls and Indicators

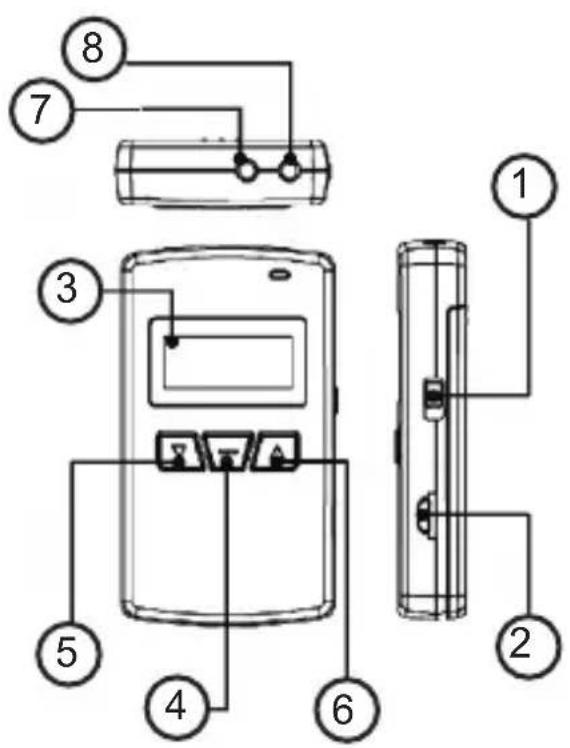

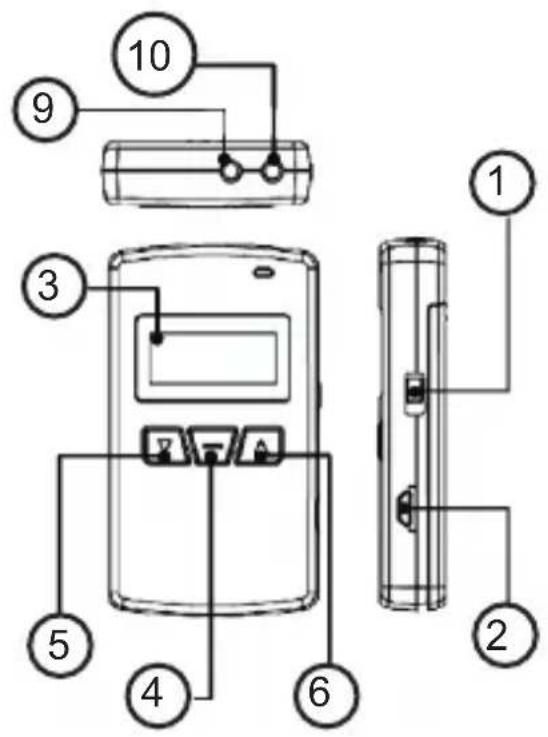

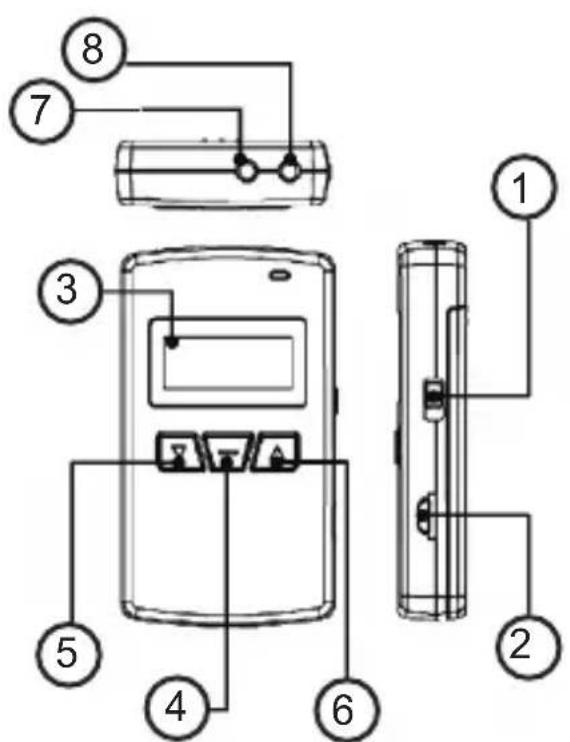

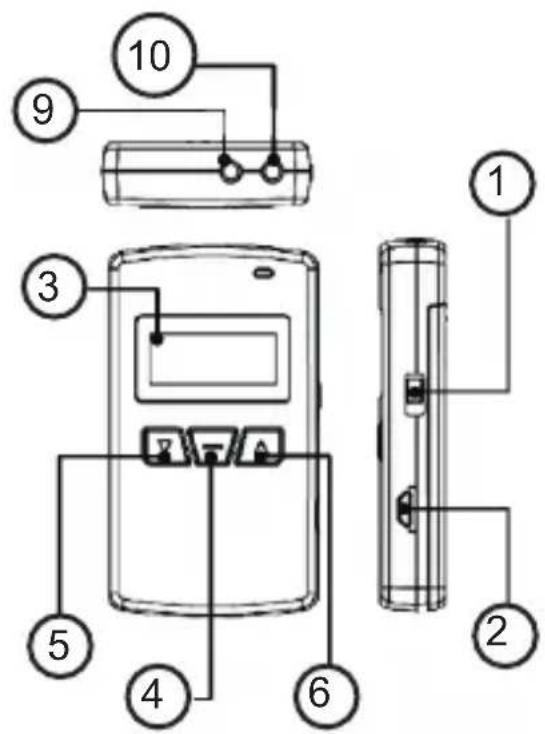

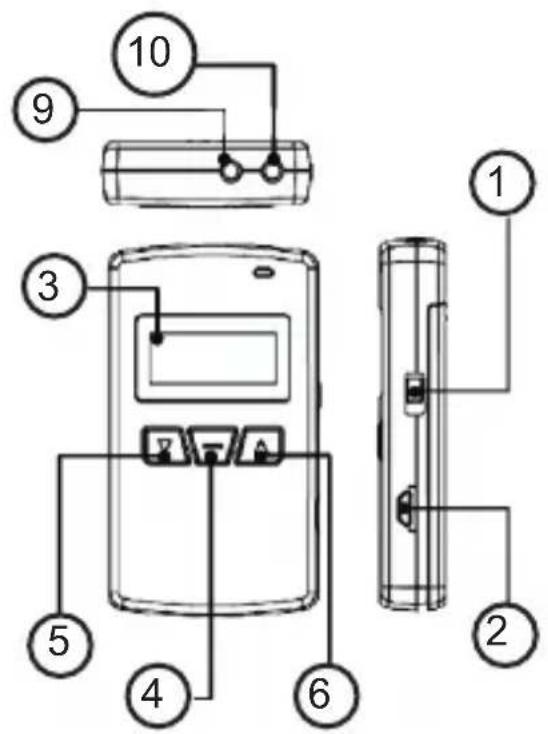

2.1. TelMe-T 2.2. TelMe-R

Diagram of a mobile phone panel with numbered components and labeled parts in Chinese

Diagram of a device with numbered components, showing front and side views with labeled parts.

1 Power Switch

2 USB Charging Port

3 LCD

4 Mode Button

5 Down Button

6 Up Button

7 Microphone In

8 Aux In

9 Earphone 1 In

10 Earphone 2 In

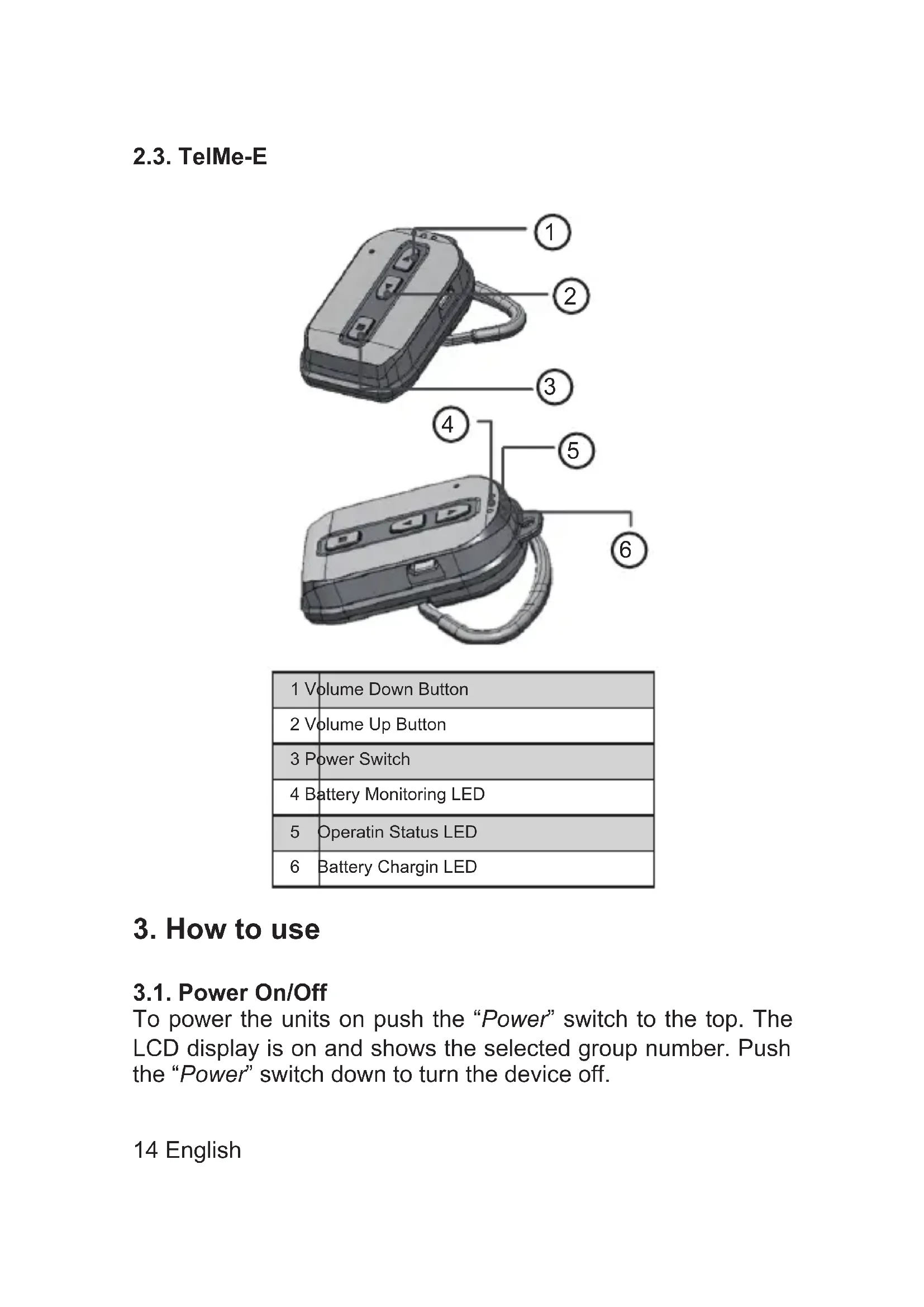

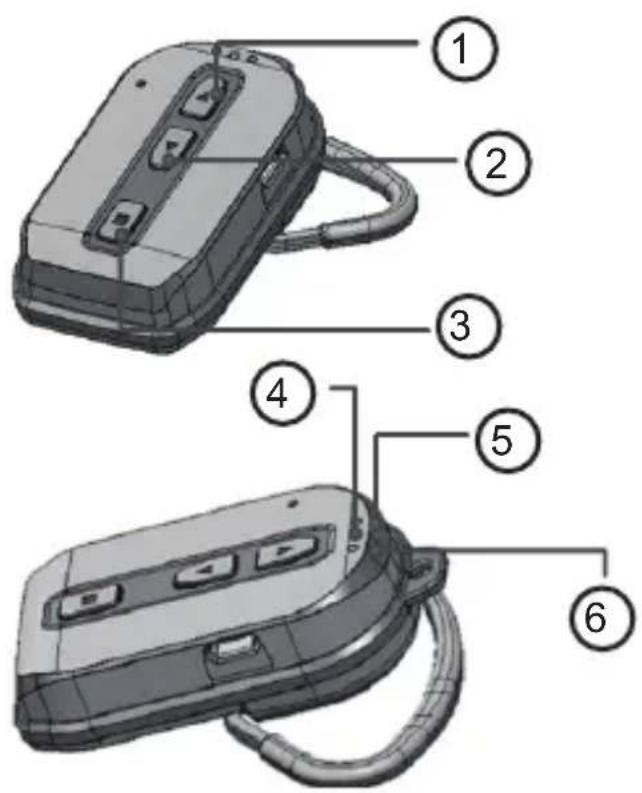

2.3. TelMe-E

Diagram of a handheld device with numbered parts labeled 1 through 6 for identification.

1 Volume Down Button

2 Volume Up Button

3 Power Switch

4 Battery Monitoring LED

5 Operatin Status LED

6 Battery Chargin LED

3. How to use

3.1. Power On/Off

To power the units on push the “Power” switch to the top. The LCD display is on and shows the selected group number. Push the “Power” switch down to turn the device off.

14 English

For TelMe-E Headset receiver press and hold the “Power” button longer than 2 seconds. The “Operating Status LED in Blue” is blinking every 2 sec.

Press and hold the “Power” button longer than 2 seconds again to turn the device’s power off. The “Operating Status LED” in Red is blinking 5 times rapidly and off.

3.2. Transmission (TelMe-T only)

The transmission is starting automatically as soon as the device is turned on. The LCD is displaying “TALK”

3.3. Reception (TelMe-R only)

The unit starts receiving automatically after switching it on. The signal level bar is changing according to the strength of the received signal.

For the TelMe-E Headset receiver please refer to 3.4 Group selection and set the Group selection first. If you didn't set the Group selection in previous or if you want to change the Group selection from the last time using. The “Operation status LED in Blue” is blinking twice in 5 seconds once the group number is matched between TelMe-T and TelMe-E and ready to receive a signal.

3.4. Group selection

Push the “Power” switch down, press and hold the “▲” and “▼” button at the same time and push the “Power” switch to the top. The “GRP” on the LCD is blinking. Choose the Group number you desire by pressing the “▲” or “▼” button and then release all the buttons for longer than 5 seconds to confirm it. The blinking of “GRP” on LCD stops and the selected Group number is displayed.

For TelMe-E; Send the transmission signal of TelMe-T to TelMe-E after set the Group number you desire on the TelMe-T. Turn on the power of TelMe-E by press the "Power" button longer than 2 seconds.

After that press and hold the “▲” and “▼” button of TelMe-E at the same time longer than 2 seconds.

TelMe-E is in Grouping mode and the “Operating status LED” is blinking in Blue and in Red repeatedly.

The group number is matched automatically between TelMe-T and TelMe-E and the “Operating status LED” of TelMe-E is blinking in Blue twice per 5 seconds and turns pink afterwards. If the Grouping was failed within 5 seconds, the TelMe-E switches to general mode. In that case, it is required to follow the procedure of selection again from the beginning.

3.5. Volume Up/Down (TelMe-R only)

Press “Mode” button once. “VOL” is displayed right next to the currently selected volume level. Change the volume level by pressing “▲” or “▼”. Volume levels 0-8 are available.

For TelMe-E; Press “▲” button to turn volume up and “▼” button for volume down directly without “Mode” selection.

3.6. Side Tone On/Off (TelMe-T only)

The acitvated Side Tone function lets the user listen to his own voice or external played audio files while transmitting.

To select the Side Tone On/Off, push the “Power” switch down, press and hold the “▲” and “▼” buttons at the same time and push the “Power” switch to the top. In the LCD “GRP” is blinking.

After that, press the “Mode” button and select with “▲” or “▼” buttons if you would like to activate (“SO”) or deactivate (“SF”) the Side Tone function. Release all the buttons longer than 3 seconds to confirm your setting.

3.7. Battery

The rechargeable Li-Ion battery 3.7V, 1100mAh needs to be inserted into the unit with contacts facing downwards left. Plug the USB charging cable into the USB port to recharge the battery. The Red color LED in the right side top corner of the device is turned on during the charging and turned off when the battery is fully charged.

TelMe-E; The rechargeable Li-Polymer battery 3.7V, 400mA is installed in the device.

Plug the USB charging cable into the USB port and recharge the battery. The Red color LED in the device is turned on during charging and turned off when the battery is fully charged.

In case the battery status is low, LED in Red is blinking for 5 seconds

4. SPECIFICATION

Frequency ISM 2,403 ~ 2,480MHz

Modulation GFSK with hopping

TX Output 100mW max

RX Sensitivity -95dBm

Voice Latency <30ms

CH Spacing 1MHz

Data Rate 2Mbps

Battery TelMe-T/R Li-Ion 3.7V/1100mAh

Battery TelMe-E Li-polymer 3.7V/400mAh

Battery Life TelMe-T/R 20 Hours

Battery Life TelMe-E 12 Hours

5. European 2 years warranty

The distributor, dealer or retail shop warrants to the original retail purchaser of this product that should this product or any part of it, under normal use and conditions, be proven defective in material or workmanship within 2 years from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the company's option) without charge for parts and repair labor. To obtain repair or replacement within the terms of this warranty, the product is to be delivered with proof of warranty coverage (e.g. dated bill of sale), specification of defect(s), to the distributor, dealer or his authorized repair center.

The Company disclaims liability for communications range of this product. The warranty does not apply to any product or part there of which, in the opinion of the company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar code label(s). The warranty does not apply to accessory parts or problems caused through not authorized or not recommended accessories like of the units like batteries, external power supplies and over voltage caused through external power supplies, light bulbs, broken antennas, broken swivel belt clips, broken or damaged acrylic glass windows and cabinet parts.

Please contact the dealer or person where you have purchased your radio. Alternatively, if you bought the radio in Germany, you can send the radio directly to our service partner (address on the last page)

6. Declaration of Conformity

CE

Manufacturer: Maytel Co., Ltd

Address: #417 Doosan Venture Digm 126-1, Pyeonchon-dong, Dongan-gu, Anyang-si, Gyeonggi-do, Republic of Korea

Distributor Alan Electronics GmbH

The above mentioned product complies to the below mentioned standards and fullfills the essential requirements of the EC directives 99/05/EC, 2004/108/EC and 2006/95/EC. This radio may only be used in the EU and other states applying the R&TTE directive of the European community.

Standard Version
EN 301 489-1 V1.9.2	:2011
EN 301 489-17 V2.2.	1:2012
EN 300 328	V1.8.1:2012
EN 60950-1	2006+A11:2009+A1:2010+A12:2011

6.1. Where to find service hints and documentation

Our technical documentation is updated regularly. You can download the latest versions of user manuals, technical documents and also the dual language original declaration of conformity, as well as service hints or FAQ's any time from our server under

http://www.service.alan-electronics.de

If you should have a problem, please have a look to the service hints or frequently asked questions (FAQ) before you send your TelMe back to the service center.

6.2. Disposal of defective electronic items

The European WEEE Directive does not any more allow to dispose any used electronic items via household trash bins. The local communities will provide containers for disposal of electronic waste. Please use these facilities, it will be your contribution to proper recycling of electronic material, and it is free of charge for you!

Service partner in Germany (only for radios sold in Germany):

Alan Service

c/o Transerv2000 Repair Service GmbH & Co.KG

Servicecenter Frankfurt

Robert-Bosch-Str. 35

D-64625 Bensheim

Repairs and techn. inquiries:

Tel: (+49) (0) 6251 9856 0 55

e-mail: [e-mail]

In other countries please contact your local distributors in case of technical problems.

Printing errors reserved.

© 2016

20 English

ALBRECHT®

TelMe Tourguide System
