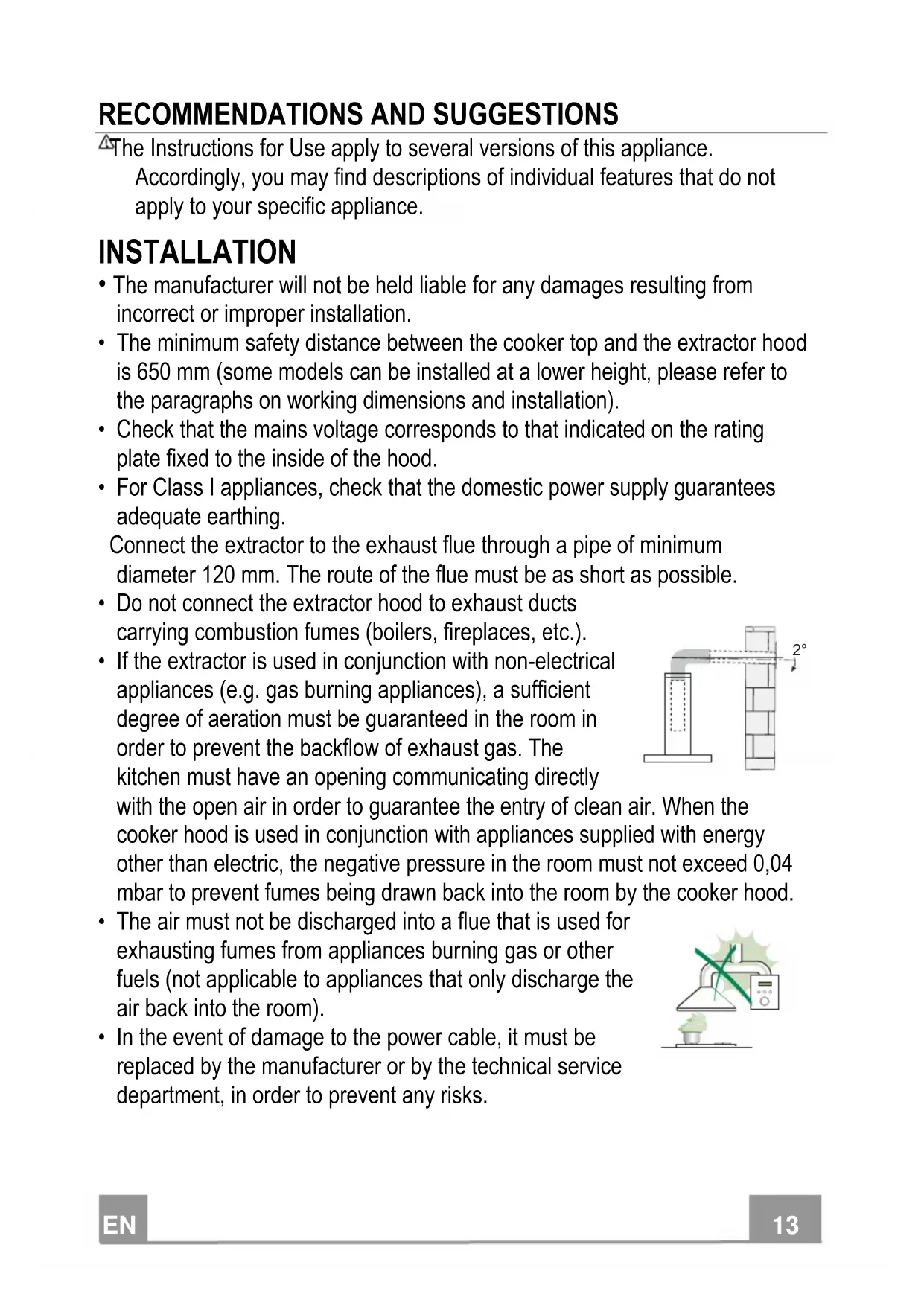

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance.

Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

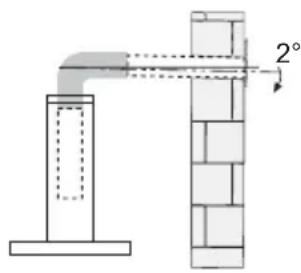

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.)
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly

with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.

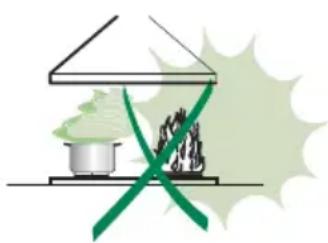

• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambre under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• "CAUTION: Accessible parts may become hot when used with cooking appliances."

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

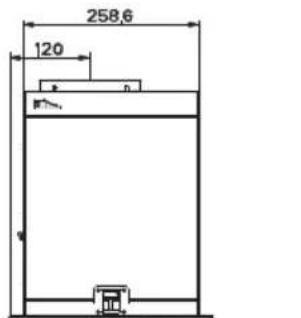

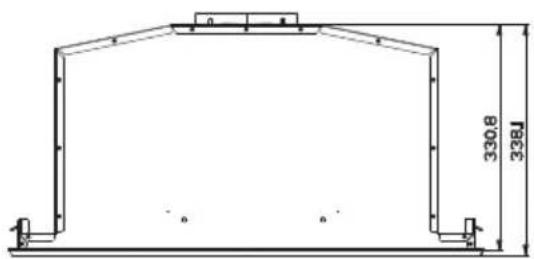

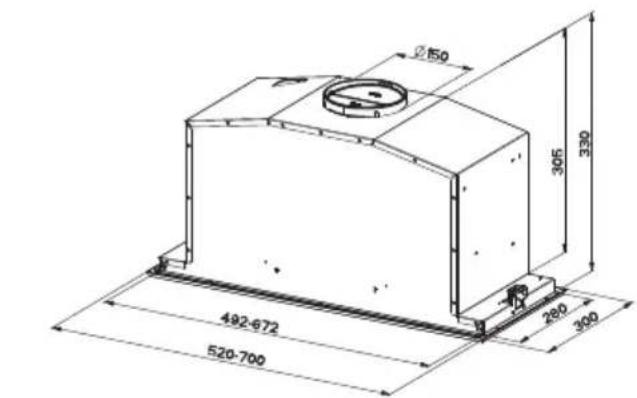

Dimensions

Components

Ref. Q.ty Product Components
1 1 Hood Body, complete with :Controls, Light, Blower, Filters
2 1 Frame
8 1 Directioned grid
9 1 Reducer Flange 150-120 mm
10 1 Damper 150mm
Ref. Q.ty Installation Components
12a 10 Screws
12e 2 Screws 2,9× 9,5
12f 6 Screws 2,9× 6,5

Q.ty Documentation

1 Instruction Manual

Fitting the Hood canopy

BEFORE FITTING THE HOOD TO THE WALL UNIT, PROCEED AS FOLLOWS:

• Disconnect the wires to the Commands at the connectors.
• Disconnect the wires to the Light at the connectors.

• The Hood can be installed directly on the underside of the wall unit (Minimum 650mm from the Cooker Hob).

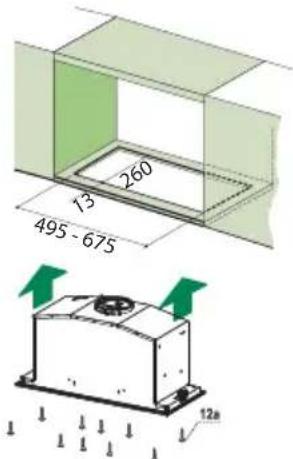

• Create an opening in the bottom of the wall unit, as shown.
• Insert the hood until the side supports snap into place.

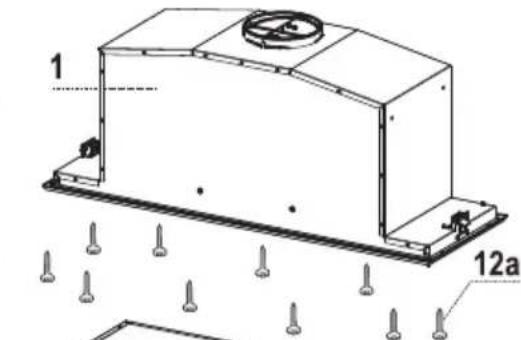

• Fasten using the 10 screws 12a provided.

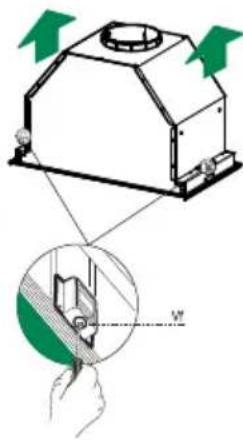

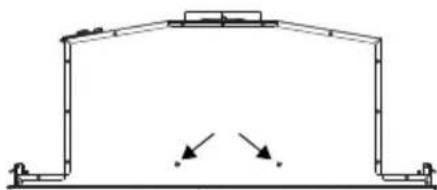

• Lock in position by tightening the screws Vf from underneath the hood.

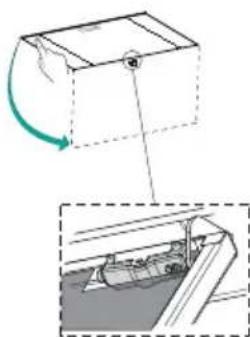

• Open the suction panel by turning the specific knob.

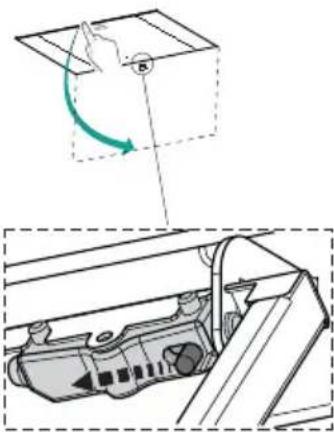

• Disconnect the panel from the hood canopy by sliding the fixing pin lever.

• Remove grease filters.

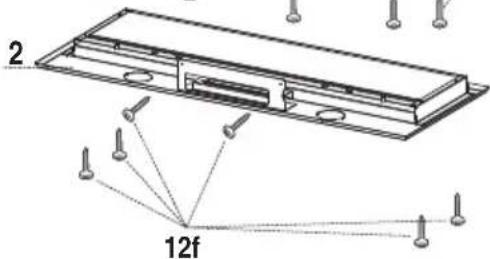

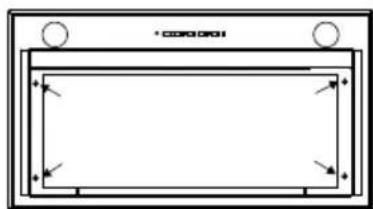

• Screw the Frame into place using the 6 screws 12f, reconnect the wires to the Commands and Light, replace the metal grease filter and the Panel.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

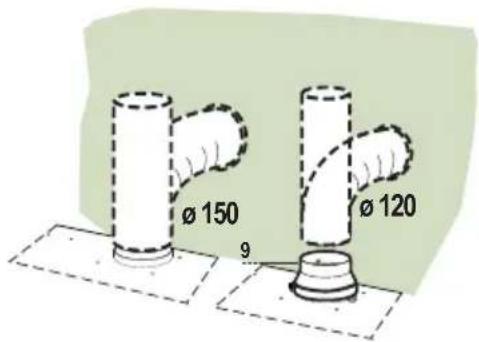

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120mm the choice of which is left to the installer.

• To install a 120 mm air exhaust connection,in insert the reducer flange 9 on the hood body outlet.
  Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

RECIRCULATION VERSION AIR OUTLET

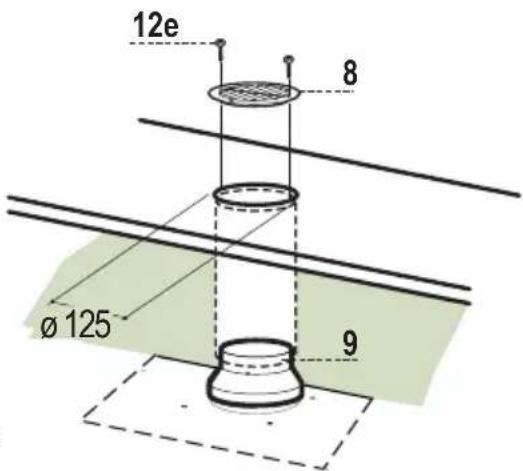

• Cut a hole 125 mm in any shelf that may be positioned over the hood.
• Insert the reducer flange 9 on the hood body outlet.
• Connect the flange to the outlet on the shelf over the hood by using a flexible or rigid pipe 120mm .
  Fix the pipe in position using sufficient pipe clamps (not supplied).
  Fix the air outlet grid 8 on the recirculation air outlet by using the 2 screws 12e (2.9 x 9.5) provided.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

Control panel

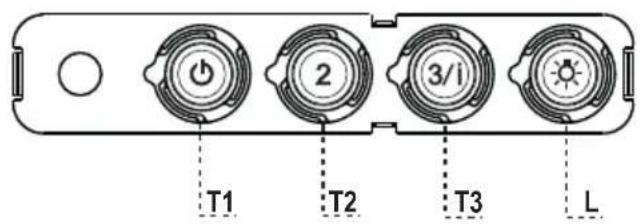

BUTTON	LED	FUNCTIONS
T1 Speed On Turns the Motor on at Speed one.
Turns the Motor off.
T2 Speed On Turns the Motor on at Speed two.
T3 Speed Fixed When pressed briefly, turns the Motor on at Speed three.
Flashing Pressed for 2 Seconds.
Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.
L Light Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after first passing to speed one.

MAINTENANCE

REMOTE CONTROL (OPTIONAL)

The appliance can be controlled using a remote control powered by a 1.5V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.

Opening Panel

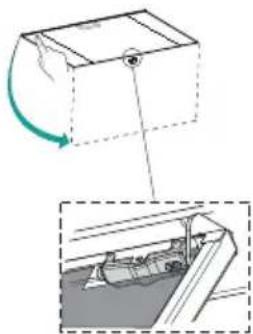

• Open the Panel by pulling it.
• Clean the outside with a damp cloth and neutral detergent.
• Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances.

Metal grease filters

These can be washed in the dishwasher, and need to be cleaned whenever the S1 Led comes on or at least once every 2 months use, or more frequently if use is particularly intensive.

CLEANING THE FILTERS

Resetting the alarm signal

• Turn the Lights and the Suction Motor off.
• Press T3 and hold for at least 3 seconds, until LED flashes three times in confirmation.

Cleaning the Filters

• Open the doors.
• Remove the Filter, pushing it towards the back of the unit and at the same time pulling downward.
• Wash the filter without bending it, and leave it to dry thoroughly before replacing (if the surface of the filter changes colour over time, this will have absolutely no effect on its efficiency).
• Replace, taking care to ensure that the handle faces forwards.
• Close the doors again.

This cannot be washed or regenerated, and must be changed when led S1 starts to flash, or at least once every 4 months. The Alarm signal, if it has been activated, only appears when the Suction motor is turned on.

Activating the alarm signal

• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
• Turn the Lights and the Suction Motor off.
• Press button T2 and hold it for 5 seconds until the LED flashes twice in confirmation:

CHANGING

Resetting the alarm signal

• Turn the Lights and the Suction Motor off.
• Press T3 and hold for at least 3 seconds, until LED flashes three times in confirmation.

Changing the Filter

• Open the doors.
• Remove the Metal Grease Filter.

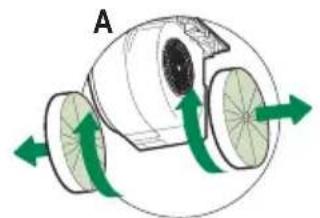

• Remove the saturated Activated Charcoal Filters, as indicated (A).

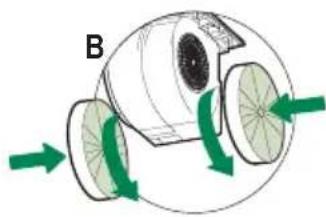

• Fit the new Filters, as indicated (B).
• Replace the Metal grease filters.
• Close the doors.

Lighting unit

• For replacement contact technical support ("To purchase contact technical support").

DAJbHCKN YIPABJBaU (OIIUNHOJIHN)

Ypehaj ce MoKe KOHTpoJIncaTH JaJbHcKHM yIpaBbaHem HAIJaAHM IHomohy cTaNdapIHnx aJIkaJIHHx 6aTepeHja oI 1,5 V Tnna LR03-AAA (HnCy npIOKeHe).

He cTAbjAjeJaBnHcKn ynpaBbaq 6JIN3y I3Bopa TOnIOte.
- Nckopnhehe 6aTepeJe ce Mopajy yKIOHNHa IipOHcaH aHH.

OTbapahe naneJa

IIOByuTe naHeJ da 6hcte ra OTBOpHJn.
CIOJbHy IOBPIHHy YHCTHTe BJIaKHom KpIOM H HeyTpajHM JETepueHTOM.
- YHytpaHbIy IOBPIHHHy YNCTHTe BJIaXHOM KpHOM H HeyTpajHMMJeTepeHTOM; He KopHCTHTe HATOnJIbeHe KpNe HIN cyHhepe HHTMMA3 BOe; He KopHCTHTe a6pa3HBHe CYNTaHue.

MetaJIHnФЛNTepn 3a MaCT

Mory Ia ce Iepy y MaIIHH 3a IIpaIbe Nocyha, a Mopajy Ja ce YIcTe CBAKN Iyt KaI ce JAMIIHua S1 yIaJIH HJH HajMaIbe CBaka 2 Meceua, HIN ueihe y cIyauj HyapOHIO HHTeH3NBHe yIOTpe6e.

HIMHTHeEΦNITEPA

PecetobaIbe cHIIaJIa aIapMa

• NckJbvyHte oCBetJbeHe H MOTOP acIHpaTopa.
• PnTHCHHTe H npKHTe IyTMe T3 6ap 3 cekHyIe JOK JaAMHHe He TpeHHY TpHiYT paH NIOBpIe.

UHHHebeΦJIrTepa

OTBOPHTe Bpata.
- I3BaIHTe fHITep rypajyHn ra Ka 3aIbEm JeTy cKJIOHa y3 HCTOBpeMeHO IOBJIaueHe HaJOJE.
OnepHTe fHITep He cabnajyH ra H octaHTe ra da ce IOTIHyO cyuH IIpe BpahaBa (ako IOBpuHa fHITepa TOKOM BpemeHa IPOMeHH 6oJy, To Hehe HMaTH HHKaKBor yTHUaja Ha eHkacHOCT paJa HIItepa).
BpaHrTa,BoJeHn paUHaJa pyuHa 6yJe okpeHyra haipen.
3aTbOpHTe Bpata.

He MoKe ce IIpaTH HHTH pereHepncatn H Mopa ce 3aMeHHTH KaI JAMIIHa S1 IOUHe Ia TpeIHe HJIH HajMaBe cBaKa 4 MeceIIa. CInHaJI aJIapMa ce, aKO je aKTINBHpA H, IIOjaBbByje caMo aKO je MOTop acIIHpAToPA yKbYueH.
