Cube 1512 - Hi-fi system Auna - Free user manual and instructions

Product Type	Active hi-fi system with subwoofer and passive speakers
Brand	Auna
Model	Cube 1512
Power supply	230 V~ 50 Hz
Power consumption	1200 W max
Active subwoofer	38 cm (15 inches)
Subwoofer output power	300 W RMS, 600 W peak
Passive speakers (x2)	30 cm (12 inches) each
Speaker output power	300 W RMS, 600 W peak
Impedance	8 Ω
Frequency response (subwoofer)	40 Hz - 20 kHz
Frequency response (speakers)	30 Hz - 20 kHz
Max sound pressure	121 dB
Connectivity	1 mic input 6.3 mm, 1 line output 6.3 mm, 1 line input RCA, 1 line output RCA, 2 NLS inputs
Subwoofer dimensions (W x H x D)	49.5 x 60 x 41 cm
Speaker dimensions (W x H x D)	41.5 x 60.5 x 34 cm
Speaker tripod dimensions (W x H x D)	77 x 126-190 x 70 cm
Total weight	36 kg
Controls	Mic volume, mic echo, treble, bass, subwoofer, main volume
Safety	Do not open, avoid water/metal objects, use grounded outlet 10-16 A
Maintenance	Clean with a dry cloth, no chemical products

Frequently Asked Questions - Cube 1512 Auna

What should I do if an odor appears when first plugged in?

This is normal during first use and disappears after a few moments. Make sure the device is well ventilated.

Can I use the device outdoors or in a humid room?

No, to avoid any risk of fire and electric shock, do not expose the device to rain, humidity, or humid rooms.

How to connect a microphone?

Connect your microphone to the 6.3 mm mic input located on the rear of the device. Use the Mic volume and Mic echo controls to adjust the sound.

What type of power outlet should I use?

Use a grounded outlet (220-240 V~ / 50 Hz) protected by a 10-16 A fuse.

How to clean the device?

Clean only with a dry cloth. Do not use chemical products, sprays, or switch cleaners.

What should I do if the device has fallen or been damaged?

Do not plug it in or turn it on. Have it checked by a qualified technician before any use.

Can I connect additional speakers?

The device is designed for two passive speakers connected to the satellite outputs. Do not exceed the indicated power and impedance (8 Ω).

How to adjust the sound?

Use the potentiometers on the rear: Treble, Bass, Sub. Volume (subwoofer volume) and Main volume.

What to do in case of prolonged absence?

Unplug the device from the mains. If you do not use it for several months, recharge the battery (if present) every 3 months.

Where can I find spare parts?

Use only original parts. Contact your dealer or an authorized service center for any repair.

USER MANUAL Cube 1512 Auna

1812 Cabe 1512 PA Lautsprecher Set PA Speaker Set 10032278

#

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

TECHNISCHE DATEN

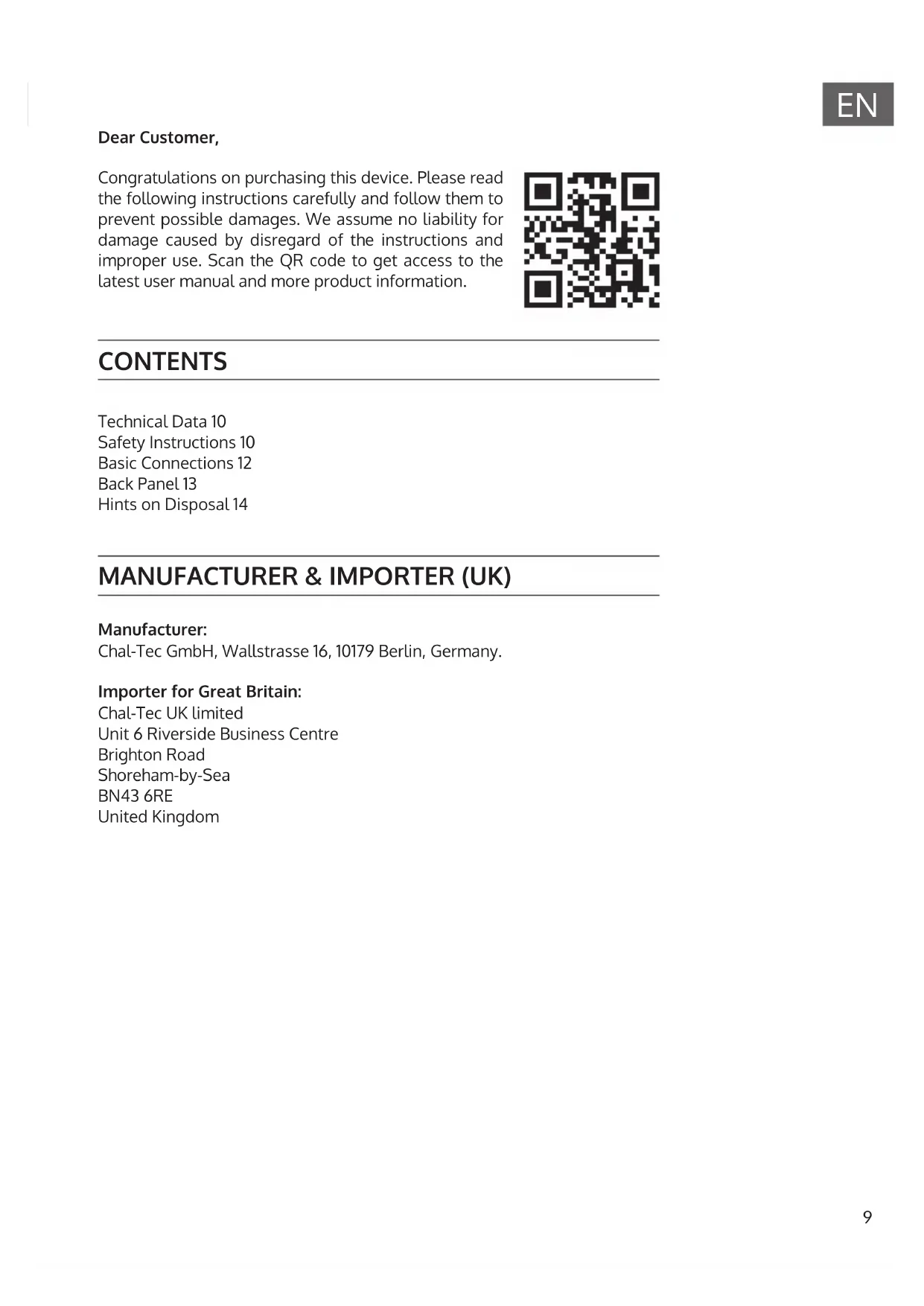

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Technical Data 10

Safety Instructions 10

Basic Connections 12

Back Panel 13

Hints on Disposal 14

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

TECHNICAL DATA

Item number 10032277 100	32278
Item name Cube 1512 Cube	1812
Power supply 230 V~ 50 Hz
Power consumption 1200 W max	max 1600 W max
Impedance 8 Ω
Active subwoofer 38 cm (15") 46 cm (18")
Output power 300 W 500 W
Peak power 600 W 1000 W
Frequency response 40 Hz - 20 kHz
Connections	1 x 6.3 mm microphone input, 1 x 6.3 mm line input, 1 x line in RCA, 1 x line out RCA, 2 x NLS input
Passive speaker (2x)	30 cm (12")
Output power	300 W
Peak power	600 W
Frequency response 30 Hz - 20 kHz
Sound pressure level	1 W / 1 m 92 (± 2 dB)
Max. sound pressure level	121 dB
Dimensions - Subwoofer - Speaker - Speaker tripod	(W x H x D, approx.) 49,5 x 60 x 41 cm 41,5 x 60,5 x 34 cm 77 x 126-190 x 70 cm	(W x H x D, approx.) 55 x 60 x 41 cm 41,5 x 60,5 x 34 cm 77 x 126-190 x 70 cm
Weight	36 kg	37,5 kg

SAFETY INSTRUCTIONS

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.

• The product contains voltage carrying parts. Therefore do NOT open the housing.

• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.

• Do not place the product near heat sources such as radiators, etc.
• Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240 V ac / 50 Hz) protected by a 10-16 A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.
• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
• Do not repeatedly switch the product on and off. This shortens the life time.
• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60 cm away from computer or TV.
• If the product has built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.

• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.

• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.

• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220 - 240V /50Hz . Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

BASIC CONNECTIONS

BACK PANEL

1 Microphone Echo Control
2 Microphone Volume
3 Treble Control
4 Bass Control
5 Sub. Volume
6 Master Volume
7 Microphone Input
8 LINE Input
9 AUX Input
10 AUX Output
11 Satellite Speaker Outputs

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
