USER MANUAL Connect 620 UHD 2.0 MARMITEK

ALL RIGHTS RESERVED MARMITEK ©

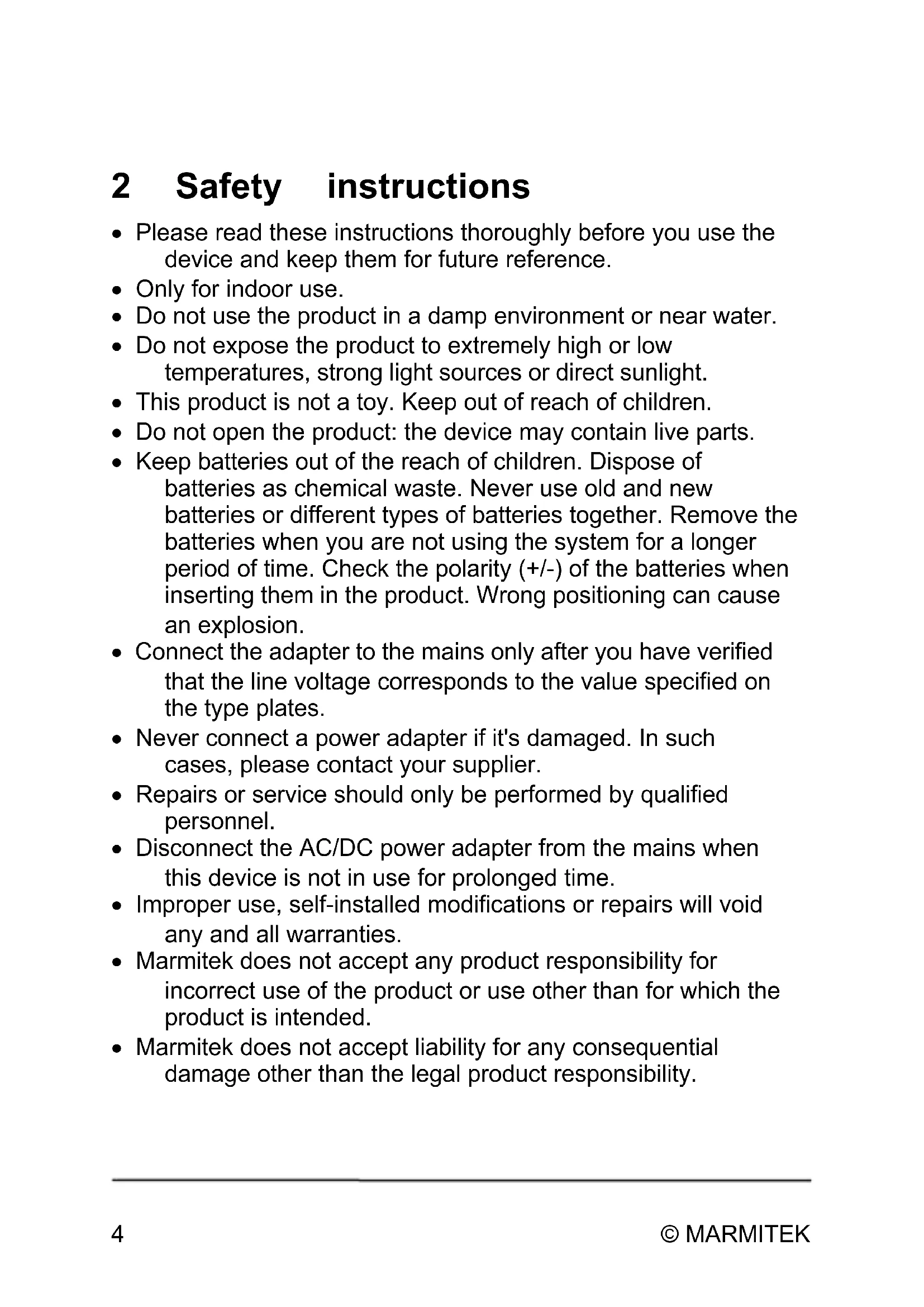

2 Safety instructions x Please read these instructions thoroughly before you use the device and keep them for future reference. x Only for indoor use. x Do not use the product in a damp environment or near water. x Do not expose the product to extremely high or low temperatures, strong light sources or direct sunlight. x This product is not a toy. Keep out of reach of children. x Do not open the product: the device may contain live parts. x Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion. x Connect the adapter to the mains only after you have verified that the line voltage corresponds to the value specified on the type plates. x Never connect a power adapter if it's damaged. In such cases, please contact your supplier. x Repairs or service should only be performed by qualified personnel. x Disconnect the AC/DC power adapter from the mains when this device is not in use for prolonged time. x Improper use, self-installed modifications or repairs will void any and all warranties. x Marmitek does not accept any product responsibility for incorrect use of the product or use other than for which the product is intended. x Marmitek does not accept liability for any consequential damage other than the legal product responsibility.Connect 620 UHD 2.0™

ENGLISH 3 Your product

Congratulations on your purchase of the Marmitek Connect 620 UHD 2.0™! It allows you to use 1 cable to connect 4 HDMI sources to your TV, without any loss of signal or encryption. It's ideal when your TV doesn't have enough HDMI inputs, or if you want to connect the devices to your TV using just one cable. Examples of HDMI sources are game consoles such as a PlayStation or Xbox, Blu- ray players, digital TV decoders and all other HDMI devices. The Connect 620 UHD 2.0™ supports Ultra HD (4k), Full HD (1080p) and all 3D formats, making it suitable for all your existing and future equipment. All our products are designed and manufactured to the highest quality requirements. Please read this manual first and follow the instructions in order to fully enjoy the possibilities of this product.

x Suitable for simultaneously connecting 4 HDMI devices to your TV x Enjoy the latest Ultra HD content and watch Netflix or a Blu- ray movie in 4K, while maintaining ultimate contrast and beautiful colours. x Includes built-in repeater and equalizer for correcting any signal loss. x Switches automatically and/or with remote control. x Supports HDCP 2.2 for playing protected 4K Ultra HD content

x Supports all 3D formats (suitable for use with your own 3D equipment) x Deep Color 36-bit (billions instead of millions of colours, better reproduction of subtle differences in gradation and a higher contrast ratio). x Supports Dolby Atmos and DTS:X and all other common audio formats.

3.4 Package contents

A. 1 x HDMI Switcher B. 1 x Remote Control (battery included) C. 1 x Power Adapter D. 1 x User Manual

x Turn off all devices (TV and HDMI sources) before connecting them to the Connect 620 UHD 2.0™. If a device cannot be turned off, please remove the plug from the socket. x Only use High Speed HDMI® certified cables for the best picture and sound quality. Using too much force to connect or disconnect the HDMI cables may damage them. x Please be careful when connecting your HDMI cables. These damage easily.

1. Use an HDMI cable to connect the HDMI sources (such as a

game console, Blu-ray player or digital TV decoder) to the HDMI ports marked "Input".

3. Connect the power adapter to the "DC 5V" and insert the

plug into the socket.

4. Pull the plastic strip from the remote control's battery

compartment to activate the battery and remove the protective film from the top.Connect 620 UHD 2.0™

The Connect 620 UHD 2.0™ allows you to choose which HDMI source is displayed on the TV. If you turn on one of the HDMI sources, it will automatically switch to the correct input. If multiple HDMI sources are turned on, the Connect 620 UHD 2.0™ will automatically switch to the HDMI source that was activated last. To deactivate or reactivate automatic switching, press the input selection button on the remote control for 3 seconds. Input lights 3 and 4 will light up briefly to confirm. If you want to manually select another HDMI source, repeatedly press the input selection button on the remote control briefly until you arrive at the right input, or use the direct input selection buttons (IN1 to IN4) to switch to the required input directly. Alternatively, you can use the "Select" button at the front of the Connect 620 UHD 2.0™.

Note: Automatic switching must be supported by the HDMI source. If it is not supported, you should manually select the appropriate HDMI source. Direct input selection Input selection© MARMITEK

ENGLISH Ambient humidity 20% to 90% Power External power adapter 100-240VAC @50-60Hz, 5VDC @ 1A Specifications may change without prior notice.© MARMITEK

7 Frequently asked questions (FAQs) No (or poor) image and sound If you experience poor or no picture after connecting the HDMI switcher, please try to identify the problem by connecting the devices to your screen (TV, monitor or projector) one by one. This allows you to determine whether the problem is with the HDMI sources, the HDMI cables, the HDMI switcher or the screen. x Make sure the power adapter is connected and plugged in. x For the best picture and sound quality, only use High Speed HDMI® certified cables. x Do not use HDMI cables longer than those specified in the technical data. x Check the HDMI cables and/or connectors for damage. x Both the HDMI source and your screen should fully support HDMI. x Check that your HDMI sources and screen support HDCP

2.2 (High Bandwidth Digital Content Protection) copy

protection. Incorrect 3D display x Please check whether the HDMI source is set to display 3D and/or it is set to automatic. x Both the HDMI source and your HD screen should support the same 3D formats. x Please check that 3D is displayed correctly by connecting the HDMI source directly to the HD display with an HDMI cable. Do you have any other questions that have not been resolved by the above information? Please go to www.marmitek.comConnect 620 UHD 2.0™

8.1 Declaration of Conformity

Hereby, Marmitek BV, declares that this Connect 620 UHD 2.0™ is in compliance with the essential requirements and other relevant provisions of the following Directives: Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment Commission Regulation (EC) No 278/2009 of 6 April 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to ecodesign requirements for no- load condition electric power consumption and average active efficiency of external power supplies

Environmental Information for Customers in the European Union. European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local© MARMITEK

authorities, waste disposal service, or the shop where you purchased the product.

Marmitek is a trademark of Germatron B.V. Connect 620 UHD 2.0™ is a trademark of Marmitek B.V. All rights reserved. Every effort has been made to ensure that the information in this manual is accurate. Marmitek is not responsible for printing or clerical errors. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions. Other company and product names mentioned herein may be trademarks of their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Marmitek assumes no responsibility with regard to the performance or use of these products. Marmitek BV - PO Box 4257 - 5604 EG Eindhoven The NetherlandsConnect 620 UHD 2.0™
