USER MANUAL ANGLE EXACT ION 30300 Professional BOSCH

äußeren Abmessung größer als 25cm sind, im Einzel- handelsgeschäft oder in unmittelbarer Nähe hierzu un- entgeltlich zurückzunehmen; die Rücknahme darf nicht an den Kauf eines Elektro- oder Elektronikgerätes ge- knüpft werden und ist auf drei Altgeräte pro Geräteart beschränkt. Der Vertreiber hat beim Abschluss des Kaufvertrags für das neue Elektro- oder Elektronikgerät den Endnutzer über die Möglichkeit zur unentgeltlichen Rückgabe bzw. Abholung des Altgeräts zu informieren und den Endnutzer nach seiner Absicht zu befragen, ob bei der Auslieferung des neuen Ge- räts ein Altgerät zurückgegeben wird. Dies gilt auch bei Vertrieb unter Verwendung von Fernkom- munikationsmitteln, wenn die Lager- und Versandflächen für Elektro- und Elektronikgeräte mindestens 400m² betragen oder die gesamten Lager- und Versandflächen mindestens 800m² betragen, wobei die unentgeltliche Abholung auf Elektro- und Elektronikgeräte der Kategorien 1 (Wärmeüber- träger), 2 (Bildschirmgeräte) und 4 (Großgeräte mit mindes- tens einer äußeren Abmessung über 50cm) beschränkt ist. Für alle übrigen Elektro- und Elektronikgeräte muss der Ver- treiber geeignete Rückgabemöglichkeiten in zumutbarer Ent- fernung zum jeweiligen Endnutzer gewährleisten; das gilt auch für Altgeräte, die in keiner äußeren Abmessung größer als 25cm sind, die der Endnutzer zurückgeben will, ohne ein neues Gerät zu kaufen. Akkus/Batterien: Li-Ion: Bitte beachten Sie die Hinweise im Abschnitt Transport (sie- he „Transport“, Seite14). English Safety instructions General Power Tool Safety Warnings WARNING Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this power tool. Failure to follow all in- structions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cord- less) power tool. Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite accidents. u Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety u Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Bosch Power Tools 1 609 92A 9SN | (06.08.2024)16 | English u Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- ors. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock. u Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. u When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit- able for outdoor use reduces the risk of electric shock. u If operating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec- ted supply. Use of an RCD reduces the risk of electric shock. Personal safety u Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten- tion while operating power tools may result in serious per- sonal injury. u Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in- juries. u Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. u Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal in- jury. u Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. u Dress properly. Do not wear loose clothing or jew- ellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. u If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. u Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe in- jury within a fraction of a second. Power tool use and care u Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was de- signed. u Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. u Disconnect the plug from the power source and/or re- move the battery pack, if detachable, from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. u Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. u Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. u Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. u Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac- count the working conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation. u Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care u Recharge only with the charger specified by the manu- facturer. A charger that is suitable for one type of bat- tery pack may create a risk of fire when used with another battery pack. u Use power tools only with specifically designated bat- tery packs. Use of any other battery packs may create a risk of injury and fire. u When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. u Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addi- tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. 1 609 92A 9SN | (06.08.2024) Bosch Power ToolsEnglish | 17 u Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. u Do not expose a battery pack or tool to fire or excess- ive temperature. Exposure to fire or temperature above 130°C may cause explosion. u Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service u Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. u Never service damaged battery packs. Service of bat- tery packs should only be performed by the manufacturer or authorized service providers. Safety Warnings for Screwdrivers u Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. u Use suitable detectors to determine if there are hid- den supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to ex- plosion. Breaking water pipes causes property damage. u Hold the power tool securely. When tightening and loosening screws be prepared for temporarily high torque reactions. u Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. u Always wait until the power tool has come to a com- plete stop before placing it down. The application tool can jam and cause you to lose control of the power tool. u In case of damage and improper use of the battery, va- pours may be emitted. The battery can set alight or ex- plode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system. u Do not modify or open the battery. There is a risk of short-circuiting. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. u Only use the battery in the manufacturer's products. This is the only way in which you can protect the battery against dangerous overload. Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting. u Switch the power tool off immediately if the applica- tion tool becomes blocked. Be prepared for high torque reactions which cause kickback. The applica- tion tool becomes blocked when it becomes jammed in the workpiece or when the power tool becomes over- loaded. WARNING The dust produced by sanding, sawing, grinding, drilling and other similar activities may cause cancer, congenital de- fects or genetic mutations. Some of these dusts contain substances such as: Lead in lead-based paint and varnish; crystalline silica in bricks, cement and other building materials; arsenic and chromate in chemically treated wood. The risk of becoming ill depends on how frequently you are exposed to these sub- stances. To reduce the potential danger, you should always wear adequate personal protective equipment (e.g. specially made breathing apparatus that can filter out even the smal- lest of dust particles) and work only in well-ventilated areas. u Avoid switching on the tool accidentally. Make sure that the on/off switch is set to the off position before inserting a battery. Accidents can occur as a result of carrying the power tool with your finger on the on/off switch or inserting the battery while the power tool is switched on. u Do not use application tools that are worn or in other- wise less than perfect condition. Defective application tools can break, for example, causing material damage and personal injury. u When fitting an application tool, make sure that it is held securely in the tool holder. If the application tool is not held securely in the tool holder, it may become loose and consequently uncontrollable. u Be careful when screwing in long screws – there is a risk of slipping when using particular screws and ap- plication tools. Long screws are often difficult to control and there is a danger that you will slip and hurt yourself when screwing them in. u Check which rotational direction is set before switch- ing on the power tool. If you want to loosen a screw but the rotational direction is set to tighten the screw, for ex- ample, the power tool may move violently and uncontrol- lably. u Do not use the power tool as a drill. Power tools with a shut-off clutch are not suitable for drilling. The clutch can shut off automatically and without warning. Bosch Power Tools 1 609 92A 9SN | (06.08.2024)18 | English Product Description and Specifications Read all the safety and general instructions. Failure to observe the safety and general in- structions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the beginning of this oper- ating manual. Intended Use The power tool is intended for tightening and loosening screws, bolts, nuts and other threaded connectors in the specified power and dimension ranges. The power tool is suitable only for use in industrial environ- ments. The power tool is not suitable for use as a drill. Product Features The numbering of the product features refers to the diagram of the power tool on the graphics page. (1) Application tool

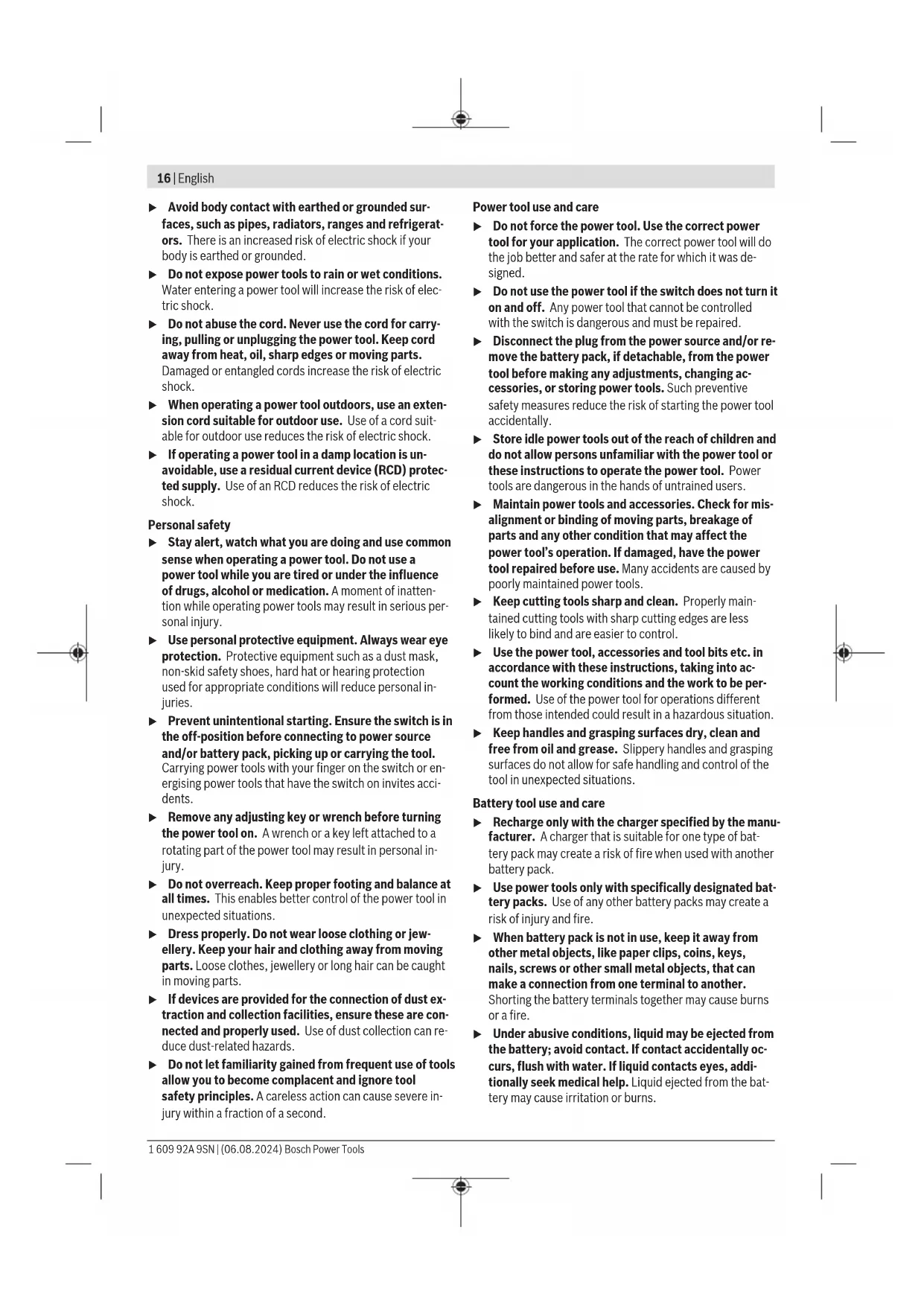

(5) Spanner flat on angled head flange (6) Slider for preselecting the torque (7) LED indicator for screwdriving applications (8) Battery charge indicator (9) Rechargeable battery

(10) On/off switch (11) Rotational direction switch (12) LED holder (13) Worklight (14) Battery release button

(16) Attachment slots for hanging hook (17) Marking ring (18) Spring ring (19) Cavity in the housing shell (20) Open-ended spanner (27mm width across flats)

(21) Open-ended spanner (22mm width across flats)

(22) Lock nut (23) Motor housing (24) Quick-change chuck

(25) Adjustment tool

(27) Setting disc (28) Handle (insulated gripping surface)

This accessory is not part of the standard scope of delivery. Technical data

Nm 2–8 0.7–3 2–15 10–23 10–30 No-load speed n

110–1100 50–520 50–520 38–380 29–290 Weight

kg 1.7–2.7 1.7–2.7 1.7–2.7 2.2–3.1 2.2–3.1 Protection rating IP 20 IP 20 IP 20 IP 20 IP 20 Battery (not included with the product as standard) Li-ion Li-ion Li-ion Li-ion Li-ion Permitted ambient temperature – During charging °C 0 to +35 0 to +35 0 to +35 0 to +35 0 to +35 – During operation

and dur- ing storage °C –20 to +50 –20 to +50 –20 to +50 –20 to +50 –20 to +50 Recommended rechargeable batteries GBA18V... Pro- CORE18V...

Industrial cordless angle wrench 8-1100 3-500 15-500 23-380 30-290 Angled screw head (included with the product as standard)

A) Depending on battery in use B) Limited performance at temperatures <0°C C) The ProCORE 18V+ 8.0Ah (1607A351PG) rechargeable battery is not recommended for this power tool.

30–300 22–220 21–180 12–120 Weight kg 2.4 2.4 2.4 2.4 Protection rating IP 20 IP 20 IP 20 IP 20 Battery (not included with the product as stand- ard) Li-ion Li-ion Li-ion Li-ion Permitted ambient temperature – During charging °C 0 to +35 0 to +35 0 to +35 0 to +35 – During operation

and during storage °C –20 to +50 –20 to +50 –20 to +50 –20 to +50 Recommended rechargeable batteries GBA18V... Pro- CORE18V...

Recommended battery chargers GAL 18... GAX 18... GAL 36... GAL 18... GAX 18... GAL 36... GAL 18... GAX 18... GAL 36... GAL 18... GAX 18... GAL 36... Angled screw head (included with the product as standard) ■ 3/8" ■ 3/8" ■ 3/8" ■ 3/8" A) Limited performance at temperatures <0°C B) The ProCORE 18V+ 8.0Ah (1607A351PG) rechargeable battery is not recommended for this power tool. Angled screw head Straight screw head ■ 1/4" ■ 3/8" ■ 3/8" 1/4" QC 1/4" QC 1/4" Article number

Torque, hard/soft screwdriving applica- tion according to ISO 5393 Nm 20 25 30 20 20 6 Tightening torque at the flange Nm 20 20 25 20 20 10 Accessories for ANGLE EXACT ION 15–500 15–500 30–300 15–500 15–500 15–500 Weight kg 0.20 0.20 0.30 0.20 0.20 0.20 Values can vary depending on the product, scope of application and environmental conditions. To find out more, visit www.bosch-professional.com/wac. Noise/Vibration Information Noise emission values determined according to EN 62841-2-2. Typically, the A-weighted sound pressure level of the power tool is less than 70dB(A). The noise level when working can exceed the volume stated. Wear hearing protection! Vibration total values a

(triax vector sum) and uncertainty K determined according toEN 62841-2-2: Bosch Power Tools 1 609 92A 9SN | (06.08.2024)20 | English Tightening screws and nuts of the maximum permitted size:

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- ent the main applications of the power tool. However, if the power tool is used for other applications, with different ac- cessories or is poorly maintained, the vibration level and noise emission value may differ. This may significantly in- crease the vibration and noise emissions over the total work- ing period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and accessories, keeping their hands warm, and organising workflows correctly. Notes on Accuracy The reduction in speed (especially below 50%) can lower the maximum torque. The increased speed when using Power Boost may affect the accuracy and shut-off beha- viour. The clutch may be released. Machine capability tests are usually done at 600rpm in accordance with VDI2647. Changes to the speed and/or torque may affect the accur- acy. The machine capability must be checked with the relev- ant setting. Rechargeable battery Bosch sells some cordless power tools without a re- chargeable battery. You can tell whether a rechargeable bat- tery is included with the power tool by looking at the pack- aging. Charging the battery u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: Lithium-ion rechargeable batteries are supplied par- tially charged according to international transport regula- tions. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time. Inserting the Battery Push the charged battery into the battery holder until it clicks into place. Removing the Battery To remove the rechargeable battery, press the battery re- lease buttons and pull the battery out. Do not use force to do this. Battery charge indicator (yellow LED) Battery charge indic- ator Meaning Flashing light + sound Charge the battery: You can only drive in 6 to 8 more screws. Continuous light + sound There is not enough capacity left to drive in another screw or the power tool has over- loaded: The power tool can no longer be switched on. – Remove the battery and replace it with a battery that is fully charged. Flashing light The power tool has overheated and switched itself off: – Wait a short while for the light to stop flashing before switching the power tool on again. When the rechargeable battery(9) is inserted and the on/off switch(10) is pressed, the battery charge indicator dis- plays the battery's state of charge for 5seconds. Rechargeable battery charge in- dicator Capacity Green 60–100% Yellow 30–60% Red 0–30% Recommendations for Optimal Handling of the Battery Protect the battery against moisture and water. Only store the battery within a temperature range of −20 to 50°C. Do not leave the battery in your car in the summer, for example. A significantly reduced operating time after charging indic- ates that the battery has deteriorated and must be replaced. Follow the instructions on correct disposal. Assembly u Before carrying out any work on the power tool (e.g. maintenance, tool change etc.), remove the battery from the power tool. There is risk of injury from uninten- tionally pressing the on/off switch. Operating and storage conditions The power tool is suitable only for operation at enclosed work sites. To ensure smooth operation, the permitted ambient temper- ature should be between 0 °C and +45 °C, at a permitted rel- 1 609 92A 9SN | (06.08.2024) Bosch Power ToolsEnglish | 21 ative humidity of between 20 and 95%, free of condensa- tion. Suspension device (see figure A) You can use the hanging hook (15) to attach the power tool to a suspension device. – Fit the hanging hook (15) onto the power tool and make sure it engages in the slots (16). Depending on the centre of gravity of the power tool, you can either use the front or back slots. u Regularly check the condition of the hanging hook and the catch in the suspension device. Switching on the worklight (see figure B) – Press the marking ring (17) with a thin screwdriver blade, a spatula or similar implement. – Slide the spring ring(18) back onto the housing shell us- ing a pair of spring ring pliers. The two shell halves of the LED holder (12) that encase the worklight (13) can now be brought into the required posi- tion. – Taking care not to damage the cable on the worklight, slide it into the cavity provided for it (19) in the housing shell without allowing it to bend. – Encase the worklight (13) in the two housing shells of the LED holder (12) once again. – Press the spring ring (18) and the marking ring (17) back into their original position. Fitting the angled screw head (seefigureC) Applies to the following models: ANGLE EXACT ION 30-300 | 40-220 | 50-210 | 60-120 These cordless angle wrenches must be fitted with a com- patible angled screw head(see "Technical data", page18) first. – Hold the power tool with the open-ended spanner(21) against the spanner flat(5) of the angled head flange. u Never clamp the power tool to the housing shells. – Place the angled screw head(3) in the required position on the flange and tighten the cap nut with the open-ended spanner(20) against the spanner flat(4). While doing this, place the open-ended spanner(21) against the angled head flange to hold it in place. Adjusting the angled screw head You can adjust the angled screw head (3) to a total of eight different positions. – Use the open-ended spanner (21) on the spanner flat (5) of the angled head flange of the power tool to hold it in place. u Never clamp the power tool to the housing shells. – Use an open-ended spanner (20) on the spanner flat (4) of the cap nut to loosen it. Adjust the angled screw head (3) by 45° accordingly to the required position and use the open-ended spanner (20) on the spanner flat (4) of the cap nut to tighten it again. While doing this, use the open-ended spanner (21) on the angled head flange to provide resistance. Adjusting and removing the angled screw head (see figure D) Applies to the following models: ANGLE EXACT ION 30-300 | 40-220 | 50-210 | 60-120 The angled screw head (3) with tool holder (2) can be con- tinuously adjusted by 360°. – Loosen the lock nut (22) by hooking into an opening on the lock nut using a suitable tool and turning in the direc- tion of the arrow a (left-hand thread). – Fix the angled screw head (3) in this position by turning the lock nut (22) in the direction of the arrow c against the angled screw head. Retighten the lock nut (22) with a tightening torque of max. 50Nm. – Turn the angled screw head (3) in the direction of the ar- row b until the required working angle is reached; how- ever, it should only be turned a maximum of one 360° ro- tation. The angled screw head (3) can also be removed completely if you wish to replace the marking ring (17) with a marking ring of a different colour or if you wish to adjust the work- light. Move the worklight to the required position (see "Switching on the worklight (see figure B)", page21) first, before adjusting the angled screw head. – Loosen the lock nut (22) by hooking into an opening on the lock nut using a suitable tool and turning in the direc- tion of the arrow a (left-hand thread). Turn the angled screw head (3) in the direction of the arrow b until you can remove it. Turn the lock nut (22) in the direction of the arrow a of the motor housing (23). Now you can replace the marking ring or adjust the work- light. – Turn the lock nut (22) in the direction of the arrow c on the motor housing (23) and screw the angled screw head back on in the opposite direction of the arrow b. – Fix the angled screw head by turning the lock nut (22) in the direction of the arrow c. – Retighten the lock nut (22) with a tightening torque of ap- prox. 50Nm. Configuring the power tool You can configure various settings on the power tool (e.g. ro- tational speed, screwing stage, repeat protection) using BOSCH EXACT Configurator software of version 5.2 or higher. The power tool must be connected to a PC via its USB port in order to do this. Use a USB cable for this: USB2.0TypeA/Micro-USB2.0TypeB – Double-shielded – Max. length 1m When configuring via the USB port, radio interference may occur outside the industrial environment. u Observe all safety notes and instructions in the software operating instructions. Bosch Power Tools 1 609 92A 9SN | (06.08.2024)22 | English Changing the tool at the screw head with external square (see figure E) Inserting the application tool – Press the pin into the square of the tool holder (2), e.g. using a narrow screwdriver, and slide the application tool (1) over the square. Ensure that the pin engages in the re- cess of the application tool. Removing the application tool – Press the pin into the recess of the application tool (1) and pull the application tool off of the tool holder (2). Changing the tool at the screw head with internal hexagon (see figure F) Inserting the application tool – Insert the application tool (1) into the internal hexagon of the tool holder (2) until it audibly engages. Removing the application tool – Pull the application tool (1) off of the tool holder (2), us- ing pliers if necessary. Changing the tool at the screw head with quick- change chuck (see figure G) Inserting the Application Tool Only use application tools with the matching shank (1/4" hexagon). – Pull the sleeve of the quick-change chuck forwards. – Place the application tool into the tool holder (2) and re- lease the quick-change chuck again. Removing the application tool – Pull the sleeve of the quick-change chuck forwards. – Take the application tool out of the tool holder(2) and re- lease the quick-change chuck again. Operation Always set the rotational direction using the rotational direc- tion switch (11) before starting the power tool: The power tool will not start if the rotational direction switch (11) is in the centre (lock-off button). Setting the rotational direction (see figure H) – Clockwise: To drive in screws, press the rotational direc- tion switch (11) through as far as possible to the left. – Anti-clockwise: To loosen or unscrew screws, press the rotational direction switch (11) through as far as possible to the right. Setting the torque (see figure I) The torque depends on the spring preload of the shut-off clutch. The shut-off clutch is triggered upon reaching the set torque, both in clockwise and anticlockwise rotation. Only use the supplied adjustment tool(25) to set the indi- vidual torque. – Slide the slider(6) on the power tool back completely. Applies to the following models: ANGLE EXACT ION 30-300 | 40-220 | 50-210 | 60-120 – Insert a hex key (26) into the application tool (25) and turn it slowly. – Once a small protrusion (setting disc(27)) in the clutch can be seen through the opening of the housing, insert the adjustment tool(25) into this protrusion and turn it. Applies to the following models: ANGLE EXACT ION 30-300 | 40-220 | 50-210 | 60-120 – Slowly turn the tool holder (2) with an open-ended span- ner. – Once a small protrusion (setting disc(27)) in the clutch can be seen through the opening of the housing, insert the adjustment tool(25) into this protrusion and turn it. Turning clockwise will result in a higher torque; turning anti- clockwise will result in a lower torque. – Remove the adjustment tool (25). Slide the slider (6) to the front again to protect the clutch from contamination. Note: The required setting is dependent on the type of threaded connector and can be best determined by practical trials. Check a trial screw application with a torque spanner. u If you set the torque to a value outside the specified power range, the shut-off clutch will not be triggered. u Check the torque on the screw connection regularly and readjust the shut-off clutch if necessary. Marking the torque setting (see figure K) Always use the power tool with a marking ring to be certain that the housing is protected against dust and dirt. Applies to the following models: ANGLE EXACT ION 30-300 | 40-220 | 50-210 | 60-120 The angled screw head on these industrial cordless angle wrenches must be removed first(see "Adjusting and remov- ing the angled screw head (see figure D)", page21). Now you can mark the torque as described below. Applies to the following models:
