| Product Type | Active 3D Glasses (liquid crystal shutter) |
| Brand | Panasonic |
| Model | TY-ER3D4SE |
| 3D Technology | Active Shutter, Wireless Bluetooth® |
| Dimensions (W x H x D) | 160.5 x 42.2 x 167.6 mm |
| Weight | Approx. 27 g |
| Power Supply | DC 5 V (via USB port of Panasonic TV) |
| Battery | Rechargeable lithium-ion polymer, 3.7 V, 40 mAh |
| Battery Life | Approx. 30 hours |
| Charging Time | Approx. 30 minutes (quick charge: 2 minutes for 3 hours of use) |
| Operating Range | Up to 3.2 m from TV |
| Communication Frequency | 2.4 GHz FH-SS (Bluetooth®) |
| Compatibility | Panasonic 3D compatible TVs with Bluetooth® logo and Full HD 3D Glasses™ |
| Main Functions | 3D viewing, 3D→2D conversion, Bluetooth registration |
| Care and Cleaning | Soft dry cloth; do not use benzene, thinner, or wax |
| Operating Temperature | 0 °C to 40 °C |
| Recommended Viewing Distance | 3 times the image height (e.g., 1.9 m for a 50" TV) |
| Safety | Do not use in presence of medical equipment; keep at least 22 cm from pacemaker |
| Included Accessories | Charging cable (K2KYYYY00164) |
| Warranty | 12 months (parts and labor) |
Frequently Asked Questions - TY-ER3D4SE PANASONIC
User questions about TY-ER3D4SE PANASONIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your TV Accessory in PDF format for free! Find your manual TY-ER3D4SE - PANASONIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TY-ER3D4SE by PANASONIC.
USER MANUAL TY-ER3D4SE PANASONIC
Operating Instructions
3D Eyewear
Model No.
TY-ER3D4ME TY-ER3D4SE
This product cannot and must not be used as sunglasses.
DANSK
NEDERLANDS
FRANÇAIS
DEUTSCH
ITALIANO
ΚΑЗАΚ
FULL HD RF 3D
PORTUGUÊS
РУССКИЙ
ESPAÑOL
SVENSKA
TÜRKÇE
УКРАЇНСЬКА
GUARANTEE
ГАРАНТИЙНЫЙ ТАЛОН
Thank you for purchasing a Panasonic product.
- Before using this product, be sure to read "Safety Precautions" and "Using Precautions" (pages 2 - 6).
- Before operating this product, please read the instructions carefully, and save this manual for future use.
This 3D Eyewear can be used for Panasonic HDTVs supporting 3D and the Bluetooth® Wireless technology, that have the logo as shown below.
(page 15)
For the latest information on applicable models, visit our web site.
http://panasonic.net/
Safety Precautions
Danger
About Prohibition of Heating
■ Do not put 3D Eyewear in fire, heat it or leave it in places that can get hot.
■ 3D Eyewear contains a lithium-ion polymer rechargeable battery, so heating may result in combustion or rupture that may cause burns or fire.
Warning
About Prohibited Place
■ Do not use 3D Eyewear in hospital or other medical facilities.
Radio waves from 3D Eyewear may cause interference of medical equipments.
■ Do not use 3D Eyewear nearby automatic control equipments, like a automatic door, a fire alarm apparatus, etc.
Radio waves from 3D Eyewear may cause interference of automatic control equipments.
- Keep 3D Eyewear more than 22 cm (9 in.) away from the implant of cardiac pacemaker, or similar implantable medical equipments, at all times.
Radio waves from 3D Eyewear may affect implantable cardiac pacemaker or similar equipment operations.
Disassembly
■ Do not disassemble or modify the 3D Eyewear.
- When disposing this product, refer "Disposal" (page 10) and disassemble properly for removing the rechargeable battery.
About Charging
■ Charge by connecting the included charging cable to the USB terminal of a Panasonic TV supporting 3D. Charging with other devices may result in battery leakage, heating or rupture.
■ Do not use the included charging cable for uses other than charging 3D Eyewear.
Caution
About 3D Eyewear
■ Do not drop, exert pressure on, or step on the 3D Eyewear.
■ Be careful of the tips of the frame when putting on the 3D Eyewear.
■ Always keep the 3D Eyewear in a cool, dry place.
■ Be careful not to trap a finger in the hinge section of the 3D Eyewear.
■ Pay special attention when children are using this product.
Viewing 3D Content
■ Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other existing medical conditions.
■ Stop using the 3D Eyewear immediately if you feel tired, discomfort, or any other uncomfortable sensation.
■ Take an appropriate break after viewing a 3D movie.
■ Take a break of between 30 - 60 minutes after viewing 3D content on interactive devices such as 3D games or computers.
■ Be careful not to strike the television screen or other people unintentionally. When using the 3D Eyewear the distance between the user and screen can be misjudged.
■ The 3D Eyewear must only be worn when viewing 3D content.
■ Do not tilt your head and/or the 3D Eyewear while viewing 3D image. Keep your eyes and the 3D Eyewear are on a horizontal level to the television.
■ If you suffer from any eyesight problems (short/far-sighted, astigmatism, eyesight differences in left and right), please ensure to correct your vision before using the 3D Eyewear.
■ Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.
■ Do not use the 3D Eyewear at a distance less than the recommended distance.
The recommended viewing distance is at least 3 times of image height.
e.g.
For a 50-inch TV 1,9 m or more
For a 65-inch TV 2,4 m or more
■ When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance at least 3 times of the height of the actual image.
(That makes the distance closer than above recommended figure.)
3D Eyewear Use
■ 3D Eyewear should not be used by children younger than 5 - 6 years old, as a guideline.
■ All children must be fully supervised by parents or guardians who must ensure their safety and health throughout the using 3D Eyewear.
■ Before using the 3D Eyewear, ensure no breakable objects surrounding the user to avoid any accidental damage or injury.
■ Remove the 3D Eyewear before moving around to avoid falling or accidental injury.
■ Use the 3D Eyewear only for the intended purpose and nothing else.
■ Do not use if the 3D Eyewear is physically damaged.
■ Stop using the 3D Eyewear immediately if a malfunction or fault occurs.
■ Stop using the 3D Eyewear immediately if you experience any redness, pain, or skin irritation around the nose or temples.
In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.
Using Precautions
■ Do not drop or bend the 3D Eyewear.
■ Do not apply pressure to or scratch the surface of the liquid crystal shutter of the 3D Eyewear.
■ Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves near the 3D Eyewear as this may cause the 3D Eyewear to malfunction.
■ Do not use 3D Eyewear outside the specified usage temperature range (☐ page 14).
If the room is lit by fluorescent lights (50 Hz) and light appears to flicker when using the 3D Eyewear, switch off the fluorescent light.
■ 3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.
■ Do not wear the 3D Eyewear when watching anything other than 3D images. Other kinds of displays (such as computer screens, digital clocks, or calculators etc.) may be difficult to see while wearing the 3D Eyewear.
■ Using radio waves
This unit uses the 2.4 GHz radio frequency ISM band (Bluetooth ^® ). However other wireless equipment may use the same frequency. Be sure to take note of the following to prevent radio wave interference from other equipment.
- Restriction of use For use only in your country.
- Range of use The range of use is up to approximately 3,2 m. The range may be less depending on the structure of the building, the environment and any obstacles between the receiver and the transmitter. Such obstacles as reinforced concrete walls and metal doors, in particular, obstruct the transmitter's signals.
- Interference from other equipment Due to radio interference, malfunctions may occur if the unit is placed too close to other equipment. We recommend keeping the unit as far away as possible from the following devices:
Bluetooth ^® devices other than this unit, wireless LAN, microwaves, office automation devices, digital cordless telephones and other electronic devices.
The unit is designed to automatically avoid radio interference from these household devices.
However malfunctions may happen when radio interference occurs.
Accessories
Charging cable ....<1>
(K2KYYYY00164)
- < > indicates the quantity.

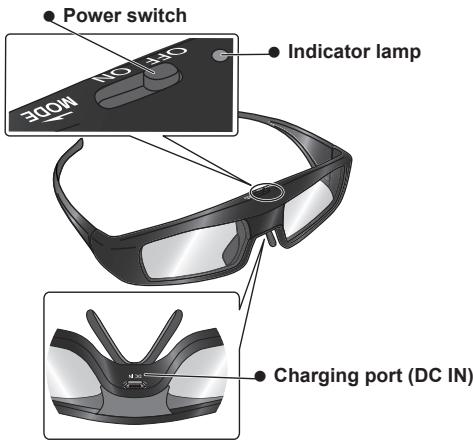

Identifying Controls
● Power switch
ON/OFF
Slide the tab to the ON/OFF position to switch the power on/off.
MODE
Slide the tab once to the MODE position to change the mode between 3D and 2D.
• 2D: View a 3D image in 2D.
This is also used when registering the 3D Eyewear on the television. For details on registration, refer to the Registration page.
(page 9)
- Indicator lamp
Lights or flashes during use or charging to show the status of the rechargeable battery and the registration.
- Charging port
Connect the charging cable.
- Charge by connecting the included charging cable.
■ Indicator lamp status
| Indicator lamp | Status |
| Lights red for 2 seconds when turned on | Sufficient battery level |
| Flashes red 5 times when turned on | Low battery level |
| Flashes red and green alternately | Under registration |
| Flashes green once every 2 seconds | Under reconnecting to the TV |
| Lights green for 3 seconds | Registration or reconnecting is successfully completed. |
| Flashes red 3 times | Automatically power off (Registration or reconnecting fails or connection is lost) |
| Flashes red once every 2 seconds when in use | 3D mode is selected |
| Flashes red twice every 4 seconds when in use | 2D mode is selected |
Charging
■ Charging the 3D Eyewear
Connect the 3D Eyewear with the included charging cable to the television, then switch on the television.
- When the indicator lamp turns off, charging is complete. Refer to the specifications on page 14 for the approximate charging time.
NOTE
- Charge the 3D Eyewear before using the first time after purchase or after long periods of disuse.
- Be sure to turn the television power on when charging. The battery will not be charged when the television power is off.
Registration
■ First Registration
Perform the First Registration when the 3D Eyewear is used for the first time.
- Turn on the TV to see.
- Slide the tab from the OFF position to the ON position. The 3D Eyewear will power on and start registration. Place the 3D Eyewear within 50 cm from the TV while registration in progress.
- The green LED lights on the 3D Eyewear for 3 seconds when the registration is successfully completed.
After first registration, the 3D Eyewear will reconnect with the TV automatically when 3D Eyewear is powered on near the TV in 3D mode.
■ Registration Again
When connection with registered TV fails, or when using with another TV, re-register the 3D Eyewear.
- Turn on the TV to see.
- Within 50 cm from the TV, hold the tab on the MODE position for more than 2 seconds. The registration will start.
- The green LED lights for 3 seconds when the registration is successfully completed.
* If the registration failed, the 3D Eyewear will power off. In this case, power off the TV and perform from step 1.
* Do not connect the charging cable while Registration Again.
* Release the tab when Registration Again starts.
Storage and Cleaning
- Clean using a soft, dry cloth.
- Wiping the 3D Eyewear with a soft cloth that is covered in dust or dirt may scratch the eyewear. Shake off any dust from the cloth before use.
- Do not use benzene, thinner, or wax on the 3D Eyewear, as doing so may cause the paint to peel off.
- Do not dunk the 3D Eyewear in liquid such as water when cleaning.
- Avoid storing the 3D Eyewear in hot or highly humid locations.
- During the long period of disuse, full charge the 3D Eyewear once every 6 months to keep the battery performance.
- As the liquid crystal shutters (lens) are fragile and easily broken, be very careful when cleaning them.
Disposal
A lithium-ion polymer rechargeable battery is built in to the 3D Eyewear. Please discard according to local regulations.
When disposing this product, disassemble properly by following the procedure on the next page, and remove
the internal rechargeable battery.
Danger
As the rechargeable battery is specifically for this product, do not use it for any other device.
Do not charge the removed battery.
- Do not throw the battery in a fire, or apply heat to it.
- Do not pierce the battery with a nail, subject it to an impact, or dismantle or modify it.
- Do not let the wires touch any other metal or each other.
- Do not carry or store the battery with a necklace, hair pin, or the like.
- Do not charge, use, or leave the battery in a hot location such as near a fire or under the hot sun.
Doing so may cause the battery to generate heat, ignite, or rupture.
Warning
Do not place the removed battery, screws, and other items within reach of infants.
Accidental swallowing of such an item may have an adverse effect on the body.
- In the event that you think such an item has been swallowed, consult a doctor immediately.
In the event of fluid leaking from the battery, take the following measure, and do not touch the fluid with bare hands.
Fluid entering into an eye may cause loss of eyesight.
- Wash the eye with water immediately without rubbing it, and then consult a doctor.
Fluid getting on your body or clothes may cause inflammation of the skin or injury.
- Sufficiently rinse with clean water, and then consult a doctor.
■ How to remove the battery
Disassemble this product after the battery has run out of power.
The following figures are intended to explain how to dispose of the product, not for describing how to repair.
The product cannot be repaired once it has been disassembled.

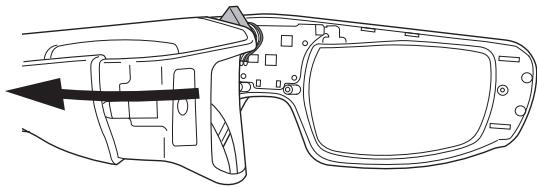

- Remove the screws of the 3D Eyewear with a precision Phillips (plus ⊕) screwdriver.


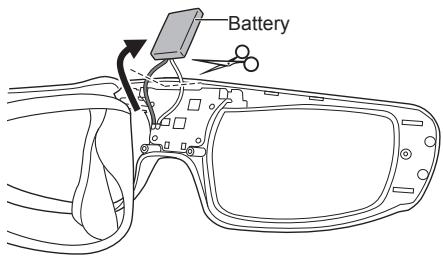

- If it is difficult to pull off, insert a flat-blade (minus ⏻) screwdriver and pry open it.
- Insulate the wire parts of the removed battery with cellophane tape.
NOTE
• Take sufficient care when performing this work so as not to injure yourself.
- Do not damage or dismantle the battery.
Troubleshooting/Q&A
Check the followings first. If they do not solve the problem, please contact the place of purchase.
Cannot register a 3D Eyewear to TV.
▶ Does the TV support on this 3D Eyewear?
Use the 3D Eyewear with compatible TVs. ( page 2)
▶ Did you allow more than 1 minute to elapse after setting the unit to the device registration mode?
The registration is automatically released if you allow more than 1 minute to elapse. Set the registration with the television and connected 3D Eyeware placed as close to each other as possible.
Images are not 3D.
▶ Is the TV has been registered with the 3D Eyewear?
Perform the registration with the TV to see.( page 9)
▶ Is the 3D Eyewear Mode set to 3D?
Slide the tab once to the MODE position to change the mode between 3D and 2D.
▶ Are the image settings switched to 3D images?
Refer the television operating instructions.
▶ Individual differences may occur in which the 3D images are difficult to see, or cannot be seen, especially in users that have a different level of eyesight between the left and right eyes.
Take the necessary steps (wearing glasses etc.) to correct your eyesight before use.
The power of the 3D Eyewear turns off by itself.
▶ Are there any objects between the eyewear and television?
The indicator lamp does not light when the power switch is set to "ON".
▶ Is the 3D Eyewear sufficiently charged?
If the indicator lamp does not light at all, the battery is completely flat. Perform the battery charging operation.
The battery does not charge, or operation time is short when charged.
▶ Is the charging cable connected properly?
Make sure the charging cable is properly connected.
▶ Is the television power off?
Switch the television power on, then charging will start.
▶ The battery has reached the end of its lifespan.
If operation time is very short even when the battery is charged, the battery has reached the end of its lifespan. Please consult with the place of purchase.
Specifications
Lens type
Liquid Crystal Shutter
Usage temperature range
0^-40^(32^-104^)
Charging power supply
DC 5 V (supplied by USB terminal of a Panasonic TV)
Battery
Lithium-ion polymer rechargeable battery
DC 3,7 V, 40 mAh
Operation time ^*1 : Approx. 30 hours
Charging time ^*1 : Approx. 30 minutes
Quick charge (2 minutes charge enables approx. 3 hours use)
Viewing range ^2
Within 3,2 m from front surface of the TV.
Materials
Main body: Resin
Lens section: Liquid crystal glass
Communication system
2,4 GHz band FH-SS (Frequency Hopping Spread Spectrum)
Dimensions (not including nose pad part)
| Models | TY-ER3D4ME | TY-ER3D4SE |
| Width | 167,7 mm | 160,5 mm |
| Height | 42,2 mm | 42,2 mm |
| Overall length | 170,7 mm | 167,6 mm |
| Mass | Approx. 27 g | Approx. 27 g |
*1 Operation time/Charging time
- The battery deteriorates after repeated use, and the operation time eventually becomes short. It may also take longer to charge, depending on where and how long it was stored. The figures above are at shipping from the factory, and are not a guarantee of performance.
*2 Viewing range
- There are differences in the viewing range of the 3D Eyewear among individuals.
- The 3D Eyewear may not operate correctly at the outside of the viewing range.
FULL HD RF FULL HD RF 3D GLASSES 3D
These logos indicate products that are compatible with active shutter 3D glasses technology standards licensed by the Full HD 3D Glasses Initiative. The RF logo indicates products that operate on the wireless system, and can be used with any TV that has the same logo.
“Full HD 3D™” Logo indicates compatibility between TV products and 3D Eyewear which are compliant with the “Full HD 3D Glasses™” format, and does not indicate picture quality of 3D image which should be depend on the quality of TV products.
CE
Declaration of Conformity (DoC)
"Hereby, Panasonic Corporation declares that this 3D Eyewear is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC, 2006/95/EC and 2004/108/EC."
If you want to get a copy of the original DoC of this 3D
Eyewear, please visit the following website:
http://www.doc.panasonic.de
Authorized Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
"Full HD 3D Glasses™" logo and "Full HD 3D Glasses™" word are trademark of Full HD 3D Glasses Initiative.
The Bluetooth ^® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.
Other trademarks and trade names are those of their respective owners.
Pursuant to the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
Panasonic Corporation
Web Site : http://panasonic.net/
© Panasonic Corporation 2012
Fare
Technical line drawing of a car interior frame with an arrow indicating direction (no text or symbols)FULL HD RF FULL HD RF 3D GLASSES 3D
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Tyskland
I hemhold til direktiv 2004/108/EC, artikel 9(2)
Panasonic Testing Centre
Panasonic Service Europe, en afdeling af Panasonic
© Panasonic Corporation 2012
Diagram of a car door handle with an arrow indicating direction (no text or symbols)
Technical line drawing of a car head panel with an arrow indicating direction (no text or symbols present)FULL HD RF 3D GLASSES FULL HD RF 3D
© Panasonic Corporation 2012
Mode d'emploi
lunettes 3D
N° de modèle
TY-ER3D4ME
TY-ER3D4SE
Diagram of a car door handle with an arrow indicating direction (no text or symbols)
Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)natural_image
Symbol of a trash bin crossed with a diagonal line, no text or numbers presentFULL HD RF FULL HD RF 3D GLASSES 3D
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Allemagne
Conforme à la directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
© Panasonic Corporation 2012
Gebrauchsanleitung
3D Eyewear
Modell-Nr.
TY-ER3D4ME
TY-ER3D4SE
Technical line drawing of a car interior frame with an arrow indicating direction (no text or symbols)Panasonic Testing Centre
Panasonic Marketing Europe GmbH
© Panasonic Corporation 2012
Istruzioni d'uso
Occhiali 3D
Codice modello
TY-ER3D4ME
TY-ER3D4SE
Diagram of a car door handle with an arrow indicating direction (no text or symbols)
Technical line drawing of a car interior frame with an arrow indicating direction (no text or symbols)FULL HD RF FULL HD RF 3D GLASSES 3D
Panasonic Testing Centre
Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
Panasonic Corporation
Web Site : http://panasonic.net/
© Panasonic Corporation 2012
Diagram of a car door handle with an arrow indicating direction and a small inset view (no text or symbols)
Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)FULL HD RF 3D GLASSES FULL HD RF 3D
Simple line drawing of a trash bin crossed out by two diagonal lines (no text or symbols)Disassemble this product after the battery has run out of power.
Technical line drawing of a car head panel showing internal components and a directional arrow (no text or symbols)FULL HD RF FULL HD RF 3D GLASSES 3D
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Alemanha
Panasonic Testing Centre
Panasonic Service Europe, a division of Panasonic
Winsbergring 15, 22525 Hamburg, F.R. Germany
Panasonic Corporation
Diagram of a car door handle with an arrow indicating direction (no text or symbols)
Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)natural_image
Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.FULL HD RF FULL HD RF 3D GLASSES 3D
© Panasonic Corporation 2012
Diagram of a car door handle with an arrow indicating direction (no text or symbols)
Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)FULL HD RF FULL HD RF 3D GLASSES 3D
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
© Panasonic Corporation 2012
Diagram showing two mechanical or fluidic connection setups with arrows indicating motion (no text or symbols)natural_image
Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)FULL HD RF 3D GLASSES FULL HD RF 3D
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Tyskland
Enligt direktivet 2004/108/EC, artikel 9(2)
Panasonic Testing Centre
Panasonic Service Europe, en division av Panasonic
© Panasonic Corporation 2012
Kullanım Kılavuzu
3D Gözlük
Model No.
TY-ER3D4ME
TY-ER3D4SE
Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)natural_image
Symbol of a trash bin crossed with a diagonal line, no text or numbers presentPanasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Almanya
Panasonic Testing Centre
Panasonic Service Europe, Panasonic Marketing Europe
© Panasonic Corporation 2012
Diagram of a car door handle with an arrow indicating direction (no text or symbols)
Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)FULL HD RF FULL HD RF 3D GLASSES 3D
PANEUROPEAN GUARANTEE
3D Eyewear
Communication Camera
Caution: Please retain your sales receipt.
The Panasonic Pan European Guarantee applies to your product. You may obtain a copy of the guarantee from:
- the dealer where you purchased your product
- Website : www.panasonic.co.uk/euguarantee
- Panasonic Customer Communications Centre:
UK - 0844 844 3852 / Ireland - 01 289 8333
The Panasonic Pan European Guarantee applies to your product. You may obtain a copy of the guarantee from :
- the dealer where you purchased your product
- Website : www.digitalplanet.com.mt
- Panasonic Customer Call Center : +356 21 24 1127 or +356 27 24 1127
- Email: support@digitalplanet.com.mt
CY KYΠΡΟΣ
Panasonic Marketing Europe GmbH. - South-East Europe Branch Office –
PME-SEE Branch Office
Panasonic predstavništvo Beograd
Bulevar despota Stefana 41, 11000 Beograd/Srbija
Tel: +381 11 33 40 124
+381 11 33 44 091
e mail: pbo@panasonic.rs
www.panasonic.rs
BIH BOSNA I HERCEGOVINA
Potpisani uvoznik/distributer garantira ispravnost ovog proizvoda i usluge servisiranja u Panasonicovim ovlaštenim servisima, navedenim u priloženom popisu u trajanju od:
- Dvije (2) godine za sve proizvode iz domena proizvodnog potfolija potrošačke elektronike (kao što su digitalni fotoaparati, digitalni kamkorderi, LCD i plazma ekrani, kućna kina, Hi Fi uređaji, mali kućanski aparati i proizvodi za osobnu njegu).
- Dvije (2) godine za sve proizvode iz domena portfolija bijele tehnike (frižideri i veš mašine), izuzev kompresora za frižidere na koji postoji dodatne 3 godine garancije za sami dio.
- Garancije za klime daju ovlašteni uvoznici ovih Panasonic proizvoda, dužina garancije može varirati na osnovu ponude i dogovrenih modaliteta održavanja.
Gore navedeni garancijski period je na snazi od dana kupovine uređaja, te garantira i besplatne dijelove i rad servisera pod slijedećim uslovima:
(1) Proizvod mora biti dostavljen u servis (ili mjesto prijema) ovlašten od PSEE-a za obavljanje servisa u garantnom roku, zajedno sa ovim garantnim listom i originalnim računom. Prilikom kupovine obavezno je garantni list ispuniti ispravno i u potpunosti, te ga potvrditi. U protivnom, garancija neće vrijediti.
PME - SEE Branch Office
Predstavništvo u Bosni i Hercegovini
Zmaja od Bosne 4,
71000 Sarajevo
Bosna i Hercegovina
Tel: +387 33 288 921
Fax: +387 33 288 921
E mail: info@panasonic.ba
E mail: customercare@panasonic.ba
MK MAKEDONIJA
© Panasonic Corporation 2012
Printed in China
S1111-1121
