Transformer iTech - Car seat JANE - Free user manual and instructions

Product type	Booster seat with backrest i-Size
Brand	JANE
Model	Transformer iTech
Safety standard	UN R129/03 (i-Size)
Recommended use	Children from 100 to 150 cm (approx. 3 to 12 years)
Installation direction	Forward-facing
Fixation	Vehicle 3-point seat belt + TWINFIX system (ISOFIX) as a supplement
Height adjustment	Continuously adjustable headrest via button at the back
Shoulder pads	Removable pads included
Cover	Removable and hand washable (do not use solvent)
Maintenance	Remove polystyrene foam before washing, hand wash
Warranty	Against manufacturing defects in accordance with applicable legislation
Vehicle compatibility	Seats with ECE R16 approved 3-point belt or equivalent; TWINFIX compatible with vehicles listed in the Car Fitting List brochure

Frequently Asked Questions - Transformer iTech JANE

How to install the Transformer iTech seat with the TWINFIX system?

Place the seat forward-facing on the vehicle seat equipped with ISOFIX anchors. Pull the TWINFIX adapters forward and click them into the anchors until you hear a click (green indicators). Pull the tension strap to stabilize the seat. Important: TWINFIX is a supplement; the seat must always be secured with the vehicle's three-point belt.

How to adjust the headrest height?

Press the size adjustment button (04) located at the back of the backrest while holding it down, then raise or lower the headrest (01) to the desired position. Release the button to lock. The shoulder belt guide must be slightly above the child's shoulder.

How to wash the seat cover?

Remove the cover starting with the headrest, then the backrest, and finally the shoulder pads. Before washing, take out the polystyrene foam from the pockets. Hand wash the cover without solvent and air dry. Never put the cover in the dryer.

What is the recommended child height range?

This seat is designed for children measuring 100 to 150 cm, i.e., approximately 3 to 12 years old. It is an enhanced i-Size booster seat with backrest.

Can I use the seat without the cover?

No, the cover is an integral part of the safety system. The seat must always be used with its original cover. Never replace the cover with one not approved by JANE.

What to do after an accident involving the seat?

After an accident, the seat must be replaced as it may have suffered invisible stress. Send it to the manufacturer with an accident report. Never reuse a seat that has been involved in an accident.

Can I use non-original accessories on the seat?

Use of accessories or parts other than original JANE parts is not permitted. This voids the warranty and compromises safety. Only special JANE accessories are allowed.

How to properly secure my child with the three-point belt?

Place the child well seated in the seat. Route the three-point belt in front of the child and buckle it. Thread the lap and diagonal belt through the belt guides (03) and the shoulder belt through the guide (06). Tighten the belt so it is snug and without twists. The belt should sit as low as possible on the hips.

What types of vehicles are compatible with the TWINFIX system?

The TWINFIX system is compatible with vehicles equipped with ISOFIX anchors and listed in the 'Car Fitting List' brochure supplied with the seat. For an updated list, visit www.janeworld.com. Always check compatibility before installation.

How to remove the seat from the vehicle?

Press the button (09) to release the TWINFIX strap, then pull the seat forward. Press the safety buttons of the TWINFIX adapters (10) until the indicators turn red, then disengage the seat from the ISOFIX anchors. Then store the adapters by pulling on the TWINFIX strap.

USER MANUAL Transformer iTech JANE

\_ ESPAÑOL

LISTADO DE PIEZAS 2

¡MUCHAS GRACIAS! 4

INFORMACIÓN 4

USO DEL TRANSFORMER 8

MONTAJE DEL TRANSFORMER 9

MONTAJE DEL TRANSFORMER CON TWINFIX 10

DESMONTAJE DEL TRANSFORMER CON TWINFIX 11

VEHÍCULOS ADECUADOS PARA TWINFIX 12

Illustration of a child seated in a car seat with a green belt (no text or symbols)

Two-step diagram showing a car seat being lifted, with no text or symbols present.

REMOVING THE TRANSFORMER WITH TWINFIX 29

VEHICLES SUITABLE FOR TWINFIX 30

SECURING THE CHILD WITH THE THREE-POINT BELT 30

CARE INSTRUCTIONS 33

GENERAL INFORMATION 35

GUARANTEE 36

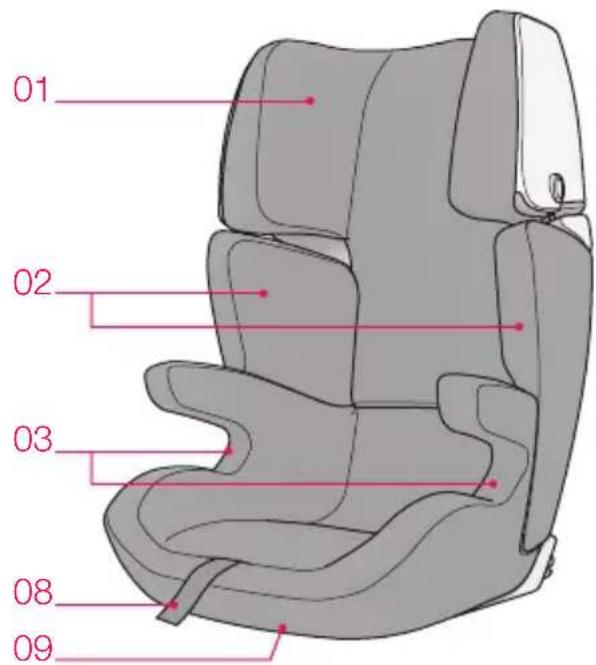

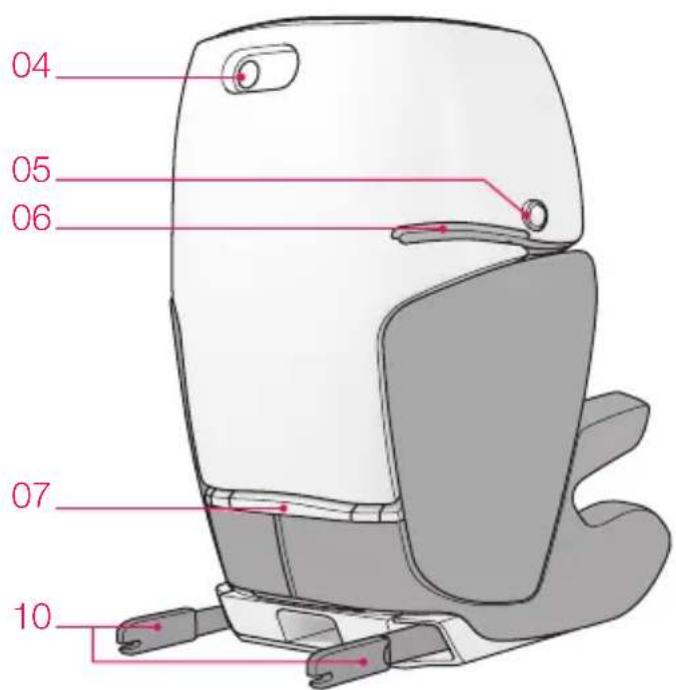

OVERVIEW

EN 20

_ 01 Head section
_ 02 Shoulder shields
_ 03 Lap belt guide
_ 04 Size adjustment button
_ 05 Shoulder belt locking button
_ 06 Shoulder belt guide
_ 07 Instructions compartment
_ 08 TWINFIX tightening strap
_ 09 Button to release the TWINFIX strap
_ 10 TWINFIX adapters

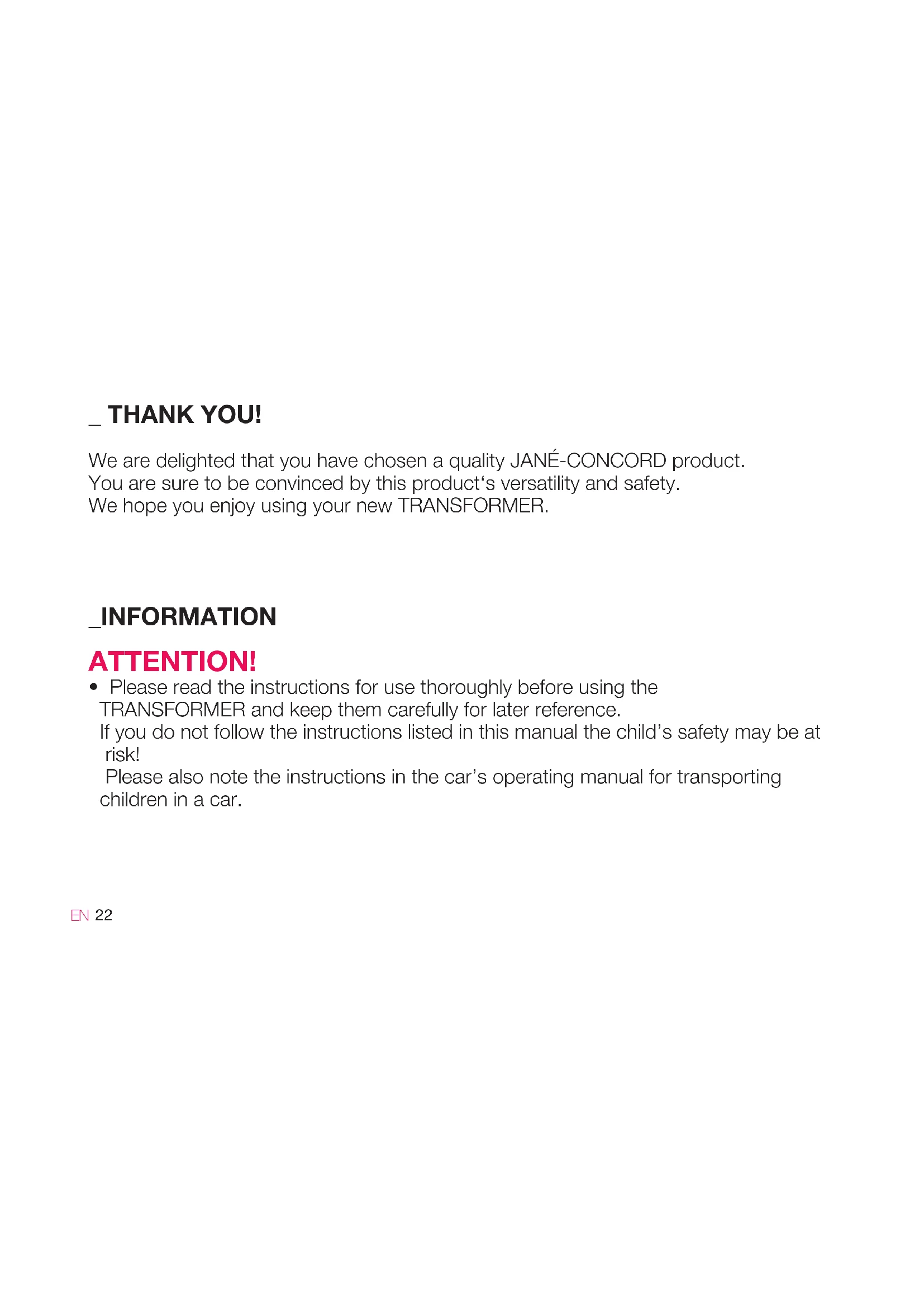

\_ THANK YOU!

We are delighted that you have chosen a quality JANÉ-CONCORD product. You are sure to be convinced by this product's versatility and safety. We hope you enjoy using your new TRANSFORMER.

\_INFORMATION

ATTENTION!

• Please read the instructions for use thoroughly before using the
  TRANSFORMER and keep them carefully for later reference.
  If you do not follow the instructions listed in this manual the child's safety may be at risk!
  Please also note the instructions in the car's operating manual for transporting children in a car.

WARNING!

• Do not leave your child unattended.
• Children sometimes have items in their jacket or trouser pockets (e.g. toy) or wear hard items that are attached to their clothes (e.g. belt buckle).
  Make sure that these items do not get between the child and the safety belt – they could cause unnecessary injuries in the event of an accident.
  These hazards also apply to adults!

- Naturally children can often be very lively. You should therefore explain to children how important it is to always be safely fastened in. Children must understand that they should never change the way the belts are positioned, and never open the buckle.

- Only if safety equipment is correctly installed and used can your child enjoy maximum safety.

- Not all child restraint system are exactly the same, therefore we advise you to test your TRANSFORMER in the vehicle in which it is going to be installed.

- Any alteration or addition made to the device without explicit authorisation from JANÉ-CONCORD may seriously affect the safety of the restraint system.

- Read these instructions carefully before use and keep them for future reference. The child's safety may be affected if you do not follow these instructions. For the child to travel safely in the car you also need to check the relevant points of the vehicle instruction manual.

- This safety device must not be used without its cover, and the cover must not be

replaced with one that is not the original, as it is an integral part of the system's safety features.

• Never add a mattress, pillow or extra padding to make the child more comfortable as this would alter the safety features of the system.
• The system straps must be fitted tautly and without twists and must be protected against damage.
• Protect those parts of the TRANSFORMER that are not covered in fabric from direct sunlight to avoid your child being burned.
• It is very important not to use second hand products, because JANÉ-CONCORD can only guarantee complete safety for articles used by the original buyer.
• These instructions must be followed carefully for the correct use of the restraint system; failure to do so may put the child's safety at risk.
• The child restraint system must not be damaged or trapped by moving parts in the car or by doors.
• Never modify the TRANSFORMER in any way – this will endanger your child’s safety.
• After an accident the TRANSFORMER must be replaced or returned to the manufacturer for testing, along with a report of the accident.
• You should also tell your passenger how to remove the child in the event of an accident or danger.
• Do not leave your child in the child car seat unsupervised whether strapped in or

not.

• Secure any luggage or other objects to reduce the risk of injuries in the event of an accident.
• The instruction manual should always be kept with the safety seat.
• The use of accessories and replacement parts is not permissible and shall lead, in the event of contravention, to the expiry of all claims under the warranty and of all liability claims. Only special JANÉ-CONCORD original accessories are excluded.
• Suitable for cars with three-point (lap and diagonal) seat belts tested in accordance with ECE Regulation 16 or a comparable standard.
• WARNING: Make sure you are aware of the road traffic legislation of the country in which you are driving. The use of your child restraint system may be restricted.

The buckle of the vehicle safety belt must not come above the edge of the lap belt guide. If in doubt or if you are still uncertain, please contact JANÉ-CONCORD. The belts may only be routed via the points of contact and the positions on the seat stated in the user instructions. Belts must not be routed in any other way.

If the car seat used has a front airbag, we recommend positioning the car seat as far back as possible. For cars with front and side airbags, the instructions in the car's operating manual must also be observed. The car's shoulder/diagonal belt must pass forwards from the vehicle bracket to the shoulder belt guide (06). Adjust the car seat position if necessary.

\_ USING THE TRANSFORMER

You have decided to purchase our TRANSFORMER seat for the safety of your child.

This product is manufactured under strict quality controls. It can only effectuate its maximum safety properties if it is used properly.

The upholstery is an important part and it affects the seat as a whole, therefore the car seat must only be used with the original cover!

You should therefore ensure that you follow the instructions for fitting and use carefully.

The seat may be used on any seat in your car that is fitted with a three-point seat belt.

Statistics suggest that the place behind the passenger seat is the safest in the car.

\_ INSTALLING THE TRANSFORMER

Place the TRANSFORMER on the car seat or bench seat, facing in the direction of travel.

The TRANSFORMER should lie flush with the seat. In cars with standard headrests, these may be adjusted or removed to make it easier to install the child car seat. 1.a

Please note that the car headrests must be replaced and re-positioned correctly when an adult is travelling in the car. 1.b

The TRANSFORMER must always be secured using the safety belt, also without a child.

When driving, or in the event of an accident, the occupants of the vehicle may be injured.

\_ INSTALLING THE TRANSFORMER WITH TWINFIX

Release the strap and pull the TWINFIX adapters (10) in the backrest of the seat forwards, until they are fully extended. 2.a

Position the TRANSFORMER facing forwards on the vehicle seat or bench fitted with ISOFIX points. 2.b

Push the child car seat back and onto the ISOFIX points until the locking mechanisms on both TWINFIX adapters (10) have clicked audibly into place and the safety indicators on both adapters are green! 2.c

Pull the TWINFIX adapters tightening strap (08) and push the TRANSFORMER back until it rests firmly against the backrest of the vehicle seat. Release the TWINFIX strap (08) when the seat is in the required position. 1.a

In cars with standard headrests, these may be adjusted or removed to make it easier to install the child car seat. Please note that the car headrests must be replaced and re-positioned correctly when an adult is travelling in the car. 1.b

ATTENTION!

• TWINFIX is an additional attachment system to stabilize the TRANSFORMER and does not replace the security using the safety belt.
• Children and the seat without a child must always be secured using the vehicles own 3-point safety belt.

\_REMOVING THE TRANSFORMER WITH TWINFIX

To remove the TRANSFORMER press the TWINFIX button (09) to release the strap and move the seat fully forwards. Next, slide the locking buttons on the outer sides of the TWINFIX adapters (10) forwards until the safety indicators are red. Now pull the seat forwards and away from the ISOFIX points. 3.a

Lay the seat with the backrest on a flat surface. Pull the TWINFIX strap (08) until the TWINFIX adapters (10) are fully retracted. 3.b

\_ VEHICLES SUITABLE FOR TWINFIX

The TRANSFORMER with JANÉ-CONCORD TWINFIX system has been authorised for use as a booster seat with backrest for specific vehicles and is ideal for installation on seats of certain vehicles.

Please refer to the additional “CAR FITTING LIST” leaflet for an overview of cars and vehicle seats compatible with the JANÉ-CONCORD TWINFIX system at the time your child seat was manufactured.

For a continuously updated version, please visit www.janeworld.com

SECURING THE CHILD WITH THE THREE-POINT BELT

Seat your child well back in the seating area. Pass the three-point belt across the front of the child to the seat belt lock, and fasten it in the same way as for an adult.

(There must be an audible click.) 4.a

Now position the belts. Pass the lap belt across both sides and the diagonal belt on the side of the seat belt lock through the lap belt guide (03).

Finally, pass the diagonal belt through the provided shoulder belt guide (06).

EN 30

Make sure the belt passes inside the securing hook. 4.b

Now press the size adjustment button (04) on the back of the backrest and keep it pressed whilst moving the head section (01) into the required position. The TRANSFORMER can be adjusted to the right size and is locked into its current position when the button is released.. 4.c

The shoulder belt guide (06) should be slightly above the top of the child's shoulder. At the same time, the shoulder belt should pass centrally between the child's neck and the outer edge of the shoulder.

Illustration of a child in a car seat with a green diagonal stripe (no text or symbols)

Pull the belt taut so that the lap belt and diagonal belt are well positioned and ensure that the belts are not twisted. The lap belt should be in the lowest possible position. If your vehicle is fitted with a seat belt height adjuster, adjust its height accordingly.

When you wish to release the child from the seat, all you need to do is open the lock and pass the strap back across the child. To remove the shoulder belt from the guide, press the shoulder belt locking button (05) and pull the belt forwards and out.

It is important to ensure that the belts are always correctly positioned each time the seat is used. If in doubt about any aspect of fitting, check with JANÉ-CONCORD. The seat belts must go through the belt guides marked in green on the safety seat. The belts must not be used in any other position.

\_ CARE INSTRUCTIONS

The cover can be removed for washing.

To do so, move the head section (01) to its highest position. To remove, pull the cover away from its anchoring points. Begin by removing the head section (01) followed by the seat section and the shoulder shields (02). 6.a

Take the foam out of the headrest cover (01) before washing it.

Before washing the cover, take the polystyrene out of the pockets of the shoulder area (02).

Two-step diagram showing a pink object interacting with a gray car seat, no text or symbols present

- When they come into contact with moisture, especially during washing, the cover fabrics may fade slightly.

- Do not use solvents!

To replace, start with the cover for the seat section. First pull the cover over the cover panel on the backrest. Then pass it beneath the lap belt guides (03) and insert the fixings into the channel running along the edge of the seat.

Attach the cover for the head section (01). 6.b

Put the polystyrene part in the pocket indicated, inside the cover of the shoulder area (02). Now pull the covers over the protectors for the shoulder area (02).

The covers and styrofoam parts must not be reversed!

GENERAL INFORMATION

• This is an improved i-Size booster seat restraint device for children. It has been authorised under UN regulation 129/03 for general use in vehicles and it is compatible with most vehicle seats although not all.
• This restraint device for children from 100 to 150 cm is suitable for children of approximately 3 - 12 years old.
• This child restraint system has been classified as an i-Size booster seat with backrest satisfying stricter conditions than previous models that do not bear this label.
• If in doubt, please consult the manufacturer of the child restraint system or the retailer.
• Only suitable for vehicles with three-point (lap and diagonal) seat belts tested and approved in accordance with ECE Regulation 16 or a comparable standard.

\_ GUARANTEE

- This item is guaranteed against manufacturing defects as stipulated in the legal Directives and/or regulations in force on guarantees for consumer goods applicable to the European Union and those of the country in which it is marketed.

- It is essential to present the purchase invoice or receipt in order to process the guarantee through the seller of the item or, failing that, through the manufacturer.

- The guarantee excludes anomalies or faults caused by misuse, non-compliance with the safety regulations and instructions for use and maintenance provided, or due to wear and tear caused by normal use and regular handling of the item.

- The label containing the serial number of your model must not be torn off under any circumstances as it contains information relevant to the guarantee.

\_ FRANÇAIS

APERÇU GÉNÉRAL 38

MERCI BEAUCOUP ! 40

INFORMATIONS

UTILISATION DU TRANSFORMER 44

MONTAGE DU TRANSFORMER 45

MONTAGE DU TRANSFORMER AVEC TWINFIX 46

DEMONTAGE DU TRANSFORMER AVEC TWINFIX 47

VEHICULES COMPATIBLES TWINFIX 48

HARNACHAGE DE L'ENFANT AVEC LA CEINTURE TROIS POINTS 48

CONSEILS D'ENTRETIEN 51

GENERALITES 53

GARANTIE 54

\_APERÇU GÉNÉRAL

Illustration of a child wearing a seatbelt, no text or symbols present

\_ SICHERN DES KINDES MIT DEM DREIPUNKTGURT

Illustration of a person inside a car seat with a green diagonal stripe (no text or symbols)

\_ALLGEMEINE INFORMATIONEN

Illustration of a person inside a car seat with a green belt (no text or symbols)

Illustration of a child in a car seat with a green belt (no text or symbols)

Two-step diagram showing a pink object being folded into a gray container, with arrows indicating movement (no text or symbols)
