USER MANUAL V12 Pro DREAME

Cordless Stick Vacuum User Manual

THANK YOU

FOR PURCHASING THIS DREAME VACUUM CLEANER.

Registration Quick Start

Welcome to register a Dreame account by scanning the QR code.

You are available for the User Manual and Special Offers.

QR code image containing encoded data, no visible human-readable text

With it you are obtaining a high quality product that is engineered for optimal performance. If you have any questions on the product, please contact us: [e-mail].

EN User Manual 1
DE Benutzerhandbuch 23
FR Manuel d'utilisation 45
IT Manuale utente 67
ES Manual de usuario 89
RU Руководство пользователя 111
SA دليل المستخدم 134
PL Instrukcja obsługi 156
HE 179
PT Manual do utilizador 201

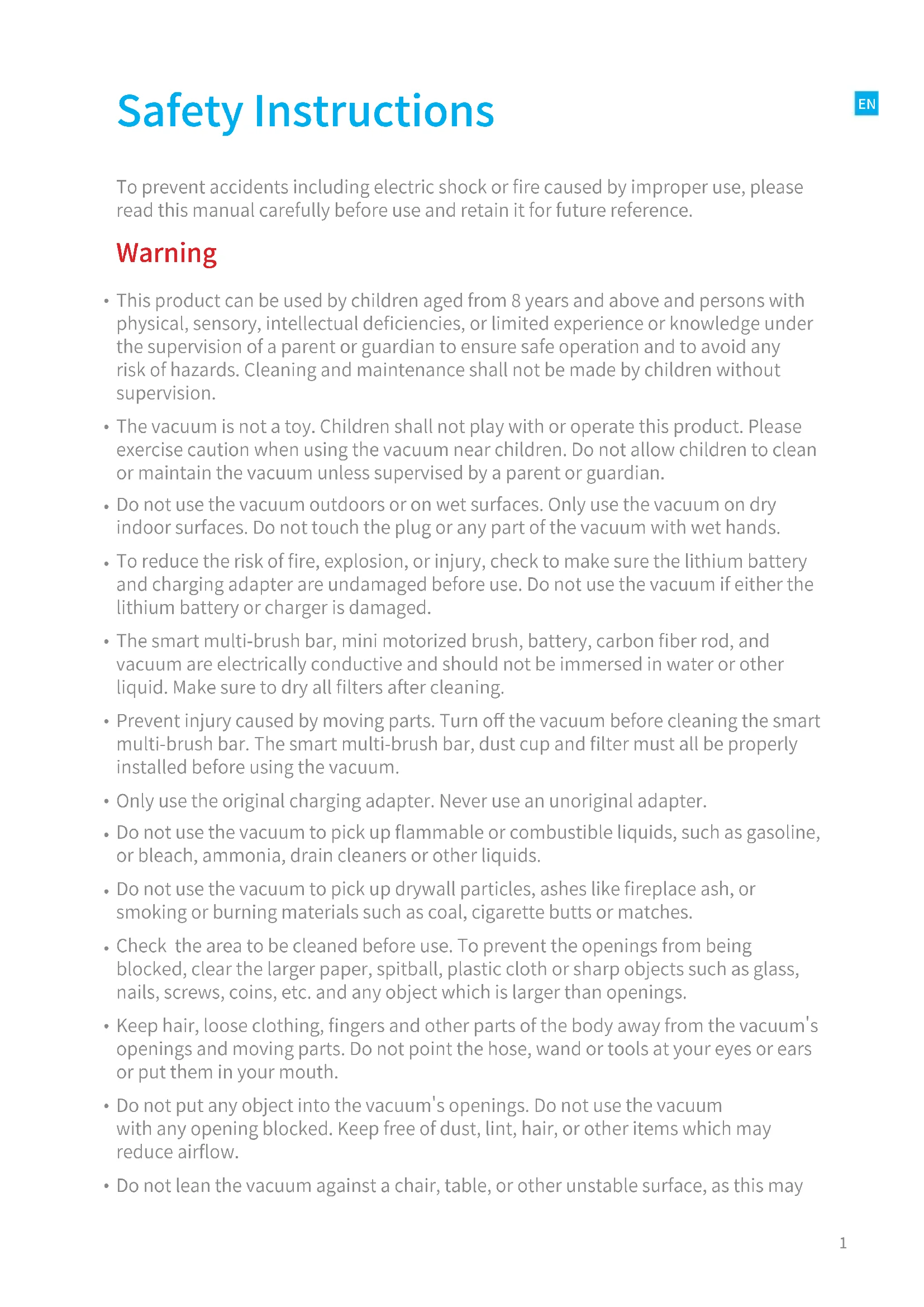

Safety Instructions

To prevent accidents including electric shock or fire caused by improper use, please read this manual carefully before use and retain it for future reference.

Warning

- This product can be used by children aged from 8 years and above and persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge under the supervision of a parent or guardian to ensure safe operation and to avoid any risk of hazards. Cleaning and maintenance shall not be made by children without supervision.

- The vacuum is not a toy. Children shall not play with or operate this product. Please exercise caution when using the vacuum near children. Do not allow children to clean or maintain the vacuum unless supervised by a parent or guardian.

- Do not use the vacuum outdoors or on wet surfaces. Only use the vacuum on dry indoor surfaces. Do not touch the plug or any part of the vacuum with wet hands.

- To reduce the risk of fire, explosion, or injury, check to make sure the lithium battery and charging adapter are undamaged before use. Do not use the vacuum if either the lithium battery or charger is damaged.

- The smart multi-brush bar, mini motorized brush, battery, carbon fiber rod, and vacuum are electrically conductive and should not be immersed in water or other liquid. Make sure to dry all filters after cleaning.

- Prevent injury caused by moving parts. Turn off the vacuum before cleaning the smart multi-brush bar. The smart multi-brush bar, dust cup and filter must all be properly installed before using the vacuum.

- Only use the original charging adapter. Never use an unoriginal adapter.

- Do not use the vacuum to pick up flammable or combustible liquids, such as gasoline, or bleach, ammonia, drain cleaners or other liquids.

- Do not use the vacuum to pick up drywall particles, ashes like fireplace ash, or smoking or burning materials such as coal, cigarette butts or matches.

- Check the area to be cleaned before use. To prevent the openings from being blocked, clear the larger paper, spitball, plastic cloth or sharp objects such as glass, nails, screws, coins, etc. and any object which is larger than openings.

- Keep hair, loose clothing, fingers and other parts of the body away from the vacuum's openings and moving parts. Do not point the hose, wand or tools at your eyes or ears or put them in your mouth.

- Do not put any object into the vacuum's openings. Do not use the vacuum with any opening blocked. Keep free of dust, lint, hair, or other items which may reduce airflow.

- Do not lean the vacuum against a chair, table, or other unstable surface, as this may

• cause damage to the machine or personal injury. If the vacuum becomes damaged or is otherwise malfunctioning, please contact our authorized service department. Never attempt to disassemble the device on your own.
• All instructions in the manual for recharging the battery must be strictly followed. Failure to properly charge the battery within the specified temperature range could damage the battery.
• Only use accessories and replacement parts that are approved by Dreame.
• Make sure the vacuum is unplugged when not used for extended periods as well as prior to performing any maintenance or repairs.
• Please be extra careful when using the vacuum to clean stairs.
• Do not install, charge, or use this product outdoors, in bathrooms, or around a pool.
• Fire Hazard Warning: Do not apply any type of fragrance to the vacuum's filter. These types of products are known to contain flammable chemicals which may cause the vacuum to catch fire.
• Do not use and store in extremely hot or cold environments (below 0^ / 32^ F or above 40^ / 104^ F). Please charge the cordless vacuum in temperature above 0^ / 32^ F and below 40^ / 104^ F.
• Use only the rotating mop nozzle (not included, model: VRM01) approved by Dreame. See the Rotating Mop Nozzle User Manual for safety information and user instructions.
  • This product is designed for home use only.

We, Dreame Trading (Tianjin) Co., Ltd., hereby, declares that this equipment is in compliance with the applicable Directives and European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address: www.dreame-technology.com

For detailed e-manual, please go to https://www.dreame-technology.com/pages/user-manuals-and-faqs

Product Overview

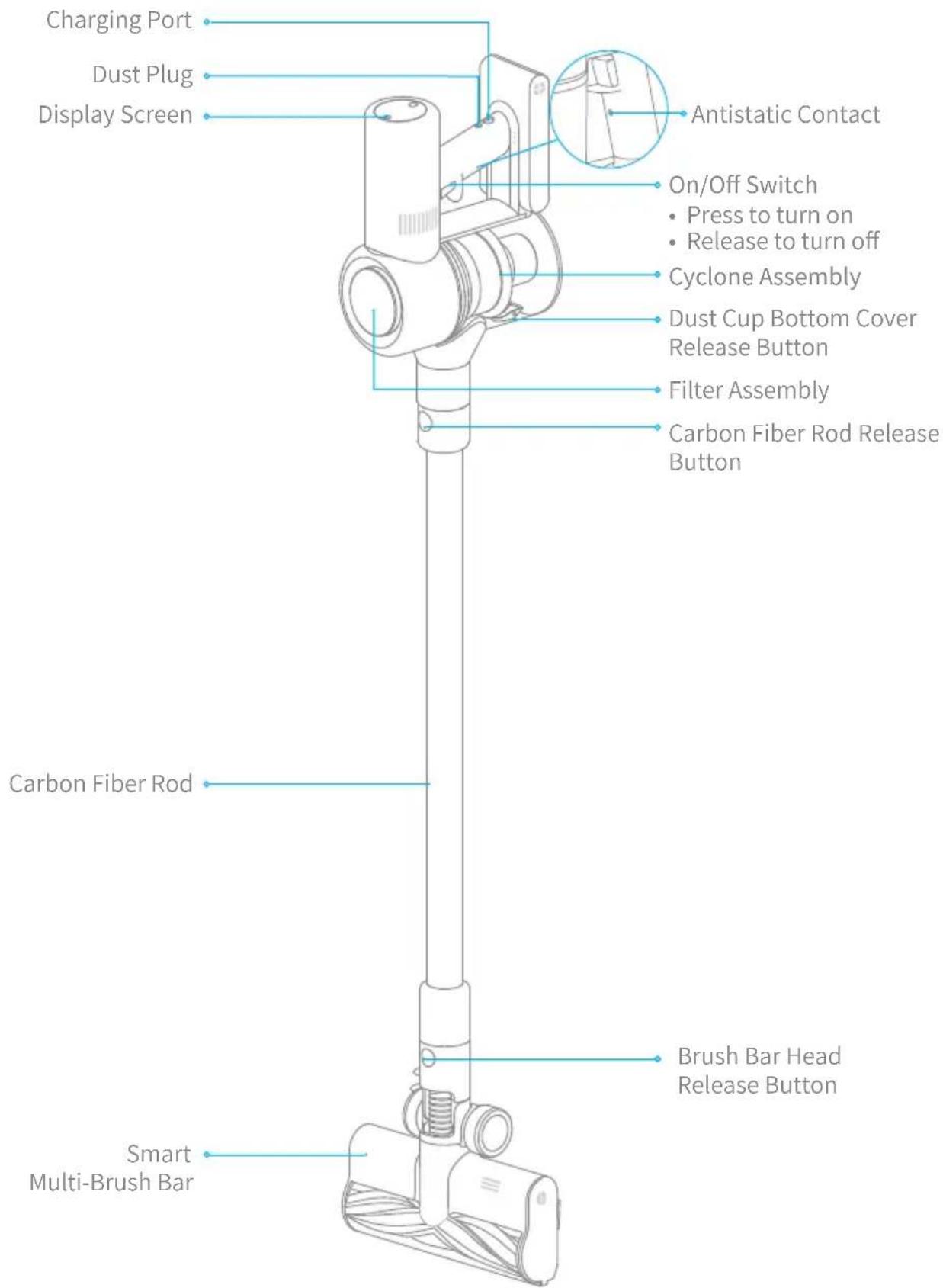

Component Names

Charging Port Dust Plug Display Screen Antistatic Contact On/Off Switch Press to turn on Release to turn off Cyclone Assembly Dust Cup Bottom Cover Release Button Filter Assembly Carbon Fiber Rod Release Button Carbon Fiber Rod Brush Bar Head Release Button Smart Multi-Brush Bar

Product Overview

Accessories

Charger Extension Hose Soft Dusting Brush 2-in-1 Brush Nozzle

Simple line drawing of a vertical cylindrical object with a handle and mounting bracket (no text or symbols)

Simple line drawing of a symmetrical mechanical or architectural component with four circular holes and three rounded protrusions (no text or symbols)

2-in-1 Charging & Storage Mount (Including screws ×2, wall plugs ×2, mounting template sticker ×1)

Technical line drawing of a mechanical assembly with no visible text or symbols

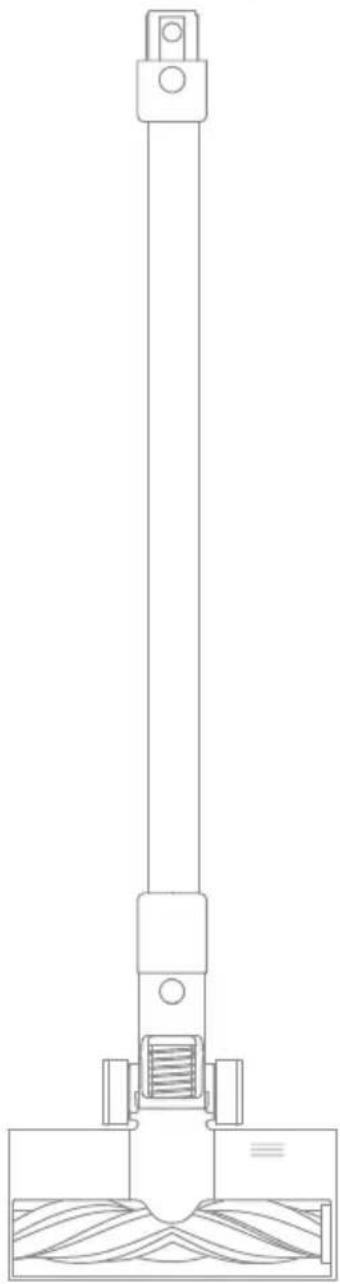

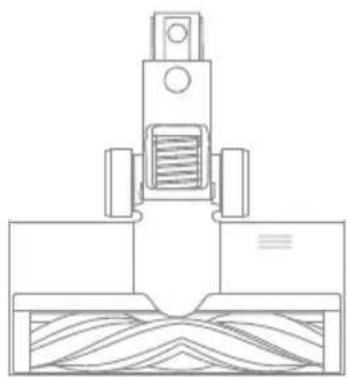

Smart Multi-Brush Bar

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Mini Motorized Brush

Carbon Fiber Rod
LED Crevice Nozzle

Flexible Adapter

Note: The images in this manual are for illustrative purposes only. The actual product may differ.

Installation

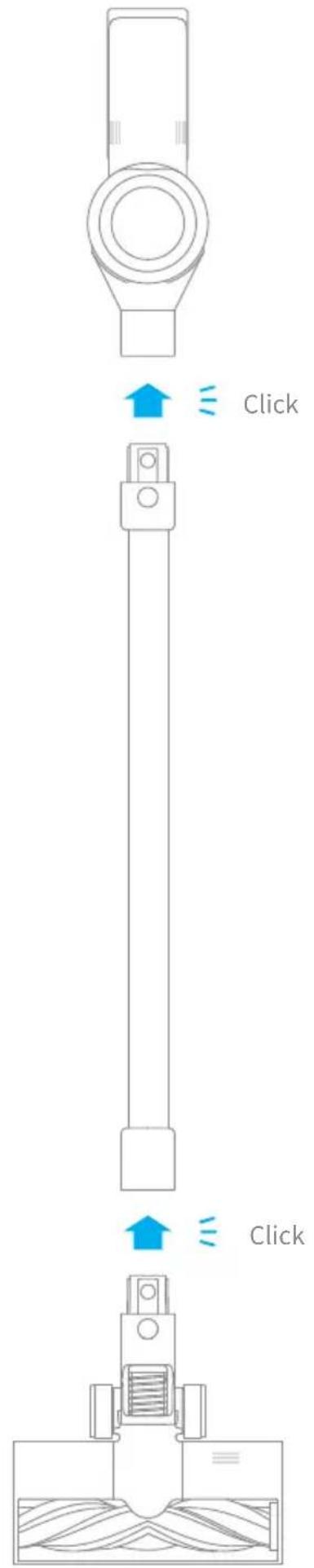

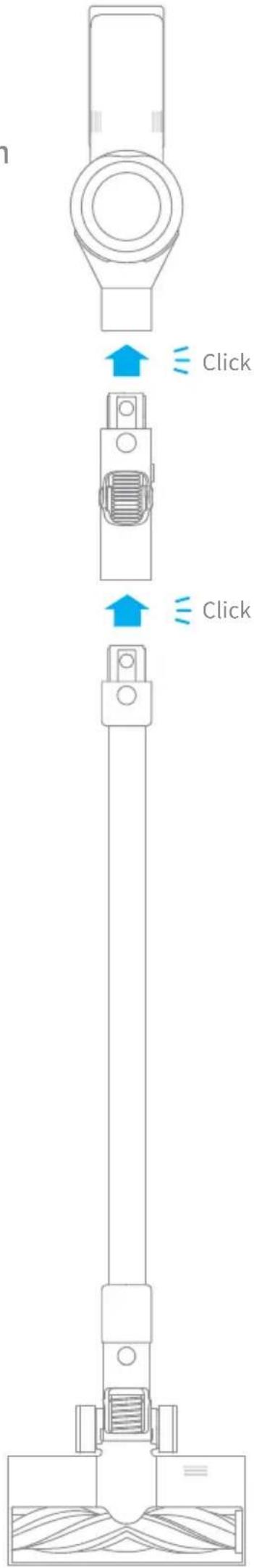

Vacuum Installation Diagram

Click Click

Installation

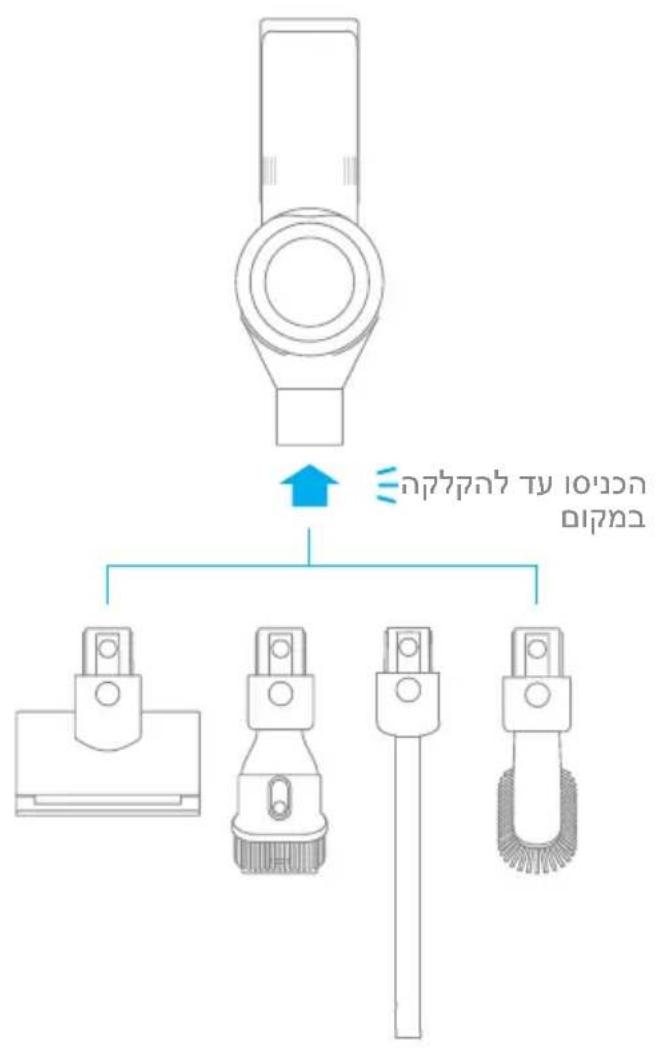

Accessories Installation

Diagram

Click

Installation

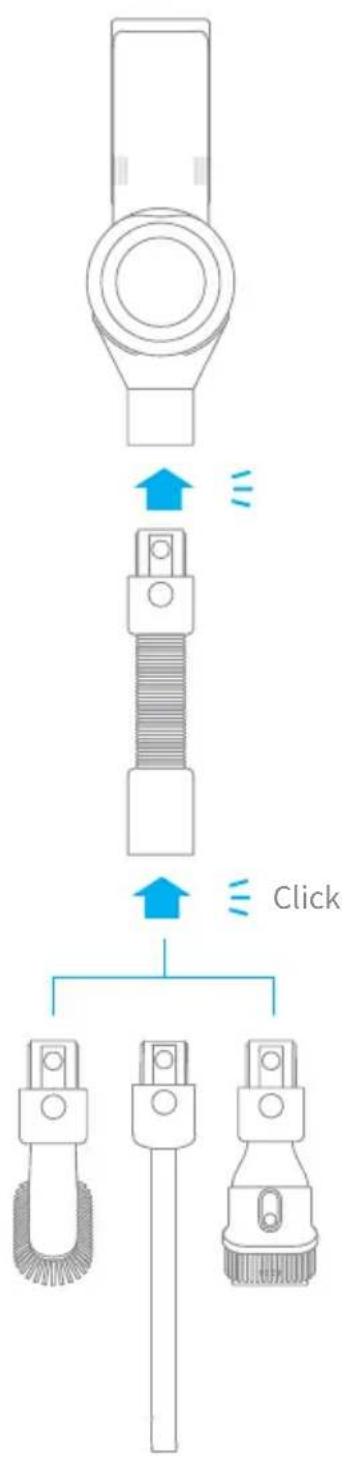

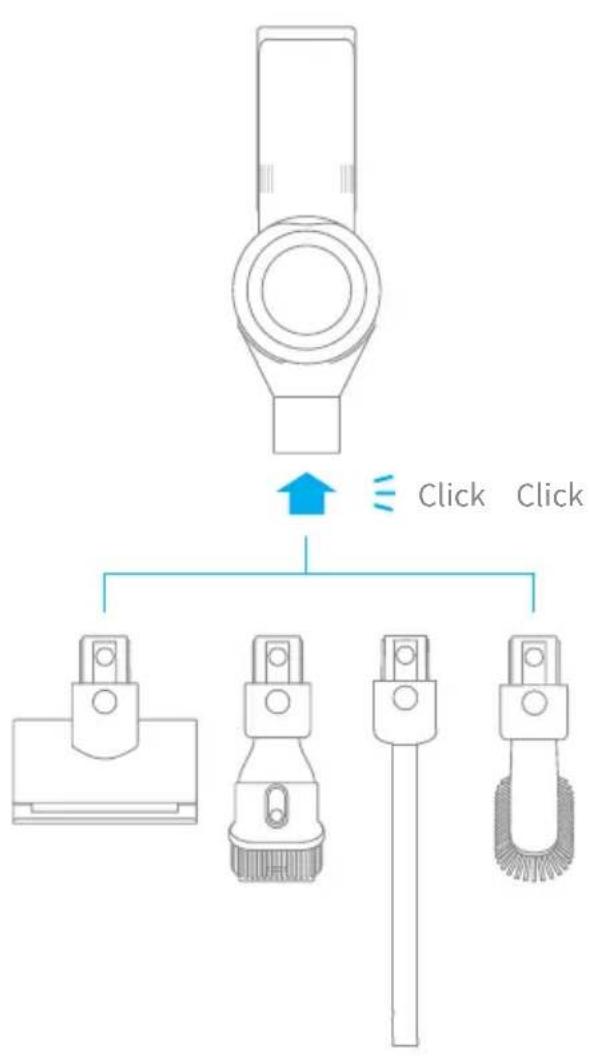

Accessories Installation Diagram

Click Click

EN

Installation

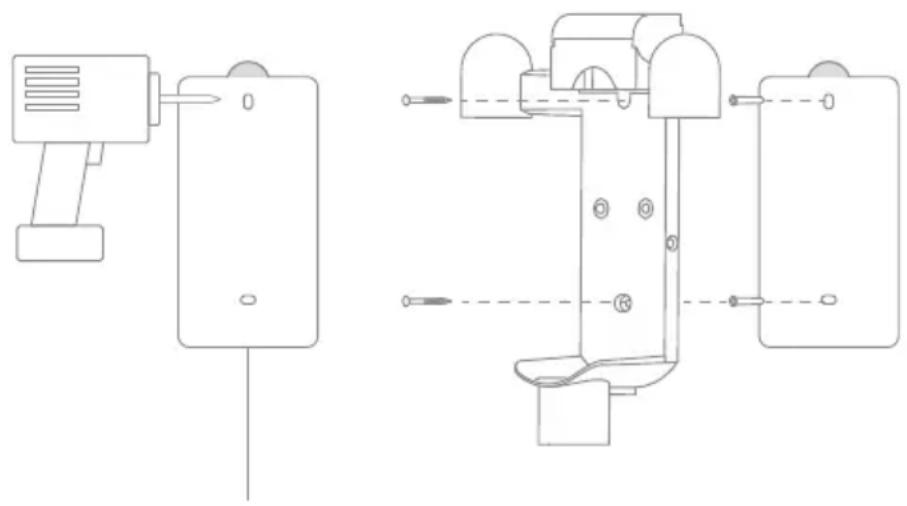

2-in-1 Charging & Storage Mount Installation Diagram

The 2-in-1 charging & storage mount is an optional accessory. You can install it based on your needs.

Note: The 2-in-1 charging & storage mount should be installed in a cool, dry place with an electrical outlet nearby. Prior to installing, ensure that there are no electrical wires or pipes in the space directly behind where the mount will be installed.

1. Paste the mounting template sticker on the wall and keep it parallel to the ground. It is recommended that the bottom of the sticker is at least 119 cm off the ground.
2. Use a power drill with an 8mm drill bit to drill a hole into each marker on the mounting template sticker, then insert a wall plug into each hole.
3. Align the locating holes on the mount with the holes on the wall. Fasten it to the wall with the included screws.

Technical line drawing of two mechanical components with mounting holes and shafts (no text or symbols)

119 cm

Recommended mounting height: The bottom of the mounting template sticker should be at least 119 cm from the ground.

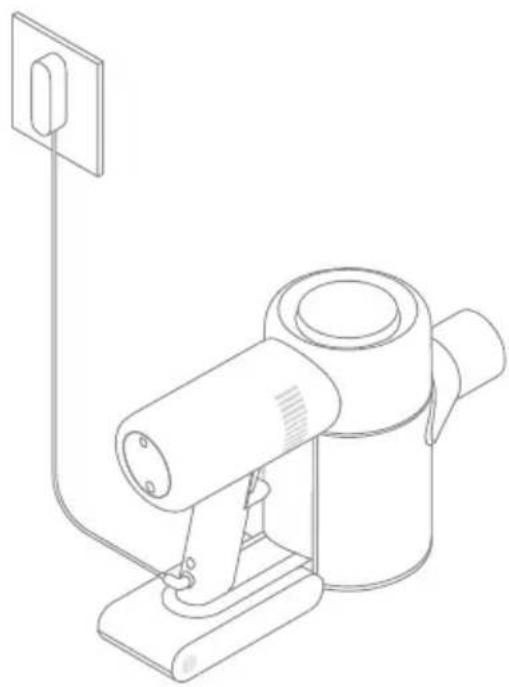

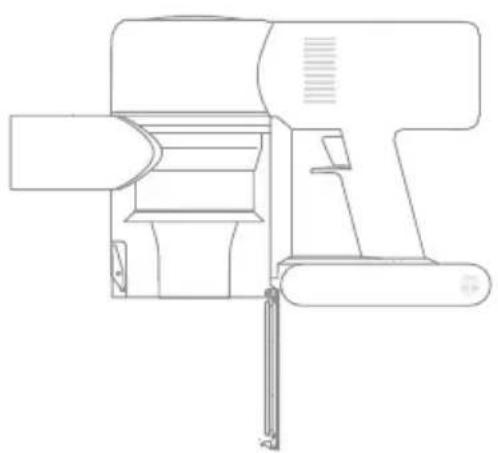

Charging

Fully charge the vacuum before using it for the first time.

Note:

• The vacuum cannot be used while charging.
- A full charge will take about 4 hours. Vacuuming in Turbo Mode for a prolonged period will cause the battery to heat up, which increases charging time. Allow the vacuum to cool down for 30 minutes before charging it.

Technical line drawing of two mechanical devices with wiring and mounting brackets (no text or symbols)

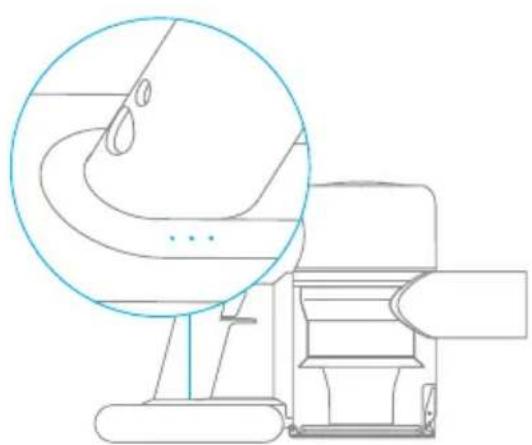

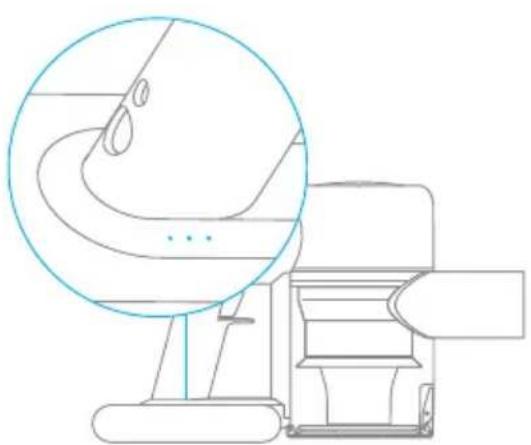

LED Battery Status Indicator

Blinking

○ On Off

Low battery

Half battery

Nearly full

Fully charged

Line drawing of a medical imaging machine with a circular inset showing internal components (no text or symbols)

Note: Once the vacuum is fully charged, the indicator will turn off after 5 minutes, and the vacuum will enter the energy-saving mode.

How to Use

Function introduction of Display Screen

Circular device with a glowing blue ring and '86' label, mounted on a stand (no readable text or symbols beyond the number)

Battery Percentage

Med

Suction Level Status

Electronic Lock/Reset Filter

• Press briefly to enter/exit the lock status
• Press and hold for 1.5 seconds to enter the filter reset interface

Switching Suction Level/Setting Language

• Click to switch between Eco Mode, Auto Mode, Med Mode, and Turbo Mode
• Press and hold for 3 seconds to enter the language setting interface

Note: If you need to pay attention to any abnormality during the use of the product, a prompt will appear on the screen. You should follow the instructions on the screen to keep the performance normal.

Setting Language

Press and hold for 3 seconds to enter the language selection interface

Click to scroll through the language list, select a language

And then press and hold for 3 seconds to save your setting

Note:

• If there is no operation for more than 15 seconds, the display will be turn off.
• When the smart multi-brush bar is attached, the vacuum will automatically switch the suction level between the floor/tile and the carpet.
• Stop the vacuum at any time while cleaning. It will continue to use the last selected suction level when starting again.

How to Use

Cleaning Mode

There are two working methods for the vacuum, which can be selected based on your own needs.

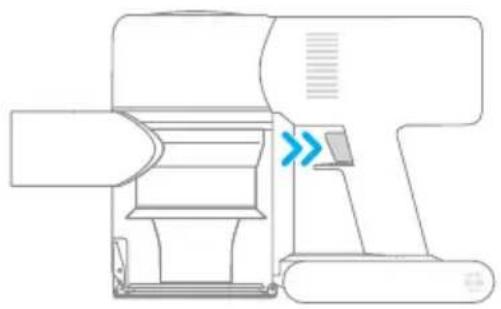

Method 1: Discontinuous Cleaning Mode

Press and hold the switch of the vacuum to enable this mode, and release it to stop immediately.

Technical line drawing of a mechanical device with no visible text or symbols

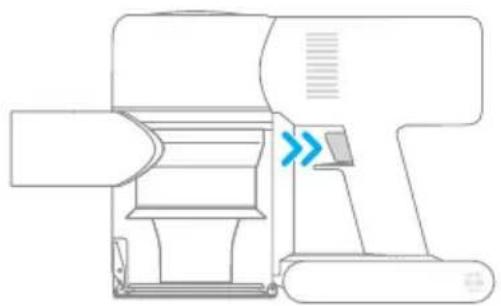

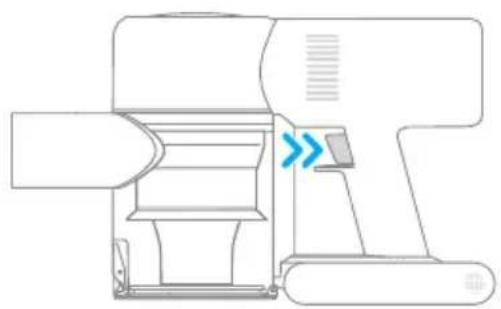

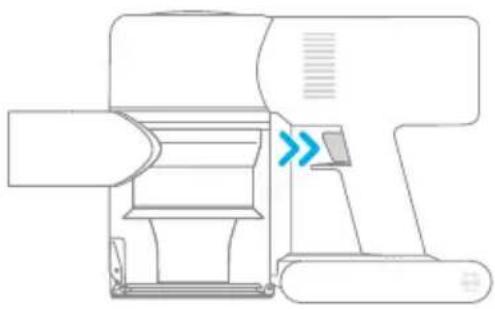

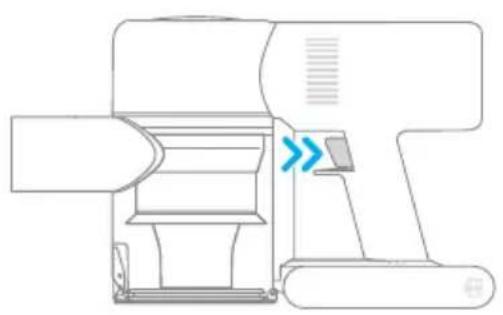

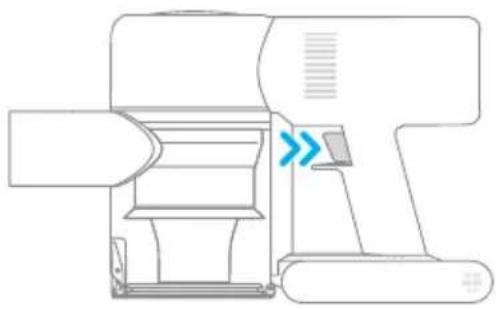

Method 2: Continuous Cleaning Mode (Electronic Lock)

Click the electronic lock key to switch to Continuous Cleaning Mode, and then briefly press the on/off switch to keep the vacuum in Continuous Cleaning Mode.

Use the electronic lock to free your finger from fatigue caused by holding the switch.

Continuous Cleaning Mode

Technical line drawing of a mechanical device with no visible text or symbols

Note:

• In this mode, briefly press the on/off switch to suspend the operation or start again and the working mode of the vacuum will not change.
• Click the electronic lock again to quit Continuous Cleaning Mode.

How to Use

Using Different Accessories

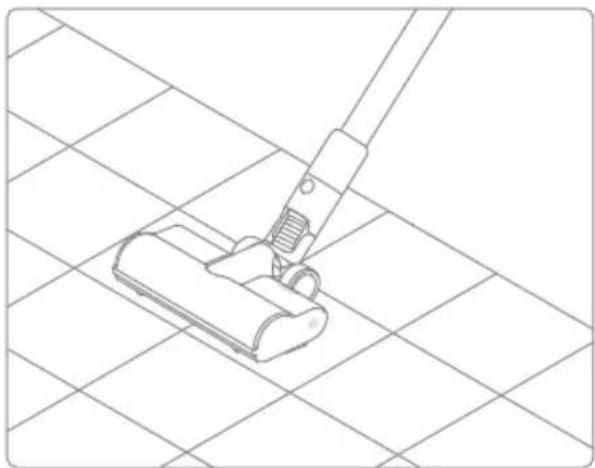

Smart Multi-Brush Bar

For cleaning floors such as marble, tile, and low pile carpet. When Auto Mode is activated, the vacuum will automatically adjust its suction level depending on the surface type.

Line drawing of a vacuum cleaner on tiled floor (no text or symbols)

Note: The smart multi-brush bar can be attached directly to the vacuum.

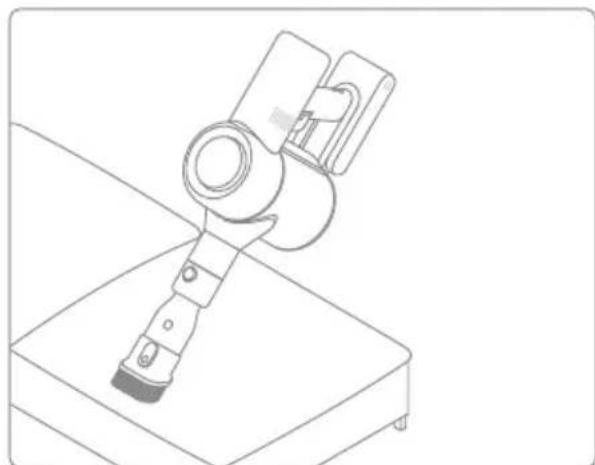

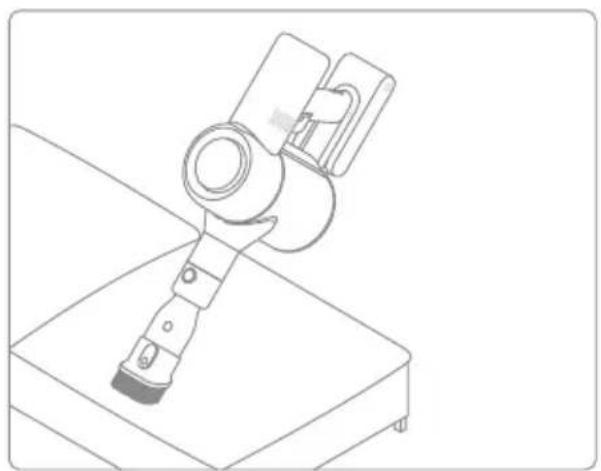

2-in-1 Brush Nozzle

For vacuuming dust from curtains, keyboards, ceilings, sofas, vehicle interiors, coffee tables, etc.

Line drawing of a robotic arm mounted on a base platform (no text or symbols)

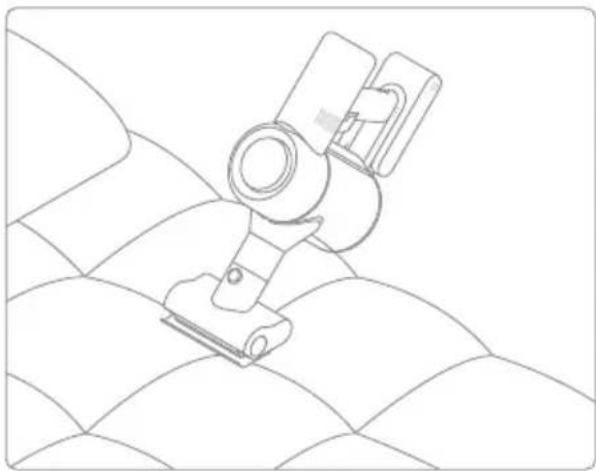

Mini Motorized Brush

For vacuuming dirt, pet hair, and other stubborn debris from sofas, bedding, and other fabric surfaces.

Technical line drawing of a mechanical clamp or bracket assembly on a textured surface (no text or symbols)

Note: It is not recommended to vacuum on fragile surfaces, such as silk.

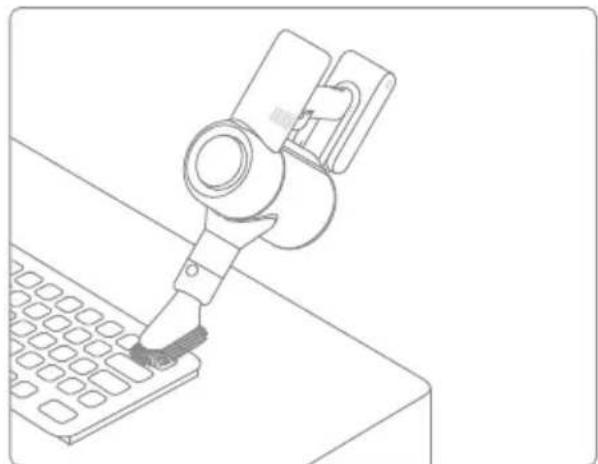

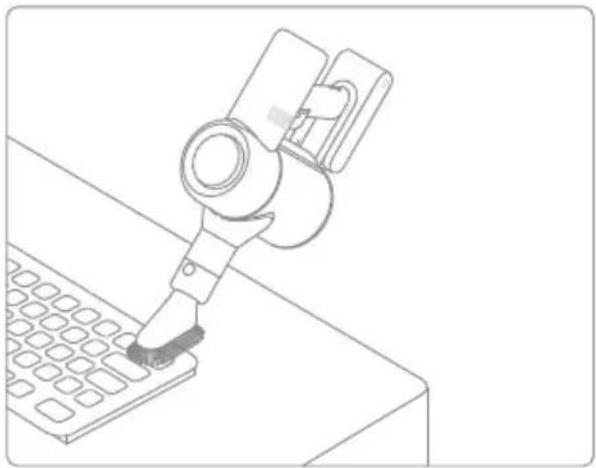

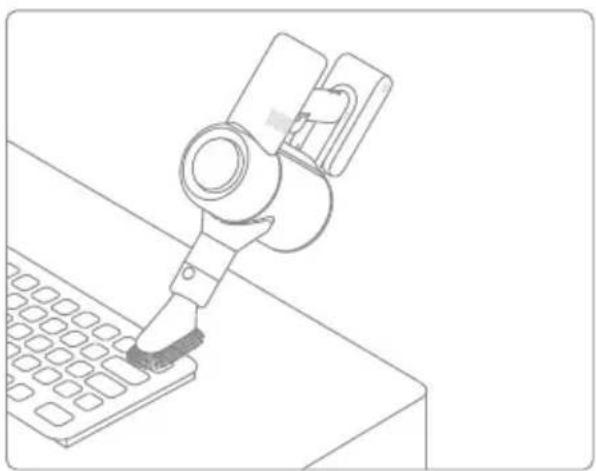

Soft Dusting Brush

Suitable for vacuuming on LCDs, keyboards, lampshades, curtains, shutters and other surfaces of fragile objects.

Line drawing of a robotic arm interacting with a keyboard (no text or symbols)

Note:

• If any rotating part becomes stuck, the vacuum may shut off automatically. Remove any trapped objects so the device can function normally.
• When the battery becomes overheated, the vacuum will automatically shut off. Wait until the battery temperature returns to normal, then the vacuum will work normally.

How to Use

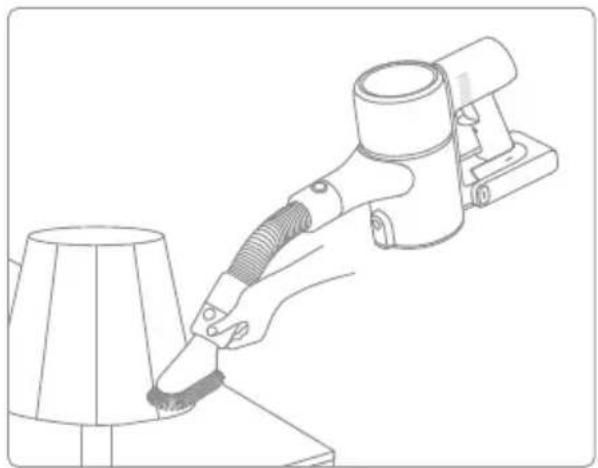

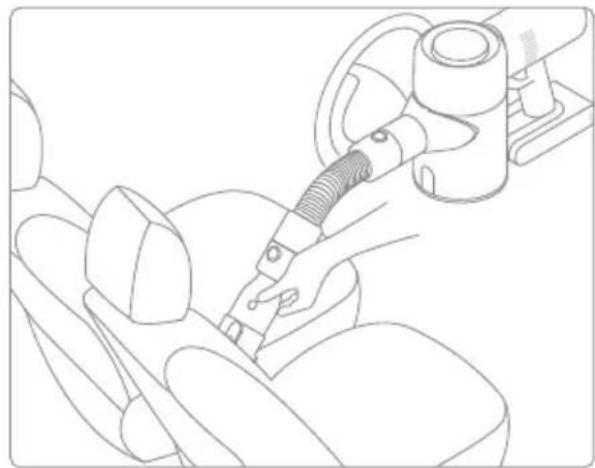

Extension Hose

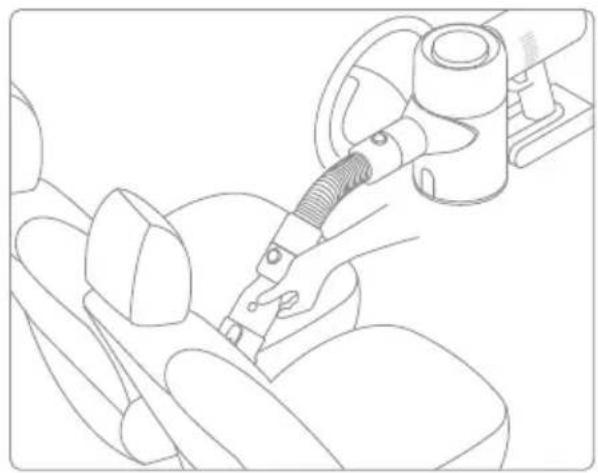

It is suitable for vacuuming the corners that are not easily accessible such as drawers and cars interior when used with soft dusting brush or 2-in-1 brush nozzle.

Line drawing of a hand holding a vacuum cleaner next to a lamp (no text or symbols)

Line drawing of a car seatbelt mechanism with a hand inserting a cable to the seat (no text or symbols)

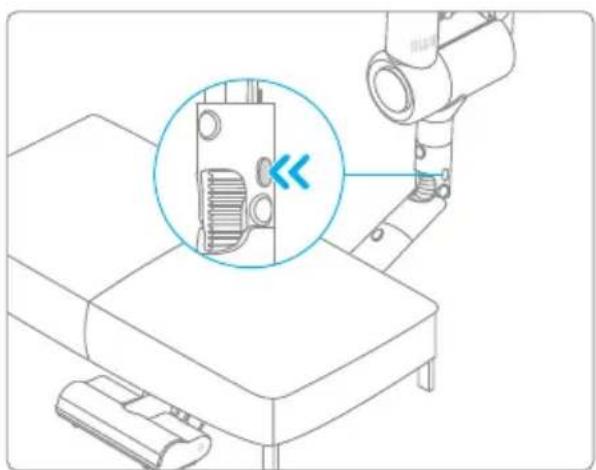

Flexible Adapter

Bending and extending the rod with one click can easily reach under low-lying furniture, such as bed and sofa.

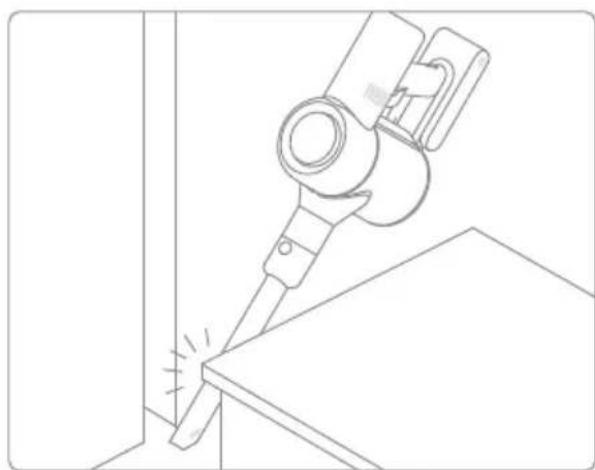

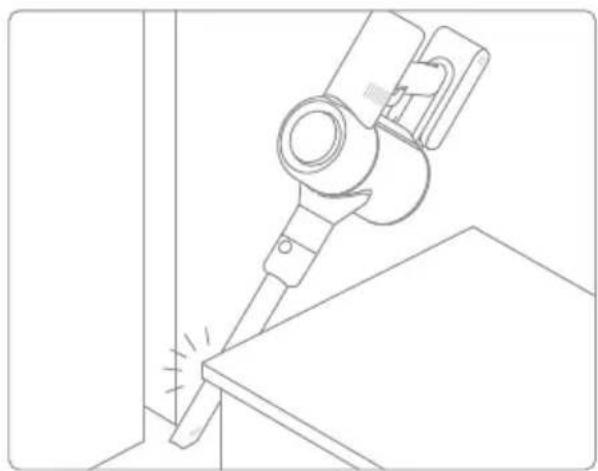

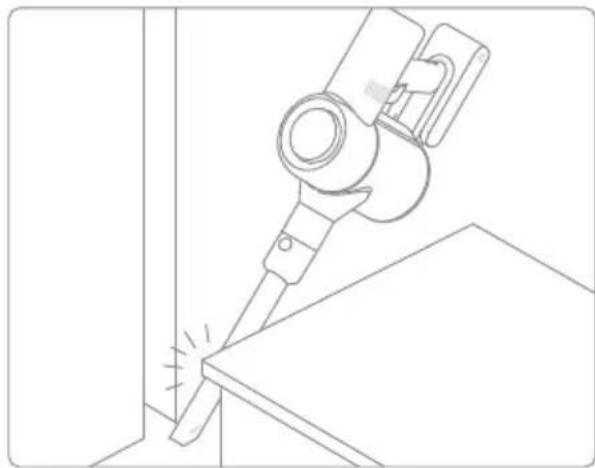

LED Crevice Nozzle

The nozzle is equipped with a thin suction opening and LED light. It is suitable for vacuuming the debris in the narrow places.

Technical line drawing of a robotic arm with a magnified inset showing internal components (no text or symbols)

Line drawing of a welding torch or clamp tool against a wall, no text or symbols present

Note: Flexible adapter is suitable for vacuuming low furniture, and is not recommended to connect to the vacuum all the time in daily floor cleaning.

Note: The LED crevice nozzle can be used with extension hose (The LED crevice nozzle does not light when it is connected to the non-conductive extension hose).

How to Use

If you need to pay attention to any abnormality during the use of the product, a prompt will be shown on the screen. You should follow the instructions on the screen to keep the performance normal.

	Air duct blocked	Check whether the dust cup, carbon fiber rod, and smart multi-brush bar are blocked.
	Roller brush stuck	Refer to the maintenance guide [Cleaning the Smart Multi-Brush Bar] section to clean the fiber material and hairs wrapped around the oller brush.
	ace the filter	Refer to the maintenance manual [Cleaning Filter] section to remove the filter and replace it.
	Reset Filter (5 seconds)	Press and hold the button for 5 seconds to enter the countdown to reset the filter. Wait and until appears on the screen, the reset is successful.
[XABC]	The battery runs out Please charge as soon as possible.
[CVB]	Low battery capacity Please charge as soon as possible.
[WEST]	Battery is overheating	Please wait and continue to use after battery temperature is normal.
[THBS]	Error	Please contact our after-sales service department for maintenance.

Care & Maintenance

Tips:

1. Before cleaning the dust cup, disconnect the adapter and keep the vacuum's power switch in the off position. And do not press its power button.
2. Always use genuine parts to keep your warranty from becoming void.
3. If the vacuum is not used for an extended period, fully charge it, unplug its power adapter, and store it in a cool, low-humidity environment away from direct sunlight. To avoid over-discharging the battery, recharge the vacuum at least once every 3 months.

Cleaning the Vacuum

Wipe the vacuum with a soft dry cloth.

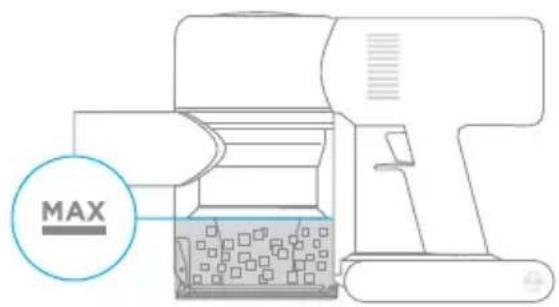

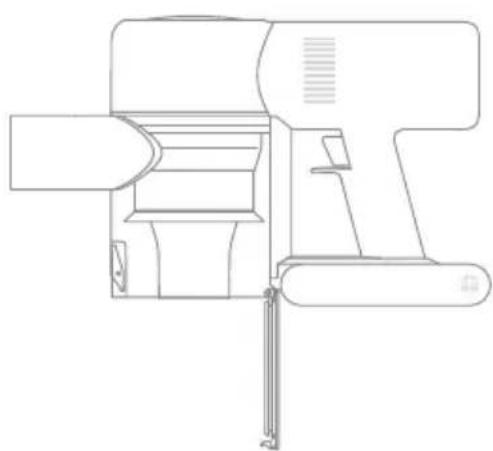

Cleaning the Dust Cup

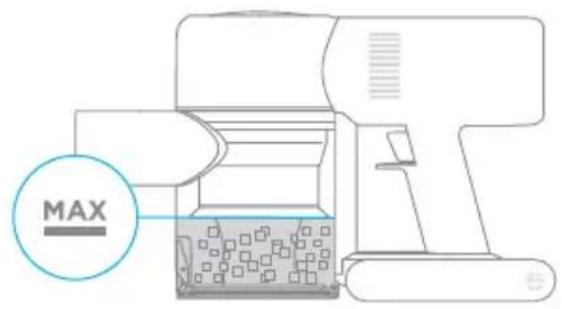

The vacuum's cleaning ability will be reduced if the dust cup is filled to the "MAX" mark. To retain performance, remember to empty the cup.

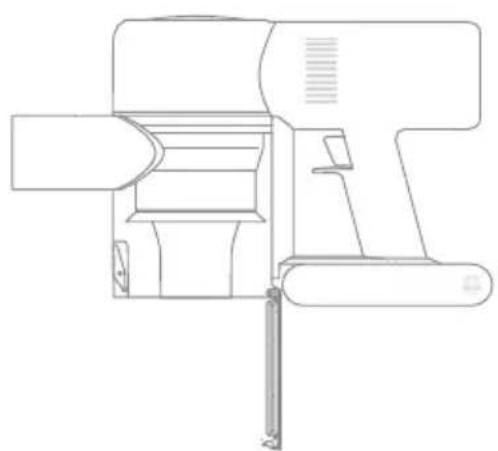

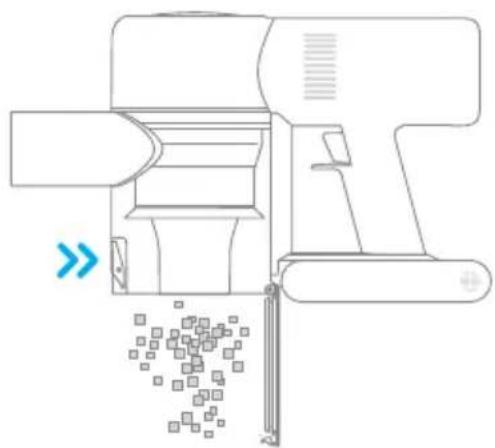

1. Empty the dust cup: Press the release button on the bottom of the cup, then empty its contents.

MAX

Line drawing of a mechanical device emitting particles from a nozzle, with no visible text or symbols

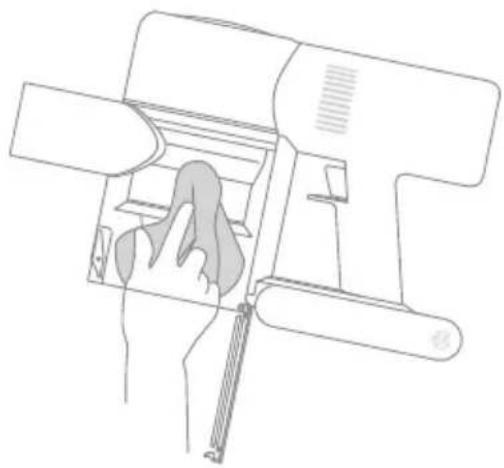

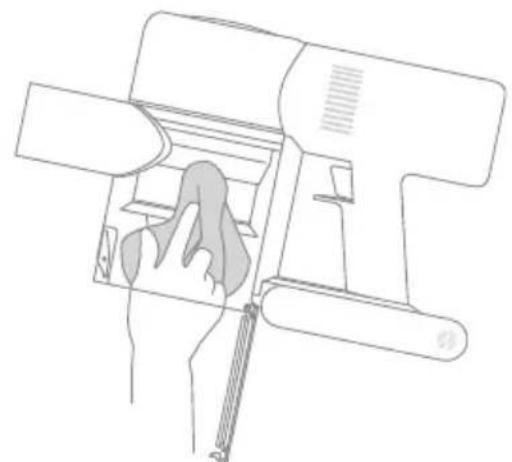

1. Clean the dust cup: Use a dry cloth or paper towel to wipe the dust from the inner wall of the dust cup.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a tool, with no visible text or symbols

Care & Maintenance

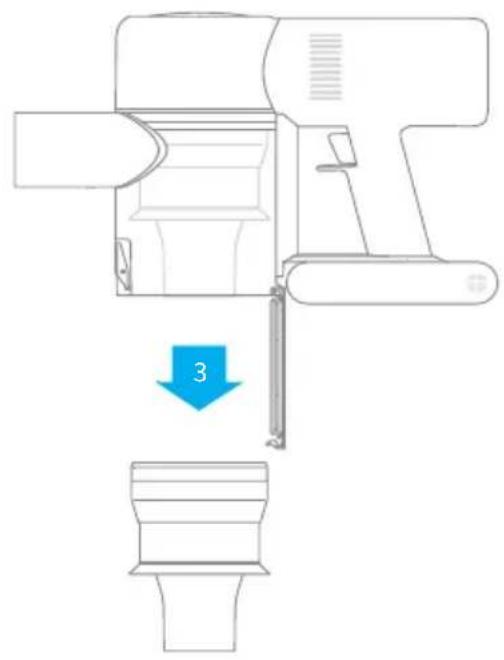

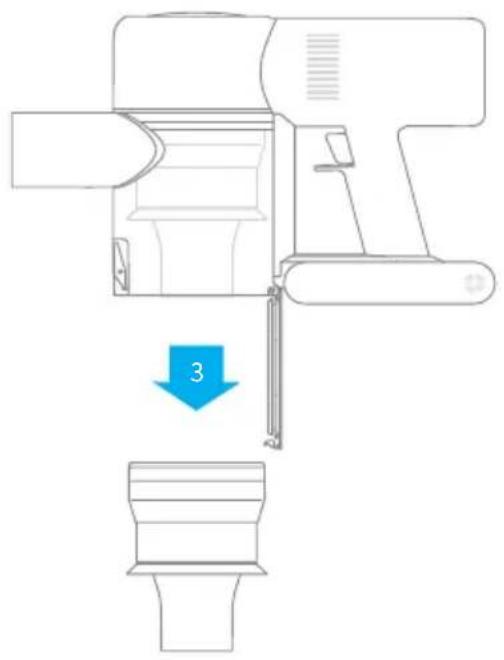

Cleaning the Cyclone Assembly

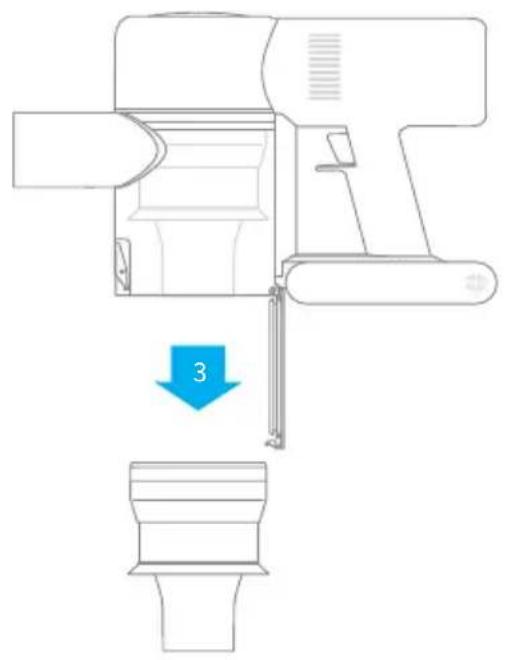

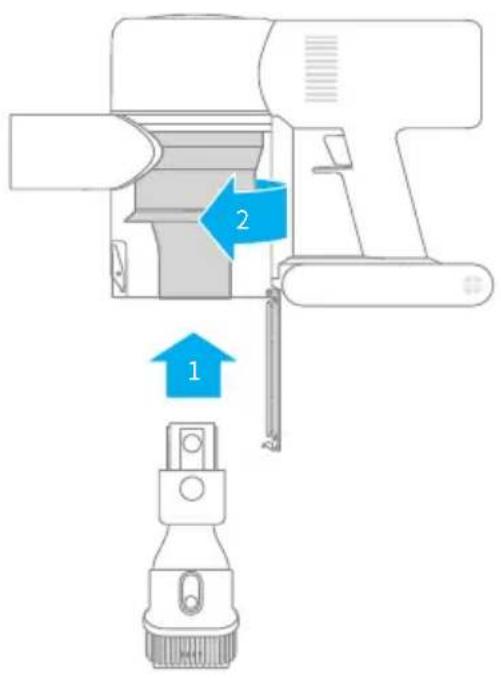

1. Rotate the cyclone assembly in the direction as illustrated to unlock it, then remove the cyclone assembly.

Note: Use the 2-in-1 brush nozzle to remove cyclone separator from the housing. Turn the nozzle in the direction as shown in the diagram for a thorough cleaning.

Diagram of a hair dryer with labeled parts and directional arrows indicating process flow

3

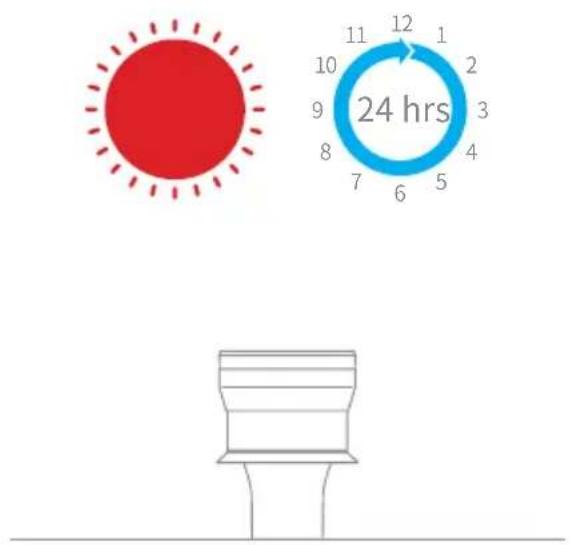

1. Rinse the cyclone assembly with water until it is clean. Thoroughly dry the cyclone assembly.

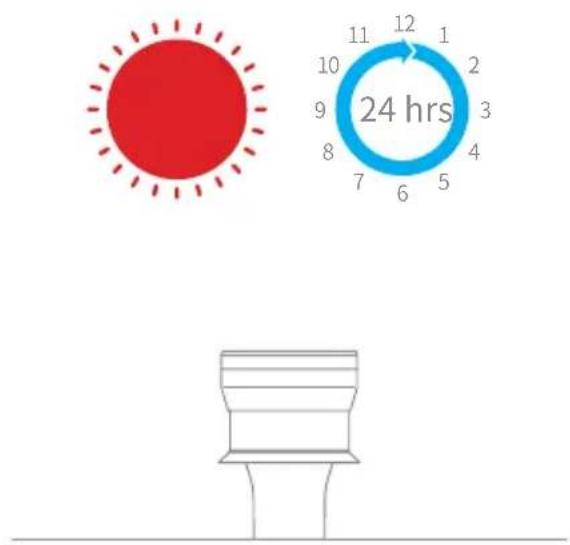

Note: Keep it in a ventilated or cool place for at least 24 hours.

Illustration of a blue faucet pouring liquid into a water tap (no text or symbols)

24 hrs

Care & Maintenance

Cleaning the Filter Assembly

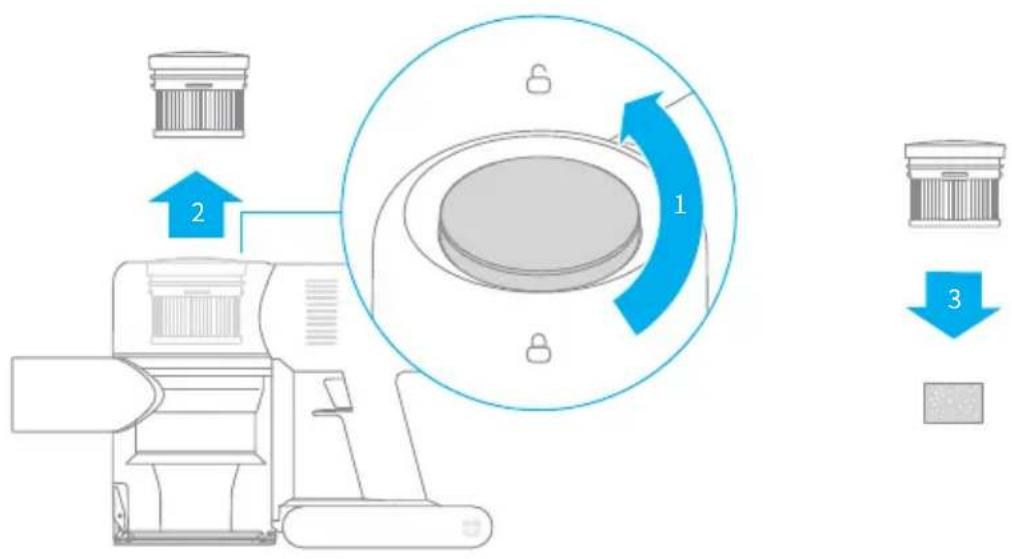

1. Place the vacuum securely on a flat surface, then turn the filter assembly cover in the direction indicated and remove the filter assembly.

Note: Remove the built-in foam pad before cleaning the filter assembly.

1. Rinse the filter and foam pad with water. To thoroughly remove all the dust caught in the filter, rotate the filter 360 degrees while rinsing. Lightly tap the filter against a sink several times to remove any excess debris. Keep the filter in a well-ventilated and cool place to fully dry.

Note: Fully dry the filter (at least 24 hours) before reinstalling it.

24 hrs

Care & Maintenance

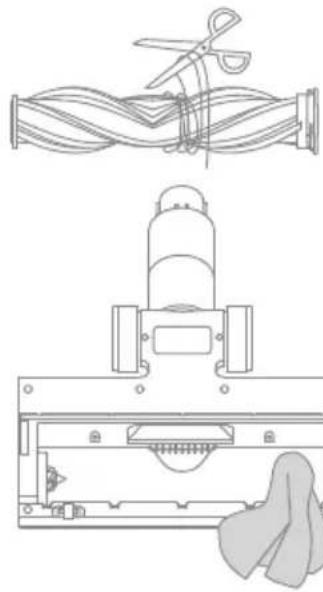

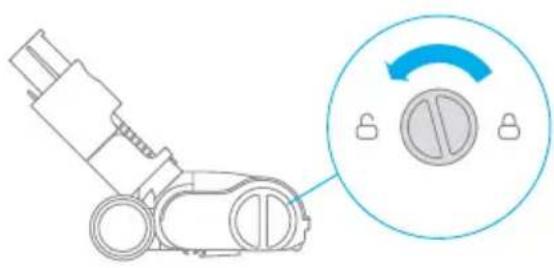

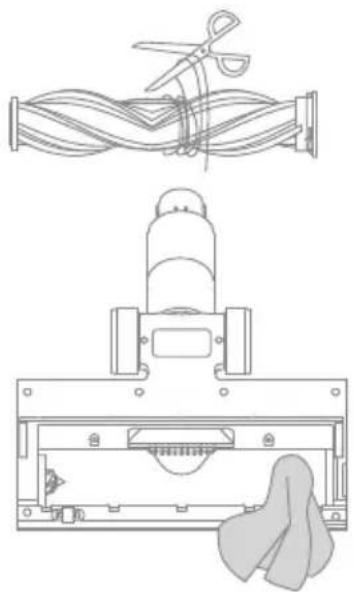

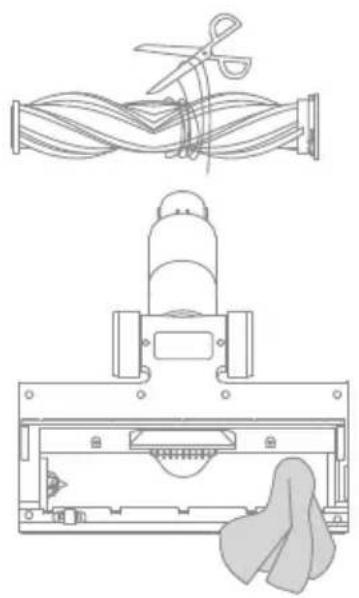

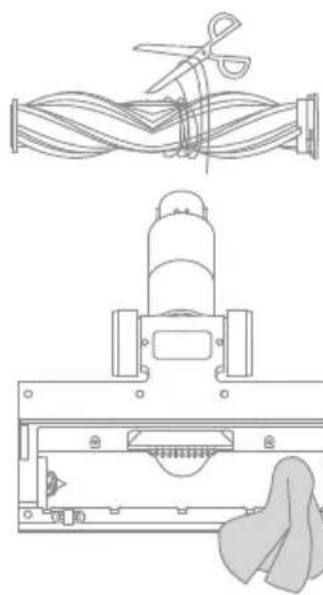

Cleaning the Smart Multi-Brush Bar

1. Turn the lock counterclockwise until it stops, then remove the roller brush from the smart multi-brush bar.

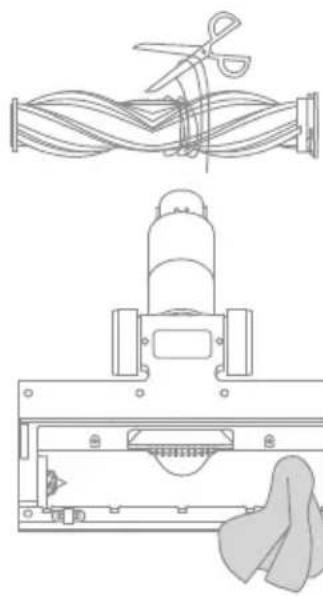

2. Use scissor to cut off the hairs and fibers that get stuck on the brush bar head. Wipe the dust from the notch and transparent cover with a dry cloth or paper towel. Thoroughly dry before use.

Diagram of a handheld device with a circular dial indicator showing a rotary switch (no text or symbols present)

Technical line drawings of mechanical components including a cutting tool, a cylindrical device, and a cloth (no text or symbols)

1. When it is dirty, rinse the roller brush with clean water until it is clean.

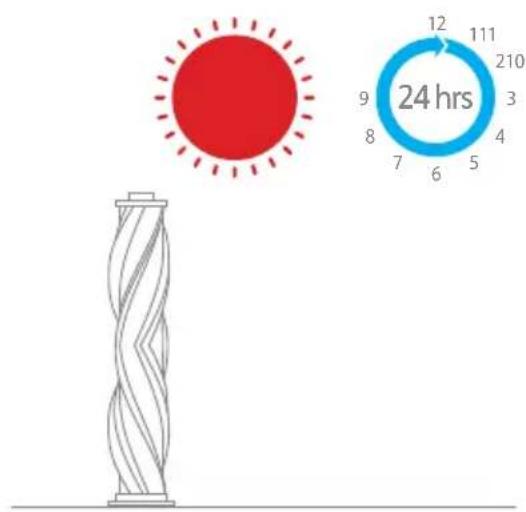

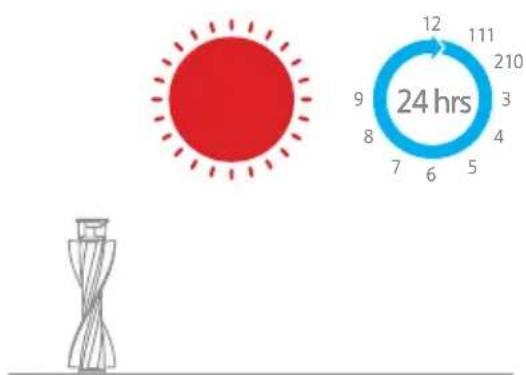

2. Stand the roller brush upright for at least 24 hours until it is fully dry.

Illustration of a blue faucet releasing water into a wavy pipe (no text or symbols)

24 hrs

Care & Maintenance

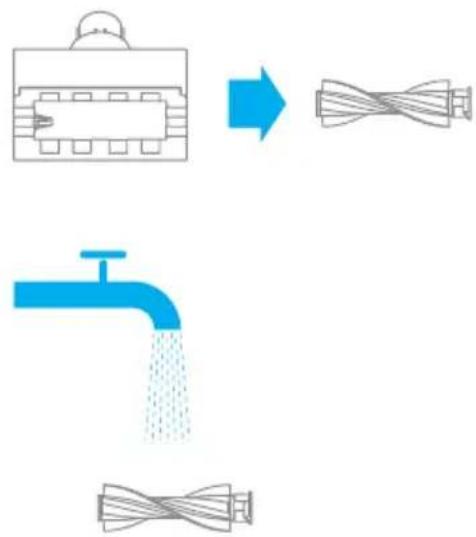

Cleaning the Mini Motorized Brush

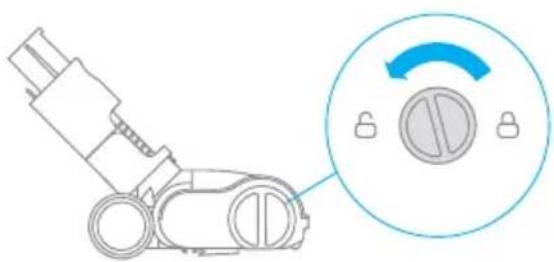

1. Use a coin as illustrated to rotate the lock counterclockwise until you hear a click.

Note: It is recommended to clean the mini motorized brush after each use.

Diagram showing a plug connected to a circular dial with a blue arrow and 'I' symbol, no text or labels present.

1. After unlocking the mini roller brush, remove it from the mini motorized brush, then rinse and clean the brush head.

1. Stand the mini roller brush upright in a well-ventilated area for at least 24 hours until it is fully dry.

2. Once the mini roller brush is dry, reinstall it by following the disassembly steps in reverse.

24 hrs

Diagram showing a connector with internal structure and a blue arrow indicating direction (no text or symbols)

If the vacuum is not working properly, please refer to the troubleshooting table below.

Errors Possible Causes	Solutions
The vacuum does not work.	The vacuum is out of battery or low on power.	Fully charge the vacuum, then continue to use it.
	Overheat protection mode triggered by a blockage.	Clean the suction openings or air duct. Wait until the vacuum cools down, then reactivate it.
	Suction opening or air duct is blocked.	Clear any blockage from suction opening or air duct.
Weak suction force.	Dust cup is full and/or HEPA filter assembly is clogged.	Empty the dust cup and clean the HEPA filter assembly.
	Attachment is blocked.	Clear any blockage in the attachment.
Motor is making a strange noise.	Main suction opening or carbon fiber rod is blocked.	Clear any blockage in the main suction opening or extension rod.
The first indicator is red after turning on the vacuum.	Battery pack is damaged.	Please contact after-sales service department for maintenance.
The first indicator blinks red when charging the vacuum.	The charger is incompatible.	Only use the original charger to charge the vacuum.
The battery indicator does not light while charging.	The adapter is not connected to the vacuum.	Make sure the power adapter is plugged in properly.
	The battery is fully charged and went into sleep mode.	The vacuum can be used normally.
	If the problem persists after ruling out the above two possibilities.	Please contact the after-sales service department for maintenance.
The vacuum charges slowly.	Battery temperature is too low or too high.	Wait until the battery's temperature returns normal, then continue to use the vacuum.

Specifications

Vacuum Cleaner
Model VFS1 Charging Time Approx. 4 hours
Charging Voltage 30 V Rated Voltage 25.2 V			---
Rated Power 650 W Nominal Capacity 2700 mAh
Smart Multi-Brush Bar
Model ASF5
Rated Power 40 W Rated Voltage 25.2 V			---
Mini Motorized Brush
Model DM002
Rated Power 20 W Rated Voltage 25.2 V			---
Charger
Model YLS0251B-E300080		Average Active Efficiency	88.53 %
Input	100-240 V~50/60 Hz0.8 A	Efficiency at Low Load (10%)	78.66 %
Output	30 V---0.8 A	No-load Power Consumption	0.09 W

• This product contains batteries that can only be replaced by qualified technicians or after-sales service.
• This product contains batteries that are non-replaceable.

• The lithium-ion battery pack contains substances that are hazardous to the environment. Before disposing of the vacuum, please follow the below instructions:

• Before removing the battery, disconnect the power and run out the battery as much as possible, then remove the bottom cover of the device by unscrewing the screws.

• Disconnect the terminals to remove the battery. To avoid the risk of hazard, do not damage the battery cover.
• Then discard, or recycle the battery in accordance with local laws and regulations of the country or region it is used in.

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Sicherheitshinweise

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Pure line drawing of a vertical cylindrical object with a small protruding clip (no text or symbols)

Simple line drawing of a symmetrical mechanical or architectural component with three arms and circular cutouts (no text or symbols)

Technical line drawing of a mechanical assembly with spring-loaded components (no text or symbols)

Pure technical line drawing of a mechanical component (no text or symbols)

Technical line drawing of a vertical mechanical device with base and spring components (no text or symbols)

Technical line drawings of mechanical components, no text or symbols present

119 cm

Technical line drawing of two mechanical devices with wiring and mounting brackets (no text or symbols)

Akkustandanzeige

Blinken Ein Aus

Niedriger Akkustand

Akkuladestatus 50 %

Fast voll

Voll aufgeladen

Line drawing of a medical imaging machine with a magnified circular view of the device (no text or symbols)

Circular diagram with concentric rings and a central blue ring, no text or symbols present

Technical line drawing of a mechanical device with no visible text or symbols

Continuous Cleaning Mode

Diagram of a mechanical device with directional arrows indicating motion or flow (no text or symbols)

Hinweis:

Line drawing of a mop handle on a tiled floor (no text or symbols)

Line drawing of a mechanical device with a lever and base (no text or symbols)

Technical line drawing of a mechanical clamp or clamp device on a textured surface (no text or symbols)

Line drawing of a robotic arm interacting with a keyboard (no text or symbols)

Hinweis:

Line drawing of a robotic arm holding a small object near a table lamp (no text or symbols)

Flexibler Adapter

Line drawing of a car seatbelt mechanism with a valve inserted (no text or symbols)

LED Spaltdüse

Technical line drawing of a robotic arm with a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a mechanical device with a lever and pivot point (no text or symbols)

Line drawing of a mechanical device emitting particles from a slotted surface, with no visible text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a tool, with no visible text or symbols

Pflege und Wartung

Diagram of a hair dryer with labeled parts and directional arrows indicating movement or assembly.

3

Diagram illustrating water supply, sun, and time allocation with numbered indicators

Pflege und Wartung

Illustration showing water flow, a sun, and waste disposal with time scale and icons

Pflege und Wartung

Diagram of a car throttle valve mechanism with a circular dial indicator (no text or symbols)

Technical line drawings of mechanical components including a cutting tool, a cylindrical device, and a base assembly (no text or symbols)

Illustration of a blue faucet releasing water into a wavy pipe (no text or symbols)

24 hrs

Pflege und Wartung

Diagram showing a plug with a switch and a circular dial indicator with blue arrows and labeled buttons

Diagram showing a connector with internal structure and a blue arrow indicating direction (no text or symbols)

Simple line drawing of a vertical cylindrical object with a small protrusion on top (no text or symbols)

Simple line drawing of a symmetrical mechanical or architectural component with three arms and circular cutouts (no text or symbols)

Station de charge et de stockage 2-en-1
(inclut 2 vis, 2 chevilles murales, un patron d'installation autocollant)

Technical line drawing of a mechanical assembly with no visible text or symbols

Barre multi-brosses intelligente

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of two mechanical components with mounting holes and shafts (no text or symbols)

119 cm

Technical line drawing of two mechanical devices with attached power outlets (no text or symbols)

Line drawing of a medical imaging machine with a circular inset showing internal components (no text or symbols)

Circular device with a blue glowing ring and '86' label, mounted on a stand (no readable text or symbols beyond the number)

Technical line drawing of a mechanical device with no visible text or symbols

Continuous Cleaning Mode

Technical line drawing of a mechanical device with no visible text or symbols

Remarque :

Line drawing of a mop handle on a tiled floor (no text or symbols)

Line drawing of a mechanical device with a lever and base (no text or symbols)

Technical line drawing of a mechanical clamp or clamp device mounted on a grid-patterned surface (no text or symbols)

Line drawing of a robotic arm interacting with a keyboard (no text or symbols)

Remarque :

Tuyau souple extensible

Line drawing of a robotic arm holding a tool near a lamp (no text or symbols)

Line drawing of a robotic arm interacting with a car seatbelt (no text or symbols)

Adaptateur flexible

Technical line drawing of a robotic arm with a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a mechanical device with a lever and pivot point (no text or symbols)

Line drawing of a mechanical device emitting particles from a pile, with no visible text or symbols

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Diagram of a hairdryer with labeled parts and directional arrows indicating movement or assembly.

3

Blue faucet with water droplets falling (no text or symbols)

Simple line drawing of a cylindrical object with a flared base and protruding legs (no text or symbols)

Illustration showing a faucet, waste sorting, and a 24-hour timer with a red sun icon.

Diagram of a car throttle valve mechanism with a circular dial indicator (no text or symbols)

Technical line drawings of mechanical components including a pair of scissors, a cylindrical device, and a base with a cloth (no text or symbols)

Illustration of a blue faucet releasing water into a wavy pipe (no text or symbols)

24 hrs

Diagram showing a plug connected to a circular dial with a blue arrow and lock symbols (no text or labels)

Diagram showing a connector with internal structure and a blue arrow indicating direction (no text or symbols)

Pure line drawing of a vertical cylindrical object with a small protrusion on top (no text or symbols)

Simple line drawing of a symmetrical mechanical or architectural component with four arms and circular cutouts (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Barra multi-spazzola intelligente

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of two mechanical device assemblies with no visible text or symbols

119 cm

Pure vertical and horizontal lines forming a V-shape, no text or symbols present

Technical line drawing of a mechanical device with attached electrical outlet (no text or symbols)

Line drawing of a portable electric heater with a power outlet and cable (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a component (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Continuous Cleaning Mode

Technical line drawing of a mechanical device with no visible text or symbols

Nota:

Line drawing of a mop handle on tiled floor (no text or symbols)

Line drawing of a mechanical device with a lever and base (no text or symbols)

Line drawing of a mechanical clamp or clamp device on a textured surface (no text or symbols)

Line drawing of a robotic arm interacting with a keyboard (no text or symbols)

Nota:

Line drawing of a robotic arm holding a tool near a table lamp (no text or symbols)

Line drawing of a car seatbelt mechanism with a valve inserted (no text or symbols)

Technical line drawing of a robotic arm with a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a mechanical device with a lever and pivot point (no text or symbols)

Diagram of a mechanical device emitting particles from a slotted surface, with no visible text or symbols.

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand cleaning a garment with a towel and roller (no text or symbols)

Cura e manutenzione

Diagram of a hair dryer with labeled parts and directional arrows indicating component positioning

3

Illustration of a blue faucet pouring liquid into a water-filled sink (no text or symbols)

24 hrs

Cura e manutenzione

Pulizia del filtro

Diagram of a handheld device with a circular dial indicator showing a rotary switch (no text or symbols present)

Technical line drawings of a mechanical device with scissors, a cylindrical component, and a fabric sheath (no text or symbols)

Illustration of a blue faucet releasing water into a wavy pipe (no text or symbols)

24 hrs

Cura e manutenzione

Diagram showing a device with a circular dial indicator and a lock mechanism, no text or symbols present.

Diagram showing a connector with internal structure and a blue arrow indicating direction (no text or symbols)

Domande Frequenti

Pure technical line drawing of a mechanical component (no text or symbols)

Pure line drawing of a vertical cylindrical object with a small protrusion on top (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Montaje

Technical line drawing of two mechanical device assemblies with no visible text or symbols

119 cm

Pure vertical and horizontal lines forming a V-shape, no text or symbols present

Technical line drawing of two mechanical devices with attached power outlets (no text or symbols)

Line drawing of a medical imaging machine with a magnified circular view of the device (no text or symbols)

Circular device with a blue glowing ring and '86' label, mounted on a stand (no readable text or symbols beyond the number)

Med

Technical line drawing of a mechanical device with no visible text or symbols

Continuous Cleaning Mode

Technical line drawing of a mechanical device with no visible text or symbols

Nota:

Line drawing of a mop handle on a tiled floor (no text or symbols)

Line drawing of a robotic arm mounted on a base platform (no text or symbols)

Technical line drawing of a mechanical clamp or clamp device mounted on a grid-patterned surface (no text or symbols)

Line drawing of a robotic arm interacting with a keyboard (no text or symbols)

Nota:

Line drawing of a robotic arm holding a tool near a lamp (no text or symbols)

Adaptador flexible

Technical line drawing of a robotic arm with a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a robotic arm interacting with a car seatbelt (no text or symbols)

Line drawing of a welding torch or clamp tool against a wall, no text or symbols present

Line drawing of a mechanical device emitting particles from a slotted surface, with no visible text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a cloth over a device, with no visible text or symbols

Diagram of a hair dryer with labeled parts and directional arrows indicating process flow

3

Illustration of a blue faucet pouring liquid into a water tap (no text or symbols)

24 hrs

Illustration showing a faucet, waste sorting, and a 24-hour timer with sun icon

Diagram of a handheld device with a circular dial indicator showing rotation and lock symbols (no text or labels)

Technical line drawings of a mechanical assembly with scissors, a cylindrical component, and a base plate (no text or symbols)

Illustration of a blue faucet releasing water into a wavy pipe (no text or symbols)

24 hrs

Diagram showing a device with a circular dial indicator and a lock mechanism, no text or symbols present.

Diagram showing a connector with internal components and a blue arrow indicating direction (no text or symbols)

Simple line drawing of a vertical cylindrical object with a small protrusion on top (no text or symbols)

Simple line drawing of a symmetrical mechanical or architectural component with three circular holes and two rounded protrusions (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Simple line drawing of a mechanical component with a circular top and flange (no text or symbols)

Вставьте до щелчка

Simple line drawing of a vertical cylindrical object with a small protrusion and two base plates (no text or symbols)

Вставьте до щелчка

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a cylindrical mechanical component with a flanged base (no text or symbols)

Вставьте до щелчка

Вставьте до щелчка

Technical line drawing of a vertical mechanical device with internal components and wave patterns (no text or symbols)

Technical line drawing of two mechanical device assemblies with no visible text or symbols

119 cm

Technical line drawing of two mechanical devices connected by wires, no text or symbols present

Technical line drawing of a mechanical device with a circular component and base mount (no text or symbols)

Circular device with a blue glowing ring and '86x' label, surrounded by three vertical lines (no readable text or symbols beyond the label)

Technical line drawing of a mechanical device with no visible text or symbols

Continuous Cleaning Mode

Technical line drawing of a mechanical device with no visible text or symbols

Примечание.

Line drawing of a mop on a tiled floor (no text or symbols)

Line drawing of a robotic arm mounted on a platform (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly on a grid-patterned surface (no text or symbols)

Line drawing of a robotic arm interacting with a keyboard (no text or symbols)

Примечание.

Line drawing of a robotic arm holding a tool near a cylindrical object (no text or symbols)

Нижний адаптер

Line drawing of a car interior showing a hand operating a robotic arm (no text or symbols)

Щелевая насадка LED

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Line drawing of a mechanical device with a lever and pivot point (no text or symbols)

Line drawing of a mechanical device emitting particles, with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a tool with a cloth-like object inside, no text or symbols present

Уход и ремонт

Diagram showing three-step assembly steps of a device, labeled 1, 2, and 3 with directional arrows indicating process flow.

Illustration of a blue faucet with liquid dripping into a pipe (no text or symbols)

24 hrs

Уход и ремонт

Очистка фильтра

Illustration showing water flow, a sun, and waste disposal with time scale and icons

Уход и ремонт

Diagram of a mechanical device with a circular dial indicator showing rotation and lock symbols (no text or labels)

Technical line drawings of a mechanical device with scissors, a cylindrical component, and a cloth-like object (no text or symbols)

Illustration of a blue faucet releasing water into a coiled pipe (no text or symbols)

24 hrs 12 111 210 9 8 7 6 5 4

Уход и ремонт

Diagram showing a device with a lock and a circular dial indicator (no text or symbols)

Diagram illustrating the process of a water tap with flow direction and cable termination, showing step-by-step installation.

Pure diagram of a connector with internal components and a blue arrow indicating direction (no text or symbols)

Вопросы и ответы

Simple line drawing of a vertical cylindrical object with a small protrusion and two base plates (no text or symbols)

Simple line drawing of a symmetrical mechanical or architectural component with three circular holes and two rounded protrusions (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), no text or symbols present.

119 cm

Technical line drawing of two mechanical devices connected by wires, no text or symbols present

Line drawing of a mechanical device with a circular component and a base, no text or symbols present

Circular device with a blue ring and '86' label, surrounded by three vertical lines (no readable text or symbols beyond the number)

نسبةprobability

Med

حالة الجير

Technical line drawing of a mechanical device with no visible text or symbols

Continuous Cleaning Mode

Technical line drawing of a mechanical device with no visible text or symbols

صيحة:

Technical line drawing of a mechanical clamp or clamp device on a grid-patterned surface (no text or symbols)

Line drawing of a hand using a vacuum cleaner on a tiled floor (no text or symbols)

Line drawing of a robotic arm interacting with a keyboard (no text or symbols)

Line drawing of a robotic arm mounted on a base platform (no text or symbols)

ملاحظة:

Line drawing of a hand holding a vacuum cleaner next to a lamp (no text or symbols)

Line drawing of a robotic arm interacting with a car seatbelt (no text or symbols)

رأس التبديل السفلي

Line drawing of a mechanical device emitting sparks, mounted on a vertical panel (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Diagram of a mechanical device emitting particles from a nozzle, with no visible text or symbols

MAX

Line drawing of a hand holding a tool, with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a hairdryer with labeled parts and directional arrows indicating movement or assembly.

Blue faucet with water droplets falling (no text or symbols)

تنظيف مرشح الداخلي

Diagram illustrating a medical imaging device with labeled components and directional arrows indicating rotation or movement.

Blue faucet icon with water droplets falling (no text or symbols)

Technical line drawings of a mechanical device with scissors, no text or symbols present

Diagram of a mechanical device with a circular inset showing a rotary knob (no text or symbols)

Illustration of a blue faucet releasing water into a wavy pipe (no text or symbols)

Diagram illustrating a water flow process with a valve, pipe, and cable connectors, showing fluid transfer from a container to cable.

Diagram showing a device with a switch and a circular dial indicator (no text or symbols)

Diagram showing a mechanical component with a blue arrow pointing to a twisted cable or wire (no text or symbols present)

Pure vertical line drawing of a mechanical component (no text or symbols)

Simple line drawing of a symmetrical mechanical or architectural component with three circular holes and two rounded protrusions (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of two mechanical device assemblies with no visible text or symbols

119 cm

Technical line drawing of two mechanical devices connected by wires, no text or symbols present

Line drawing of a mechanical device with a circular component and a base, no text or symbols present

Circular device with a blue glowing ring and '86x' label, surrounded by three vertical lines (no readable text or symbols beyond the label)

Med

Technical line drawing of a mechanical device with no visible text or symbols

Continuous Cleaning Mode

Technical line drawing of a mechanical device with no visible text or symbols

Uwaga:

Line drawing of a mop handle on a tiled floor (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly on a textured surface (no text or symbols)

Line drawing of a robotic arm mounted on a base platform (no text or symbols)

Uwaga:

Line drawing of a robotic arm interacting with a keyboard (no text or symbols)

Line drawing of a hand using a vacuum cleaner to clean or brush the lamp (no text or symbols present)

Elastyczny adapter

Technical line drawing of a robotic arm with a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a robotic arm interacting with a car's seatbelt (no text or symbols)

Line drawing of a mechanical device with a lever and pivot point (no text or symbols)

Line drawing of a mechanical device emitting particles from a slotted material, with no visible text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a device with a handle, no text or symbols present

Diagram of a hair dryer with labeled parts and directional arrows indicating movement or assembly.

3

Illustration of a blue faucet with water droplets above and a corresponding pipe diagram below (no text or symbols)

24 hrs

Diagram illustrating water cycle and storage operations with a sun, timer, and recycling symbols

Diagram of a mechanical device with a circular dial indicator showing rotation (no text or symbols)

Technical line drawings of a hair tool and its assembly (no text or symbols)

Illustration of a blue faucet releasing water into a coiled pipe (no text or symbols)

24 hrs 12 111 210 9 8 7 6 5 4

Diagram showing a device with a lock and a circular dial indicator (no text or symbols)

Diagram illustrating a water flow process with a valve, pipe, and cable, showing fluid transfer from a drain to a cable.

Pure diagram of a connector with internal components and a blue arrow indicating direction (no text or symbols)

Simple line drawing of a vertical cylindrical object with a small protrusion on top (no text or symbols)

Simple line drawing of a symmetrical mechanical or architectural component with three circular holes and a central shaft (no text or symbols)

1 2 3 4 5 6 7 8 9 (X 2 3 4 5 6 7 8 9)

Technical line drawing of a mechanical assembly with no visible text or symbols

הכלהה

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

תְרַעָה בְּרַעָה

Simple line drawing of a mechanical component with a circular top and flanged base (no text or symbols)

Pure vertical line drawing of a mechanical or electrical component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a vertical mechanical assembly with labeled components and directional arrows indicating movement or force.

Technical line drawing of two mechanical devices with wiring and mounting brackets (no text or symbols)

Line drawing of a mechanical device with a circular component and a base, no text or symbols present

Circular device with blue glowing ring and '86' label, no readable text or symbols beyond the number

Diagram of a medical imaging machine with no visible text or symbols

Continuous Cleaning Mode

Technical line drawing of a mechanical device with no visible text or symbols

:תַרְשָׁ

Line drawing of a mechanical device with attached components, set against a grid background (no text or symbols)

Line drawing of a mop handle on a tiled floor (no text or symbols)

Line drawing of a robotic arm interacting with a keyboard (no text or symbols)

Line drawing of a robotic arm mounted on a base platform (no text or symbols)

תְרַע

Line drawing of a hand using a vacuum cleaner to clean or store floor equipment (no text or symbols)

Line drawing of a welding torch with a bracket and base, no text or symbols present

Line drawing of a car interior showing a hand adjusting a seatbelt with a mechanical device (no text or symbols)

הכלהה

Technical line drawing of a robotic arm with a highlighted mechanical component (no text or symbols)

Line drawing of a mechanical device emitting particles from a slotted surface, with no visible text or symbols.

MAX

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a hairdryer with labeled parts and directional arrows indicating movement or assembly.

Illustration of a blue faucet with water droplets above and a small container below (no text or symbols)

תְּבָרִי אַלְה

Technical line drawings of a mechanical device with three views: top shows a cutting tool, middle shows a cylindrical component, and bottom shows a cloth (no text or symbols)

Diagram of a mechanical device with a circular dial indicator showing rotation and lock symbols (no text or labels)

Illustration of a blue faucet releasing water into a wavy pipe (no text or symbols)

תְׁרָה בְּרַעֹן

Diagram illustrating a water tap and its corresponding cable or wire connection process, with Chinese labels.

Diagram showing a device with a circular dial indicator and blue arrow, likely illustrating a control or adjustment mechanism.

Pure diagram of a connector with internal components and a blue arrow indicating direction (no text or symbols)

12 111 210 24 hrs 9 8 7 6 5 4 3 2 1 Sun

Simple line drawing of a twisted cylindrical object with no text or symbols

Pure line drawing of a vertical cylindrical object with a small protrusion on top (no text or symbols)

Simple line drawing of a symmetrical mechanical or architectural component with four circular holes and three curved arms (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Barra Multiescovas Inteligente

Simple line drawing of a mechanical clip or bracket (no text or symbols)

Clique Clique

Instalação

Technical line drawings of mechanical components, no text or symbols present

119 cm

Technical line drawing of two mechanical devices with wiring and power outlets (no text or symbols)

Indicador LED de status da bateria

Piscando

Technical line drawing of a mechanical assembly with a circular inset showing a component (no text or symbols)

Circular device with blue glowing ring and '86' label, no readable text or symbols beyond the number

Med

Technical line drawing of a mechanical device with no visible text or symbols

Continuous Cleaning Mode

Technical line drawing of a mechanical device with no visible text or symbols

Obeservação:

Line drawing of a hand using a vacuum cleaner to clean or store floor tiles (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly on a textured surface (no text or symbols)

Line drawing of a mechanical device with a lever and base (no text or symbols)

Escova macia de pó

Adequado para aspirar LCDs, teclados, abajures, cortinas, venezianas e outras superfícies de objetos frágeis.

Line drawing of a robotic arm interacting with a keyboard (no text or symbols)

Obeservação:

Line drawing of a robotic arm holding a tool near a lamp (no text or symbols)

Adaptador Flexível

Line drawing of a robotic arm interacting with a vehicle's seatbelt (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Line drawing of a mechanical device with a lever and pivot, no text or symbols present

Line drawing of a mechanical device emitting particles from a slotted chamber (no text or symbols)

1. Limpe o coletor de pó: Use um pano seco ou toalha de papel para limpar a poeira da parede interna do coletor de pó.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a tool with a cloth, next to an open device (no text or symbols)

Diagram of a hairdryer with labeled parts and directional arrows indicating movement or assembly.

3

Illustration of a blue faucet with liquid dripping and a smaller pipe with a bucket (no text or symbols)

24 hrs

Illustration showing water flow, a sun, and waste disposal with time scale and building icons

Diagram of a mechanical device with a circular dial indicator showing a rotary knob (no text or symbols present)

Technical line drawings of a mechanical device with scissors, a cylindrical component, and a cloth (no text or symbols)

Illustration of a blue faucet releasing water into a wavy pipe (no text or symbols)

24 hrs

Diagram showing a plug with a switch and a circular dial indicator with blue arrows and labeled buttons

Diagram showing a connector with internal components and a blue arrow indicating direction (no text or symbols)

- The word "dreame" is the abbreviation of Dreame Technology Co., Ltd. and its subsidiaries in China. It is the transliteration of the company's Chinese name "追觅", which means striving for excellence in every endeavor and reflects the company's vision of continuous pursuit, exploration and search in technology.

• Dreame Technology Co., Ltd. and its subsidiaries – "追觅"

CE
