USER MANUAL 38227 Lindy

HDMI Over Powerline Extender

User Manual English Benutzerhandbuch Deutsch Manuel Utilisateur Francais Manuale Italiano

No. 38225_7

lindy.com

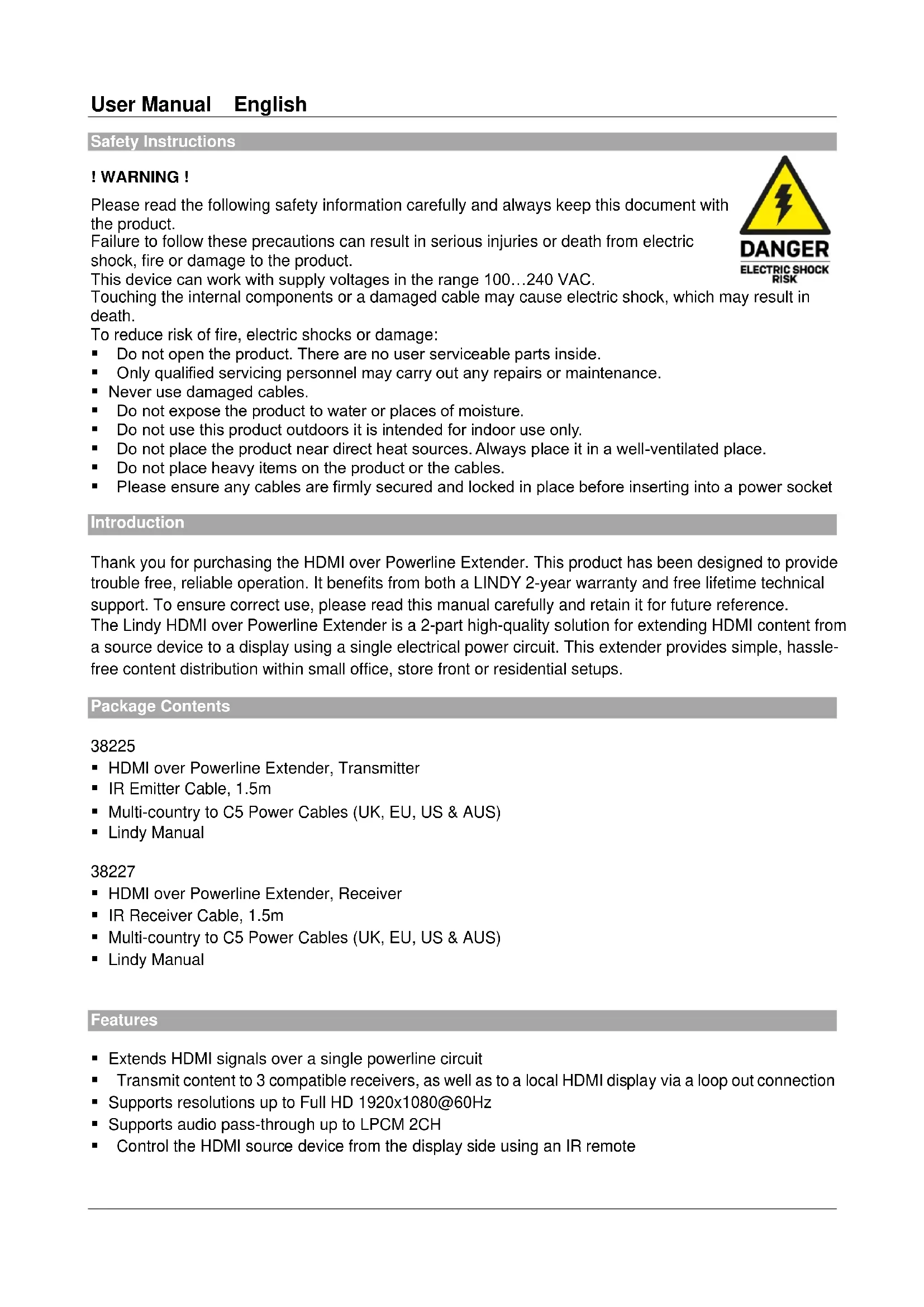

Safety Instructions

!WARNING !

Please read the following safety information carefully and always keep this document with the product.

Failure to follow these precautions can result in serious injuries or death from electric shock, fire or damage to the product.

This device can work with supply voltages in the range 100...240 VAC.

Touching the internal components or a damaged cable may cause electric shock, which may result in death.

To reduce risk of fire, electric shocks or damage:

• Do not open the product. There are no user serviceable parts inside.
• Only qualified servicing personnel may carry out any repairs or maintenance.
• Never use damaged cables.
• Do not expose the product to water or places of moisture.
• Do not use this product outdoors it is intended for indoor use only.
• Do not place the product near direct heat sources. Always place it in a well-ventilated place.
• Do not place heavy items on the product or the cables.
• Please ensure any cables are firmly secured and locked in place before inserting into a power socket.

ELECTRIC SHOCK RISK

Introduction

Thank you for purchasing the HDMI over Powerline Extender. This product has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2-year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.

The Lindy HDMI over Powerline Extender is a 2-part high-quality solution for extending HDMI content from a source device to a display using a single electrical power circuit. This extender provides simple, hassle-free content distribution within small office, store front or residential setups.

Package Contents

38225

HDMI over Powerline Extender, Transmitter
- IR Emitter Cable, 1.5m
Multi-country to C5 Power Cables (UK, EU, US & AUS)
Lindy Manual

38227

HDMI over Powerline Extender, Receiver
IR Receiver Cable, 1.5m
Multi-country to C5 Power Cables (UK, EU, US & AUS)
Lindy Manual

Features

• Extends HDMI signals over a single powerline circuit
  Transmit content to 3 compatible receivers, as well as to a local HDMI display via a loop out connection
  Supports resolutions up to Full HD 1920x1080@60Hz
  Supports audio pass-through up to LPCM 2CH
  Control the HDMI source device from the display side using an IR remote

Specification

Interface Standard: HDMI 1.3
Supported Bandwidth: 6.75Gbps
Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
HDCP Support: 1.4
- EDID Pass Through: Pass-through
Supported Audio: LPCM 2CH
IR Support: 20-60kHz
Transmission Medium: IEC C6
- Chipset: ITE
Housing Material: Metal
Operating Temperature: 32^ - 104^ (90^ - 219^)
Storage Temperature: -4^ - 104^ (25°F - 219°F)
Humidity: 20 -90% RH (non-condensing)
Power Requirements: 100-240VAC 50/60Hz
Power Consumption: Transmitter - 3.4W, Receiver - 3.5W
Colour: Black
Human body model - ± 8kV (Air-gap discharge) & ± 4kV (Contact discharge)

Connectors

Transmitter Input: HDMI Type A (Female)
Transmitter Output: HDMI Type A (Female), 3.5mm IR (Female), IEC C6 (Male)
Receiver Input: 3.5mm IR (Female), IEC C6 (Male)
Receiver Output: HDMI Type A (Female)
Power:IEC C6 (Male)

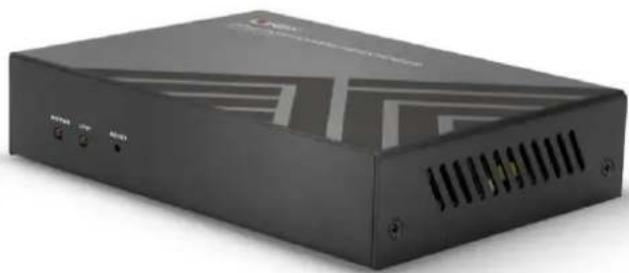

Product Diagram

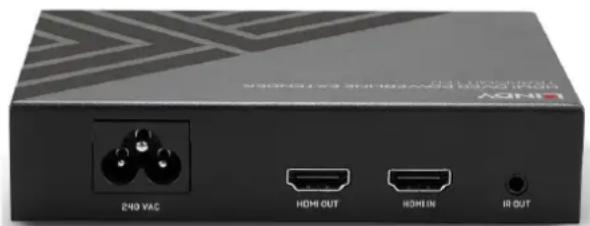

Transmitter

Power LED: This LED will illuminate when transmitter is connected to a power source.

Link LED: The LED will flash quickly to indicate pairing has been successful. This LED will illuminate intermittently 3 times to indicate pairing has been unsuccessful.

Reset Button: Push for 3 seconds to reset the transmitter to default settings.

240VAC: Connect to a 100-240VAC power source using the included AC cable.

HDMI Out: Connect to a local HDMI display.

IR Out: Connect the IR emitter cable for control of the HDMI source device and place the IR eye in clear line of sight of the source device's IR receiver.

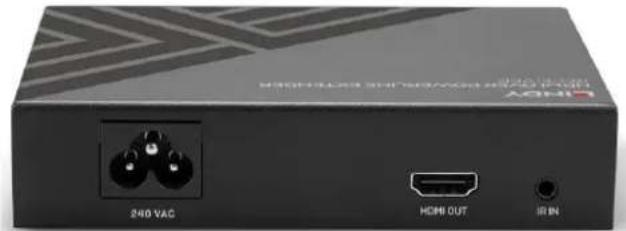

Receiver

Power LED: This LED will illuminate when the receiver is connected to a power source.

Link LED: The LED will flash quickly to indicate pairing has been successful. This LED will flash slowly to indicate pairing has been unsuccessful.

Reset Button: Short press to copy the EDID of the display to the source device connection. Press and hold for 3 seconds to restore the transmitter to default settings.

240VAC: Connect to a 100-240VAC power source using the included AC cable.

HDMI Out: Connect to an HDMI display.

IR In: Connect the IR receiver cable to transmit IR control signals from the display side.

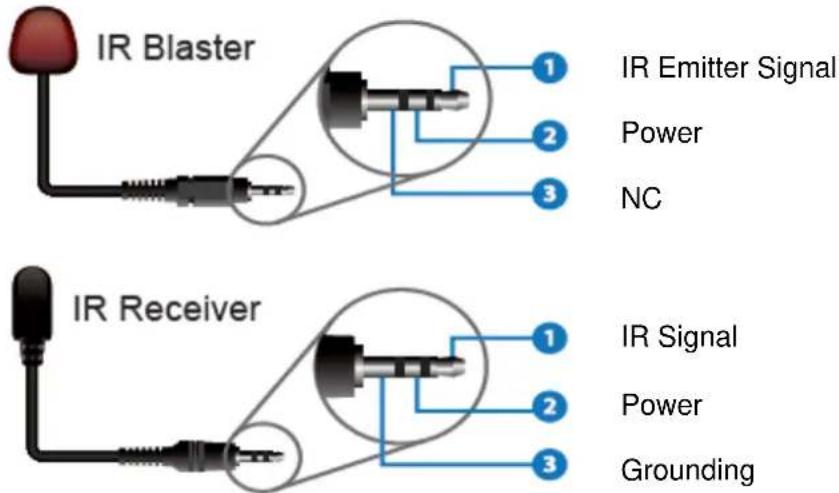

IR Pin Diagram

Sicherheitshinweise

! GEFAHR!

GEFAHR
GEFAHR EINES STROMSCHLAGS

Spezifikationen

LINDY declares that this equipment complies with relevant European CE requirements.

LINDY declares that this equipment complies with relevant UKCA requirements.

FCC Certification

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

You are cautioned that changes or modification not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

The enclosed power supply has passed Safety test requirements, conforming to the US American versions of the international Standard IEC 60950-1 or 60065 or 62368-1.

WEEE (Waste of Electrical and Electronic Equipment), Recycling of Electronic Products

Europe, United Kingdom

In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of all waste electrical and electronic equipment. It is no longer allowable to simply throw away electrical and electronic equipment. Instead, these products must enter the recycling process.

Each individual EU member state has implemented the WEEE regulations into national law in slightly different ways. Please follow your national law when you want to dispose of any electrical or electronic products. More details can be obtained from your national WEEE recycling agency.

Tested to comply with FCC standards. For home and office use.

No.38225_7

nd Edition, January 2021
