USER MANUAL PURITY C500 MinUp BRITA

1 Definition of Terms
2 General Information
3 Operating and Safety Instructions
4 Installation
5 Changing the Filter Cartridge
6 By-Pass and Capacity Tables

7 Repair
8 Troubleshooting
9 Technical Data
0 Information for Australian market

Français Page 30-38

Filter Heads PURITY C 0-70% with variable by-pass

*available only in Spain, France and Italy

Kombidämpfer und Backöfen / Combi ovens and conventional ovens /Fours vapeur et fours traditionnels / Combi-steamers en bakovens / Sistemi di cottura a vape combinati e forn di cottura / Hornos a vapor combinados y hornos convenciones / Parniki i piekarniki / Kombidampere og bageovne / Napokohbektomatbyи Илье CTmepbl

°dH (°KH) Recommended by-pass setting		PURITY C Quell ST - Filter capacity in litre
		C25* C50	C150 C300	C$00	C1100
4	10%	403	1100	2759	4583	7792	13177
5	10%	403	1100	2759	4583	7792	13177
6	10%	403	1100	2759	4583	7792	13177
7	10%	346	943	2365	3929	6679	11295
8	10%	303	825	2069	3438	5844	9883
9	10%	269	733	1839	3056	5194	8785
10	10%	242	660	1656	2750	4675	7906
11	10%	220	600	1505	2500	4250	7188
12	10%	202	550	1380	2292	3896	6589
13	10%	186	508	1273	2115	3596	6082
14	10%	173	471	1183	1964	3339	5647
15	10%	161	440	1104	1833	3117	5271
16	10%	151	413	1035	1719	2922	4941
17	10%	142	388	974	1618	2750	4651
18	10%	134	367	920	1528	2597	4392
19	10%	127	347	871	1447	2461	4161
20	10%	121	330	828	1375	2338	3953
21	10%	115	314	788	1310	2226	3765
22	10%	110	300	753	1250	2125	3594
23	10%	105	287	720	1196	2033	3438
24	10%	101	275	690	1146	1948	3294
25	10%	97	264	662	1100	1870	3163
26	10%	93	254	637	1058	1798	3041
27	10%	90	244	613	1019	1731	2928
28	10%	86	236	591	982	1670	2824
29	10%	83	228	571	948	1612	2726
30	10%	81	220	552	917	1558	2635
31	10%	78	213	534	887	1508	2550
32	10%	76	206	517	859	1461	2471
33	10%	73	200	502	833	1417	2396
34	10%	71	194	487	809	1375	2325
35	10%	69	189	473	786	1336	2259

*available only in Spain, France and Italy

Filterköppe PURITY C 0 % und PURITY C 30 % mit fest eingestelltem Verschnitt Filter Heads PURITY C 0 % and PURITY C 30 % with fixed by-pass
Têtes de filtré PURITY C 0 % et PURITY C 30 % à by-pass fixe
PURITY C 0 % en PURITY C 30 % filterkoppen met vaste bypass
Teste del filtro PURITY C 0 % e PURITY C 30 % con regolazione fissa del by-pass
Cabezas filtrantes PURITY C 0 % y PURITY C 30 % con mezcla ajustada fija
Glowice filtrów PURITY C 0 % oraz PURITY C 30 % ze stałym obejsciem
Filterhoveder PURITY C 0 % og PURITY C 30 % med fast indstillet blanding
Головные часту сильстros capин PURITY C c bypass 0 % и сикробаньим by

Verschnitt 0% / By-pass 0% / By-pass 0% / Bypass 0% / by-pass 0% / mezcla 0% / Obejscie 0% / Blanding 0% / Bypass 0%

°dH (°KH) Recommended by-pass setting		PURITY C Quell ST - Filter capacity in litre
		C25* C50	C150 C300	C500 C1100
4	0%	367	1000	2508	4167	7083	11979
5	0%	367	1000	2508	4167	7083	11979
6	0%	367	1000	2508	4167	7083	11979
7	0%	314	857	2150	3571	6071	10268
8	0%	275	750	1881	3125	5313	8984
9	0%	244	667	1672	2778	4722	7986
10	0%	220	600	1505	2500	4250	7188
11	0%	200	545	1368	2273	3864	6534
12	0%	183	500	1254	2083	3542	5990
13	0%	169	462	1158	1923	3269	5529
14	0%	157	429	1075	1786	3036	5134
15	0%	147	400	1003	1667	2833	4792
16	0%	138	375	941	1563	2656	4492
17	0%	129	353	885	1471	2500	4228
18	0%	122	333	836	1389	2361	3993
19	0%	116	316	792	1316	2237	3783
20	0%	110	300	753	1250	2125	3594
21	0%	105	286	717	1190	2024	3423
22	0%	100	273	684	1136	1932	3267
23	0%	96	261	654	1087	1848	3125
24	0%	92	250	627	1042	1771	2995
25	0%	88	240	602	1000	1700	2875
26	0%	85	231	579	962	1635	2764
27	0%	81	222	557	926	1574	2662
28	0%	79	214	538	893	1518	2567
29	0%	76	207	519	862	1466	2478
30	0%	73	200	502	833	1417	2396
31	0%	71	194	485	806	1371	2319
32	0%	69	188	470	781	1328	2246
33	0%	67	182	456	758	1288	2178
34	0%	65	176	443	735	1250	2114
35	0%	63	171	430	714	1214	2054

*available only in Spain, France and Italy

Verschnitt 30% / By-pass 30% / By-pass 30% / Bypass 30% / by-pass 30% / mezcla 30% / Obejscie 30% / Blanding 30% / Bypass 30%

°dH (°KH) Recommended by-pass setting		PURITY C Quell ST - Filter capacity in litre
		C25* C50	C150 C300	C500 C1100
4	30%	508	1386	3476	5774	9815	16600
5	30%	508	1386	3476	5774	9815	16600
6	30%	508	1386	3476	5774	9815	16600
7	30%	436	1188	2979	4949	8413	14228
8	30%	381	1039	2607	4330	7362	12450
9	30%	339	924	2317	3849	6544	11066
10	30%	305	831	2086	3464	5889	9960
11	30%	277	756	1896	3149	5354	9054
12	30%	254	693	1738	2887	4908	8300
13	30%	235	640	1604	2665	4530	7661
14	30%	218	594	1490	2474	4207	7114
15	30%	203	554	1390	2310	3926	6640
16	30%	191	520	1303	2165	3681	6225
17	30%	179	489	1227	2038	3464	5859
18	30%	169	462	1159	1925	3272	5533
19	30%	160	438	1098	1823	3100	5242
20	30%	152	416	1043	1732	2945	4980
21	30%	145	396	993	1650	2804	4743
22	30%	139	378	948	1575	2677	4527
23	30%	133	361	907	1506	2561	4330
24	30%	127	346	869	1443	2454	4150
25	30%	122	333	834	1386	2356	3984
26	30%	117	320	802	1332	2265	3831
27	30%	113	308	772	1283	2181	3689
28	30%	109	297	745	1237	2103	3557
29	30%	105	287	719	1195	2031	3434
30	30%	102	277	695	1155	1963	3320
31	30%	98	268	673	1118	1900	3213
32	30%	95	260	652	1083	1840	3112
33	30%	92	252	632	1050	1785	3018
34	30%	90	245	613	1019	1732	2929
35	30%	87	238	596	990	1683	2846

*available only in Spain, France and Italy

PURITY C Finest

Verschnitt- und Kapazitätstabellen / By-pass and capacity tables / Tableau de réglage by-pass et de détermination de la capacité / Bypass- en capaciteitstabellen / Tabelle del by-pass e della capacité / Tablas de mezcla y capacité / Tabele obejsć i wydajnosci / Blandings- og kapacitetstabeller / Tablina pécuρcob φильтра и настpoек bypass

Filter Heads PURITY C 0% with fixed by-pass

ToJIOBhIe YacTn cHJIbTpOB cepH N PURITY C 0% c cHKcHpOBAHHbIM bypass

The bypass position can be adjusted to the local water quality or the machine type. The following recommendations for bypass settings apply by default:

Position 0: All devices in areas with an extremely high water hardness level (CH ≥ 22 °dH)

Position 1: Combi ovens and conventional ovens with direct injection system

Position 2: Combi ovens and conventional ovens with boiler system

Position 3: All devices in soft water areas (CH ≤ 7 °dH)

You can obtain individual recommendations from your BRITA contact. Operation of filter only with PURITY C Steam filter head.

PURITY C Steam - Filter capacity in litre
°dH(Carbonate hardness)	PURITY C500 Steam PURITY C1100			Steam
	By-pass setting By-pass setting
	0 1/2 3 0	1/2 3
4	7083	7792	8677	11980	13178	14676
5	7083	7792	8677	11980	13178	14676
6	7083	7792	8677	11980	13178	14496
7	6071	6679	7438	10269	11295	12425
8	5313	5844	6508	8985	9884	10872
9	4722	5194	5785	7987	8785	9664
10	4250	4675	5206	7188	7907	8697
11	3864	4250	4733	6535	7188	7907
12	3542	3896	4339	5990	6589	7248
13	3269	3596	4005	5529	6082	6690
14	3036	3339	3719	5134	5648	6212
15	2833	3117	3471	4792	5271	5798
16	2656	2922	3254	4493	4942	5436
17	2500	2750	3063	4228	4651	5116
18	2361	2597	2892	3993	4393	4832
19	2237	2461	2740	3783	4161	4578
20	2125	2338	2603	3594	3953	4349
21	2024	2226	2479	3423	3765	4142
22	1932	2125	2366	3267	3594	3953
23	1848	2033	2264	3125	3438	3782
24	1771	1948	2169	2995	3295	3624
25	1700	1870	2083	2875	3163	3479
26	1635	1798	2002	2765	3041	3345
27	1574	1731	1928	2662	2928	3221
28	1518	1670	1859	2567	2824	3106
29	1466	1612	1795	2479	2726	2999
30	1417	1558	1735	2396	2636	2899
31	1371	1508	1679	2319	2551	2806
32	1328	1461	1627	2246	2471	2718
33	1288	1417	1578	2178	2396	2636
34	1250	1375	1531	2114	2326	2558
35	1214	1336	1488	2054	2259	2485

PURITY C AC

The PURITY C1000 AC filter system has a filter capacity of 10.000 litres, irrespective of carbonate-hardness and the by-pass proportion setting. All the intake water is filtered.

PURITY C Fresh

The PURITY C50 Fresh filter system has a filter capacity of 15.000 litres, irrespective of carbonate-hardness and the by-pass proportion setting. All the intake water is filtered.

PURITY C MinUp

The PURITY C500 MinUp has a capacity of 30.000 litres, irrespective of carbonate-hardness and with a by-pass setting of 0% . All the intake water is filtered.

PURITY C XtraSafe

For PURITY C1100 XtraSafe please use the BRITA Professional Filter Service App for individual capacity calculation:

1.) Please select PURITY C1100 XtraSafe in the BRITA App
2.) Enter locally measured Carbonate Hardness, Total Hardness and Conductivity
3.) Important: Set the by-pass accordingly, track the individually calculated capacity and change the cartridge in time! All the intake water is filtered.

Note: All stated capacities were tested and calculated based on standard application and machine conditions. This information may vary according to external influencing factors (for example, fluctuating water quality and/or machine type).

1 Begriffsübersicht

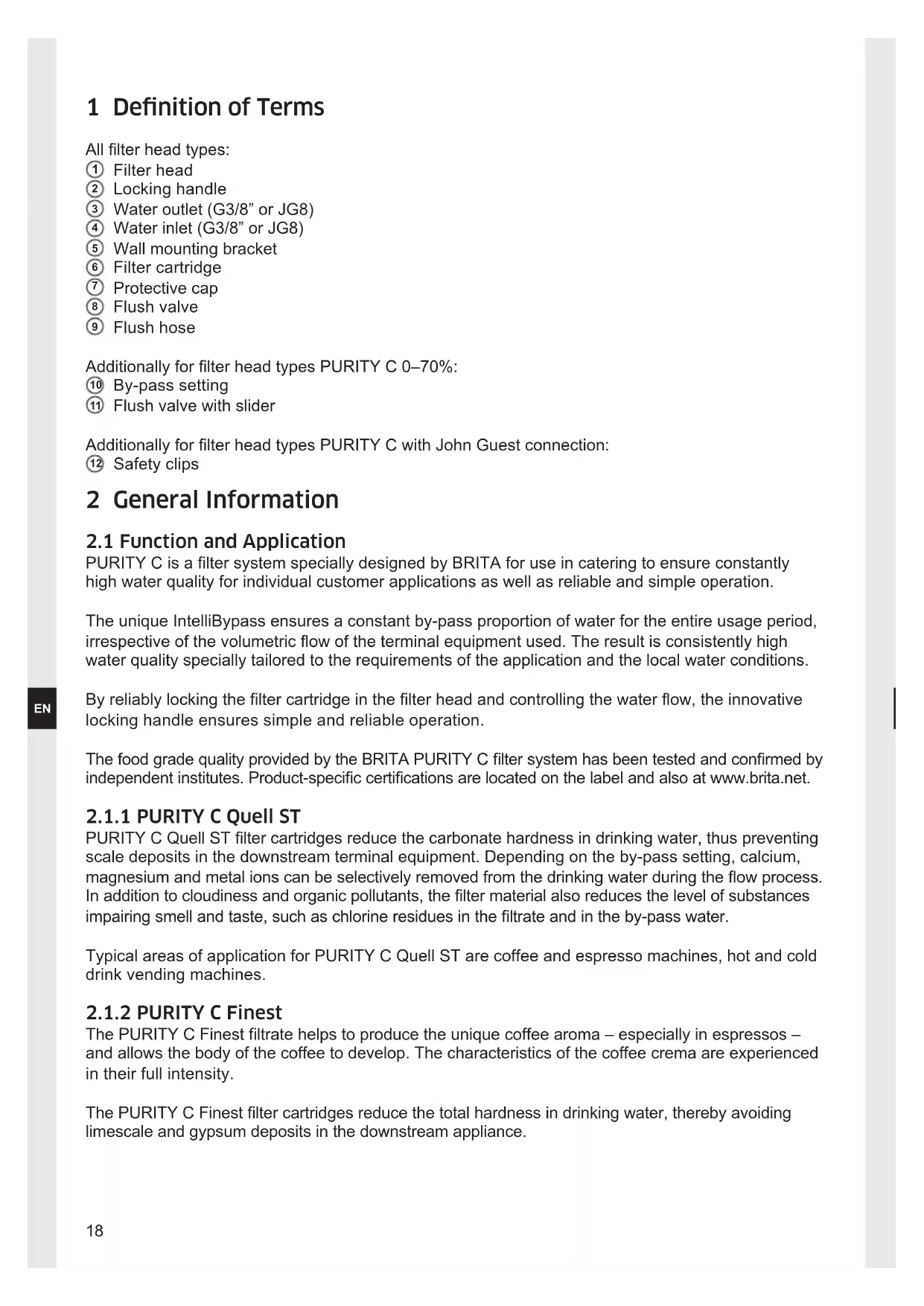

1 Definition of Terms

All filter head types:

① Filter head
② Locking handle
③ Water outlet (G3/8" or JG8)
Water inlet (G3/8" or JG8)
⑤ Wall mounting bracket
⑥ Filter cartridge
⑦ Protective cap
⑧ Flush valve
9 Flush hose

Additionally for filter head types PURITY C 0-70%

10 By-pass setting
⑪ Flush valve with slider

Additionally for filter head types PURITY C with John Guest connection:

① Safety clips

2 General Information

2.1 Function and Application

PURITY C is a filter system specially designed by BRITA for use in catering to ensure constantly high water quality for individual customer applications as well as reliable and simple operation.

The unique IntelliBypass ensures a constant by-pass proportion of water for the entire usage period, irrespective of the volumetric flow of the terminal equipment used. The result is consistently high water quality specially tailored to the requirements of the application and the local water conditions.

By reliably locking the filter cartridge in the filter head and controlling the water flow, the innovative locking handle ensures simple and reliable operation.

The food grade quality provided by the BRITA PURITY C filter system has been tested and confirmed by independent institutes. Product-specific certifications are located on the label and also at www.brita.net.

2.1.1 PURITY C Quell ST

PURITY C Quell ST filter cartridges reduce the carbonate hardness in drinking water, thus preventing scale deposits in the downstream terminal equipment. Depending on the by-pass setting, calcium, magnesium and metal ions can be selectively removed from the drinking water during the flow process. In addition to cloudiness and organic pollutants, the filter material also reduces the level of substances impairing smell and taste, such as chlorine residues in the filtrate and in the by-pass water.

Typical areas of application for PURITY C Quell ST are coffee and espresso machines, hot and cold drink vending machines.

2.1.2 PURITY C Finest

The PURITY C Finest filtrate helps to produce the unique coffee aroma - especially in espressos - and allows the body of the coffee to develop. The characteristics of the coffee crema are experienced in their full intensity.

The PURITY C Finest filter cartridges reduce the total hardness in drinking water, thereby avoiding limescale and gypsum deposits in the downstream appliance.

Calcium, magnesium and metal ions are selectively removed from the drinking water using the flow method.

The filter material not only reduces cloudiness and organic pollutants, but also the level of substances that impair the smell and taste, such as chlorine residues in the filtrate.

The PURITY C Finest is typically used in coffee and espresso machines.

Caution: The PURITY C Finest is not suitable for use with combi ovens and conventional ovens. Operation is not recommended in combination with domestic water-softening systems. PURITY C Finest cartridges must be operated with a by-pass setting of 0% .

2.1.3 PURITY C Steam

The BRITA PURITY C Steam water filter system optimises tap water specially for combi ovens and conventional ovens. It decarbonates drinking water, thereby reducing scale deposits in and on the terminal equipment. Depending on the by-pass setting, calcium and magnesium ions as well as metal ions such as lead and copper are selectively removed from the drinking water. In addition, the filter material not only reduces turbidity and organic impurities but also substances that impair smell and taste, such as chlorine. The by-pass setting, which is specially designed for combi ovens and conventional ovens, matches the reduction in the carbonate hardness to the local water hardness in order to achieve an optimum filtrate quality. The increased flow and the reduced pressure loss enable the smooth operation of the combi oven.

2.1.4 PURITY C Fresh

In addition to minimising cloudiness and organic pollutants, PURITY C50 Fresh filter cartridges reduce substances that impair taste and smell in drinking water, such as chlorine and chlorine compounds.

Particles that impair system functionality are trapped. The PURITY C50 Fresh filter system was developed especially for enhancing the taste and freshness of water for coffee, espresso and vending machines.

2.1.5 PURITY C AC

The PURITY C1000 AC filter cartridge reduces cloudiness, organic pollutants as well as the level of substances impairing smell and taste, such as chlorine residues. The filter material retains particles down to a size of 0.5 m .

Typical areas of application for PURITY C1000 AC are vending machines and on-tap watercoolers.

2.1.6 PURITY C MinUp

The PURITY C500 Minup is used in combination with BRITA PROGUARD Coffee or in soft water areas in combination with a PURITY C Quell ST pre-filter, both with by-pass setting of 0% .

2.1.7 PURITY C XtraSafe

The BRITA PURITY C1100 XtraSafe water filter system optimises tap water specially for coffee and vending machines as well as for combi ovens and conventional ovens in gypsum and corrosive water areas.

With complete desalination of drinking water, it is reducing scale and gypsum deposits and risk of corrosion in and on the terminal equipment. Calcium and magnesium ions, chlorides and sulphates as well as metal ions such as lead and copper are selectively removed from the drinking water. In addition, the filter material not only reduces turbidity but also substances that impair smell and taste, such as chlorine.

The recommended by-pass setting, which is specially designed for Coffee and Steam applications, matches the reduction in electrical conductivity in order to achieve an optimum filtrate quality and to protect the machines. The increased flow and the reduced pressure loss enable the smooth operation of the combi oven. The PURITY C1100 XtraSafe filter cartridge must be replaced once the filter capacity calculated individually in the BRITA App has been reached, in accordance with manufacturer's specifications or no later than 12 months after commissioning, whichever occurs first. For tracking, the usage of a BRITA FlowMeter is highly recommended.

Coffee & Vending: Filter head:		Individual by-pass recommendation in BRITA App
Coffee and espresso machines/Vending machines	Filter Heads PURITY C 0-70 % with variable by-pass	40% / 30%
Operation of filter only with PURITY C 0-70 % filter head.

Steam: Filter head:		Recommended by-pass setting
Combi ovens and conventional ovens Filter Heads PURITY C Steam 0-3 with variable by-pass 2
Operation of filter only with PURITY C Steam filter head.

2.2 Warranty Provisions

The PURITY C filter system is subject to the statutory warranty of 2 years from date of purchase. A warranty claim may only be asserted if all instructions in this manual are followed and observed.

2.3 Storage/Transport

Adhere to the ambient conditions for storage and transport detailed in the technical data (Chapter 9).

The manual should be seen as part of the product and kept for the whole service life of the filter system and passed on to subsequent owners.

2.4 Recycling/Disposal

The packaging material is suitable for recycling and can be reused. Please dispose of all materials in accordance with local regulations.

BRITA takes back used filter cartridges for recycling at the addresses listed on the back of the cover, or the cartridges can be disposed of according to local regulations.

If you decide not to return the filter cartridges, please dispose of all materials in accordance with local regulations.

3 Operating and Safety Instructions

3.1 Qualified Personnel

Installation and maintenance of the filter system shall only be carried out by trained and authorised personnel.

3.2 Correct Use

Perfect and safe operation of the product is subject to the installation, use and maintenance described in this manual. Only use filter cartridges intended for use with your filter system.

3.3 Liability Exclusion

Installation and cartridge exchanges must be performed precisely in accordance with the instructions in this manual. BRITA shall not be held liable for any damage, including subsequent damage, arising from the incorrect installation or use of the product.

3.4 Specific Safety Information

• Water used as intake water for the PURITY C water filter system must be of drinking water quality. The BRITA water filter system is only suitable for cold water use within the water intake temperature range stated in Chapter 9.
• If there are official instructions to boil tap water, the filter system must be decommissioned. When the requirement to boil water comes to an end, the filter cartridge must be replaced and the connections cleaned.
• It is generally recommended to boil tap water for certain groups of people (e.g. people with weakened immune systems, babies). This also applies to filtered water.
• Note for people with kidney disease or dialysis patients: During the filter process the potassium levels may increase slightly. If you suffer from kidney disease and/or have to stick to a special potassium diet, we recommend you consult your doctor beforehand.
• The water filtrate is classified in Category 2 according to EN 1717.
• BRITA recommends not to decommission the filter system for long periods. If the BRITA PURITY C filter system is not used for several days, we recommend that the filter system be flushed with the volume of water indicated in the table below.

Filter cartridge Flushing volume after	2-3 days stagnation	Flushing volume after 4 weeks stagnation
PURITY C25* 1.4 litres 14 litres
PURITY C50 2 litres 20 litres
PURITY C150 3 litres 30 litres
PURITY C300 6 litres 60 litres
PURITY C500 10 litres 100 litres
PURITY C1100 18 litres 180 litres
PURITY C1000 AC 1 litre 10 litres
PURITY C500 MinUp	0 litres 0 litres

*available only in Spain, France, Italy

• The filter system must not be opened or dismantled during operation. The filter cartridge must not be opened.
  Production date

Production code – filter head – example: H 9375 01381
9	Production year, this example: 2019
37	Production week, this example: calendar week 37
5	Production day from Monday (1) to Friday (5); this example: Friday
01381	Serial identification number

Production code filter cartridge – example: B9224350010
9	Production year, this example: 2019
22	Production week, this example: calendar week 22
4	Production day from Monday(1) to Friday (2), this example: Thursday
35	Internal Identification No. of filter medium this example: No. 35
0010	Consecutive number of the filter cartridge, this example the tenth cartridge; reset the day changes

3.5 Technical Safety Assembly Instructions

• The appliance in which the filter is used must be free of limescale and gypsum deposits prior to installation.
• Protect the filter system from sunlight and mechanical damage. Do not assemble near sources of heat and open flames.
• A stop valve must be installed before the filter system inlet hose.
  If the water pressure is greater than 8.6 bar, a pressure reducer must be installed in front of the filter system.
• When choosing the material for parts that come into contact with water after the BRITA filter system, it is important to remember that, due to the process, decarbonised water contains free carbon dioxide. For this reason, only materials that are compatible with free carbon dioxide must be used. We recommend the use of BRITA hoses.
• All parts must be installed in accordance with the country-specific guidelines on the installation of drinking water facilities.

4 Installation

Caution: Prior to installation, read the technical data (Chapter 9) and the operating and safety information (Chapter 3). After storage and transport below 0^ , the product must be stored in the open original packaging for at least 24 hours before it is commissioned at the stated ambient temperatures (Chapter 9) for operation.

4.1 Assembling the filter head, water connection

• Close the water intake and switch off the power supply to the end device
• Fit the wall mounting bracket ⑤ in the intended position.*

Caution: When fitting the bracket, note the installation dimensions, bending radii of the hoses and dimensions of the accessories (e.g. BRITA FlowMeter). When using the wall mount, install vertically only! The PURITY C1100 cannot be installed using the wall mounting bracket.

• Fit the hoses to the water inlet "IN" ④ and outlet "OUT" ③ on the filter head ①.
• Use flat seals for G3/8" connections. For John Guest connections, use hoses with a diameter of 8 mm. In the case of John Guest connections, the two safety clips ⑫ must be inserted after fitting the hose.

Caution: The tightening torque at G3/8" connections must not exceed 14 Nm! Only hose connections with flat seals may be used, as hoses with conical screw connections damage the connections on the filter head and invalidate any warranty claim! We recommend the use of BRITA hoses.

• When using PURITY C 0–70 % filter heads, check by-pass setting (set to 30 % at the factory) and if necessary adjust this setting to the local carbonate hardness (PURITY C Quell ST) (chapter 4.2).
• When using PURITY C Steam filter heads, check by-pass setting (set to 1 at the factory) and if necessary adjust this setting (chapter 4.2).

• Lock the filter head ① in the wall mounting bracket ⑤.

• PURITY C Steam filter head is delivered without wall mounting bracket.

4.2 By-pass setting for and capacity of PURITY C variable filter heads

• Determine the carbonate hardness for PURITY C Quell ST and PURITY C Steam cartridges or total hardness (for PURITY C Quell ST and PURITY C Steam cartridges) of the local water by performing the BRITA carbonate hardness test or total hardness test (for PURITY C Finest cartridges). Alter - natively, your local water supplier will be able to provide information on the local water hardness.
• Determine the by-pass setting and capacity in line with the application and the carbonate and/or total hardness identified using the by-pass and capacity table (pages 2-7).
• Then turn the by-pass setting to the identified value.
  To ensure precise and continuous control of the degree of filter cartridge exhaustion, it is recommended to install the BRITA FlowMeter.
  Note: With PURITY C Finest, PURITY C50 Fresh and PURITY C1000 AC filter cartridges, all of the intake water is filtered. The filter cartridge can be used with filter heads that have a variable or fixed by-pass. The by-pass that may be set in the filter head is not taken into account.

4.3 Inserting the filter cartridge

• Pull the flap of the protective cap ⑦ upwards and remove the protective cap.
  Note the next exchange date in the date field on the filter cartridge 6.
• Insert the filter cartridge 6 in the filter head 1 in a vertical position.

Caution: The filter cartridge can only be inserted when the locking handle is open. Make sure that the filter cartridge is positioned correctly.

• Turn the locking handle ② until you feel it engage.

4.4 Commissioning

• Open the water intake and switch on the terminal equipment's power supply.
• Operate the flush valve ⑧ and flush the filter system until the filtered water runs clear and without bubbles. At least two empty filter cartridge volumes must be flushed (Chapter 9). Note: When bleeding/flushing, catch water emerging from the flush hose ⑨ in an appropriate container.
• Check system for any leaks.

5 Changing the Filter Cartridge

The PURITY C filter cartridge must be replaced once the stated capacity has been reached (see Chapter 6), in accordance with manufacturer's specifications or no later than 12 months after commissioning, whichever occurs first.

Caution: When changing a filter, examine all remaining parts carefully! Faulty parts must be replaced and contaminated parts should be cleaned! Read the operating and safety information (Chapter 3) before changing the cartridge. After storage and transport below 0^ , the product must be stored in the open original packaging for at least 24 hours before it is commissioned at the stated ambient temperatures (Chapter 9) for operation.

Note: When the locking handle is open, the water supply to the cartridge is interrupted and short-circuit operation with direct water flow from the water inlet 4 to the water outlet 3 is possible (if necessary, close water intake and switch off power supply to the terminal equipment).

• Open locking handle ②.
• Activate the flush valve ⑧ and depressurise the system.
• Remove exhausted filter cartridge ⑥ from the filter head ①, bearing in mind the weight of the cartridge.

Note: The filter cartridge can be pivoted by 90^ in the wall mounting bracket for easy removal.

• Perform the steps described at 4.3 and 4.4.

6 By-Pass and Capacity Tables

The capacity tables for the PURITY C Quell ST, PURITY C Finest and PURITY C Steam filter systems are provided on pages 2-7.

The PURITY C1000 AC and PURITY C50 Fresh filter systems have a filter capacity of 10,000 and 15,000 litres respectively, regardless of the carbonate hardness and the by-pass set. All intake water is filtered.

The filter system PURITY C500 MinUp has a capacity of 30,000 litres, irrespective of carbonate hardness and with a by-pass setting of 0% . All the intake water is filtered.

For PURITY C1100 XtraSafe please use the BRITA Professional Filter Service App for individual capacity calculation:

1.) Please select PURITY C1100 XtraSafe in the BRITA App
2.) Enter locally measured Carbonate Hardness, Total Hardness and Conductivity
3.) Important: Set the by-pass accordingly, track the individually calculated capacity and change the cartridge in time!

Note: The stated capacities were tested and calculated based on standard application and machine conditions. This information may vary according to external influencing factors (for example fluctuating water quality and/or machine type).

7 Repair

Regularly check the filter system for leaks. Regularly check the hoses for kinks.

Bent hoses must be replaced.

The complete filter system must be replaced in rotation after a maximum of ten years from date of purchase. The hoses must be replaced in rotation after a maximum of five years.

Caution: Before replacing filter systems or hoses, read the technical data (Chapter 9) and the operating and safety information (Chapter 3).

Regularly clean the outside of the filter system with a soft, damp cloth.

Caution: Do not use any abrasive chemicals, cleaning solutions or astringent cleaning agents.

8 Troubleshooting

8.1 No water flow

Cause: Water intake closed.

Troubleshooting: Open the water intake at the upstream stop valve or by closing the locking handle ② on the filter head ①

8.2 No or low water flow in spite of open water intake

Cause: Mains pressure too low.

Troubleshooting: Check mains pressure. If the fault persists, check the filter system and filter cartridge and replace if necessary.

Cause: Filter head not mounted in direction of flow.

Troubleshooting: Dismantle filter head and install in direction of flow (Chapter 4).

8.3 Leak

Cause: Screwed connections not fitted correctly.

Troubleshooting: Check mains pressure. Check all screwed connections and mount according to Chapter 4. If the fault persists, replace filter system.

9 Technical Data

		PURITY C filter system with filter cartridge
Operating pressure 2 bar to max. 8.6 bar
Water intake temperature 4 °C to 30 °C
Ambient temperature during	operation 4 °C to 40 °C
	storage/transport -20 °C to 50 °C
Water inlet and outlet connection "G3/8" or John Guest 8 mm
Filter system		C25 Quell ST	C50 Quell ST	C150 Quell ST	C300 Quell ST	C500 Quell ST	C1100 Quell ST
Flow rate with 1 bar pressure loss		160 l/h	160 l/h	145 l/h	140 l/h	140 l/h	150 l/h
Nominal flow 30 l/h 60 l/h 60 l/h 60 l/h 100 l/h		100 l/h
Pressure loss at nominal flow		0.1 bar	0.25 bar	0.25 bar	0.25 bar	0.5 bar	0.5 bar
Empty filter cartridge volume		0.85 l	1 l	1.9 l	2.9 l	5.4 l	8.7 l
Weight	dry	0.8 kg	1.0 kg	1.8 kg	2.8 kg	4.6 kg	7.7 kg
	wet	1.2 kg	1.6 kg	2.8 kg	4.2 kg	6.9 kg	12.5 kg
Dimensions (Width/Depth/Height)	Filter system (filter head with filter cartridge)	119 mm/108 mm/219 mm	119 mm/108 mm/268 mm	117 mm/104 mm/419 mm	125 mm/119 mm/466 mm	144 mm/144 mm/557 mm	184 mm/184 mm/557 mm
	Filter cartridge	108 mm/108 mm/210 mm	108 mm/108 mm/259 mm	104 mm/104 mm/410 mm	119 mm/119 mm/457 mm	144 mm/144 mm/548 mm	184 mm/184 mm/548 mm
	Installed dimensions (vertical installation with wall mounting bracket)	137 mm/130 mm/219 mm	137 mm/130 mm/268 mm	137 mm/128 mm/419 mm	137 mm/136 mm/466 mm	144 mm/148 mm/557 mm	-
Operating position		Horizontal or vertical

		PURITY C filter system with filter cartridge
Operating pressure 2 bar to max. 8.6 bar
Water intake temperature 4 °C to 30 °C
Ambient temperature during	operation 4 °C to 40 °C
	storage/transport -20 °C to 50 °C
Water inlet and outlet connection "G3/8" or John Guest 8 mm
Filter system		C150 Finest	C300 Finest	C500 Finest	C1100 Finest	C500 Steam	C1100 Steam
Flow rate with 1 bar pressure loss		145 l/h	140 l/h	140 l/h	150 l/h	300 l/h	300 l/h
Nominal flow		60 l/h		100 l/h
Pressure loss at nominal flow		0.25 bar		0.5 bar		0.1 bar	0.2 bar
Empty filter cartridge volume		1.9 l	2.9 l	5.4 l	8.7 l	-	-
Weight	dry	1.8 kg	2.8 kg	4.6 kg	7.7 kg	4.6 kg	7.7 kg
	wet	2.8 kg	4.2 kg	6.9 kg	12.5 kg	6.9 kg	12.5 kg
Dimensions (Width/Depth/Height)	Filter system (filter head with filter cartridge)	117 mm/104 mm/419 mm	125 mm/119 mm/466 mm	144 mm/144 mm/557 mm	184 mm/184 mm/557 mm	144 mm/144 mm/557 mm	184 mm/184 mm/557 mm
	Filter cartridge	104 mm/104 mm/410 mm	119 mm/119 mm/457 mm	144 mm/144 mm/548 mm	184 mm/184 mm/548 mm	144 mm/144 mm/548 mm	184 mm/184 mm/548 mm
	Installed dimensions (vertical installation with wall mounting bracket)	137 mm/128 mm/419 mm	137 mm/136 mm/466 mm	144 mm/148 mm/557 mm	-	144 mm/148 mm/557 mm	-
Operating position		Vertical				Horizontal or vertical

		PURITY C filter system with filter cartridge
Operating pressure 2 bar to max. 8.6 bar
Water intake temperature 4 °C to 30 °C
Ambient temperature during	operation 4 °C to 40 °C storage/transport -20 °C to 50 °C
Water inlet and outlet connection G3/8" or John Guest 8 mm
Filter system		C50 Fresh	C1000 AC	C500 MinUp	C1100 XtraSafe
Flow rate with 1 bar pressure loss		160 l/h	140 l/h	-	300 l/h
Nominal flow		60 l/h	30-180 l/h*	20 l/h	100 l/h
Pressure loss at nominal flow		0.25 bar	0.2-1.4 bar*	0.1 bar	0.2 bar
Empty filter cartridge volume		1 l	0.23 l	5.4 l	8.7 l
Weight	dry	0.8 kg	0.5 kg	7.6 kg	7.7 kg
	wet	1.7 kg	1.0 kg	10.1 kg	12.5 kg
Dimensions (Width/Depth/Height)	Filter system (filter head with filter cartridge)	119 mm/108 mm/268 mm	109 mm/93 mm/238 mm	144 mm/144 mm/557 mm	184 mm/184 mm/557 mm
	Filter cartridge	108 mm/108 mm/259 mm	88 mm/88 mm/231 mm	144 mm/144 mm/548 mm	184 mm/184 mm/548 mm
	Installed dimensions (vertical installation with wall mounting bracket)	137 mm/130 mm/268 mm	137 mm/120 mm/238 mm	144 mm/148 mm/557 mm	-
Operating position		Horizontal or vertical		Vertical	Vertical
Nominal capacity		-	10,000 l	-	-
Chlorine reduction DIN EN 14898		-	>90 %	-	-
Chlorine reduction NSF 42		-	Class I (50 %)	-	-
Particle retention NSF 42		-	Class I (0.5 μm)	-	-

• Working flow range and associated pressure loss: 30-180 l/hr/0.2-1.4 bar

Information for Australian market / PERFORMANCE DATA SHEET

Manufacturer Seller

BRITA GmbH BRITA Water Filter Systems

Heinrich-Hertz-Str. 4 Distributors Pty Ltd

65232 Taunusstein Unit 522 Narabang Way

Germany Belrose, NSW, 2085

[phone] Australia

Tel [phone]

Fax [phone]

www.britacom.au

PRODUCTS

Water Filter Systems

PURITY C50 Quell ST PURITY C150 Quell ST PURITY C300 Quell ST

Filterhead 0-70% G3/8" Filterhead 0% G3/8" Filterhead 30% G3/8"

PURITY C500 Quell ST PURITY C1100 Quell ST PURITY C500 Steam

PURITY C1100 Steam PURITY C500 Finest

USE GUIDELINES

Minimum operating pressure: 2 bar
Maximum operating pressure: 8.6 bar
- Do not allow exposure to temperatures below 4^
Maximum operating temperature: 30^
- Nominal flow rates: PURITY C50 Quell ST (60 l/h), PURITY C150 Quell ST (60 l/h), PURIT C300 Quell ST (60 l/h), PURITY C500 Quell ST (100 l/h), PURITY C1100 Quell ST (100 l/h), PURITY C50 Fresh (60l/h), PURITY C500 Finest (100 l/h), PURITY C500 Steam (100l/h), PURITY C1100 Steam (100l/h)
- This system must be installed according to local plumbing codes on the cold water line.
- Replacement Cartridges PURITY C50 Quell ST Pack 1, PURITY C150 Quell ST Pack 1, PURITY C300 Quell ST Pack 1, PURITY C500 Quell ST Pack 1, PURITY C1100 Quell ST Pack 1, PURITY C1000 AC Pack 1, PURITY C50 Fresh Pack 1, PURITY C500 Finest Pack 1
- This system requires regular replacement of the filter cartridge to maintain proper operation. Varying scale, chlorine, sediment, or organic substance levels may affect replacement frequency.
- Be sure to change the filter cartridge at least as indicated in the capacity table (refer to your Instruction Guide) or annually, whichever occurs first, or whenever you detect a change in taste, odour, or a decrease in flow.
- Please ensure that a backflow prevention device, meeting the requirements of AS/NZS 3500.1, is installed on the water supply inlet to the filter unit
Caution: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

SUBSTANCE REDUCTION

The above listed Water Filter Systems have been tested and certified under NSF/ANSI 42 for reduction of chlorine, taste and odour. The performance of this product has been verified and substantiated as the test data summarised below indicates. These substances may not be in your water.

Test Data for PURITY C50 Quell ST

Substance Guidelines Average	Influent Concentration	Maximum Effluent Concentration	Minimum Percent Removal	Average Effluent Concentration	Average Percent Removal
Chlorine	NSF/ANSI 42	2.11 mg/l	0.40 mg/l	81.0%	0.24 mg/l

*Test Data for PURITY C150 Quell ST

Substance	Guidelines Average	Influent Concentration	Maximum Effluent Concentration	Minimum Percent Removal	Average Effluent Concentration	Average Percent Removal
Chlorine	NSF/ANSI 42	2.11 mg/l	0.40 mg/l	81.0%	0.24 mg/l	88.7%

*Test Data for PURITY C300 Quell ST

Substance Guidelines Average	Influent Concentration	Maximum Effluent Concentration	Minimum Percent Removal	Average Effluent Concentration	Average Percent Removal
Chlorine	NSF/ANSI 42	2.11 mg/l	0.40 mg/l	81.0 %	0.24 mg/l

Test Data for PURITY C500 Quell ST

Substance Guidelines Average	Influent Concentration	Maximum Effluent Concentration	Minimum Percent Removal	Average Effluent Concentration	Average Percent Removal
Chlorine	NSF/ANSI 42	2.1 mg/l	0.31 mg/l	85.2%	0.25 mg/l
					88.6%

**Test Data for PURITY C1100 Quell ST

Substance G	Guidelines Average	Influent Concentration	Maximum Effluent Concentration	Minimum Percent Removal	Average Effluent Concentration	Average Percent Removal
Chlorine	NSF/ANSI 42	2.1 mg/l	0.31 mg/l	85.2%	0.25 mg/l	88.6%

Test Data for PURITY C500 Finest

Substance G	Guidelines Average	Influent Concentration	Maximum Effluent Concentration	Minimum Percent Removal	Average Effluent Concentration	Average Percent Removal
Chlorine	NSF/ANSI 42	2.0 mg/l	ND (0.05 mg/l) (not detectable)	97.4 %	ND(0.05 mg/l) (not detectable)	>97.5%

Test data for PURITY C1100 Finest

Substance Guidelines Average Influent Concentration			Maximum Effluent Concentration	Minimum Percent Removal	Average Effluent Concentration	Average Percent Removal
Chlorine	NSF/ANSI 42	2.0 mg/l	ND (0.05 mg/l) (not detectable)	97.4 %	ND(0.05 mg/l) (not detectable)	>97.5%

Test data for PURITY C500 Steam

Substance	Guidelines	Average Influent Concentration	Maximum Effluent Concentration	Minimum Percent Removal	Average Effluent Concentration	Average Percent Removal
Chlorine	NSF/ANSI 42	2.1 mg/l	0.31 mg/l	85.2%	0.25 mg/l	88.6%

**Test data for PURITY C1100 Steam

Substance	Guidelines	Average Influent Concentration	Maximum Effluent Concentration	Minimum Percent Removal	Average Effluent Concentration	Average Percent Removal
Chlorine	NSF/ANSI 42	2.1 mg/l	0.31 mg/l	85.2%	0.25 mg/l	88.6%

Test Data for PURITY C1000 AC

Substance	Guidelines Average	Influent Concentration	Maximum Effluent Concentration	Minimum Percent Removal	Average Effluent Concentration	Average Percent Removal
Chlorine	NSF/ANSI 42	2.1 mg/l	0.05 mg/l	97.4 %	0.05 mg/l	97.6 %

Test Data for PURITY C50 Fresh

Substance G	Guidelines Average	Influent Concentration	Maximum Effluent Concentration	Minimum Percent Removal	Average Effluent Concentration	Average Percent Removal
Chlorine	NSF/ANSI 42	2.0 mg/l	ND (0.05 mg/l) (not detectable)	97.4 %	ND(0.05 mg/l) (not detectable)	>97.5%

• Values calculated on basis of the C50
  ** Values calculated on basis of the C500

Testing Conditions:

Flow Rate: 0.25 GPM pH: 7.5 + / - 0.5

Pressure: 60 + / - 3 psgi Temperature: 20 + / - 3^

Refer to your Instruction Guide for more specific product and warranty information and to avoid contamination from improper handling and installation. Performance will vary based on local water conditions. The substances reduced by this product are not necessarily in your water.

Buyer's Signature Date Seller's Signature Date

This appliance meets the domestic water treatment appliance Standards AS/NZS 3497 and AS/NZS 4348 for the following water treatment process:

Class	Treatment type	Function	Pass
I Microbiological Status	Bacteriostatic	Will stop bacteria increasing	N/A
II Microbiological Treatment
Bacteria removal	Virus removal	Will remove or inactivate bacteria	N/A
Protozoa removal	Protozoa removal	Will remove or inactivate virus	N/A
		Will remove or inactivate Crypto-sporidium and Giardia	N/A
III Turbidity and particulate reduction	Reduces cloudiness	N/A
IV Taste and odour reduction	Reduces tastes and odours	✓
V Chemical treatment	Decreases chlorine	✓

LEGEND:

= pass

N/A = Not Applicable

1 Éléments

200-500 mg/L Carbonio organico totale (TOC): ≥ 1.0 mg/L

Cloro Libero Disponibile (FAC): 2mg / L± 0.2mg / L

Torbidity: < 1 NTU

DOnonHnTeJIbHaonZnIg rONOBhIX YacTeNΦnBtpoB cepm
PURITY C c coeHHeHnMy John Guest:
12ΦHKcnpyUOuNE KNNcbI

2 Obuine cBeHnna

2.1 Ha3naYeHne n o6JaCTn npImeHeHHa

CnCTemaФиьтраци PURITY C pa3pa6oTana KOMmaHne BRITA cpeuaJIbHO ДЯ рпIMeHЯ B INdycTpIn OБшecTBeHHOrO ПИТAHЯ ДЯ OBeCpeHЯ NOCToHNO BbICOKOrO KaYeCTBa BObl Y INdINBnDyaJIbHbIX NOTpe6uTeJe. 3Ta cnCTema XapaKTePn3yETcЯ pOcTOToI N HAdEKeHocTbIO B 3KcnPlnyaTaUHN.

YHnkaJIbHOe ycIpoIcTBo IntelliBypass o6ecneuBaET NOCTOaHHyIO npONOpUIO CMeunBaHn BObl B TeueHne BCero Cpoka 3KcNpyaTaUN OINbTpA, He3aBNCIMo OT O6bema paCXoJa BObl NOTpe6JIauOUM O6OpUdoBaHNem. B pe3yIbTaTe 3TOrO NODepXnBAeTCBbICOKoe KaueCTBO BObl, CNEuaJIbHO aADANTIpOBaHHOe K YCNOBnM pIPmHeHn I COCTABY MeCTHOI BObl.

HnHOaOnHHa 6IokpyoJag pyKoTka fNtpa oecneuBaet npocToTy n 6e3OnacHocTb 3KcNpyatauHaedxHou KCaun CMeHHoro KapTpndKa B rOIOBHO uactn fNtbp Ta n ynpabNeHIO NOTOKOM BObl.

CoBmecTmocTb cnCTembl fuiIbTaqun BRITA PURITY C c nIuIeBbIMn npOdyKTamn npOBepena I IOdTBepKdEHa He3aBucMbIMn IHCTTuTyTam. CeTpUΦnKauaqna I3dJIy yka3aHa Ha 3tIKKeTke, a TAKKe Ha caTe www.brita.net.

2.1.1 ΦильтpbI PURITY C QueII ST

Финьтуюше картуджи PURITY C Quell ST chnkaot karbohaTHyO JecTKoCTb (KH) nITbeBOI BOIOPOBOHOBODbl,пeДOTBpaaTЯ Tem camblm obpa3OBaHne N3BecTKOBbIX OTLOXeHn B NOTpe6bIAUOMobopydOBAHN.ВЗвсIMOCtno T NaTpoiKn BYass IOHb KaIbZuR,MarHry n MTeaIIIOB MOryt 6bIT bYbOpOuHO ydaJIeHbI n3 NITbeBOI BObl B npOceCE φnIbTPaCIn.ПOMIMO 3TOrO φnIb-TPyIOuM MaTePnaI CHnKaET MyTHocTb, copeKHaHne OprAHNuYeCKx 3aIrp3HeHn, a TaKke npImeCeN, yxuduaOuNX BKc n 3anax, TAKnx KAc XnOp, B φnIbTpate N B BoDE bypass.

TINHbIMn 6nactm npimeHeHHaJIbTpOB PURITY C Quell ST JABJHOcKoΦemaunHbI, BEHNHOBbie ATOMaTBI DJI XOLOdHbIX IN TROPYHX HAnNTKOB.

2.1.2 Φιλυτρ PURITY C Finest

ФиьтpoBaHHa BODa ФиьТpa PURITY C Finest, no3BONЯТ npriROTOBnTB KoPe C yHnKaJIbHbIM apomatom (ocObeHHO 3cnpecco), n rIy6OKm NOJHOTeNbIM BKycom. KpeMa Ha KoPe nOlyuAIOrTa IILOTHbIe N HacblIeHHbIe.

Фиьт PURITY C Finest yMehbwaet obujo xecTKoCTb (GH) nTbeBOB BODonpoBOHO Bdbl, Tem camblm NCKIOUaB BO3MOXHOCTb Opa3OBaHnI IN3BeCTKObIX, I INICOBbIX OTIOXeHn B notpe6JIouem o6opydoBaHnI.

B npocece npoteKaHnI n3 nITbeBOB BODbl n3bnpaTeJbHO n3BNeKaIOTcN OHbl KaJIbCuIy mArHnI, a TaKKe IOHbI MeTaJIla.

Boonee Toro, MaTePnAn nIbTpA cHnXaET He ToIbKO MyTHOCTb N CopeKHaHne OprAHnuecknx 3aIrp3HeHn, Ho I yPoBeHb BeUeCTB, KOTOpBle yXyDuaHT Bkyc N 3aIax BoIb, TaKnx KaK OCTaToHbI Xnop, B nIbTpate N B BoDe bypass.

Фильtp PURITY C Finest obiyuH noIcnoIb3yeTcЯ ДЯ KoФeMaunH.

BhMaHne: pNbTp PURITY C Finest He noDxOaNT dIy nCNoIb3oBaHna C napOKOBeKToMaMn INbIMn CTmepamn. He peKomeHdyetcA kCNpyataun A pTa c nCnoIb3oBaHneM Bobl OT yMaRHTeJI (T.e. ycTaHOBka nocJe yMaRHTeJI). KapTpIaXn PURITY C Finest naJnxit 3kCnPyATnpOBaTb c HacTPOkOcmseuBaHna 0 %.

2.1.3 Φιλβτρ PURITY C Steam

Фильър-cистema BRITA PURITY C Steam cneцально педна3нayehа Для поготьк Ворпобуновьддя Трашионьхи кombи-пech. Oha DekapboHn3npyet Body,чTo ChixkaeT obpa3obahne hakinHa harpeBaTeNBbIX 3Iementax obopydoBAnHry.ВЗвicmocTN OT hactpoiKn bypass, nohbl kaJIbuzny MaHnna, a TAKKe IOHbI MeaJIIOB (CBINca n Medn) n3bnpaTeNbHO ydaJIyTOrC n3 NITbEBOB BObl. ПOMMIMO 3TOrO, Фильъруюшу МATEрuaN CnCTeMbI He ToJbKO ChnxkaeT CTENEHb MYTHOCTN BObl n KOJIuYeCTBO opraHueCKNX npIMCeH, Ho n ydaJIaR eBESeCTBa, OKa3blBAIOUne BIIIAHNe Ha 3anax n BKyc, takne kak xIop. Cneцальho pa3pa6oTaHHa HacTpOyka bypass DnA DYXOBOK n KOMB-Neey obecneuHBaET CHIXKeHne Kap6oHaTHOJ XeCTKoCTN nCNoJIb3yEmoB BObl DO ONTImaIbHoro ypOBnY. YBeJIuYeHHa CkOpOCTb NOTOKa n CHIXeHHoe NaJeHne DaBJIeHnO obecneuBaOT bcsepe6oHyO 3KcPnPyatauHIO KOMB Neey.

2.2「apaHTnHbIe 06aTeIbCTBa

Ha qnIbtpbl cepnn PURITY C pacnpocpaHareTc npedymotpeHHa 3aKOHm rapaHTncaPOKOM OINH roC daTbI NOKyPkN. IapaHTnHbIe Tpe6oBaHn npHHMaOTcT oTbKO pni ycNOBnco6JIHOENn NOJb3OBaTeJeM Bcex yka3aHn HacToaero PykoOdCTBa.

2.3 XpaHeHne n TpaHcnOpTnpoBka

CobioaTe ycnoBna xpaHEnn I TpaHCnOpTnpOBKn, yka3aHHbIe B pa3dene 9 «TexHnueckne napametpbI».

ДанhoePykoBoDCTBO NO 3KcNpyaTaun CneDyET paccMaTpNBaTb KaK Yactb N3dEInn I XpaHnTbe O B TeueHne BCero Cpoka Cnyk6bl ΦnIbTp-CnCTEmbl, a B Cnyae CMeHb BlaJeNbUa - NepeDaTbeero CneDyuOuem BynaDeBtu.

2.4 Nepepa60ka / YtJn3auia

YnakoBouHbIM MaTePnaJI npriroDeH IJIЯ NOBTOpHOrO nCNoJIb3OBaHnIy. Bce MaTePnaJIbI DOJXHbI 6bITb yTnIN3InPOBaHbI B COOTBeTCTBmN C MeCTHbIM 3aKHOJaTeJIbCTBOM. Otpa6oTaBUne CMeHHbIe KApTpIaIXn yTnIN3InpyuTe, NoXaJyNCtA, corJaCHO MeCTHbIM HOpMaTINBbIM IpabUHaM.

3 HctpyKuHn no 3KcNpyatauHn 6e3onacHOCTn

3.1 KBaIInΦIuPObaHHbI nepcoHaJI

YCTAHOBKoIbTp-CnCTeMbI I ee TexHnueckm O6cnykBaHneM DOJKeH 3aHMaTbcKOMTeHThBn I yNoJIHOMOeHHBn NepcoHaJ.

4.3 MoHTaX CMeHHoro KapTpnuJa

• NtaryHb HAKnAdKy 3aunTHoro KOJNaUka ⑦ BBepx, ChrTb 3aunTHbI KOJNaQK.
  BnHInTe DaTy CneIyIOuei 3aMeHbI KapTpIgKa B CneuaJIbHOe None Ha qinbTpIyIOueM KapTpIgXe 6.
  BCTaBBTe CMeHHbI KApTpNIX 6B RONOBHyO Yactb QnJIbTpa 1 BEPTKJaJIbHO.

BHMaHne: KapTpIxK BO3MOXHO yCTaHOBTb TOnbKO TOrda, KOrda 6nOKpyUOa pyKoTka ② Ha roJIOBHOu actn fNtpa OTKpbIta.

Tenepb noBepHnTe 6JokpyuOyU pyKoAry ② do ynpa.

4.4 BbOdB 3KcNpyTaunIO

6 Ta6nucbI pecypcoB qnlbtpoB n Hactpoek bypass

BHMaHHe: He nCnOJIb3yIte arpeCCNBHbIe XIMNKaTbI, pactBOpNTeIN, a6pa3NBbIe N BxKyUne. YNCTAUNe CpeDCTBa.

8 YcTpaHHe HEnCnpaBHOCTeI

[e-mail]

www.brita.co.uk

BRITA Italia S.r.l.

Via Zanica, 19K

1-24050 Grassobbio (BG)

tel: [phone]

fax: [phone]

[e-mail]

www.brita.it

BRITA GmbH

Offic e Netherlands

PL-05-850Ozarow Mazowiecki

tel [phone]

fax [phone]

[e-mail]

www.brita.pl

BRITA Iberia, S.L.U.

C/ Valencia 307 2^ - 4^a

E - 08009 - Barcelona

Tel. [phone]

Fax. [phone]

[e-mail]

www.profesional.brita.es

BRITA Wasser

Filter-Systeme AG

Gassmatt 6

CH-6025 Neudorf/LU

Tel [phone]

Distributors Pty Ltd

Level 9, 123 Epping Road,

North Ryde, NSW, 2113, Australia

Tel [phone]

Fax [phone]

[e-mail]

www.britacom.au

BRITA Professional Filter Service

Download our free of charge mobile app - An end-to-end digital tool for professional water filtration

for iOS and Android or use it as web app in the browser.

For the web app please visit: https://professional.brita.net/app

ACS conform

□A股（含H股）股东登记表
