Brand	Klarstein
Model	Taste Volcano
Product type	Grill plate with raclette function
Article number	10030307
Power supply	220-240 V ~ 50-60 Hz
Power	1500 W
Dimensions (approx.)	Approx. 35 x 25 x 15 cm (estimate)
Weight (approx.)	Approx. 2.5 kg (estimate)
Main functions	Grilling, raclette, steam cooking with lid
Included accessories	Raclette pans, wooden spatula, cooking lid with hooks
Plate material	Non-stick coating
Drip tray capacity	Max. 400 ml of liquid
Safety	Automatic shut-off not specified, but requires unplugging after use
Care and cleaning	Clean the base with a damp sponge; accessories washable in soapy water; do not immerse
Repairability	Do not repair yourself; contact manufacturer or professional for damaged cable
Intended use	Household use only

Frequently Asked Questions - Taste Volcano Klarstein

How to use the appliance for the first time?

Before first use, heat the appliance empty for 10-15 minutes at maximum power to remove production residues. Let it cool down, clean it, then it is ready to use.

How much liquid can be put in the lid's drip tray?

Do not pour more than 400 ml of liquid (broth, water) into the drip tray to avoid overflow.

How to clean the cooking lid?

Let the lid cool completely, then wash it with warm soapy water using a dish brush. Be careful of sharp hooks.

Can I use metal utensils on the plate?

It is better to use wooden or heat-resistant plastic utensils to avoid scratching the non-stick coating. Metals can damage it.

What to do if the appliance emits an odor during first use?

This is normal: it is the protective film burning. Ventilate the room and let the appliance heat empty for 10-15 minutes. The smell will disappear.

How to turn off the appliance safely?

Turn the control knob to MIN, the indicator light goes out. Then unplug the plug from the socket to prevent accidental restart.

Can I use the appliance outdoors or near flammable materials?

No. Use the appliance only indoors, on a stable and heat-resistant surface, at least 50 cm away from any flammable object.

How to prepare meat for the lid with hooks?

Cut the meat or vegetables into thin slices about 1 cm thick and 1 cm wide. Spear them well onto the hooks so they do not fall into the broth.

Do the raclette pans need to be greased?

No, thanks to the non-stick coating, it is not necessary to grease them at every use. A light initial greasing is sufficient.

What to do in case of a damaged power cord?

The cable must be replaced by the manufacturer, an authorized specialist, or a qualified person. Do not attempt to repair it yourself.

USER MANUAL Taste Volcano Klarstein

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

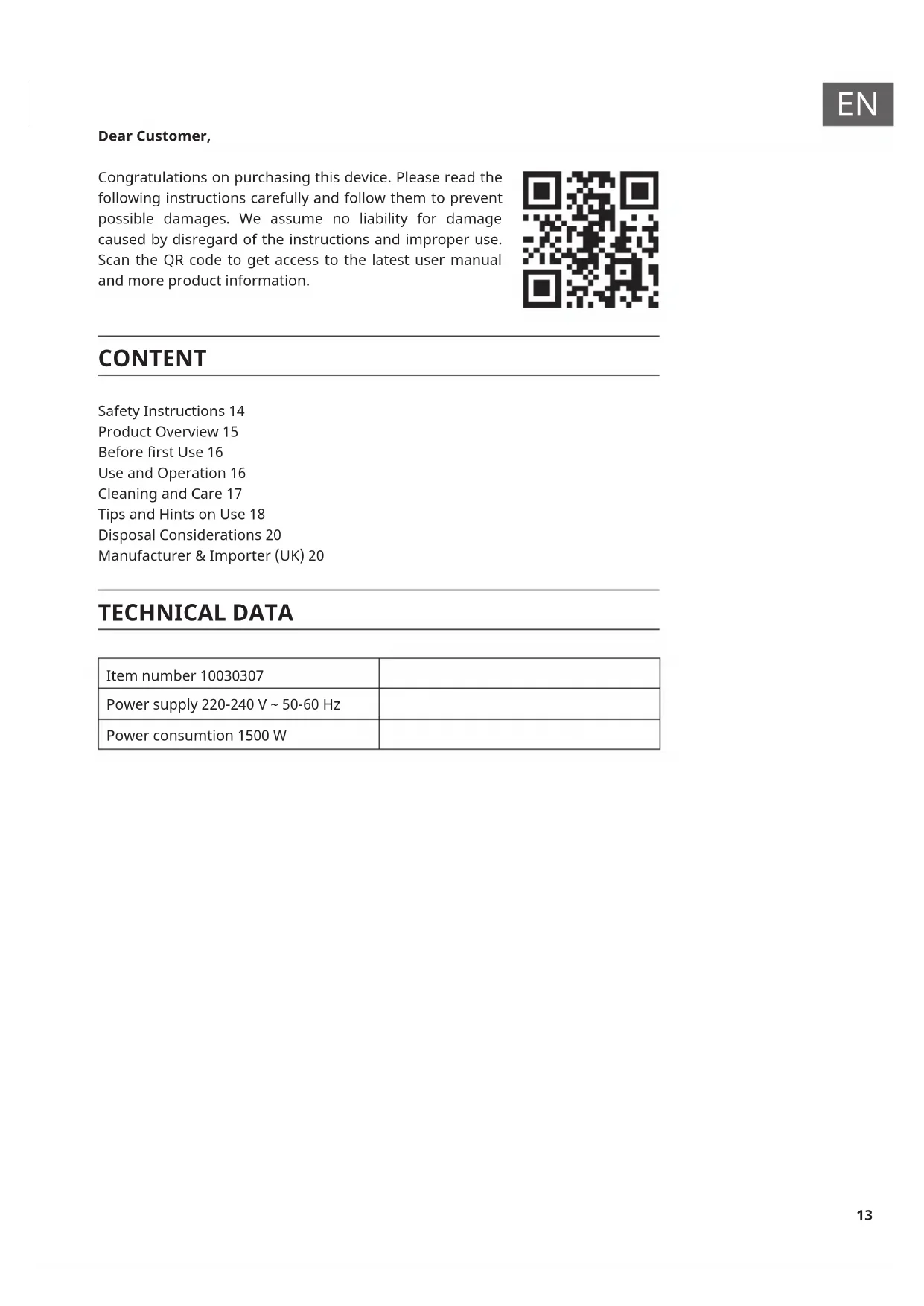

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 14

Product Overview 15

Before first Use 16

Use and Operation 16

Cleaning and Care 17

Tips and Hints on Use 18

Disposal Considerations 20

Manufacturer & Importer (UK) 20

TECHNICAL DATA

Item number 10030307
Power supply 220-240 V ~ 50-60 Hz
Power consumption 1500 W

SAFETY INSTRUCTIONS

• Children are not aware of the dangers of electrical appliances. Never leave the appliance unattended during use. Therefore always keep the appliance outside the reach of children.
• The appliance is only suitable for household use. Never use the appliance outdoors.
• Certain parts of the appliance may become hot during use. Refrain from touching these areas so as not to burn yourself.
• Make sure that the appliance and the power cable never come into contact with hot devices such as hotplate or naked flames.
• Do not allow the power cable to hang down over the edge of the sink, worktop or table.
• Make sure your hands are dry when you touch the appliance, the power cable or the plug.
• Never submerge the appliance in water or another liquid.
• The appliance needs to dissipate its heat in order to prevent fire. Therefore it is vital to make sure that the appliance has sufficient clearance on all sides and cannot come into contact with flammable materials. The appliance may not be covered up.
• Do not use the appliance near explosives or flammable materials.
• Do not use a metal scouring pad to clean the appliance. Fragments of metal could come loose and touch the appliance's electrical parts causing it to short circuit.
• Always switch the appliance off if: it malfunctions while you are using it, before you start maintenance, if you fit or remove accessories and if you unplug the appliance.
• Only use an extension cord that is in good condition.
• Never switch the appliance off by pulling the cable.
• Always engage a recognised, trained service engineer if the appliance or the cable is damaged, malfunctions
  have occurred and/or the appliance requires repairs.
• Carrying out your own or having inexpert repairs carried out can cause considerable danger for the user.
• We accept no liability for damage caused by incorrect usage or the ignoring of the regulations in this manual.
• When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
• Children should be supervised to ensure that they do not play with the appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

CAUTION

Risk of burns! The temperature of accessible surfaces may be high when the appliance is operating. Do not touch them.

BEFORE FIRST USE

During manufacture, many parts are given a thin film of protective oil. before using the appliance for the first time, heat it up without any food so that any residues can evaporate.

Note: When heating up for the first few times a slight smell may be produced, make sure the room is adequately ventilated.

1. Take the appliance and all the accessory parts out of the packaging.
2. Check that the appliance shows no signs of damage
3. Remove any labels or stickers (but not the type plate on the underside)
4. Clean the appliance before using it for the first time.
5. Select a location that is firm, level and not flammable. Maintain a distance of approx. 50cm from other objects
6. Make sure that the knob is on "MIN" position before plug in. Check that the supply voltage is 220-240V~50/60Hz.
7. Turn knob on Max FOR around 10-15 minutes
8. Turn knob on Min and take out the mains plug and allow the appliance to cool down.
9. Clean the appliance again.

USE AND OPERATION

Preparing the appliance, move on and off

1. Select a location that is firm, level and not flammable. Maintain a distance of approx. 50~cm from other objects
2. Lightly grease raclette pans on the inside and grill cover on the top. Warning: The hooks on grill cover are very sharp. Be careful not to injure yourself on them and use a pastry brush slightly moistened with edible oil.
3. Pour a little stock into the edge of grill cover.the grill cover may be filled with a maximum of 400ml of liquid.
4. Insert the mains plug into a suitable wall socket which complies with technical data.
5. Turn on knob to Max, the indicator is red and appliance heats up.

6. Allow the appliance to heat up for around 10 minutes. The appliance is now ready to use.

7. Turn off the appliances, the indicator light is off.

8. Remove the plug from the wall socket after use. This is the only way to ensure that the appliance is completely deenergized.

Preparing the raclette.

1. Fill raclette pans with your chosen ingredients. Caution: Do not over fill raclette pans, otherwise the ingredients might get too close to heating element and burn.
2. Put raclette pans in the positions provided for this purpose.
3. Remove raclette pans from the appliance as soon as the ingredients are cooked.
4. Slide the contents of the raclette pans onto a plate using the wooden spatulas and enjoy. Note: As raclette pans have a non stick coating, they don't need to be regreased before each new portion.

Grilling and cooking with grill cover

A wide variety of foods such as meat, fruit and vegetables can be grilled and cooked using grill cover.

CLEANING AND CARE

• Remove the plug from the mains socket before starting to clean the appliance.
• Never immerse the appliance in water, and protect it from splashes and water droplets.
• Before cleaning, allow the appliance to cool down to avoid the risk of burns.
• Never use abrasive, corrosive or scratching cleaning material. These might damage the appliance and the non stick coating of grill cover and raclette pan.
• Do not wait too long to wash after cooling so that the food remains do not dry on and become difficult to remove.

Cleaning the base section.

• Clean base with a damp cloth. A little washing-up liquid may also be used.
• Wipe off with fresh water.
• Do not use the machine again until it is fully dry.

Cleaning the grill cover and accessory

To avoid the risk of injury of scalds:

• When moving grill cover, ensure that no hot stock slips over leading to scalds.
• It is important to allow grill cover to cool down adequately
• When cleaning grill cover take care not to injure yourself on the sharp hooks.
• It is best to use a washing-up brush.
• When drying up grill cover, take care not to injure yourself on the sharp hooks, proceed with particular caution
• Wash grill cover, raclette pan and wooden spatulas by hand in hot washing-up water
• If heavily soiled, leave parts to soak in warm water for about 20-30 minutes. You could add a few drops of washing-up liquid
• Carefully dry all parts after cleaning.
• It is normal if the metal parts become yellowish after long-time use.

TIPS AND HINTS ON USE

How to use the Grill Cover

CAUTION

Risk of injury! The hooks on grill cover are very sharp. Be careful not to injure yourself on them. The grill cover gets very hot. Be careful not to burn yourself on it.

• Spear the prepared thin slices of meat, fruit or vegetables on the hooks of grill cover.
• As the juices escape from the meat, they run down into the groove containing the stock to form an aromatic meat stock.
• Carefully turn the slices from time to time.
• As soon as the slices are cooked, you can take them off and eat them.
• Place chopped vegetables for boiling, rather than grilling, in the edge of grill cover. These are then cooked gently in the liquid.
• Note: Ensure that there is always enough liquid in the edge of the grill cover. Top up with some prepared stock if necessary. The grill cover 2 may be filled with a maximum of 400ml of liquid.

Tips on using the Grill Cover

• Where possible, prepare all the ingredients before the meal, but do not wash and cut them too early, so as to keep them fresh.
• Do not place the ingredients too close to the appliance, as it gives off a lot of heat and the ingredients are supposed to stay fresh.
• Cut ingredients to be cooked on grill cover in to this slices.
• Chopped ingredients should be cut to roughly the same sizes, so that they cook in around the same time.
• If the ingredients are not properly speared on the hooks, they may drop into the hot stock. The hot stock might them splash, leading to scalds.

Important Hints on Kitchen Utensils

• If you are using tongs or other utensils, ensure that they are made of wood or heat-resistant plastic if at all possible.
• When using metal cutlery or other items, avoid damage to the surface coating in particular.

Preparing Ingredients for the Grill Cover

• Pour prepared stock into the edge of grill cover. The grill cover may be filled with maximum of 400ml of liquid.
• Prepare ingredients for cooking in the edge of grill cover by cutting them to the appropriate size: Dice with edges about 2 cm long; Strips about 1 cm wide; Slices about 1 cm thick.
• How you cut the individual ingredients to size depends on the ingredients in the question and on your personal taste.
• Use ingredients with short cooking times where possible. Vegetables like broccoli, mushrooms or bell peppers are especially suitable for cooking in the edge of grill cover.
• You can also part-cook vegetables in advanced.

How to use the Raclette

The basic recipe for raclette is a few thin slices of boiled potato topped with vegetables, meat or sausage, finished with a slice of cheese. Feel free to experiment with any recipe ideas you have. Season and flavor your dishes to taste.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
